USER MANUAL Bolero CoolMarket FD 499 E CECOTEC

Exterior view of two modern stainless steel refrigerator units against a dark blue background (no text or symbols visible)

bolero

Safety instructions 11

1. Parts and components 80

2. Before use 80

3. Assembling the appliance 81

4. Operation 82

5. Cleaning and maintenance 87

6. Troubleshooting 88

7. Technical specifications 90

8. Disposal of old electrical and electronic appliances 92

9. Technical support and warranty 92

10. Copyright 92

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• To avoid food contamination, please follow the instructions below:
• Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.
• Regularly clean food contact surfaces and accessible drainage systems.

• If the freezer appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.

• WARNING: when positioning the appliance, make sure the power cable does not get trapped or damaged. A crushed or damaged connector may heat up and cause a fire.

• Make sure the appliance plug is accessible after installation.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.
• WARNING: keep the ventilation grilles on the enclosure of the appliance or the cabinet in which the appliance is located clear.
• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not use electrical appliances inside the refrigerator.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.
• WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.
• Do not place carbonated beverages in the freezer compartment. Ice cream can cause "freezer burns". This can happen if they are ingested after removal from the freezer.
• Do not remove items from the freezer with wet/moist hands, as this may cause skin abrasions or "frostbites". Bottles and

cans should not be placed in the freezer, as they may burst when their contents freeze.

• Frozen food can cause ice burns if consumed right after removing it from the freezer compartment.
• See the storage times recommended by the manufacturer.
• Do not allow children to play with the controls or the freezer. The appliance is a heavy appliance. Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.
• WARNING: doors or covers fitted with locks and keys must be kept out of the reach of children and not in the vicinity of the freezing appliance to prevent children from being locked inside.
• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.
• Keep the packaging material away from children, as there is a risk of suffocation.
• WARNING: if the interior light is damaged,

contact the official Cecotec Technical Support Service. Do not try to repair it by yourself.

• Make sure the appliance plug is accessible after installation.
• Do not place food directly against the air outlet on the interior of the appliance.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Keep the ventilation openings clear from obstructions.

• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.

• Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.

• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place any other appliance on the refrigerator and do not wet it.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Do not use the appliance outdoors or in damp environments.
• Always handle the appliance carefully to avoid any damage on it.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
• The two-star compartments are suitable for storing pre-frozen food, storing, or making ice cream, and making ice cubes.
• Compartments with one, two, or three stars are not suitable for freezing fresh food.
• Air must flow around the appliance. Lack of air leads

to overheating. To achieve good ventilation, follow the installation instructions.

• Make sure the power cord is accessible after installation.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.

Temperature range

The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate range Optimum room temperature

SN From +10 °C to +32 °C

N From +16 °C to +32 °C

ST From +16 °C to +38 °C

T From +16 °C to +43 °C

WARNING: if the refrigerator is operated outside the climate class for which it is rated (SN/N/ST/T), it may not be able to maintain satisfactory internal temperatures.

Note:

- Bearing in mind the limiting values of the room temperature range for the climates for which the cooling appliance is designed and that internal temperatures may be affected by factors such as the location of the cooling appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature-control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Cooling

• This refrigerator uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.
• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.
• This symbol means: Warning: Risk of fire/flammable materials
• If the refrigeration circuit is damaged:
• Avoid open flames and sources of ignition.
• Completely air the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

Bolero CoolMarket FD 499 Inox E

Bolero CoolMarket FD 499 Dark E

ESPAÑOL

Referencia 01955 01956
Modelo Bolero CoolMarket	FD 499Inox E	Bolero CoolMarket FD 499Dark E
Código QR
Voltaje nominal 220-240 V
Frecuencia nominal 50 Hz
Corriente nominal 1,2 A
Clase climática SN/N/ST/T (*)
Refrigerante R600a/66g
Espuma aislante Ciclopentano

A. Refrigerator compartment

1. Door shelves
2. Glass shelves
3. Crisper drawer

B. Freezer compartment

1. Crisper drawer

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

- This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

- This refrigeration appliance is not suitable for built-in installation.

- Remove all packaging, including the plastic protection on the bottom of the appliance and the adhesive tape securing the shelves.

- Place the refrigerator in a suitable position and adjust the feet to level it. It is recommended to clean the appliance with a cloth dampened with warm water and a little soap, and to dry it thoroughly before use.

- Place the refrigerator and adjust its height, clean it, let it stand idle for 4 to 6 hours and then switch it on. This will help ensuring that the compressor oil has properly settled, and that the appliance is running normally.

Box content

• Refrigerator
• Instruction manual

3. ASSEMBLING THE APPLIANCE

Installation dimensions

• Place the refrigerator in a flat and easily-accessible place. Avoid placing the appliance near heat sources, under direct sunlight, or in moist environments.
• The refrigerator dimensions are shown in Figure 2. The above dimensions are indicative for installation purposes. Actual sizes may vary slightly.
• To ensure that the appliance operates at maximum efficiency, allow enough space around it.

Transport

• Do not transport the refrigerator horizontally or lying down.
• Do not carry the refrigerator by the door or handle; it must be carried by lifting the bottom.
• Never carry the appliance alone—at least two people are required for safe lifting or carrying of the appliance. Fig. 3

Where to install the refrigerator

• The refrigerator must be placed on a solid, flat surface.
• If cushioning is necessary, use stable, solid, and non-flammable cushioning blocks.
• DO NOT USE FOAM PACKAGING AS CUSHIONING BLOCKS!
• The appliance should be kept away from damp or wet environments. Water or dirt should be removed from any surface of the appliance as soon as possible with a soft cloth. This will help prevent rust and help your appliance run at maximum efficiency.
• Place the refrigerator in a well-ventilated place. Leave some space around and behind the refrigerator, and do not cover or block the air grille of the compressor rear cover plate (located at the rear of the appliance). Keep the refrigerator away from heat sources or direct sunlight. Fig. 4

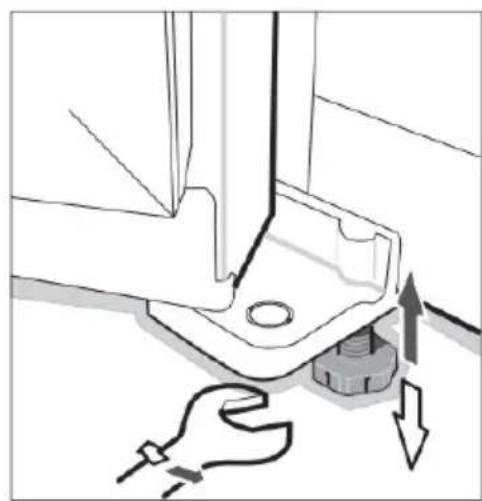

Adjustable feet

Fig. 5

• In the refrigerator packing box, feet come tightly packed. After removing the refrigerator from the box, be sure to adjust the two front plastic feet to the desired height. Tighten the two plastic feet with a spanner or directly by hand.
• The adjustable feet and rear rollers must touch the floor to prevent the refrigerator from moving, vibrating, or rattling.
• When moving the refrigerator, adjust the plastic feet counterclockwise so that they do not touch the floor, then gently tilt the refrigerator to start moving it.

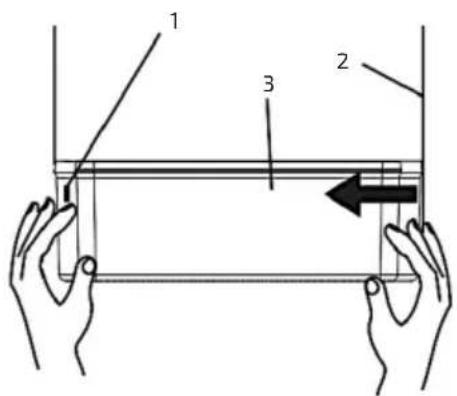

Door shelf

Fig. 6.

- Removing a shelf: hold both sides of the door shelf with both hands. From the side without the guide, push the shelf inwards until the edge of the shelf separates from the door lining.

ENGLISH

- Installing a shelf: hold both sides of the shelf with both hands. Place the guide side first. Then, push the other side slightly inwards until it fits completely into the guide. Make sure that the shelf is correctly positioned before use.

Fig. 6 key

1. Shelves guide
2. Door lining
3. Shelf

4. OPERATION

Start-up

• Connect the power cable and turn on the switch.
• When switching on the refrigerator for the first time, the display will show the respective preset temperature values. The default temperature of the refrigerator compartment is 5 °C, and the default temperature of the freezer compartment is -18 °C.
• The default mode is power saving mode: The display will be on for 20 seconds, after which time it will switch off. This mode saves energy and extends the lifespan of the LED lights.

Control panel

Fig. 7

1. Refrigerator temperature display
2. Freezer temperature display
3. Fast cooling mode indicator light
4. Holiday mode indicator light
5. Lock indicator light
6. Refrigerator temperature icon
7. Freezer temperature icon
8. Fast freezing mode indicator light
9. Modes icon
10. Lock icon

Selecting modes and functions

• Press the icon to cycle through the different operating modes.
• Holiday mode: the refrigerator compartment will operate at 8 °C while the freezer compartment will operate at -15 °C.
• Fast Freezing mode ❄️: when you select this mode, the compressor runs continuously to freeze food faster. This mode will be automatically deactivated 24 hours after its activation or when the freezer compartment reaches -28 °C. When deactivated, the indicator light will switch off and the freezer compartment will return to the set temperature.

- Fast Cooling mode: when you select this mode, the refrigerator compartment will reach the set temperature in a very short time. When this mode is activated, the temperature of the refrigerator compartment will be 2 °C. This mode will be active for a maximum of 150 minutes and will then be automatically deactivated. When deactivated, the indicator light for this mode will switch off and the refrigerator temperature will return to the last temperature selected before activating the Fast Cooling mode.

Freezer compartment settings

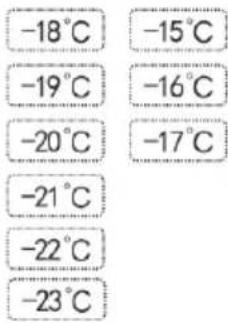

The default temperature of the freezer compartment is -18^ . To change it, press the z_ion . The temperature selection sequence is as shown in Figure 8.

Refrigerator compartment settings

The default temperature of the refrigerator compartment is 5^ C. To change it, press the icon. The temperature selection sequence is as shown in Figure 9.

Lock function

This appliance features a function that allows the control panel to be locked. Pressing the LOCK icon will activate the lock function, and the indicator light will light up.

NOTE: while this function is activated, the icons on the display will not operate. If you press them, the appliance will beep, and the lock indicator light will flash.

To deactivate the lock function, press and hold the LOCK icon for 3 seconds until the indicator light switches off.

Open door alarm

When the refrigerator door stays open for more than 1 minute, an alarm will sound to remind the user to close the door. Once the door is closed, the alarm will automatically turn off.

Switching the refrigerator compartment on and off

Press and hold the icon for 10 seconds to switch the refrigerator compartment on and off. When the refrigerator compartment is switched off, the corresponding temperature indicator will switch off as well. Press the icon again for 10 seconds to switch on the compartment again.

Refrigerator compartment

The refrigerator compartment is to be used primarily for storing food that will be consumed within a short time.

Freezer compartment

The freezer compartment is used for freezing food, storing deep-frozen food, and making ice cubes. It can preserve food for a long time.

ENGLISH

Warning: if food stains the inside of the refrigerator, clean it immediately, otherwise the stain may corrode the coating.

NOTES:

• The two-star freezer compartment drawers () are suitable for storing pre-frozen food, storing, or making ice cream, and making ice cubes.
• Compartments with one (*), two (**), or three (*** stars are not suitable for freezing fresh food.
• If the appliance is to be left empty for long periods of time, turn it off, allow it to defrost, clean it, dry it, and leave the door open to prevent mould growth.

Instructions on food storage

WARNING

• When storing frozen foods, put them inside the freezer compartment.
• Do not put bottled or canned foods in the freezer to prevent cracking due to ice formation. Before putting hot food in the refrigerator compartment, cool it down to room temperature first for lower energy consumption.
• Label the freezing date on the packaging bag according to the different shelf life of the food.
• Divide food into portions and package them separately, so that they freeze more easily and do not stick together.
• Packaging materials must be odourless, airtight, impermeable, and non-contaminating, so that the packaged food does not lose quality.
• Do not put too much fresh food in the freezer compartment at once.
• Defrosted food cannot be refrozen unless you cook them.
• Glass bottles or containers must not be placed in the freezer compartment or in the air outlet of the refrigerator compartment, otherwise they may explode.
• Do not place food in such a way that it blocks the air outlet.

Food storage

In this section we offer you tips on how to store food optimally in the different parts of the refrigerator. The glass shelves and crisper drawer can be removed for food storage if necessary.

Note: do not allow food to touch the appliance surface directly. You should wrap the food separately in aluminium foil or cellophane or in airtight plastic containers.

Dairy products and eggs

• Most pre-packaged dairy products have an expiry date. Store them in the refrigerator compartment and consume them before the best-before date.
• Butter can be easily contaminated by strong odours, so it is best to keep it in a sealed container. Eggs must be stored in the refrigeration compartment.

Red meat

• Place fresh red meat in a dish and cover it without pressing it with wax paper, plastic, or aluminium foil.
• Store raw and cooked meat in different dishes. This will prevent liquids from transferring from raw meat and contaminating cooked meat.

Poultry

• Rinse whole birds inside and out with cold tap water. Afterwards, dry them and place them on a plate. Cover them without pressing with plastic or aluminium foil.
• Store poultry parts in the same way. Stuff whole poultry right before cooking it. Otherwise, it can lead to food poisoning.

Fish and seafood

• You must consume whole fish and fillets on the day of purchase. Until then, store them in the refrigerator covered without pressing with plastic, wax paper or aluminium foil. If you wish to store food at night or for a longer period of time, try to select really fresh fish.
• Rinse the whole fish with cold water to remove scales and dirt, then pat dry with kitchen paper. Place whole fish or fillets in an airtight plastic bag.
• Keep seafood refrigerated at all times. Consume it within 1-2 days.

Convenience food and leftovers

• You can store this food in appropriate, closed containers so that the food does not dry out. Conserve it only for 1-2 days.
• Reheat the leftovers only once until they give off steam.

Crisper drawer

• This drawer is ideal for storing fresh fruit and vegetables.
• Do not store the following foods at temperatures below 6 °C for long periods of time: Citrus fruits, melon, aubergine, pineapple, papaya, courgette, passion fruit, cucumber, pepper, and tomatoes.
• There may be undesired changes at low temperature, like softening, browning or accelerated decomposition
• Do not store avocados (until ripe), bananas or mangoes.

FOOD Storage place (refrigerator compartment)
Butter, cheese Door top shelf
Eggs Door shelves
Fruits and vegetables Crisper drawer
Meat, sausages, cheese, milk Low area (lower shelf, 1 drawer cover)

ENGLISH

Dairy products, canned food, cans Top door shelf
Drinks and bottles Door shelf
FOOD Location (Freezer)
Small frozen food Door shelf
Frozen packaged food Freezer drawer
Fish, meat, ice cream Low area (bottom shelf or drawer)

Note: do not allow food to touch the appliance surface directly. You should wrap the food separately in aluminium foil or cellophane or in airtight plastic containers.

Storing and freezing food in the freezer

• For storing fully frozen food.
• For making ice cubes.
• For freezing food.

Note: make sure the freezer door is properly closed.

Buying frozen food

• The packaging must be intact.
• Consume before the expiry date.
• If possible, transport fully frozen food in an insulated bag and place it immediately in the freezer.

Storing frozen food

Store at -18 °C or below. Avoid opening the freezer-compartment door unnecessarily.

Freezing fresh food

• Freeze only food that's fresh and in good conditions.
• To best preserve nutritional value, flavour, and colour, vegetables should be blanched before freezing. Aubergines, peppers, courgettes, and asparagus do not require blanching.

The following foods are suitable for freezing:

- Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruits, herbs, shelled eggs, dairy products such as cheese and butter, ready meals, and leftovers such as soups, stews, boiled meat and fish, potato dishes, soufflés, and desserts.

• The following foods are not suitable for freezing:
• Types of vegetables that are usually eaten raw, such as lettuce or radishes, shell eggs,

grapes, apples, whole apples, pears and peaches, hard-boiled eggs, yoghurt, sour milk, sour cream, and mayonnaise.

Recommended storage times for frozen foods in the freezer

These times vary depending on food type. Frozen food can be stored for 1 to 12 months (-18 °C minimum).

FOOD	Storage time
Bacon, stews, milk	1 month
Bread, ice cream, sausages, cakes, cooked seafood, oily fish, etc.	2 months
White fish, seafood, pizza, buns and muffins	3 months
Ham, cakes, biscuits, veal and lambchops, poultry meat	4 months
Butter, vegetables (blanched), whole eggs and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dried or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

5. CLEANING AND MAINTENANCE

Precautions for cleaning the inside and outside of the refrigerator

- Before cleaning, always switch off the appliance and unplug it from the mains.

- During cleaning, make sure that no water enters the switch, display, door light, and top control panel.

- Remove dirt from the outside of the refrigerator with a soft, clean cloth and allow the refrigerator to dry naturally.

- When cleaning the door seal, always use clean water and a dry cloth and allow it to dry naturally. Dampen a soft cloth with lukewarm water or a neutral cleaning agent to clean the body of the refrigerator. Do not wipe the door seal with this cloth.

- Do not clean the refrigerator directly with water, as this will affect the electrical insulation properties, among other things.

- The refrigerator must not be cleaned with metal scouring pads, brushes, abrasive cleaning agents, strong alkaline detergents, or flammable or toxic cleaning liquids.

ENGLISH

Defrosting

The refrigerator features an automatic defrosting function, eliminating the need to do it manually.

NOTE: after cleaning, connect the power plug of the refrigerator and switch it on again.

Holidays

When you want to go on holiday, it is better not to turn off the refrigerator and not to take out food that can be preserved during your holiday period. If you wish to turn off the refrigerator, remove all food, disconnect the power plug, clean the inside of the refrigerator thoroughly, and open the door to prevent unpleasant odours.

In case of power failure

Generally, a short power failure will not affect the temperature of the refrigerator abruptly. However, if the power failure lasts for a long time, you should decrease door-opening frequency and not put fresh food in the refrigerator (to avoid accelerating the interior temperature increase).

If you are aware of possible power failures, you can enable the Fast freezing mode in advance to keep the refrigerator temperature at the lowest value.

Switch-off

It is generally not recommended to switch off the refrigerator or unplug the power cable, otherwise the lifetime of the refrigerator may be affected.

Energy-saving tips

• Make sure to keep the refrigerator away from heat sources and direct sunlight.
• Before storing hot food, cool it down to room temperature and store it in the refrigerator.
• Do not leave the door open. Reduce the door-opening frequency and shorten the opening time.
• When defrosting frozen food, you can put it in the refrigerator compartment.
• Make sure the temperature sensor is not obstructed or covered by food and maintain an adequate distance between the food.

6. TROUBLESHOOTING

Normal occurrences

Faulty icons

Check if the refrigerator control panel is locked, if so, the icons will not work.

Low voltage, compressor cannot be started

It is recommended to install a pressure regulator of more than 1000 W in the installation area of the refrigerator to better protect it.

The refrigerator takes a long time to start up

When the room temperature is too high, the refrigerator takes a long time to start.

The central separators of the compartments heat up

The central separators of the compartments heat up after some time of operation of the appliance. This is quite normal.

Condensation droplets are formed

When outside air enters the cold inner surface of the refrigerator, condensation droplets may appear. If it's rainy season or humidity at the place of installation is high, condensation droplets may appear on the outside of the refrigerator. This is a natural phenomenon, simply wipe off the water droplets with a dry cloth.

The refrigerator makes some noise

When the refrigerator is switched on for the first time, it will run at high speed to cool down quickly and may emit a louder sound. When the internal temperature drops below a certain level, the noise will decrease.

You will hear some noises when the compressor starts or stops, when some parts expand or contract or when the temperature inside the refrigerator changes. This is normal.

The refrigerator heats up

During operation, the temperature of the compressor is higher than 80 °C. Do not touch it, as this could cause serious injury.

The refrigerator takes a long time to cool down

If room temperature is too high or you put too much fresh food in the refrigerator, it will take a long time to bring the temperature down to the set values.

Problem

Problem Possible causes	Solution
Nothing is shown on the display	The plug of the appliance is not properly inserted in the socket.	Check for power supply.
Alarm sounds Door is slightly open or has not been closed for more than 1 minute.		Close the door completely.
The refrigerator does not work	It is in defrost mode.It is not properly connected.	This is normal if it is defrosting.Check if the appliance is properly connected.
The refrigerator takes a long time to cool down	The refrigerator has recently been switched off.You have put in too much fresh or hot food.Doors are opened too often or for too long.	The refrigerator takes a few hours to cool down completely.Hot food causes the refrigerator to take longer to reach the desired temperature.The warm air entering the refrigerator causes the compressor to run longer. Do not open the door too often.
The refrigerator vibrates	The floor is uneven or loose.Vibration comes from food placed on top of the refrigerator.The refrigerator touches the wall or a piece of furniture.	Make sure that the floor is level, solid, and can support the weight of the refrigerator.Remove the food placed on top.Move the refrigerator so that it does not touch the wall or furniture.

7. TECHNICAL SPECIFICATIONS

Product reference: 01955/01956

Product:

Bolero CoolMarket FD 499 Inox E Bolero CoolMarket FD 499 Dark E

Reference 01955 01956
Model Bolero CoolM	Market FD 499 Inox E Bolero CoolMark	Market FD 499 Dark E
QR code
Voltage 220-240 V
Rated frequency 50 Hz
Rated current 1.2 A
Climate class SN/N/ST/T (*)
Refrigerant R600a/66g
Insulating foam Cyclopentane

(*) Fridge intended for use at room temperatures between 10 °C and 43 °C.

This product features a light source with a Class F energy efficiency.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

ENGLISH

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

Bolero CoolMarket FD 499 Inox E

Bolero CoolMarket FD 499 Dark E

Bolero CoolMarket FD 499 Inox E

Bolero CoolMarket FD 499 Dark E

Referenz 01955 01956
Modelo Bolero Cool	Market FD 499 Inox E Bolero CoolM	Market FD 499 Dark E
QR Code
Nennspannung 220-240 V
Nennfrequenz 50 Hz
Nennstrom 1,2 A
Klimaklasse SN/N/ST/T (*)
Kältemittel R600a/66g
Isolierschaum Cyclopentan

Bolero CoolMarket FD 499 Inox E

Bolero CoolMarket FD 499 Dark E

Bolero CoolMarket FD 499 Inox E

Bolero CoolMarket FD 499 Dark E

PORTUGUÊS

3. HET APPARAAT MONTEREN

6. PROBLEEMOPLOSSING

Bolero CoolMarket FD 499 Inox E

Bolero CoolMarket FD 499 Dark E

Referentie 01955 01956
Model Bolero CoolMarket FD 499 Inox E Bolero CoolMarket FD 499 Dark E
QR-code
Nominale spanning	220-240 V
Nominale frequentie	50 Hz
Nominale stroom 1,2 A
Klimaatklasse SN/N/ST/T (*)
Koelvloeistof R600a/66g
Isolatieschuim Cyclopentaan

Bolero CoolMarket FD 499 Inox E

Bolero CoolMarket FD 499 Dark E

Referencja 01955 01956
Model Bolero Cool	Market FD 499 Inox E Bolero Cool	Market FD 499 Dark E
Kod QR

Bolero CoolMarket FD 499 Inox E

Bolero CoolMarket FD 499 Dark E

ČEŠTINA

Illustration showing a van with a cross symbol and a person lifting a large block (no text or symbols present)

Fig./Img./Abb./Afb./Rys. 3

≥30 cm ≥10 cm ≥10 cm

Mechanical assembly diagram showing a hand pressing a bolt onto a base with an upward arrow indicating motion (no text or symbols)

Fig./Img./Abb./Afb./Rys. 4 Fig./Img./Abb./Afb./Rys. 5

1 2 3

Fig./Img./Abb./Afb./Rys. 6

1 2 3 4 5 6 7 8 9 10 -00 °C 00 -00 °C LOCK

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Set Temperature

-18°C -19°C -20°C -21°C -22°C -23°C -15°C -16°C -17°C

Set Temperature

5°C 4°C 3°C 2°C 8°C 7°C 6°C

Fig./Img./Abb./Afb./Rys. 9

www.cecotec.es
