USER MANUAL EnergySilence 9250 Skyline Smart Tilt CECOTEC

Modern vertical glass tower with digital display and cooling fan array, no visible text or symbols on the device itself.

Safety instructions 8

1. Parts and components 45

2. Before use 46

3. Assembly 46

4. Operation 46

5. Cleaning and maintenance 48

6. Technical specifications 48

7. Disposal of old electrical and electronic appliances 49

8. Technical support and warranty 49

9. Copyright 49

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.
  Cleaning and user maintenance should not be carried out by unsupervised children.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.

- Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

- Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.

- If the appliance falls accidentally into water, unplug it immediately. Do not touch the water!

- Do not operate the device if any fault or unusual sign is detected.

- Do not operate the product next to combustible or explosive gas.

- The appliance must not be placed immediately below a socket.

- Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the device.

- Make sure the appliance is placed on a flat and stable surface and do not move it during operation.

- Do not use the appliance near a window or places where it could get wet (at least 2 metres away), as water could cause an electric shock.

- Do not operate the product under or next to curtains.

- Do not cover the air inlet and outlet and do not place the product's cord under carpets or other objects during operation. Keep the front, back, and sides of appliance at a minimum safety distance from walls and other objects.

- Do not leave the appliance unattended while in use.

- It is not recommended to use the product with an extension lead.

- Always switch off and unplug the device when not in use and before assembling, disassembling, or moving it. Pull from the plug, not the cable, to disconnect it from the outlet.

- Cleaning and maintenance tasks should be carried out according to this manual to ensure the correct operation of the device.

- Supervise children to prevent them from playing with the appliance. Close supervision is necessary when the appliance is being used by or near children.

Instructions on batteries

• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children.
• Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit the batteries. Do not store batteries in an untidy manner, in a box or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Do not subject batteries to mechanical shock.
• Leaks from the batteries can occur under extreme conditions. Do not touch any liquid that leaks from the batteries. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not use the appliance if powered with batteries that differ in capacity, size, or type.
• The use of the battery by children must be supervised.

• In case of battery ingestion, please seek medical attention immediately.

• Always buy the batteries recommended by the device manufacturer.

• Keep the batteries clean and dry.
• Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Use the batteries only for their intended purpose.
• Whenever possible, remove the batteries from the remote control when not in use.
• Dispose of the battery correctly.

INSTRUCTIONS DE SÉCURITÉ

1. Control panel
2. LED display
3. Air outlet
4. Base
5. Storage space for remote control

Control panel. Fig. 2

Fig. 2 key:

1. Timer icon
2. Modes icon
3. Oscillation icon
4. Power icon
5. Speed icon

Remote control. Fig. 3

Fig. 3 key:

1. Power button
2. Speed button
3. Timer button
4. Oscillation button
5. Display off button
6. Modes button

LED display. Fig. 4

Fig. 4 key:

1. Oscillation indicator light
2. Normal mode indicator light
3. Natural mode indicator light
4. Sleep mode indicator light
5. Auto mode indicator light

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

ENGLISH

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

- Fan

- Remote control

- Remote control battery (CR2025)

- Instruction manual

3. ASSEMBLY

1. Remove the two halves of the base from the packaging. Then, fit the halves together as shown in figure 5.
2. Pass the power cable through the central hole and place the base on the fan. Secure it tightly with the four screws provided, as shown in figure 6.

4. OPERATION

You can control the fan by using the control panel on the top of the fan (fig. 2) or by using the remote control (fig. 3).

1. Place the appliance on a flat, stable surface. Plug the cable into the mains socket. When the fan is switched on, the room temperature will be shown on the LED display.
2. Press the power icon/button to switch the appliance on. Press that icon/button again to switch it off.
3. Use the speed icon/button to select the desired speed: low, medium, or high.
4. Use the mode icon/button to select one of the modes: Normal, Natural, Sleep or Auto.

Normal mode: the fan will operate at the previously selected speed.

Natural mode: the fan will operate according to the following sequence:

- Low speed (5 seconds) → Medium speed (5 seconds) → High speed (5 seconds) → Low speed (5 seconds). Then, the sequence will start again.

Sleep mode

- If the selected speed is high, the fan will operate at this speed for 30 minutes. Next, it will operate at medium speed for another 30 minutes. After this time, the fan will operate at low speed until it switches off.

- If the selected speed is medium, the fan will operate at this speed for 30 minutes. After this time, it will operate at low speed until it switches off.

- If the selected speed is low, the fan will operate at this speed until it switches off.

- If no operation is performed for 30 seconds, the fan display will turn off. Press any of the icons buttons to start it again.

Auto mode: the fan will operate automatically.

- The timer is set so that the fan switches off after 3 hours. The fan will operate at high speed for 15 minutes. After this time, it will operate at medium speed for 15 more minutes. Then, it will operate at low speed until it switches off.

- If no operation is performed for 30 seconds, the fan display will turn off. Press any of the icons/buttons to start it again.

1. Use the timer icon/button to set the operation time from 1 to 12 hours.

2. Press the oscillation icon/button to activate/deactivate the oscillation function. If you activate it, the corresponding indicator light will appear on the display.

3. The display can be temporarily switched off by pressing the display off button on the remote control or by pressing and holding the speed icon on the control panel for 3 seconds. The display will switch on again when you press any button. If no operation is performed for 30 seconds, the fan display will switch off. Press any of the icons buttons to start it again.

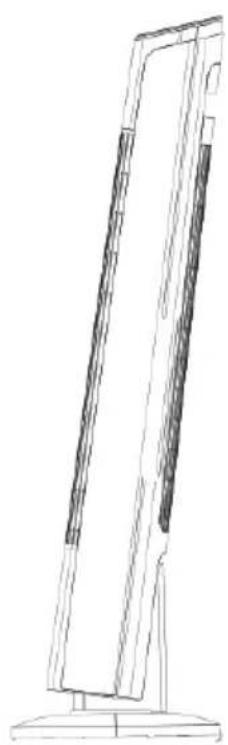

4. To adjust the fan tilt, push the fan backwards and turn it to a vertical angle as shown in figure 7.

Changing the remote-control battery

The remote control requires 1 x CR2025 battery (included). You can store the remote control at the back of the fan.

1. Open the battery compartment.

2. Insert the battery into the battery compartment observing the polarity.

3. Close the compartment.

ENGLISH

5. CLEANING AND MAINTENANCE

• Repairs should only be carried out by qualified personnel.
• Before cleaning the fan surface, make sure that the fan is switched off and disconnected from the mains.
• Use a soft cloth to clean it. To remove stubborn dirt, you can wipe it off with a cloth dampened with warm, soapy water.
• Do not use solvents, as they may damage the plastic housing.

6. TECHNICAL SPECIFICATIONS

Product reference: 08364

Product: EnergySilence 9250 Skyline Smart Tilt

Power: 45 W

Voltage: 220 - 240 V

Frequency: 50 - 60 Hz

Remote control battery: CR2025 (Included)

Description Symbol Value Unit
Fan maximum flow F 26.11 m			^3/min
Fan power consumption P 34.7 W
Service value SV 0.75 (m			^3/min)/W
Power consumption on standby mode	P_SB	0.35	W
Fan sound power level	L_WA	57.8 dB (A)
Maximum air speed	C 2.74 m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910, Alfajar(Valencia, Spain)

The power consumption in standby mode is 0,35 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function, waiting for the standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

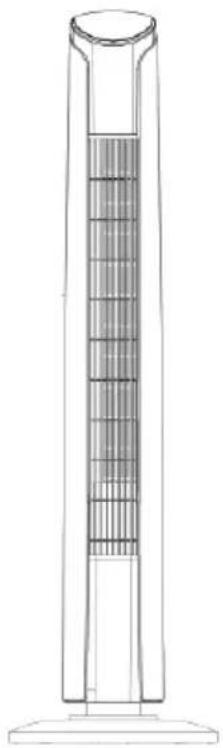

Line drawing of a vertical cylindrical device with internal grid structure (no text or symbols)

Line drawing of a vertical panel or support structure with no visible text or symbols

Line drawing of a vertical cylindrical object with internal vertical structure (no text or symbols)

Fig. / Img. / Rys. / Obr. 7
