USER MANUAL L 2200 Flex

Illustration of two electric power tools with meshing bases (no text or symbols)

de Originalbetriebsanleitung 6
en Original operating instructions 11
fr Notice d'instructions d'origine 15
it Istruzioni per l'uso originali 20
es Instrucciones de funcionamiento originales 25
pt Instruções de serviço originais 30
nl Originele gebruiksaanwijzing 35
da Originale driftsvejledning 40
no Originale driftsanvisningen 44
sv Originalbruksanvisning 48
fi Alkuperäinen käyttöohjekirja 52
el Auθεντικές οδηγίες χειρισμού 56
tr Orijinal işletme kılavuzu 61
p1 Instrukcja oryginalna 65
hu Eredeti üzemeltetési útmutató 70
cs Originální návod k obsluze 75
sk Originálny návod na obsluhu 79
hr Originalna uputa za rad 84
sl Izvirno navodilo za obratovanje 88
ro Instructiuni de functionare originale 92
bg Оригинално упътване за експлоатация 97
ru Оригинальная инструкция по эксплуатации 102
et Originaalkasutusjuhend 108
It Originali naudojimo instrukcija 112
Iv Lietošanas pamācības oriģināls 116
ar 125 ترجمة لإرشادات التشفيل الأصلية

A 8 9 10 11 7 13 6 3 2 1 5 a b 4 12 2 1

B 1. 2. 3.

Illustration of a power tool with angular grinder and workpiece (no text or symbols)

1. 2. D 1. 2. O→I

3. 1. 2. E 3. 1. 2. I

Two views of a mechanical component with arrows indicating features, labeled 'F' and 'I→O' (no text or symbols on the components themselves)

≤10 mm

1. 2. 3. G

Illustration of a hand using a power tool to cut a circular saw on a workbench, with no visible text or symbols.

2. 1. H

		L15-10 150	L21-6 230	L21-8 180	L2200
∅ max.	mm	150	230	180	230
		M14
n	1/min	10.000	6.500	8.300	6.500
P1	W	1.500	2.100	2.100	2.200
Netzspannung
m „EPTA Procedure 01/2003“	kg	3,6	4,9	4,7	5,8
LpA	dB(A)	93
LWA	dB(A)	104
K	dB	3
ah, SG	m/s2	6,7	5,1	7,9	4,4
ah, DS	m/s2
K	m/s2	1,5

Verwendete Symbole

WARNUNG!

B. F. Q.-r

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

03.07.2017

Symbols used in this manual

WARNING!

Denotes impending danger.

Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation.

Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool, read the operating manual!

Wear goggles!

Wear ear protection!

Protection class II (completely insulated)

Disposal information for the old machine (see page 14)

For your safety

WARNING!

Before using the angle grinder, please read and follow:

— these operating instructions,
- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),
— the currently valid site rules and the regulations for the prevention of accidents.

This angle grinder is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged. The angle grinder may be operated only if it is

- as intended,

— in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

This angle grinder

— is designed for industrial applications,
— for dry grinding and cutting metal and stone with rough wheels and cutting-off wheels which are permitted to operate at a circumferential speed of 80 m/s,
— for surface grinding metal and stone with tapered cup wheels up to 110 mm in diameter which are permitted to operate at a circumferential speed of 50 m/s,

— for surface grinding with sanding sheets on a backing pad which has been designed to operate at the speed of the machine.
— for use with grinding tools and accessories which are indicated in these instructions or recommended by the manufacturer.

A special cutting guard must be used for cut-off grinding. If stone is cut with fibre-reinforced cutting-off wheels, guide supports must be used.

Not permitted are e.g. chain cutting wheels, saw blades. The angle grinder is not suitable for polishing.

Safety Warnings for Angle Grinder

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Safety Warnings Common for Grinding, Sanding or Abrasive Cutting-Off Operations

This power tool is intended to function as a grinder, sander or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
■ Operations such as wire brushing or polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
- Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.
■ The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.
■ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
- Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time.
■ Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

• Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
• Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
  ■ Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
  ■ Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
  ■ Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
• Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
  ■ Do not operate the power tool near flammable materials. Sparks could ignite these materials.
  ■ Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

• Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
  ■ Never place your hand near the rotating accessory. Accessory may kickback over your hand.
• Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.
  ■ Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
  ■ Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations

■ Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately protected.

■ The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect the operator from broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
■ Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding; side forces applied to these wheels may cause them to shatter.
■ Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges.
■ Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst.

Additional Safety Warnings specific for Abrasive Cutting-Off Operations

• Do not "jam" the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
  ■ Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you.
  ■ When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding.
  ■ Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
  ■ Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel.
  Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.

Safety Warnings Specific for Sanding Operations

■ Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc, or kickback.

Additional safety instructions

■ The mains voltage and the voltage specifications on the rating plate must correspond.
■ Do not press the spindle lock until the grinding tool stops.

Noise and vibration

NOTE

Values for the A-weighted sound pressure level and for the total vibration values can be found in the table on page 5. The noise and vibration values have been determined in accordance with EN 60745.

CAUTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear protection at a sound pressure above 85 dB(A).

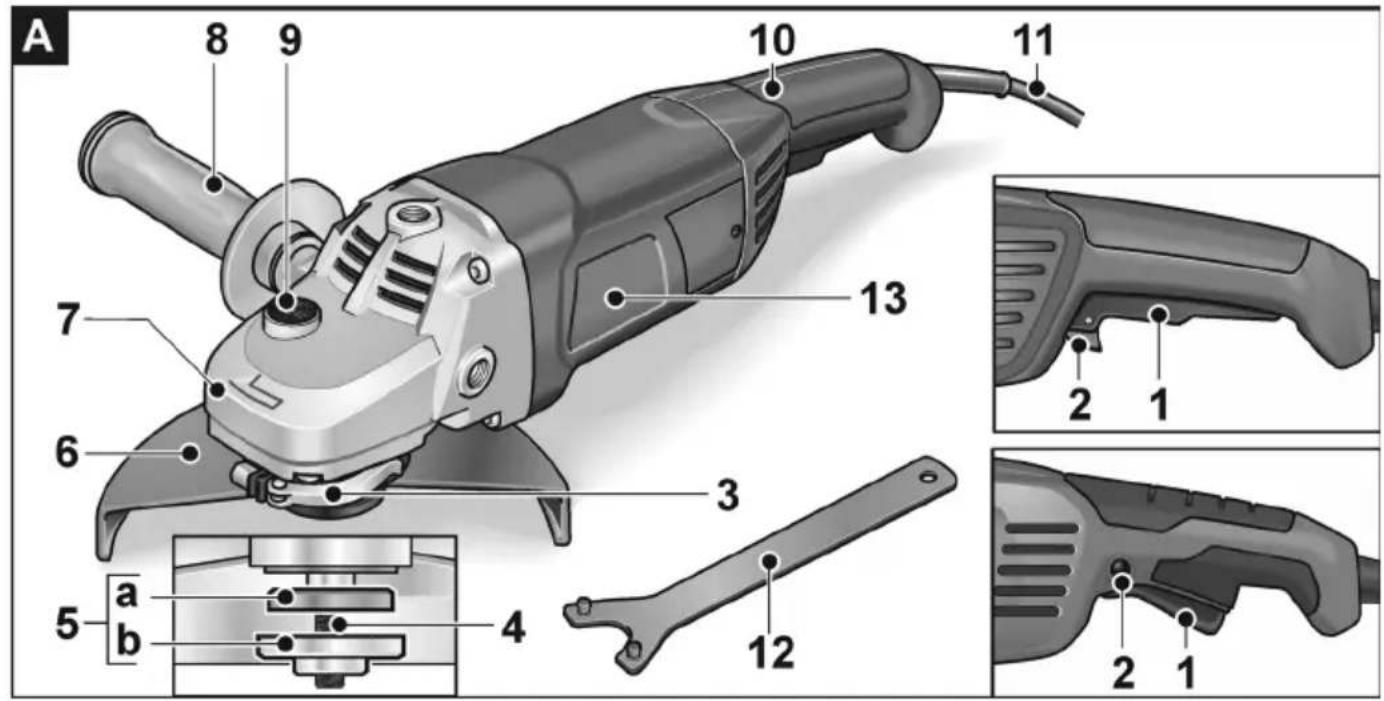

Overview (Figure A)

Different electric power tools are described in these instructions. The illustrated electric power tool may differ in detail from the one which you purchased.

1 S w i t c h Switches the power tool on and off.

2 Starting lockout/Locking button Prevents the power tool from starting up unintentionally and locks the switch during continuous operation.

3 Quick-clamping lever

4 Spindle

5 Threaded flange a Clamping nut b Clamping flange 6 G u a r d

7 Gear head With air outlet and direction-of-rotation arrow.

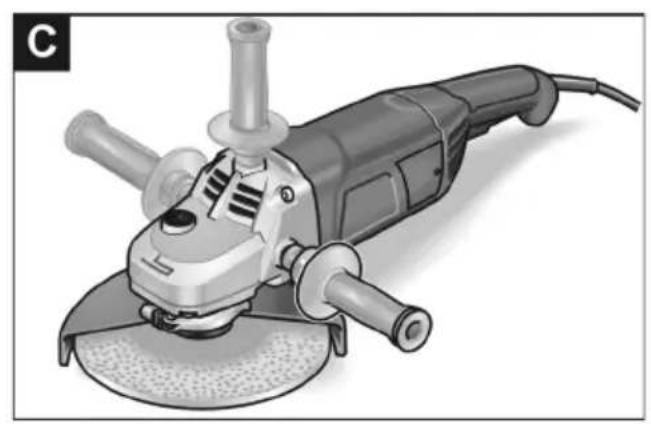

8 Auxiliary handle Side handle can be fitted on the left, the top or the right.

9 Spindle lock Secures the spindle when the tool is changed.

10 Switch handle 11 4.0 m power cord with plug 12 Stop key 13 Rating plate (not shown)

Operating instructions

WARNING!

Before carrying out any work on the angle grinder, always pull out the mains plug.

Before switching on the angle grinder

Unpack the angle grinder and check that there are no missing or damaged parts.

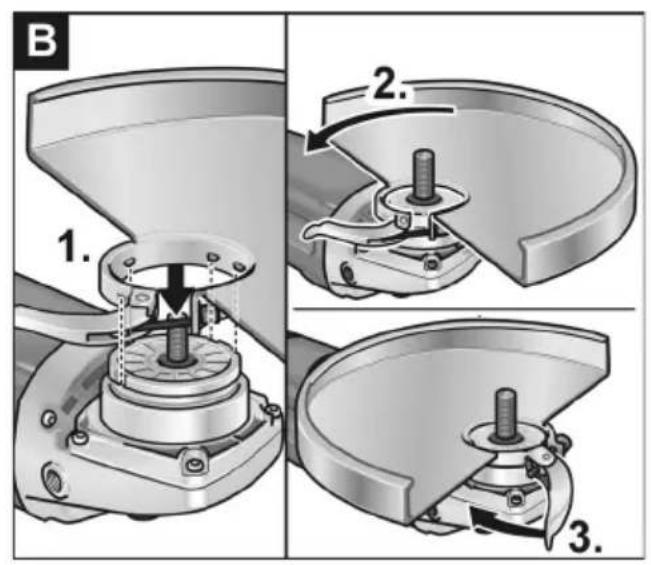

Figure B:

■ Connect the guard to the clamping flange with the clamping ring by inserting the cam on the clamping ring into the groove on the flange (1.).

Figure C:

- Rotate guard hood into the required position (2.) and tighten clamping lever (3.) - Attaching the auxiliary handle.

Switch on and off

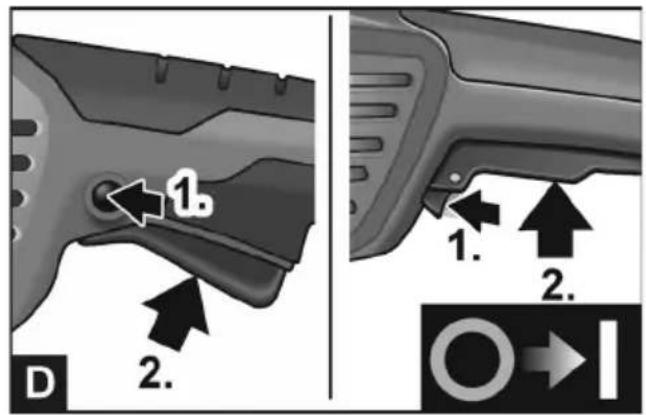

Brief operation without engaged switch rocker (Figure D)

■ Press and hold down the starting lockout (1.).
■ Press the switch (2.)
■ To switch off, release the switch.

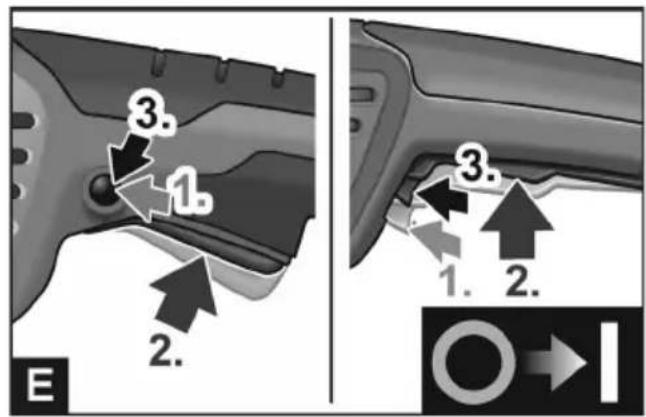

Continuous operation with engaged switch rocker Figure E:

■ Press and hold down the starting lockout (1.).
■ Press and hold down the switch (2.).
■ Press the locking button (3.).

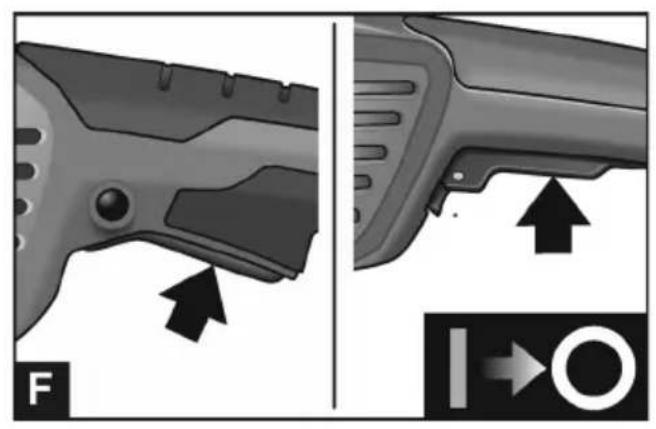

Figure F:

■ To switch off, briefly press and release the switch.

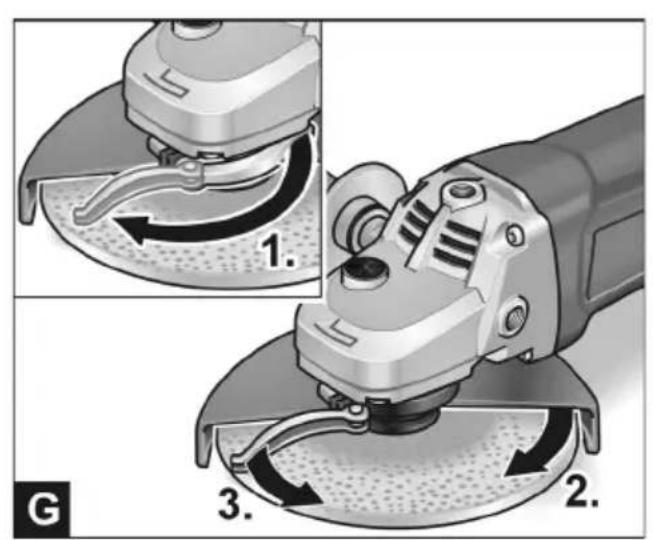

Adjusting the quick-release guard (Figure G)

WARNING!

Before carrying out any work on the angle grinder, always pull out the mains plug. When using the angle grinder for roughing or cutting, never work without the guard. A special cutting guard must be used for cut-off grinding.

CAUTION!

Risk of injury! Wear protective gloves!

■ Loosen the clamping lever (1.).
■ Adjust the guard (2.)
■ Retighten the clamping lever (3.).

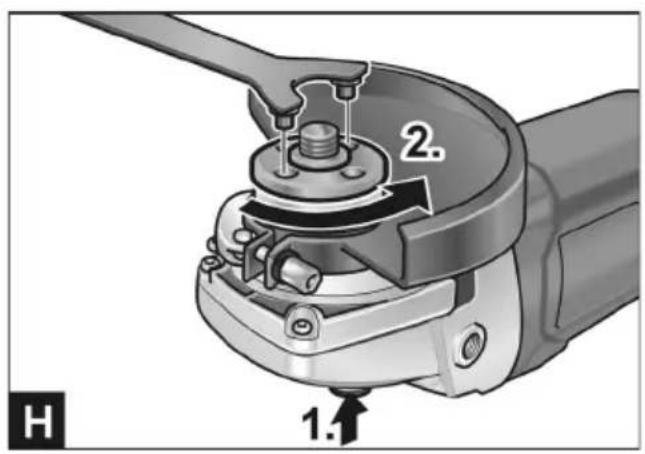

Attaching or changing the grinding tool (Figure H)

WARNING!

Before carrying out any work on the angle grinder, always pull out the mains plug.

■ Press and hold down the spindle lock (1.).
■ Using the face spanner, loosen the clamping nut on the spindle in an anti-clockwise direction and remove (2.).
■ Insert the grinding wheel in the correct position.

Figure 1:

■ Screw the clamping nut onto the spindle.

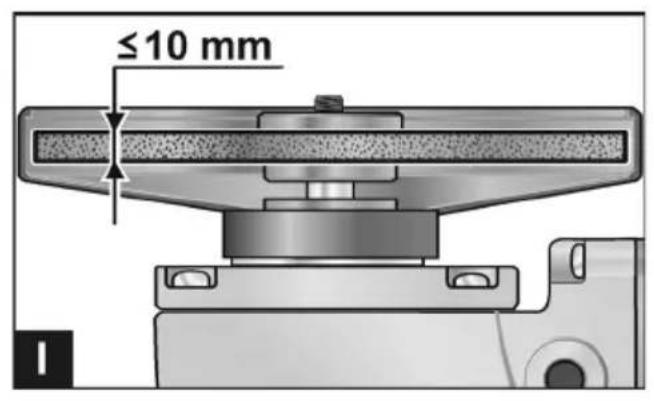

- Grinding wheel ≤6 mm thick: Clamping nut collar face up, towards shaft end.
- Grinding wheel > 6 mm thick: Clamping nut collar face down, towards gearbox.

■ Press and hold down the spindle lock.

■ Tighten the clamping nut with the face spanner.

■ Insert the mains plug into the socket.

■ Switch on the angle grinder (without locking into position) and leave the angle grinder running for approx. 30 seconds. Check for imbalances and vibrations!

■ Switch off the angle grinder.

Operating instructions

NOTE

When the angle grinder is switched off, the grinding tool continues running briefly.

Rough-grinding

WARNING!

Never use cutting-off wheels for rough-grinding.

— Angle of wheel 20–40° for best cutting performance.

- Applying moderate pressure, move the angle grinder backwards and forwards. As a result, the workpiece will not become too hot and there will be no discoloration; nor will there be any grooves.

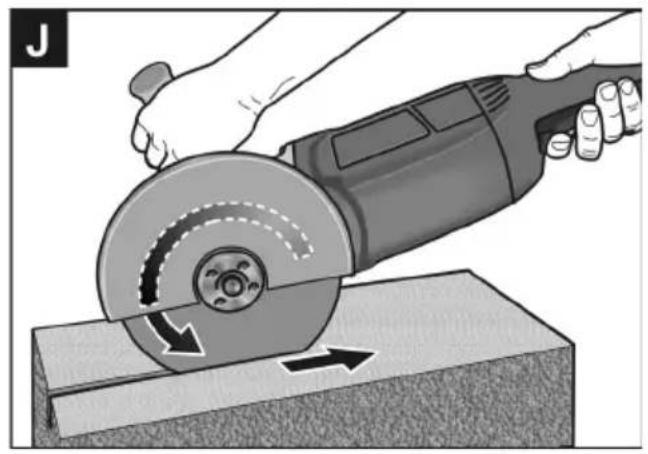

Cut-off grinding (Figure J)

WARNING!

A special cutting guard must be used for cut-off grinding.

— Hazardous quartz dust is produced when bricks, concrete and natural stone are cut.

— Do not press, tilt or oscillate the power tool.

— The angle grinder must always be operated backwards, see diagram.

Otherwise, there is a risk of the angle grinder jumping uncontrollably out of the groove.

— Adjust the feed to the material which is to be cut: the harder the material, the slower the feed.

For further information on the manufacturer's products go to www.flex-tools.com.

Maintenance and care

WARNING!

Before carrying out any work on the angle grinder, always pull out the mains plug.

Cleaning

WARNING!

If metals are ground or cut over a prolonged period, conductive dust may become deposited inside the housing. Impairment of the protective insulation! Operate the power tool via a residual-current-operated circuit-breaker (tripping current 30 mA).

■ Regularly clean the power tool and ventilation slots. Frequency of cleaning is dependent on the material and duration of use.

■ Regularly blow out the housing interior and motor with dry compressed air.

Carbon brushes

The angle grinder features cut-off carbon brushes. When the wear limit of the cut-off carbon brushes is reached, the angle grinder switches off automatically.

NOTE

Use only original parts supplied by the manufacturer for replacement purposes.

If non-original parts are used, the guarantee obligations of the manufacturer will be deemed null and void.

When the power tool is being used, the carbon brushes can be seen sparking through the rear air inlet apertures.

If the carbon brushes spark excessively, switch off the angle grinder immediately.

Take the angle grinder to a customer service workshop authorised by the manufacturer.

Gears

NOTE

Do not loosen the screws on the gear head during the warranty period. Non-compliance will deem the guarantee obligations of the manufacturer null and void.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

Other accessories, in particular sanding tools and cutting guards, can be found in the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage: www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable by removing the power cord.

EU countries only

Do not throw electric power tools into the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

NOTE

Please ask your dealer about disposal options!

CE-Declaration of Conformity

We declare under our sole responsibility that the product described under page 5 conforms to the following standards or normative documents:

EN 60745 in accordance with the regulations of the directives 2014/30/EU 2006/42/EC, 2011/65/EU.

Responsible for technical documents:

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the power tool or by use of the power tool with products from other manufacturers.

Symboles utilisés

AVERTISSEMENT!

Vertical arrangement of gray circular icons with basic human, safety, and waste symbol (no text or labels)

B. H. Q. - 1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

03/07/2017

Bolters Q.-1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

03/07/2017

Vertical sequence of gray circular icons showing people, safety gear, headphones, and a trash bin (no text or symbols)

B. F. Q.-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

03/07/2017

Three circular icons showing people, headsets, and a trash bin (no text or symbols)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

Vertical sequence of icons representing user, safety, helmet, and circuit board (no text or symbols)

Skillesliping (Figur J)

ADVARSEL!

Bolts D. -

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

03.07.2017

Vertical sequence of gray circular icons representing various user and professional roles (person, person wearing glasses, headphones, camera, monitor, and no-barrow device), all without any text or symbols.

Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

03.07.2017

Bolters D.1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

03.07.2017

B. P. Q.-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Vertical arrangement of icons including a person, head, helmet, and trash bin (no text or symbols)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

03.07.2017

Bolles Q.-r

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

2017.07.03

Vertical sequence of gray circular icons showing human, safety, and device symbols (no text or labels)

B. P. D. - 1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

03.07.2017

Vertical sequence of gray circular icons showing human, person, head, and trash bin (no text or symbols)

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

03.07.2017

Rille Bhat D-1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

03.07.2017

EN 60745 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Vertical sequence of gray circular icons showing various human and professional roles (person, head, glasses, headphones, camera, monitor, crossed-out box) with no visible text or symbols.

Bolts Q _ -

Eckhard Rühle

Manager Research &

Development (R & D)

03.07.2017

Rille Bhatz D.1

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

03.07.2017

B. F.

- 1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)
