Mondo Freestyle On-Ear - Earphones Defunc - Free user manual and instructions
Find the device manual for free Mondo Freestyle On-Ear Defunc in PDF.
| Product type | Circumaural headphone (on-ear) |
| Brand | Defunc |
| Model | Mondo Freestyle On-Ear |
| Connectivity | Bluetooth 5.0 |
| Charging port | USB-C |
| Battery capacity | 200 mAh |
| Playback time | 22 hours |
| Talk time | 20 hours |
| Charging time | 1.5 hours |
| Speaker | Dual speaker |
| Microphone | Dual microphone with ENC |
| Sensitivity | 105 dB SPL |
| Frequency response | 20 Hz - 20 kHz |
| Control functions | Multifunction button and left/right wheels |
| Voice assistant | Yes (double press) |
| Multipoint connection | Yes (up to 2 devices) |
| Dedicated app | MONDO by Defunc (iOS/Android) |
| Warranty | 1 year (replacement) |
| Maintenance | Soft dry cloth, avoid liquid or oily products |
| Safety | Do not repair yourself, avoid extreme temperatures and humidity |
Frequently Asked Questions - Mondo Freestyle On-Ear Defunc
User questions about Mondo Freestyle On-Ear Defunc
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Earphones in PDF format for free! Find your manual Mondo Freestyle On-Ear - Defunc and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Mondo Freestyle On-Ear by Defunc.
USER MANUAL Mondo Freestyle On-Ear Defunc


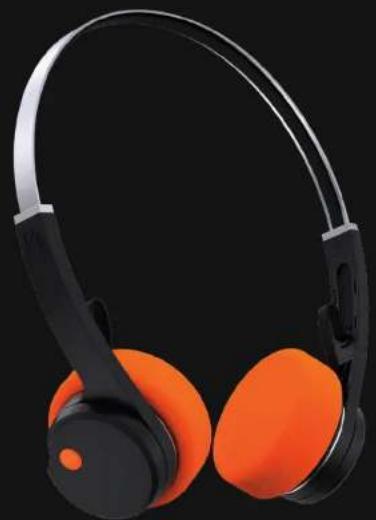

Abstract 3D geometric shape resembling a stylized letter 'H' composed of curved, segmented forms (no text or symbols)ON-EAR FREESTYLE HEADPHONES
MONDO IS A COLLECTIVE COMBINING SWEDISH AUDIO ENGINEERING WITH MUSIC, AUDIO AND POP CULTURE. YOU ARE HOLDING MONDO FREESTYLE V.01 MONDO EST UN COLLECTIF COMBINANT L'INGENIERIE AUDIO SUÉDOISE AVEC LA MUSIQUE, L'AUDIO ET LA CULTURE POP. VOUS DÉTENEZ MONDO FREESTYLE V.01 MONDO ES UN COLECTIVO QUE COMBINA LA INGENIERÍA DE AUDIO SUECA CON LA MÚSICA, EL AUDIO Y LA CULTURA POP. TIENES MONDO FREESTYLE V.01 MONDO IST EINE SYMBIOSE VON MUSIK, AUDIO UND POPKULTUR MIT SCHWEDISCHER AUDIOTECHNIK. SIE BESITZEN EINEN MONDO FREESTYLE V.01
English 04
Français 06
Español 08
Deutsch 10
Português ....12
Türkçe 14
ภาษาไทย 16
한국인 18
ONLINE MANUAL
210-189679
R-R-Uab-MDHP
Hollandargatan 22, 113 59
Stockholm Sweden
The Bloomberg investment and regulatory guidelines
The market owned by the United States, Inc. and the use of such markets to Designify a plan 60 bndle
Source: Other materials and other ramecure lines
- 用电器的电路和元件
MONDO FREESTYLE HEADPHONES
Welcome to MONDO. Start off by reading the manual and you'll be listening to your sound of choice in no time.
WHAT'S INCLUDED
• Mondo lifestyle headphones
-USB-charging cable
PLEASE NOTE!
The volume affects the capacity of the battery. Just so you know - if you play your music with lower volume, the battery will last even longer between charging (like 22h isn't enough?).
TECHNICAL SPECIFICATIONS
-Bluelcom 6.3
-USB-C Charger
- Battery capacity: 200 mAh
• Dual Drivers Φ36 mm
- Dual microphone
- Battery time: 22H
- Talking time: 20H
- Mic with ENC functionality
• Play time: 22H
-Charging time: 1.5H
- Sensitivity: 105 DBSL
• Frequency range: 20Hz - 20kHz
- HD Decode
GET STARTED
Start by downloading the
"MONDO by Defunc" app
where you find your apps (App store a Google Play).
-
Make sure the headphones are fully charged. Do this by charging the headphones until the light is shining with a constant white light.
-
Press the control button for 2 seconds to turn on your headphones.
-
When white lights flash alternately, the headphones are ready to pair with your device.
-
Turn on the Bluetooth function on your device. Select "Mondo Freestyle" in the Bluetooth list to pair the headphones with the device.
-
When the white light turns on the head phones are paired.
-
The headphones will automatically pair with a previously connected device when pressing the control button for 5 seconds.
-
Always use the USB-C charging cable to charge your headphones. You can also use the headphones for listening using the USB-C cable with a device.
TWIST:MTFFYTRACK
TANGSHIUM CONTROL
CONTROL FUNCTIONS
Power on: Press the control button for 2 seconds until you hear the on-sound or the white light turns on.
Power off: Press the control button for 3 seconds until you hear the off-sound or see the white light turning oil. Auto power off will be activated after 5-6 minutes without a connected device.
Play/pause: Click the control button once.
Next track Turn the left rotation button forward.
Previous track: Turn the left rotation button backwards.
Increase volume: Turn the right rotation button forward.
Decrease volume: Turn the right, rotation button backwards.
Connect with second device: Click the control button 4 times to enter pairing mode. Then connect with the second device.
Answer/end phone call: Click the control button once.
Reject call: Press the control button for 2 seconds.
Activate voice assistant: Double click on the control button to activate.
Plug the USB-C charging cable with the USB-C port on the headphones. Plug the other end of the cable into a power source.
LIGHTS ON THE HEAD
PHONES WHEN CHARGING White lights will indicate charging is active. The product is fully charged when the light shines with a constant white light.
"Mondo by Defunc" APP
Simply downloaded the app and you will go, help with the settings and instructions in the app. You can use the app for EQ settings and as a remote for your headphones among other features.
Add your device, then choose equalizer settings, use the presets, or create your own personalized settings.
You can also use your MONDO Freestyle headphones without the "MONDO by Defunc" app and enjoy the product with the default audio settings to fit all music genres.
WARNING!
- Do not attempt to repair the headphones. A faulty repair may lead to fire, electronic breakdown or a damaged product.
- Do not use the headphones in an environment where the temperature is below 0°C or above 45°C.
Avoid using a device indicator light near the eyes of children and animals.
- Do not use the headphones in thunderstorm weather to avoid abnormal head-phone behavior and the risk of shock.
- Do not wipe the headphones with oil or other volatile liquids.
• Do not wet the headphones
ONE YEAR WARRANTY
At MONDO products are designed and manufactured with your high expectations and best customer experience in mind. We are devoted to providing the best quality and modern technology. However, as most people realize electronic products sometimes do have practical details of the product, we will be a manufacturing date. Therefore we offer some of full year acquisitions warranty; from purchase date, against manufacturer defects on each part of hardtophos we sell MONDO (Designed by a star A5) hereby warranty that, under normal use, this product will be free from defects in materials and workmanship for a period of one or 1 year from the date of original retail purchase. The replacement warranty is valid only if the original proof of the product is not applicable to purchaser specifying the date of purchase is necessary with the product to be replaced.
How does it work? If you believe this product is defective within the warranty period, carefully repack the unit and return the product to your authorized dealer, with the original proof of purchase. Your authorized dealer will replace the product in case a defect in manufacture or workmanship is identified. In case your authorized dealer does not have the corresponding product or color in stock, MONDO will promptly provide you with a new product.
This limited replacement warranty does not apply in cases of abuse or misuse of the product use contrary to MONDO instructions, ordinary wear and tear, incorrect connection force majeure, or unauthorized repair. Any lawsuit for breach of this limited warranty shall
be commenced, if a. all, within one (1) year of the date that the claim secures. MONDO shall not be liable for special, Indirect, Incidental or consequential damages resulting from the use or inability to use this product, regardless of the legal, theory on which the claim is based.
This warranty gives you specific legal rights, and you may have other rights, which vary from country to country. This warranty does not restrict the rights of the consumer mandated under applicable laws. This product shall not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
This product was produced after October 1, 2022
The limited premium replacement, warranty is valid only if the original proof of purchase issued to the purchaser, specifying the date of purchase, is presented with the product to be replaced.
COMPLIANCE WITH FCC REGULATIONS
Conclusion: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could avoid the user's authority to advocate the equipment. This equipment has been tested and found to comply with the limits for the purpose of protection, and if it of the FCC Rules. These limits are designed to provide reasonable protection against harm interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, therefore guarantee that interference will not occur in particular installation. If the equipment does cause interference from the other side of the power reception, which can be deemed by turning the couponion on and off; this user is encouraged only to correct the interference by one or more of the following measures:
- Rurorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
This device consists with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
THE SPECIFICATION AND EXTERNAL APPEARANCE OF THE HEADPHONES MAY BE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
If at any time in future you should need to dispose of this product, please note that waste electrical products should not be disposed or household waste. Please recycle where facility exist. Check with your local authority or retailer for recycling advice.
EU DECLARATION OF CONFORMITY Design by a Star AB hereby declares that: MONDO-over-ear dual driver headphones complies with Directive 2014/53/EU. The full text of the FU Declaration of Conformity. https://dafunc.com/documents/
CASQUE MONDO FREESTYLE
Application MONDO by Defunc
CONFORMITÉ AVEC LE RÉG
APP "Mondo by Defunc"
"Mondo by Defunc" UYGULAMASI
new "Mondo by Defunc"
We are a large number of people who have been being the same as they are.
guo'canunsale' n w/o MONDO Freestyle tuo'ci'ovio' and "MONDO by Defunc' nartwa piwa unuga qhnurio paamsao' o rit'ofuus'ocu'ow'ouk inunr"uluzinwao n uusian
กําเนื่อน!
• pinnanatuaou quk vi na nseauu ni wunacou uwa'wku' insetis, urve o lattnau na ksa awi cui laa ukr - snto kwi uwanuus daon quk u rhnh 0 °C ke gcn 45 °C - na na comsly tmalvatuunqunsu na oponcasi nuas co
“forsamud” “mās” “dēu” “lān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “nān” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mās” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “mān” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māa” “māu”, “māu”, “māu”, “māu”, “māu”, “māu”, “māu”, “māu”, “māu”, “māu”, “māu”, “māu”, “mū”, “mū”, and
Design by a Star AB software in the https://www.elsevier.com/MONDO/4000000000123986
https://ocifund.com/documents/
몬도 프리스타워 헤드폰
Mondo by Defunc ^1
다운러스부터 시작합니다.
