Acorn 2 i-Size - Car seat COSATTO - Free user manual and instructions

Product type	Child car seat
Brand	Cosatto
Model	Acorn 2 i-Size
Approval	UN Regulation No. 129, i-Size system (with compatible base)
Orientation	Rear-facing only
Child height	40 cm to 87 cm
Child weight	Up to 13 kg
Installation	Vehicle 3-point seat belt
Harness	5-point with height adjustment
Adjustable headrest	Yes, continuous adjustment
Hood	Yes, removable and adjustable
Side shield	Yes, deployable on the vehicle's outward side
Removable infant insert	Yes, for children 40 to 75 cm
Carry handle	Yes, 3 positions (carry, storage, stable)
Removable cover	Yes, machine washable (follow wash labels)
Care	Clean with warm water and mild detergent; do not use abrasives
Spare parts	Available from Cosatto (website or customer service)
Safety	Do not use on a seat with an active airbag; replace after an accident
Storage	Store in a dry place, away from prolonged sunlight

Frequently Asked Questions - Acorn 2 i-Size COSATTO

How to install the Acorn 2 i-Size car seat in the car?

Place the seat rear-facing on a vehicle seat. Route the lap belt through the side guides, then the diagonal part under the handle hinge and into the rear guide. Tighten the belt and deploy the side shield on the outward side. Consult the installation manual for more details.

Up to what age or weight can I use this seat?

The seat is designed for children from birth up to 87 cm and 13 kg. It must be used with the infant insert from 40 to 75 cm, then without the insert beyond that.

How to adjust the headrest and harness?

To adjust the headrest, first loosen the harness (pull the straps), then pull the adjustment mechanism backwards and adjust the height. The harness is tightened by pulling the adjustment strap and loosened by pulling the shoulder straps.

Can I use this seat on the front seat?

Yes, but only if the airbag is deactivated. Never use this seat on a seat with an active airbag. Consult the vehicle manual to deactivate the airbag.

How to clean the seat cover?

The cover is removable. Remove it following the steps in the manual (removing the hood, headrest cover, and seat cover). Wash according to the wash labels: warm water and mild detergent, no abrasives or bleach.

What to do after a car accident?

The car seat and vehicle belts must be replaced after an accident, even if they appear in good condition. They may no longer provide optimal protection.

How to use the infant insert?

The infant insert is used for children from 40 to 75 cm. It is placed inside the seat. Beyond 75 cm, remove it to give the child more space.

What if the vehicle seat belt buckle is poorly positioned?

If after tightening the belt, the buckle is in a position that could affect stability (indicated by a ✗ in the manual), try installing the seat in another position. If in doubt, contact the manufacturer.

Can I use the seat without the fabric cover?

No, the cover contributes to the safety performance of the seat. Never use the seat without its cover. If replacing, use a Cosatto-approved cover.

How to store the seat when not in use?

Store it in a dry, safe place. Avoid leaving it in the sun for long to prevent discoloration. If the seat is damp, dry it before storing.

USER MANUAL Acorn 2 i-Size COSATTO

clever stuff for happy babies

R129/03 40 – 87cm ≤13kg

The ABCs

Acorn 2 i-Size

i-Size Car Seat

(EN) Instruction 1 - 27

(EN) Spare part list diagram 29

IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE Important safety Information

The instruction manual should be kept safely with child car seat for its life period: There is a fabric compartment at the rear of the headrest fabric cover for storage of the instruction manual.

Cosatto wants you to be happy with the fitting & security of your child car seat. If you have any questions, please contact our customer service team on our by phone [phone]) or by email ([e-mail]).

Child height and weight:

- This child car seat has been approved for transportation in cars of children from birth, height between 40 and 87cm , up to maximum weight of 13kg .

Location:

- IMPORTANT: Your child car seat can only be installed rearward facing using a three point lap and diagonal vehicle belt in the front or rear passenger seats of the car.

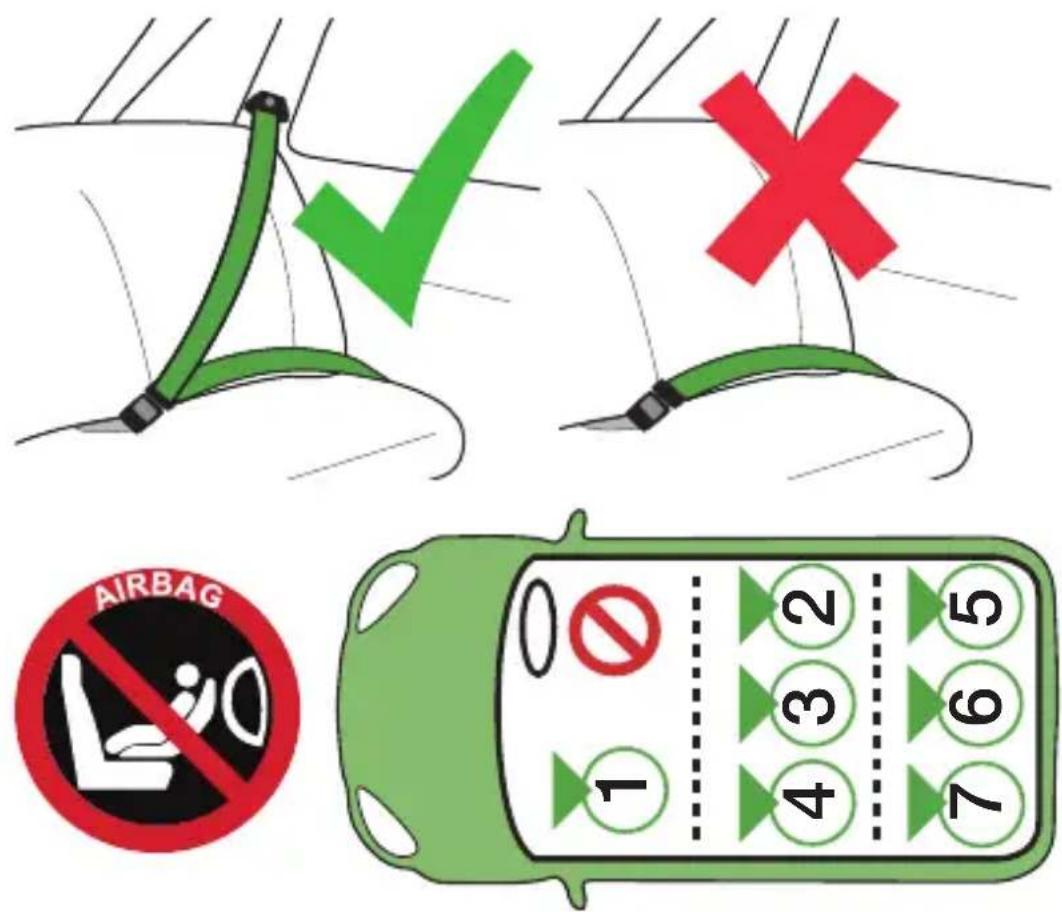

- Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

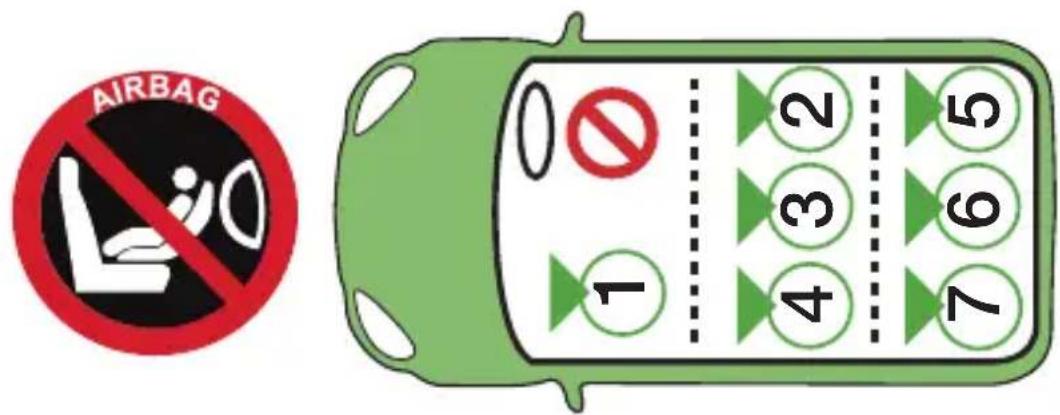

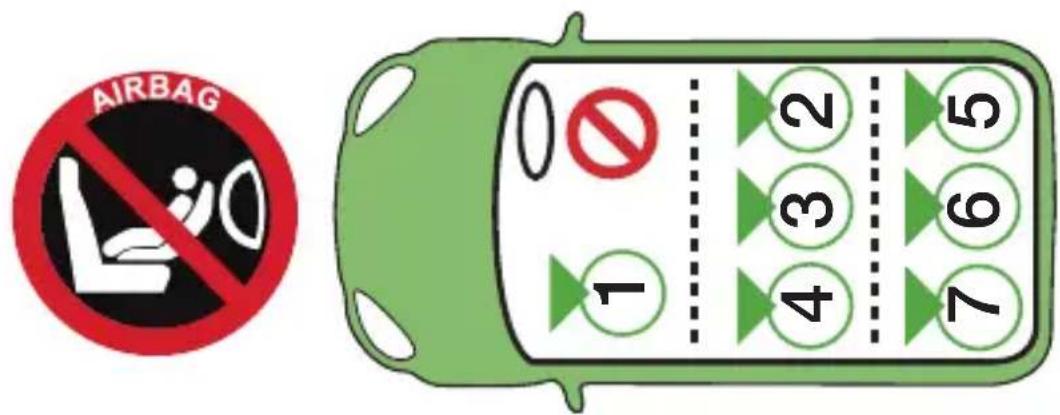

AIRBAG NO 1 2 3 4 5 6 7

Safety - Please read carefully:

- NEVER use this child car seat with its side facing the vehicle seat.

- Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.

- If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.

- ALWAYS secure your child with the safety harness when using this child car seat.

- Never leave your child unattended.

- Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.

- After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.

- Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child restraint system in an accident.

- Always make sure that the child car seat harness are correctly tensioned to ensure maximum protection for your child.

- Prevent harness from getting trapped between car doors or rubbing against sharp parts of the seat or body.

- If the harness/vehicle belts becomes cut or frayed, replace it before travelling.

- Never use replacement parts other than those approved by Cosatto.

- Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seat acquired this way have been found to be dangerous.

- NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.

- Security is only guaranteed if the child car seat is fitted in accordance with these instructions.

- Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.

- Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.

- The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle. Children should be told never to play with the harness buckle or any other part of the child car seat.

- It is important that the lap harness is worn low down, so that the pelvis of the child is firmly engaged.

- Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.

- Cover the child car seat if it is left in direct sun light for prolonged period as the child car seat surfaces may get very hot. Check the child car seat surface before placing your child in the seat.

Notice:

• This is an universal belted enhanced child restraint system. It is approved according to un regulation no. 129/03, for use primarily in «universal seating positions» as indicated by vehicle manufacturers in the vehicle users manual.
• Never use this enhanced child restraint system in seating positions where there is an active frontal airbag is installed.
• When used in combination with the compatible base approved by COSATTO, this is an «i-size» enhanced child restraint system.
• For seating positions of the intended vehicle, please refer to the Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/acorn2isizev).
• If in doubt, consult either the Child Restraint System manufacturer or retailer.

General:

• WARNING: Never leave the child unattended.
• WARNING: Do not use the product once your child can sit unaided.
• WARNING: This product is not intended for prolonged periods of sleeping.
• WARNING: It is dangerous to use this product on an elevated surface, e.g. a table.
• WARNING: Always use the restraint system.
• This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
• Do not use the product if any components are broken or missing.
• Do not use accessories or replacement parts other than those approved by Cosatto.

Care & Maintenance:

• Your child restraint system has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.
• Store your child restraint system in a dry, safe place.
• Storing a damp child restraint system will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.
• Avoid leaving the child restraint system in sunlight for prolonged periods as this may cause fabrics to fade.
• Inspect the child restraint system regularly for signs of damage- stop using the product if damage is found.
• DO NOT take apart, or attempt to take apart the child restraint system when cleaning. It is unnecessary and dangerous to do so.
• Plastic and metal parts may be sponged clean with warm water and a mild detergent.
  • Refer to the wash care label on soft goods for cleaning instruction.
  • Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.
• Remove all packaging & protective materials on the product before using.

Part list:

Please refer to diagrams:

P1: Seat P8: Handle adjustment button

P2: Headrest P9: Side vehicle belt guide

P3: Hood P10: Rear vehicle belt guide

P4: Chest pads (pair) P11: Adjustor strap release button

P5: Harness P12: Side impact protection system

P6: Crotch pad P13: Tuck in tool

P7: Adjustor strap

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Hood fabric S7: Hood fabric rear insert (Set)

S2: Hood fabric front insert S8: Seat liner front insert

S3: Chest pads (pair) S9: Seat liner rear insert

S4: Seat cover S10: Headrest cover

S5: Seat liner cover S11: Tuck in tool

S6: Crotch pad S12: Seat liner head section

Visual language Key:

XX	Refer to warning XX
	Correct action
	Incorrect action
CLICK!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Fitting & Operation Information:

Please refer to the following diagrams:

Harness:

1: Loosening:

NOTE: Pull only the harness straps.

2: Tightening:

3: Opening:

4: Closing:

Headrest:

5: Adjusting:

Loosen the harness (refer to step 1).

Pull back the adjustor (a) and adjust the headrest position (b).

Seat Liner:

6: Adjusting:

7: When your child's height is between 40 and 75cm , the child car seat must be used WITH the seat liner (a).

After your child's height exceed 75cm, the child car seat can be used WITHOUT the seat liner.

Side impact protection system:

8: Opening:

9: Closing:

Handle:

10: Adjusting:

Handle positions:

1: In vehicle/Carry position, 2: Stow position,

3: Steady position.

Note: When the side impact protection system is activated, the handle cannot be used in position 2 or 3.

Hood:

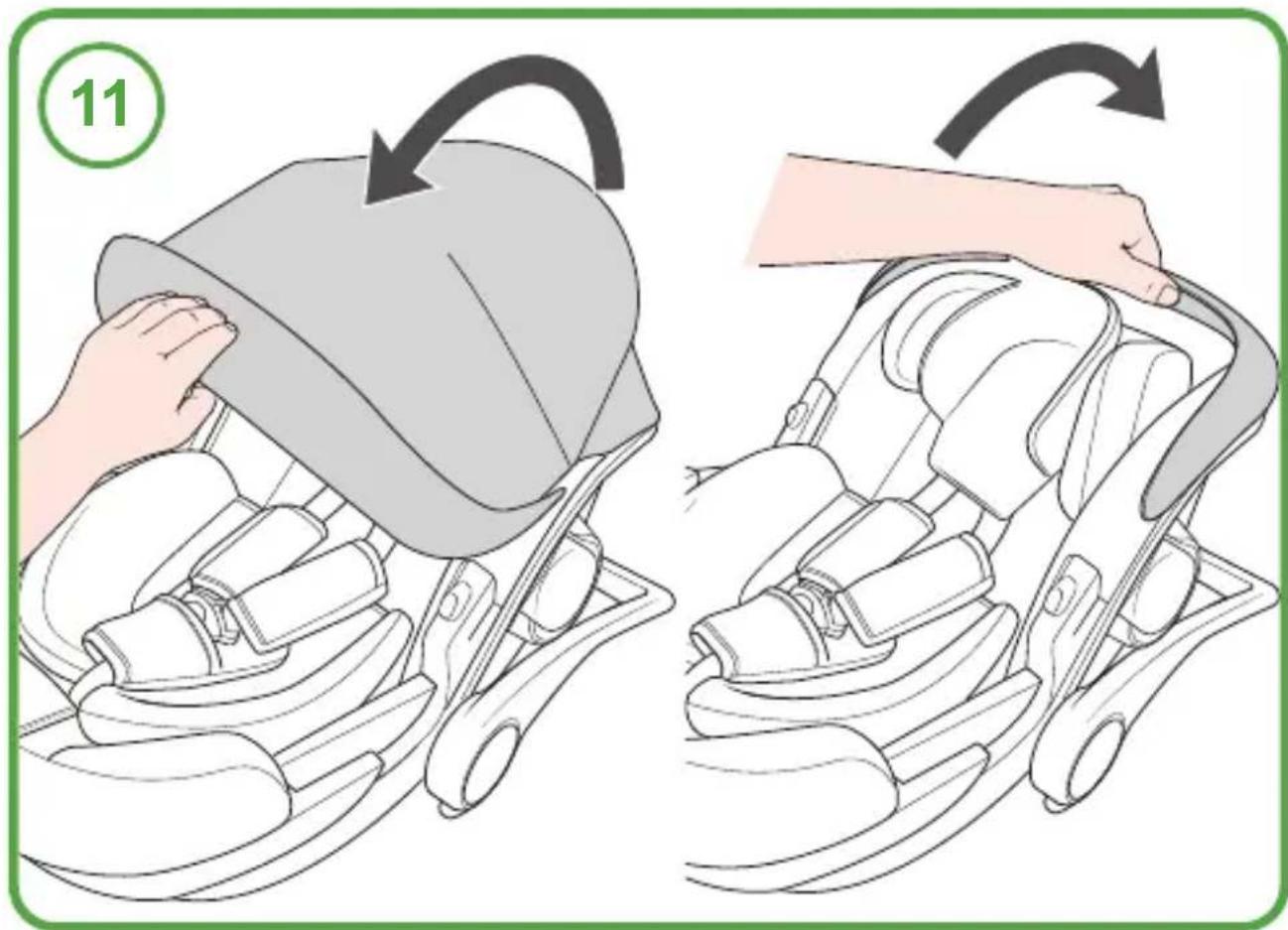

11: Adjusting:

Removing the hood fabric:

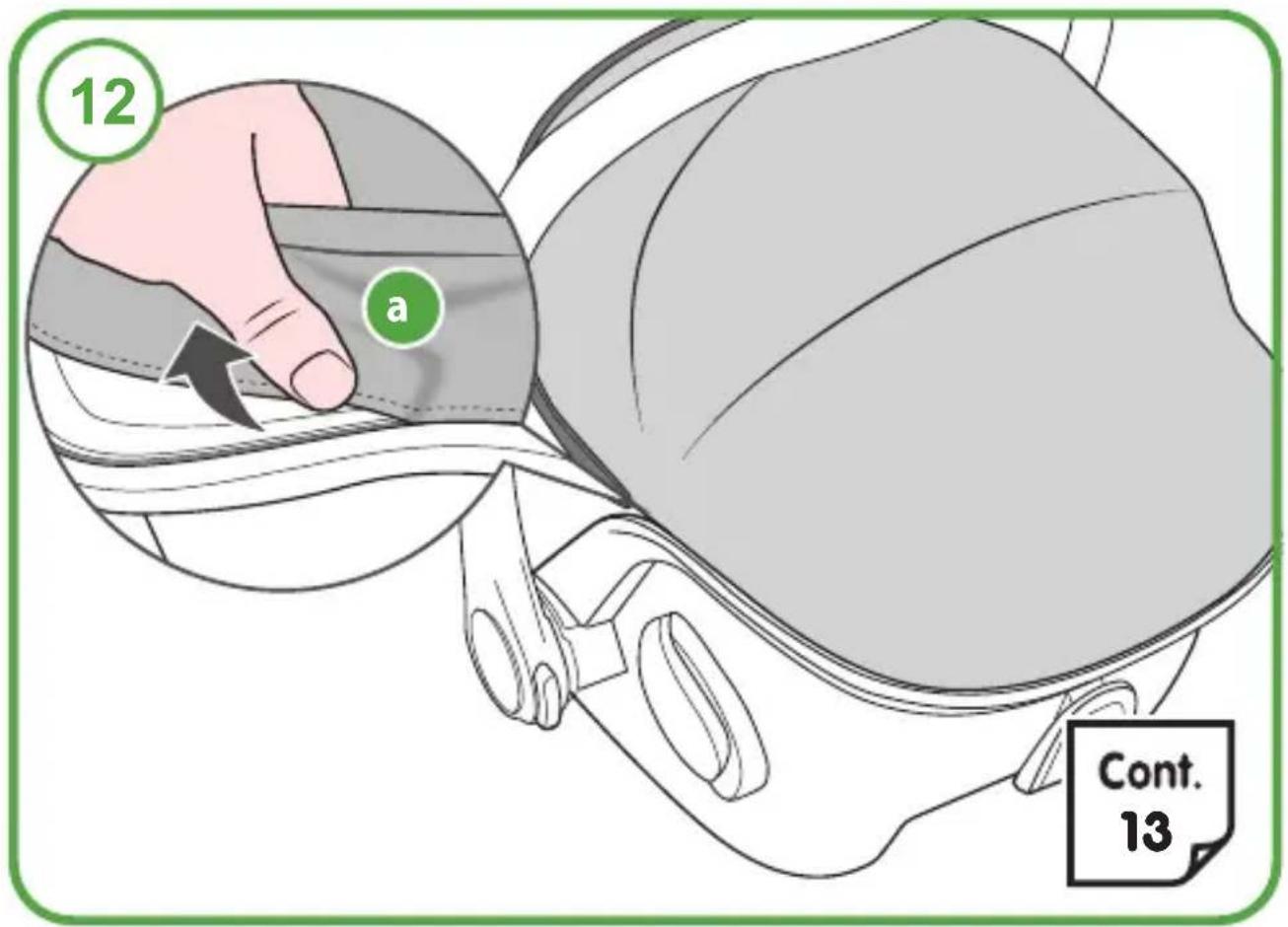

12: Remove the hood fabric from the rear of the seat (a).

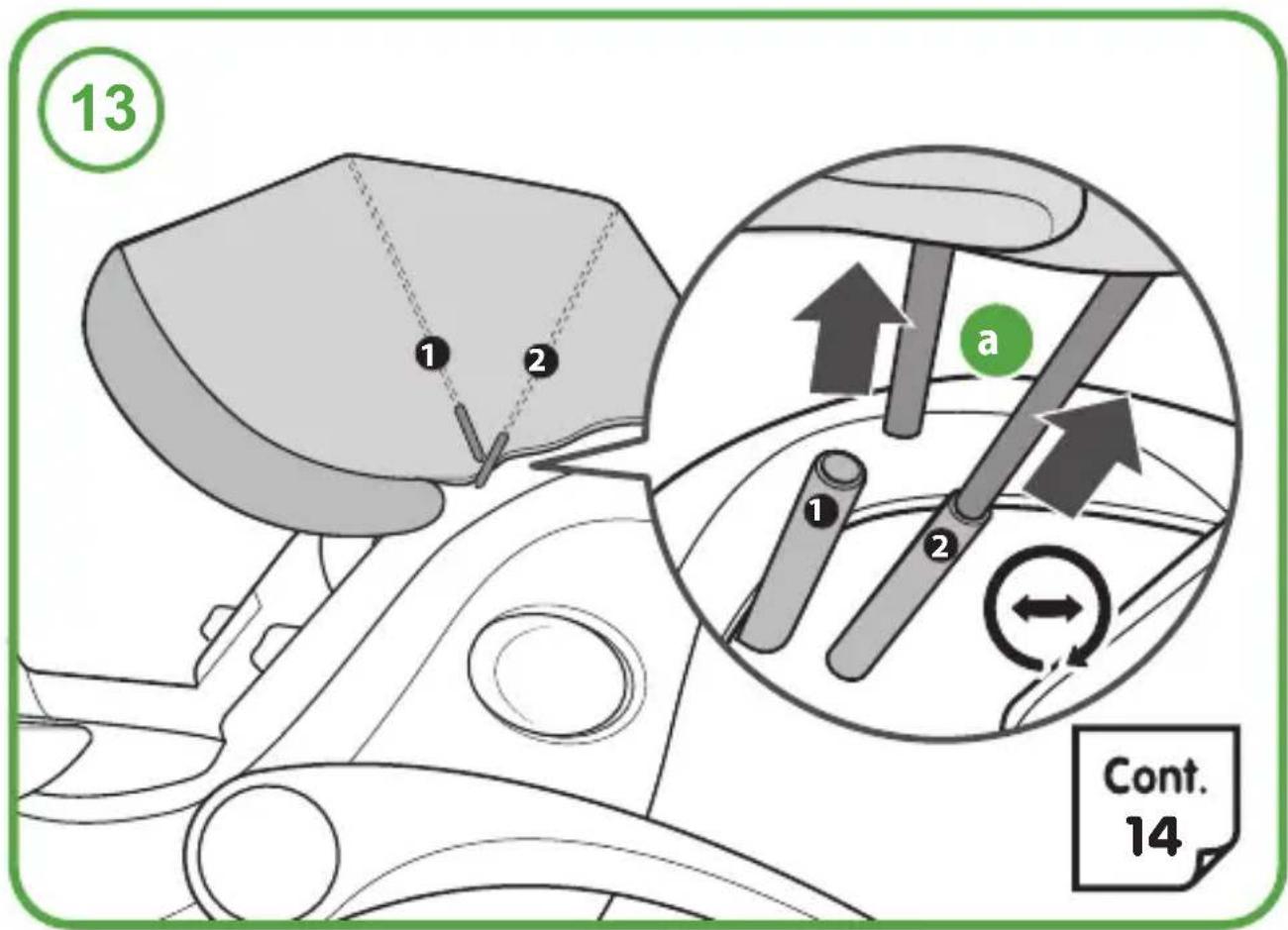

13: Release the hood fabric rear inserts (a).

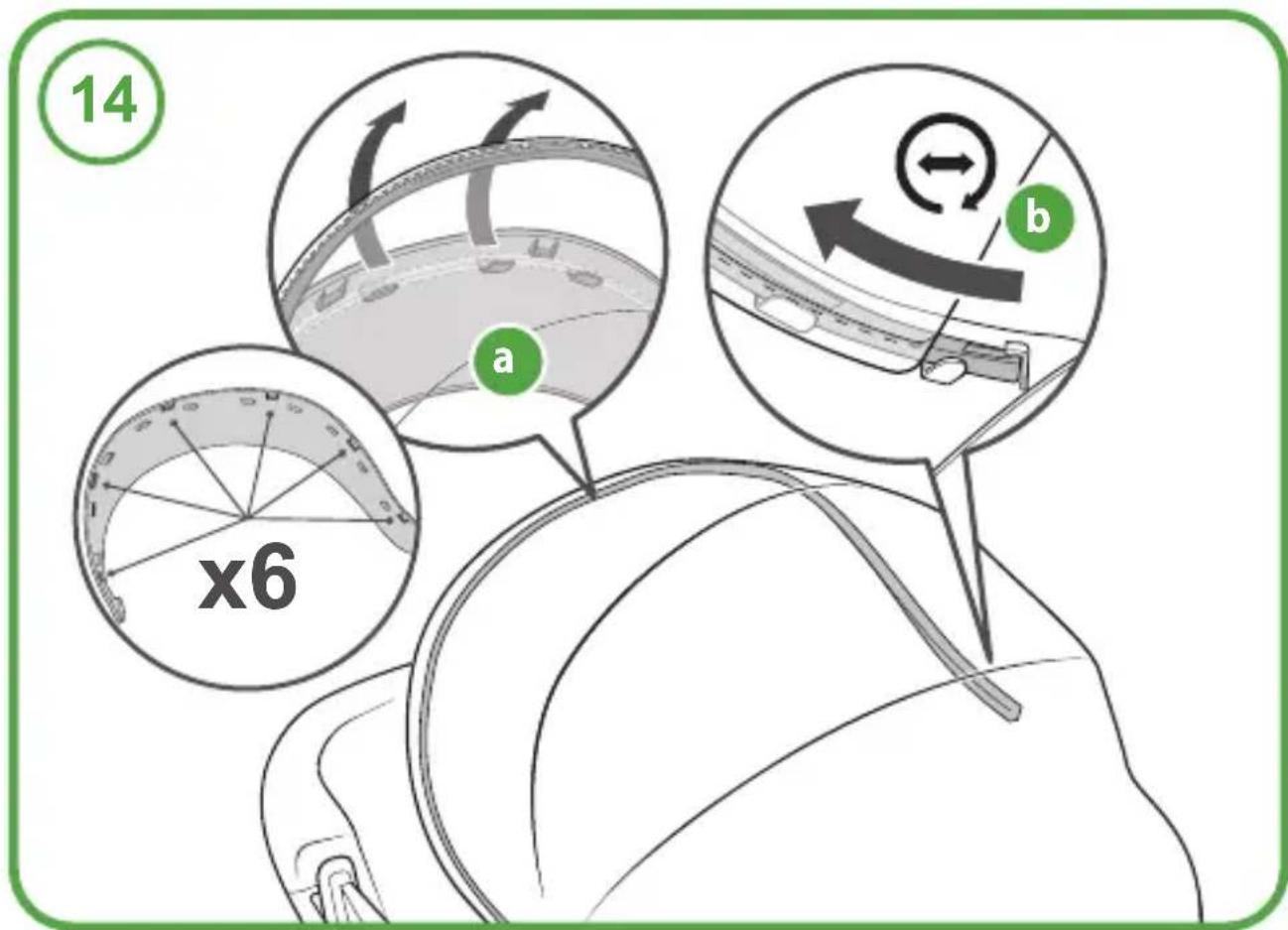

14: Release the hood fabric front insert from the mounting points (a, b).

Refitting is a reversal of this procedure.

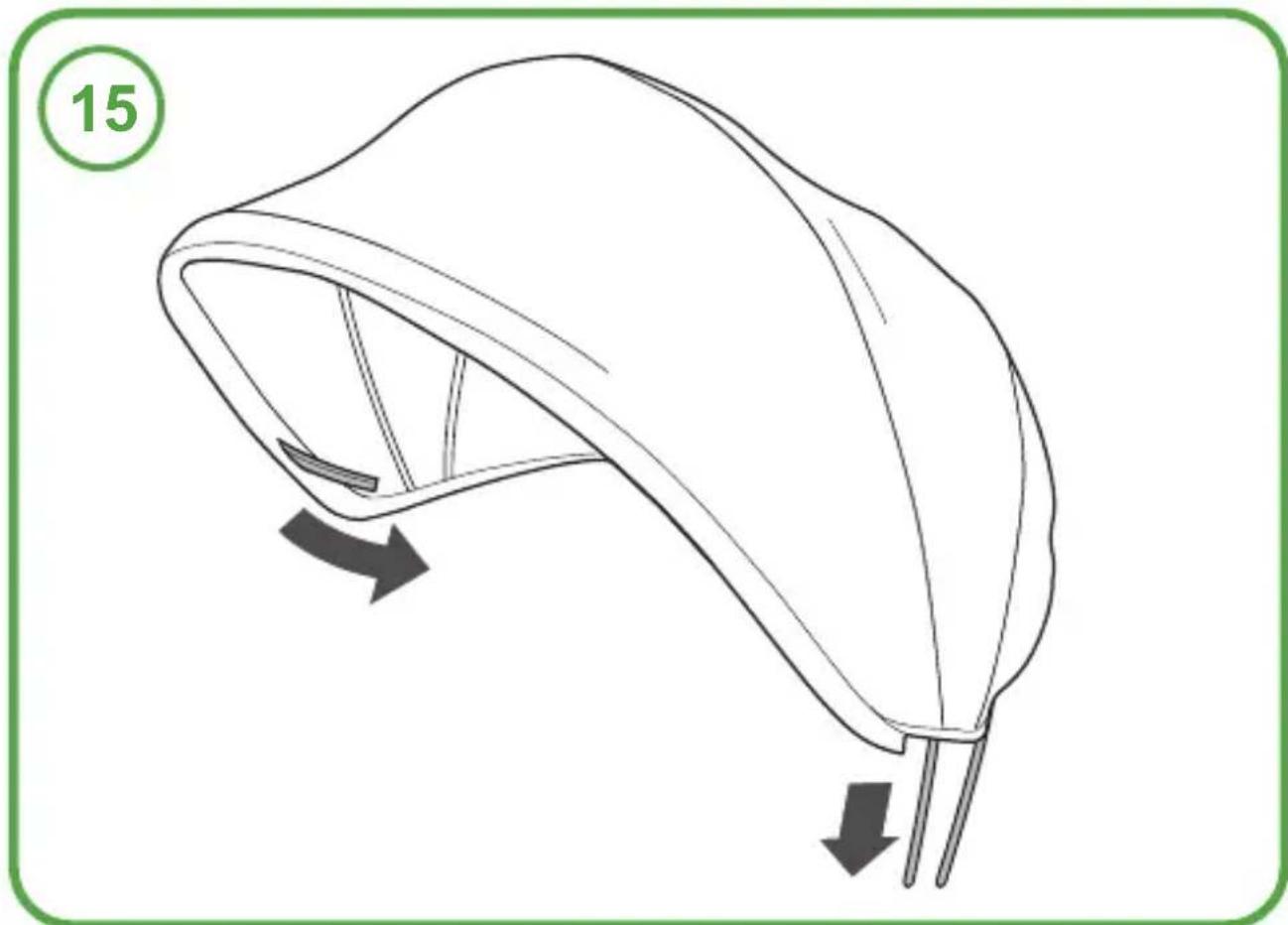

15: Removing hood fabric insert:

Refitting is a reversal of this procedure.

Securing your child in the child car seat:

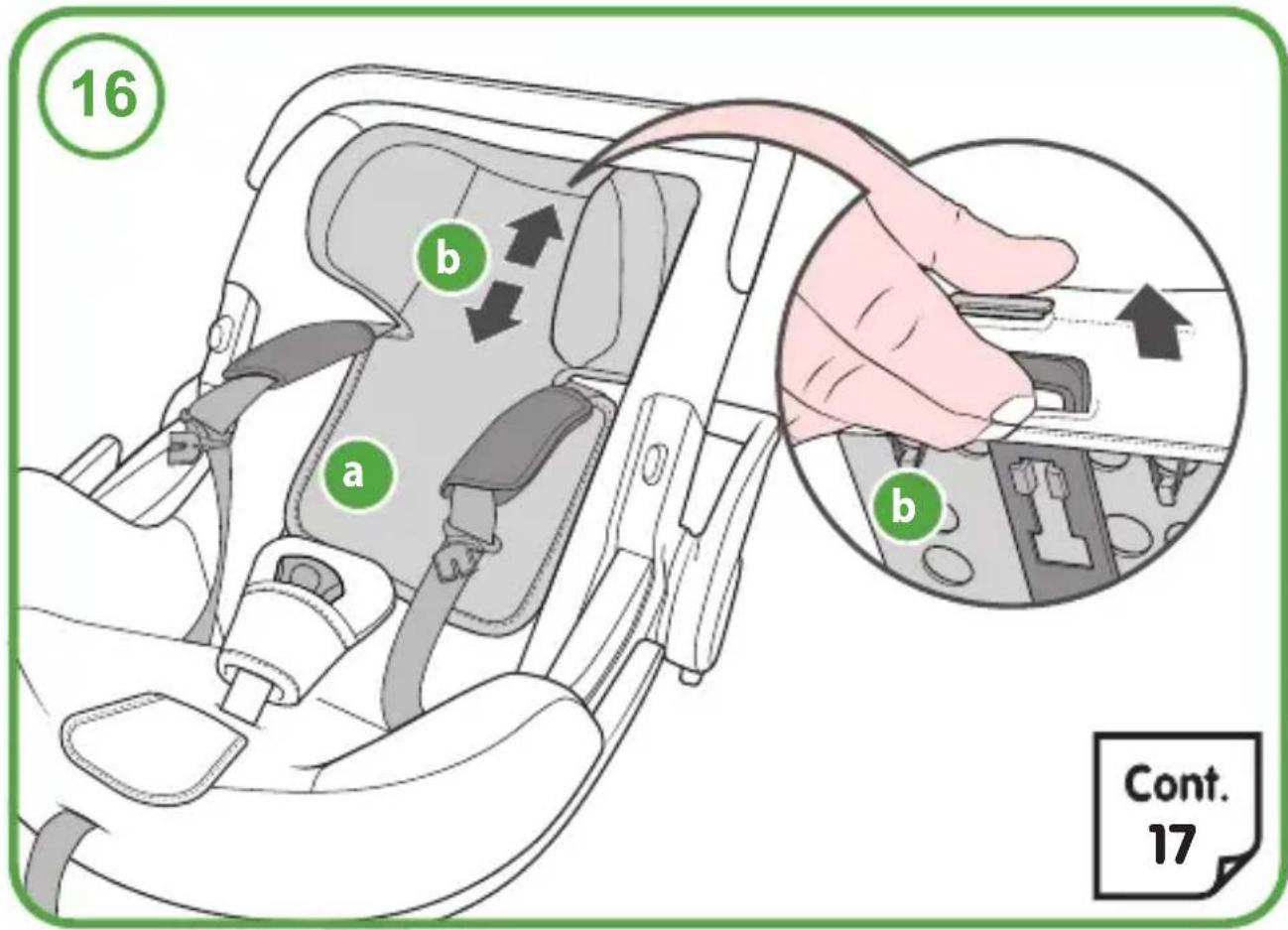

16: Open the harness (a), (refer to step 3).

Raise the headrest (b), (refer to step 5).

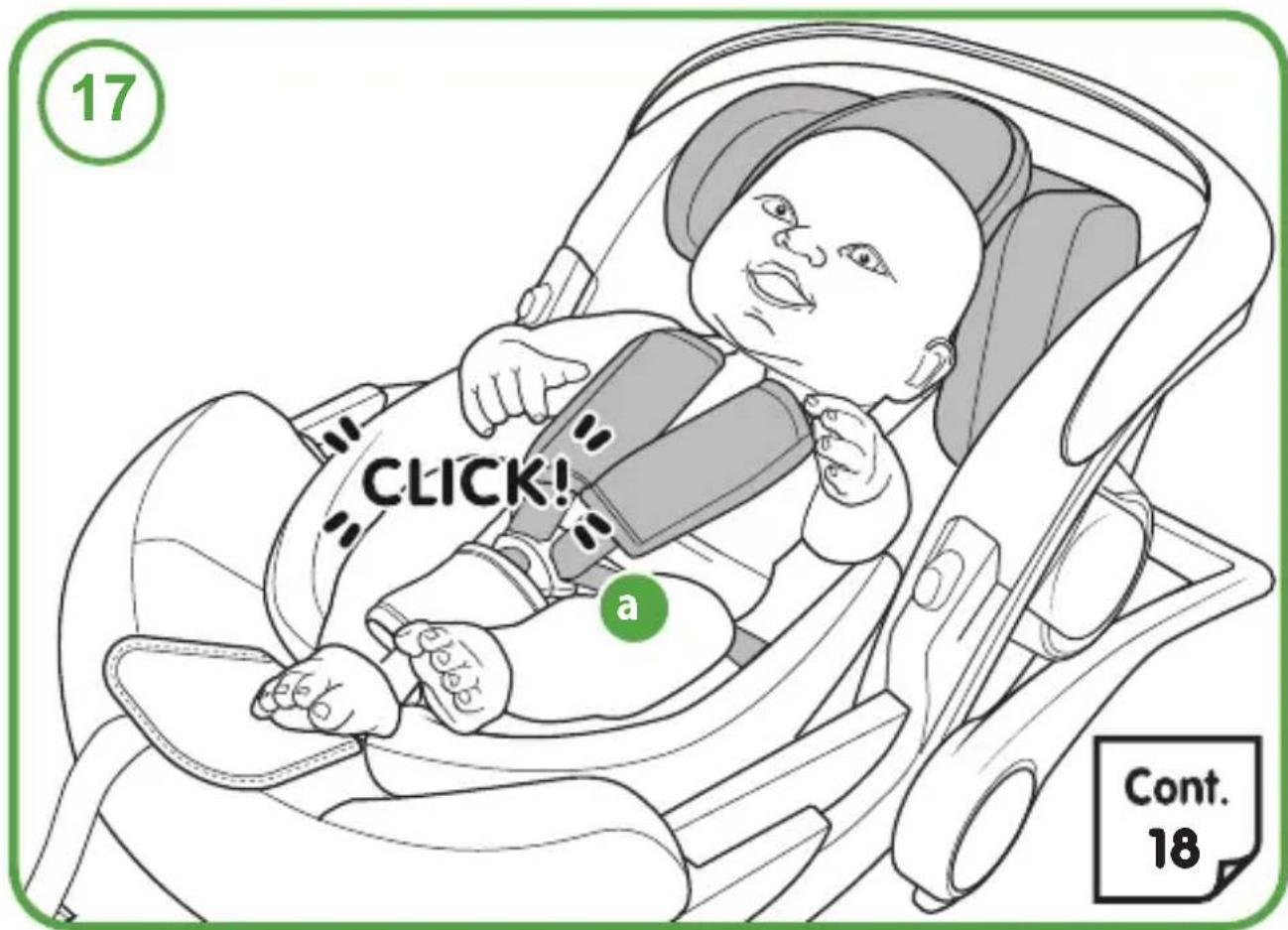

17: Place your child in the child car seat.

Close the harness (a), (refer to step 4).

Adjust the headrest (b), (refer to step 5).

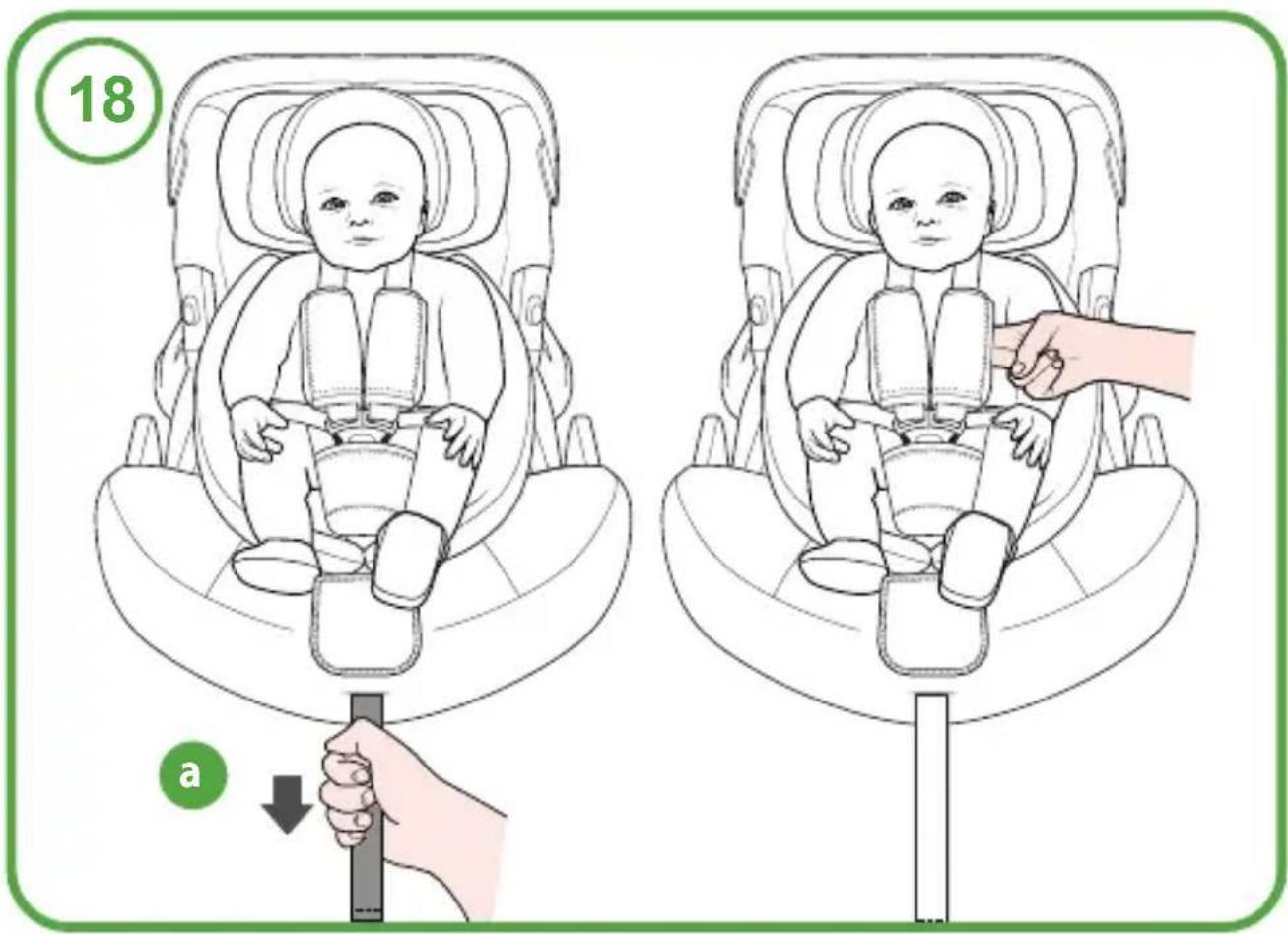

18: Tighten the harness (a), (refer to step 2).

NOTE: The harness must be reasonably tight. It should restrain but not make the child uncomfortable. Check that the straps are not twisted while the child is seated.

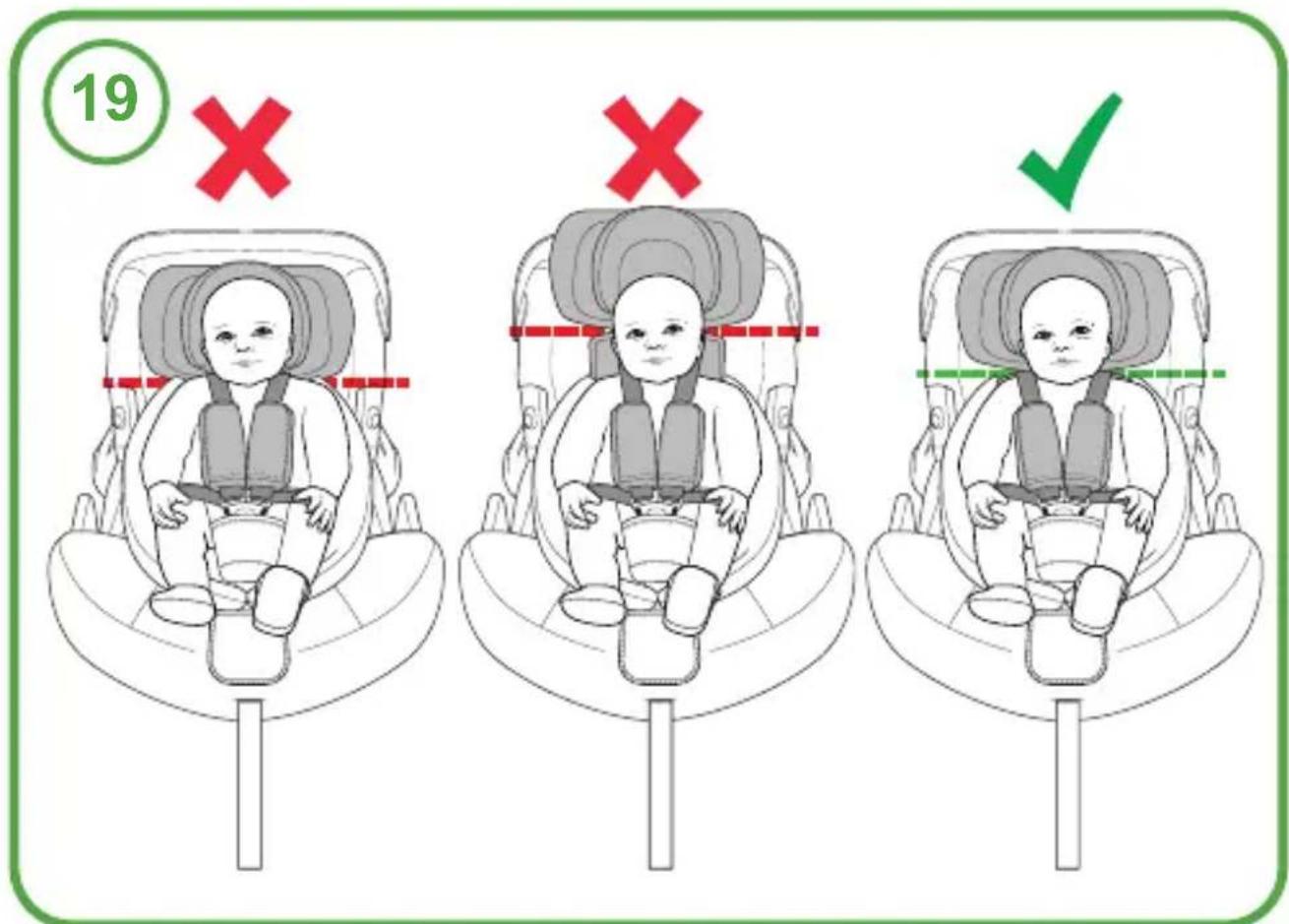

19: Satisfactory shoulder strap position:

Fitting the child car seat to your vehicle:

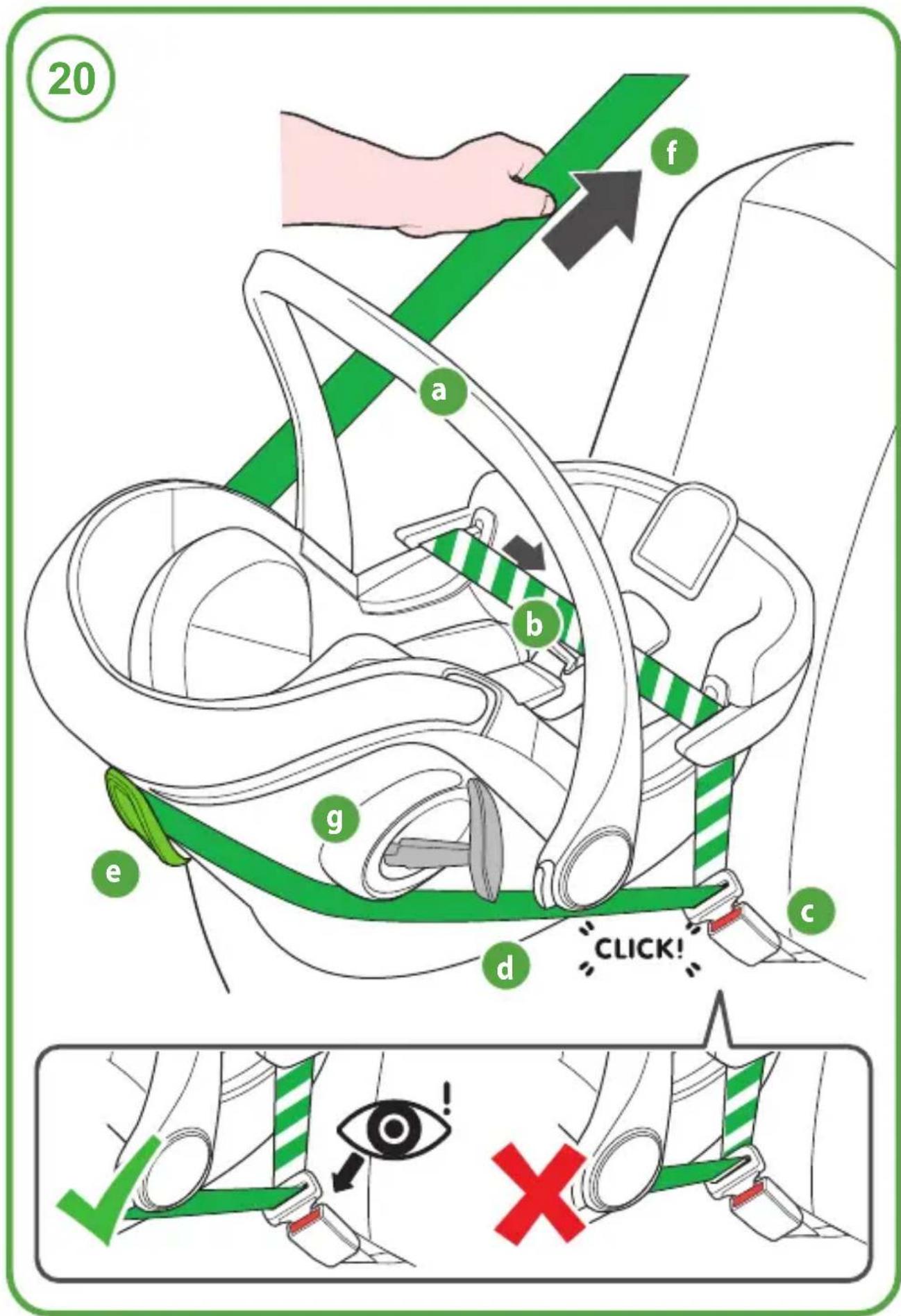

20: Adjust the handle to vehicle/Carry position (a) (refer to steps 10).

Position the child car seat on the vehicle seat, pass the vehicle waist belt through the side vehicle belt guides (b) and fasten the vehicle belt buckle (c).

Route the diagonal belt under handle hinge (d) then through rear vehicle seat belt guide (e).

Tension the vehicle diagonal belt (f).

Activate the side impact protection system on the out board side of the vehicle (g) (refer to step 8).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child car seat. In an accident this could stop the child car seat from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked ✗ then try fitting the child car seat in another seating position in your vehicle. If in doubt consult either the child car seat manufacturer or retailer.

Removing softgoods:

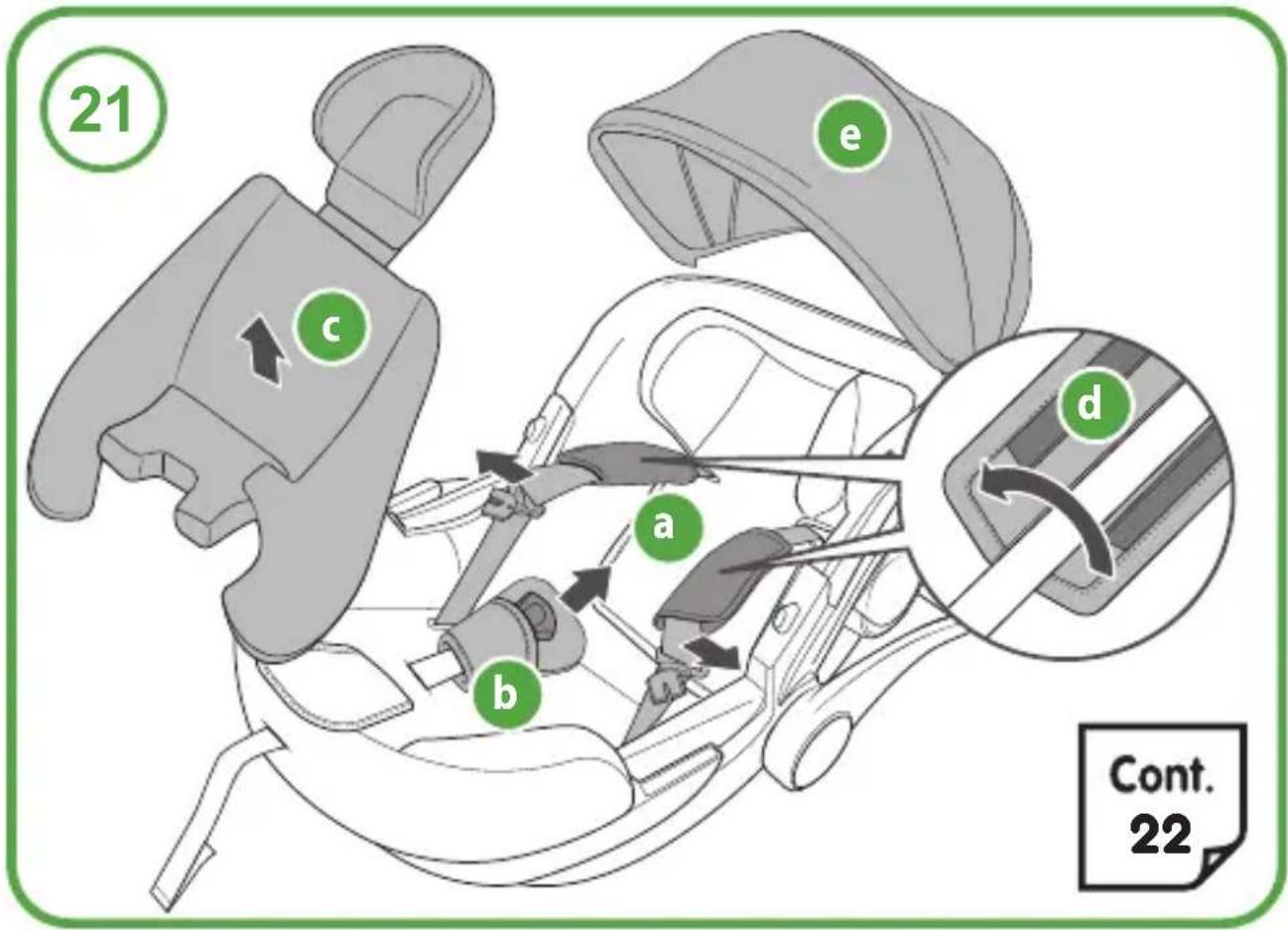

21: Open the harness (a) (refer to step 3).

Remove the crotch pad (b) & seat liner (c) (if applicable).

Remove the chest pads (d).

Remove the hood (e) (refer to step 12-14).

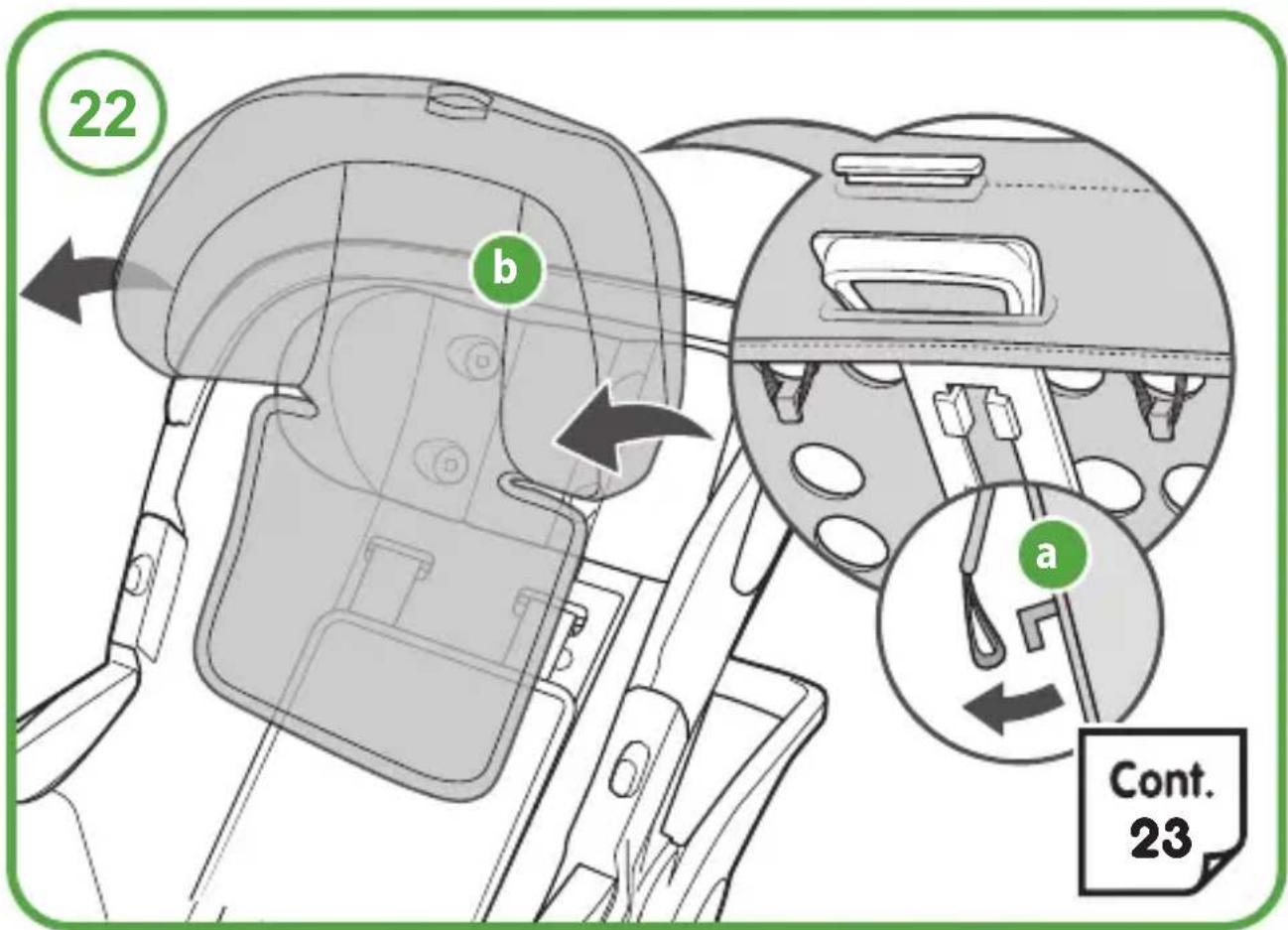

22: Remove the headrest cover (a, b).

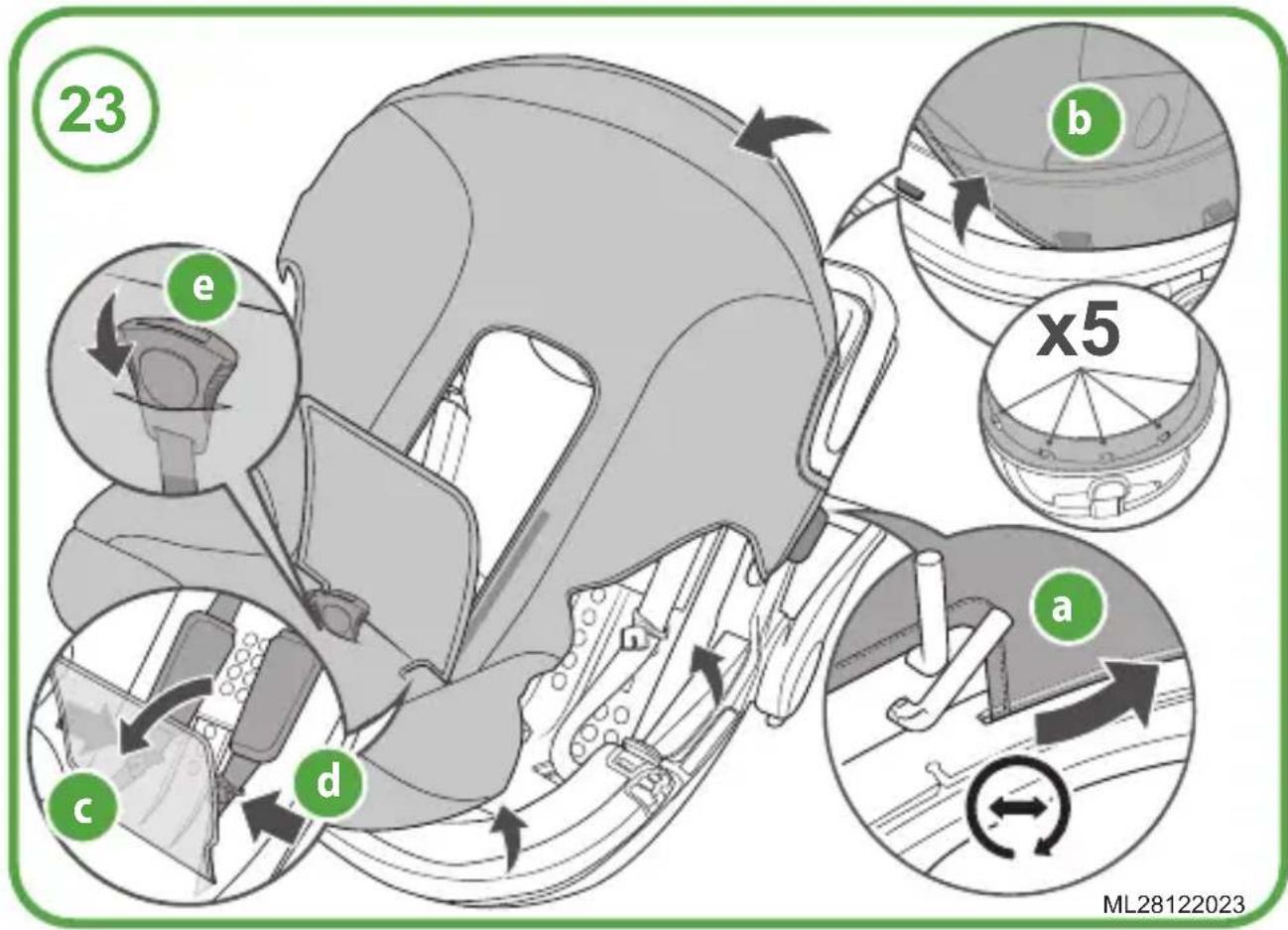

23: Remove the seat cover (a - e).

Refitting is a reversal of this procedure.

Checklist:

- Have you check the compatibility of the child car seat with the intended vehicle?

- If applicable, is the air-bag de-activated?

- Is your child car seat correctly fitted to the vehicle seat?

- Have you check the position of the vehicle belt buckle?

- Is your child correctly secure in the child car seat?

- Are the vehicle belt and harness adequately tensioned and not twisted?

IMPORTANT ! LIRE ATTENTIVEMENT AVANT UTILISATION ET CONSERVER POUR CONSULTATION ULTÉRIEURE

Diagram showing two labeled parts with checkmarks and crosses, one green and one red, possibly indicating approval or rejection states.

AIRBAG 0 1 2 3 4 5 6 7

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

Schultergurt spannen (f).

Diagram showing two labeled scenarios: a green checkmark and a red cross, with arrows indicating direction of movement.

AIRBAG 0 1 2 3 4 5 6 7

10 ⑪ ① ② ③

11

12 a Cont. 13

13 a Cont. 14

14 a b x6

Line drawing of a curved mechanical component with directional arrows indicating motion (no text or symbols)

16 a b b Cont. 17

"CLICK!" a Cont. 18

18 a

19 × × ✓

20 a f b c e g d CLICK! c

21 e c a b d Cont. 22

22 b a Cont. 23

23 e b x5 c d a ML28122023

Right by your Side

Telephone: [phone]*

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

*This is a local rate chargeable number, prices may vary Please check with your provider.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

(EN) NOTICE:

• THIS IS A UNIVERSAL BELTED ENHANCED CHILD RESTRAINT SYSTEM. IT IS APPROVED ACCORDING TO UN REGULATION NO. 129/03, FOR USE PRIMARILY IN “UNIVERSAL SEATING POSITIONS” AS INDICATED BY VEHICLE MANUFACTURERS IN THE VEHICLE USER’S MANUAL.
• NEVER USE THIS ENHANCED CHILD RESTRAINT SYSTEM IN SEATING POSITIONS WHERE THERE IS AN ACTIVE FRONTAL AIRBAG IS INSTALLED.
• WHEN USED IN COMBINATION WITH THE COMPATIBLE BASE APPROVED BY COSATTO, THIS IS AN “I-SIZE” ENHANCED CHILD RESTRAINT SYSTEM.
  • FOR SEATING POSITIONS OF THE INTENDED VEHICLE, PLEASE REFER TO THE COSATTO FIT CHECKER APP (HTTP://COSAT.TO/FITCHECKER) OR THE VEHICLE FITTING LIST SECTION ON THE WEBSITE (HTTP://COSAT.TO/ACORNISIZEVL).
• IF IN DOUBT, CONSULT EITHER THE CHILD RESTRAINT SYSTEM MANUFACTURER OR RETAILER.
