USER MANUAL MD24BS THERMADOR

Plated dish of braised pork belly with garnishes, accompanied by fresh carrots and a glass of wine (no text or symbols visible)

Table of

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY 1

Customer Assistance 2

Safety Definitions 3

IMPORTANT SAFETY INSTRUCTIONS 4

Information you Need to Know 5

About Unpacking and Examining Your

MicroDrawer ^® Microwave Oven 5

Grounding Instructions 5

About Your MicroDrawer® Microwave Oven 5

About Microwave Cooking 6

About Utensils and Coverings 6

About Children and the Microwave Oven 7

About Food Safety 7

About Foods 7

Part Names 8

Before Operating 9

To Set the Clock 9

To Set the Timer 9

Stop/Clear 9

To Open or Close MicroDrawer®

Microwave Oven 9

To Lock the Control Panel 9

To Connect to Wi-Fi 10

MicroDrawer® Microwave Oven Cooking .... 10

Time Cooking 10

To Set Power Level 10

Sensor Settings 10

Popcorn/Sensor Reheat 11

Sensor Cooking 12

Defrost 13

Manual Defrost 13

More Modes 14

Other Features 15

Multiple Sequence Cooking 15

Help 15

+30 SECS 15

More or Less Time Adjustment 15

Settings 15

Audible Signal Elimination 15

Standby Mode 15

Auto Start 16

Demonstration Mode 16

Cleaning and Care 17

Home Connect® 17

Before You Call for Service 18

Statement of Limited Product Warranty 19

THERMADOR® Support 21

This THERMADOR Appliance is made by

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

Questions?

1-800-735-4328

www.thermador.com

We look forward to hearing from you!

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(1) Do not attempt to operate this appliance with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(2) Do not place any object between the appliance front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(3) Do not operate the appliance if it is damaged. It is particularly important that the appliance door close properly and that there is no damage to the:

- do or (bent),

• hinges and latches (broken or loosened),
  • door seals and sealing surfaces.

(4) The appliance should not be adjusted or repaired by anyone except properly authorized service personnel. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. Refer all servicing to a factory authorized service center.

Customer Assistance

To aid in any future assistance concerning this appliance, please record the model and serial numbers located on the unit, and other relevant information in the spaces provided below. Please retain this information for future reference.

Model number ____ Serial number ____

Date of purchase ____ / ____ / ____

Dealer ____ Telephone ____

Servicer ____ Telephone ____

To obtain the name and address of the nearest Thermador ^® Authorized Service Center, please contact:

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA 92614

1-800-735-4328

Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem.

Website: www.thermador.com

Safety Definitions

WARNING

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

CAUTION

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

WARNING

Failure to follow the warnings in this manual could result in a fire or explosion causing property damage, personal injury or death. To reduce the risk of fire, electric shock, exposure to excessive microwave energy or injury, use only as intended and take the following precautions.

▲ IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS

IMPORTANT Read all instructions carefully before installation and operation. Keep this Use and Care Manual for future use. Thermador Drawer Microwave is manufactured in compliance with the relevant safety standard.

When using electrical appliances, take safety precautions, including the following.

1 Read all instructions before using the appliance.
2 Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY on page 3.
3 This appliance must be properly grounded. Read and follow the specific GROUNDING INSTRUCTIONS on page 5.
4 Install or locate this appliance only in accordance with the provided Installation Manual. Have the installer identify the location of the circuit breaker or fuse. Mark it for easy reference. To prevent accidents and achieve optimal ventilation, ensure sufficient space around the cooking area.
5 Some products in sealed containers, such as whole eggs and closed glass jars, can explode and should not be heated in this microwave oven.
6 Use this appliance only for its intended purpose as described in this manual. This appliance is designed for built-in household use only. Do not use to heat a room. Do not use corrosive chemicals or vapors in this appliance. This appliance is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
7 HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.
8 Do not cover or block any openings on the appliance.
9 Do not store or use this appliance outdoors or in areas near water, such as near a kitchen sink, in a wet basement, near a swimming pool or similar locations.
10 Do not immerse the cord or plug in water. Keep the cord away from heated surfaces.
11 Keep fingers and clothes clear of drawer guides when the drawer is opened or closed. Fingers or clothes could be caught in the guides when the drawer is closed.
12 Food and containers must be shorter in height than the drawer. Refer to the height of the side walls of the drawer.
13 Use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth when cleaning the sealing surfaces that come together on closing the drawer. See Cleaning and Care on page 19.
14 To reduce the risk of fire in the appliance cavity, take the following precautions.
a. Do not overcook food.
b. Carefully attend the appliance when paper, plastic or other combustible materials are placed inside the appliance to facilitate cooking.

c. Remove wire twist-ties from paper or plastic bags before placing bag in appliance.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the appliance when not in use.

If materials inside the appliance ignite, keep the drawer closed, touch the stop/clear key twice to cancel the cooking program and shut off power at the fuse or circuit breaker panel.

15 Liquids, such as water, coffee or tea, are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the appliance is not always present. This could result in VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.

To reduce the risk of injury to persons, take the following precautions.

a. Do not overheat liquids.
b. Stir liquids both before and halfway through heating.
c. Do not use straight-sided containers with narrow necks. Use wide-mouthed containers.
d. After heating allow the container to stand in the appliance for at least 20 seconds before removing
e. Use extreme care when inserting a spoon or other utensil into liquids after heating.

16 Do not repair or replace any part of this appliance unless specifically recommended in this manual. If the appliance light fails, contact Thermador Customer Support.

17 Do not use regular cooking thermometers in the appliance. Most cooking thermometers contain mercury and may cause electric arc, malfunction or damage to the appliance.

18 To avoid pacemaker malfunction, consult physician or pacemaker manufacturer about effects of microwave energy on pacemaker.

19 Do not store or use flammable or combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this appliance.

20 Use caution when removing hot items. Use only dry potholders. Moist or damp potholders on hot surfaces may cause burns from steam. Do not let potholders touch hot surfaces or radiant surfaces. Do not use towels or other bulky cloth.

Important Information

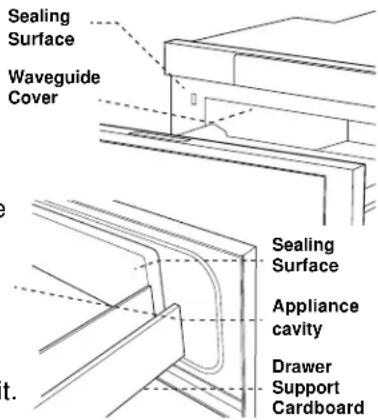

About Unpacking And Examining The Appliance

Sealing Surface Waveguide Cover Sealing Surface Appliance cavity Drawer Support Cardboard

1 Remove all packing materials from inside the appliance. Remove the feature sticker, if there is one, from the outside of the appliance. Remove the drawer support cardboard from the unit. IMPORTANT: DO NOT

REMOVE THE WAVEGUIDE COVER LOCATED ON THE TOP OF THE APPLIANCE CAVITY.

2 Check the drawer for any damage, such as misaligned or bent drawer, damaged drawer seals and sealing surfaces, broken or loose drawer guides and dents inside the cavity or on the front side of the drawer. If there is any damage, do not operate the appliance. Contact your dealer or Thermador Customer Support.

• CONDITION OF UNIT

Do not operate any appliance with a damaged cord or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

WARNING

SERVICE AND REPAIR WARNING

Do not repair or replace any part of the appliance. If the display, appliance or touch controls fail, consult a Thermador Authorized Servicer.

• RADIO OR TV INTERFERENCE

If any interference to your radio or TV is caused by the Drawer Microwave, check if the appliance is on a different electrical circuit, relocate the radio or TV as far away from the appliance as feasible or check position and signal of receiving antenna.

GROUNDING INSTRUCTIONS

Permanent and Correct Installation

This appliance must be grounded. The Drawer Microwave is equipped with a cord having a grounding wire with a grounding plug. It must be

plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

If you have any questions about the grounding or electrical instructions, consult a qualified electrician.

3-Prong plug Grounding pin 3-Prong receptacle Grounded receptacle box

WARNING

Improper use of the grounding plug can result in a risk of electric shock. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

About The Drawer Microwave

• ABSORB MICROWAVE ENERGY

When the Drawer Microwave is in use, ALWAYS have food in the cavity to absorb the microwave energy. The Drawer Microwave is for food preparation only. It should not be used to dry clothes, newspapers, or other non-food items.

• OPEN AND CLOSE CAREFULLY

When opening or closing the Drawer Microwave quickly, food in the appliance may be spilled. See Cleaning and Care on page 19.

WARNING

WARM EXTERIOR IS NORMAL

It is normal for the exterior of the appliance to be warm to the touch when cooking or reheating.

DO NOT BLOCK VENT

NEVER cover or obstruct the vent over and under the Drawer Microwave. During microwave use, steam may come from the left side lower vent. Check the vent area after each use and wipe it down if needed.

• CONDENSATION IS NORMAL

It is normal for microwave use to produce condensation, the amount of which is related to food moisture content and room humidity.

• MAGNETRON CYCLING IS NORMAL

The magnetron can be heard cycling on and off during microwave use with power levels below 100%.

• POWER RATING IS 950 WATTS

This Drawer Microwave is rated 950 watts by using the IEC Test Procedure. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly.

Information You Need To Know

About Unpacking and Examining Your MicroDrawer® Microwave Oven

1 Remove all packing materials from inside the MicroDrawer ^® Microwave Oven. Remove the drawer support cardboard from the unit. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the top of the MicroDrawer ^® Microwave Oven.

2 Remove the feature sticker, if there is one. NOTICE: Check the drawer for any damage, such as misaligned or bent drawer, damaged drawer seals and sealing surfaces, broken or loose drawer guides and dents inside the cavity or on the front side of the drawer. If there is any damage, do not operate the MicroDrawer® Microwave Oven and contact your dealer or a THERMADOR® AUTHORIZED SERVICER.

- CONDITION OF UNIT

Do not operate any appliance with a damaged cord or after the appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

• SERVICE AND REPAIR WARNING

Do not repair or replace any part of the appliance. If the display, oven or touch controls fail, consult a Thermador Authorized Servicer.

• RADIO OR TV INTERFERENCE

If any interference to your radio or TV is caused by the MicroDrawer® Microwave Oven, check if the appliance is on a different electrical circuit, relocate the radio or TV as far away from the appliance as feasible or check position and signal of receiving antenna.

GROUNDING INSTRUCTIONS

This appliance must be grounded. The MicroDrawer® Microwave Oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current.

WARNING

Improper use of the grounding plug can result in a risk of electric shock. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

- If you have any questions about the grounding or electrical instructions, consult a qualified electrician.

About Your MicroDrawer® Microwave Oven

• ABSORB MICROWAVE ENERGY

When the MicroDrawer® Microwave Oven is in use, ALWAYS have food in the cavity to absorb the microwave energy. The MicroDrawer® Microwave Oven is for food preparation only. It should not be used to dry clothes or newspapers.

• OPEN AND CLOSE CAREFULLY

When opening or closing the MicroDrawer® Microwave Oven quickly, food in the oven may be spilled. See Cleaning And Care on page 15.

- WARM EXTERIOR IS NORMAL

It is normal for the exterior of the appliance to be warm to the touch when cooking or reheating.

• CONDENSATION IS NORMAL

It is normal for microwave use to produce condensation, the amount of which is related to food moisture content and room humidity.

• DO NOT BLOCK VENT

NEVER cover or obstruct the vent over and under the Micro-Drawer® Microwave Oven. During microwave use, steam may come from the left side lower vent. Check the vent area after each use and wipe it down if needed.

• MAGNETRON CYCLING IS NORMAL

The magnetron can be heard cycling on and off during microwave use with power levels below 100%.

• POWER RATING IS 950 WATTS

This MicroDrawer® Microwave Oven is rated 950 watts by using the IEC Test Procedure. In using recipes or package directions, check food a minute or two before the minimum time and add time accordingly.

About Microwave Cooking

• ARRANGE FOOD CAREFULLY

Place the thickest parts of the food toward the outside of the dish.

• WATCH COOKING TIME

When following recipes or package instructions, check food for doneness a minute or two before the minimum time and add time as needed.

Information You Need To Know

About Food Safety

Cook foods to safe temperatures recommended by the United States Department of Agriculture (USDA). To check internal temperature of foods to determine doneness, insert a meat thermometer in a thick or dense area away from fat or bone.

WARNING

NEVER leave a thermometer in the food during microwave cooking unless the thermometer is approved for microwave use.

fish	-	145°F (63°C)
pork, ground beef/veal/lamb, egg dishes	-	160°F (71°C)
whole, pieces and ground turkey/chicken/duck, leftover, ready-to-reheat refrigerated, deli and carry-out food	-	165°F (74°C)

About Children and the Drawer Microwave

WARNING

HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE OVEN. Use caution when removing hot items. Failure to monitor children can result in burns or serious injury to children. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure they are supervised and instructed in safe practices by qualified persons. See To Lock the Control Panel on page 9.

Proposition 65 Warning:

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING: WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

About Foods

Food Do Do	Not
Eggs, sausages, fruits and vegetables	· Puncture egg yolks before cooking to prevent bursting.· Pierce skins of potatoes, apples, squash, hot dogs and sausages so steam escapes.	· Do not cook eggs in shells.· Do not reheat whole eggs.· Do not dry nuts or seeds in shells.
Popcorn · Use popcorn	specially packaged for microwave cooking.· Listen for the popping of corn to slow to 1 or 2 seconds between pops to avoid overcooking.· Use the special Popcorn feature by touching the POPCORN key.	· Do not pop corn in regular brown paper bags or glass bowls.· Do not exceed the maximum cooking time listed in the package instructions.
Baby food · Transfer	baby food to a small dish and heat carefully, stirring often.· Check temperature before serving. Test temperature of bottles on your wrist before serving.· Attach nipples to bottles AFTER heating. Shake well before serving.	· Do not heat disposable bottles.· Do not heat bottles with nipples attached.· Do not heat baby food in original jars.
General · Cut filled baked goods after heating to release steam.· Stir liquids briskly before and after heating to avoid eruption.· Use a deep bowl when cooking liquids and cereals to prevent boil-overs. Refer to the height of the side walls of the drawer.		· Do not heat or cook in closed glass jars or airtight containers.· Do not use the microwave for canning, as harmful bacteria may not be destroyed.· Do not deep-fat fry in the microwave.· Do not dry wood, gourds, herbs or wet papers.

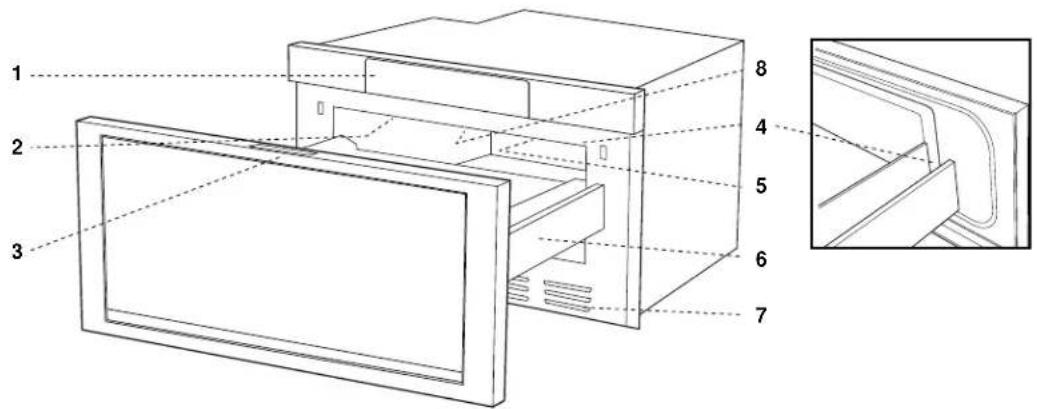

Part Names

MICRODRAWER® MICROWAVE OVEN

Technical diagram of a microwave oven with numbered components and an inset cross-section view

1 Control panel
2 Waveguide cover DO NOT REMOVE
3 Menu label
4 Drawer sealing surfaces
5 Drawer light

6 Drawer guides
7 Vent
8 Name plate: open the drawer fully. The label is beyond the back wall of the microwave oven cavity facing up from the flat surface.

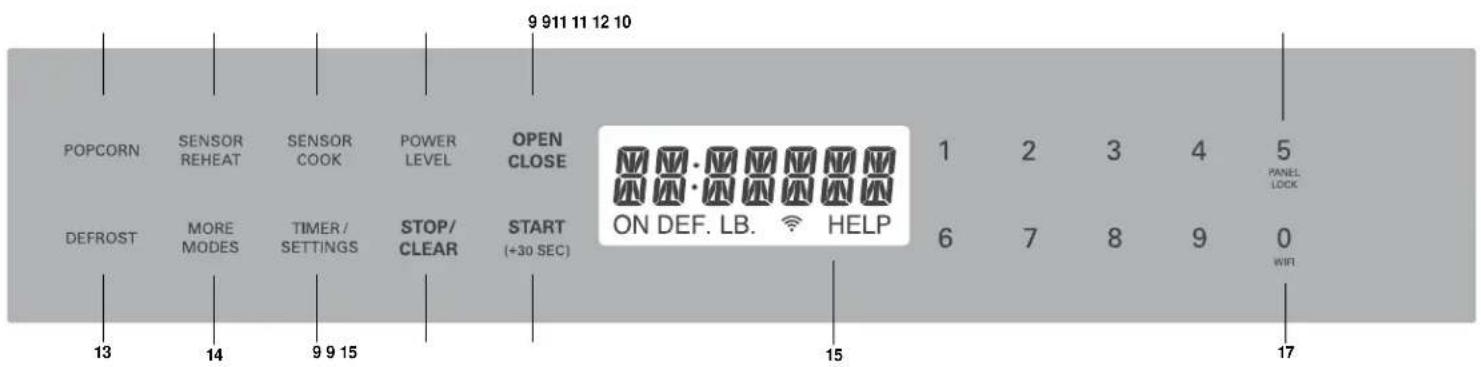

9 911 11 12 10 POPCORN SENSOR REHEAT SENSOR COOK POWER LEVEL OPEN CLOSE DEFROST MORE MODES TIMER / SETTINGS STOP/ CLEAR START (+30 SEC) ON DEF. LB. HELP 1 2 3 4 5 PANEL LOCK 6 7 8 9 0 WIFI 13 14 9 9 15 15 17

Numbers next to the keysheet illustration indicate pages on which there are feature descriptions and usage information.

MENU LABEL

SENSOR COOK		DEFROST	MORE MODES
1 Baked Potatoes2 Sweet Potatoes3 Fish/Seafood4 Brown Rice5 White Rice	6 Fresh Vegetables: Quick7 Fresh Vegetables: Longer8 Frozen Vegetables9 Ground Meat10 Frozen Entrees	1 Ground Meat2 Steaks/Chops3 Boneless Poultry4 Bone-in Poultry5 Roast6 Casserole or Soup	1 Melt Butter2 Melt Chocolate3 Soften Ice Cream4 Soften Cream Cheese5 Warm Syrup6 Warm Dessert Topping	7 Beverage Reheat8 Hot Water9 Hot Cereal10 Reheat Fresh Rolls/Muffins11 Reheat Frozen Rolls/Muffins12 Keep Warm

Before Operating

Before operating your new Drawer Microwave, read and understand this Use and Care manual completely. Ensure the appliance is properly installed to all instructions included in the Installation Manual and ensure all protective packaging materials and tape have been completely and correctly removed.

To operate, follow these steps:

1 Plug in the Drawer Microwave. ENJOY YOUR MICRO-WAVE TOUCH CLEAR appears on the display.

2 Touch the stop/clear key.

To Set the Clock

1 Touch the timer/settings key. TO SET CLOCK ENTER TIME appears on the display.
2 Use number keys to enter time of day. TOUCH CLOCK appears on the display.
3 Touch the timer/settings key to accept entered time of day.

To Set The Timer

1 Touch the timer/settings key two times. TO SET TIMER ENTER TIME appears on the display.
2 Use number keys to enter time. TOUCH TIMER appears on the display. The time counts down.
3 Touch the start (+30 secs) key to cancel the timer. An audible signal will sound when the countdown completes.

To Open or Close Drawer Microwave

Always press the Open or Close key on the control panel to open or close the drawer. Do not push or pull the drawer by hand, except in case of emergency, such as during a power failure. If necessary, push or pull slowly.

Stop/Clear

Touch the stop/clear key to:

• erase a mistake
• cancel the timer
• pause heating
• cancel a program

• return the time of day to the display

- cancel timed cooking

Power Outage

If the electrical supply to your Drawer Microwave should be interrupted, the display will intermittently show ENJOY YOUR MICRO-WAVE TOUCH CLEAR after the power is reinstated. If this occurs during cooking, the program will be erased. The time of day will also be erased. Simply touch the stop/clear key and reset the clock.

To Lock the Control Panel

The Panel Lock prevents unwanted drawer operation, such as by small children. The Drawer Microwave can be set so that the control panel and the automatic door mechanism are deactivated or locked.

• TO LOCK

Touch the number 5 and hold for 3 seconds. LOCK ON appears on the display.

• TO UNLOCK

Touch the number 5 and hold for 3 seconds. LOCK OFF appears on the display.

The Panel Lock is canceled when the electrical power supply to your appliance is interrupted. Set the Panel Lock again when power to the appliance is restored.

To Connect to Wi-Fi

To turn on Wi-Fi on your appliance, hold "0" for 3 seconds. For instructions on connecting your Drawer Microwave to Wi-Fi, see the separate Quick Connect Guide.

Microwave Cooking

Time Cooking

The Drawer Microwave can be programmed for cooking times up to 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes; if there are no seconds in the cooking time, enter two zeros.

• To cook for 5 minutes at 100% power:

1 Touch the number keys 5-0-0 to enter cooking time. 5.00 touch start or touch power level appears on the display.
2 Touch the start (+30 secs) key for 100% power. The timer on the display counts down.

NOTE: For best cooking results and to avoid spatters, some foods should be covered. See About Utensils and Coverings on page 6 and refer to hints by touching the timer/settings key for recommendations. Always allow steam to escape away from face and hands when removing any covering.

To Set Power Level

There are eleven preset power levels.

Using lower power levels increases the cooking time, which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult a microwave cookbook or recipes for specific recommendations.

• To defrost for 5 minutes at 30% power:

1 Touch the number keys 5-0-0 to enter cooking time. 5.00 TOUCH START OR TOUCH POWER LEVEL appears on the display.
2 Touch the power level key 8 times for 30% power. P-30 appears on the display.
3 Touch the start (+30 secs) key.

TOUCH POWER LEVEL PAD NUMBER OF TIMES FOR DESIRED POWER	APPROXIMATE PERCENTAGE OF POWER	COMMON WORDS FOR POWER LEVELS
POWER LEVEL x 1 100%	High
POWER LEVEL x 2 90%
POWER LEVEL x 3 80%
POWER LEVEL x 4 70%	Medium High
POWER LEVEL x 5 60%
POWER LEVEL x 6 50%	Medium
POWER LEVEL x 7 40%
POWER LEVEL x 8 30%	Med Low/Defrost
POWER LEVEL x 9 20%
POWER LEVEL x 10	10%	Low
POWER LEVEL x 11	0%

Sensor Settings

The sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power levels for various foods and quantities.

Using Sensor Settings:

1 Wait two minutes after initially plugging in the appliance before using a sensor setting.
2 Wipe off any moisture from the exterior of the food container and the interior of the microwave cavity before using a sensor setting.
3 The sensor works with foods at normal storage temperature. For example, popcorn would be at room temperature.
4 Any sensor selection can be programmed with More or Less Time Adjustment. See page 15.
5 Foods of different quantities than listed on the menu label can be cooked manually according to instructions found in any microwave cookbook.
6 During the first part of sensor use, the food name will appear on the display. Do not open the drawer or touch the stop/clear key during this part of the cycle. The measurement of vapor will be interrupted. If this occurs, an error message will appear. To continue cooking, touch the stop/clear key and cook manually.

When the sensor detects the vapor emitted from food, the remaining cooking/reheating time appears on the display. At this time, the drawer may be opened to allow for stirring or seasoning of food. When the drawer is opened, the appliance will be in a paused state.

7 If the sensor does not detect vapor properly when cooking foods (except popcorn), ERROR appears on the display. To continue cooking, touch the stop/clear key and cook manually.
8 Check food temperature after cooking. If additional time is needed, continue to cook manually.
9 Each food has a cooking hint. Touch the timer/settings key when the HELP indicator is lighted in the display.

Popcorn / Sensor Reheat

You can pop popcorn and reheat many foods and don't need to calculate cooking time or power level.

Touch the sensor reheat key or the popcorn key, then touch the start (+30 secs) key.

When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear.

Note:

- The Popcorn setting has 2 options. Follow directions in the display to choose desired option.

Popcorn / Sensor Reheat Chart

Food Amount Procedure
Popcorn Only 1 package at a time		Use only popcorn packaged for the microwave. Cook only one package of microwave popcorn at a time and always with the correct side facing up. Do not try to pop unpopped kernels.
		2.85 - 3.5 oz(Regular / Regular light)
		1.2 - 1.75 oz(Mini or Snack)
Sensor Reheat	4 - 36 oz	Place food in a microwave-safe dish slightly larger than the food to be reheated and cover with a microwave-safe lid, plastic wrap or wax paper. Touch the sensor reheat key, then touch the start (+30 secs) key. After reheating, carefully uncover food aiming steam away from yourself and stir food well. Re-cover food and allow to stand for 2 to 3 minutes.

Sensor Cooking

1 Touch the sensor cook key. SEE LABEL SELECT FOOD NUMBER appears on the display.
2 See the Menu Label and touch a number key to select a food item.
3 Touch the start (+30 secs) key. The name of the selected food item and SENSOR COOK appear on the display during vapor measurement. Once vapor has been measured, the cook time appears on the display and counts down.

4 Once cooking is complete, instructions such as STIR LET STAND COVERED appear on the display, depending on the food item. See the chart below for more information.

NOTE: To heat or cook other foods or foods above or below the quantity listed on the Sensor Cook Chart, cook manually.

Sensor Cook Chart

Food Amount Procedure
1 Baked Potatoes2 Sweet Potatoes	1 - 6 med.1 - 6 med.	Pierce potatoes at least three times each on the top, bottom and sides to allow steam to escape. Place potatoes on paper towel.After cooking, remove potatoes from the appliance, wrap in aluminum foil and let stand for 5 to 10 minutes.
3 Fish/Seafood	0.25 - 2.0 lb	Arrange fish or seafood in a ring in a shallow glass dish (roll fillet edges underneath). Cover with vented microwave-safe plastic wrap.After cooking, leave covered and let stand for 3 minutes.
4 Brown Rice5 White Rice	4 - 16 oz4 - 16 oz	Place rice in a large, deep casserole dish and add double quantity of water. For example, for 8 oz of dry rice, use a 64 oz casserole dish and add 16 oz of water. Cover with microwave-safe lid or plastic wrap.After cooking, stir, recover and let stand 3 to 5 minutes or until all liquid has been absorbed.
6 Fresh Vegetables:Quick broccolibrussels sproutscabbagecauliflower (florets)cauliflower (whole)spinachzucchinibaked apples	0.25 - 2 lb0.25 - 2 lb0.25 - 2 lb0.25 - 2 lb1 med.0.25 - 2 lb0.25 - 2 lb2 - 4 med.	Wash fresh vegetables and place in casserole dish. Add no water to freshly washed quick vegetables. For tender vegetables, cover with microwave-safe lid. For tender-crisp vegetables, cover with microwave-safe plastic wrap.After cooking, stir, if possible, re-cover and let stand for 2 to 5 minutes.
7 Fresh Vegetables: Longercarrots (sliced)corn on the cobgreen beanswinter squash (diced)winter squash (halves)	0.25 - 1.5 lb2 - 4 pieces0.25 - 1.5 lb0.25 - 1.5 lb1 - 2	Wash fresh vegetables and place in casserole dish. Add 1 to 4 tablespoons water. For tender vegetables, cover with microwave-safe lid. For tender-crisp vegetables, cover with microwave-safe plastic wrap.After cooking, stir, if possible, re-cover and let stand for 2 to 5 minutes.
8 Frozen Vegetables	0.25 - 1.25 lb	Place frozen vegetables in casserole dish. Add no water to frozen vegetables. Cover with microwave-safe lid or plastic wrap.After cooking, stir, if possible, re-cover and let stand for 3 minutes.
9 Ground Meat	0.25 - 2.0 lb	To cook ground meat patties, place patties on a microwave-safe dish and cover with wax paper. To cook bulk ground meat, place ground meat in a casserole dish and cover with microwave-safe wax paper or plastic wrap.After cooking, leave covered and let stand for 2 to 3 minutes.
10 Frozen Entrees	6 - 17 oz	Remove entrée from outer packaging and cover according to package directions. After cooking, leave covered and let stand for 3 minutes.

Defrost

The Defrost feature uses lower power level to gently defrost foods shown in the chart below. Place food on a microwave-safe dish.

1 Touch the defrost key. SEE LABEL SELECT FOOD NUMBER appears on the display.
2 See the Menu Label and touch the number keys to select food number. The name of the food item and ENTER WEIGHT appears on the display.
3 Touch the number keys to enter weight. The entered weight and TOUCH START appears on the display. Touch the start (+30 secs) key.
4 The appliance will pause so the food can be checked. Open the drawer and follow instructions on the display, such as PULL APART AND REARRANGE. Touch the start (+30 secs) key.

1. After each audible signal, turn the food over and touch the start (+30 secs) key again.
2. At the end of the defrost cycle, LET STAND COVERED appears on the display. See chart below for recommended standing time.

Note:

• To defrost other foods or quantities of foods than the ones listed on the menu label, defrost manually. See Manual Defrost below.
• At the end of Defrost cycle, small sections of food may still be icy. Let food stand to continue thawing. Do not cook until all ice crystals are thawed.

Defrost Chart

Food Amount Procedure
1. Ground Meat	8 - 32 oz	After each audible signal, remove any thawed pieces and touch the start (+30 secs) key again. After defrosting, leave covered and let stand for 5 to 10 minutes.
2. Steaks/Chops	8 - 48 oz	After each audible signal, remove any thawed pieces and touch the start (+30 secs) key again. After defrosting, leave covered and let stand for 10 to 20 minutes.
3. Boneless Poultry	8 - 32 oz	After each audible signal, remove any thawed pieces and touch the start (+30 secs) key again. After defrosting, leave covered and let stand for 10 to 20 minutes.
4. Bone-in Poultry	8 - 48 oz	After each audible signal, remove any thawed pieces and touch the start (+30 secs) key again. After defrosting, leave covered and let stand for 10 to 20 minutes.
5. Roast	32 - 64 oz	Start defrosting with fat side down. After each audible signal, turn over the roast and touch the start (+30 secs) key again. After defrosting, leave covered and let stand for 30 to 60 minutes.
6. Casserole or Soup	16 - 48 oz8 - 48 oz	After each audible signal, break apart, remove any defrosted parts and touch the start (+30 secs) key again. After defrosting, stir well, re-cover and let stand for 5 to 10 minutes.

Manual Defrost

To defrost other foods or quantities of foods than the ones listed on the Defrost Chart, defrost manually. Use power level 30% to defrost any frozen food, whether raw or previously cooked. Follow the exact 3-step procedure found under To Set Power Level on page 10. Estimate defrosting time and touch the power level key eight times for 30% power.

Most frozen foods, whether raw or previously cooked, defrost in approximately 4 minutes per pound of food. For example, to defrost 1 pound of spaghetti sauce, defrost for 4 minutes; to defrost 3 pounds of cookie batter, defrost for 12 minutes.

Periodically pause the microwave oven to remove or separate the defrosted portions.

If food is still frozen at the end of the estimated time, set the power level to 30% again and defrost in 1-minute increments until totally defrosted. If frozen food is in microwave-safe plastic containers, defrost only long enough to remove food from plastic and place it in a microwave-safe dish.

More Modes

More automatically computes the correct cook time and microwave power level for foods shown in the chart below.

1 Touch the more modes key once. SEE LABEL SELECT FOOD NUMBER appears on the display.

3 Touch the number keys to select quantity.

2 See the Menu Label and touch the number keys to select food number. The name of the food item and quantities appear on the display.

4 Touch the start (+30 secs) key.

Note:

• More can be programmed with More or Less Time Adjustment. See page 15.
• To cook other foods or foods above or below the quantity allowed on the More Chart, use manual operation.

More Modes Chart

Food Amount Procedure
1	Melt Butter	1 oz or 4 oz Place butter in a glass measuring cup and cover with microwave-safe plastic wrap.
2	Melt Chocolate	8 oz chips or 1 square (1 oz) Place chocolate in a glass measuring cup and cover with microwave-safe plastic wrap.
3	Soften Ice Cream	16 oz or 48 oz Do not cover.
4	Soften Cream Cheese	3 oz or 8 oz Do not cover.
5	Warm Syrup	2 oz or 4 oz Place syrup in a glass measuring cup. Do not cover.
6	Warm Dessert Topping	2 oz or 4 oz Place topping in a glass measuring cup. Do not cover.
7	Reheat Beverage	4 - 16 oz To restore a cooled drink to a hot drinking temperature, stir the beverage and place it in the drawer.
8	Hot Water	8 - 48 oz To heat cold water to a temperature just below boiling, stir the water and place it in the drawer.
9	Hot Cereal	4 - 24 oz To heat oatmeal, oat bran, cream of wheat, farina or wheatena from bulk or individual packets, follow package directions for the correct amount of water or milk. To prevent boil-overs, use a large container. Stir the cereal and liquid and place it in the drawer.
10	Reheat Fresh Rolls/Muffins	1 - 8 pieces To warm fresh rolls, muffins, biscuits or bagels from room or refrigerator arrange rolls on a plate and cover with a paper towel. For refrigerated items or larger, oversized items, double the entered quantity to ensure proper serving temperature.
11	Reheat Frozen Rolls/Muffins	1 - 8 pieces To warm frozen rolls, muffins, biscuits or bagels from frozen, arrange rolls on a plate and cover with a paper towel.
12	Keep Warm	Use the Keep Warm feature to keep food warm for up to 30 minutes. The feature can be used directly or in sequence with timed cooking. Keep Warm uses a very low power level to keep food warm without cooking. The Keep Warm feature cannot be programmed for longer than 30 minutes and cannot be programmed with Popcorn, Sensor Reheat, Sensor Cook or Defrost.

Other Features

Multiple Sequence Cooking

Your Drawer Microwave can be programmed for up to 4 automatic cooking sequences, switching from one power level setting to another automatically.

Sometimes cooking directions tell you to start on one power level and then change to a different power level. Your Drawer Microwave can do this automatically.

To set multiple cooking sequences, enter the cooking time and set the power level, then enter the next cooking time and corresponding power level. This procedure can be repeated up to four times. When all sequences are programmed, touch the start (+30 secs) key.

Help

Many settings and menu items have a cooking hint. For example, cooking hints for Sweet Potatoes are:

• PIERCE SKIN
• PLACE ON PAPER TOWEL
  • QTY RANGE 1 - 6 PIECES

To view the hint, touch the timer/settings key whenever HELP is illuminated on the interactive display.

+30 secs

To cook for thirty seconds at 100% power, simply touch the start (+30 secs) key. Extend cooking time in multiples of thirty seconds by repeatedly touching the +30 secs key during manual cooking.

Notes:

• +30 secs cannot be used with Sensor settings, More or Defrost.
• +30 secs cannot be used after a cooking function has been canceled by touching the stop/clear key twice. To use +30 secs after a cooking function has been canceled, simply open and close the microwave oven to reset.

More or Less Time Adjustment

To increase cooking time for any of the Sensor Reheat, Sensor Cook, Defrost, Popcorn or More settings, touch the power level key once after touching your selection. The display will show MORE.

To decrease cooking time, touch the power level key twice after touching your selection. The display will show LESS.

Settings

If the electrical power supply to the Drawer Microwave should be interrupted, the display will intermittently show ENJOY YOUR MICRO-WAVE TOUCH CLEAR after the power is reinstated. If this occurs, the current settings will be erased. Simply touch the stop/clear key and reset.

Audible Signal Elimination

At the end of timed cook, beeps will sound. The audible signal can be turned off if quiet operation is preferred.

To Turn Off Sound

1 Touch the timer/settings key eight times. SOUND OFF? TOUCH START appears on the display.
2 Touch the start (+30 secs) key. SOUND OFF appears on the display.

To restore sound, follow the same process.

End Of Cooking Reminder

At the end of timed cooking, the microwave will signal ever 10 seconds for the first minute, then every 3 minutes for up to an hour or until the stop/clear key is touched.

To Turn Off Reminder

1 Touch the timer/settings key nine times. REMIND SIGNAL OFF? TOUCH START appears on the display.
2 Touch the start (+30 secs) key. REMIND SIGNAL OFF appears on the display.

To restore the reminder, follow the same process.

Standby Mode

This microwave will go into standby mode after a period of inactivity. The backlight of the display will automatically dim after 3 minutes if the unit has not been in operation. If the display is in standby mode, simply touch the control panel or open/close the door to return the backlight to maximum brightness.

Auto Start

To program the Drawer Microwave to begin cooking automatically at a designated time of day, follow this procedure.

CAUTION

To maintain food safety, do not leave food in the appliance for more than one hour before or after cooking.

1 Touch the timer/settings key ten times. AUTO START TOUCH START appears on the display.
2 Touch the start (+30 secs) key. ENTER START TIME appears on the display.
3 Enter the start time. The start time and TOUCH CLOCK appears on the display.
4 Touch the timer/clock key. ENTER COOKING TIME appears on the display.
5 Touch the number keys to enter cooking time. The cooking time and TOUCH START OR TOUCH POWER LEVEL appears on the display. If the desired power level is below 100%, set the power level.
6 Touch the start (+30 secs) key.

Demonstration Mode

To select Demo Mode

1 Touch the timer/settings key eleven times. DEMO ON? HOLD START 3 SEC appears on the display.
2 Touch the start (+30 secs) key for 3 seconds. DEMO ON.

To cancel Demo Mode

1 Touch the timer/settings key eleven times. DEMO OFF? TOUCH START appears on the display.

2 Touch the start (+30 secs) key. DEMO OFF appears on the display.

Note:

• Drawer Microwave doesn't heat in Demo Mode.
• Display counts down quickly.

Home Connect®

This appliance may be network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect® app, adjust its basic settings and monitor its operating status.

The Home Connect® services are not available in every country. The availability of the Home Connect® function depends on the availability of Home Connect® services in your country. You can find information on this at: www.home-connect.com.

The Home Connect® app guides you through the entire registration process. Follow the instructions in the Home Connect® app to implement the settings.

Notes:

• Note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the Home Connect® app.
• Operating the appliance on the appliance itself always takes priority. It is not possible to operate the appliance using the Home Connect® app during this time.

Setting up Home Connect™

Requirements

• The appliance is connected to the power supply and is switched on.
• You have a mobile device with a current version of the iOS or Android operating system, e.g. a smartphone.
• The mobile device and the appliance are within range of your home network's Wi-Fi signal.

o 1 Download the Home Connect™ app.
o 2 Open the Home Connect™ app.
o 3 Follow the instructions in the Home Connect™ app.

This appliance is configurable to allow remote operation at any time.

Do not store any flammable materials or temperature sensitive items inside, on top or near surface units of the appliance.

Notes

- Some operating modes can only be started on the Drawer Microwave itself.

Setting Remote Control

1 Touch the timer/settings key three times.
REMOTE CONTROL OFF TOUCH START appears on the display.
2 Touch the start (+30 secs) key.
REMOTE CONTROL ON appears on the display.
To turn Remote Control off, follow the same process.

Home Connect™ Settings

Adapt Home Connect™ to your needs. You can find the Home Connect™ settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect™ has been set up and whether the appliance is connected to your home network.

Activating Wi-Fi

You can use the Home Connect functions if Wi-Fi is activated.

1 Hold the "0" key on the control panel for 3 seconds.
2 "ENABLING WIFI" will be displayed
3 Once connected, "WIFI ON WAIT FOR PAIRING" will be displayed. The Drawer Microwave has successfully activated Wi-Fi and is ready to be connected to your home Wi-Fi network, and paired with the Home Connect™ app.

Pairing Drawer Microwave to app

If the Home Connect™ app is installed on your mobile device, you can connect it to your Drawer Microwave.

Requirement: The appliance is connected to the network.

1 Hold the "0" key on the control panel for 3 seconds.
2 "ENABLING WIFI" will be displayed
3 Once connected, "WIFI ON WAIT FOR PAIRING" will be displayed. The Drawer Microwave has successfully been connected to Wi-Fi and is ready to be paired with the Home Connect™ app.
4 Open the Home Connect™ app and follow the instructions for adding an appliance.

Remote Control

If you want to start a Drawer Microwave operation using your mobile device, you must activate Remote Control.

Disconnecting from the network

You can disconnect your Drawer Microwave from the network at any time.

Note: If your Drawer Microwave is disconnected from the network, it is not possible to operate the Drawer Microwave using Home Connect™.

1 Hold the "0" key on the control panel for 3 seconds.
2 "WIFI OFF" will be displayed. The Drawer Microwave has been successfully disconnected from the network.

Remote diagnostics

Customer Service can access your appliance via Remote Diagnostics if you ask them to do so, if your appliance is connected to the Home Connect™ server and if Remote Diagnostics is available in the country where you are using the appliance.

Tip: Further information and details about the availability of Remote Diagnostics in your country can be found in the Service/Support section of your local website: www.homeconnect.com.

Software update

The Drawer Microwave checks at regular intervals whether updates are available for the Home Connect™ software.

To do this, you need to be a registered Home Connect ^™ user, have installed the app on your mobile device and be connected to the Home Connect ^™ server.

As soon as a software update is available, you will be informed by the Home Connect™ app, from which you will also be able to download the update. Once the update has been successfully downloaded, you can start installing it via the basic settings of your Drawer Microwave, or the Home Connect™ app if you are on your local area network. The Home Connect™ app will notify you once installation is complete.

Notes

• You can continue to use your Drawer Microwave as usual while updates are downloading.
• Depending on your personal settings in the app, software updates can also be set to download automatically.
• We recommend that you install security updates as soon as possible.

Data Protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect™ server (initial registration):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
• Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
• The current software and hardware version of your appliance.
• Status of any previous reset to factory settings.

This initial registration prepares the Home Connect ^™ functions for use and is only required when you want to use the Home Connect ^™ functions for the first time.

Note: Please note that the Home Connect™ functions can be utilized only with the Home Connect™ app. Information on data protection can be called up in the Home Connect™ app.

Cleaning and Care

Stainless Steel Surface

Always wipe or rub in the direction of the grain. The exterior should be wiped often with a soft damp cloth and polished with a soft dry cloth to maintain its beauty. There are also a variety of products designed especially for cleaning and shining the stainless exterior of the appliance. We recommend that the cleaner be applied to a soft cloth and then carefully used on the stainless exterior rather than sprayed directly on to it. Follow package directions carefully.

Front side of the Drawer

Wipe the window on both sides with a soft damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a soft damp cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the drawer surface.

Touch Control Panel

If desired, the touch keys may be deactivated before cleaning. See To Lock the Control Panel on page 9. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close drawer and follow directions on page 9 for turning Panel Lock off. Touch the stop/clear key.

Interior

Before cleaning the Drawer Microwave, touch and hold the Panel Lock button for 3 seconds to lock the control panel and the automatic door mechanism. The drawer can be locked in either the open or closed position. The display will show LOCK ON. This will prevent the drawer from accidentally opening or closing during cleaning. After cleaning, touch and hold the Panel Lock button for 3 seconds to turn the lock off. The display will show LOCK OFF.

Cleaning is easy because no heat is generated to the interior surfaces; therefore, there is no baking and setting of spills or spattering. To clean the interior surfaces, including drawer sealing surfaces, wipe with a soft damp cloth. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use mild soap; wipe clean with a soft damp cloth. Do not use any chemical oven cleaners.

Odor Removal

Occasionally, a cooking odor may remain in the drawer. To remove odor, combine 1 cup water, grated peel and juice of one lemon and several whole cloves in a 2-cup glass microwave-safe measuring cup. Boil for several minutes using 100% power. Leave in the drawer until water cools. Wipe interior with a soft cloth.

Drawer Microwave Guides

Remove the food crumbs from the drawer guides. Wipe with a soft dry cloth in order to keep the drawer opening and closing smoothly.

Waveguide Cover

CAUTION

The waveguide cover, located on the inside top of the drawer area, is made from mica, so it requires special care. Keep the waveguide cover clean to assure good microwave performance. Carefully wipe with a soft damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire. Do not remove the waveguide cover.

PRODUCT DISPOSAL

This product may not be treated as household waste. To dispose of the appliance, deliver it to an applicable collection point for the recycling of electrical and electronic equipment. Dispose of this product correctly to prevent negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Before You Call Thermador Customer Support for Service

Please check the following before calling for service. It may save you time and expense.

Problem Possible cause Solution
1 Part or all of Drawer Microwave does not operate.	Power cord of Drawer Microwave is not completely connected to the electrical outlet.Power outage.Fuse/circuit breaker doesn't work.Drawer Microwave is in Demo Mode.	Make sure the power cord is tightly connected to the outlet.Check house lights to be sure. Call your local electric company for service.Replace the fuse or reset the circuit breaker.See page 16 for how to cancel Demo Mode.
2 Food in Drawer Microwave is not heated.	No power to the appliance.Drawer controls improperly set.Drawer is in Demo Mode.	See Solution for Problem 1.Check if the controls have been properly set.See page 16.
3 Drawer Microwave light does not work.	Light bulb is loose or burned out.	Call Thermador Customer Support for service.Always have the complete model number and FD number available prior to calling.
4 Touch controls will not operate.	Panel Lock is on. See page 9 to unlock.
5 Display flashes.	Power failure.	Touch thestop/clearkey and reset the clock.If the Drawer Microwave was in use, you must reset the cooking function.
6 Steam from the vent.	During microwaving, steam may come from the right side of the vent.

STATEMENT OF LIMITED PRODUCT WARRANTY

Effective January 1, 2023

What this Warranty Covers & Who it Applies to

The limited warranty provided by BSH Home Appliances ("Thermador") in this Statement of Limited Product Warranty applies only to the Thermador appliance sold to you ("Product"), provided that the Product was purchased:

• For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.
• New at retail from a BSH authorized dealer or directly from BSH (not a display, "as is", or previously returned model), and not for resale, or commercial use.
• Within the United States or Canada, and has at all times remained within the country of original purchase.

The warranties stated herein apply to the original purchaser of the product warranted herein and to each succeeding owner of the product purchased for ordinary home use during the term of the warranty.

Please make sure to register your Product; while not necessary to effectuate warranty coverage, it is the best way for Thermador to notify you in the unlikely event of a safety notice or product recall.

How Long the Warranty Lasts

Thermador warrants that the Product is free from defects in materials and workmanship for a period of seven hundred and thirty (730) days from the date of the original delivery. The foregoing timeline begins to run upon the date of the original delivery, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic defects in material and workmanship such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the finish) of the Product, for a period of sixty (60) days from the date of delivery or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, "As Is", or "B" stock appliances.

Repair/Replace as Your Exclusive Remedy

During this warranty period, Thermador or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then Thermador will replace your Product (upgraded models may be available to you, in Thermador's sole discretion, for an additional charge). Nothing in this warranty requires damaged or defective parts to be replaced with parts of a different type or design than the original part. All removed parts and components shall become the property of Thermador at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Thermador's sole liability and responsibility hereunder is to repair manufacturer-defective Product only, using a Thermador authorized service provider during normal business hours. For safety and property damage concerns, Thermador highly recommends that you do not attempt to repair the Product yourself, or use a non-authorized service provider; Thermador will have no responsibility or liability for damage resulting from repairs or work performed by a non-authorized service provider. Authorized service providers are those persons or companies that have been specially trained on Thermador products, and who possess, in Thermador's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affiliates or representatives of Thermador). Nevertheless, taking your product to be serviced by a repair shop that is not affiliated with or an authorized dealer of Thermador will not void this warranty. Also, using third-party parts will not void this warranty. Notwithstanding the foregoing, Thermador will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Thermador would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call. Further, to the extent you have installed the Product in a difficult-to-access location or have otherwise installed temporary or permanent fixtures that create barriers to accessing or removing the Product, Thermador will not incur any liability for, or have responsibility, for work or costs associated with moving the Product or otherwise creating access to the Product in order to repair or replace it. All such costs shall be your sole responsibility.

Out of Warranty Product

Thermador is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired.

Warranty Exclusions

The warranty coverage described herein excludes all defects or damage that are not the direct fault of Thermador, including without limitation, one or more of the following:

• Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).

• Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self-performed "fixing" or exploration of the appliance's internal workings).

• Adjustment, alteration or modification of any kind.

• A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fire and building codes and regulations.
• Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.
• Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fires, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God.
• Service calls to correct the installation of your Product, to instruct you how to use your Product, to replace house fuses or correct house wiring or plumbing.
• Removal and replacement of trim or decorative panels that interfere with servicing the Product.
• Damage or defects caused by labor or parts installed by any non-authorized service provider, unless approved by Thermador before service is performed.

In no event shall Thermador have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses.

TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY, OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, "BUSINESS LOSS", AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY THERMADOR, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an officer of BSH.

Obtaining Warranty Service

To obtain warranty service for your product, you should contact Thermador Customer Service at 1-800-735-4328 to schedule a repair.

Product information

For handy reference, copy the information below from the rating plate. Keep your invoice and/or delivery documents for warranty validation.

Model number (E-Nr.)
Production number (FD)
Date of delivery

Thermador® Support

Service

We realize that you have made a considerable investment in your kitchen. We are dedicated to supporting you and your appliance so that you have many years of creative cooking.

Please don't hesitate to contact our STAR® Customer Support Department if you have any questions or in the unlikely event that your THERMADOR® appliance needs service. Our service team is ready to assist you.

www.thermador.com/support

800-735-4328

Parts & Accessories

Parts, filters, descalers, stainless steel cleaners and more can be purchased in the THERMADOR eShop or by phone.

www.thermador-eshop.com

MODE

BSH Home Appliances Corporation 1901 Main Street, Suite 600

Irvine, CA 92614

Questions?

1-800-735-4328

www.thermador.com

1901 Main Street, Suite 600

Irvine, CA 92614

1-800-735-4328

It is not necessary to buy all new cookware for microwave cooking. Many pieces already in your kitchen can be used successfully in the Drawer Microwave.

A B C H D E F G

SENSOR COOK		DEFROST	MORE MODES
1 Baked Potatoes2 Sweet Potatoes3 Fish/Seafood4 Brown Rice5 White Rice	6 Fresh Vegetables: Quick7 Fresh Vegetables: Longer8 Frozen Vegetables9 Ground Meat10 Frozen Entrees	1 Ground Meat2 Steaks/Chops3 Boneless Poultry4 Bone-in Poultry5 Roast6 Casserole or Soup	1 Melt Butter2 Melt Chocolate3 Soften Ice Cream4 Soften Cream Cheese5 Warm Syrup6 Warm Dessert Topping	7 Beverage Reheat8 Hot Water9 Hot Cereal10 Reheat Fresh Rolls/Muffins11 Reheat Frozen Rolls/Muffins12 Keep Warm

Avant l'utilisation

Periodically pause the microwave oven to remove or separate the defrosted portions.

MISE AU REBUT DU PRODUIT

www.thermador-eshop.com

GUÍA

de uso y cuidado

Horno MicroDrawer® Incorporado MD24BS

MD30BS

1901 Main Street, Suite 600

Irvine, CA 92614

¿Pregunta?

1-800-735-4328

www.thermador.com

1901 Main Street, Suite 600

Irvine, CA 92614

NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

ADVERTENCIA

Technical line drawing of a structural joint or bracket (no text or symbols)

Drawer Microwave A B C H D E F G

SENSOR COOK		DEFROST	MORE MODES
1 Baked Potatoes2 Sweet Potatoes3 Fish/Seafood4 Brown Rice5 White Rice	6 Fresh Vegetables: Quick7 Fresh Vegetables: Longer8 Frozen Vegetables9 Ground Meat10 Frozen Entrees	1 Ground Meat2 Steaks/Chops3 Boneless Poultry4 Bone-in Poultry5 Roast6 Casserole or Soup	1 Melt Butter2 Melt Chocolate3 Soften Ice Cream4 Soften Cream Cheese5 Warm Syrup6 Warm Dessert Topping	7 Beverage Reheat8 Hot Water9 Hot Cereal10 Reheat Fresh Rolls/Muffins11 Reheat Frozen Rolls/Muffins12 Keep Warm

DESECHAR EL PRODUCTO

www.thermador-eshop.com

Thermador

1901 MAIN STREET, SUITE 600 IRVINE, CA 92614 // 1-800-735-4328 // WWW.THEMADOR.COM

© 2024 BSH HOME APPLIANCES CORPORATION

8001299202
