RVI 20041 GBK - Wine cellar TEKA - Free user manual and instructions

Product Type	Built-in Wine Cellar
Brand	Teka
Model	RVI 20041 GBK
Temperature Zones	2 independent zones
Upper Zone Temperature Range	5 °C to 10 °C
Lower Zone Temperature Range	10 °C to 18 °C
Capacity	Not specified
Dimensions (H x W x D)	Not specified
Net Weight	Not specified
Power Supply	220-240 V ~ 50 Hz
Climate Class	SN, N, ST, T
Interior Lighting	LED, class G, switchable
Door Type	Reversible, left opening as standard
Functions	Open door alarm, high/low temperature alarm, temperature memory, continuous light mode
Defrost	Manual
Refrigerant	R600a (flammable)
Cleaning	Warm water and mild detergent, do not use abrasive products
Safety	Child lock not mentioned; precautions against instability, ventilation openings
Spare parts available	Thermostats, sensors, PCBs, bulbs: 7 years; handles, hinges, trays, baskets: 7 years; door gaskets: 10 years after last unit
Recommended Use	Wine storage only

Frequently Asked Questions - RVI 20041 GBK TEKA

How do I adjust the temperature of my Teka RVI 20041 GBK wine cellar?

Use the '+' and '⊖' buttons to adjust the temperature. The upper zone ranges from 5 °C to 10 °C, the lower zone from 10 °C to 18 °C. Each press changes the temperature in steps of 1 °C. To display the actual temperature, press and hold the corresponding button for 3 seconds.

How do I reverse the door opening direction?

The door is reversible. To switch from left opening (standard) to right, follow these steps: open the door to 90°, remove the upper hinge, door switch, locating plate, then the lower hinge. Reinstall the parts on the opposite side according to the diagram provided in the manual. The operation requires moving the appliance and tilting it at 45°.

What should I do if the wine cellar does not cool sufficiently?

First check the temperature setting. Make sure the door is properly closed and the gasket is clean. Frequent door opening or high ambient temperature can affect cooling. If the problem persists, consult the troubleshooting guide in the manual.

How do I clean the interior of the wine cellar?

Unplug the appliance, remove bottles and shelves. Clean interior surfaces with a soft cloth dampened with warm water and a mild detergent. Rinse and dry. Do not use abrasive products or solvents. Shelves are cleaned separately with a mild detergent solution.

The wine cellar makes a clicking noise, is this normal?

Yes, clicking or gurgling sounds are normal. They come from the circulation of the refrigerant and the contraction/expansion of walls. If the noise becomes excessive, check that the appliance is level and not in contact with furniture.

How do I use the continuous LED lighting?

Press and hold the '☐' button for 5 seconds. The display shows 'LP' and the light stays on until manually turned off. To return to automatic mode (light turns off 10 minutes after door closing), repeat the operation until you see 'LF'.

What is the bottle capacity of the Teka RVI 20041 GBK wine cellar?

The manual does not specify the exact capacity. However, for a model in this range, the capacity is generally around 20 to 25 bottles. Refer to the product datasheet for more accuracy.

What to do in case of a power outage?

If the outage is short (a few hours), avoid opening the door to maintain temperature. The appliance remembers previous settings and restores them automatically. For a prolonged outage, take measures to protect the bottles (transfer to another cellar).

How do I defrost the wine cellar?

Defrosting is manual. Turn off the appliance and unplug it. Leave the door open to let the ice melt naturally. Wipe up water with a cloth. Never use mechanical devices or chemical products to speed up defrosting.

Where can I find spare parts for my model?

Spare parts such as thermostats, sensors, PCBs, and bulbs are available for at least 7 years after the last market placement of the model. Door gaskets are available for 10 years. Contact Teka customer service or an authorized dealer.

USER MANUAL RVI 20041 GBK TEKA

User Manual

RVI 20041 GBK

ES PT EN FR DE RO

Fig. A Fig. B

Fig. A

Fig. B

Thanks for buying our wine cooler. We hope our advanced product will give your wine a different joyful taste. Before use, please read and follow all safety rules and operating instructions.

WARNING!

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location. Do not move your cabinet while loaded with wine. You might distort the body. The wine cellar should be installed in a suitable place in order to avoid touching the compressor with the hand. The appliance must be positioned so that the plug is accessible. Release the electric cord.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;

– farm houses and by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments;

– catering and similar non-retail applications.

- WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

Children aged from 3 to 8 years are allowed to load and unload the wine cooler.

To avoid contamination of wine, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

– Clean regularly surfaces that can come in contact with bottles and accessible drainage systems.

– Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Do not attempt to plug in or extend the cable under any circumstances.

IMPORTANT SAFETY INSTRUCTIONS

WARNING	To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:
Read all instructions before using the Wine cooler.DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old Wine cooler : Take off the door. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the appliance.Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.WARNING: keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction;Do not use mechanical devices or other means to accelerate the defrosting process, other than those Recommended by the manufacturer;WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.WARNING: Do not damage the refrigerant circuit;WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.If the refrigerant of these appliances are R600a , Flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused.
-Save these instructions-

This refrigerating appliance is not suitable for freezing foodstuffs.

INSTALLATION INSTRUCTIONS

Before Using Your Wine Cooler

• Remove the exterior and interior packing.
• Before connecting the wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• When disposing of your appliance, please choose an authorized disposal site.

Installation of Your Wine Cooler

• This appliance is designed to be built in (fully recessed) (refer to sticker on the back of this appliance). This appliance is intended to be used exclusively for the storage of wine.
• Place your wine cooler on a floor that is strong enough to support it when it is fully loaded.
• This appliance uses flammable refrigerant. Never damage the cooling pipework during transportation. Locate the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• Avoid locating the unit in moist areas.
• Plug the wine cooler into an exclusive, properly installed, grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed to a certified electrician or an authorized Products service center.

Attention

• Store wine in sealed bottles; - Do not overload the wine cooler; - Do not open the door unless necessary; - Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation; - Should the wine cooler be stored without use for long periods it is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the wine cooler in order to avoid possible formations of condensation, mold or odors.

Ambient Room Temperature Limits

This appliance is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.

Class	Symbol	Ambient Temperatures range(°C)
Extended Temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

OPERATING YOUR WINE COOLER AND SETTING THE TEMPERATURE CONTROL

▶ Control System Instruction

TEKA

• “ ” Used to switch the internal light on/off.

- “○” Indicator light illuminates to signify the cooling mode is currently in operation.

- “ ⏻ 3s” Press and hold this key to turn the appliance on/off (hold for approx 3 seconds).

- “” (+) This button controls the upper compartment temperature zone. Each press of the button will decrease the temperature in increments of 1°C. When the temperature reaches the minimum 5°C it jumps up to the maximum of 10°C.

- “ - ” This button controls the lower compartment temperature zone. Each press of the button will decrease the temperature in increments of 1°C. When the temperature reaches the minimum 10°C it jumps up to the maximum of 18°C.

- “LED display window” Display the set temperature in upper compartment.

- "LED display window" Displays the set temperature in the lower compartment.

Setting the Temperature Controls

Set the desired cooling temperature by pressing the buttons adjacent to the "+" or "−" indicators. Each press of the buttons will scroll through the available temperature settings in increments of 1°C.

Upper compartment: The temperature setting can be adjusted from 5°C to 10°C. Lower compartment: The temperature setting can be adjusted from 10°C to 18°C.

- If you want to reveal the actual temperature, press and hold the "UP" or "DOWN" button for 3 seconds. The LED will flash and display the actual temperature. After stopping pressing the button for 5 seconds, the LED figure will stop flashing, then revert back to displaying the set temperature.

Flashing LED = Cabinet temperature Steady LED = Set temperature

Internal light

- In order to reduce energy consumption, the LED light within this wine cooler will automatically switch off when the door is closed. If you would prefer the LED light to remain on continuously, this is possible. Please press and hold the "bottom" button for 5 seconds, the display will show "LP". After 4 seconds the display will revert back to normal and the light will remain on until manually switched off.

If you would like to revert back and conserve energy (recommended), press and hold the "☐" button for 5 seconds, the display will show "LF". After 4 seconds the display will revert back to normal, and the light will automatically switch off after 10 minutes. (The light will turn on when the door is open and will turn off when the door is closed.)

Function Instruction

• Temperature Recollection Function

In the event of a power interruption, the wine cooler can remember the previous temperature settings, and when the power is recovered, the cooler temperature will go back to the same set temperature as when the power was off.

- Overtime Open the Door Alarm

When you forget to close the door or the door is not closed completely, the buzzer alarm will sound after 1 minute. Please close the door completely and avoid the loss of cold energy.

• Temperature Alarm

If the inner temperature is higher than 23°C, "HI" is shown on the display panel, and the buzzer alarms after one hour continuously. This indicates that the inner temperature is too high; please check the reason.

If the inner temperature is lower than 0°C, "LO" is shown on the display panel, and the buzzer alarms and the malfunction indicator light lights up at the same time.

Attention

- If the unit is unplugged, power is lost, or it is turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine Cooler will not start. If it is the first time of use or after a longer period of non-use, the temperature will differ between the setting and the LED display temperature. After running for a period, the temperature will revert back.

Shelves

- According to the actual configuration of your product, please check the relative Remove or Replace Racks.

- To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.

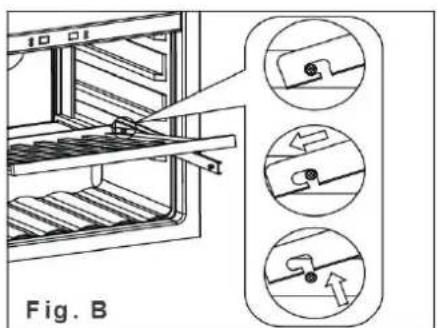

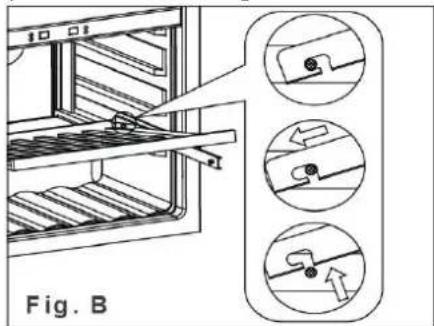

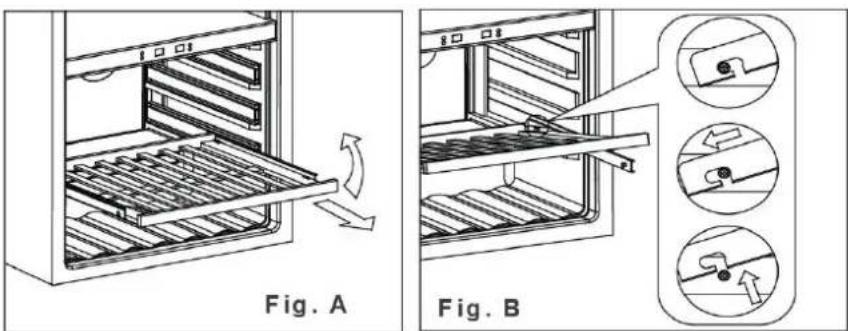

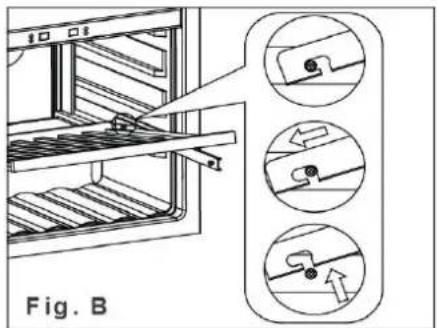

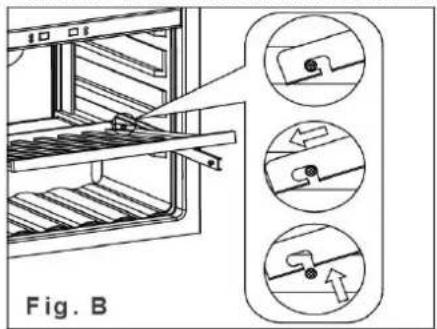

1. Fully extend the shelf you wish to remove (Fig. A)
2. Lift the front of the shelf up (Fig. A)
3. Holding the shelf track, push the shelf in, then up to release from the rear dampers (Fig. B)

How to change the door opening

This appliance has reversible doors but is delivered with left opening door. Please follow the instructions below to change the door to the right opening.

(1) Top hinge (2) Door light switch (3) Location-plate (4) Supporter

(5) Bottom hinge

Move the appliance and place it on a mat around 200mm high to support the cabinet. This is used to leave space for the door, because the door is bigger than the cabinet.

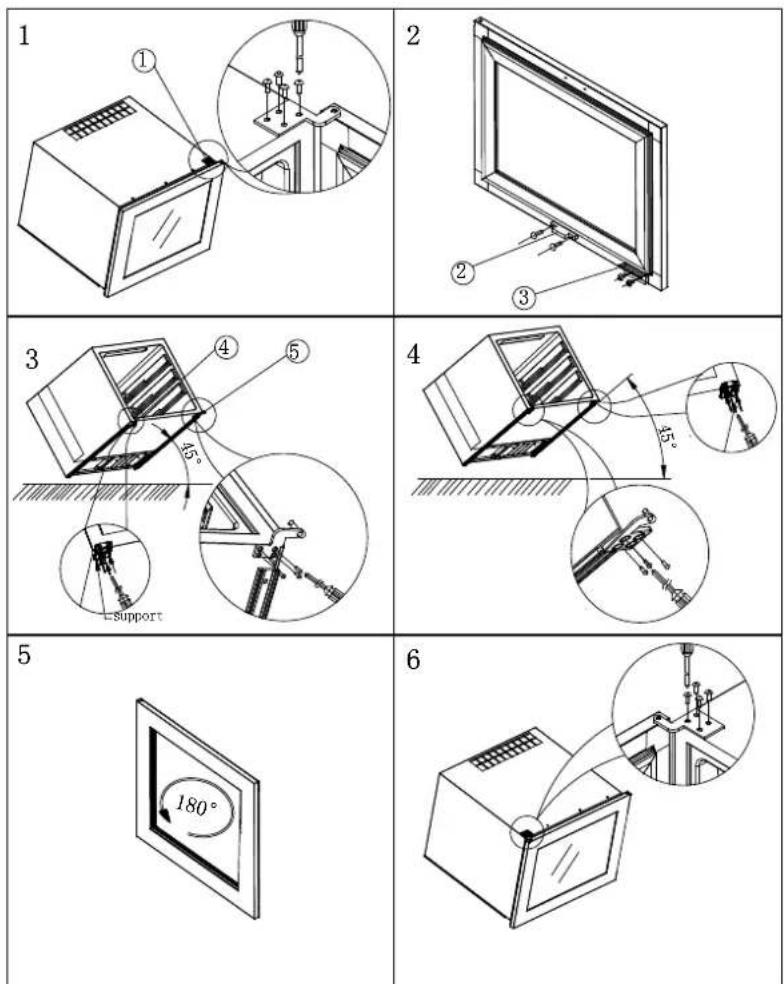

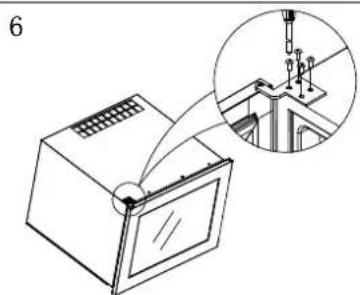

1. Open the door to a 90-degree angle. Remove 4 screws and the top hinge (1) at the left top of the cabinet, then remove the door from the cabinet and put it in a safe place (Fig.1);
2. Remove the door light switch (2) with 2 screws from the bottom center of the door, then re-install the door light switch (2) with 2 screws to the opposite direction, at the top center of the door (Fig.2);
3. Remove the location-plate (3) with screws from the right bottom of the door, then install the location-plate with screws to the diagonal direction (right top of the door) (Fig.2);

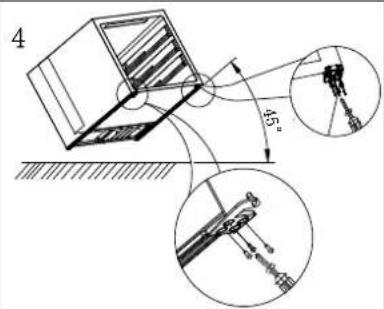

4. Incline the wine cooler at 45 degrees, remove the screws and the bottom hinge (5) at the right bottom of the cabinet. Remove the screws and supporter (4) at the left bottom of the cabinet, then install the supporter (4) to the right bottom of the cabinet. (Fig.3/4);
5. Install the top hinge (1) to the bottom left of the door. (Fig.4);
6. Rotate the door 180 degrees (Fig.5);
7. Install the bottom hinge (5) with screws to the left top of the cabinet, align the door with the cabinet (Fig.6);

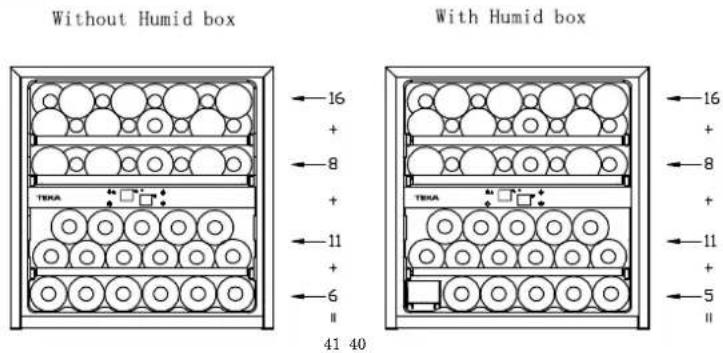

Storage diagram

The most energy-saving configuration requires that food boxes not be positioned in the product.

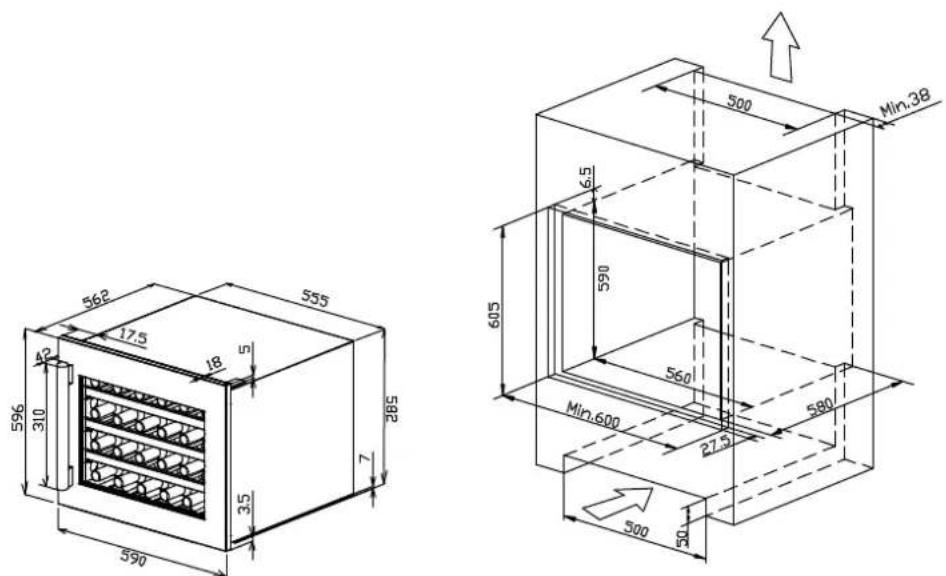

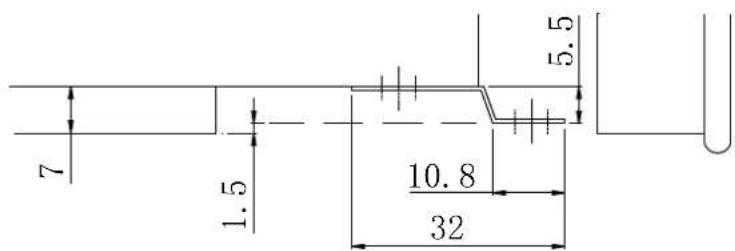

Installation specifications for built-in purposes

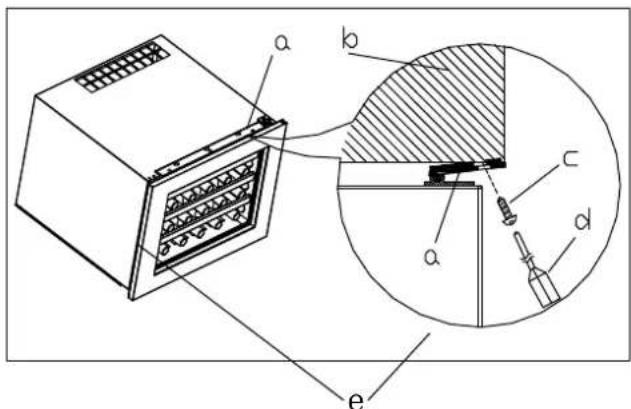

1. After installing the wine cooler into the kitchen cabinet, please adjust the limited block (a) close to the kitchen cabinet (b).
2. Please fix the 3 screws through the limited block (a) screw holes into the kitchen cabinet (b). Please see the picture below for reference.

a. Limited block b. Kitchen cabinet c. Screw d. Screwdriver e. Wine cooler

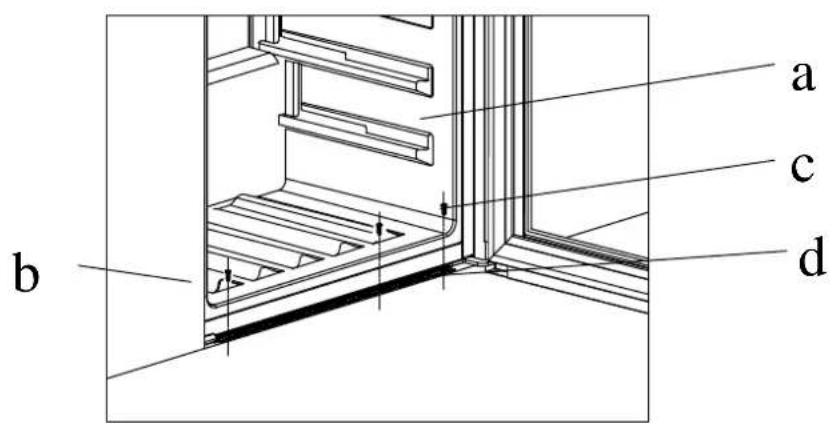

How to fix the lower fixing bracket

1. Install the wine cooler (a) into the cabinet (b) in the correct position.

1. Fix the screws (c) through the lower fixing bracket with a screwdriver.
2. Please refer to the instruction manual, page 10, for how to fix the top fixing bracket.

CARE & MAINTENANCE

Clean your Wine Cooler

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and mild solution.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning the area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Power failure

- Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a long period of time, you need to take the proper steps to protect your contents.

➢ Vacation Time

• Short vacations: Leave the Wine Cooler operating during vacations of less than three weeks.
• If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

➢ Moving your Wine Cooler:

• Remove all items.
• Take out the loose items inside the wine cooler (such as shelf), or fix the loose items with the foam.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket or similar items.

▶ Energy saving tips

- The Wine Cooler should be located in the coolest area of the room, away from producing appliances, and out of the direct sunlight.

The following (approximate) temperatures are recommended for wine drinking:

○ For storing ALL TYPES OF WINES	12 – 14 °C
○ Champagne NV, Sparkling	6 °C
○ Champagne Vintage	10 °C
○ Dry White Semillon, Sauvignon Blanc	8 °C
○ Dry White Gewürztraminer, Riesling	10 °C
○ Dry White Chardonnay	10 °C
○ Vintage Chardonnay	14 °C
○ Sweet White Sauternes Monbazillac, Late Harvest ice wine	10 °C
○ Sweet whites vintage Sauternes	14 °C
○ Beaujolais	13 °C
○ Red Pinot Noir	16 °C
○ Vintage Pinot Noir red	18 °C
○ Red Grenache, Syrah	16 °C
○ Red Cabernet, Merlot, French, Australian, New Zealand,Chilean, Argentinean, Italian, Spanish, Californian	18 °C

PROBLEMS WITH YOUR WINE COOLER

You can solve many common Wine Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you solve the problem before calling the service.

Troubleshooting Guide

Problem	Possible Cause
Wine Cooler does not operate	No plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
Turns on and off frequently	The room temperature is hotter than normal.Overload of the cabinetThe door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work	Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is “OFF”
Vibrations	check to sure that the Wine Cooler is level.
Too much noise	The rattling noise may come form the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine Cooler is not level.
The door will not close properly	The Wine Cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

Before disposal of the appliance.

1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased the product.

Fig. A

Fig. B

Storage diagram

a. Limit block

Fig. A

Fig. B

a. Stop block
