Product Type	Built-in oven
Brand	Beko
Model	BBUM13340XMPEF
Dimensions (W x H x D)	595 x 595 x 575 mm
Usable volume	71 L
Net weight	35 kg
Power supply type	Electric, three-phase or single-phase connection 380-415 V
Total power	3.0 kW
Energy class	A
Number of functions	8 functions, including fan forced, natural convection, grill, etc.
Cleaning type	Catalytic (absorbent walls)
Door material	Tempered glass
Interior lighting	Halogen
Child safety	Child safety via door lock
Automatic shut-off	Yes, programmable
Included accessories	Rack, drip tray, fixing kit
Availability of spare parts	7 years after purchase (as per regulations)
Installation	Requires a qualified electrician, safety distance from furniture
Note	Heavy, requires two people to lift

Frequently Asked Questions - BBUM13340XMPEF BEKO

What are the required built-in dimensions for the Beko BBUM13340XMPEF oven?

The built-in dimensions must comply with those indicated in the installation manual: generally a niche of 595 x 595 x 575 mm (W x H x D). It is imperative to respect the safety distances from adjacent furniture (min. 15 mm between the hob and the oven, and a ventilation section of 35 x 500 mm).

How to electrically connect this oven?

The appliance must be connected by a qualified electrician. It operates on three-phase (3N AC 380-415 V) or single-phase depending on the configuration. Follow the wiring diagram: brown (L1), black (L2), gray (L3), blue (neutral), green/yellow (earth). Use a suitable cable and a residual current circuit breaker. Do not connect to an extension cord.

Should the oven be installed behind a decorative door?

No, installation behind a decorative door is prohibited as it causes overheating. The oven must be directly accessible for proper ventilation.

How to clean the inside of the oven?

This oven is equipped with catalytic walls that absorb grease. For stubborn dirt, use a damp cloth and white vinegar. Avoid abrasive products. The racks and drip tray are dishwasher safe.

What to do if the oven does not heat?

First check that the appliance is properly plugged in and the circuit breaker has not tripped. Make sure the cooking mode is selected and the timer is not accidentally activated. If the problem persists, contact an authorized technician.

Can the oven door be removed for cleaning?

Yes, the door can be removed for deep cleaning. Refer to the manual for the procedure: generally, open the door fully, lift the latches, and remove the door. Caution, it is heavy.

What accessories are provided with the oven?

The oven comes with a metal rack, a drip tray (baking pan), and a fixing kit for built-in installation. Depending on the version, telescopic rails may be included.

How to activate child safety lock?

The child safety is locked via the control panel. Refer to the manual: generally, press and hold the 'Safety' or 'Lock' button for 3 seconds. An audible signal confirms activation.

Can I use aluminum foil in the oven?

Yes, but with caution: do not cover the entire rack to avoid blocking air circulation. Avoid direct contact with the heating elements. Use it only to cover dishes.

Where to find spare parts for this model?

Spare parts are available for 7 years after purchase. Contact Beko after-sales service or an authorized dealer. You can also order online on the manufacturer's official website.

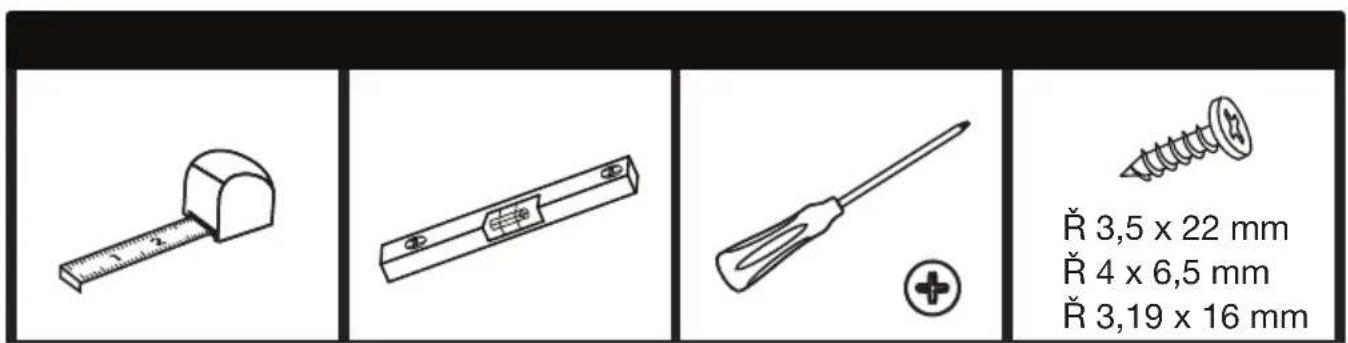

USER MANUAL BBUM13340XMPEF BEKO

*** 560(+2) - 60/70 cm 750(+2) - 80 - 88 cm 880(+2) - 90 cm

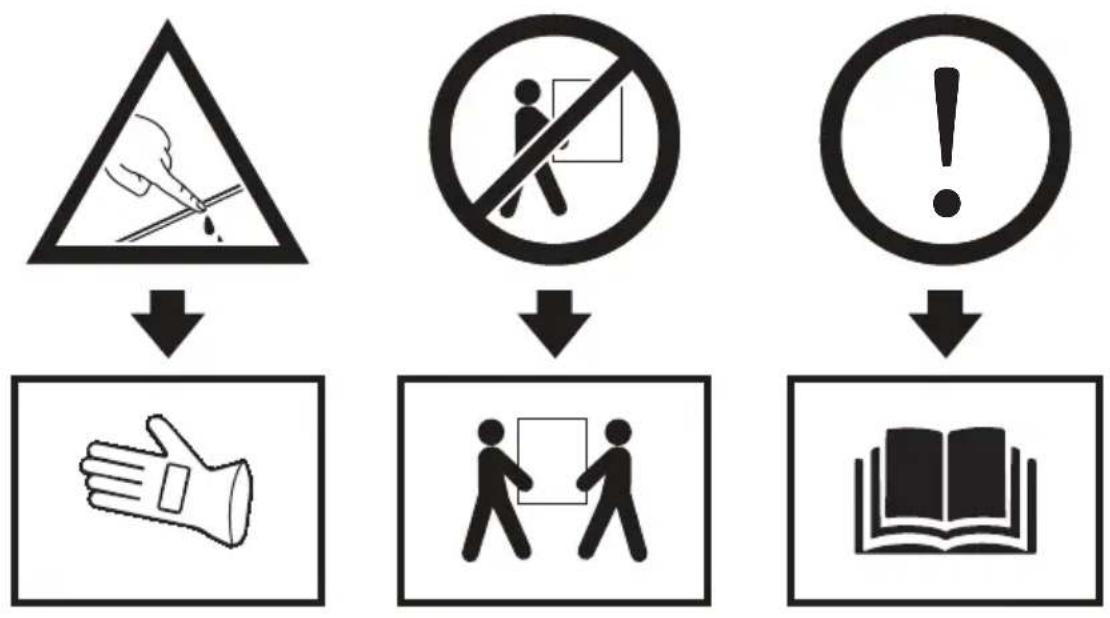

EN - Safety instructions

- Product must be installed by a qualified person in accordance with the regulations in force. The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorized persons which may also void the warranty.

- Preparation of location and electrical installation for the product is under customer's responsibility.

- The product must be installed in accordance with all local electrical regulations.

- Before installing the product, remove all the materials and documents in it and visually check if the product has any defects on it. If so, do not have it installed.

- Make sure that the user cannot reach the electrical connections after the installation.

- The product is heavy, carry the product with at least two people.

- The door and/or handle must not be used for lifting or moving the appliance. Use the lifting spaces on both sides of the product (figure 1). Always wear protective gloves during transport and installation.

- Disconnect electrical connections in the area to be installed before installation.

- The surfaces of the furniture that the oven is to be installed in must be heat-resistant (100 °C minimum).

- Make sure that the furniture is straight and horizontal, and that it is fixed before installing the appliance.

- Do not install heat insulation strips inside the interior of the furniture that the oven is to be installed in.

- The appliance must not be installed behind a decorative door to avoid overheating.

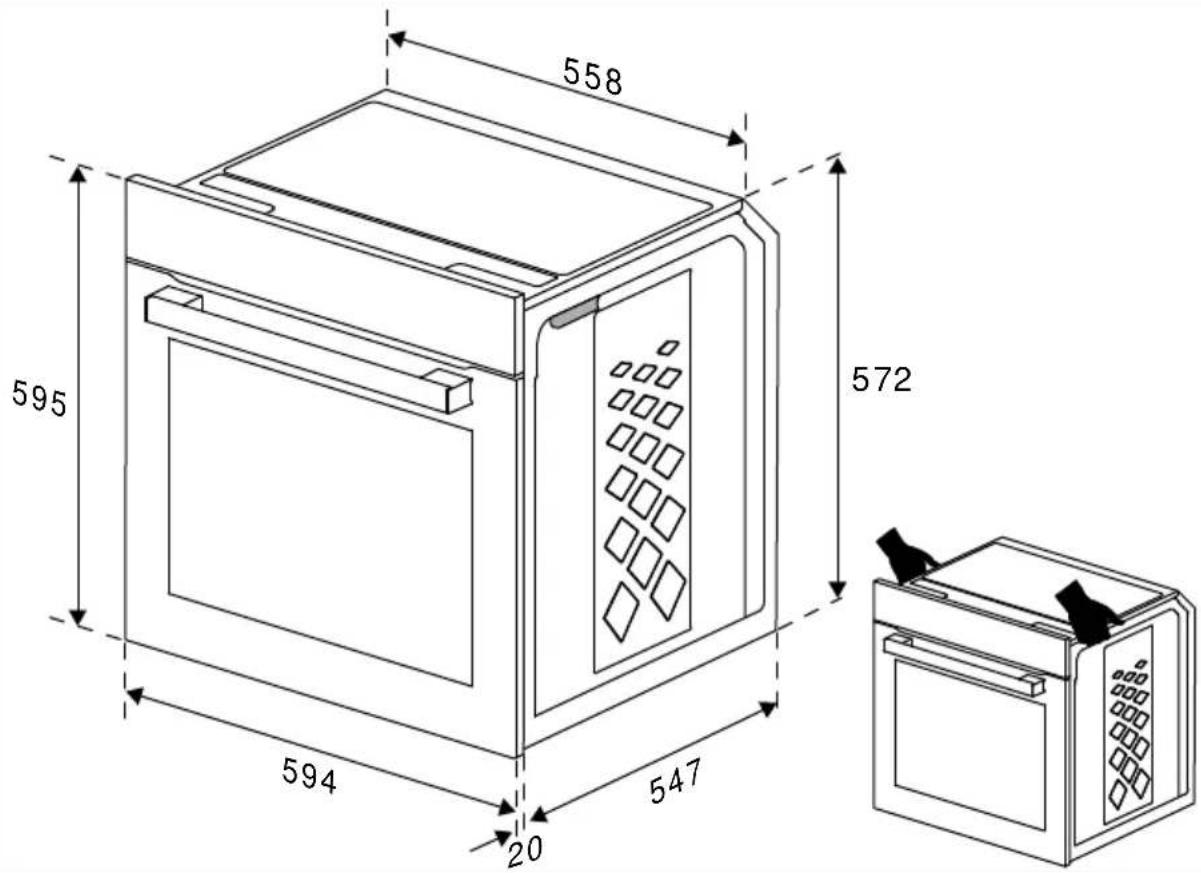

- The dimensions given in the installation diagrams are in mm.

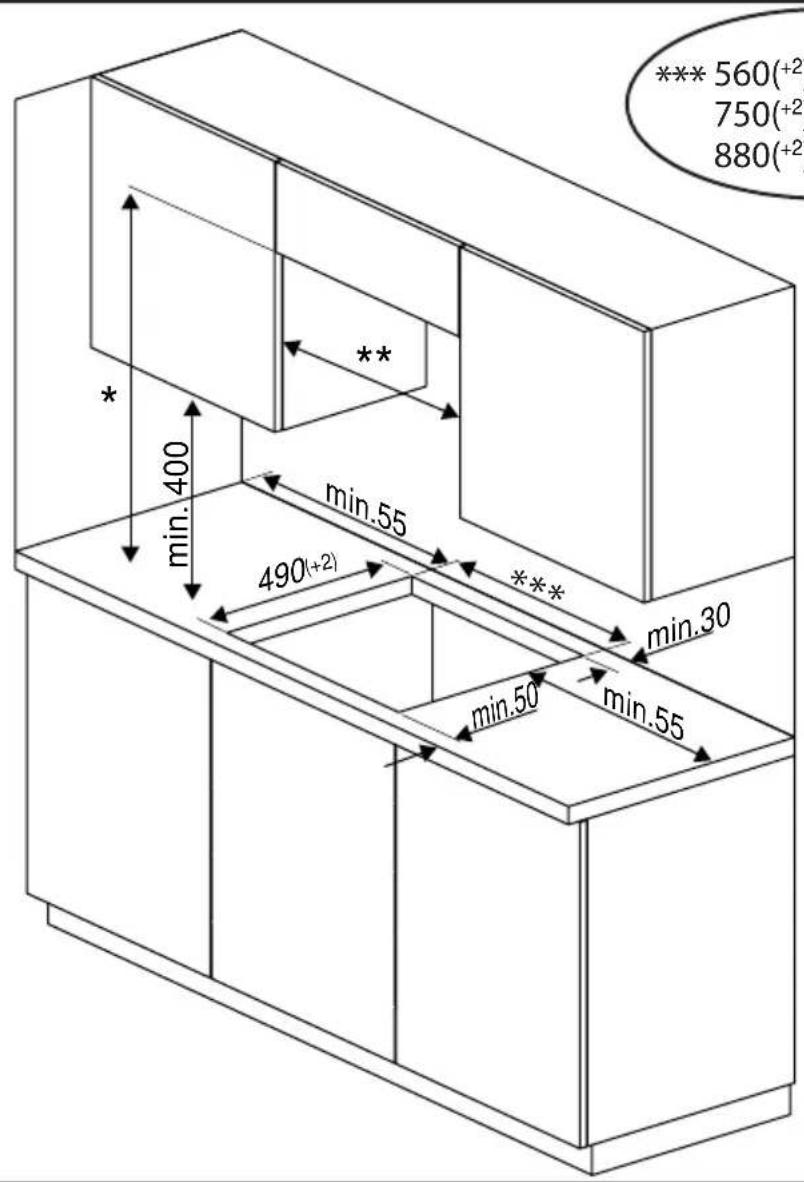

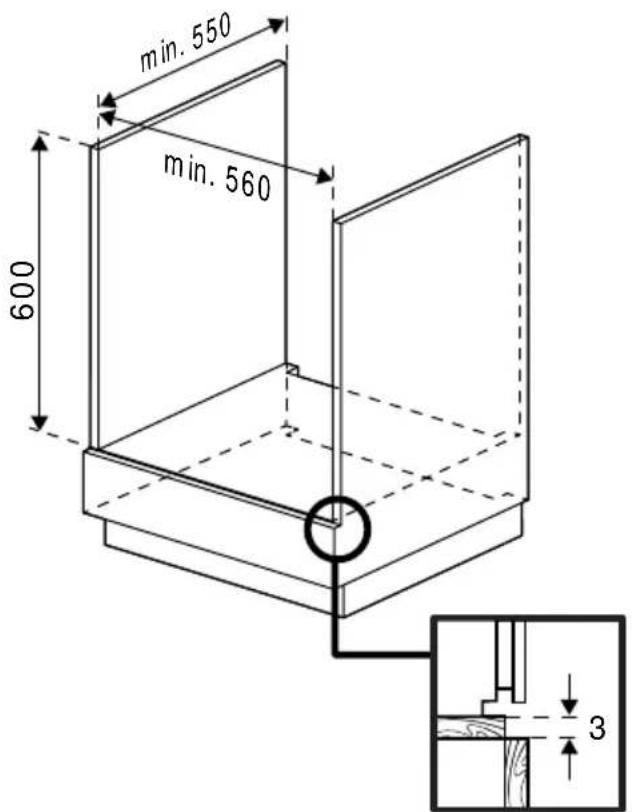

Preparation of the furniture that the appliance shall be installed (Figures 2-3-4)

- The appliance is designed for installation into commercially available worktops. A safety distance shall be left between the appliance and the kitchen walls and furniture. (Figure 2-3)

- The clearance where the appliance shall be placed on the worktop shall be cut as per

the dimensions given in figures 2-3.

- If there is no hood on the appliance, allow a distance of 750 mm from the hob surface to the furniture.

- If a shroud/hood is installed above the appliance, allow a distance for the installation height as described in the operating manual of the shroud/hood.

- ** Minimum distance between the cabinets shall be equal to the width of the hob

- To provide the necessary ventilation in the back of the kitchen furniture, openings should be created in the dimensions shown in figure 2.

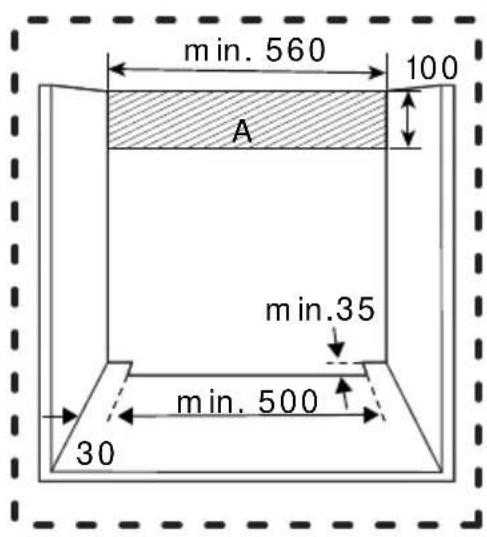

- The electrical connection must be in area A in figure 2 or outside the installation site.

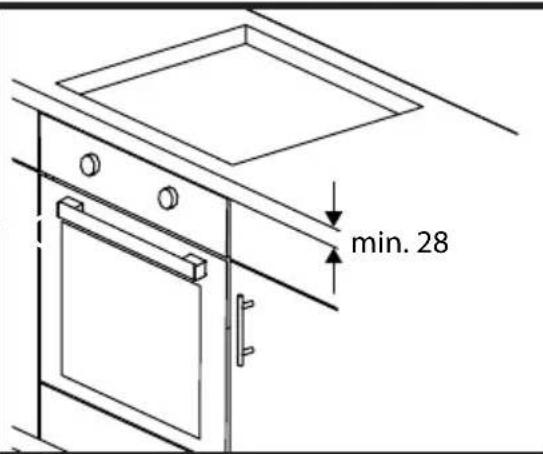

- Worktop thickness shall be at least 28 mm. (Figure 4a)

Ventilation

- Ventilation directly affects the heating performance of the appliance. Even if no issues are detected during initial inspections, customers may experience performance losses when cooking for extended periods if proper ventilation clearances are not provided.

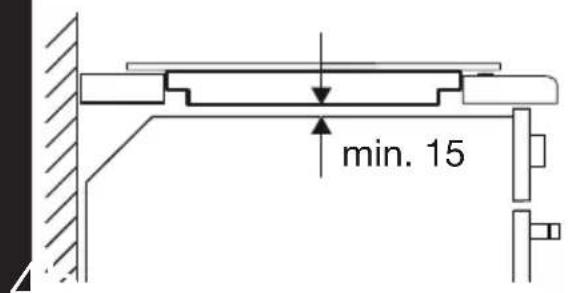

- A minimum distance of 15 mm must be maintained between the lower surface of the hob and the upper wall of the oven (Figure 4b) to ensure adequate ventilation. Additionally, a cross-section of 35x500 mm should be left at the bottom of the furniture housing where the oven is placed (Figure 2).

Installation of the appliance

Connecting the appliance to the electricity supply

- Only connect the product to a grounded outlet/line with the voltage and protection specified in the “Technical specifications”. Have the grounding installation performed by a qualified electrician, whether using the product with or without a transformer. Our company shall not be liable for any problems arising from the product not being earthed in accordance with local regulations.

- Before starting any work on the electrical installation, disconnect the product from the mains supply. There is a risk of electric shock!

• The product must be connected to the mains supply only by an authorized and qualified person. The product's warranty period starts only after correct installation. The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorized persons.
• The appliance must be installed so that it can be completely disconnected from the mains supply. The separation must be provided by a switch built into the fixed electrical installation, according to construction regulations.
• The rear surface of the oven and the bottom surface of the hob become hot when in use. Ensure that the electrical connection does not come into contact with the rear surface; otherwise, connections can be damaged.
• The connection cable must not be clamped, bent, trapped, or come into contact with hot parts of the appliances. This could cause a short circuit and fire as a result of the cable melting. If the power cord is damaged, it must be replaced by a qualified electrician. Otherwise, there is a risk of electric shock, short circuit, or fire!
• The plug of the power cord should be easily accessible after installation (but not over the hobs).
• When wiring, you must comply with national/local electrical regulations and use a socket outlet/line and plug suitable for the appliances. If the power limits of the product exceed the current carrying capacity of the plug and socket outlet/line, you must connect the product directly to the fixed electrical installation without using the plug and socket outlet/line.
• Make sure that the fuse rating is compatible with the product.
• Connection must comply with national regulations.
• The mains supply data must correspond to the data specified on the type label of the products. You may see the hob's type label on the bottom of the hob and open the oven door to see the oven's type label.
• Power cable of your product must comply with the values in “Technical specifications” table.
• If the product will be connected directly to the supply power: If it is not possible to disconnect all poles in the supply

power, a disconnection unit with at least 3 mm contact clearance (fuses, line safety switches, contactors) must be connected and all the poles of this disconnection unit must be adjacent to (not above) the product in accordance with IEE directives. Failure to obey this instruction may cause operational problems and invalidate the product warranty.

- Additional protection by a residual current circuit breaker is recommended.

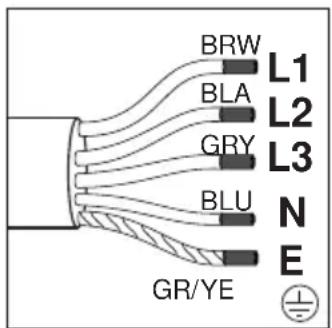

If the product is produced with cable:

- Connect the cord of product to supply power as identified below:

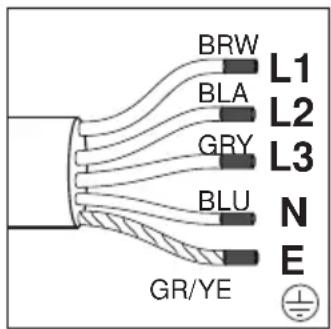

If your supply cord type is 5-conductor type, for 3-phase connection:

• (BRW) Brown = L1 (Phase)
• (BLA) Black = L2 (Phase)
• (GRE) Grey = L3 (Phase)
• (BLU) Blue = N (Neutral)
• (GR/YE) Green/yellow wire = (E) ⏚ (Earthing)

3 N AC 380-415 V

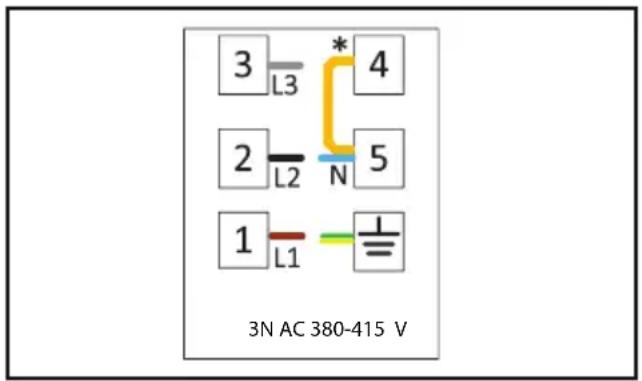

If the product is produced without cable:

A power cable that is defined in the technical table must be connected to the product by following the instructions. The power cable must not be longer than 2 m for safety reasons.

• Open the terminal block cover with a screwdriver.
• Insert the power cable through the cable clamp below the terminal and secure it to the main body with the integrated screw on the cable clamping component.

- Connect the cables according to the supplied diagram.

* Copper bridge

If your supply cord type is 5-conductor type, for 3-phase connection:

• Brown = L1 (Phase)
• Black = L2 (Phase)
• Grey = L3 (Phase)
• Blue = N (Neutral)
• Green/yellow wire = (E) (Earthing)

- After completing the wire connections, close the terminal block cover.

- Connect the power cable to supply power by routing it so that it will not contact the product and get squeezed between the product and the wall.

Prevention against possible fire risk!

• Ensure all electrical connections are secure and tight to prevent risk of arcing.
• Do not use damaged cables or extension cables.
• Ensure liquid or moisture is not accessible to the electrical connection point.

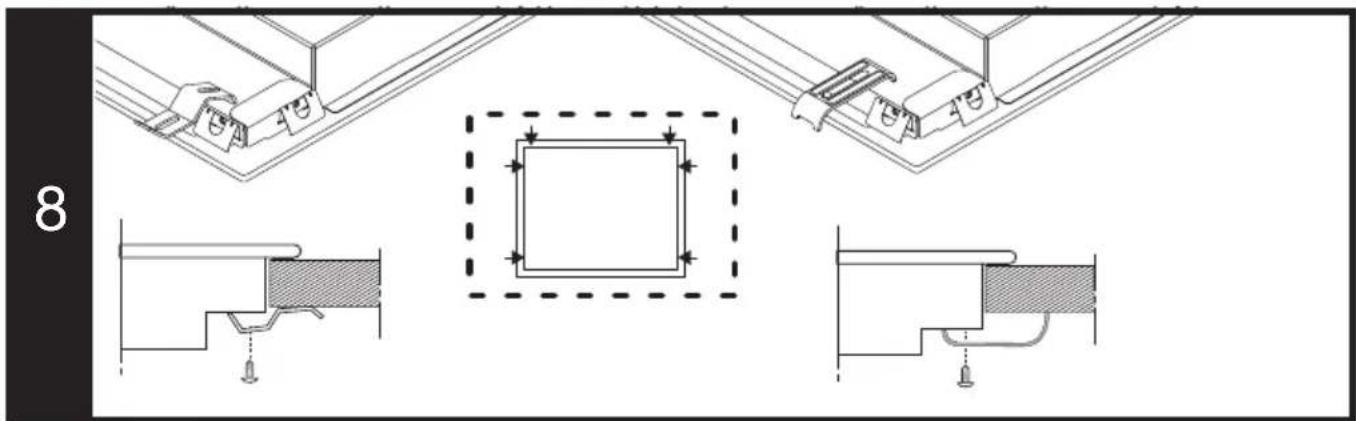

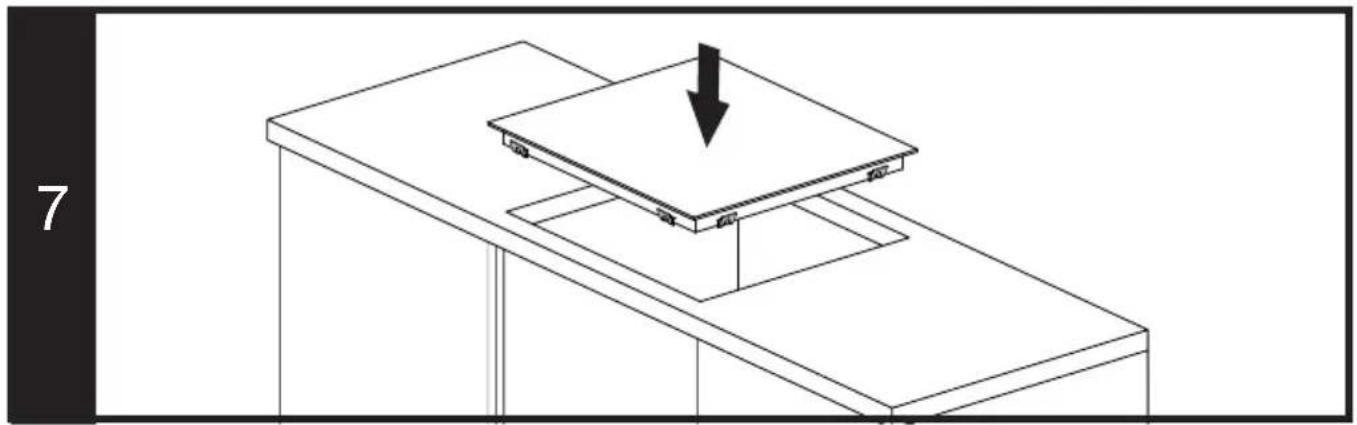

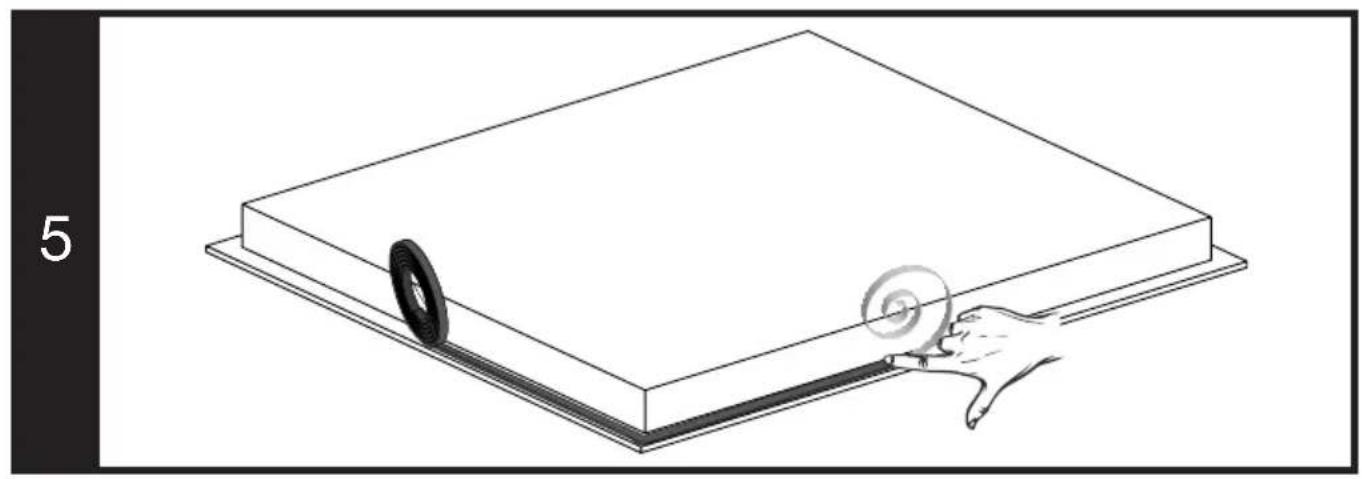

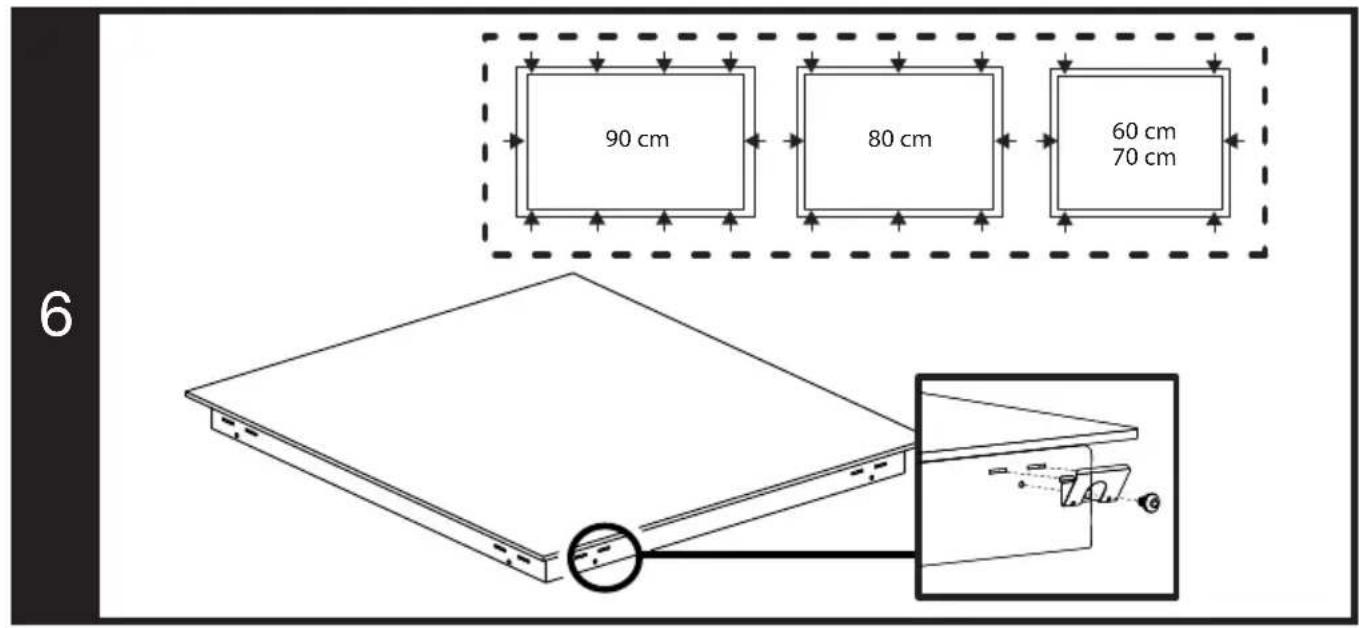

Placing and securing of the hob (Figures 5-6-7-8)

• After preparing the installation location of the appliances, turn the hob upside down and place it on a flat surface.
• Affix the sealing gasket supplied with the appliance around the hob so that it shall be 1-2 mm inside the outer edge of the glass as shown in Figure 5. Ensure that no clearance is left between both ends and between the glass and gasket.
• Screw and secure the mounting springs supplied with the appliance by engaging them to their seat on the lower housing of the hob as shown in Figure 6. (In some models, these springs may be secured to the appliance ex-factory.)
• Turn the hob again and align it with the worktop and then place it on the worktop. Cooker shall be placed on the worktop

thanks to the springs, and it shall be easily secured.

- Ensure that the hob and the worktop are parallel when you place the cooker on the worktop. When it is not in parallel, connect the additional installation clamps supplied with the appliance as shown in Figure 8. Figure 8 shows the possible installation locations of the clamps. (The locations where the clamps can be attached may vary depending on the product model. You can connect according to the mounting holes on your hob.) Ensure the parallelism by attaching the clamps to the appropriate locations. The type and quantity of clamps supplied with the product may vary depending on the product model.

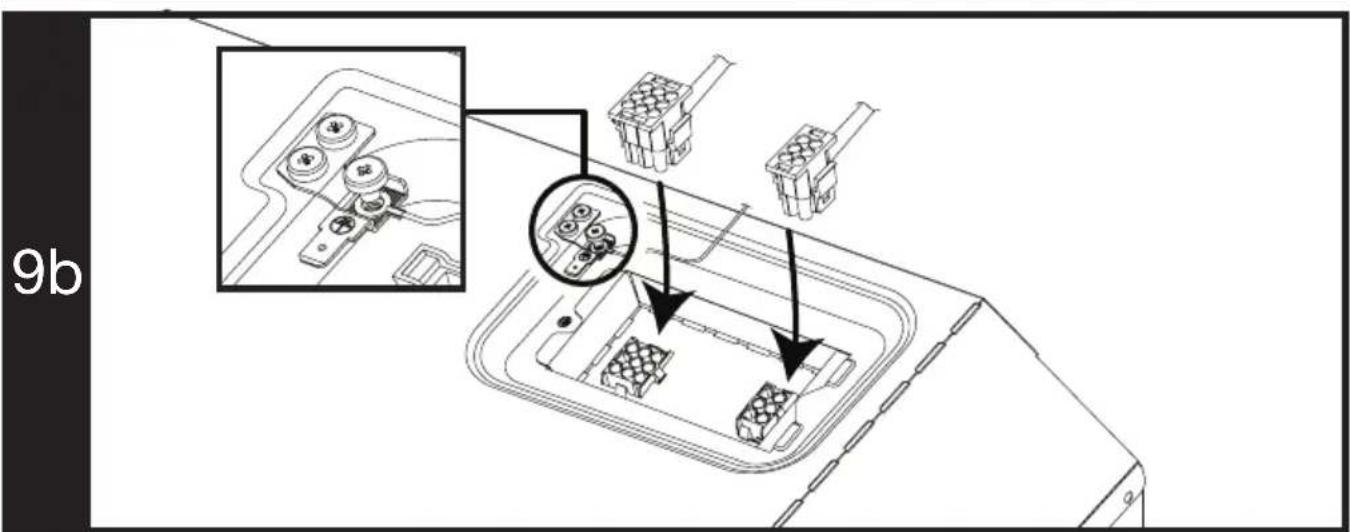

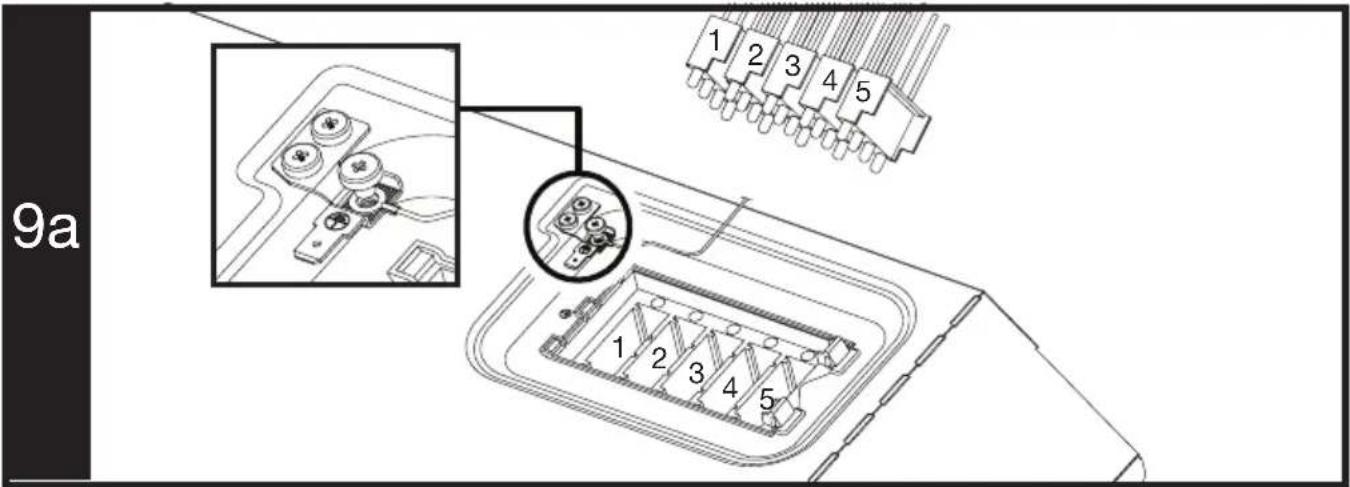

Making hob-oven connection and placing and fixing the oven (Figure 9a-9b-10-11)

• Connect the oven to the power supply.
• Slide the oven centered with at least two persons into the cabinet until half way.

- If your hob type is vitroceramic: The hob has a socket and a grounding cable to be connected to the oven. As shown in figure 9a, connect the socket to its slot on the oven in a way that the colors match. Fix the grounding cable with the screw shown in figure 9a.

- If your hob type is induction: The hob has two socket and a grounding cable to be connected to the oven. As shown in figure 9b, connect the sockets to its slot on the oven. Fix the grounding cable with the screw shown in figure 9b.

• Place the oven to the cabinet completely.

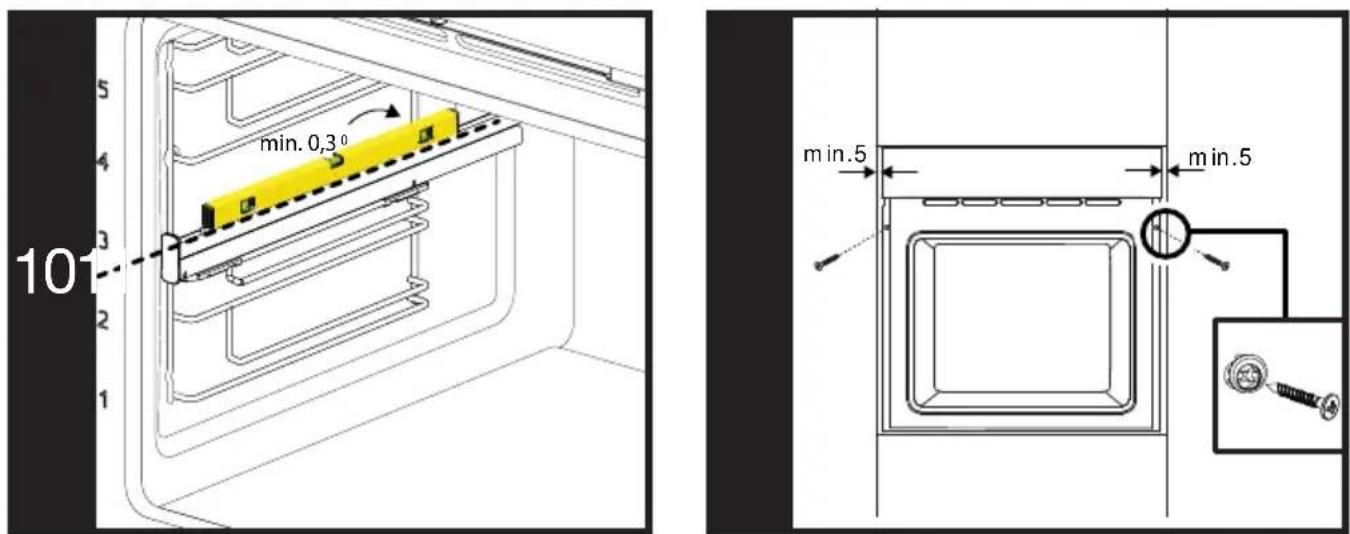

• If your product is equipped with a telescopic rail, a slope of at least 0.3 degrees towards the back of the oven must be provided for the telescopic rails to work properly. For this, after placing the product on the furniture, place the spirit level on the telescopic rail as shown in figure 10 and make sure that the angle of inclination towards the back of the oven is at least 0.3 degrees.
• Fix the oven to the furniture using the screws provided. (Figure 11)
• At the end of the installation, check that the screws are properly tightened and that the product is firmly fixed. If the oven is not installed in accordance with the instructions

and the screws are not properly tightened, there is a risk of tipping during use.

Final check

• After installation, turn on the power supply. - Read the user manual for the first use of the appliances. - Check functions of appliances.

Removing the appliances

• Disconnect the appliances from the power supply.
• Unscrew the fastening screws of the oven.
• Pull out the oven with at least two persons from the cabinet until halfway.
• Disconnect the oven and hob.
• Pull out the oven completely.
• If the hob is secured with additional clamps, unscrew the clamps first.
• Remove the hob by pushing upward from the bottom of the hob.

Safety instructions

• (BRW) Brown = L1 (Phase)
• (BLA) Black = L2 (Phase)
• (GRE) Grey = L3 (Phase)
• (BLU) Blue = N (Neutral)
• (GR/YE) Green/yellow wire = (E) ⏚ (Earth)

3 N AC 380-415 V

• Brown = L1 (Phase)
• Black = L2 (Phase)
• Grey = L3 (Phase)
• Blue = N (Neutral)
• Green/yellow wire = (E) (Earth)

- Brown = L1 (Phase)

- Black = L2 (Phase)

- Grey = L3 (Phase)

- Blue = N (Neutral)

3 N AC 380-415 V

3 N AC 380-415 V

If the product is manufactured without a cable:

* Copper bridge

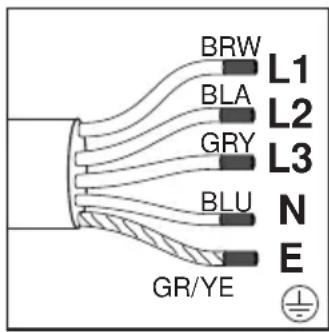

If your power cable is of the 5-conductor type, for three-phase connection:

• brown = L1 (Phase)
• black = L2 (Phase)
• grey = L3 (Phase)
• blue = N (Neutral)
• green/yellow wire = (E) (Earth)
• After completing the wiring, close the terminal cover.
• Connect the power cable so that the power is routed in such a way that the cable does not touch the product and is not pinched between the device and the wall.

Fire prevention!

3 N AC 380-415 V

- (BRW) Brown = L1 (Phase)

- (BLA) Black = L2 (Phase)

- (GRA) Grey = L3 (Phase)

- (BLU) Blue = N (Neutral)

- (GR/YE) Green/yellow wire = (E) ⏻ (Earth connection)

3 N AC 380-415 V

• (BRW) Brown = L1 (Phase)
• (BLA) Black = L2 (Phase)
• (GRE) Grey = L3 (Phase)
• (BLU) Blue = N (Neutral)
• (GR/YE) Green/yellow cable = (E) ⏚ (Earth connection)

3 N AC 380-415 V

• (BRW) brown = L1 (phase)
• (BLA) black = L2 (phase)
• (GRE) gray = L3 (phase)
• (BLU) blue = N (neutral)
• (GR/YE) green/yellow wire = (E) ⏚ (ground)

3 N AC 380-415 V

* Copper bridge

* Copper bridge

3 N AC 380-415 V

- (BRW) Brown = L1 (phase)

- (BLA) Black = L2 (phase)

- (GRE) Gray = L3 (phase)

• (BRW) Brown = L1 (phase)
• (BLA) Black = L2 (phase)
• (GRE) Gray = L3 (Phase)
• (BLU) Blue = N (Neutral)
• (GR/YE) Green/yellow wire = (E) Earth

3 N AC 380-415 V

*Copper jumper

*Copper jumper

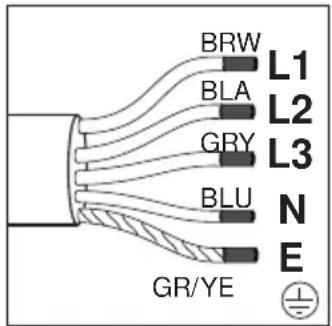

If your power supply cable is of the 5-conductor type, for three-phase connection:

• Brown = L1 (Phase)
• Black = L2 (Phase)
• Gray = L3 (Phase)
• Blue = N (Neutral)

- Green/yellow wire = (E) ⏻ ground

• After completing the wire connections, close the terminal cover.
• Connect the power supply cable so that the power is routed such that the cable does not touch the product and is not pinched between the device and the wall.

Prevention of possible fire!;
