USER MANUAL DEH-S100UBA PIONEER

REPRODUCTOR DE CD CON RECEPTOR RDS

CD RDS-EMPFÄNGER

CD RDS-ONTVANGER

CD RDS ПРИЕМНИК

DEH-S100UB

DEH-S100UBG

DEH-S100UBA

DEH-S100UBB

DEH-S101UB

DEH-S101UBG

DEH-S010UB

Pioneer

Owner's Manual

Mode d'emploi

Using Pioneer ARC APP....8

Settings 9

FUNCTION settings 9

AUDIO settings....9

SYSTEM settings 10

ILLUMINATION settings.... 11

Connections/Installation.... 11

Additional Information.... 13

About this manual:

- In the following instructions, a USB memory or USB audio player are referred to as "USB device".

Declaration of Conformity with regard to the Radio Equipment Directive 2014/53/EU

Manufacturer:	EU Representative's & Importer:
Pioneer Corporation28-8, Honkomagome 2-chome, Bunkyo-ku,Tokyo 113-0021, Japan	Pioneer Europe NVHaven 1087, Keetberglaan 1, 9120 Melsele,Belgiumhttp://www.pioneer-car.eu

[*] DEH-S100UB, DEH-S100UBG, DEH-S100UBA, DEH-S100UBB, DEH-S101UB, DEH-S101UBG, DEH-S010UB English: Italiano:

Hereby, Pioneer declares that the radio equipment type [P] is in compliance with Directive 2014/53/EU.

[1] is in compliance with Directive 2014/53/26. The full text of the EU declaration of conformity is

The full text of the 20 declaration of conformity is available at the following Internet address: http://www.pioneer-car.eu/compliance

Suomi:

www.pioneer-car.eu/compliance

Deutsch

Thank you for purchasing this PIONEER product

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (If you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

WARNING

- Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.

- Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device.

CAUTION

- Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids. - Always keep the volume low enough to hear outside sounds. - The Pioneer CarStereo-Pass is for use only in Germany. - This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065.

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007

CLASS 1 LASER PRODUCT

If you experience problems

Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station.

Getting Started

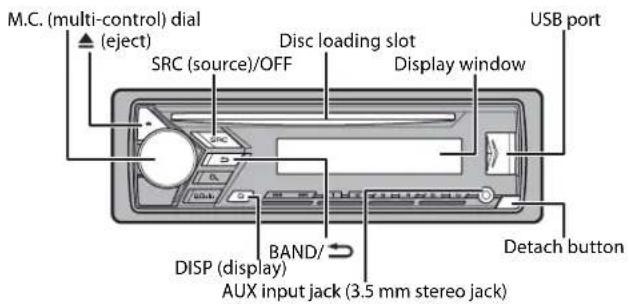

Basic operation

DEH-S100UB/S100UBG/S100UBA/S100UBB/S101UB/S101UBG/S010UB

M.C. (multi-control) dial (eject) SRC (source)/OFF Disc loading slot Display window USB port BAND/ DISP (display) AUX input jack (3.5 mm stereo jack) Detach button

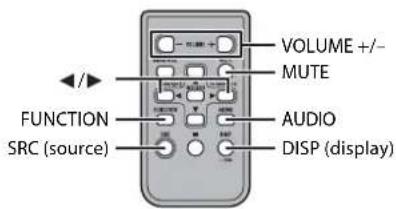

Remote Control

NOTE

Remote control is supplied only for DEH-S101UB/S101UBG.

VOLUME +/- MUTE FUNCTION AUDIO SRC (source) DISP (display)

Frequently used operations

The available buttons vary depending on the unit.

Purpose	Operation
	Head Unit Remote Control
Turn on the power*	Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power.	Press SRC to turn on the power. Press and hold SRC to turn off the power.
Adjust the volume Tum the M.	C. dial.	Press VOLUME + or -. Press MUTE to mute the unit. Press MUTE again or press VOLUME + or - to unmute.
Select a source	Press SRC/OFF repeatedly.	Press SRC repeatedly.
Change the display information	Press DISP repeatedly.	Press DISP repeatedly.
Return to the previous display/list	Press BAND/→.	Press ◀/► to select the next/previous folder.
Return to the normal display from the menu	Press and hold BAND/→	-

* When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

Display indication

Indication Description
	Appears when a lower tier of the menu or folder exists.
	Appears when the button is pressed.
LOC	Appears when the local seek tuning function is set (page 9).
TP	Appears when a traffic program is received.
TA	Appears when the TA (traffic announcements) function is set (page 9).
S.Rtrv	Appears when the sound retriever function is set (page 9).
XX	Appears when random play is set.
	Appears when repeat play is set.

Detaching the front panel

Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.

Detach Attach

Diagram illustrating the process of inserting a component into a device, with labeled parts and directional arrows.

Important

• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.
  • Always store the detached front panel in a protective case or bag.

Preparing the remote control

Remove the insulation sheet before use.

How to replace the battery

Diagram showing two labeled steps (① and ②) of a mechanical or electrical device with directional arrows indicating movement or operation.

Insert the CR2025 (3 V) battery with the plus (+) and minus (-) poles orientated properly.

WARNING

- Do not ingest the battery, Chemical Burn Hazard.

(The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Do not expose the battery or remote control to excessive heat such as direct sunlight or fire.

CAUTION

• There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the battery, replace it with the same type.
• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institutions' rules that apply in your country/area.

Important

• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal.

Setup menu

When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display.

1 Press the M.C. dial.
The setup menu disappears after 30 seconds of no operation. If you prefer not to set at this time, turn the M.C. dial to select [NO], then press to confirm.
2 Turn the M.C. dial to select the options, then press to confirm.
To proceed to the next menu option, you need to confirm your selection.

Menu Item Description

LANGUAGE Select the language to display the text information from a compressed audio file.
[ENG]/English)

END, DVD
PYC,
TUR

CLOCK SET Set the clock

FM STEP Select the FM tuning step from 100 kHz or 50 kHz.

[100], [50]

3[QUIT:YES] appears when all the settings have been made.
To return to the first item of the setup menu, turn the M. C. dial to select [QUIT :NO], then press to confirm.
4 Press the M.C. dial to confirm the settings.

NOTES

- You can cancel the menu setting by pressing SRC/OFF.

- These settings can be made at any time from the SYSTEM settings (page 10) and INITIAL settings (page 6).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off.
2 Press and hold SRC/OFF to display the main menu.
3 Turn the M.C. dial to select [INITIAL], then press to confirm.
4 Turn the M.C. dial to select an option, then press to confirm.

NOTE
The options vary depending on the unit.

Menu Item Description
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50]
SP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].

Menu Item Description
S/W UPDATE Select to confirm the latest system information on the unit.
[SYSTEM INFO]
[SYSTEM UPDATE] Select to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.
SYSTEM RESET[YES], [NO]	Select [YES] to initialize the unit settings. The unit will be restarted automatically.(Some of the settings may be retained even after resetting the unit.)

Radio

The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations.

Receiving preset stations

1 Press SRC/OFF to select [RADIO].
2 Press BAND/→ to select the band from [FM1], [FM2], [FM3], [MW] or [LW].
3 Press a number button (1/∧ to 6/⇐).

TIP

The ◀◀/▶▶ buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 9).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/∧ to 6/⇐).

1 After selecting the band, press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [FUNCTION], then press to confirm.
3 Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1 After selecting the band, press ◄◀/▶▶ to select a station. Press and hold ◄◀/▶▶ then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press ◄◀/▶▶

NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 9).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1/∧ to 6/⇐) until it stops flashing.

Using PTY functions

The unit searches for a station by PTY (program type) information.

1 Press during FM reception.
2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS].
3 Press the M.C. dial.

The unit begins to search for a station. When it is found, its program service name is displayed.

NOTES

• To cancel the search, press the M.C. dial.
• The program of some stations may differ from that indicated by the transmitted PTY.
- If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.

CD/USB/AUX

Playing back

Disconnect headphones from the device before connecting it to the unit.

CD

1 Insert a disc into the disc loading slot with the label side up.

To eject a disc, stop playback first then press ▲

USB devices (including Android™)

1 Open the USB port cover. 2 Plug in the USB device using an appropriate cable.

NOTE

To automatically switch to [USB] source when a USB device is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 11).

CAUTION

Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

For details on AOA connection, see page 8.

MTP connection

A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV and FLAC file formats.

NOTE

If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings (page 10).

AUX

1 Insert the stereo mini plug into the AUX input jack.

2 Press SRC/OFF to select [AUX] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 10).

Operations

You can make various adjustments in the FUNCTION settings (page 9). Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

*1 Compressed audio files only
*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct.

Purpose Operation
Select a folder*1	Press 1/ ∧ or 2/ √.
Select a track/song (chapter)	Press ◀◀◀ or ▶▶◀.
Purpose	Operation
Fast forward or reverse*2	Press and hold ◀◀◀ or ▶▶▶.
Search for a file from a list 1P	ress 🔔 to display the list.2Tu rm the M.C. dial to select the desired file (folder) name or category, then press to confirm.3Tu rm the M.C. dial to select the desired file, then press to confirm.Playback starts.
View a list of the files in the selected folder/ category*1	Press the M.C. dial when a folder/category is selected.
Play a song in the selected folder/ category*1	Press and hold the M.C. dial when a folder/ category is selected.
Repeat play Press 6/.	⇨
Random play Press 5/.	✕✕
Pause/resume playback	Press 4/PAUSE.
Sound retriever*1	Press 3/5.Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates
Return to root folder (CD/USB only)*1	Press and hold 🔔.
Switch between compressed audio and CD-DA (CD only)	Press BAND/⇨.
Change drives in USB device (Devices that support the USB mass storage device class protocol only)	Press BAND/⇨.

Using Pioneer ARC APP

You can operate the unit from Pioneer ARC APP installed on an Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.

For details on what operations are available on the application, see the application's help section.

WARNING

Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

For Android device users

This function is compatible with devices that have Android OS 4.1 or later installed and also support AOA (Android Open Accessory) 2.0.

You can download Pioneer ARC APP on Google Play™.

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.

Making a connection with Pioneer ARC APP

1 Connect this unit with the mobile device.
- Android device via USB (page 7)
2 Press the M.C. dial to display the main menu.
3 Turn the M.C. dial to select [SYSTEM], then press to confirm.
4 Turn the M.C. dial to select [ANDROID WIRED], then press to confirm.
5 Turn the M.C. dial to select [APP CONTROL] for an Android device connected via USB.

If [ON] is selected in [P.APP AUTO ON] (page 10), Pioneer ARC APP on the Android device starts automatically, and all the steps are finished.

NOTE

If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 10).

6 Press SRC/OFF to select any source.
7 Launch Pioneer ARC APP on the mobile device.

Listening to music on Android

1 Press SRC/OFF to select [ANDROID].

Basic operations

Purpose Operation
Select a track Press or .	|◀◀ ▶▶|
Fast forward or reverse	Press and hold |◀◀ or ▶▶|.
Pause/resume playback	Press 4/PA USE.
Sound retriever	Press 3/S.Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• FUNCTION settings (page 9)
• AUDIO settings (page 9)
• SYSTEM settings (page 10)
• ILLUMINATION settings (page 11)

3 Turn the M.C. dial to select the options, then press to confirm.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description

FM SETTING [TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast signal conditions of the FM band signal. (Available only when FM band is selected.)
BSM RADIO	Store the six strongest stations on the number buttons (1/∧ to 6/⇌) automatically.

Menu Item Description
REGIONAL [ON], [OFF]	Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.)
LOCAL [FM]: [OFF], [LV1], [LV2], [LV3], [LV4]MW/LW: [OFF], [LV1], [LV2]	Restrict the tuning station according to the signal strength.
TA [ON], [OFF]	Receive current traffic information if available. (Available only when FM band is selected.)
AF [ON], [OFF]	Allow the unit to retune to a different frequency providing the same station. (Available only when FM band is selected.)
NEWS [ON], [OFF]	Interrupt the currently selected source with news programs. (Available only when FM band is selected.)
SEEK [MAN], [PCH]	Assignorbuttons to seek the stations one by one (manual tuning) or select a station from the preset channels.
S.RTRV [1] (effective for low compression rates), [2] (effective for high compression rates), [OFF]	Enhance compressed audio and restore rich sound.Not available when:CD-DA/CD-TEXT is played back.The FLAC file is played back.

AUDIO settings

Menu Item Description

FADER*1

Adjust the front and rear speaker balance.

Menu Item Description

BALANCE
	Adjust the left and right speaker balance.
EQ SETTING
[SUPER BASS], [POWERFUL],[NATURAL], [VOCAL], [CUSTOM1],[CUSTOM2], [FLAT]	Select or customise the equalizer curve.[CUSTOM1] can be set separately for each source.However, each of the below combinations are set to the same setting automatically.[CUSTOM2] is a shared setting used for all sources.You can also switch the equalizer by pressing
Select an equalizer band and level for further customising.	Equally repeatedly.
Equalizer band:[80HZ], [250HZ],[800HZ], [2.5KHZ], [8KHZ]
Equalizer level:[+6] to [-6]
LOUDNESS
[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
SUB.W*2
[NOR], [REV], [OFF] Select the subwoofer phase.
SUB.W CTRL*2 *3
Cut-off frequency:[50HZ],[63HZ], [80HZ], [100HZ], [125HZ],[160HZ], [200HZ]	Only frequencies lower than those in the selected range are output from the subwoofer.
Output level:[-24] to [+6]
Slope level:[-12], [-24]
BASS BOOST
[0] to [+6] Select the bass boost level.
HPF SETTING
Cut-off frequency:[OFF], [50HZ],[63HZ], [80HZ], [100HZ], [125HZ],[160HZ], [200HZ]	Only frequencies higher than the high-pass filter (HPF) cutoff are output from the speakers.
Slope level:[-12], [-24]
SLA
[+4] to [-4]	Adjust the volume level for each source except FM.

*1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 6).

*2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 6).

*3 Not available when [OFF] is selected in [SUB.W].

SYSTEM settings
You can also access to these menus when the unit is turned off.

Menu Item Description
LANGUAGE[ENG](English), [PYC](Russian), [TUR](Turkish)	Select the language to display the text information from a compressed audio file.
CLOCK SETSet the clock (page 5).
12H/24H[12H], [24H] Select the time notation.
AUTO PI[ON], [OFF] Search for a different station with the same programming, even if using a preset station.
AUX[ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.
MUTE MODE (Not available for DEH-S100UBA)[MUTE], [20dB ATT], [10dB ATT] Mute or attenuate sound automatically when a signal from equipment with a mute function is received.
PW SAVE*[ON], [OFF] Reduce the battery power consumption.Turning on the source is the only operation allowed when this function is on.
ANDROID WIRED[MEMORY], [APP CONTROL] Select the appropriate connection method for an Android device.
P.APP AUTO ON[ON], [OFF]	Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Not available when [MEMORY] is selected in [ANDROID WIRED].)

Menu Item Description

USB AUTO

[ON], [OFF] Select [ON] to automatically switch to [USB]

source when a USB device is connected to the

unit.

Select [OFF] when a USB device is being

connected to the unit just for charging.

* [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle's ignition does not have an ACC (accessory) position.

ILLUMINATION settings

Menu Item Description

DIM SETTING

[SYNC CLOCK], [MANUAL] Change the display brightness.

BRIGHTNESS

[1] to [10] Change the display brightness.

The available setting ranges differ depending on [DIM SETTING].

Connections/Installation

Connections

Important

- When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.

ACC position No ACC position

- Use of this unit in conditions other than the following could result in fire or malfunction.

-Vehicles with a 12-volt battery and negative grounding. -When speaker output is used by 4 channels, use speakers over 50W (maximum input power) and between 4 to 8 (impedance value). Do not use 1 to 3 speakers for this unit. -When rear speaker output is used by 2 of subwoofer, use speakers over 70W (maximum input power).* Please refer to connections for a connection method.

- To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.

- Disconnect the negative terminal of the battery before installation.

- Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.

- Place all cables away from moving parts, such as the shift lever and seat rails.

- Place all cables away from hot places, such as near the heater outlet.

- Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment.

– Cover any disconnected cable connectors with insulating tape.

– Do not shorten any cables.

- Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.

– Use a fuse of the rating prescribed.

– Never wire the negative speaker cable directly to ground.

– Never band together negative cables of multiple speakers.

- When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle's auto-antenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.

- Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.

- The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.

• The graphical symbol placed on the product means direct current.

This unit

① Power cord input
② Rear output or subwoofer output
③ Antenna input
④ Fuse (10 A)
⑤ Wired remote input (Not available for DEH-S100UBA)

Hard-wired remote control adapter can be connected (sold separately).

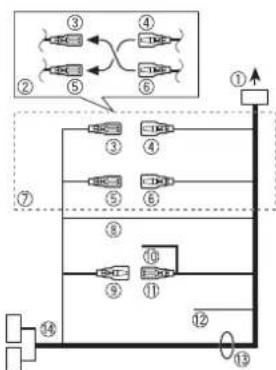

Power cord

① To power cord input
② Depending on the kind of vehicle, the function of and may be different. In this case, be sure to connect to and to.
③ Yellow Back-up (or accessory)
④ Yellow

Connect to the constant 12 V supply terminal.

⑤ Red
Accessory (or back-up)
⑥ Red
Connect to terminal controlled by the ignition switch (12 V DC).
⑦ Connect leads of the same colour to each other.
⑧ Black (chassis ground)
⑨ Blue/white
The pin position of the ISO connector will differ depending on the type of vehicle. Connect and when Pin 5 is an antenna control type. In another type of vehicle, never connect and
⑩ Blue/white

Connect to the system control terminal of the power amp (max. 300 mA 12 V DC).

⑪ Blue/white
Connect to the auto-antenna relay control terminal (max. 300 mA 12 V DC).
12 Yellow/black (Not available for DEH-S100UBA) If you use equipment with a Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.
⑬ Speaker leads

White: Front left ⊕

White/black: Front left

Gray: Front right ⊕

Gray/black: Front right ⊖

Green: Rear left or subwoofer

Green/black: Rear left or subwoofer

Violet: Rear right or subwoofer

Violet/black: Rear right or subwoofer

⑭ ISO connector

In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors.

NOTES

• Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 6). The subwoofer output of this unit is monaural.
• When using a subwoofer of 2 , be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.

Power amp (sold separately)

Perform these connections when using the optional amplifier.

① System remote control
Connect to blue/white cable.
② Power amp (sold separately)
③ Connect with RCA cables (sold separately)
④ To rear output or subwoofer output
⑤ Rear speaker or subwoofer

Installation

Important

• Check all connections and systems before final installation.
• Do not use unauthorized parts as this may cause malfunctions.
• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.
• Do not install this unit where:

-it may interfere with operation of the vehicle.
-it may cause injury to a passenger as a result of a sudden stop.
• The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.

• Optimum performance is obtained when the unit is installed at an angle of less than 60^ .
• When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.

Leave ample space

DIN mount installation

1 Insert the supplied mounting sleeve into the dashboard.
2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.

① Dashboard
② Mounting sleeve
• Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions.

When not using the supplied mounting sleeve

1 Determine the appropriate position where the holes on the bracket and the side of the unit match.

2 Tighten two screws on each side.

① Tapping screw (5 mm × 9 mm, not supplied with product)

② Mounting bracket

③ Dashboard or console

Removing the unit (installed with the supplied mounting sleeve)

1 Remove the trim ring.

① Trim ring

② Notched tab

- Rele asing the front panel allows easier access to the trim ring.

- When reattaching the trim ring, point the side with the notched tab down.

2 Insert the supplied extraction keys into both sides of the unit until they click into place.

3 Pull the unit out of the dashboard.

Additional Information

Troubleshooting

The display automatically returns to the normal display.

→ No operations have been made for about 30 seconds.

Perform an operation.

The repeat play range changes unexpectedly.

→ Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. – Select the repeat play range again.

A subfolder is not played back.

→ Subfolders cannot be played when [FLD] (folder repeat) is selected. - Select another repeat play range.

The sound is intermittent.

→ You are using a device, such as a cellular phone, that may cause audible interference.

- Move electrical devices that may be causing the interference away from the unit.

Error messages

Common

AMP ERROR

→ This unit fails to operate or the speaker connection is incorrect.

→ The protective circuit is activated. - Check the speaker connection.

- Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)

→ There is no embedded text information. -Switch the display or play another track/file.

CD player

ERROR-07, 11, 12, 17, 30

→ The disc is dirty.

-Clean the disc.

→ The disc is scratched.

-Replace the disc.

ERROR-07, 10, 11, 12, 15, 17, 30, A0

→ There is an electrical or mechanical error.

-Turn the ignition switch OFF and back to ON, or switch to a different source, then back to the CD player.

ERROR-15

→ The inserted disc is blank. -Replace the disc.

ERROR-23

→ Unsupported CD format. -Replace the disc.

FORMAT READ

→ Sometimes there is a delay between the start of playback and when you start to hear any sound.

- Wait until the message disappears and you hear sound.

NO AUDIO

→ The inserted disc does not contain any playable files.

-Replace the disc.

SKIPPED

→ The inserted disc contains DRM protected files.

-The protected files are skipped.

PROTECT

→ All the files on the inserted disc are embedded with DRM. – Replace the disc.

USB device

FORMAT READ

→ Sometimes there is a delay between the start of playback and when you start to hear any sound. – Wait until the message disappears and you hear sound.

NO AUDIO

→ There are no songs. - Transfer the audio files to the USB device and connect. → The connected USB device has security enabled. - Follow the USB device instructions to disable the security.

SKIPPED

→ The connected USB device contains DRM protected files. – The protected files are skipped.

PROTECT

→ All the files on the connected USB device are embedded with DRM. – Replace the USB device.

N/A USB

→ The connected USB device is not supported by this unit. - Disconnect your device and replace it with a compatible USB device.

HUB ERROR

→ The USB device connected via a USB hub is not supported by this unit. - Connect the USB device directly to this unit using a USB cable.

CHECK USB

→ The USB connector or USB cable has short-circuited.

- Check that the USB connector or USB cable is not caught in something or damaged. The connected USB device consumes more than maximum allowable current - Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.

ERROR-19

→ Communication failed. - Perform one of the following operations, then return to the USB source. - Turn the ignition switch OFF and back to ON. - Disconnect the USB device. - Change to a different source.

ERROR-23

→ USB device was not formatted properly. - Format the USB device with FAT12, FAT 16 or FAT32.

STOP

→ There are no songs in the current list. - Select a list that contains songs.

Handling guidelines

Discs and player

- Use only discs that feature either of the following two logos.

- Use 12-cm discs. - Use only conventional, fully circular discs. - The following types of discs cannot be used with this unit: -DualDiscs

- 8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction. - Oddly shaped discs - Discs other than CDs - Damaged discs, including discs that are cracked, chipped or warped - CD-R/RW discs that have not been finalized - Do not write on or apply chemicals to the surface of the discs. - To clean a CD, wipe the disc with a soft cloth outward from the center. - Condensation may temporarily impair the player's performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth. - When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment. - Do not attach commercially available labels or other materials to the discs. - The discs may warp making the disc unplayable. - The labels may come off during playback and prevent ejection of the discs, which may result in damage to the equipment.

USB storage device

- Connections via USB hubs are not supported. - Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal. - Depending on the USB storage device, the following problems may occur. - Operations may vary. - The storage device may not be recognized.

-Files may not be played back properly.
-The device may cause audible interference when you are listening to the radio.

Compressed audio compatibility

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
  • The unit may not work properly depending on the application used to encode WMA files.
• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.
• Russian text to be displayed on this unit should be encoded in one of the following character sets:
• Unicode (UTF-8, UTF-16)
• A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting
• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave discs or a USB storage device in any place that is subject to high temperatures.

CAUTION

WMA files

File extension .wma
Bit rate 48 kbps to 320	kbps(CBR), 48 kbps to 384kbps (VBR)

Sampling frequency 32	kHz, 44.1 kHz, 48 kHz
Windows MediaTM Audio Professional, Lossless, Voice/DRM Stream/Stream with video	Not compatible

MP3 files

File extension.mp3
Bit rate 8 kbps to 320 kbps(CBRI, VBR
Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	1.0, 1.1, 2.2, 2.3, 2.4(ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist Not compatible
MP3i (MP3 interactive), mp3 PRO	Not compatible

WAV files

• WAV file formats cannot be connected via MTP.

File extension .wav
Quantization bits 8 and	16 (LPCM), 4(MSADPCM)
Sampling frequency 16	kHz to 48 kHz(LPCM), 22.05 kHz and44.1 kHz (MS ADPCM)

FLAC files

• FLAC file formats cannot be connected via MTP.
• FLAC files may not be playable, depending on the encoder.

File extension.flac
Sampling frequency 8/1	1.025/12/16/22.05/24/32/44.1/48 kHz
Quantization bit rate 16 bit
Channel mode 1/2 ch

Disc

- Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 99
Playable files Up to 999
File system ISO 9660 Level 1 and 2, Romeo, Joliet
Multi-session playback	Compatible
Packet write data transfer	Not compatible

USB device

- There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 500
Playable files Up to 15000
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.

Note that the hidden files in a USB device cannot be played back.

Example of a hierarchy

Level 1 Level 2 Level 3 Level 4
01 to 05: Folder number
① to :Playback sequence

Russian character chart

D: Display C: Character

Copyright and trademark

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

FLAC

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

-Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

-Neither the name of the Xiph.org foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,

INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Android & Google Play

Android, Google Play, and the Google Play logo are trademarks of Google Inc.

Specifications

General

Power source: 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system: Negative type

Maximum current consumption: 10.0 A

Dimensions (W × H × D): DIN

Chassis: 178 mm × 50 mm × 165 mm

Nose: 188 mm × 58 mm × 17 mm

D

Chassis: 178 mm × 50 mm × 165 mm

Nose: 170 mm × 46 mm × 17 mm

Weight: 1 kg

Audio

Maximum power output:

- 50 ~W × 4 ~ch / 4 (for no subwoofer)

- 50W× 2ch / 4 +70W× 1ch / 2

(for subwoofer)

Continuous power output:

22 W × 4 (50 Hz to 15 000 Hz, 5 %

THD, 4 Ω load, both channels driven)

Load impedance: 4 Ω (4 Ω to 8 Ω allowable)

Preout maximum output level: 2.0 V

Loudness contour: +10 dB (100 Hz), +6.5

dB (10 kHz) (volume: -30 dB)

Equalizer (5-Band Graphic Equalizer):

Frequency: 80 Hz/250 Hz/800 Hz/2.5

kHz/8 kHz

Equalization range: ±12 dB (2 dB step)

Subwoofer (mono):

Frequency: 50 Hz/63 Hz/80 Hz/100

Hz/125 Hz/160 Hz/200 Hz

Slope: -12 dB/oct, -24 dB/oct

Gain: +6 dB to -24 dB

Phase: Normal/Reverse

CD player

System: Compact disc audio system

Usable discs: Compact disc

Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A

network)

Number of channels: 2 (stereo)

MP3 decoding format: MPEG-1 & 2 Audio

Layer 3

WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2

(2 ch audio)

WAV signal format: Linear PCM & MS

ADPCM (Non-compressed)

USB

USB standard specification: USB 2.0 full

speed

Maximum current supply: 1 A

USB Protocol:

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

File system: FAT12, FAT16, FAT32

MP3 decoding format: MPEG-1 & 2 Audio

Layer 3

WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2

(2 ch audio)

FLAC decoding format: v1.3.0 (Free

Lossless Audio Codec)

WAV signal format: Linear PCM & MS

ADPCM (Non-compressed)

FM tuner

Frequency range: 87.5 MHz to 108.0 MHz

Usable sensitivity: 11 dBf (1.0 μV/75 Ω,

mono, S/N: 30 dB)

Signal-to-noise ratio: 72 dB (IEC-A network)

MW tuner

Frequency range: 531 kHz to 1 602 kHz

Usable sensitivity: 25 μV (S/N: 20 dB)

Signal-to-noise ratio: 62 dB (IEC-A network)

LW tuner

Frequency range: 153 kHz to 281 kHz

Usable sensitivity: 28 μV (S/N: 20 dB)

Signal-to-noise ratio: 62 dB (IEC-A network)

NOTE

Specifications and the design are subject

to modifications without notice.

Table des matières

Raccordements/Installation.... 11

VOLUME +/- MUTE FUNCTION AUDIO SRC (source) DISP (affichage)

Diagram illustrating the process of air conditioner unit insertion, showing step ① and directional arrow.

Important

Diagram illustrating a sewing process with labeled steps ① and ②, showing tool insertion and cutting process.

Raccordements/Installation

Raccordements

Important

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org Foundation

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

Diagram illustrating the process of inserting air filters into a device, with labeled parts and directional arrows.

Importante

Diagram illustrating a sewing or sewing process with labeled steps ① and ②, showing mechanical components and directional arrows.

Best stations memory (BSM)

ERROR-07, 11, 12, 17, 30

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org Foundation

Dimensioni (L × A × P): DIN

Telaio: 178 mm × 50 mm × 165 mm

Testata: 188 mm × 58 mm × 17 mm

D

Telaio: 178 mm × 50 mm × 165 mm

Testata: 170 mm × 46 mm × 17 mm

Peso: 1 kg

Audio

Potenza massima:

- 50 W × 4 canali/4 Ω (senza subwoofer)

- 50 W × 2 canali/4 Ω + 70 W × 1 canale/2 Ω (per il subwoofer)

Potenza continua:

Specifica standard USB: USB 2.0 full speed

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

File system: FAT12, FAT16, FAT32

Diagram illustrating the process of inserting a component into a wall-mounted device, with labeled parts and directional arrows.

Importante

Diagram illustrating a sewing process with labeled steps ① and ②, showing tool positioning and sewing instructions.

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org Foundation

Anschlüsse/Einbau.... 11

Diagram illustrating the process of inserting air filters into a wall-mounted device, with labeled components and directional arrows.

Wichtig

MW/LW: [OFF], [LV1], [LV2]

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Abmessungen (B × H × T):

DIN

AOA (Android Open Accessory) 2.0

FLAC-Decodierformat: Vers. 1.3.0 (Free

Lossless Audio Codec)

WAV-Signalformat: Lineare PCM & MS

KLASSE 1 LASERPRODUCT

Bij problemen

Diagram illustrating the process of adding air conditioner to a wall-mounted device, showing step ① and directional arrow.

Belangrijk

Diagram showing two labeled steps (① and ②) of a mechanical or electrical component with directional arrows indicating movement.

Best stations memory (BSM)

Reserve (of accessoire)

④ Geel

Accessoire (of reserve)

⑥ Rood

ERROR-07, 11, 12, 17, 30

→ De disc is vuil. -Reinig de disc

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Copyright © 2000-2009 Josh Coalson Copyright © 2011-2013 Xiph.Org Foundation

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

Bestandsysteem: FAT12, FAT16, FAT32

MP3-decoderingsformaat: MPEG-1 & 2 Audio Layer 3

WMA decodeerformaat: Ver. 7, 8, 9, 9.1, 9.2 (2 kanaals geluid)

FLAC-decoderingsformaat: v1.3.0 (Free Lossless Audio Codec)

Diagram illustrating the process of inserting air filters into a wall-mounted device, with labeled parts and directional arrows.

Важно

Diagram illustrating a sewing process with labeled steps ① and ②, showing mechanical components and sewing instructions.

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

Pioneer CarStereo-Pass

Please fill out immediately after purchase.

© 2017 PIONEER CORPORATION. All rights reserved.

28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan

Корпорация Пайонир

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada

TEL: [phone]

TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia TEL: [phone]

PIONEER ELECTRONICS DE MÉXICO S.A. DE C.V.

Blvd. Manuel Ávila Camacho 138, 10 piso

Col.Lomas de Chapultepec, México, D.F. 11000

Tel: [phone], Fax: [phone]

先鋒股份有限公司

台北市內湖區瑞光路407號8樓

電話：886-(0)2-2657-3588

先鋒電子（香港）有限公司

香港九龍長沙灣道909號5樓

電話：852-2848-6488

EW
