Product type	Steam cleaner on stand
Brand	Philips
Model	STE1020
Color	White and blue (estimate)
Dimensions (L x W x H)	Approx. 30 x 30 x 160 cm (estimate)
Weight	Approx. 4 kg (estimate)
Power supply	Electric, 220-240 V, 50/60 Hz
Power	Approx. 1500 W (estimate)
Water tank capacity	Approx. 1.5 L (estimate)
Heating time	Approximately 45 seconds (STE1010/75: 2 minutes)
Steam flow	Adjustable (ECO, etc.)
Main functions	Vertical steaming, horizontal ironing (with optional board), protective glove
Included accessories	Hanger, glove, brush, anti-humidity mat (depending on model)
Safety	Do not direct steam at people or animals, do not leave unattended for more than 5 minutes
Maintenance	Monthly descaling recommended, empty tank after each use
Recommended water type	Tap water, mix with distilled water in case of hard water
Repairability index	Not communicated

Frequently Asked Questions - STE1020 PHILIPS

What type of water to use in the Philips STE1020?

You can use tap water. In case of hard water, mix equal parts with distilled or demineralized water to prevent limescale buildup. Never use perfume, vinegar, or chemicals.

Why is my appliance not producing steam?

Several possible causes: the appliance has not heated enough (wait about 45 seconds), the water tank is empty or not inserted correctly, or limescale has built up. Descale if necessary.

How to descale the Philips STE1020?

Turn off and unplug the appliance, let it cool for more than an hour. Place it near a sink, remove the descaling button to let water drain, then put it back. Perform this operation at least once a month.

Water droplets are dripping from the steamer head, what to do?

This is due to condensation in the cord. Lift the steamer head to straighten the cord vertically, allowing condensation to flow back to the tank.

Can I use the steamer without the hanger?

Yes, you can use your own hanger and place it on the steamer support. The included hanger is optional.

How to clean the steamer head?

After use and cooling, wipe the steam plate with a damp cloth. Do not use abrasive cleaners.

Is the indicator light normal?

Yes, the indicator light stays on continuously when the appliance is on and heating. It indicates that the steamer is ready to use.

How long does it take for the appliance to heat up?

About 45 seconds (except for models STE1010/75 and STE1011/75 which require about 2 minutes). Wait until the indicator light is solid.

Can I steam delicate clothes?

Yes, use the ECO steam setting for delicate fabrics. Avoid directing steam directly onto skin or holding the garment in direct contact with steam.

Where can I find spare parts?

Visit www.philips.com/support or contact the Philips Consumer Service in your country to order parts such as the steamer head, tank, or hanger.

USER MANUAL STE1020 PHILIPS

-1

-1

1_

1

-1

1_

-1

1

English 6

Azərbaycanca 22

Bahasa Indonesia 39

Bahasa Melayu 56

Čeština 73

Dansk 89

Deutsch 106

Eesti 124

Español 140

Français 157

Hrvatski 174

Italiano 191

Latviešu 208

Lietuviškai 225

Magyar 242

Nederlands 259

Norsk 276

O'zbek 292

Polski 309

Português 326

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Read this user manual, the important information leaflet, and the quick start guide carefully before you use the appliance. Save them for future reference.

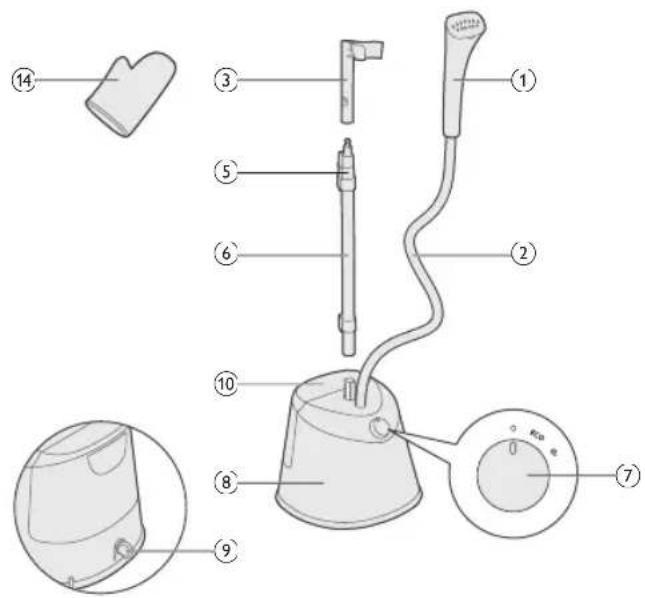

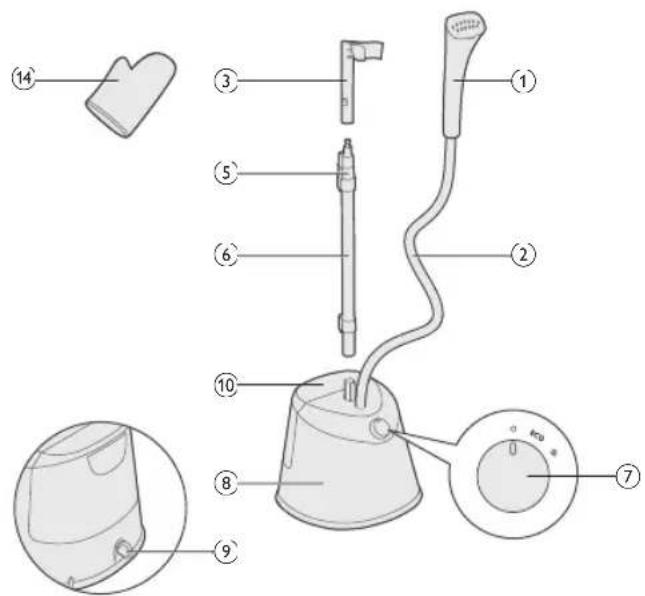

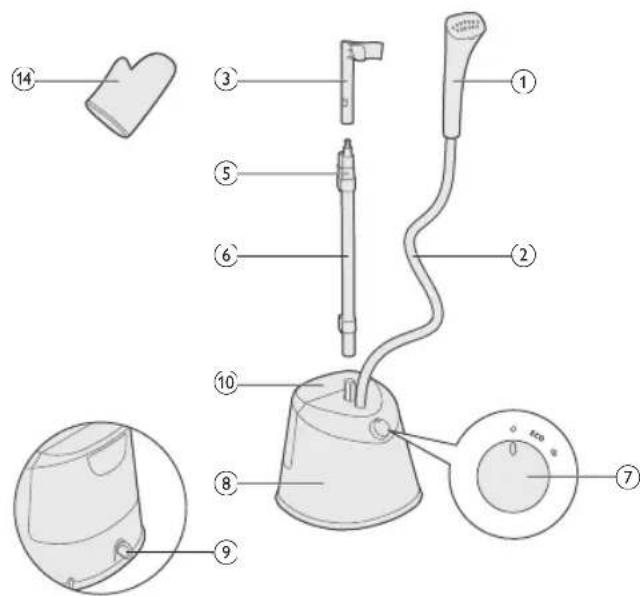

Product overview

STE1010

1 Steamer head
2 Steam supply hose
3 Steamer dock
4 Hanger (STE1011, STE1020, STE1030, STE1040)
5 Pole lock clip
6 Pole
7 Steam dial
8 Base
9 De-calc knob
10 Water tank

8 English

11 Board (STE1040)
12 Cover (STE1040)
13 Mat (STE1030)
14 Glove
15 Brush (STE1020, STE1030, STE1040)

Preparing for use

Type of water to use

The appliance is suitable to be used with tap water. However, if you live in an area with hard water, we recommend that you mix an equal amount of tap water with distilled or demineralized water. This will prevent fast scale build up and prolong the lifetime of the appliance.

Do not add perfume, water from the tumble dryer, vinegar, starch, descaling agents, ironing aids, chemically descaled water or other chemicals, as they may cause water spitting, brown staining or damage to your appliance.

Warnings

1 Do not place any part of the skin in direct contact with the steam.

2 Do not aim the steam plate towards other persons.

3 Do not hold your garment in a way which is in direct contact with the steam.

4 Do not use the steamer head in a downwards direction.

5 Do not bend the hose to steam the garment.

6 Do not leave the stand steamer unattended for more than 5 minutes.

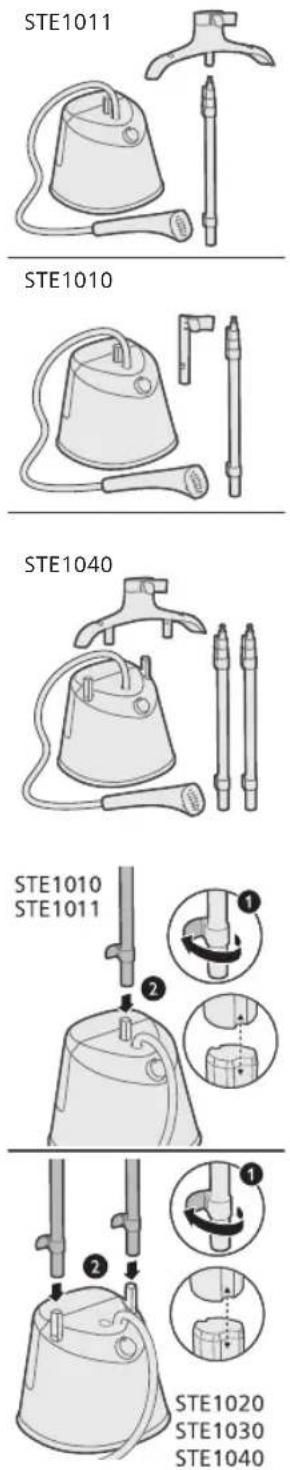

Setting up the appliance

STE1010

STE1040

1 Take note of the parts available for your purchased appliance.

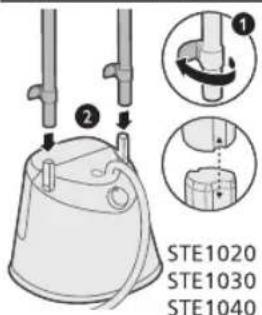

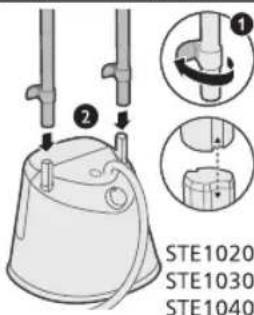

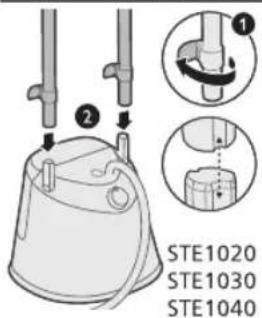

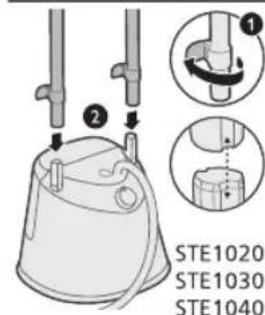

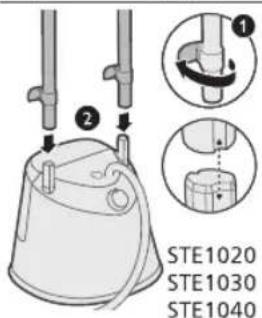

2 Unlock the bottom pole lock clips and insert the pole(s) onto the base. Ensure the profiles of the pole(s) and base pole stud(s) are aligned.

3 Lock the bottom pole lock clip(s).

4 Unlock the remaining pole lock clips, fully extend the pole(s) upwards and lock it.

5 Insert the steamer dock onto the pole(s) until it locks in place ('click').

6 Place the steamer head onto the steamer dock.

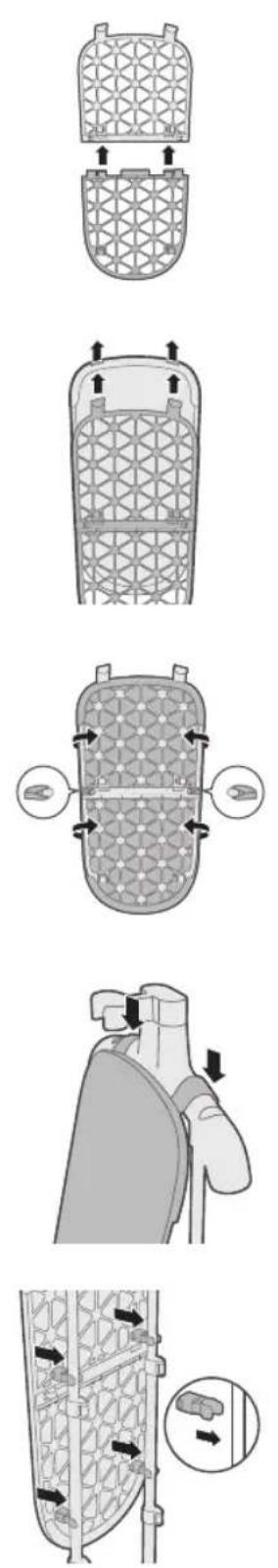

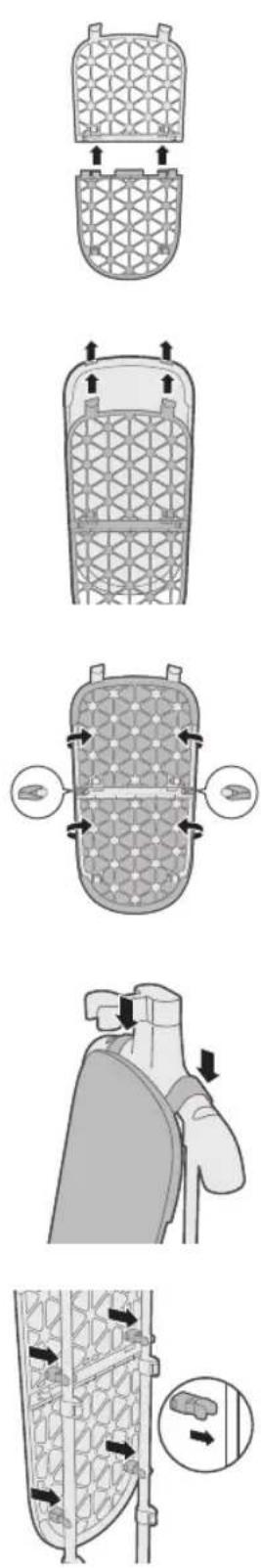

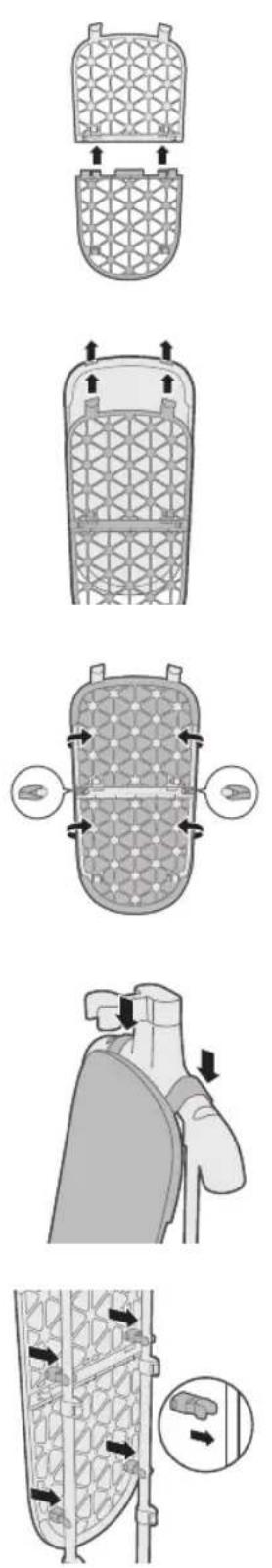

Setting up the board

1 Take note of the parts available for your purchased appliance.

12 English

2 Align and insert the board clips until it lock in place ('click').

3 Align and insert the board cover through the board hooks.

4 Hook up the board cover straps onto the hooks at the back of the board

5 Place board onto the hanger.

6 Secure the board onto the poles until it lock in place ('click').

7 You can drape your clothes using the hanger.

8 You can use your own hanger and place it on the steamer dock.

Setting the mat

1 Insert the middle strap through the steamer dock.

2 Secure the 3 straps on the hook at the back of the hanger.

14 English

3 Secure the mat onto the poles until it locks in place ('click').

4 You can drape your clothes using the hanger.

5 You can use your own hanger and place it on the steamer dock.

Inserting the brush

1 Align the track along the top of the steamer head and snap the catch on the bottom ('click').

2 You can wear the glove and steam your clothes using the brush attachment.

3 Grip and pull out the catch from the bottom of the steamer head to remove the brush attachment.

Filling the water tank

1 Do not plug in the appliance. Remove the water tank from the base.

2 Flip the water tank with the water tank cap facing upwards.

3 Unscrew the water tank cap anticlockwise to remove.

16

English

4 Fill up the water tank.

5 Screw the water tank cap clockwise to tighten.

6 Align with the hook to place the water tank back to the base.

Changing the steam settings

1 Ensure appliance is plugged in. Rotate the steam dial to the desired steam setting.

2 The light will turn steady to indicate the stand steamer is switched ON.

*STE1010/75

STE1011/75: \~2 min

3 Wait for about 45 seconds for the stand steamer to heat up and emit steam (STE1010/75, STE1011/75: about 2 minutes).

Ironing tips

1 You can use your own hanger and place it on the steamer dock.

2 Move the steamer head in a parallel direction with the collar.

3 Move the steamer head in a horizontal direction with the yoke.

4 Stretch the garment. Move the steamer head in a downwards direction on the body front.

English

5 Move the steamer head in a upwards direction on a pocket.

6 Stretch the garment. Move the steamer head in a downwards direction on the body back.

7 Stretch the garment. Move the steamer head in a parallel direction with the sleeve.

Cleaning and maintenance

Calc Collector

Your appliance has been designed with a Calc Collector system. You are recommended to do descaling once a month or more. This helps to maintain a strong steam performance and prevents dirt and stains coming out of the soleplate over time.

Tip: The Calc Collector system can be used at any time. If you live in a hard water area, use the function more frequently.

Performing the calc clean process

1 Ensure that the steam dial is at the OFF position and the appliance is unplugged.

2 Ensure that the iron has cooled down completely (> 1 hour).

3 Place the steamer close to a drain.

4 Turn the De-calc knob to the unlock position and remove the De-calc knob. Allow water to drain.

5 Insert and turn the De-calc knob to the lock position.

Cleaning and storing the stand steamer

1 Ensure that the steam dial is at the OFF position and the appliance is unplugged.

2 Ensure that the iron has cooled down completely (> 1 hour).

3 Wipe the steam place with a damp cloth.

4 Empty the water tank completely.

5 Wind the power cord around the base.

6 You can carry the stand steamer by the pole.

Trouble shooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The appliance produces no steam or irregular steam.	The steamer has not heated up sufficiently.	Let the appliance heat up for approximately 45 seconds (STE1010/75: about 2 minutes).
	Steam has condensed in the hose. Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	Low water level in the tank or the tank is not inserted properly.	Refill the water tank and insert it properly.
	Too much scale has built up in the appliance.	Perform de-calc process. Refer to Calc-Clean section.
Water droplets drip from the steamer head or the appliance produces a croaking sound.	You have left the steamer head and/or the steam supply hose in horizontal position for a long time.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	When the hose forms a U-shape, condensation in the hose cannot flow back into the water tank.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
An excessive amount of water drips out of the steamer head when the appliance is heating up.	The water in the appliance is dirty or has been left inside the appliance for a long time.	Perform de-calc process. Refer to the Calc-Clean section.
Water leaks out from the steamer base.	You have not closed the water tank cap or de-calc knob securely. The water tank is not inserted properly.	Close the water tank cap or de-calc knob securely. Insert the tank properly.
