USER MANUAL EasyOpen UFESA

Black and white photo of a glass water dispenser with lid, spout, and cylindrical container (no text or symbols visible)

Diagram showing six labeled components of a device or appliance, including a lamp, spring, lid, and cable.

Illustration showing four steps of a laboratory procedure involving a bottle, a test tube, and a clamp.

Diagram illustrating two-step procedure for using a tool, labeled F and G, showing step-by-step installation.

ADVERTENCIA

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Release button
2. Extract button
3. Foil cutter
4. Pourer
5. Vacuum stopper
6. USB Type-C charging cable

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

This device can only be connected with the USB interface (Type-C).

Follow the DEVICE CHARGE instructions in order to charge it.

Follow the device BATTERY REMOVAL instructions for removal of the batteries from the device.

This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances.

Do not use connect or disconnect the device to the mains with your hands or feet wet. Do not use any accessories other than those supplied.

Do not use this device near to bathtubs, showers, sinks or other tanks that contain water.

The mains connection cable must not be tangled or wrapped around the product during use. Do not pull on the cable to unplug it or use it to carry the product.

Do not wrap the cable around the device.

Proceed according to the cleaning section of this manual for cleaning. Do not use the product on animals.

Unplug the product immediately from the mains in the event of any breakdown and contact an authorized technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device.

Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorized technical support service center may carry out repairs on this product.

Hold the product body and the wine bottle firmly during use.

The blade of foil is sharp. Don't touch it with fingers.

Please store this product out of reach from children.

Align the product body with wine bottle as much as possible or otherwise the cork cannot be pulled out easily.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Before using for the first time please follow below instructions.

To ensure safety and maintain the high quality of the product, we recommend that you read and follow the instructions carefully.

Do not immerse the appliance in water or any other liquid to avoid harm to human or the product.

Keep your body parts (e.g., hands) and utensils away from corkscrew to avoid damage.

Keep this product away from children.

Do not press the product onto a bottle with sudden force or attempt to speed up the mechanism. This product works better when operating at its intended speed.

No extended use is allowed.

Keep away from flammable, explosive gas.

Take the foil cutter off and put onto the bottleneck, hold with fingers by force, rotate the bottle in parallel for more than one circle, and cut off the foil seal. (Fig. A)

Hold the bottle firmly with one hand and hold the wine opener with the other hand. Place the bottom of opener body on top of the wine bottle to ensure the opener body remains in line with the wine bottle as much as possible. (Fig. B)

Press the extract button and hold, slightly press the opener body downward at the same time. The spiral will turn in a clockwise direction and enter the cork, then gradually remove it from the bottle in 6–10 seconds. When the cork is entirely pulled out, automatically. Release the button and take the opener off from the bottle. (Fig. C)

Press the upper release button and hold it for 5-9 seconds, the cork automatically comes out from the opener, release the button, and complete the opening process. (Fig. D)

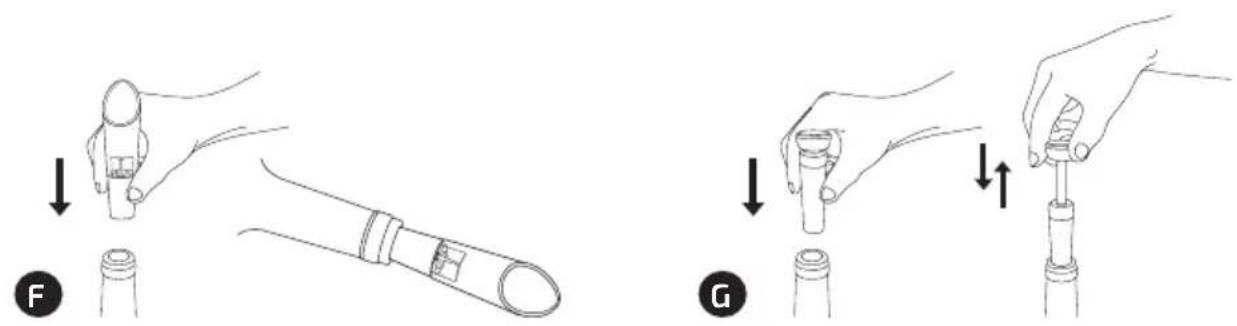

For use the POURER insert it on the bottleneck tilt the bottleneck to pour wine out of the bottle trough wine pourer. (Fig. F)

If the bottle is not empty insert the VACUUM STOPPER into the bottleneck firmly. Then pull the handle up and down for about 15 times (if bottle has half wine left) until you notice certain pressure. (Fig. G)

Store the bottle in a wine cabinet or refrigerator for better preserving effects, no longer than 7 days. Is not recommend to store the bottle horizontally.

*This product is suitable for corks with a diameter of 20 to 24mm and a height of 44mm.

*This is suitable for wine bottles with a bottleneck outer diameter of no more than 35mm and inner diameter from 17,5mm to 23mm.

*The pourer product is suitable for wine bottleneck inner diameter of 18 to 19mm.

* The vacuum stopper is suitable for bottles with bottleneck inner diameter from 17,5 to 20mm.

CHARGING THE DEVICE

Before the equipment is used for the first time, it is recommended to charge it 12 hours. Plug power cord directly into unit. During charging, the charge indicator keeps blue.

The wine opener is completely handy to carry and can be charged anywhere with the USB cable (6).

Comes with built-in Ni-MH battery, a full charging time is about 15 hours and offers around 50 bottles aperture.

First insert the plug on the end of the USB charging cable lead into the unit and then connect the USB charging cable to the USB interface. This appliance is suitable for Max. 2A charger, computer and other power interface.

Note: This product is recommended for cordless use. If your battery is completely run down, allow the unit to charge for 6-8 hours (switched OFF) before using. (Not recommended use while charging).

If the product is not in use, the standby time is one month. After more than a month, charge it again.

MAINTENANCE AND CLEANING

Unplug the product when you do not intend to use it for an extended period of time to prolong its shelf-life. Allow the device to cool down prior to storage.

Ensure that the device is unplugged prior to cleaning it.

This device may only be cleaned with a damp cloth, and chemical products must never be used on it.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection center closest to your home.

The product may contain batteries. Remove them before disposing of the product and dispose in special containers approved for this purpose.

REMOVING BATTERY

The appliance must be disconnected from the supply mains when removing the battery.

Ensure the opener is discharged of all power.

Cut the metal pieces on both ends of the battery and remove it from the PCB.

Pull downward the battery set from the unit.

The battery must be removed from the appliance before it is scrapped. The battery is to be disposed of safety.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT D'UTILISER LE PRODUIT. CONSERVEZ-LE DANS UN ENDROIT SÛR POUR POUVOIR LE CONSULTER ULTÉRIEUREMENT.

DESCRIPTION

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/

ufesa

B&B TRENDS, S.L. · C.I.F. B-86880473
