Product type	Crane scale (suspended weighing)
Brand	Kern
Model	HFD 3T-3
Maximum capacity (Max)	3000 kg (3 tons)
Readability (d)	0.2 kg / 0.5 kg / 1 kg (depending on range)
Accuracy	0.2% of maximum value
Taring range (subtractive)	2999 kg
Dimensions (L × W × H)	Approx. 275 × 129 × 457 mm (depending on hook)
Net weight	10 kg
Housing material	Lacquered aluminum die-cast
Material of hook and shackles	Non-alloy forged steel
Display	Backlit LCD, digit height 30 mm
Weighing units	kg
Mains power supply	110-240 V AC, 50-60 Hz
Power adapter	12 V, 2500 mA (included)
Rechargeable battery	7.4 V, 5200 mAh (Li-ion)
Battery life	30 h (backlight on) / 70 h (backlight off)
Charging time	12 h
Stabilization time	Approx. 2 s
Permissible ambient temperature	-10 °C to +40 °C
Permissible humidity	Max. 80% RH (non-condensing)
Main functions	Simple weighing, tare, zero setting, hold, totalization, adjustable backlight, auto-off
Radio remote control	Included, range approx. 20 m (free field)
Cleaning and maintenance	Clean with a soft cloth and mild cleaning product; do not use solvents; regular maintenance by a specialist
Warranty	According to general terms and conditions of sale

Frequently Asked Questions - HFD 3T-3 Kern

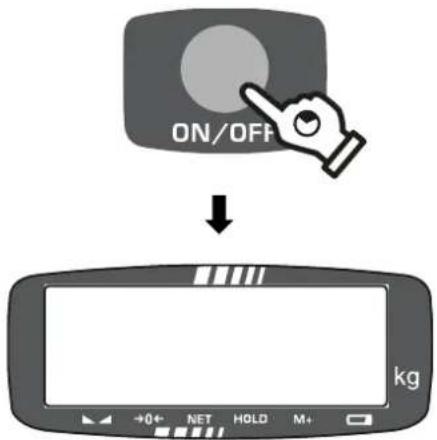

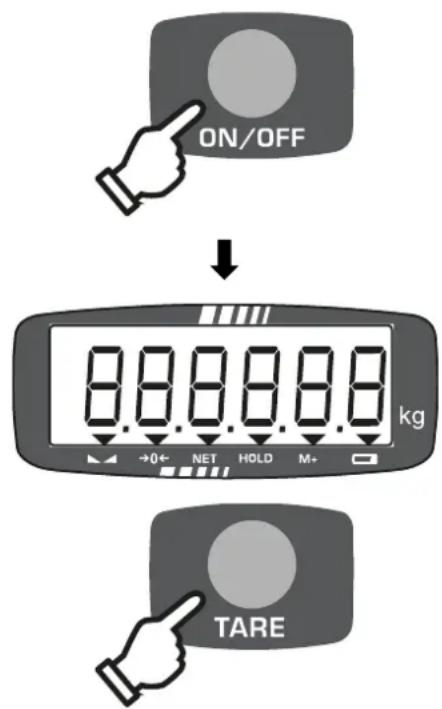

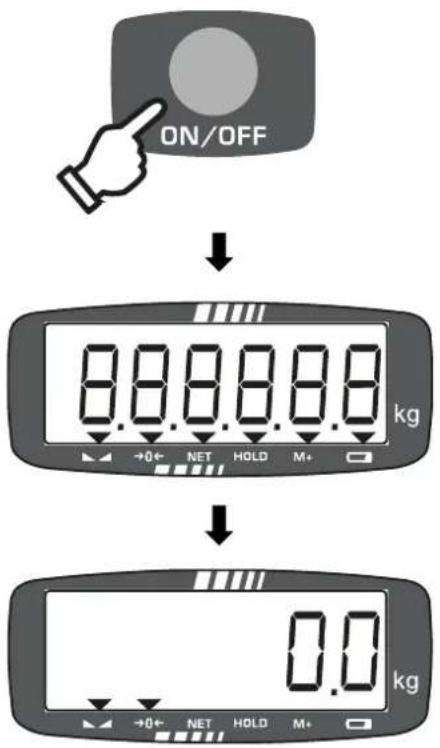

How to turn the Kern HFD 3T-3 scale on and off?

To turn on, press the [ON/OFF] key. The screen lights up and the scale performs a self-test. To turn off, hold the [ON/OFF] key until the screen turns off.

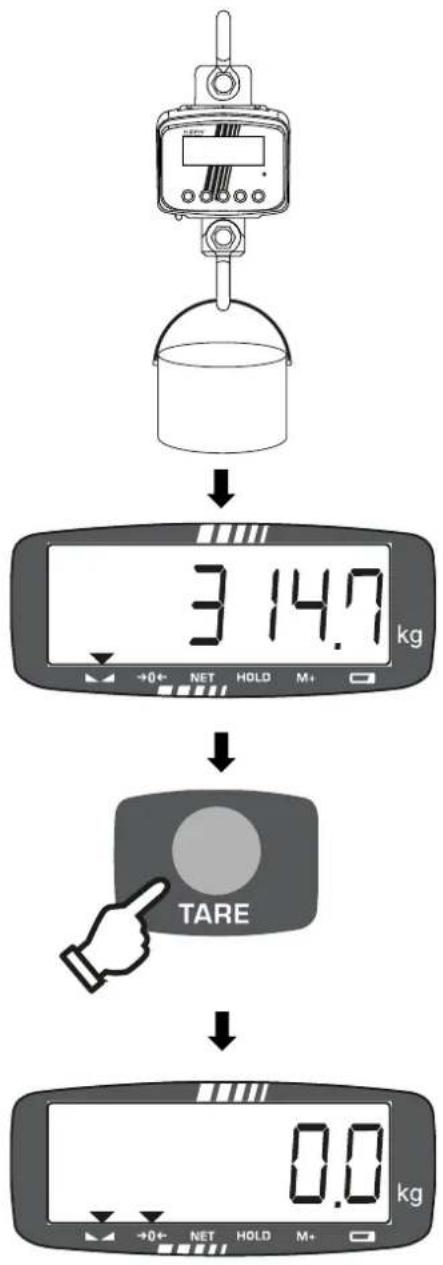

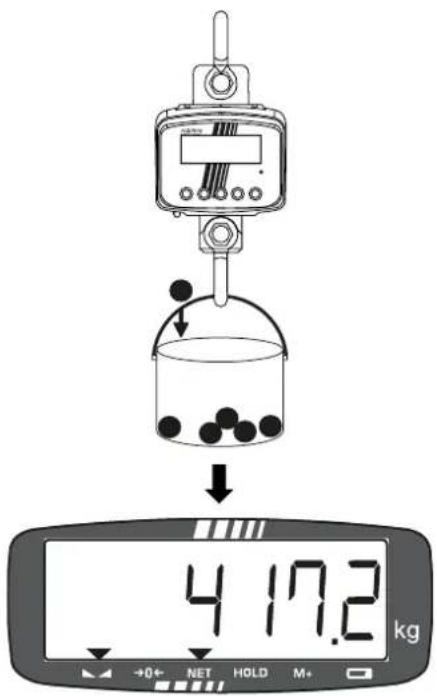

How to perform taring?

Hang the empty container on the hook, wait for the stability indicator (arrow ▼), then press [TARE]. The display returns to zero and the NET symbol appears. The container weight is stored for subsequent weighings.

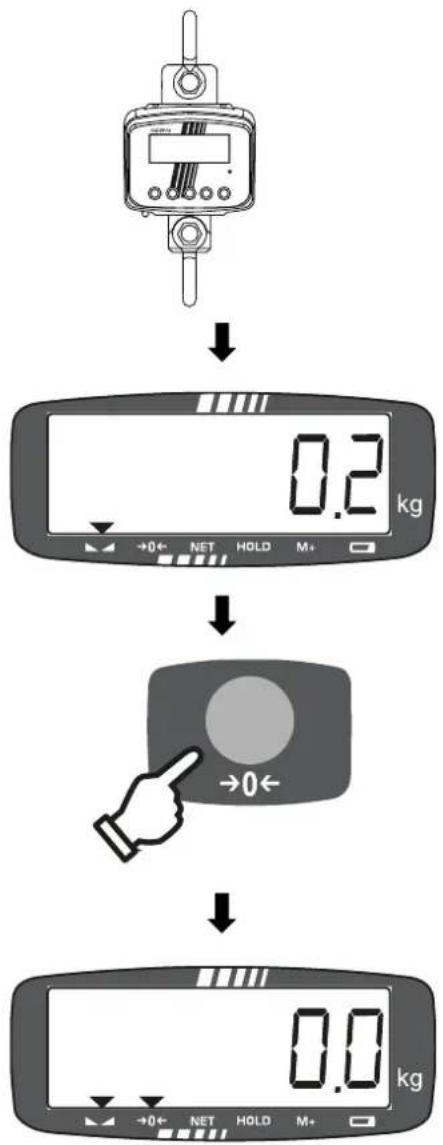

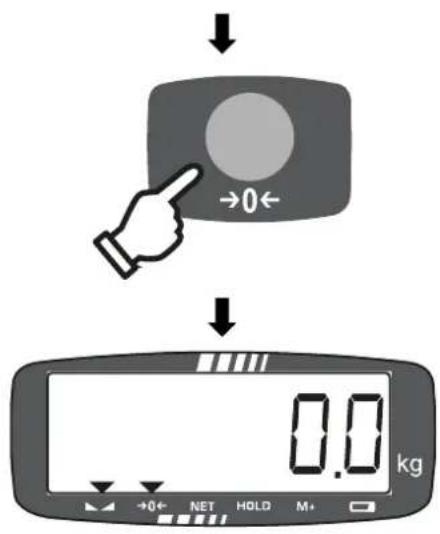

How to zero the scale?

Unload the scale, wait for the stability indicator (arrow ▼), then press [ZERO]. The display shows 0.0 kg and the →0← symbol appears.

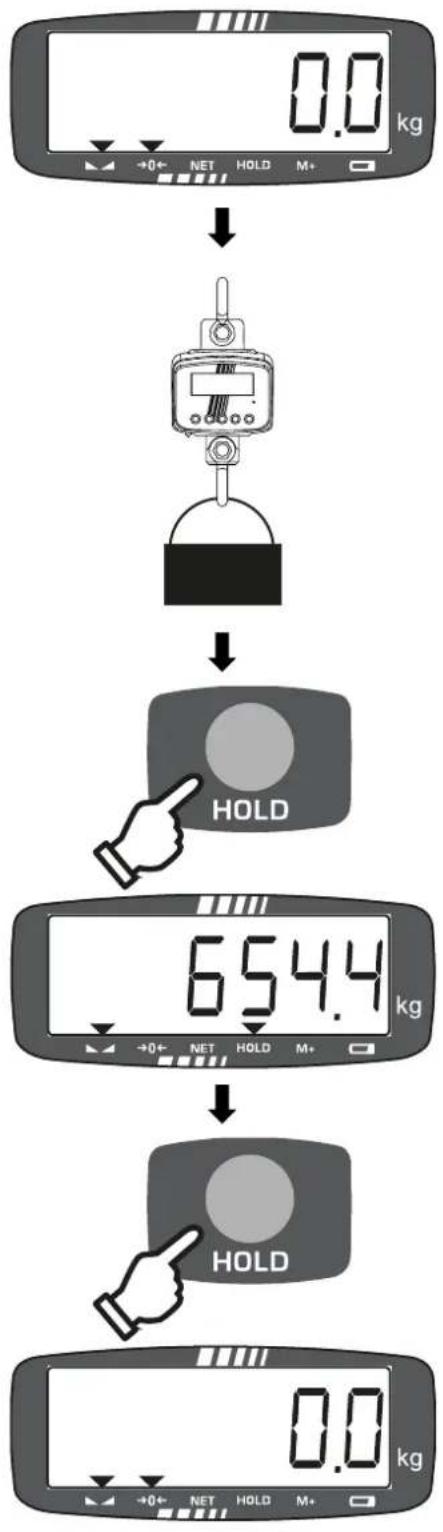

How to use the Hold function?

In weighing mode, hang the load and press [HOLD]. The displayed value is frozen and the HOLD symbol appears. Press [HOLD] again to release the value. This function is available only on non-verifiable models.

How to charge the battery?

Use the included power adapter. Plug it into the scale and the mains. The charger LED indicates the status: red = empty, green = fully charged. Charging time is approximately 12 hours. Do not charge the battery at temperatures below 0°C or above 40°C.

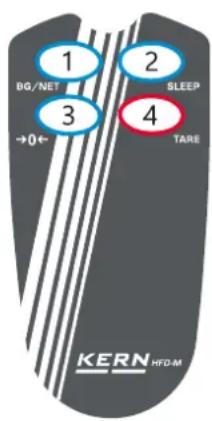

What to do if the remote control does not work?

Check that the remote control batteries are not depleted. Replace them with a 23A (12V) battery. Ensure no obstacles block the signal and that the distance does not exceed approximately 20 meters. If the problem persists, contact customer service.

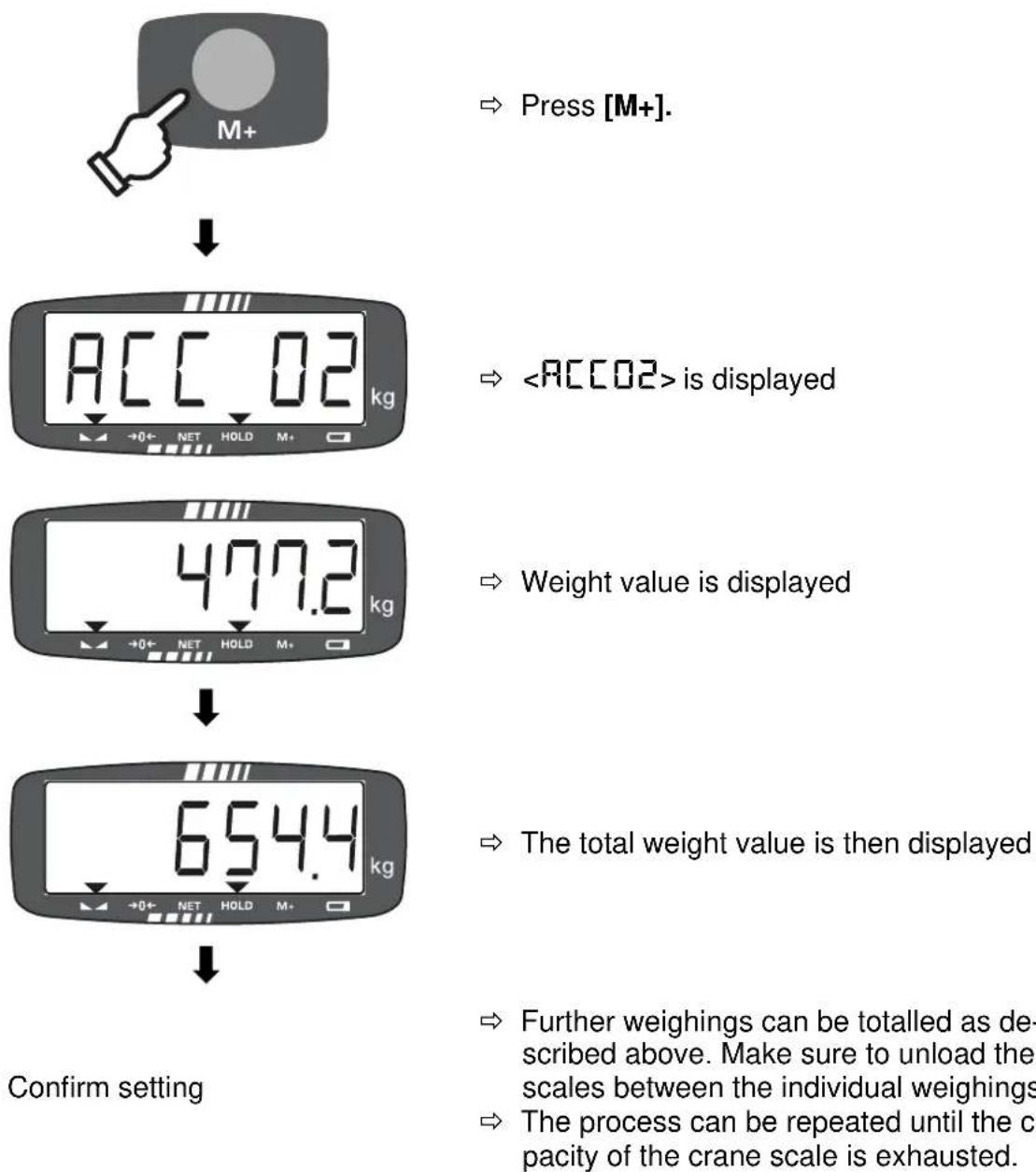

How to perform weighing totalization?

This function is available on non-verifiable models. After each stable weighing, press [M+] to add the value to the total. The number of weighings and the total are briefly displayed. To clear the memory, press [M+] at zero, then press [ZERO] while the total is displayed.

What is the recommended maintenance frequency?

Regular maintenance should be performed every 3 months (checking dimensions, wear, hook and shackle operation). Extended maintenance is required every 12 months by a qualified specialist. Refer to the checklists in the manual.

What do common error messages mean?

For example: Err 4 = zero setting error (unload the scale); Err 8 = incorrect calibration weight; --oL-- = overload (reduce load); Lo_bat = low battery (recharge). Refer to chapter 14 of the manual for a complete list.

Can I use the scale in a humid environment?

The standard HFD 3T-3 model is not protected against humidity. Avoid exposure to water and high humidity. If you need IP67 protection, choose the HFD 3T-3IP model.

USER MANUAL HFD 3T-3 Kern

de	en	es
Weitere Sprachversionenfinden Sie online unterwww.kern-sohn.com/manuals	Further language versionsyou will find online underwww.kern-sohn.com/manuals	Más versiones de idiomasse encuentran online bajowww.kern-sohn.com/manuals
frVous trouverez d'autresversions de langue onlinesouswww.kern-sohn.com/manuals	itTrovate altre versioni di lingue online inwww.kern-sohn.com/manuals	plInne wersje językowe znajdąPaństwo na stroniewww.kern-sohn.com/manuals
bgДруги езикови версии щенамерите в сайтawww.kern-sohn.com/manuals	csJiné jazykové verze najdetena stránkáchwww.kern-sohn.com/manuals	daFlere sprogudgaver findespå websidenwww.kern-sohn.com/manuals
elАллес γλωσσικές απτοδόσειςθα βρείτε στην ιστοσελίδawww.kern-sohn.com/manuals	etMuud keeleversioonid leiateTe leheküljelwww.kern-sohn.com/manuals	fiMuut kieliversiot löytyvätosoitteestawww.kern-sohn.com/manuals
hrDruge jezične verzije sudostupne na stranici :www.kern-sohn.com/manuals	huA további nyelvi változatok akövetkező oldalontalálhatók:www.kern-sohn.com/manuals	ltKitas kalbines versijas rasitesvetainéjewww.kern-sohn.com/manuals
lvÇitas valodu versijasatradīsiet vietnēwww.kern-sohn.com/manuals	nlBijkomende taalversies vindtu online opwww.kern-sohn.com/manuals	noAndre språkversjoner finnesdet påwww.kern-sohn.com/manuals
ptEncontram-se online maisversões de líinguas emwww.kern-sohn.com/manuals	roAlte versiuni lingvistice vețigăți pe site-ulwww.kern-sohn.com/manuals	skIné jazykové verzie nájdetena stránkewww.kern-sohn.com/manuals
slDruge jezikovne različice navoljo na spletni straniwww.kern-sohn.com/manuals	svÖvriga språkversioner finnshárwww.kern-sohn.com/manuals

KERN & SOHN GmbH

Ziegelei 1

72336 Balingen-Frommern

Germany

+0049-[0]7433-9933-0

+0049-[0]7433-9933-149

[e-mail]

www.kern-sohn.com

KERN®

Deutsch

KERN HFD

Kranwaage

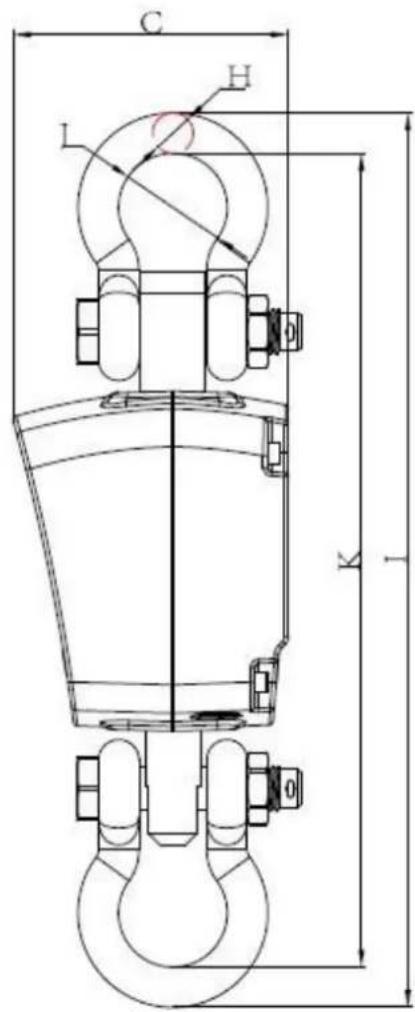

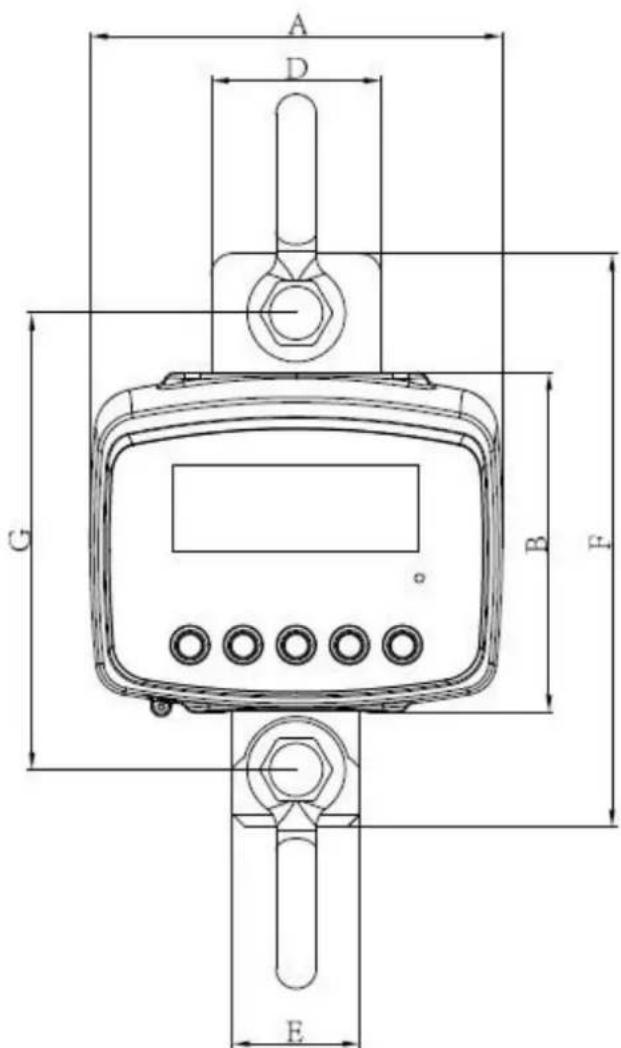

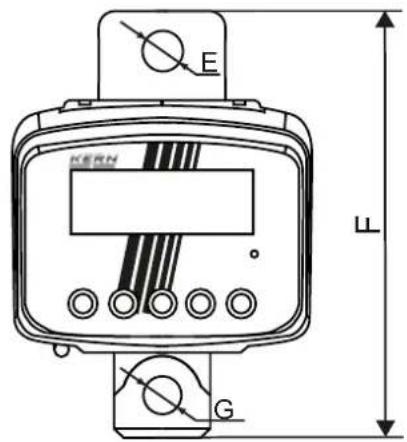

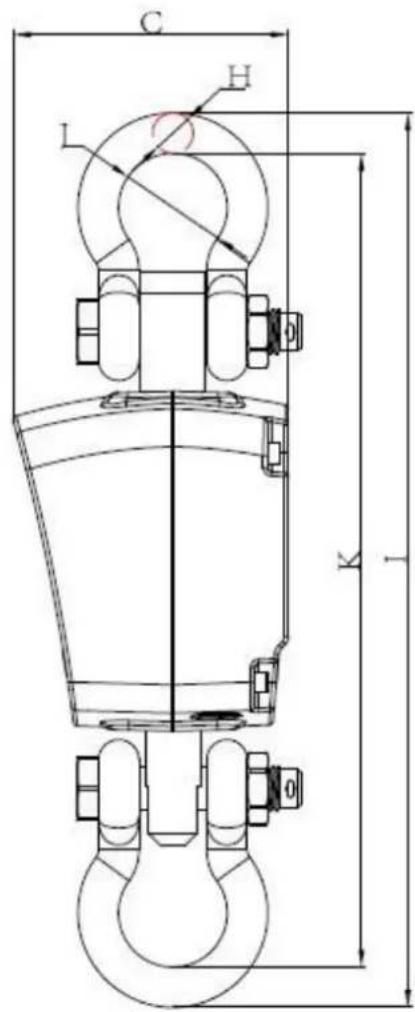

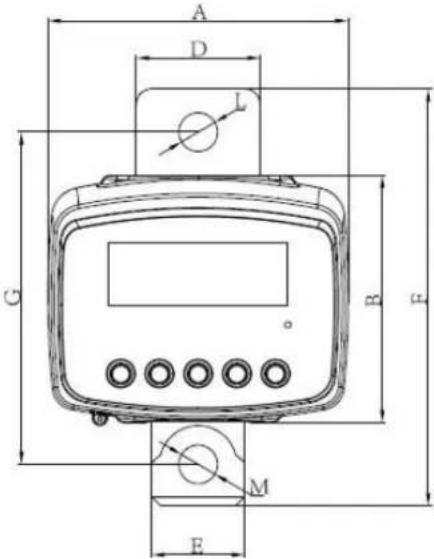

Abmessungen [mm]/Kapazität / Modell	600 kgHFD 600K-1	1,5 THFD 1T-4	3 THFD 3T-3	6 THFD 6T-3	12 THFD 10T-3
A	194	194	194	194	194
B	160	160	160	160	160
C	129	129	129	129	129
D	80	80	80	95	95
E	60	60	60	80	80
F	270	270	275	320	330
G	219	219	219,5	248	247,5
H	∅19	∅19	∅22	∅25,4	∅31,75
I	422	422	457	518	584
J	∅50,8	∅50,8	∅58	∅68,3	∅82,5
K	384	384	413	467,2	520,5
L	∅23	∅23	∅26,5	∅30	∅36
M	∅23	∅23	∅26,5	∅30	∅36

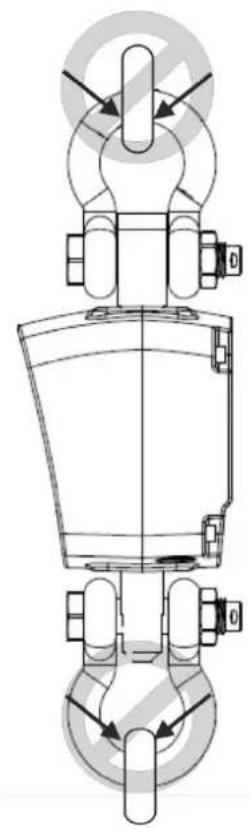

Waage aufhängen:


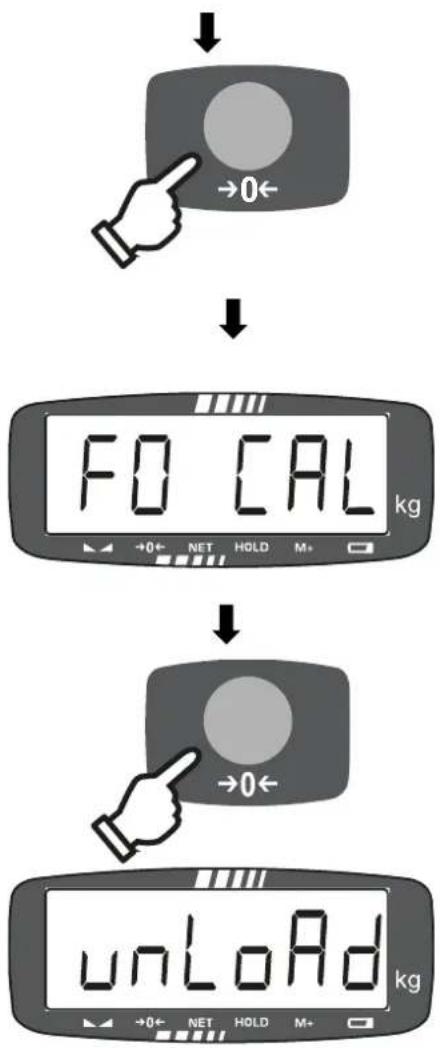

    A["Hand pointing at +0←"] --> B["Digital display: F0 CAL kg"]
    B --> C["Digital display: unload kg"]
    C --> D["Arrow pointing to the finger"]

Technical line drawing of a mechanical valve or pump assembly (no text or symbols)

Technical line drawing of a mechanical valve assembly (no text or symbols)

Technical line drawing of a mechanical lifting device with no visible text or symbols


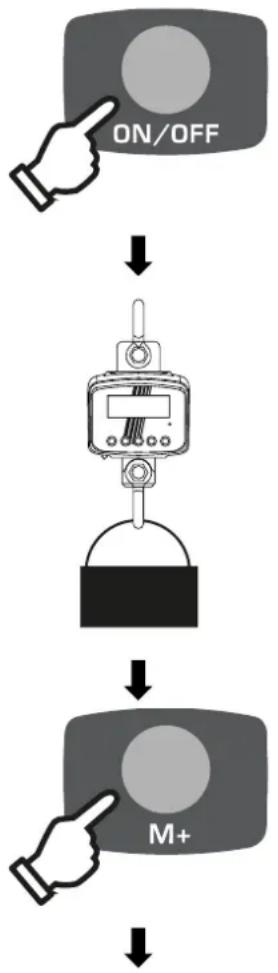


→ Waage einschalten

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

10 Menü

Place of issue: Germany

John Doe

KERN & SOHN GmbH

Signatur:

Signature:

Verification officer

Albert Sauter

KERN & SOHN GmbH

Geschäftsführer

Managing director

KERN & SOHN GmbH

Ziegelei 1

72336 Balingen-Frommem

Germany

www.kern-sohn.com

+0049-[0]7433-9933-0

+0049-[0]7433-9933-149

[e-mail]

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the directives listed below. The product complies with the relevant Union harmonization legislation. The product was manufactured by applying the standards below and corresponds to the directives mentioned.

TYPE REF

Typ | Type

HFD 10T-3, HFD 1T-4, HFD 3T-3, HFD 600K-1, HFD 6T-3, THFD 10T-3IP-A, THFD 1T-4IP-A, THFD 3T-3IP-A, THFD 600K-1IP-A, THFD 6T-3IP-A

CE KennzeichnungCE mark applied		EU-RichtlinieEU directive	NormenStandards
		2006/42/EC (MD)OJ L 157, 9.0.2000, p. 24-85	EN 13155:2003+A2:2009
		2011/65/EU (RoHS)OJ L 174, 1.7.2011, p. 88-110	EN 63000:2018
		2014/30/EU (EMC)OJ L 98, 20.3.2014, p. 70-100	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
		2014/35/EU (LVD)OJ L 98, 20.3.2014, p. 357-374	EN 61010-1:2010EN 62368-1:2014+A11:2017
		2014/53/EU (RED)OJ L 153, 22.5.2014, p. 62-100	EN 300 220-2 V3.1.1:2017

Datum | Date |: 22.11.2022

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the regulations listed below. The product was manufactured by applying the designated standards below and corresponds to the regulations mentioned.

TYPE REF

Typ | Type

SN

Seriennr. | Serial no.

HFD 10T-3, HFD 1T-4, HFD 3T-3, HFD 600K-1, HFD 6T-3, THFD 10T-3IP-A, THFD 1T-4IP-A, THFD 3T-3IP-A, THFD 600K-1IP-A, THFD 6T-3IP-A

XXXXXXXXXXXX

KennzeichnungMark applied	UK VorschriftenUK regulations	Designierte NormenDesignated standards
UKCA	S.I. 2008 No. 1597 (MD)	EN 13155:2003+A2:2009
UKCA	S.I. 2012 No. 3032(RoHS)	EN 63000:2018
UKCA	S.I. 2016 No. 1091 (EMC)	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
UKCA	S.I. 2016 No. 1101 (LVD)	EN 62368-1:2014+A11:2017
UKCA	S.I. 2017 No. 1206 (RED)	EN 300 220-2 V3.1.1:2017

Importer: KERN & SOHN Ltd., 15 Westferry Circus, London E14 4HD, United Kingdom

Datum | Date |: 25.11.2022

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the regulations listed below. The product was manufactured by applying the designated standards below and corresponds to the regulations mentioned.

TYPE REF

Typ | Type

THFD 10T-3M-A, THFD 1T-4M-A, THFD

3T-3M-A, THFD 600K-1M-A, THFD 6T-

3M-A

KennzeichnungMark applied	UK VorschriftenUK regulations	Designierte NomenDesignated standards
UKCA	S.I. 2008 No. 1597 (MD)	EN 13155:2003+A2:2009
UKCA	S.I. 2012 No. 3032(RoHS)	EN 63000:2018
UKCA	S.I. 2016 No. 1091 (EMC)	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
UKCA	S.I. 2016 No. 1101 (LVD)	EN 61010-1:2010EN 62368-1:2014+A11:2017
UKCA	S.I. 2017 No. 1206 (RED)	EN 300 220-2 V3.1.1:2017

Importer: KERN & SOHN Ltd., 15 Westferry Circus, London E14 4HD, United Kingdom

Datum | Date |: 30.01.2023

Place of issue: Germany

Albert Sauter

KERN & SOHN GmbH

Signature: Managing director

English

KERN HFD

Crane Scale

Operating instructions / logbook

Version 3.0

2024-05

Translation

Contents

1 Introduction....4

1.1 General notes on these instructions .... 4
1.2 Presentation conventions 4

2 Description of the device 6

2.1 Description of the device 6
2.2 Intended use....6
2.3 Technical data 7

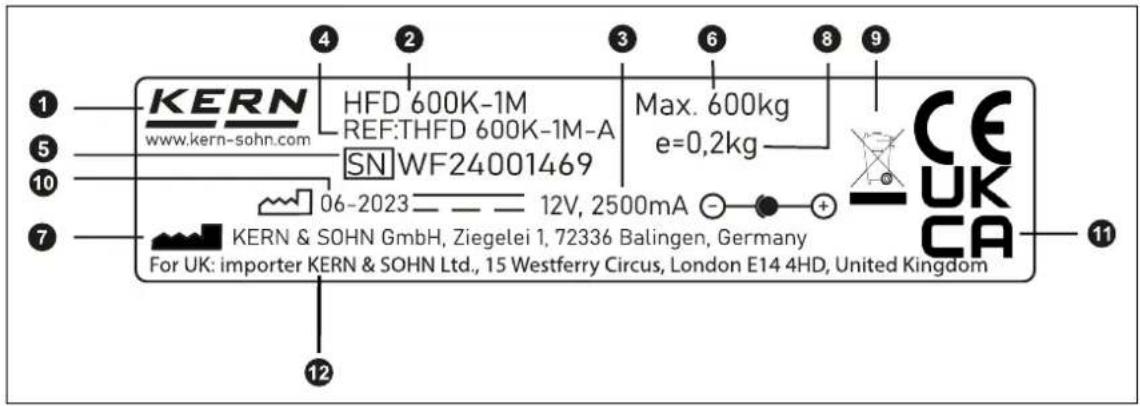

2.4 Type plate.... 14
2.5 Dimensions.... 15

3 General safety information....17

3.1 Control on takeover 17
3.2 Observe and keep the operating instructions 17
3.3 General information on warning notices 17
3.4 Improper use.... 19
3.5 Obligations of the operator.... 20
3.6 User qualification 20
3.7 Organisational measures.... 20
3.8 Ambient conditions 21
3.9 Power supply unit and mains connection.... 21
3.10 Rechargeable batteries and batteries 22
3.11 Safety-conscious working 23

4 Overview of the device 24

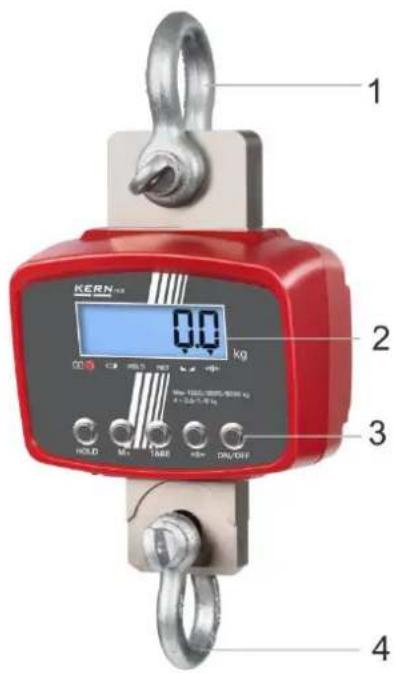

4.1 Components 24

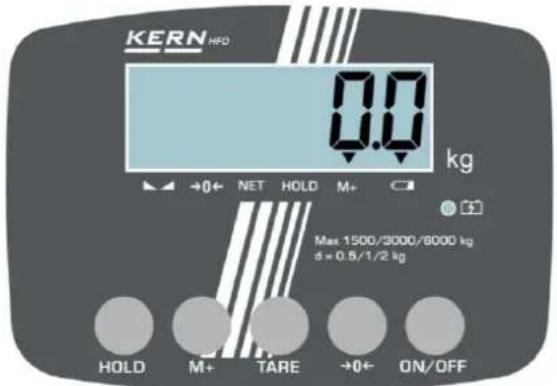

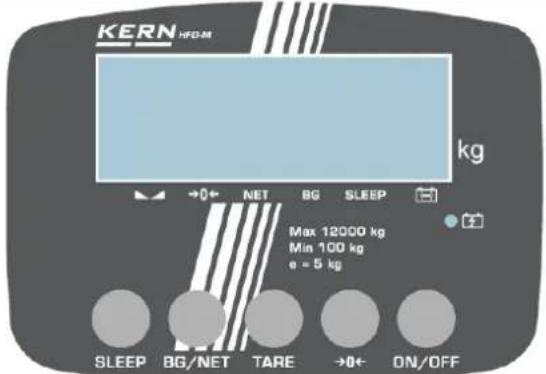

4.2 Keyboard 25
4.3 Display 26
4.4 Radio remote control 26

4.5 Symbols on the device.... 27

5 Transport, handling and storage 28

5.1 Return transport / Returns 29
5.2 Decommissioning and storage.... 29

6 Assembly, installation and commissioning 30

6.1 Unpacking and checking.... 30

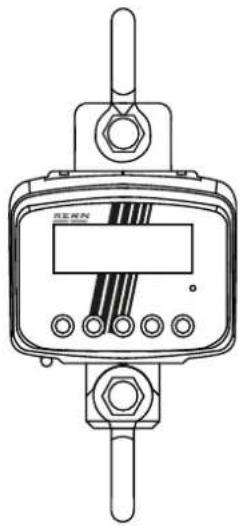

6.2 Scope of delivery 31
6.3 Original dimensions 31
6.4 Rechargeable battery / battery operation.... 32
6.5 Hanging up the scales 33
6.6 Initial commissioning.... 33

7 Calibration....34

8 Adjustment....36

9 Operation....42

9.1 Safety instructions for operation 42

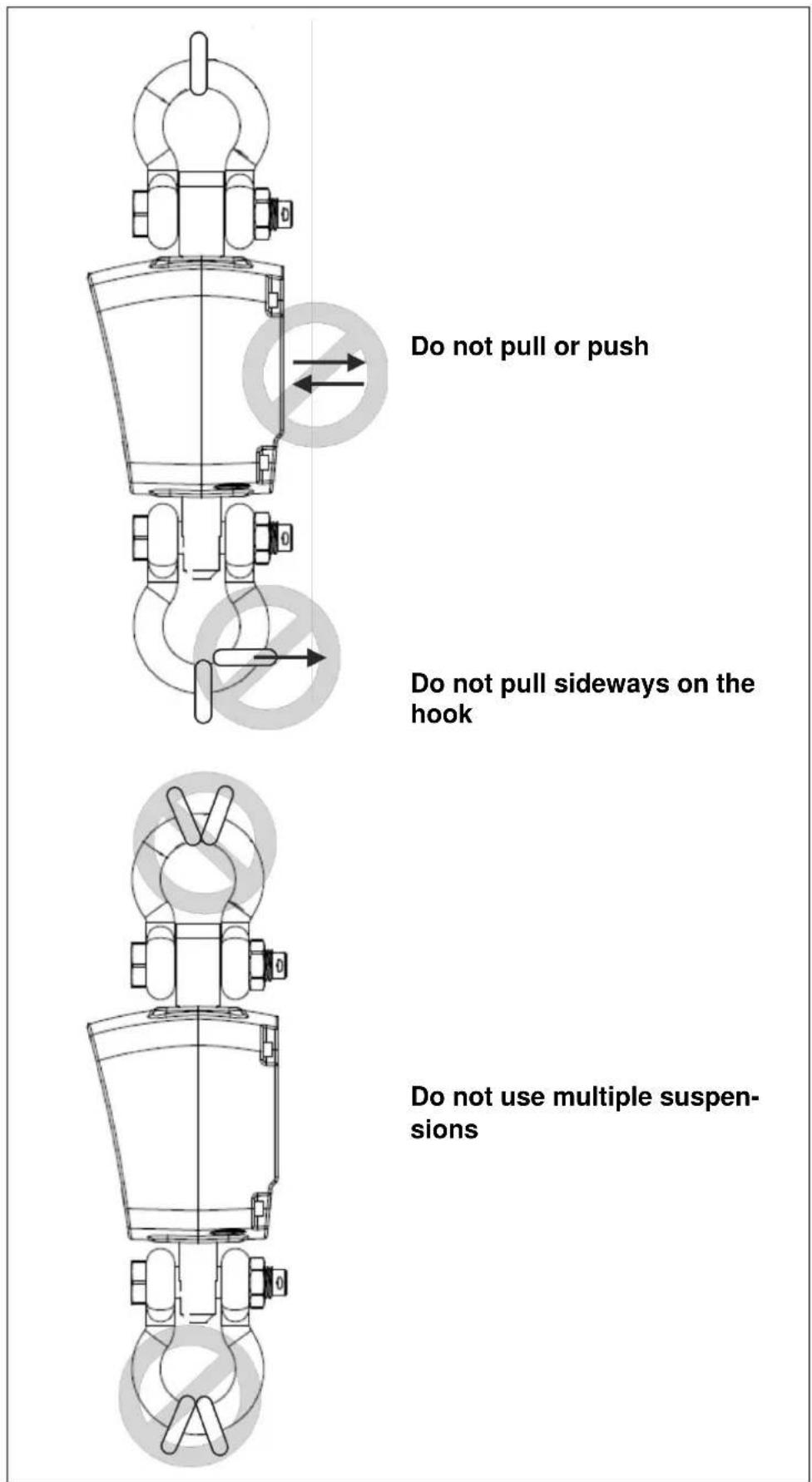

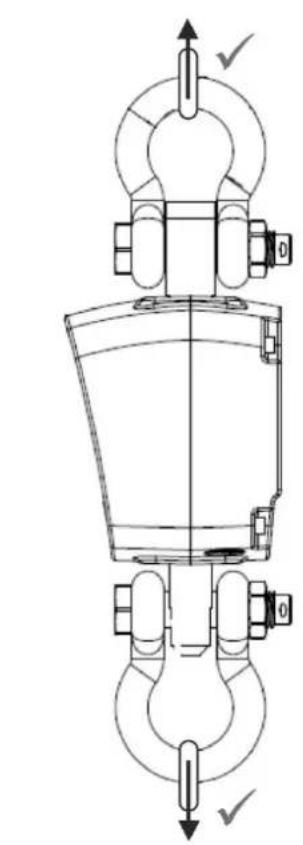

9.2 Load scales.... 43
9.3 Switch on / Switch off.... 46
9.4 Zeros 47
9.5 Simple weighing.... 48
9.6 Taring 49
9.7 Hold function (only non-calibratable devices) 51
9.8 Further functions.... 52

10 Menu 57

10.1 Navigation in the menu 57
10.2 Overview of the setup menu 59

11 Cleaning, maintenance and servicing 62

11.1 Cleaning 62
11.2 Maintenance and servicing 63

12 Waste disposal....68

13 Guarantee....69

14 Errors and faults ....70

14.1 Error messages 70
14.2 Malfunctions.... 72

A1 Drawings for maintenance 73
A2 „Regular maintenance" checklist 74
A3 „Extended maintenance" checklist 76
A4 Spare parts and repairs....78
A5 Declaration of Conformity 80

1 Introduction

1.1 General notes on these instructions

INFORMATION

Read the operating instructions completely before using the appliance. Only use the appliance in accordance with the specifications described in these operating instructions. This serves to protect against personal injury and damage to property.

These operating instructions contain the information you need to use your appliance as intended.

These operating instructions are translated from the original German version.

1.2 Presentation conventions

1.2.1 Representations of the text

Text	Designation
•	Enumeration
⇒	Instruction for action
1.2....	Steps in assembly / installation instructions, the sequence of which must be followed
[ ]	Square brackets are used to display buttonsExample: [X] button
< >	Angle brackets are used to display content that is shown on the device display (e.g. menu items, parameters, notifications, ...)Example:

1.2.2 Representations of the device operation

Symbol	Meaning
	Short keystroke
[3Y44]	Long button press / press and hold button
	Display on the scales (example illustration)

1.2.3 Binding information

Important and binding information describes facts that must be emphasised, which you must take note of and which are always valid (e.g. legal provisions or terms and conditions).

INFORMATION

!

Here you will find important binding information

1.2.4 Additional information, tips and recommendations

i

Additional information, tips and recommendations can be found here

2 Description of the device

2.1 Description of the device

This scale is a crane scale. Crane scales are used, for example, in industrial environments in test benches or on construction sites, port facilities and freight centres.

2.2 Intended use

The scale you have purchased is used to determine the weight of goods to be weighed. It is intended for use as a "non-automatic scale", i.e. the load is attached to the hook of the scale manually, vertically and without jerking.

The scales may only be used for lifting and weighing freely moving loads.

Once a stable weight value has been reached, the weight value can be read off.

2.3 Technical data

KERN	HFD 600K-1	HFD 1T-4	HFD 3T-3
Item number / type	HFD 600k-1	HFD 1T-4	HFD 3T-3
Readability (d)	0.05 kg0.1 kg0.2 kg	0.1 kg0.2 kg0.5 kg	0.2 kg0.5 kg1 kg
Weighing range (max)	150 kg300 kg600 kg	300 kg600 kg1500 kg	600 kg1500 kg3000 kg
Taring range (subtractive)	599.8 kg	1499.5 kg	2999 kg
Reproducibility	0.05 kg0.1 kg;0.2 kg	0.1 kg;0.2 kg;0.5 kg	0.2 kg;0.5 kg;1 kg
Linearity	± 0.1 kg± 0.2 kg;± 0.4 kg	± 0.2 kg;± 0.4 kg;± 1 kg	± 0.4 kg;± 1 kg;± 2 kg
Recommended calibration weight, not included (class)	600 kg (M1)	1 tonne (M1)	3 tonnes (M1)
Settling time (typical)	2 s
Precision	0.2 % of max.
Warm-up time	10 min
Weighing units	kg
Air humidity	max. 80 % rel. (non-condensing)
Permissible ambient temperature	-10°C ... + 40°C
Permissible battery charging temperature	0°C ... + 40°C
Auto off	3 min, 5min, 15 min, off
Display	LCD
	Digit height (large characters) 30mm
Material hook, eyelet, shackle	Hook: unalloyed forged steel
	Shackle: unalloyed forged steel
Housing material	Cast aluminium, lacquered
Net weight (kg)	9	9	10
Input voltage power supply unit	110V - 240V AC 50 - 60Hz
Input voltage Device	12 V, 2500 mA
Battery	7.4 V, 5200 mAh
	Operating time 30 h (backlight on)
	Operating time 70 h (backlight off)
	Charging time 12 h
KERN	HFD 6T-3	HFD 10T-3
Item number / type	HFD 6T-3	HFD 10T-3
Readability (d)	0.5 kg;1 kg;2 kg	1 kg;2 kg;5 kg
Weighing range (max)	1 500 kg;3 000 kg;6 000 kg	3 000 kg;6 000 kg;12 000 kg
Taring range (subtractive)	5 998 kg	9 995 kg
Reproducibility	0.5 kg;1 kg;2 kg	1 kg;2 kg;5 kg
Linearity	±1 kg;±2 kg;±4 kg	±2 kg;±4 kg;±10 kg
Recommended calibration weight, not included (class)	6 tonnes (M1)	10 tonnes (M1)
Settling time (typical)	2 s
Precision	0.2 % of max.
Warm-up time	30 min
Weighing units	kg
Air humidity	max. 80 % rel. (non-condensing)
Permissible ambient temperature	-10°C ... + 40°C
Permissible battery charging temperature	0°C ... + 40°C
Auto off	3 min, 5min, 15 min, off
Display	LCD
	Digit height (large characters) 30 mm
Material hook, shackle	Hook: unalloyed forged steel
	Shackle: unalloyed forged steel
Housing material	Cast aluminium, lacquered
Net weight (kg)	15	20
Input voltage power supply unit	110 - 240 V, 50 - 60 Hz
Input voltage device	12 V, 2500 mA
Battery	7.4 V, 5200 mAh
	Operating time 30 h (backlight on)
	Operating time 70 h (backlight off)
	Charging time 12 h

KERN	HFD 600K-1M	HFD 1T-4M	HFD 3T-3M
Item number / type	THFD 600K-1M-A	THFD 1T-4M-A	THFD 3T-3M-A
Readability (d)	0.2 kg	0.5 kg	1 kg
Weighing range (max)	600 kg	1500 kg	3000 kg
Taring range (subtractive)	599.8 kg	1499.5 kg	2999 kg
Reproducibility	0.2 kg	0.5 kg	1 kg
Linearity	± 0.2 kg;	± 0.5 kg;	± 1 kg
Recommended calibration weight, not included (class)	600 kg (M1)	1.5 tonnes (M1)	3 tonnes (M1)
Calibration value (e)	0.2 kg	0.5 kg	1 kg
Calibration class	III	III	III
Settling time (typical)	2 s
Precision	0.2 % of max.
Warm-up time	10 min
Weighing units	kg
Air humidity	max. 80 % rel. (non-condensing)
Permissible ambient temperature	-10°C ... + 40°C
Permissible battery charging temperature	0°C ... + 40°C
Auto off	3 min, 5min, 15 min, off
Display	LCD
	Digit height (large characters) 30mm
Material hook, shackle	Hook: unalloyed forged steel
	Shackle: unalloyed forged steel
Housing material	Cast aluminium, lacquered
Net weight (kg)	9	9	10
Input voltage power supply unit	110V - 240V AC 50 - 60Hz
Input voltage device	12 V, 2500 mA
Battery	7.4 V, 5200 mAh
	Operating time 30 h (backlight on)
	Operating time 70 h (backlight off)
	Charging time 12 h
KERN	HFD 6T-3M	HFD 10T-3M
Item number / type	THFD 6T-3M-A	HFD 10T-3M-A
Readability (d)	2 kg	5 kg
Weighing range (max)	6 000 kg	12 000 kg
Taring range (subtractive)	5 998 kg	11 995 kg
Reproducibility	2 kg	5 kg
Linearity	±2 kg;	±5 kg;
Recommended calibration weight, not included (class)	6 tonnes (M1)	10 tonnes (M1)
Calibration value (e)	2 kg	5 kg
Calibration class	III	III
Settling time (typical)	2 s
Precision	0.2 % of max.
Warm-up time	10 min
Weighing units	kg
Air humidity	max. 80 % rel. (non-condensing)
Permissible ambient temperature	-10°C ... + 40°C
Permissible battery charging temperature	0°C ... + 40°C
Auto off	3 min, 5min, 15 min, off
Display	LCD
	Digit height (large characters) 30 mm
Material hook, shackle	Hook: unalloyed forged steel
	Shackle: unalloyed forged steel
Housing material	Cast aluminium, lacquered
Net weight (kg)	15	20
Input voltage power supply unit	110 - 240 V, 50 - 60 Hz
Input voltage Device	12 V, 2500 mA
Battery	7.4 V, 5200 mAh
	Operating time 30 h (backlight on)
	Operating time 70 h (backlight off)
	Charging time 12 h

KERN	HFD 600k-1IP	HFD 1T-4IP	HFD 3T-3IP
Item number / type	THFD 600K-1IP-A	THFD 1T-4IP-A	THFD 3T-3IP-A
Readability (d)	0.05 kg0.1 kg0.2 kg	0.1 kg0.2kg0.5 kg	0.2 kg0.5 kg1 kg
Weighing range (max)	150 kg300 kg600 kg	300 kg600 kg1500 kg	600 kg1500 kg3000 kg
Taring range (subtractive)	599,8	1499.5 kg	2999 kg
Reproducibility	0.05 kg0.1 kg;0.2 kg	0.1 kg;0.2 kg;0.5 kg	0.2 kg;0.5 kg;1 kg
Linearity	± 0.1 kg± 0.2 kg;± 0.4 kg	± 0.2 kg;± 0.4 kg;± 1 kg	± 0.4 kg;± 1 kg;± 2 kg
Recommended calibration weight, not included (class)	600 kg (M1)	1 tonne (M1)	3 tonnes (M1)
Settling time (typical)	2 s
Precision	0.2 % of max.
Warm-up time	10 min
Weighing units	kg
Air humidity	max. 80 % rel. (non-condensing)
Permissible ambient temperature	-10°C ... + 40°C
Permissible battery charging temperature	0°C ... + 40°C
Auto off	3 min, 5min, 15 min, off
Display	LCD
	Digit height (large characters) 30mm
Material hook, shackle	Hook: unalloyed forged steel
	Shackle: unalloyed forged steel
Housing material	Cast aluminium, lacquered
Net weight (kg)	9	9	10
Input voltage power supply unit	110V - 240V AC 50 - 60Hz
Input voltage device	12 V, 2500 mA
Battery	7.4 V, 5200mAh
	Operating time 30 h (backlight on)
	Operating time 70 h (backlight off)
	Charging time 12 h
Dust and splash water protection	IP 67

KERN	HFD 6T-3IP	HFD 10T-3IP
Item number / type	THFD 6T-3IP-A	THFD 10T-3IP-A
Readability (d)	0.5 kg;1 kg;2 kg	1 kg;2 kg;5 kg
Weighing range (max)	1 500 kg;3 000 kg;6 000 kg	3 000 kg;6 000 kg;12 000 kg
Taring range (subtractive)	5 998 kg	11 995 kg
Reproducibility	0.5 kg;1 kg;2 kg	1 kg;2 kg;5 kg
Linearity	± 1 kg;± 2 kg;± 4 kg	± 2 kg;± 4 kg;± 10 kg
Recommended calibration weight, not included (class)	6 tonnes (M1)	12 tonnes (M1)
Settling time (typical)	2 s
Precision	0.2 % of Max.
Warm-up time	10 min
Weighing units	kg
Air humidity	max. 80 % rel. (non-condensing)
Permissible ambient temperature	-10°C ... + 40°C
Permissible battery charging temperature	0°C ... + 40°C
Auto off	3 min, 5min, 15 min, off
Display	LCD
	Digit height (large characters) 30 mm
Material hook, shackle	Hook: unalloyed forged steel
	Shackle: unalloyed forged steel
Housing material	Cast aluminium, lacquered
Net weight (kg)	15	22
Input voltage power supply unit	110 - 240 V, 50 - 60 Hz
Input voltage device	12 V, 2500 mA
Battery	7.4 V, 5200mAh
	Operating time 30 h (backlight on)
	Operating time 70 h (backlight off)
	Charging time 12 h
Dust and splash water protection	IP 67

Remote control (standard):

Battery	23A (1 x 12V)
Dimensions (mm)	48 x 16 x 95 (W x D x H)

2.4 Type plate

Example (actual type plate may differ):

Pos.	Designation
1	KERN logo
2	Model
3	Power supply data
4	Type / article number
5	Serial number
6	Weighing range [Max]
7	Company address
8	Readability ("e" for calibratable devices, otherwise "d")
9	Disposal symbol
10	Date of manufacture
11	UKCA mark
12	Importer address UK

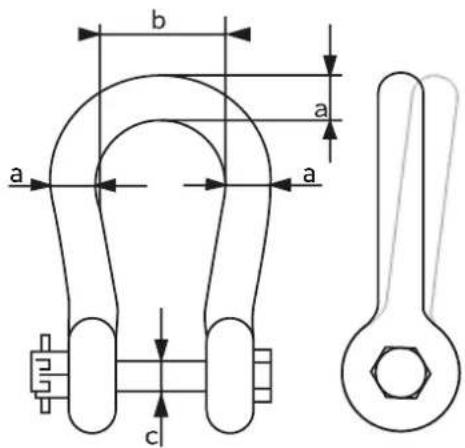

2.5 Dimensions

Dimensions[mm]/Capacity /Model	600 kgHFD 600K-1	1,5 THFD 1T-4	3 THFD 3T-3	6 THFD 6T-3	12 THFD 10T-3
A	194	194	194	194	194
B	160	160	160	160	160
C	129	129	129	129	129
D	80	80	80	95	95
E	60	60	60	80	80
F	270	270	275	320	330
G	219	219	219,5	248	247,5
H	∅19	∅19	∅22	∅25,4	∅31,75
I	422	422	457	518	584
J	∅50,8	∅50,8	∅58	∅68,3	∅82,5
K	384	384	413	467,2	520,5
L	∅23	∅23	∅26,5	∅30	∅36
M	∅23	∅23	∅26,5	∅30	∅36

3 General safety information

INFORMATION

Read the operating instructions completely before using the appliance. Only use the appliance in accordance with the specifications described in these operating instructions. This serves to protect against personal injury and damage to property.

3.1 Control on takeover

Please check the packaging immediately upon receipt and check the appliance for any visible external damage when unpacking.

3.2 Observe and keep the operating instructions

The operating instructions contain important information for the safe use of the appliance. They must be observed by all persons using the appliance.

The operating instructions must always be available when the appliance is in use and must be kept for the entire service life of the appliance.

3.3 General information on warning notices

Warnings are used in these operating instructions to warn you of possible personal injury or damage to property in certain situations.

Signal word	Description of the
DANGER	Failure to observe the instructions will lead directly to serious injury, permanent impairment (e.g. loss of a limb) or death of the user or third parties
WARNING	Failure to observe the instructions may result in serious injury, permanent impairment (e.g. loss of a limb) or death of the user or third parties
CAUTION	Failure to observe the instructions may result in minor injuries or temporary damage to the user or third parties (e.g. minor cuts)
NOTE	Failure to observe the instructions may result in damage to property

Warning of personal injury:

⚠ SIGNAL WORD

Symbol

Type and source(s) of the hazard

Possible consequence(s) of the hazard

→ Measures to avoid the hazard

Warning of material damage:

NOTE

→ Measures to prevent damage to property

Symbols in warning notices:

Symbol		Meaning
Warning signs		Warning signs warn you of dangers that may lead to personal injury. The symbol indicates the type of hazard.
		Indicates general hazards or a danger point
		Warning of electrical voltage
		Warning of flammable substances
		Warning of explosive substances
		Warning of suspended load
		Warning of falling loads

Symbol		Meaning
Command sign		Mandatory signs prescribe measures that you must take to avoid personal injury or damage to property. The symbol indicates the necessary actions or objects to prevent damage.
		Indicates a prescribed action

3.4 Improper use

• Our scales are non-automatic scales and are not intended for use in dynamic weighing processes. However, the scales can also be used for dynamic weighing processes after checking the individual area of application and, in particular, the accuracy requirements of the application.
• Do not leave a permanent load on the hook. This can damage the measuring mechanism and safety-relevant parts.
• Avoid jerky pulling and overloading of the scales, the crane or any type of load attachment equipment above the specified maximum load (max.), minus any existing tare load. This could damage the scales, the crane or the load attachment equipment.
• The scale, the crane or any type of load lifting equipment must not be modified in any way. This can lead to incorrect weighing results, safety-related defects and the destruction of the scale, crane or load attachment equipment.
• The scales must never be used to transport people.
• The scales must never be used to pull loads at an angle.
• The scales must never be used for tearing, pulling or dragging loads.
• Never place persons or objects under the load, as they could be injured or damaged.
• Never operate the scales in potentially explosive atmospheres.
• The scale may only be used in accordance with the specifications described. Deviating areas of use/application must be approved in writing by KERN.
• The scales must not be used to weigh people.
• This scale does not comply with the Medical Devices Act (MPG) and is not intended for medical use.

3.5 Obligations of the operator

The operator undertakes:

• to observe the national accident prevention regulations as well as the work, operating and safety regulations.
• all safety regulations of the crane manufacturer must be observed.
• to use the appliance only in accordance with the specifications described in these operating instructions and to observe all safety information and instructions described in these operating instructions. Any type of use that is not described in these operating instructions is considered improper use. The operator is responsible for any damage to property or personal injury resulting from such improper use. KERN & SOHN cannot be held liable if the appliance is used improperly and this results in damage.
• The crane scale, crane and load handling attachments must be serviced and maintained regularly (for more information, see chapter "Cleaning, maintenance and servicing").
  • to record all examination results and keep them in the logbook.
• to ensure that the operating instructions are available at the place of use of the device at all times.
• only allow sufficiently qualified persons to use the device.

3.6 User qualification

The operator must ensure that the appliance is only used by sufficiently qualified persons.

• Installation, commissioning, maintenance and servicing may only be carried out by trained specialist personnel.
• Only trained and instructed persons may be authorised to operate the appliance.
  • Repairs may only be carried out by trained specialist personnel.

3.7 Organisational measures

• All maintenance must be documented (see „Regular maintenance" checklist).
• All extended maintenance must be documented (see „Extended maintenance" checklist).
• Spare parts must be documented. (see "Spare parts and repairs").
• Only use original spare parts.

3.8 Ambient conditions

• The ambient conditions described in the operating instructions must be observed. Please refer to the technical data in the device overview.
• Do not use the scale in a corrosive environment.
• Protect the scales from high humidity, vapours, liquids and dust.
• Avoid extreme heat and temperature fluctuations, e.g. due to direct sunlight
• Large display deviations (incorrect weighing results) are possible if electromagnetic fields (e.g. from mobile phones or radios), static charges or an unstable power supply occur. The location must then be changed or the source of interference removed.
• Do not expose the scale to high humidity. Unauthorised condensation (condensation of humidity on the device) can occur if a cold device is brought into a much warmer environment. In this case, acclimatise the appliance disconnected from the mains for approx. 2 hours at room temperature.

3.9 Power supply unit and mains connection

General:

Improper use of power supply units can result in them catching fire or the user suffering an electric shock. The following therefore applies to power supply units and their connection:

• The scale may only be connected to the mains if the information on the scale (sticker) and the local mains voltage are identical.
• Only use the country-specific mains plug for the country in which you are using the appliance.
• Only use original KERN power supply units. The use of other makes requires the approval of KERN.
• Ensure that the power supply unit is accessible at all times.
• Protect the power supply unit from contact with liquids.
• Ensure that the mains cable is never pinched or kinked.
• Ensure that the mains cable does not pose a tripping hazard.
• Check the mains cable and power supply unit for damage before each use.

3.10 Rechargeable batteries and batteries

General:

Improper use of rechargeable or non-rechargeable batteries can cause them to catch fire, explode, emit toxic vapours or release corrosive liquids. The following therefore applies to rechargeable and non-rechargeable batteries:

• Protect from fire and heat.
• Never expose to high pressure or microwaves.
• Do not bring into contact with liquids or chemicals.
• Never bring the electrical contacts of rechargeable batteries and batteries into contact with metal objects or short-circuit them.
• Never modify rechargeable batteries, batteries and chargers.
• Batteries must never be recharged.
• Never use or charge a defective, damaged or deformed battery.

Insertion, replacement and storage:

When inserting rechargeable batteries and batteries, ensure that the polarity is correct (see "+/-" in the rechargeable battery or battery compartment).

Replace rechargeable batteries and batteries only with types recommended by the manufacturer.

If possible, remove the rechargeable batteries and batteries and store them separately (protected against short circuits) if the scale is not to be used for a longer period of time. Leaking battery fluid could damage the scale.

Mains operation with rechargeable battery:

If possible, remove the battery if you want to operate the scale with the mains adapter, otherwise the battery may overheat. If this is not possible, do not operate the scale with the mains adapter for longer than 48 hours.

Charging:

• Batteries must never be charged.
• Only use the mains adapter supplied to charge batteries, as the battery and charger are designed to work together.
• Disconnect the battery immediately from the power supply and, if possible, from the scales if it develops odours, becomes hot, discoloured or deformed.
• Do not use the scales while the battery is charging.

If battery fluid escapes:

Liquid can escape from damaged rechargeable batteries and batteries. Please note the following:

• Avoid contact between leaking liquid and your skin, eyes or clothing.
• Wear protective clothing/equipment if you want to touch and remove a defective battery.
• Thoroughly clean any areas of skin or clothing that have come into contact with battery fluid with soapy water and then rinse the affected areas thoroughly with clean water.
• If you get battery fluid in your eyes, rinse your eyes immediately with clean water. Then consult a doctor immediately.

3.11 Safety-conscious working

The following applies in principle to work with crane and suspension scales and with a crane:

• Always work with great care in accordance with the general rules for operating a crane.
• Check all parts (hooks, eyelets, rings, ropes, slings, cables, chains, etc.) for excessive wear and damage.
• If the safety catch on the hook is defective or even missing, the scales must not be used.
• Only work at an appropriate speed.
• Never use the scales to transport loads.
• Do not stand or walk under suspended loads.
  • Always monitor the suspended load.
• Do not use on construction sites.
• Never exceed the rated load of the crane, crane scale or any type of load sling-ing equipment on the crane scale.
• Only position the crane so that the load is lifted vertically.
• Avoid vibrations and horizontal forces at all costs.
• Prevent shocks, twisting (torsion) and swinging (e.g. due to sloping suspension) of any kind.
• Only lift the load as far as necessary.
• Wear personal protective equipment (helmet, safety shoes, etc.) when working with the crane and crane scales.
• When weighing dangerous goods (e.g. molten masses, radioactive material), the national regulations for handling dangerous goods must be observed.

4 Overview of the device

4.1 Components

Scales (front view)

Remote control

Pos.	Designation
1	Upper shackle
2	Display
3	Keyboard
4	Lower shackle

Pos.	Designation
5	Antenna
6	Keyboard

4.2 Keyboard

HFD	HFD-M

Button	Designation	Function
	ON/OFF	Switch onSwitch off (long press)
	ZERO	Zeros
	TARE	Taring
	M+	TotaliseDigit dialling to the rightExit menu
	HOLD	Hold weight value (freeze)Move decimal point (adjustment mode)
	BG/NET	Retrieve gross/net weight
	SLEEP	Standby mode

4.3 Display

The [▼] above the symbol is displayed when

	the battery is charged
	the capacity of the battery is exhausted
	the data hold function is active
	the scales have been tared
	the weight display is stable
	the weight is in the range around the zero point
BG	the gross weight is displayed
	the scale is in standby mode

4.4 Radio remote control

The scales can be operated with the wireless remote control in the same way as with the keypad. All functions (except ON/OFF) can be selected.

The red LED must light up each time a button is pressed. If it does not light up, the batteries in the remote control must be replaced.

Range in open areas (undeveloped) approx. 20 m.

4.5 Symbols on the device

Symbol		Description of the
		Do not stand or walk under suspended loads.
		Do not use on construction sites.
		Always monitor the suspended load.
(Illustration example)		Do not exceed the maximum load (max.) of the scale(In this example 1000 kg)Note the information on the actual sticker
		The product complies with the requirements of the German Product Safety Act.

5 Transport, handling and storage

⚠ WARNING

High weight of the scales

Lifting heavy loads can lead to injuries and permanent impairments (e.g. damage to the spine)

⇒ Only remove the scales from the packaging with the help of another person.
Use a lifting device, such as a crane or forklift, to remove the scale from its packaging or to transport it.
→ Secure the scales to prevent them from falling when lifting and transporting.

NOTE

→ Remove any suspended loads before transporting the scales.
⇒ Never hold the scales by the hook during transport, as this can damage the scales.
Hold the scales by the housing, shackle or, if necessary, the handle during transport.
→ Use a suitable lifting device to transport heavy scales.

5.1 Return transport / Returns

INFORMATION

A return is only possible within the limits of the general terms and conditions.

The original packaging must be used for returns.

Crane scales with signs of use cannot be returned.

Crane scales that have been used and therefore show signs of wear can no longer be returned.

Crane scales are sealed by KERN & SOHN.

• Shackles and hooks are sealed with adhesive tape
• Removal from the packaging is sealed with adhesive tape

Breaking the seal is considered a sign of use and obliges you to make a purchase. Returns are then only possible if you discover defects and assert a claim for defects in accordance with the General Terms and Conditions.

KERN

Illustration example for seals

Procedure for return transport:

• Ensure that all parts included in the scope of delivery are complete
• Pack all parts in the original packaging

5.2 Decommissioning and storage

• Remove the crane scale from the crane and remove all load slinging equipment from the crane scale.
• Store the crane scale in its original packaging.
• Do not store the scales outdoors.

6 Assembly, installation and commissioning

6.1 Unpacking and checking

INFORMATION

In the event of a return, please follow the instructions in the chapter "Return transport / Returns"

Remove all parts of the scope of delivery from the packaging and remove the packaging materials. Then check that all parts of the scope of delivery are present and undamaged.

6.2 Scope of delivery

Scales1 x	Power supply unit1 x
Mains plug set1 x	Operating instructions / logbook1 x

6.3 Original dimensions

Before first use, check the dimensions according to the "Maintenance drawings" listed in the appendix. Enter the measured values in the "Regular maintenance" checklist in the appendix. Always use the same measuring principle and suitable test equipment to check the dimensions.

6.4 Rechargeable battery / battery operation

WARNING

Risk of fire and explosion due to incorrect handling of rechargeable batteries and batteries

Fire or explosion can lead to serious injuries

Please be sure to observe the notes on rechargeable batteries and batteries in the "General safety information"
⇒ Never recharge batteries. Only rechargeable batteries are suitable for recharging.

The battery should be charged for at least 24 hours before first use. Use the mains adapter supplied for this purpose. The battery has an operating time of approx. 60 hours.

The charge indicator informs you about the charge status of the battery (see table).

Charging indicator:

Charging indicator	Description of the
red	Battery is empty
green	Battery is fully charged

The battery should be recharged if the following message appears on the display during operation: lo_bat

6.5 Hanging up the scales

Prerequisite:

The crane requires a safety lock (1) to prevent the scales from falling.

If the safety catch is missing or damaged, please contact the crane manufacturer to obtain a hook with this safety feature.

The scale may only be used with a crane with a swivel joint.

Hang up the scales:

1. Hang the scale on the lower hook of a crane and close the safety catch.
2. The upper eyelet of the scale must rest in the saddle (2).

6.6 Initial commissioning

Check the original dimensions before initial commissioning.

In order to obtain accurate weighing results with electronic scales, the scale must reach its operating temperature (see warm-up time in the "Technical data" chapter). The scale must be connected to the power supply (mains connection, rechargeable battery or battery) for this warm-up time.

The accuracy of the scale depends on the local gravitational acceleration. It is essential to follow the instructions in the chapter "Adjustment" chapter.

7 Calibration

INFORMATION

According to EU Directive 2014/31EU, scales must be calibrated if they are used as follows (legally regulated area):

• In commercial transactions, when the price of goods is determined by weighing.
• In the manufacture of medicines in pharmacies and in analyses in medical and pharmaceutical laboratories.
• For official purposes.
  • In the production of pre-packaging.

If in doubt, please contact your local weights and measures office.

Scales in the legally regulated area ( calibrated scales) must comply with the market error limits during the calibration validity period - these are generally twice the calibration error limits.

If this calibration validity period expires, a recalibration must be carried out. If it is necessary to adjust the scales to comply with the calibration error limits in order to pass this recalibration, this does not constitute a warranty claim.

Calibration instructions:

The scales labelled as legal for trade in the technical data have EU type approval. If the scales are used in the legal-for-trade area as described above, they must be calibrated and regularly recalibrated.

The recalibration of a scale is carried out in accordance with the respective legal regulations of the countries. The verification validity period in Germany, for example, is usually 2 years for scales.

The legal regulations of the country of use must be observed!

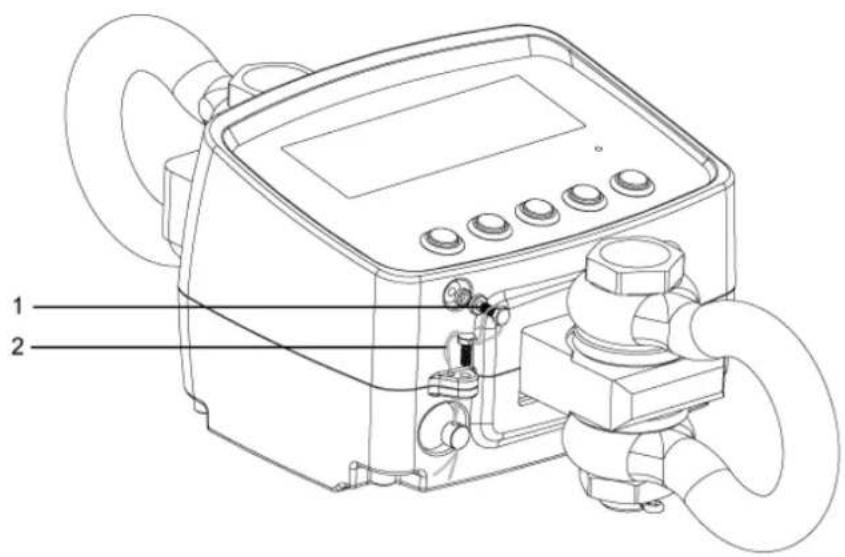

Seal stamps:

INFORMATION

The verification of the scales is invalid without the seal marks.

On scales with type approval, the attached seal marks indicate that the scales may only be opened and serviced by trained and authorised specialists. Destroyed seal marks invalidate the verification validity. The national laws and regulations must be observed. Recalibration is required in Germany.

1	Adjustment switch fuse
2	Gauge wire

8 Adjustment

As the value of the acceleration due to gravity is not the same at every location on earth, each scale must be adjusted to the prevailing acceleration due to gravity at the installation site in accordance with the underlying physical weighing principle (only if the scale has not already been adjusted to the installation site at the factory). This adjustment process must be carried out when the scale is first put into operation, after each change of location and in the event of fluctuations in the ambient temperature. In order to obtain accurate measured values, it is also advisable to periodically adjust the scale during weighing operations.

INFORMATION

• In the technical data you will find information on the adjustment weights recommended by KERN & SOHN.
• Calibration weights of other tolerance classes are possible, but not optimal. The accuracy of the calibration weight must be at least equal to or better than the readability [d] of the scale.
• The maximum load of the scale must not be exceeded during adjustment.
  • Information on test weights can be found on the Internet at: http://www.kern-sohn.com
• If the value of the calibration weight can be freely selected in the menu of your scale, select a calibration weight as close as possible to the maximum load of the scale.

For legal-for-trade scales:

- External adjustment is disabled for calibrated scales.

• To cancel the access lock, the seal mark must be destroyed and the adjustment switch actuated.
  ○ If the seal is destroyed, the scale must be recalibrated by an authorised body and a new seal affixed before it can be used again in legal-for-trade applications.

NOTE

⇒ For adjustment, ensure that the ambient conditions are stable (e.g. avoid vibrations or air currents).
Please note that a warm-up time is required for adjustment so that the scale itself is stabilised. The warm-up time can be found in the technical data.
⇒ Make sure that only the adjustment weight is suspended from the hook during adjustment and no other load.
⇒ An error message is displayed in the event of a calibration error or incorrect calibration weight. In this case, repeat the adjustment process.

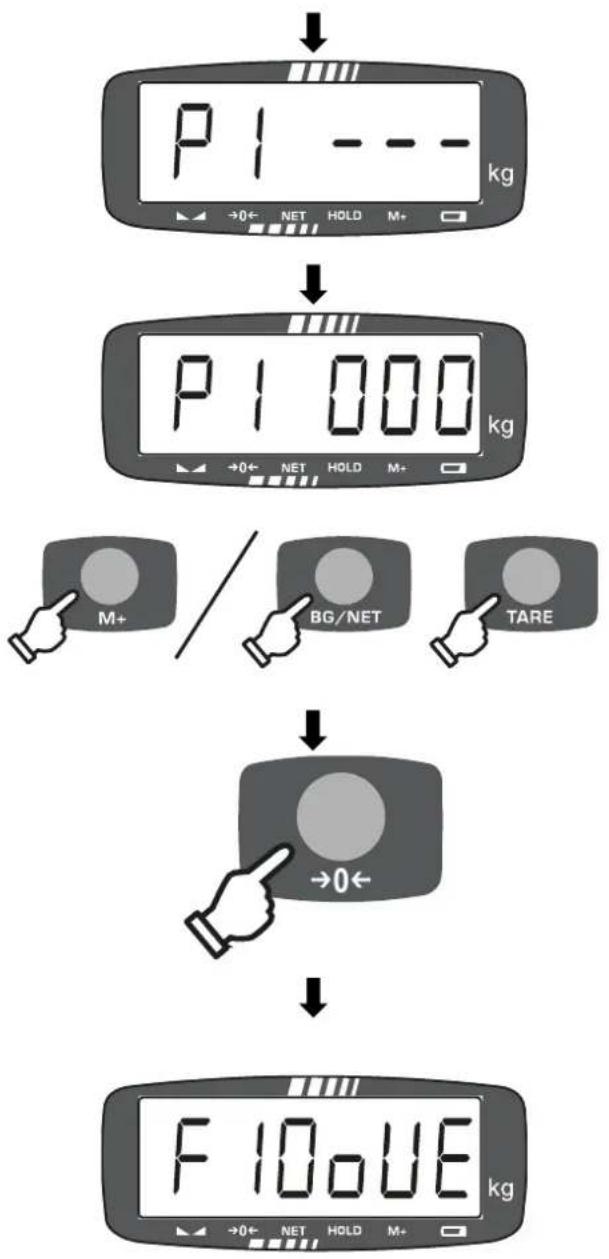

Realisation:

→ Switch on the scales with the carrying aid attached if necessary
→ Press [TARE] during the self-test

is displayed
⇒ Enter password "000" (for navigation in the menu, see chapter 10.1)
→ Select digit with [M+] / [BG/NET].
→ Increase the value of the digit with [TARE]

→ Confirm with [ZERO].
→ The first function
is displayed
→ Press [ZERO]
⇒ is displayed

For calibrated appliances, press the adjustment switch on the underside of the scales.


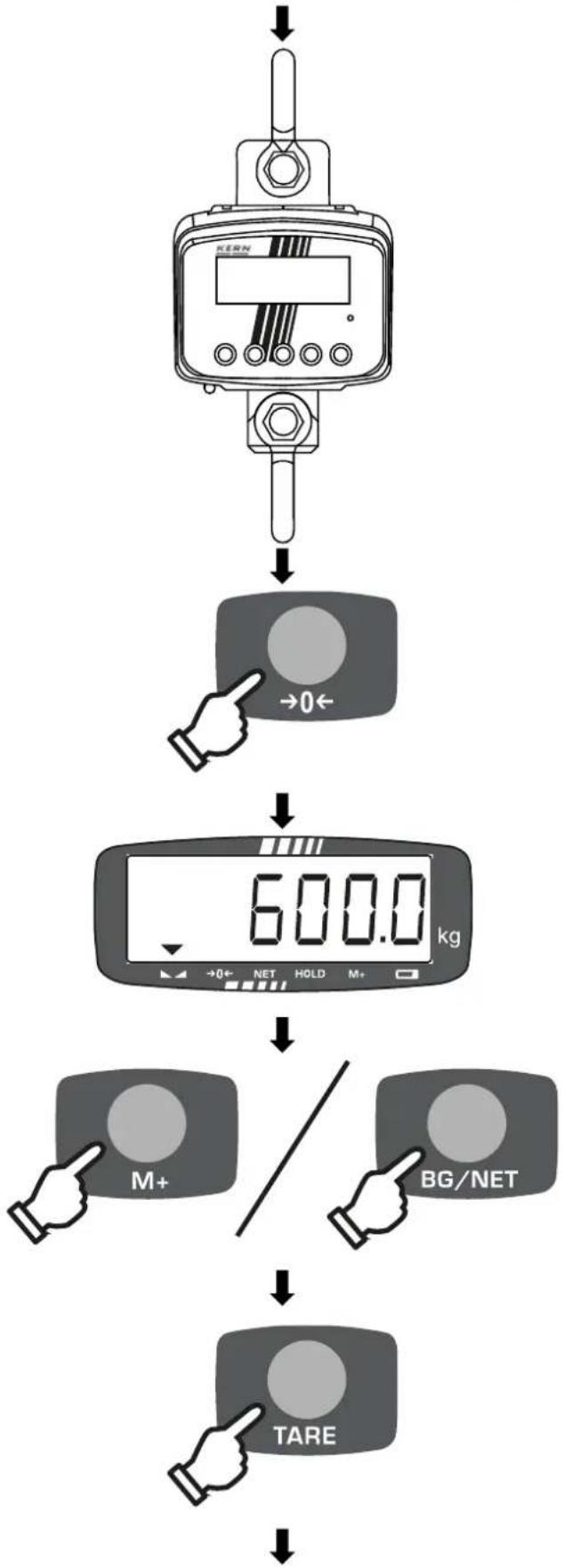

Unload the scales, wait for the stability display

→ Press the [ZERO] button,

→ The currently set calibration weight is displayed.

⇒ Select digit with [M+] / [BG/NET].

→ Increase the value of the digit with [TARE]. The active digit flashes.


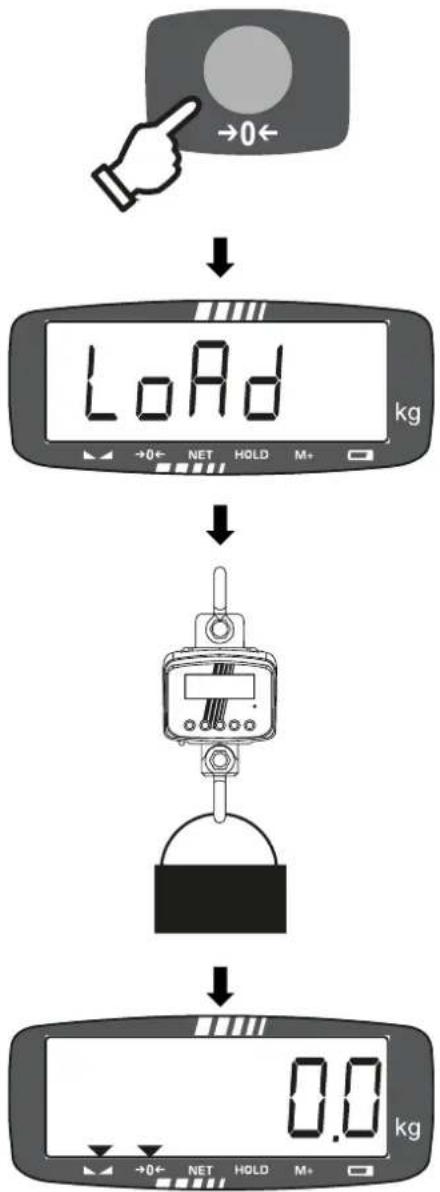

→ Confirm with [ZERO]

is displayed.

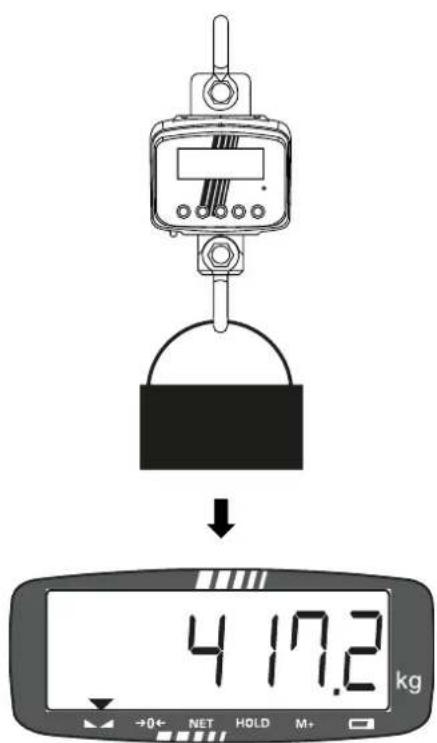

Attach the calibration weight and wait for the stability display

→ Press [ZERO].

⇒ After calibration, the scale performs a self-test and returns to weighing mode

9 Operation

9.1 Safety instructions for operation

WARNING

Falling loads due to breakage of the load handling attachment or misuse

Serious injuries or death possible if people are hit by falling loads

Please be sure to observe the instructions in the chapter "General safety information"
→ During operation, pay particular attention to the instructions listed in the safety information under "Safety-conscious working"
→ Check that the scales are free of damage and in perfect working order before each use.
⇒ Never exceed the specified maximum load (max.) of the scale.

⚠ WARNING

Hazards due to lifting heavy loads

Lifting heavy loads can lead to injuries and permanent impairments (e.g. damage to the spine)

⇒ When lifting heavy loads, make sure your posture is correct (back straight, lifting from the knees)
⇒ Squat down when you want to put the load down again.
→ Ask another person for help if the load is too heavy for you.

9.2 Load scales

Observe the following for good weighing results, see illustrations on next page:

• Only use load slings that guarantee a single-point attachment and on which the scales can hang freely.
• Do not use load slings that are too large and do not ensure single-point suspension.
• Do not use multiple suspensions.
• Do not pull or push the load or the loaded scales.
• Do not pull horizontally on the hook.

Load the scales:

1. Position the hook of the scale above the load.
2. Lower the scales until the load can be attached to the hook of the scales. Reduce speed when the appropriate height is reached.
3. Attach the load to the hook. Ensure that the safety lug is closed. If the load is attached with slings, ensure that the slings are fully seated in the saddle of the scale hook.
4. Slowly lift the scales with the load.
5. If the load is attached with slings, ensure that the load is well balanced and that the slings are positioned correctly.

Technical line drawing of a mechanical valve or pump assembly (no text or symbols)

Only use load slings that guarantee single-point attachment and on which the scales can hang freely.

Technical line drawing of a mechanical valve assembly (no text or symbols)

Do not use load slings that are too large and do not ensure single-point suspension

9.3 Switch on / Switch off

Switch on:

→ Press [ON/OFF].

⇒ The display lights up and the scales carry out a self-test

→ Wait until the weight display appears

⇒ The scales are now ready for weighing

→ Keep [ON/OFF] pressed

→ The display switches off

Switch off:

9.4 Zeros

Realisation:

→ Unload the scales
→ Wait until the arrow <▼> appears above the stability display (for calibrated devices also above BG)
→ Press [ZERO]
⇒ The zero display appears on the display and above the stability display, →0← and above BG the arrow <→ is displayed

9.5 Simple weighing

NOTE

⇒ Avoid overloading the scale above the specified maximum load (max.), minus any existing tare load. This could damage the scales.
If the maximum load is exceeded, is displayed. In this case, unload the scales or reduce the preload.

→ Hang the load on the hook

Wait until the arrow < > appears above the stability display (for calibrated devices also above BG)
⇒ The weighing result can be read off

9.6 Taring

Realisation:

Hang the container on the hook
→ The weight of the container is displayed
→ Wait until the arrow <▼> appears above the stability display
→ Press [TARE]
⇒ The weight of the weighing container is now stored internally
⇒ The zero display appears on the display and the arrow is displayed above NET

Weighing with Tara:

→ Weighing goods

Wait until the arrow < > appears above the stability display and above NET
→ The net weight can be read off

• After removing the container, the weight of the container appears as a negative value (minus)
• To delete the tare value, unload the crane scale and press [ZERO] or [TARE]

9.7 Hold function (only non-calibratable devices)

Realisation:

→ The scale is in weighing mode

→ Hang the load on the hook

→ Press [HOLD] to hold the value

< above HOLD signals that the value is held.

⇒ Press [HOLD] again to delete the held value

9.8 Further functions

9.8.1 Totalling (only non-calibratable devices)

With this function, the individual weight values are added to the totalling memory by pressing the [M+] button and output when an optional printer is connected.

• When the totalising function is active, [▼] appears above the "M+" symbol.
• The totalising function is not active if the weight is less than 20d.
• Only stable weight values can be totalised.

Realisation:

→ Switch on the scales
→ Hang load A on the hook
→ Wait for stability display
⇒ Press [M+]

is displayed
→ Weight value is displayed

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a digital pressure gauge mounted on a stand (no text or symbols visible)

→ Remove the sample and wait for the zero display.
→ Hang load B on the hook
→ Wait for stability display

    F["Press [M+"].] --> G["<<CO2> is displayed"]
    G --> H["Weight value is displayed"]
    H --> I["The total weight value is then displayed"]
    I --> J["Further weighings can be totalled as described above. Make sure to unload the scales between the individual weighings"]
    I --> K["The process can be repeated until the capacity of the crane scale is exhausted."]

Show total amount:

Press the [M+] button when zero is displayed, the number of weighings followed by the total weight is displayed for 2 seconds.

Delete totalling memory:

Press the [M+] button when zero is displayed, the number of weighings followed by the total weight is displayed for 2 seconds. Press the [ZERO] button again during this display.

The data in the totaliser memory is deleted, the [] above "M+" goes out.

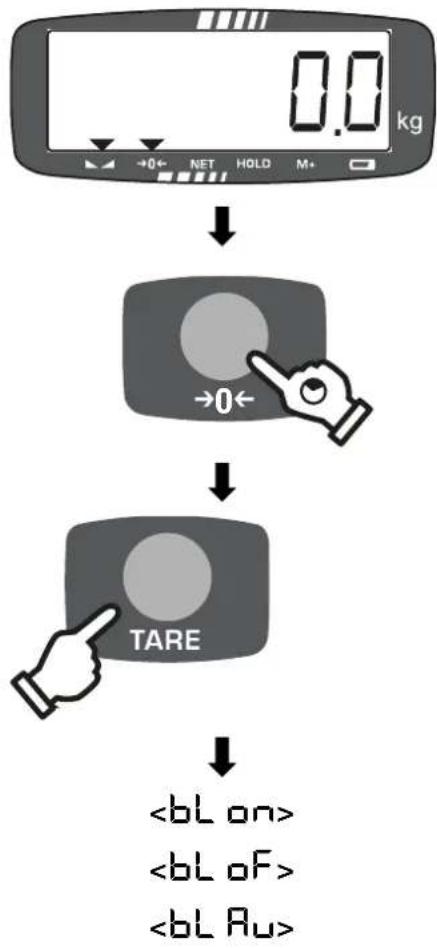

9.8.2 Switching the backlighting on/off

Realisation:

⇒ The scale is in weighing mode

⇒ Press and hold [ZERO] until the current setting is displayed.

⇒ Press [TARE] to select the desired setting.

Backlighting permanently switched on

Backlighting switched off

Automatic backlighting only under load or when a button is pressed.

→ Confirm with [ZERO].

→ Scale returns to weighing mode.

10 Menu

If no key is pressed in the menus, the scale automatically switches to weighing mode after a while.

10.1 Navigation in the menu

Select function

⇒ The individual functions can be selected in sequence using [TARE].

Select setting

→ Confirm the selected function with [ZERO]. → The current setting is displayed.

Change settings

⇒ Use [TARE] to switch between the available settings.

Confirm setting

⇒ Press [ZERO] ⇒ The scale returns to the menu.

Exit menu / return to weighing mode

⇒ Press [M+]. ⇒ Press the [BG/NET] button. (For calibrated devices)

Activate menu item / confirm selection

→ Press the [HOLD] button → The selection is confirmed

10.1.1 Call up the setup menu

Realisation:

→ Switch on the scales with the carrying aid attached if necessary

⇒ Press [TARE] during the self-test

is displayed
→ Enter password "000"
→ Press [M+] / [BG/NET] to increase the value of the digit
→ Press [TARE] to select the next digit
→ Press [ZERO] to confirm password
Select the desired setting (for navigation in the menu, see chap. 10.1)

10.1.2 Set and select parameters

10.2 Overview of the setup menu

Default settings are marked with a *.

Function	Description of the
FO CAL	Adjustment, see Chap. Fehler! Verweisquelle konnte nicht gefunden werden.
F1 CAPSet scale capacity (max) / scale typeOnly for uncalibrated devices	thrEEr	600	Triple range scales	Modifications may only be carried out by a specialist with in-depth knowledge.
		1500
		3000
		6000
		12000
	S inGLE	600	Single range scale
		1500
		3000
		6000
		12000
	duALr	600	Multi-range scale
		1500
		3000
		6000
		12000
	duALr	600	Multi-interval scale
		1500
		3000
		6000
		12000

Function	Description of the
F2 SP Only for uncalibrated devices	Slow	Reaction speed selectable slow, medium, fast
	mid
	fast
F3 inP	Display Internal resolution
F4 GrA	Gravitational constant of the installation site
F5 Con	FAshion	oFF	Interfaces switched off
		BIF	Not documented
		bLUE	Not documented
	bAud	600	Baud rate
		1200
		2400
		4800
		9600
F6 t	00:00	Set the time
F7 da	00:00:00	Set date
F8 St	on	Multitara switched on
	oFF	Multitara switched off
Function	Description of the
F9 oF	0	Automatic switch-off function deactivated
	5	Scales are switched off after 3 minutes
	10	Scales are switched off after 5 minutes
	20	Scales are switched off after 15 minutes
	30	Scales are switched off after 30 minutes
F10oVE	XXXXXXXX	Overload memory
F11E10(for calibratable appliances)	Locked.
F11A2n(for non-calibratable appliances)	oFF	Auto Zero deactivated
	0.5d	Auto Zero up to 0.5 d
	1d	Auto Zero up to 1 d
	2d	Auto Zero up to 2 d
	4d	Auto Zero up to 4 d

11 Cleaning, maintenance and servicing

11.1 Cleaning

WARNING

Short circuit due to liquids penetrating the inside of the appliance

Short circuit can lead to fire and serious injuries

Do not open the appliance. There are no parts to be cleaned inside the appliance.
⇒ Ensure that rechargeable batteries or batteries do not come into contact with liquids.

NOTE

Do not use any aggressive cleaning agents (e.g. solvents), as this will cause reactions with the materials and damage them.
Do not use metal brushes or cleaning sponges made of steel wool, as this will damage the surface.
⇒ Ensure that no liquid enters the appliance.

Recommended cleaning:

To clean the appliance, use a mild cleaning agent such as a commercially available window cleaner and a soft cloth.

11.2 Maintenance and servicing

INFORMATION

Maintenance and servicing may only be carried out by trained specialist personnel.

⚠ WARNING

Poor maintenance can lead to breakage of the load handling attachment and falling loads

Falling loads can lead to serious injury or death

→ Have the scales serviced regularly by trained specialists with in-depth knowledge of crane scales.
Observe the maintenance work according to chapter "Maintenance table".
Observe the maintenance intervals according to chapter "Inspection intervals".
Observe the national accident prevention regulations as well as the operator's work, operating and safety regulations.
⇒ Take the scales out of operation immediately if you notice any safety faults or discrepancies with the checklists.
→ Have parts replaced by trained specialists only. Do not repair the scales yourself.

• Maintenance must be carried out in accordance with the "Maintenance table" chapter.
• Maintenance must be carried out in accordance with the intervals in chapter "Inspection intervals" chapter.
• Maintenance may only be carried out by trained specialist personnel with in-depth knowledge of crane scales. The national accident prevention regulations and the operator's work, operating and safety regulations must be observed.
• Only use suitable test equipment / feeler gauges to check the dimensions.
• The results of regular maintenance are entered in the „Regular maintenance" checklist.
• The results of the extended maintenance are included in the „Extended maintenance" checklist.
• The load handling attachments must be cleaned before the test.

11.2.1 Test equipment monitoring

As part of quality assurance, the metrological properties of the scales and any test weights must be checked at regular intervals. The responsible user must define a suitable interval as well as the type and scope of this check. Information regarding the monitoring of test equipment for balances and the test weights required for this is available on the KERN homepage (www.kern-sohn.com). In its accredited calibration laboratory, KERN can calibrate test weights and scales quickly and cost-effectively (traceability to the national standard).

11.2.2 Maintenance table

Regular maintenance:

Interval	Maintenance
Before each use	Check that the lifting gear is functioning correctly
Initial commissioning, then every 3 months	Check all dimensions and enter them in the "Regular maintenance" checklistCheck the scale and lifting gear (e.g. hook, eyelet) for wear, such as plastic deformation, mechanical damage (unevenness), notches, grooves, cracks, corrosion, thread damage and twisting.Visual and functional check of the swivel joint.Check that the safety lug is attached to the hook and also check for defects and proper functionCheck that the cotter pin and nut on the shackle are not looseIf a measurement exceeds the permissible deviation from the original measurement (see "Regular maintenance" checklist) or other discrepancies are detected, the scale must be taken out of service immediately.The scale may only be repaired by trained specialists. Never repair it yourself.All repairs and spare parts must be documented by trained specialist personnel in the "Spare parts and repairs" list.
Every 12 months	All load-bearing parts must be checked by trained specialists and documented in the "Extended maintenance" checklist
Note:The "Maintenance drawings" listed in the appendix must be observed when carrying out maintenance and checking for wear.Lifting accessories may no longer be used in the following cases:If deviations are detected during the checks defined in the maintenance programme.If the type plate is missing.If the maximum load (Max.) is not recognisable.If overloading or other damaging influences are known to have occurred with load handling attachments. In this case, the load handling attachments must be taken out of service and may only be used again after a successful inspection.

11.2.3 Inspection intervals

Examination	Interval
	Daily	7 Days	3 Months	12 Months
Completeness of the crane scale components	x
Visual inspection for damage	x
Visual and functional check of the safety latch of the hook	x
Checking the cotter pin and the shackle nut	x
Impurities		x
Check the labelling (e.g. max. maximum load)		x
Check all dimensions according to the "Regular maintenance" checklist			x
Extended maintenance				x

12 Waste disposal

Old appliances and accessories should not be disposed of with household waste.

The operator must dispose of the packaging and appliance in accordance with the applicable national or regional legislation at the place of use.

The device consists of various components and materials, such as

• Plastic (housing)
  • Metal (hooks, shackles)

• Electronic components (circuit boards, electrical cables)

Improper disposal of the appliance can have harmful effects on people and the environment.

Proper and environmentally friendly disposal can prevent harmful effects and recover raw materials.

For rechargeable batteries or batteries:

Disposal of rechargeable batteries and batteries:

Rechargeable batteries and batteries do not belong in household waste.

The disposal of rechargeable batteries and batteries must be carried out by the operator in accordance with the applicable national or regional law of the place of use.

13 Guarantee

The warranty claim only applies to defects that already exist at the time of purchase.

The warranty shall lapse in the event of

• Non-compliance with our specifications in the operating instructions
- Use outside the described applications
- Improper use
- Modifying or opening the device
- Mechanical damage and damage caused by media / liquids
• Natural wear and tear
- Improper set-up or electrical installation
• Overload of the measuring unit
- Dropping the scales

14 Errors and faults

14.1 Error messages

Error message	Explanation	Possible causes / elimination
Err 1	Wrong date	Enter the date in the format"yy;mm;dd", see Chap. 8"
Err2	Wrong time	Enter the time in the format"hh;mm;ss", see Chap. 8"
Err4	Zeroing error	• Zero setting range exceededCheck that the scales are not loaded
Err5	Keyboard error	Improper operation of the scale
Err6	Value outside A/D converter range	• Damaged load cellDamaged electronics
Err7	Error "Percentage determination"	Increase value to >0.5 d
Err8	Incorrect calibration weight	Check the value of the calibration weight, see Chap. 1
Err9	The weight display changes continuously	• Draught/air movement• Vibrations of the table/floorThe weighing plate is in contact with foreign objects.
Err 10	No WLAN connection	Check menu setting"F5 com→ mode→ wifi"
Err 11	Communication protocol" error	Check communication settings
Err 12	Totalise" error	• Number of totalling processes >99Capacity of the scales exhausted
Err 15	Error "Gravitational constant"	Value outside range 09.xx -1.0xx
Err 17	Tare" error	Tare range undercut or exceeded
Err 19	Zero point could not be initialised	• Measuring cell defective / overloaded• Objects on the platform / touch• Main board defectiveAdjustment required
--oL--	Maximum load exceeded	Reduce loadCheck whether the scales have been damaged
--Lo--	Underload	Negative weightCheck platform and restart or adjust.
FA,Lh/FA,LL/FA,L	Adjustment error	Check the value of the calibration weight, see Chap. 1Repeat the adjustment process
bALo/LobR	Battery capacity exhausted	Charge battery

14.2 Malfunctions

In the event of a fault in the programme sequence, the scale should be switched off briefly and disconnected from the operating voltage. The weighing process must then be restarted from the beginning.

Malfunction	Possible cause
The display does not light up	The scales are not switched on.The battery has not been plugged in.The battery is flat.
The scales cannot be switched on	Battery flat or defective[ON/OFF] defective[ON/OFF] not correctly actuated
The display does not react to load changes	Load cell defectiveLoad cell wiring defective
The weight display changes continuously	Draught/air movementVibrations on the hookAttached load movesThe hook is in contact with foreign objectsElectromagnetic fields/static charging (choose a different installation location/switch off the interfering device if possible)Load cell defective
The weighing result is obviously incorrect	The scale display is not set to zero when the scale is unloadedThe adjustment was carried out with an incorrect or inaccurate adjustment weightWrong weighing unit selectedThere are strong temperature fluctuations.Electromagnetic fields / static charge (choose another installation location / if possible, switch off the interfering device)
Remote control does not work	Batteries flat, insert new batteriesDistance between scale and remote control too greatObstacles block reception

A1 Drawings for maintenance

Model	Total length			Shackle
	F	E	G	a	b	C
HFD 600K	270	23	23	16	50,8	23
HFD 1T-4	270	23	23	16	50,8	23
HFD 3T-3	275	26,5	26,5	22	58	26,5
HFD 6T-3	320	30	30	25,4	68,3	30
HFD 10T-3	330	36	36	31,75	82,6	36

A2 „Regular maintenance" checklist

Length

Upper shackle

Lower shackle

Stop eyes

F

a

b

c

Wear and tear (see grey fields)

Split pin & nut

a

b

c

Wear and tear (see grey fields)

Split pin & nut

Distance f

date

Examiner

1 %

1 %

1 %

5 %

No deformations or cracks

fixed

1 %

1 %

5 %

No deformations or cracks

fixed

1%

Before first use

3 months

6 months

9 months

12 months

s. Extended maintenance" checklist

15 months

18 months

21 months

24 months

s. Extended maintenance" checklist

To the copy

Crane scale

Model:

Serial no:

Length

Upper shackle

Lower shackle

Stop eyes

F

a

b

c

Wear and tear (see grey fields)

Split pin & nut

a

b

c

Wear and tear (see grey fields)

Split pin & nut

Distance †

date

Examiner

1 %

1 %

1 %

5 %

No deformations or cracks

fixed

1 %

1 %

5 %

No deformations or cracks

fixed

1%

Before first use

3 months

6 months

9 months

12 months

s. Extended maintenance" checklist

15 months

18 months

21 months

24 months

s. Extended maintenance" checklist

„Extended maintenance" checklist

A3 „Extended maintenance" checklist

Crane scale			Model		Serial no.
Interval	Upper shackle	Lower shackle		Stop eyes	date	Name	Signature
12 months
24 months
36 months
48 months
60 months

To the copy

Crane scale

Model

Serial no.

Interval	Upper shackle	Lower shackle	Stop eyes	date	Name	Signature
12 months
24 months
36 months
48 months
60 months

Spare parts and repairs

A4 Spare parts and repairs

Crane scale	Model			Serial no.
Part	Measure		date		Name	Signature

To the copy

Crane scale	Model			Serial no.
Part	Measure		date		Name	Signature

A5 Declaration of Conformity

INFORMATION

• Other languages of the current EC/EU Declaration of Conformity can be found online at: www.kern-sohn.com/ce
• For verified scales (= conformity-assessed scales), the conformity assessment is included in the scope of delivery.

KERN & SOHN GmbH

Ziegelei 1

72336 Balingen-Frommem

Germany

www.kern-sohn.com

-0049-[0]7433-9933-0

-0049-[0]7433-9933-149

[e-mail]

Place of issue: Germany

John Doe

KERN & SOHN GmbH

Signatur:

Signature:

Verification officer

Albert Sauter

KERN & SOHN GmbH

Geschäftsführer

Managing director

KERN & SOHN GmbH

Ziegelei 1

72336 Balingen-Frommem

Germany

www.kern-sohn.com

+0049-[0]7433-9933-0

+0049-[0]7433-9933-149

[e-mail]

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the directives listed below. The product complies with the relevant Union harmonization legislation. The product was manufactured by applying the standards below and corresponds to the directives mentioned.

TYPE REF

Typ | Type

HFD 10T-3, HFD 1T-4, HFD 3T-3, HFD

600K-1, HFD 6T-3, THFD 10T-3IP-A,

THFD 1T-4IP-A, THFD 3T-3IP-A, THFD

600K-1IP-A, THFD 6T-3IP-A

CE KennzeichnungCE mark applied		EU-RichtlinieEU directive	NormenStandards
		2006/42/EC (MD)OJ L 157, 9.6.2006, p. 24-85	EN 13155:2003+A2:2009
		2011/65/EU (RoHS)OJ L 174, 1.7.2011, p. 88-110	EN 63000:2018
		2014/30/EU (EMC)OJ L 98, 29.3.2014, p. 70-106	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
		2014/35/EU (LVD)OJ L 98, 29.3.2014, p. 357-374	EN 61010-1:2010EN 62368-1:2014+A11:2017
		2014/53/EU (RED)OJ L 153, 22.5.2014, p. 62-106	EN 300 220-2 V3.1.1:2017

Datum | Date |: 22.11.2022

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the regulations listed below. The product was manufactured by applying the designated standards below and corresponds to the regulations mentioned.

TYPE REF

Typ | Type

SN

Seriennr. | Serial no.

HFD 10T-3, HFD 1T-4, HFD 3T-3, HFD 600K-1, HFD 6T-3, THFD 10T-3IP-A, THFD 1T-4IP-A, THFD 3T-3IP-A, THFD 600K-1IP-A, THFD 6T-3IP-A

XXXXXXXXXXXX

KennzeichnungMark applied	UK VorschriftenUK regulations	Designierte NormenDesignated standards
UKCA	S.I. 2008 No. 1597 (MD)	EN 13155:2003+A2:2009
UKCA	S.I. 2012 No. 3032(RoHS)	EN 63000:2018
UKCA	S.I. 2016 No. 1091 (EMC)	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
UKCA	S.I. 2016 No. 1101 (LVD)	EN 62368-1:2014+A11:2017
UKCA	S.I. 2017 No. 1206 (RED)	EN 300 220-2 V3.1.1:2017

Importer: KERN & SOHN Ltd., 15 Westferry Circus, London E14 4HD, United Kingdom

Datum | Date |: 25.11.2022

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the regulations listed below. The product was manufactured by applying the designated standards below and corresponds to the regulations mentioned.

TYPE REF

Typ | Type

THFD 10T-3M-A, THFD 1T-4M-A, THFD

3T-3M-A, THFD 600K-1M-A, THFD 6T-

3M-A

KennzeichnungMark applied	UK VorschriftenUK regulations	Designierte NomenDesignated standards
UKCA	S.I. 2008 No. 1597 (MD)	EN 13155:2003+A2:2009
UKCA	S.I. 2012 No. 3032(RoHS)	EN 63000:2018
UKCA	S.I. 2016 No. 1091 (EMC)	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
UKCA	S.I. 2016 No. 1101 (LVD)	EN 61010-1:2010EN 62368-1:2014+A11:2017
UKCA	S.I. 2017 No. 1206 (RED)	EN 300 220-2 V3.1.1:2017

Importer: KERN & SOHN Ltd., 15 Westferry Circus, London E14 4HD, United Kingdom

Datum | Date |: 30.01.2023

Place of issue: Germany

Albert Sauter

KERN & SOHN GmbH

Signature: Managing director

Français

KERN HFD

Balance à grue

Balances (vue de face)

Télécommande

Technical line drawing of a mechanical valve or pump assembly with no visible text or symbols

Technical line drawing of a mechanical valve assembly (no text or symbols)

Place of issue: Germany

John Doe

KERN & SOHN GmbH

Signatur:

Signature:

Verification officer

Albert Sauter

KERN & SOHN GmbH

Geschäftsführer

Managing director

KERN & SOHN GmbH

Ziegelei 1

72336 Balingen-Frommem

Germany

www.kern-sohn.com

+0049-[0]7433-9933-0

+0049-[0]7433-9933-149

[e-mail]

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the directives listed below. The product complies with the relevant Union harmonization legislation. The product was manufactured by applying the standards below and corresponds to the directives mentioned.

TYPE REF

Typ | Type

HFD 10T-3, HFD 1T-4, HFD 3T-3, HFD 600K-1, HFD 6T-3, THFD 10T-3IP-A, THFD 1T-4IP-A, THFD 3T-3IP-A, THFD 600K-1IP-A, THFD 6T-3IP-A

CE Kennzeichnung CE mark applied		EU-Richtlinie EU directive	Normen Standards
		2006/42/EC (MD)OJ L 157, 9.0.2000, p. 24-85	EN 13155:2003+A2:2009
		2011/65/EU (RoHS)OJ L 174, 1.7.2011, p. 88-110	EN 63000:2018
		2014/30/EU (EMC)OJ L 98, 20.3.2014, p. 70-105	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
		2014/35/EU (LVD)OJ L 98, 20.3.2014, p. 357-374	EN 61010-1:2010EN 62368-1:2014+A11:2017
		2014/53/EU (RED)OJ L 153, 22.5.2014, p. 62-105	EN 300 220-2 V3.1.1:2017

Datum | Date |: 22.11.2022

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the regulations listed below. The product was manufactured by applying the designated standards below and corresponds to the regulations mentioned.

TYPE REF

Typ | Type

SN

Seriennr. | Serial no.

HFD 10T-3, HFD 1T-4, HFD 3T-3, HFD 600K-1, HFD 6T-3, THFD 10T-3IP-A, THFD 1T-4IP-A, THFD 3T-3IP-A, THFD 600K-1IP-A, THFD 6T-3IP-A

XXXXXXXXXXXX

KennzeichnungMark applied	UK VorschriftenUK regulations	Designierte NormenDesignated standards
UKCA	S.I. 2008 No. 1597 (MD)	EN 13155:2003+A2:2009
UKCA	S.I. 2012 No. 3032(RoHS)	EN 63000:2018
UKCA	S.I. 2016 No. 1091 (EMC)	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
UKCA	S.I. 2016 No. 1101 (LVD)	EN 62368-1:2014+A11:2017
UKCA	S.I. 2017 No. 1206 (RED)	EN 300 220-2 V3.1.1:2017

Importer: KERN & SOHN Ltd., 15 Westferry Circus, London E14 4HD, United Kingdom

Datum | Date |: 25.11.2022

EN We hereby declare under our sole responsibility that the product to which this declaration relates complies with the regulations listed below. The product was manufactured by applying the designated standards below and corresponds to the regulations mentioned.

TYPE REF

Typ | Type

THFD 10T-3M-A, THFD 1T-4M-A, THFD

3T-3M-A, THFD 600K-1M-A, THFD 6T-

3M-A

KennzeichnungMark applied	UK VorschriftenUK regulations	Designierte NomenDesignated standards
UKCA	S.I. 2008 No. 1597 (MD)	EN 13155:2003+A2:2009
UKCA	S.I. 2012 No. 3032(RoHS)	EN 63000:2018
UKCA	S.I. 2016 No. 1091 (EMC)	EN 301 489-1 V2.1.1EN 55032:2015+A11:2020EN 55035:2017EN 61000-3-3:2013+A1:2019EN 61326-1:2013EN IEC 61000-3-2:2019
UKCA	S.I. 2016 No. 1101 (LVD)	EN 61010-1:2010EN 62368-1:2014+A11:2017
UKCA	S.I. 2017 No. 1206 (RED)	EN 300 220-2 V3.1.1:2017

Importer: KERN & SOHN Ltd., 15 Westferry Circus, London E14 4HD, United Kingdom

Datum | Date |: 30.01.2023

Place of issue: Germany

Albert Sauter

KERN & SOHN GmbH

Signature: Managing director
