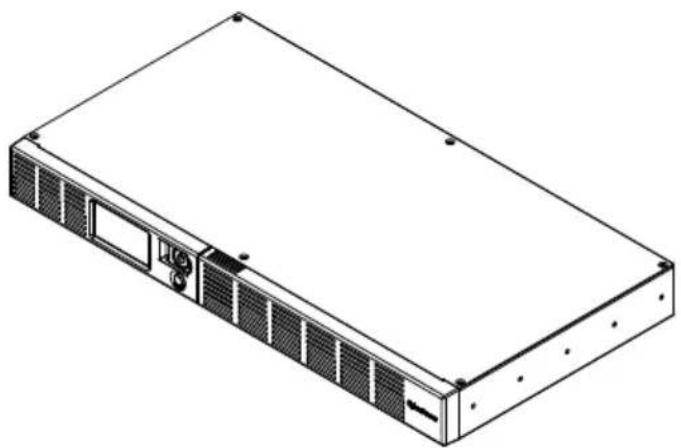

Isometric line drawing of a rectangular electronic device with ventilation slots and ports (no text or symbols)

OR600ERM1U OR650ERM1UGR User's Manual

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate.

CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker protection. DO NOT plug the UPS into an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the UPS.

CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does not sell products for life support or medical applications. DO NOT use in any circumstance that would affect the operation or safety of any life support equipment, with any medical applications, or patient care.

CAUTION! The battery can energize hazardous live parts inside even when the AC input power is disconnected.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area, free of conductive contaminants. (Please see specifications for acceptable temperature and humidity range).

CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery. There are no user serviceable parts inside, except for the battery.

CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before servicing the battery or installing a computer component.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near aquariums. Condensation from the aquarium can come in contact with metal electrical contacts and cause the machine to short out.

INSTALLING YOUR UPS SYSTEM

UNPACKING

The box should contain the following:

(1) USB cable (A+B type) x1; (2) power cord x4; (3) user manual x1; (4) UPS unit x1.

*PowerPanel® Business software is available on our website.

Please visit www.cyberpower.com and go to the Software Section for free download.

OVERVIEW

The OR600ERM1U/OR650ERM1UGR provides automatic voltage regulation for inconsistent utility power. The OR600ERM1U/OR650ERM1UGR features 1030 Joules of surge protection, and provides battery backup during power outages. The OR600ERM1U/OR650ERM1UGR ensures consistent power to your computer system and its included software will automatically save your open files and shutdown your computersystem during a utility power loss.

HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT

1. Make sure that the total Volt-Amp (VA) requirements of your computer, monitor, and peripheral equipment does not exceed 600VA.

2. Ensure that the equipment plugged into the battery power-supplied/surge outlets does not exceed the UPS unit's rated capacity (600VA/360W for OR600ERM1U; 650VA/360W for OR650ERM1UGR). If the rated unit capacities are exceeded, an overload condition may occur and cause the UPS unit to shut down and the circuit breaker to trip.

BASIC OPERATION

DESCRIPTION

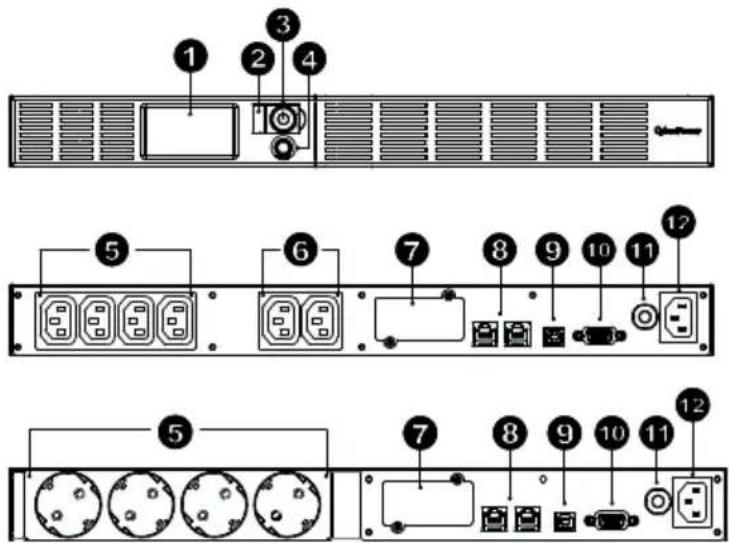

Diagram of server rack front panel with numbered labels pointing to ports and connectors

1. LCD Module Display

High resolution and intelligent LCD display shows all the UPS information with icons and messages. For more information please check the "Definitions for Illuminated LCD Indicators" section.

2. Power On Indicator

It illuminates when the UPS outlets are providing power, free of surges and spikes.

3. Power Switch

Used as the master on/off switch for equipment connected to the battery power supplied outlets.

4. LCD Display Toggle/Selected Switch

The switch can be used to select the LCD display contents including Input Voltage, Output Voltage and Estimated Run Time.

5. Battery and Surge Protected Outlets

The unit has four battery powered/surge protected outlets for connected equipment and ensures temporary uninterrupted operation of your equipment during a power failure.

6. Full-Time Surge Protection Outlets

The unit has two always on surge suppression outlets.

7. Expansion Port

Allows users to add the optional SNMP card.

8. Communication Protection Ports

Communication protection ports will protect any standard modem, fax, telephone line, broadband network or Ethernet connection.

9. USB Port to PC

The USB port allow communication from the UPS to the computer. The UPS communicates its status to the PowerPanel® Business software when connected with a USB port.

10. Serial Port to PC

The port allows connection and communications from the DB-9 serial on the computer to the UPS unit.

11. Circuit Breaker

Located on the side of the UPS, the circuit breaker serves to provide overload and fault protection.

12. AC Input

Connect the AC Power cord to a properly wired and grounded outlet.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The unit will charge in both the on and off position.
2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data storage device (Zip drive, Jazz drive, Tape drive, etc. into the battery power supplied outlets. DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device into the UPS. The power demands of these devices will overload and possibly damage the unit.
3. To protect a fax, telephone, modem line or network cable, connect a telephone cable or network cable from the wall jack outlet to the IN jack of the UPS. Then connect a telephone cable or network cable from the OUT jack on the UPS to the modem, computer, telephone, fax machine, or network device.
4. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air conditioner, refrigerator, copier, etc. Avoid using extension cords. If used, the extension cord must be grounded and rated for 15 amps.
5. Depress the power switch to turn the unit on. The power on indicator light will illuminate and the unit will "beep".
6. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the UPS off and unplug at least one piece of equipment from the battery power supplied outlets. Wait 10 seconds. Make sure the circuit breaker is depressed and then turn the UPS on.
7. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.
8. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery every three months to ensure battery life.

CYBERPOWER GREENPOWER UPS TECHNOLOGY

CyberPower's Green Commitment

CyberPower is dedicated to the development of green products, and has adopted Green practices throughout its business, including: membership in Climate Savers Computing Initiative (CSCI), accordance with the Restriction on Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment (WEEE) protocols, as well as ISO 14001 and IECQ QC080000. CyberPower pledges to provide the advanced energy solution for the environment and become a leading eco-friendly organization in the UPS industry.

ENERGY-SAVING TECHNOLOGY

Reduce Energy Cost with GreenPower UPS™ Technology

CyberPower's goal is not only to provide eco-friendly products but also to bring the best value for consumers. The advanced energy-saving design improves the operating efficiency and eliminates waste energy consumption. As a result, consumers will enjoy significant energy cost savings with the adoption of GreenPower UPS™ technology.

BATTERY REPLACEMENT

CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Service the battery under the supervision of personnel knowledgeable of batteries and their precautions.

CAUTION! Use only the specified type of battery. See your dealer for replacement batteries. CAUTION! The battery may present the risk of electrical shock. Do not dispose of batteries in a fire, as they may explode. Follow all local ordinances regarding proper disposal of batteries. CAUTION! Do not open or mutilate the batteries. Released electrolyte is harmful to the skin and eyes and may be toxic.

CAUTION! A battery can present a high risk of short circuit current and electrical shock. Take the following precautions before replacing the battery:

1. Remove all watches, rings or other metal objects.
2. Only use tools with insulated handles.
3. DO NOT lay tools or other metal parts on top of battery or any battery terminals.

4. Wear rubber gloves and boots.

5. Determine if the battery is inadvertently grounded. If inadvertently grounded, remove source of ground. CONTACT WITH A GROUNDED BATTERY CAN RESULT IN ELECTRICAL

SHOCK! The likelihood of such shock will be reduced if such grounds are removed during installation and maintenance (applicable to a UPS and a remote battery supply not having a grounded circuit)

BATTERY REPLACEMENT PROCEDURE:

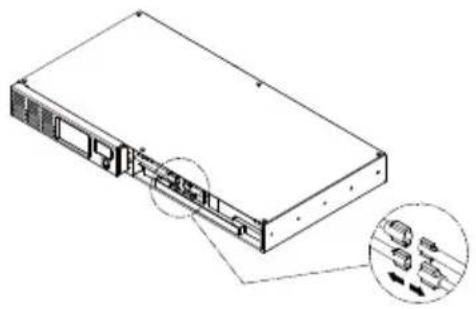

Technical line drawing of a rectangular electronic device with two internal components and directional arrows indicating movement (no text or symbols)

1. Remove the right-side of the faceplate.

Isometric technical drawing of a server rack with mounting holes and ventilation slots (no text or symbols)

1. Remove the three retaining screws on the cable protection cover then remove the cover faceplate.


Technical line drawing of a server rack with internal components and an inset close-up view (no text or symbols)

1. Disconnect the black and red cables.

Isometric line drawing of a rectangular electronic device with internal components and an arrow indicating direction (no text or symbols)

1. Remove the retaining screw of the cable connectors.

Isometric line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

1. Replace the new battery pack. Assemble the screws, cover, cable and front panel in the reverse sequence of above steps. Recharge the unit for 4-8 hours to ensure the UPS performs expected runtime.

REMINDER: Batteries are consider HAZARDOUS WASTE and must be disposed of properly. Almost any retailer that sells lead-acid batteries collects used batteries for recycling, as required by most state laws.

LCD FUNCTION SETUP GUIDE

Power Switch

Power On:Press and hold the POWER button. You will hear a constant tone for 1 second, followed by a short beep. Release the button after the short beep.Power Off:Press and hold the POWER button. You will hear a constant tone for 1 second, followed by two short beeps. Release the button after the two short beeps.

LCD Display Toggle/Selected Switch

Enter Setup Mode:Press the select button for approximately 3 seconds to access the 11 functions of the setup mode: Local Power Quality, High Transfer Voltage, Low Transfer Voltage, Sensitivity, Low Battery Warning, Self Test, Buzzer Setting, LCD Sleep, Last Fault Reason, Back to default, Escape item.Select Function:Short press the toggle to switch from the current item to the next item.Confirm Option:When an option is selected, press the toggle for 3 seconds. The icons will stop flashing after the setting has been confirmed

Function LCD Display Options Default Description
Local Power Quality	Low	NormalHighCustomer(CUS)*Only when high/ low transfer voltage is configured	Normal(195V-25 7V)	This function determines how the UPS switch to Battery Mode.3 different output voltage ranges can be chosen according to the quality of the AC utility service in your location. If your utility service is not stable, you can select Low (189V~271V). The UPS will go to Battery Mode less often to tolerate the utility power fluctuations. If your utility service is stable, you can select High (207V~253V). The unit will go to Battery Mode more often.
High Transfer Voltage	253V-271V 257V In Local Power Quality			settings, 10 fixed voltage ranges can be chosen. However, you can fine tune the High Transfer Voltage in this function.If the utility voltage is usually high, and the connected equipment can work in this condition, you can set the output voltage range higher to reduce the UPS from going to Battery Mode as often.
Low Transfer Voltage	189V-207V 195V In Local Power Quality			settings, 10 fixed voltage ranges can be chosen. However, you can fine tune the Low Transfer Voltage in this function.If the utility voltage is usually low, and the connected equipment can work in this condition, you can set the output voltage range lower to reduce the UPS from going to AVR Mode or Battery Mode as often.
Sensitivity		Normal High	Normal If the connected equipment can tolerate more power events (Example: unstable power often associated with stormy weather), select Low Sensitivity. The UPS will go to Battery Mode less often. If the connected equipment is more sensitive to power events, select High Sensitivity. The UPS will go to Battery Mode more often.
Low Battery Warning	5/6/7/8 mins 5 mins	The audible alarm will		continuously beep when the remaining runtime is less than the selected value.
Self Test Yes		Escape to function menuESC	No Action	In Line Mode, select YES to perform a Self Test on the battery.
Buzzer Setting	Buzzer on	Buzzer off=boF	Buzzer on	“b.on” is buzzer enabled; “b.of” is buzzer disabled.If b.of is selected, the unit will mute all alarms except for fault or overload condition.
LCD Sleep	Auto off	Always on=Lof	L.on	“L.on” (Auto Off is on): In Line Mode, LCD screen will off automatically after 1 min of inactivity; in Battery Mode, LCD screen is always on.“L.of” (Auto Off is off): LCD screen is always on.
Last Fault Reason		There is no confirm		page for this item. It will only show the error code for last fault reason.E01: Charger fault (Over Charge).E02: Charger fault (No Charge)E11: Battery FaultE21: Output short.E22: Over load.
Back to Default		No Action		Select Yes to restore the UPS factory default settings.
Escape Item		Return to the previous		page.

TECHNICAL SPECIFICATIONS

Model	OR600ERM1U OR650ERM1UGR
Capacity (VA) 600VA	360W 650VA/360W
Input
Frequency Range 47Hz	-63Hz (Auto Sensing)
AVR Function Yes
Output
On Battery Output Voltage	230Vac +/-10%
On Battery Output Frequency	50/60Hz +/-1%
Overload Protection On	Utility: Circuit Breaker, On Battery: Internal Current Limiting
Surge Protection
Lightning / Surge Protection	Yes
Network/ Phone/ Fax/ Modem Protection	RJ45 ( One In/ One Out )
Operating Temperature	+32°F to 104°F ( 0°C to 40°C )
Physical
Total # of UPS outlets 6	( Backup x 4 ) 4
Maximum Dimensions(LxWxH)	1U Rack 433x235x44mm
Weight	7.8 kg
Battery
Sealed Maintenance Free Lead Acid Battery	6V / 8Ah x 2
Typical Recharge Time	8 hours
User Replaceable	Yes
Status Indicators
Indicators	Power On, Wiring Fault, LCD Display
Audible Alarms	On Battery, Low Battery, Overload
Management
Self -Test	Yes
Auto-Charger	Yes
Auto-Restart	Yes
USB interface	Yes
Dry Contact	Yes
SNMP/HTTP Networking	Option

TROUBLESHOOTING

Problem Possible	Cause Solution
Full-time surge protection outlets stop providing power to equipment. Circuit breaker button is projecting from the side of the unit.	Circuit breaker has tripped due to an overload.	Turn the UPS off and unplug at least one piece of equipment. Wait 10 seconds, reset the circuit breaker by depressing the button, and then turn the UPS on.
The UPS does not perform expected runtime.	Battery not fully charged.	Recharge the battery by leaving the UPS plugged in.
	Battery is slightly worn out.	Contact CyberPower Systems about replacement batteries [e-mail]
The UPS will not turn on.	The on/off switch is designed to prevent damage by rapidly turning it off and on.	Turn the UPS off. Wait 10 seconds and then turn the UPS on.
	The battery is worn out.	Contact CyberPower Systems about replacement batteries [e-mail]
	Mechanical problem.	Contact CyberPower Systems [e-mail]
PowerPanel® Business is inactive.	USB cable is not connected.	Connect USB cable to the UPS unit and an open USB port on the back of the computer.
	The unit is not providing battery power.	Shutdown your computer and turn the UPS off. Wait 10 seconds and turn the UPS back on. This should reset the unit.

Additional troubleshooting information can be found at www.CyberPower.com

For more information, visit www.CyberPower.com or contact

Cyber Power Systems, Inc.

E-MAIL: [e-mail]

All rights reserved. Reproduction without permission is prohibited.

Isometric line drawing of a rectangular electronic device with ventilation grilles and ports (no text or symbols)

OR600ERM1U

OR650ERM1UGR

Diagram of server rack front panel with numbered labels pointing to ports and connectors

1. Ecran numérique

Diagram of a device with two rectangular blocks and directional arrows indicating movement or assembly (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows indicating movement (no text or symbols)

Isometric line drawing of a rectangular electronic device with internal components and an inset close-up showing a magnified view (no text or symbols)

Isometric line drawing of a rectangular electronic device with internal components and an arrow indicating direction (no text or symbols)

Isometric line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Isometric line drawing of a server rack unit (no text or symbols visible)

OR600ERM1U

OR650ERM1UGR
