USER MANUAL EP22756US COSTWAY
Meet delights for your home here
Home of Delights
USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville
If you're having difficulty, our friendly customer team is always here to help.
USA:cs.us@costway.com AUS:cs.au@costway.com GBR:cs.uk@costway.com FRA:cs.fr @costway.com
Refrigerator
Réfrigérateur
EP22756US
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
COST WAY
EN
Before You Start
⚠️ Please read all instructions carefully.
⚠️ Retain Instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
⚠️ Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.
FR
Avant de Commencer
- Please read the safety instruction carefully.
It maybe lead to death or badly injury.
It may hurt you by accidentally or damage the material.
Forbidden!
Do not touch the appliance when the gas leaks, turn off the valve first, and then open the window for ventilation. It may cause fire if you pull out the plug or turn the thermostat at once.
Keep the plug clean, make sure it is firmly touched. Do not press the plug, damage the power cord, or leave the power cord close to compressor lest the insulation.
Disconnect power supply before you replace the bulb, clean the appliance or you do not intend to use the appliance for long periods of time.
If the appliance has exceptional sound, odor, smoke or other unusual instance, cut off the power supply and call our service agent in time.
Do not make the appliance wet, or place a vessel of water on it.
It's forbidden to hang heavy objects on the door, or else may overturn the appliance, especially for child.
Do not place heavy objects on top of the appliance or other heat emitting devices such as thermos electric cooker booster candle and etc.
Do not store glass bottles or canned liquid food in freezer compartment because it may cause cracking. It may hurt your hands if you touch the foods in freezer compartment with your wet hands.
SAVE THESE INSTRUCTIONS CAUTION-RISK OF FIRE OR EXPLOSION
Dispose of property in accordance with Federal or Local Regulation. Flammable refrigerant used.
Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors. Leave the shelves in place so that children may not easily climb inside.

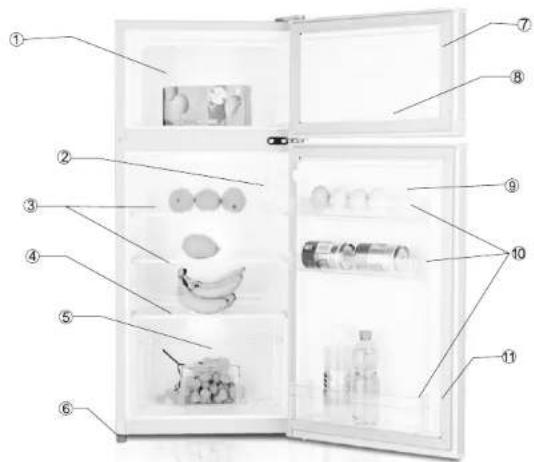

Structure figure
② Thermostat Control
③ Glass Shelves
4 Crisper Cover
⑤ Vegetable Crisper
⑥ Adjustable Feet Refrigerator Door Basket
⑦ Freezer Door Gasket
8 Freezer Door
9 Egg Rack
⑩ Refrigerator Door Storage
It's only for your reference, specific parameters are based solely on the data on nameplate.
Preparation for use Temperature selection
1 Move it correctly
☆ Carry it from the bottom, don't pull door or handle.
☆ Keep horizontal position during transportation, do not upside down the appliance, tilting level cannot be over 45°.
☆ Avoid collision or violent shock.
2 Place it correctly
☆ Place the appliance in a dry and ventilated environment. Never place it near heat emitting devices and do not expose it to direct sunlight.
☆ The appliance must be level and installed on a firm solid base/floor. Use adjustable foot to level the appliance.
☆ Behind the appliance there should be a free space at least 4-inch wide.
☆ For your personal safety, this appliance must be grounded. Do not ground it via telephone cord or gas pipe.
3 For first time
☆ Clean the appliance thoroughly, especially in the interior. Set the thermostat knob at "3". Check whether the compressor runs after connecting the appliance to electrical power supply. The temperature in freezer compartment should decrease obviously 30 minutes later.
After connecting to power supply, leave the appliance for 2-3 hours before storing the food.
☆ The temperature of the refrigerator is controlled by setting thermostat knob (ceiling of the cabinet) to a desired setting. Thermostat will keep the temperature in a stated range according to the setting.
☆ The figure on thermostat knob is position of thermostat, it does not indicate the temperature. "0" means the appliance will stop work.
From "1" to "6", the higher the figure is, the lower the temperature is. Set knob from "2" to "4" in summer and "4" to "6" in winter, "3" or "4" is suitable for ecumenical use.
1 Freezer
☆ Freezer compartment is used for freezing foods and making ice, ice cream and etc.
☆ After purchasing freezing foods, put them into freezer compartment as soon as possible before ice melt away.
Before loading the appliance with packages of warm foods, make sure that they are cooled to ambient temperature.
1 Freezer
☆ Make sure there is sufficient space for ventilation.
☆ It's easy for use if foods are packaged individually. Try not to open the door too often so as to save energy and prevent mixed odor.
☆ Freezer compartment does not fit for eggs, dairy products and etc.
☆ Icemaker box is used for making ice, put a glass vessel filled with 4/5 water into freezer compartment. Twist the icemaker box to separate ice cubes from it after the water freezes. But never twist it like the bottom:
☆ Store cooked food and fresh food separately.
2 Refrigerator
☆ Refrigerator compartment is used for storing beverages and foods that do not need to be frozen. Put the foods that need a short-time storage and fresh dishes into it.
☆ Do not put watery vegetables into refrigerator compartment directly, or the water will accelerate rot of vegetables.
☆ Before loading the appliance with packages of warm foods, make sure that they are cooled to ambient temperature.
☆ Make sure there is sufficient space for ventilation.
☆ It's easy for use if foods are packaged individually. Try not to open the door too often so as to save energy.
☆ Tropical fruits such as banana, sweet melon, pineapple is not suitable to store in the appliance for a long time.
Bulb replacement
☆ Disconnect the appliance from the power supply.
☆ Pull the light cover straight down.
☆ Remove the old light at anticlockwise direction.
☆ Revolve the new light at clockwise direction.
☆ Light parameters 115V, 10W
Methods for defrosting
☆ Freezer compartment will frost after some time working. The thick frost will influence the freezing effect. Ice should be manually defrosted as soon as it is 0.2"/5mm thick or above.
☆ Remove all foods in freezer compartment and pack them systemati-cally, then put in cool place. Take away all the accessories and set th-ermoslat at "0" position (or cut off power supply directly), open the door of freezer compartment. (Place a glass vessel of water about 122°F if you want to accelerate the procedure)
Attention
■ Do not use coarse or aggressive cleaning agents as you can damage the surface.
■ Do not use electric heaters to defrost.
COSTWAY
Cleaning the appliance
1 Cleaning the appliance
☆ Interior accessories
Remove all the brackets, door, drawers and etc. Use soft cloth to clean the appliance.
☆ Door gasket
The door gasket can be removed for cleaning and pushed into the door when finished. Clean it with neutral detergent.
2 Attention items
☆ Clean the appliance every two months to keep both interior and exterior clean.
☆ Disconnect power supply before cleaning, wash it with neutral detergent and then dry it. Door gasket should be cleaned carefully especially if it is contaminated in order to prolong the lifetime of the appliance.
Do not use hot water, eradicator, acid-base detergent, fancy soap, petrol, alcohol, organic solvent and brush.
☆ It's not allowed to wash the appliance with water directly in order to prevent rusting.
☆ Check the plug and power cord whether they're damaged.
☆ If you do not intend to use the appliance for long periods of time, disconnect the power supply, take out the foods and clean the appliance. Leave the door slightly open, and place the appliance in dry and ventilated environment.
Trouble-shooting guide
| Problems | Causation and Solution |
| The appliance fails to operate | Check the power cord is properly connected |
| Make sure thermostat knob is in operating position | |
| Cooling system do not work well | You may set thermostat knob at a low figure |
| Assure adequate air circulation around packages | |
| The appliance may be overloaded with warm foods | |
| The door is frequently opened | |
| Exposed to direct sunlight or near emitting devices | |
| The reason may be inadequate ventilation | |
| The door is not properly closed (the door may sag, the gasket may be polluted or damaged) | |
| Foods in refrigerator is frozen | You may set thermostat knob at a high figure |
| Watery vegetables may be too close to the rear wall | |
| Too much noise | Keep it at level position on firm solid base/floor |
| It may touch the wall or other objects next to it | |
| Make sure all accessories are correctly placed | |
| Drip tray on compressor may have fallen off | |
| Refrigerant tubes in compressor may touch together | |
| Unpleasant odor | Make sure the foods are sealed |
| Something is wrong with the foods | |
| You may need to clean the interior of the appliance | |
| Fails to work in winter | The ambient temperature is too low, you should turn saving switch to “ON” position |
| The appliance fails to stop work in summer | The appliance may be overloaded with warm foods |
| You may set thermostat knob at a high figure | |
| The door is frequently opened | |
| The reason may be inadequate ventilation | |
| The door is not properly closed (the door may sag, the gasket may be polluted or damaged) | |
| Water is leaking | Water outlet may be clogged |
| Make sure drip tray on compressor is correctly placed |
COSTWAY
COSTWAY
Non-trouble phenomenon
- Please check the following items before you require a service call:
| Problems | Causation |
| The noise of liquid is heard | This is a normal condition to hear the refrigerant flow during the operation and when it is not operating. |
| Silvery noise | The noise of the injection moulding when it expands or shrinks. |
| Noise of compressor when it starts to work | It's the normal noise when the compressor is operating, especially when it starts and shut down. |
| It's wet outside or around door | There may be slight drips on the surface of the appliance in drippy days, it's the same reason as there will be drips on the surface of a glass of ice water. |
| The surface of the appliance becomes hot | It's obvious to feel the temperature of the rear wall is growing when the appliance starts to work or in summer, it does not mean that something is wrong and it has no effect on the appliance. |
Major parameters
| Model | EP22756USBK/WH |
| Ratevoltage | 115V/60Hz |
| Effective Storage Volume (L) | 22 |
| Freezer Volume (L) | 73 |
| Refrigerant/Input Quantity | R600a/39g |
| Ratecurrent (A) | 1.05 |
| Foam | Cyclopentane |
COSTWAY
Addition: We keep the right to amend the design of our products without further notice. Specific parameters are based solely on the data on nameplate.
Packing list
| Model | EP22756US-BK/WH |
| Ice-make box | 1 |
| Egg rack | 1 |
| Refrigerator shelf | 3 |
| Fruit box | 1 |
| Fruit box cover | 1 |
| Manual | 1 |

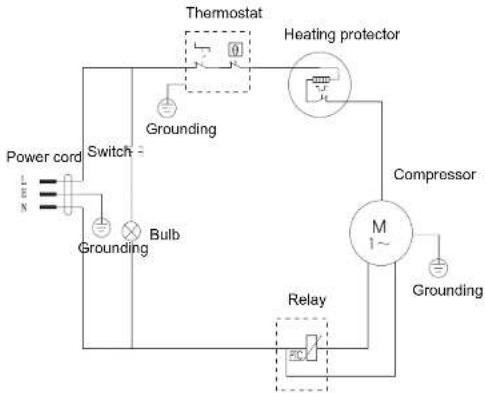

Figure of the appliance's working principle
Addition: It's only for your reference, specific parameters are based solely on the data on nameplate.
Labeled diagram of a refrigerator interior showing numbered compartments and food itemsDO NOT discard the box / original packaging.
In case a return is required, the item must be returned in original box. Without this your return will not be accepted.
Take a photo of the box markings.
A photo of the markings (text) on the side of the box is required in case a part is needed for replacement. This helps our staff identify your product number to ensure you receive the correct parts.
Take a photo of the damaged part (if applicable).
A photo of the damage is always required to file a claim and get your replacement or refund processed quickly. Please make sure you have the box even if it is damaged.
Send us an email with the images requested.
Email us directly from marketplace where your item was purchased with the attached images and a description of your claim.
