USER MANUAL DX30 Majority

What's In the Box? 3

Controls And Functions.... 4

Instructions Guide.... 5

Basic Operation.... 5

AUX Mode....6

Bluetooth Mode....7

Headphones....8

Troubleshooting And Support.... 9

Specification.... 10

Warranty.... 10

Safety Information.... 11

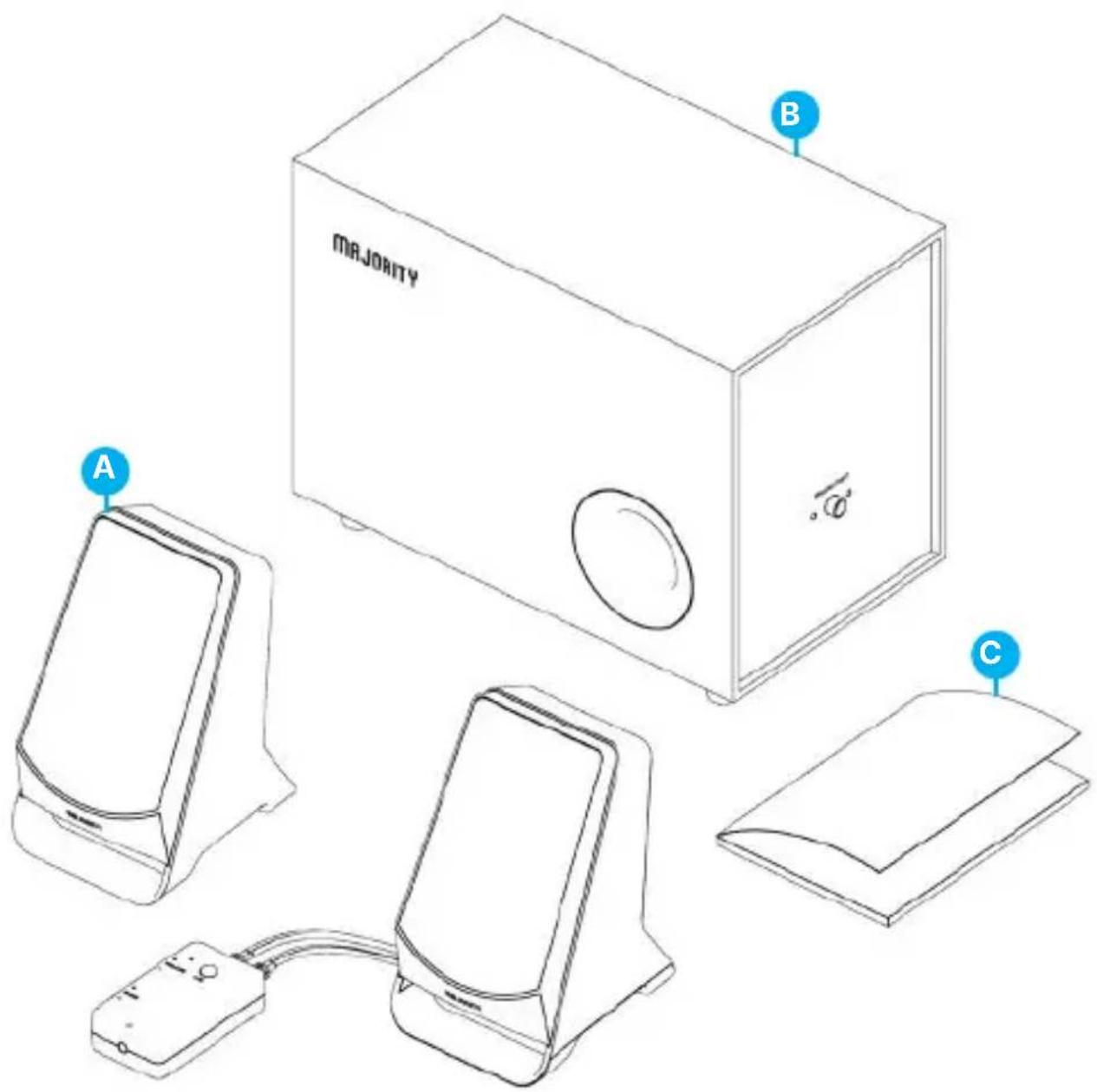

What's in the Box?

A. Majority DX30 Speakers (1 x Left Speaker & 1 x Right Speaker)
B. 1 × Subwoofer
C. 1 × User Guide

MAJORITY A B C

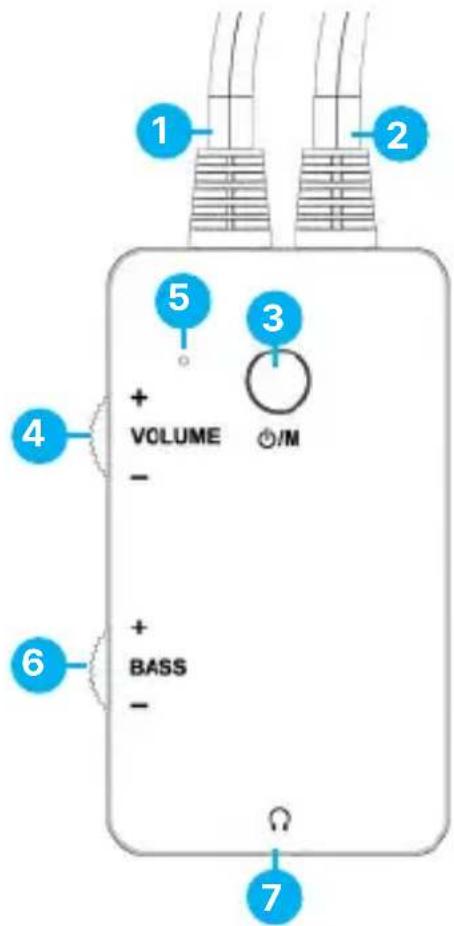

DX30 Embedded Remote Control

1. Embedded connecting cables : AUX and USB Cable
2. Embedded speakers and subwoofer connecting cables
3. Power/Mode Button
4. Volume Control
5. LED Light Indicator
6. Bass Control
7. Headphone Jack Port (3.5mm)

1 2 5 + VOLUME - 3 M 4 6 + BASS - 7

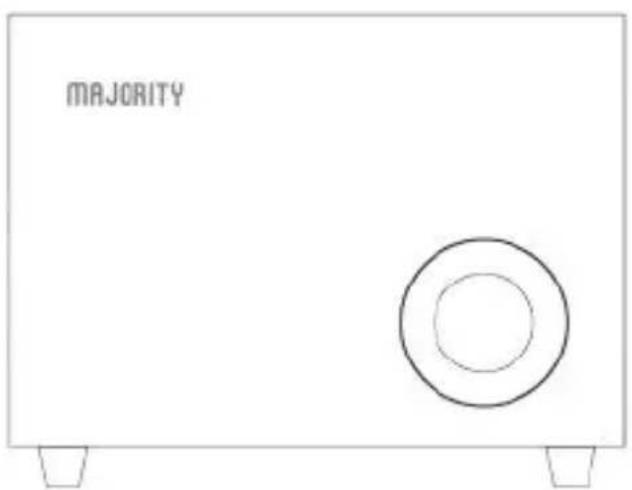

Subwoofer View

MAJORITY

1. Woofer Input

Reservoir Input 8

Basic Operation

Please note that the instructions in this manual will refer to the remote-control buttons number e.g (Ref.'number') in accordance with the diagrams on page 4.

Remove all packaging before first use, position the speakers and subwoofer where you would like to have it, unwind all embedded cables, prepare for set-up.

Connect your speakers with the subwoofer using the embedded connecting cable (Ref.1).

Connect the USB cable (Ref.1) to mains using an USB plug (not included) or connect the USB cable directly to a computer / laptop USB port.

To switch ON or OFF, press and hold down the 'Power/Mode' button (Ref.3) for 2-3 seconds.

To pause the sound on DX30 short press the 'Power/Mode' button (Ref.3) once and press once more to start playing audio.

To change between 'AUX' and 'Bluetooth' modes, short press twice on the 'Power/Mode' button.

Adjust the volume level using the rotary volume control on DX30 remote control (Ref.4).

Control bass levels using the rotary BASS control (Ref.6).

AUX Mode

The Majority DX30 can be connected using AUX, with a computer/laptop, or any other similar device which has an audio output port (AUX).

• Using the AUX cable (embedded cable), plug the other end to your computer/laptop, or other device -AUX port.
• Press and hold down the 'Power/Mode' button (Ref.3) for 2-3 seconds on the remote control to switch on.
• Once switched on, you will hear an audio saying 'AUX mode', indicating that the speakers are in AUX mode and can be used as such.
• The LED light indicator will turn show a blue light.

Short press the 'Power/ Mode' button (Ref.3) twice to switch modes in between AUX to Bluetooth Mode.

Bluetooth Mode

The Majority DX30 can be paired via Bluetooth with a phone, a tablet, or any other similar device that you would like to play audio from via the speakers.

• Short press the 'Power/Mode' button (Ref.3) twice to change the mode from AUX to Bluetooth Mode. You will then hear an audio saying 'Bluetooth Mode'. The LED light indicator will flash blue, indicating that the speakers are now ready to be paired with your device.
• Make sure your device has Bluetooth switched on. Search for 'Majority DX30' on your device and connect. The Majority DX30 will beep to indicate that your device is now paired with the Majority DX30. The LED indicator will show a blue light. You can now start playing audio from your device.
• Once paired, the DX30 will stay paired unless manually unpaired by the user, or until the device is reset.
• To unpair/disconnect your device, remove 'Majority DX30' from your device list that you paired with.
• While in Bluetooth Mode, when playing audio tracks, short press the 'Power/Mode' button (Ref.3) three times to skip and play the next audio track.
• While in Bluetooth Mode, the volume level is also influenced by the one set on your device. Please ensure that these are set as per your preferences.

Please note that Majority DX30 are not compatible with Bluetooth earbuds.

- Short press the 'Power/Mode' button (Ref.3) twice to switch modes between AUX to Bluetooth Mode or from Bluetooth mode back to AUX mode.

Headphones

The Majority DX30 PC speakers work with wired headphones. Connect the wired headphones (not included) with the Majority DX30 via the 3.5mm headphone jack port (Ref.6).

Once connected, the sound will only be heard on your headphones.

Observation Potential Cause/Solution
Bluetooth does not/could not find the Majority DX30 on your device	Make sure the Majority DX30 are not paired with other devices via Bluetooth when trying to perform a Bluetooth/search connection.Make sure the speakers are in Bluetooth Mode.If you are having issues connecting via Bluetooth, try turning off the product and leaving it switched off for 5 minutes. Connect to power source again, switch speakers on, change mode into Bluetooth if needed, and start the pairing steps again as described in this user manual.
Bluetooth connected - No Sound	Increase volume on the Majority DX30 and on your device.Check and make sure the DX30 are not paused
AUX connection- Hissing sound	If the Majority DX30 is connected with a computer or a laptop using AUX cable and USB cable for charging connected with same PC, and you experience a hissing sound, then plug the USB cable to mains instead of computer/laptop USB port. Only keep AUX cable connected with PC.Check and make sure cables are not crossed over.
AUX connection – No Sound	Disconnect the speakers from device that you connected with, leave these for 5 minutes and then re-connect with your device making sure the AUX end cable is properly inserted. Increase volume on the Majority DX30 and on your device.Check audio settings on your device.Make sure the speakers are in AUX Mode.

Support

If you require further assistance with your Majority product, please contact our support team on the Majority website: www.majority.co.uk/support

Specification

Power Supply DC 5V/1A
Mode	Bluetooth3.5 mm AUX-in
Product Dimensions	Speakers: 94mm x 118mm x 165mm.Subwoofer: 270mm x 155mm x 208mm
Weight	1.6 KG total weight1 x 4"-subwoofer2 x 3" Satellite
Bluetooth Version 5.2
Bluetooth Range Up to 10 metres

Warranty

All products come with a standard 12 month warranty. All items must be registered on www.majority.co.uk for the warranty to be valid. Once on the web page, use the menu to find 'Register Your Product'. You will also be given the chance to extend your warranty for an additional 24 months, free of charge.

1 2 5 + VOLUME - 3 M 4 6 + BASS - 7

Subwoofer Ansicht

MAJORITY

1. Woofer-Eingang

Reservoir Input 8

www.majority.co.uk/support

1 2 5 + VOLUME - 3 M 4 6 + BASS - 7

Reservoir Input 8

1 2 5 + VOLUME - 3 M 4 6 + BASS - 7

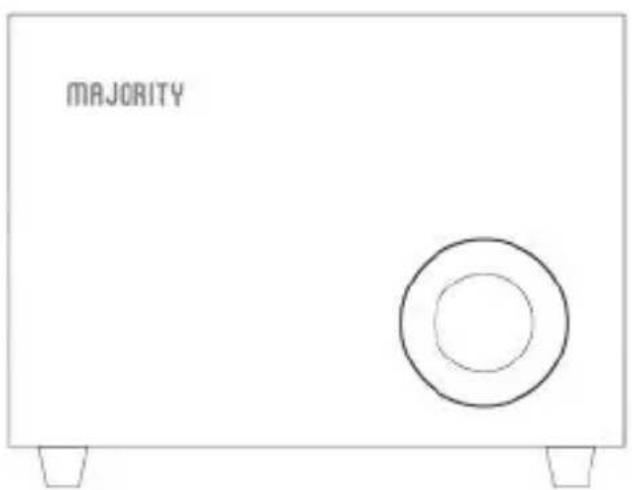

Vista del subwoofer

MAJORITY

1. Ingresso woofer

Reservoir Input 8

1 2 5 + VOLUME - 3 M 4 6 + BASS - 7

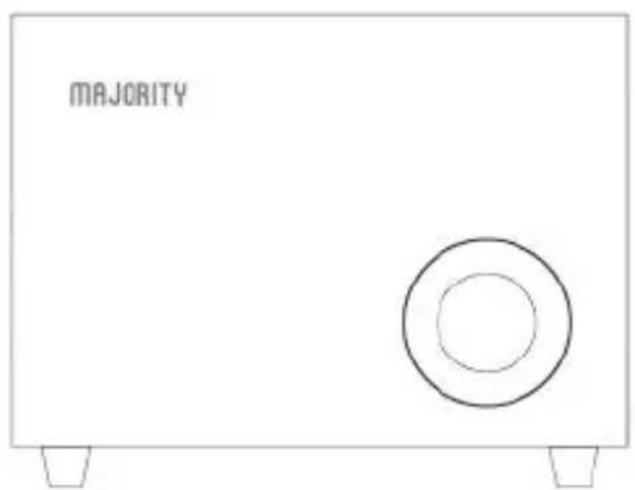

Vista del subwoofer

MAJORITY

1. Entrada Woofer

Reservoir Input 8

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's Safety Warnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, Izilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT declare under our sole responsibility that the product:

Product Name: DX30 PC Speaker Model: 1000002929/O9-WP1R-ZEAR Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008, EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham | Founder

Signed: E. Latham Date of Issue: January 2024 Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB249PT

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Email: [e-mail]

ATTENTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

RISQUE D'ELECTROCUTION NE PAS OUVRIR

IMPORTANT: Please read all instructions carefully before use and keep for future reference
