Vancouver - Fan UFESA - Free user manual and instructions

Brand	UFESA
Model	Vancouver
Product type	Pedestal fan
Model numbers	FF0350, FF0450, FF1450
Power supply	220-240 V, 50/60 Hz
Input power (model FF1450)	100.98 W
Maximum airflow (FF1450)	101.27 m³/min
Service value (FF1450)	1.00 (m³/min)/W
Noise level (FF1450)	65.80 dB(A)
Maximum air speed (FF1450)	3.85 m/s
Number of speeds	3 (low, medium, high)
Tilt adjustment	Vertical (up-down)
Base material	Plastic with round base
Adjustable height	Yes (adjustable rod, model FF1450)
Color	White or gray (depending on model)
Approximate weight	4 kg
Dimensions (height x width x depth)	130 x 40 x 40 cm (estimated)
Protection	Finger guard protective grid
Usage	Indoor only, household use
Maximum altitude	2000 m
Maintenance	Clean with a slightly damp soft cloth. Do not immerse.
Safety	Unplug before assembly/cleaning. Do not use if damaged.
Warranty	Compliant with applicable legislation (Directive 1999/44/EC)
Country of origin	European Union (manufacturer B&B TRENDS, S.L., Spain)

Frequently Asked Questions - Vancouver UFESA

How to assemble the Vancouver fan?

To assemble the fan, follow these steps: fix the round base to the adjustable rod using the plate, washer and screw. Mount the motor body onto the fan support and secure it with screws. For model FF1450, adjust the adjustable rod with the T-shaped piece. Make sure the fan is fully assembled before use.

How to clean the fan?

Always unplug the device before cleaning. Use a slightly damp soft cloth. Do not use abrasive or corrosive products. Never immerse the fan in water or any other liquid. Ensure that the motor ventilation openings are not obstructed by dust.

What are the available speeds?

The fan has 3 speeds: position 1 (low speed), position 2 (medium speed) and position 3 (high speed). To turn off, set the selector to position 0 and unplug the device.

Can I use the fan outdoors?

No, the Vancouver fan is designed exclusively for indoor household use. Do not expose it to moisture or inclement weather. Place it at least 2 meters away from water sources.

What to do if the fan does not work?

First check that the device is plugged in and that the wall outlet is working. Make sure the speed selector is not set to '0'. If the problem persists, contact a service center authorized by B&B TRENDS, S.L. Do not attempt to repair the device yourself.

How to adjust the fan tilt?

To adjust the vertical tilt, firmly hold the motor body and orient it to the desired direction (up or down). Adjustment is manual without tools.

Is the fan under warranty?

Yes, the product is guaranteed in accordance with applicable legislation (Directive 1999/44/EC). The warranty covers manufacturing defects during the legal period. Keep your purchase receipt. Any repair must be carried out by an authorized service center of B&B TRENDS, S.L.

Where to find the user manual?

The user manual is available on notice-facile.com for the Vancouver model from UFESA. You can download it for free in PDF format. A paper version may also be included in the original packaging.

The fan makes noise, is this normal?

A slight ventilation noise is normal. The maximum noise level is 65.80 dB(A) for model FF1450. If the noise is abnormal (clicking, grinding), check that the fixing screws are tight and the blade does not rub against the grid. If the problem persists, contact technical service.

Can I replace the power cord myself?

No, if the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any risk. Do not attempt to repair it yourself.

USER MANUAL Vancouver UFESA

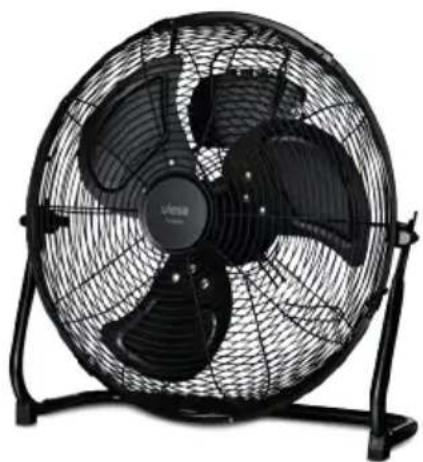

Black industrial fan with visible blades and mesh grille, mounted on a stand (no text or symbols)

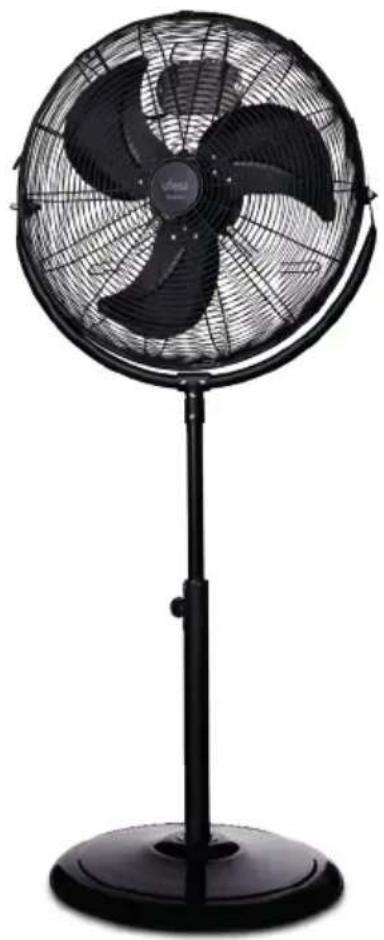

Black industrial fan with visible blades and mesh grille, mounted on a stand (no text or symbols)

Black outdoor fan with four blades mounted on a stand (no visible text or symbols)

WE WOULD LIKE TO THANKS YOU FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1 Motor body
2 Round base*
3 Selection buttons
4 Fan cable
5 Handle
6 Cable housing
7 Plate, washer and screw *.
8 Adjustable rod mounting nut*
9 Fan bracket*
10 Adjustable rod*
11 Body adjustment piece and adjustable rod piece ^* (*) FF1450 model

SAFETY INSTRUCTIONS

This appliance may be used by children over 8 years of age, by people with physical, sensory or mental disabilities and by the inexperienced, provided they are correctly supervised and instructed regarding its safe use and are aware of the risks involved. Children must not play with the appliance or carry out unsupervised cleaning and user maintenance.

If the power cord is damaged it should be changed by the manufacturer's technical support service, or by a similarly qualified person, in order to avoid any danger.

It is necessary to disconnect the appliance before assembling, disassembling and cleaning.

This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT INFORMATION

This appliance is intended exclusively for domestic use for ventilation of rooms: do not use it for other purposes. Any other usage should be considered improper and dangerous. The manufacturer shall not be held responsible for any damage resulting from improper, incorrect and irresponsible use and/or for repairs made by unqualified technicians. Do not insert fingers or any other objects through the fan's protector grille.

The appliance must be kept out of the reach of children. Do not use the appliance if it is not working properly, or if it appears to be damaged; if in doubt, take it to a professional, qualified technician. Do not move the appliance while it is operating.

When the appliance is not being used, remove the plug from the mains socket. Do not touch the appliance with wet hands or feet. Do not drag the appliance by the cable to move it. Do not pull the cable or the appliance itself to remove the plug from the mains socket. To clean the appliance, follow the instructions in the section of the manual dedicated to cleaning and maintenance.

B&B TRENDS, S.L. will not be held liable for any harm or damage which may occur to people, animals or objects as a result of failure to observe the aforementioned warnings.

INSTALLATION

• After removing the packing, check the condition of the appliance; if in doubt, do not use it and take it to a professional, qualified technician. The packaging (plastic bags, polystyrene, fixtures, etc.) should be kept out of the reach of children, since they are a potential source of danger, and they should be disposed of in the appropriate specific containers for selective waste collection. Warning: any stickers or leaflets attached to the grille must be removed before using the appliance.
- Before connecting the appliance, check that the voltage values indicated on the characteristics plate correspond to those of the electric mains supply. In the event that the mains socket and the appliance plug are incompatible, have the plug changed to one that is suitable by a professional, qualified technician. They will check that the cable part of the plug is adapted to the power used by the appliance. In general, the use of adapters or extension leads is not advisable; if this is necessary, they must be in accordance with the safety regulations and their amperage capacity must not be less than the maximum for the appliance.
- Before each usage, check that the appliance is in good condition and that the power cord is not damaged: if in doubt, check with a professional, qualified technician.
- The mains socket must be easily accessible in order to disconnect the appliance with ease in case of emergency.
- Position the appliance away from:
- sources of heat (e.g. open flames, gas ovens, etc.)
- deposits of liquids (e.g. sinks, etc.) to avoid falling into or splashing with water (minimum distance 2 metres)
- fabrics (curtains, etc.) or loose materials, which may obstruct the ventilation grille; in addition, check that the front part is free of volatile materials (dust, etc.).
- The supporting surface must be stable, flat and even (so that the appliance does not tip over).

ASSEMBLY

Warning: the fan may be used only if it is fully and properly assembled, that is to say, complete with the base and the grille.

Warning: always disconnect the appliance from the mains supply before assembling. if in doubt, have the operation checked or carried out by a qualified technician.

ASSEMBLY FF1450 MODEL

1. Place it on the round base face down and attach it with the plate to fix the base, place the washer and screw it together with the adjustable rod so that the base and rod are fixed (7).
2. Take the main body of the fan, place it on the fan bracket (9) and fix it in place with the screws so that it is firmly attached and then secure the adjustable "T" shaped rod with the screws.

USE

Before each use check that the appliance is in good condition and that the electric cable is not damaged; if the electric cable is damaged, it must be replaced by the manufacturer or by the technical assistance service or, in the event, by a qualified technician, in order to avoid any type of danger.

Insert the plug into the mains socket.

Ventilation: Select the required speed by pressing the speed selector using the following positions: 1 - Minimum speed 2 - Medium speed 3 - Maximum speed

To turn the fan off, turn the selector to the "0" position and then remove the plug from the mains socket.

Vertical inclination (high-low): this is adjusted by holding the motor body and tilting it in the desired direction.

During long periods of inactivity, disconnect the plug from the mains socket.

CLEANING AND MAINTENANCE

Warning: before carrying out the normal cleaning operations, remove the plug from the mains socket.

• To clean the appliance, use a soft, slightly damp cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or any other liquid: if this happens, do not immerse your hand in the liquid and, first of all, remove the plug from the mains socket. Carefully dry the device and check that all the electrical parts are dry as well: if in doubt, contact a qualified technician.
• It is essential to keep the ventilation holes of the motor free of dust and fluff.
• In case of long periods of non-use store the fan, protecting it from dust and moisture; we recommend using the original packaging.
• If you decide to stop using the appliance, it is advisable to render it inoperational by cutting the power cable (first ensuring that the plug has been disconnected from the mains socket) and making sure that parts which could be dangerous to children (e.g. the blade) may cause no harm.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU regarding electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic

waste treatment centre.We hope you are satisfied with this product.

FF0350 - FF0450 - FF1450
Description Symbol Value Unit
Maximum fan flow rate F 43,72 (FF0350)		90,24 (FF0450)101,27 (FF1450)	m^3/min
Fan power input P 42,78 (FF0350)		101,81 (FF0450)100,98 (FF1450)	W
Service value SV 1,02 (FF0350)		0,89 (FF0450)1,00 (FF1450)	(m^3/min)/W
Standby power consumption PSB - W
Fan sound power level LWA 60,40 (FF0350)		65,65 (FF0450)65,80 (FF1450)	dB(A)
Maximum air velocity C 2,65 (FF0350)		3,95 (FF0450)3,85 (FF1450)	m/s
Measurement standard for service value	IEC 60879:1986 (CORR. 1992)

FRANÇAIS

NOUS VOUS REMERCIONS D'AVOIR ACHETÉ UN PRODUIT UFESA. NOUS ESPÉRONS QUE LE PRODUIT RÉPONDRA À VOS ATTENTES.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LES INSTRUCTIONS D'UTILISATION AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CES INSTRUCTIONS DANS UN ENDROIT SÛR POUR UN USA-GE ULTÉRIEUR.

DESCRIPTION

ÉLIMINATION DU PRODUIT

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
