MX-PM2778 - Popcorn machine Mx Onda - Free user manual and instructions

USER MANUAL MX-PM2778 Mx Onda

MANUAL DE INSTRUCTIONS

MxOnda

MAQUINA DE PIPOCAS

MODELO: MX-PM2778

C E

ANTES DE SEU USO LEIA ATENTAMENTE Este MANUAL

ATENÇAO

This unit operates with a voltage of 230V , to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.

Cumple con

RoHSV

INTRODUCTION

Thanks for purchasing this product. The popcorn machine MX-PM2778 is very appropriate to prepare popcorn quickly and conveniently. Its design makes this product a "retro" style decoration.

Among other features the following:

Power consumption: 1200 W
- Old fashioned movie popcorn maker
- Popcorn opening mouth
- Lid with measured for corn kernels
- Detachable

BEFORE CONNECTING THE DEVICE

• Read the following instructions before use and retain for later reference.
• Check that the mains supply voltage is 230V with earth plug.
• If you use an extension lead only use an extension lead, which is in good condition, which earth cable and is suited to the power of the equipment.
• The manufacturer declines all responsibility for any damage resulting from improper, incorrect or careless use of the appliance.
• The electrical safety of this device is guaranteed only in case it is connected to an effective earth as the in force procedure of safety foresee. The manufacturer declines any responsibility for hurts derived from the mistake earthed of the installation. In case of doubts, consult a qualified electrician.

• After unpacking, check the appliance for damage. If in doubt, do not use the appliance; contact a qualified technician.

• When use extension lead extreme the precautions and prevent the cable from hanging for the table, since the children might pull him or one might stumble someone with him.

• To be protected from the risk of electrical exhausts and from corporal personal injuries, never introduce the cord, plug or base unit into water or any other liquid.
• Packaging materials (plastic bags, polystyrene foam, etc.) are a potential source of danger and must be kept out of reach of children.
• This product uses hot air to work, never put butter, oil or other liquid inside the container for corn kernels.

SECURITY MEASURES

• This appliance can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved, children shall not play with the appliance. Cleaning an user maintenance shall not be made by children without supervision.
• This appliance is designed for domestic use only and not for commercial applications. No responsibility is accepted for damage resulting from improper use or non-compliance with the instructions.
• The breach of these warnings and instructions of security could give as result serious burns or injuries.
• When the popcorn maker is connected or hot, do not go and supervise it does not leave come bear the children.
• Place always the popcorn maker on a stable and levelled surface, do not use in the outside.
• To disconnect the device of the power supply, pull softly of the plug. Never do it stretching of the cord.
• Unplug the popcorn maker and wait for it to cool before cleaning it.
• This device operates at high temperatures, which, during handling DO NOT touch the top of the main body or inside the container where the corn kernels are poured. If necessary use gloves or oven mitts.
• Prevent the cord hang over the edge of the table top or counter, or touch hot surfaces.
• Unplug the popcorn maker, if you are not using, when a power outage occurs, "skip" a fuse or circuit and prior to self maintenance cleaning.
• Do not place the popcorn maker above or near burners to gas, electrical plates or warm ovens.

• Do not use attachments not recommended by the manufacturer. The use of attachments not recommended by the appliance manufacturer may cause fire, electric shock or personal injury.

• In the event of failure or malfunction, switch off the appliance and do not attempt to carry out repairs. Contact an authorised Service Centre and insist on original spare parts. Failure to observe the above points may affect the safety of the appliance.

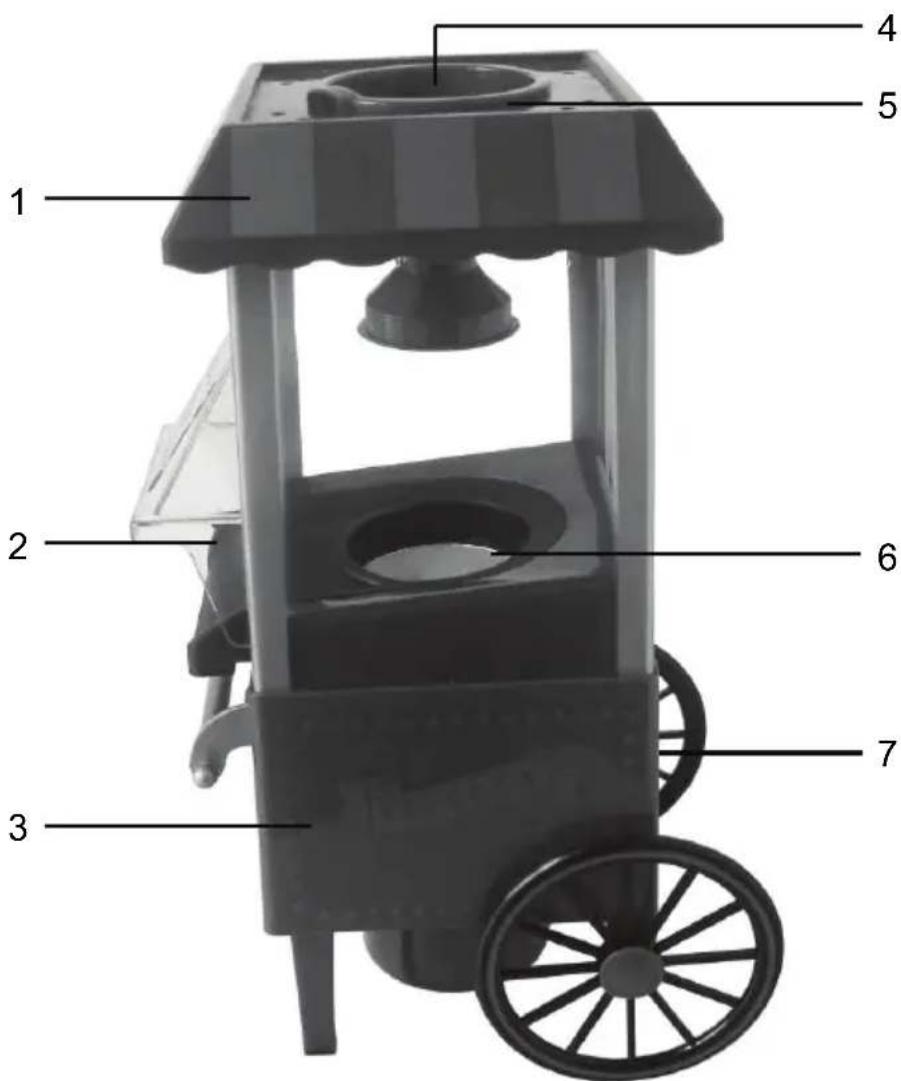

CONTROLS AND FUNCTIONS

1. Top cover
2. Popcorn opening mouth
3. Main Body
4. Lid with measured for corn kernels
5. Hole for corn kernels
6. Container for corn kernels
7. Switch on / off

BEFORE USING THE POPCORN MAKER FOR THE FIRST TIME

• Read all sections of this manual.
• Remove the lid with measured for corn kernels 4, and remove the top cover 1 by pulling it upwards.
• Wash with soapy water the lid with measured 4, DO NOT use abrasive cleaners or scouring liquid, then dry with a cloth
• The top cover 1, the main body 3 and the container for the corn kernels 6 have been cleaned with a damp cloth. DO NOT use scouring pads, alcohol, solvents, gasoline or abrasive liquids, then carefully dry all surfaces with a soft cloth.
• Replace the top cover above the main body and the lid with measured for corn kernels again.

USE OF POPCORN MAKER

1. Make sure the top cover is properly attached to the main body, otherwise it may fall, splashing the room with popcorn when they were getting.
2. Insert the plug of the power cord into an electrical outlet of 230V , provided ground.
3. Completely fill (to the brim) the lid with measured for corn kernels 4 and insert through the hole feeder 5.

VERY IMPORTANT: Never add less or more grains of corn than will fit in the metering pan. If you add less quantity, can many kernels of corn are not made and if you add more quantity than can fit in the dosing pot, popcorn can burn and smoke comes out of the machine because more popcorn which I do fit in the container.

1. After dumping the corn kernels into the container to the corn kernels 6, replace the lid with measured for corn kernels 4 in its housing, thus can prevent out popcorn at the bore-feeder 5.
2. Place a bowl or similar container under the opening mouth 2. The bowl or container must be high to match the ramp of the outlet to avoid the popcorn once made go to bowl or container.
3. Press the switch on / off 7 and the hot air generator will start and in a minute start to come popcorn.

When you see that all the corn kernels have fully popped turn off the pop maker pressing switch 7.

1. If necessary can tilt forward the popcorn machine to make sure there are no popcorn inside the container.
2. Serve popcorn to your liking, just how out of the machine and add salt, pepper, sugar, candy, etc.
3. Before returning to prepare popcorn, you should allow at least 15 minutes for the hot air generator cool. Also you should check for any remaining corn kernels or popcorn inside the container 6.

Note:

• Remember NEVER to introduce butter, oil or other liquids into the container for corn kernels.
• Corn kernels are introducing completely dry, can NOT be coated or covered with oil, butter or other liquid.
• After using the popcorn machine must wait at least 15 minutes for the hot air generator cool.

CLEANING AND MAINTENANCE

1. Unplug the popcorn maker from the electrical outlet.
2. Remove the lid with measured for corn kernels 4, and remove the top cover 1 by pulling it upwards.
3. Wash with soapy water the lid with measured 4, DO NOT use abrasive cleaners or scouring liquid, then dry with a cloth.
4. The top cover 1, the main body 3 and the container for the corn kernels 6 have been cleaned with a damp cloth. DO NOT use scouring pads, alcohol, solvents, gasoline or abrasive liquids, then carefully dry all surfaces with a soft cloth.
5. Replace the top cover above the main body and the lid with measured for corn kernels again.

• Before placing the popcorn maker, this should be completely clean and dry.
• Keep the popcorn maker in a dry, dust-free in their own packaging or cover with plastic wrap, paper, etc.
• Given the old fashioned movie popcorn maker design can be placed somewhere how decorative element. Always dust-free and away from direct sunlight.

TECHNICAL SPECIFICATIONS

Power supply 220 - 240 V ~ 50 Hz

Power consumption 1200 W

Heat generator hot air

Cable length 0.8 m

Dimensions 178 x 240 x 385 mm (w, d, h)

Weight 1.24 Kg

Specifications subject to change without notice.

This product complies with the European Directives 2004/108/EC (EMC - Electromagnetic Compatibility) and the 2006/95/EC (LVD - Low Voltage Directive) relative to Low Tension Security.

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

Telephone of information and Technical Service: [phone]

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

E-MAIL: [e-mail]

http://www.mxonda.es

MANUALE DIISTRZIONI

MxOnda

POPCORN MACCHINA

MODELLO: MX-PM2778

CE

PRIMA DI UTILIZZARE IL MANUALE DI LEGGERE ATTENTAMENTE

ATTENZIONE

MANUEL D'INSTRUCTIONS

MxOnda

MACHINEPOPCORN

MODELE: MX-PM2778

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

ATTENTION
