MXPM2780 - Popcorn machine Mx Onda - Free user manual and instructions

Features	Details
Product type	Popcorn machine
Capacity	About 2.5 liters of popping corn
Power	1200 Watts
Preparation time	About 3-5 minutes
Material	Plastic and metal
Additional features	LED lighting, on/off switch
Usage	Ideal for movie nights, parties, and events
Maintenance	Easy cleaning with a damp cloth, removable dishwasher-safe parts
Safety	Overheat protection, non-slip feet
Dimensions	About 25 x 25 x 30 cm
Weight	About 1.5 kg
Warranty	2 years

Frequently Asked Questions - MXPM2780 Mx Onda

Why is my Mx Onda MXPM2780 popcorn machine not heating?

Check that the device is properly plugged into a working electrical outlet. Also make sure the lid is properly in place, as the machine may not operate if it is open.

How do I clean my Mx Onda MXPM2780 popcorn machine?

Unplug the machine and let it cool down. Use a damp cloth to wipe the outside and a soft brush to remove popcorn residues inside. Do not immerse the machine in water.

What type of corn can be used with the Mx Onda MXPM2780?

Use standard popping corn. Avoid corn varieties not intended for popping as they will not yield good results.

Why are my popcorns not popping properly?

Make sure the corn is fresh and that you do not put too much in the machine. Excess corn can prevent proper heat circulation.

Can I add butter or oil during cooking?

It is recommended to add butter or oil after cooking to avoid blocking the machine's mechanism. You can melt the butter separately and pour it over the popcorn once ready.

Does the machine make noise during operation?

A slight noise is normal during cooking, but if you hear strange noises or clicking, this could indicate a problem. Check that nothing is blocking the mechanism.

Is there a warranty for the Mx Onda MXPM2780?

Yes, the machine usually comes with a 1-year warranty against manufacturing defects. Check your documentation for more details.

Where can I find spare parts for my popcorn machine?

Spare parts can be ordered from Mx Onda customer service or their official website. Make sure to have the model and serial number handy.

USER MANUAL MXPM2780 Mx Onda

Black and white photo of a Popcorn Mx Onda portable coffee maker with open lid and perforated base (no visible text or symbols on device body)

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

ATENCIÓN

MANUAL DE INSTRUÇÕES

Mx Onda

MÁQUINA DE PIPOCA

MODELO: MX-PM2780

Black and white photo of a Popcorn Mx Onda portable coffee maker with open lid and perforated base (no visible text or symbols on device body)

CE

ANTES DE SEU USO LEIA ATENTAMENTE ESTE MANUAL

ATENÇÃO

Warning symbol with steam inside a triangle, indicating heat or smoke hazard

MUITO IMPORTANTE!

Black and white photo of a Popcorn Mx Onda portable coffee maker with open lid and perforated base (no visible text or symbols on device body)

CE

AVANT UTILISATION LIRE ATTENTIVEMENT CE MANUEL

ATTENTION

Black and white photo of a Popcorn Mx Onda portable coffee maker with open lid and perforated base (no visible text or symbols on device body)

CE

PRIMA DI UTILIZZARE IL MANUALE DI LEGGERE ATTENTAMENTE

ATTENZIONE

Black and white photo of a Popcorn Mx Onda portable coffee maker with open lid and perforated base (no visible text or symbols on device body)

CE

VOR GEBRAUCH SORGFÄLTIG LESEN SIE DIESE

ACHTUNG

Black and white photo of a Popcorn Mx Onda portable coffee maker with open lid and perforated base (no visible text or symbols on device body)

CE

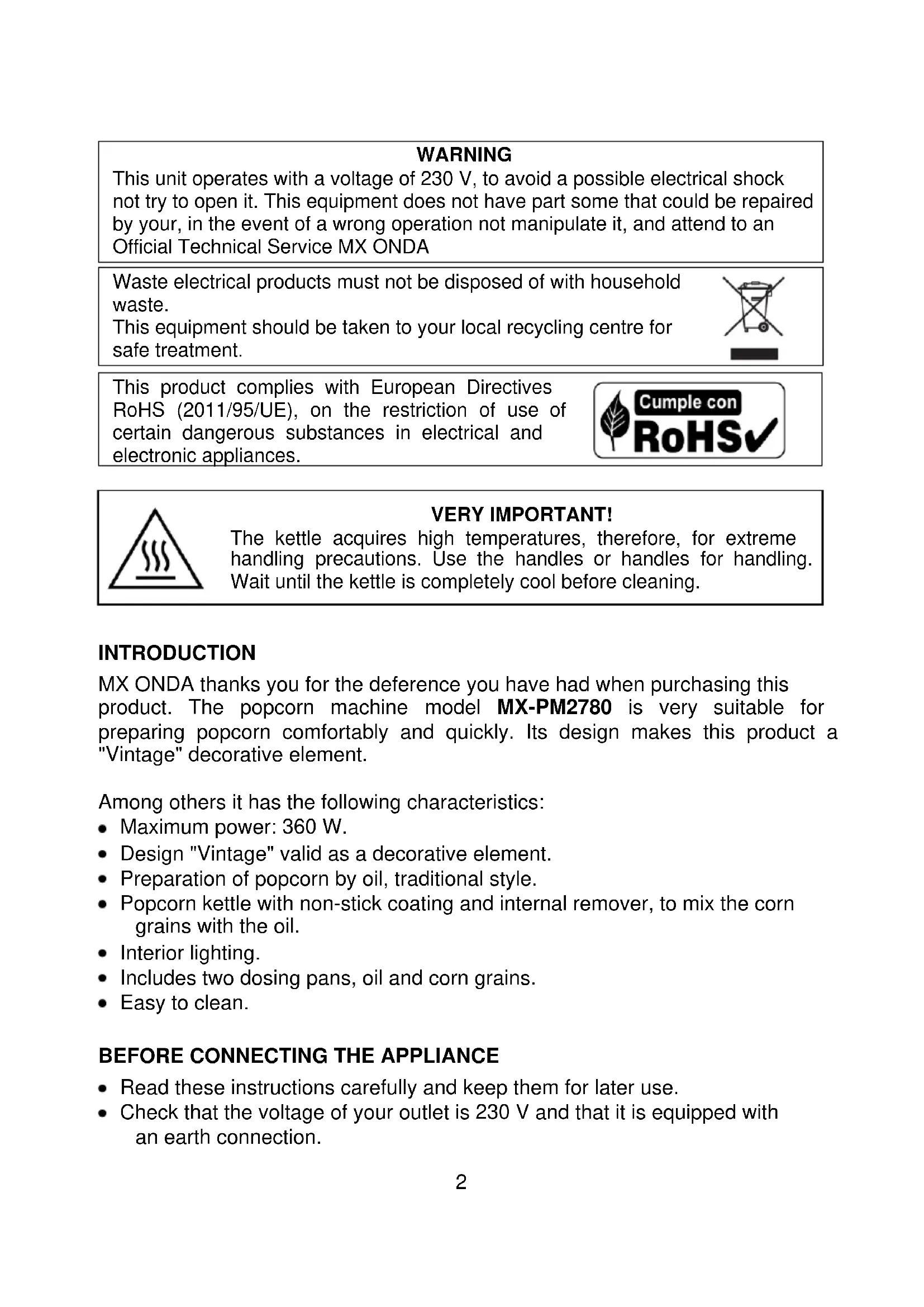

BEFORE USE READ THIS INSTRUCTION MANUAL

WARNING

This unit operates with a voltage of 230 V, to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/95/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.

Cumple con RoHS✓

VERY IMPORTANT!

The kettle acquires high temperatures, therefore, for extreme handling precautions. Use the handles or handles for handling. Wait until the kettle is completely cool before cleaning.

INTRODUCTION

MX ONDA thanks you for the deference you have had when purchasing this product. The popcorn machine model MX-PM2780 is very suitable for preparing popcorn comfortably and quickly. Its design makes this product a "Vintage" decorative element.

Among others it has the following characteristics:

• Maximum power: 360 W.
- Design "Vintage" valid as a decorative element.
- Preparation of popcorn by oil, traditional style.
- Popcorn kettle with non-stick coating and internal remover, to mix the corn grains with the oil.
- Interior lighting.
- Includes two dosing pans, oil and corn grains.
- Easy to clean.

BEFORE CONNECTING THE APPLIANCE

• Read these instructions carefully and keep them for later use.

• Check that the voltage of your outlet is 230 V and that it is equipped with an earth connection.

• The manufacturer declines any responsibility for damages resulting from improper, incorrect or reckless use of the device.

• If you require the use of an extension cord, use only one that is in good condition, with a plug provided with an earth connection and suitable for the power of the appliance.
• The extension should be placed in such a way that it does not hang from the worktop or table so that children can pull it or they may trip over it by mistake.
• The electrical safety of this device is guaranteed only in case it is connected to an effective earth ground, as provided by current safety regulations. The manufacturer declines any responsibility for damages resulting from the lack of grounding of the installation. If in doubt, consult a qualified electrician.
• To protect against the risk of electric shock and personal injury, do not insert the cord, plug, or main unit into water or any other liquid.
• After removing the packaging, check that the appliance is not damaged. If in doubt, do not use it; Contact the technical assistance staff.
• Do not force the kettle, to extract it or insert it do not exert too much force as it can damage it. If you have to do excessive force, is that you are doing something wrong, see the section insertion / extraction of the kettle.
• Packaging materials such as plastic bags, polystyrene foam, etc., should not be left within the reach of children, as they are a potential source of danger.

SECURITY MEASURES

• This product is not a toy, children should not play with this device. The cleaning and maintenance to be performed by the user can not be done by children, unless they are over 8 years old and are supervised.
• Failure to comply with these safety warnings could result in burns or serious injury.
• This device can not be used by children (under 8 years old) or people with reduced physical, sensory or mental abilities or without experience and knowledge, unless they have received appropriate instructions on the use of the device and are supervised by an adult or responsible person.
• This device is designed only for domestic, non-professional use. MX ONDA will not accept any liability and the guarantee will be invalid in case of improper use or failure to comply with the instructions.
• While the popcorn machine is connected or still hot, do not neglect its vigilance and keep it out of the reach of children.

• Always place the popcorn machine on a dry, stable and level surface, do not use it outdoors.

• During the process of making the popcorn, the door of the popcorn machine must remain closed.

• To disconnect the appliance from the mains, gently pull the plug from the socket. Never do it by pulling the cable.
• Unplug the popcorn machine and wait for the bucket to cool before proceeding to clean it.
• Make sure that the cable does not hang over the edge of the table, countertop or counter, or that it touches hot surfaces.
• This device works at high temperatures, so during its use DO NOT touch the kettle. Use the handles or handles for handling.
• Disconnect the popcorn machine, whenever it is not being used, when there is a power cut, "jump" a fuse or automatic and before proceeding with the maintenance cleaning itself.
• Do not place the popcorn machine on or near gas burners, hot plates, or hot ovens.
• The use of accessories not recommended by the appliance manufacturer may cause fire, electric shock or bodily injury.
• In case of failure, anomalies, if the popcorn machine has fallen, the plug or other parts are damaged, or the cable is damaged, turn off the device and do not try to repair it on your own. Contact the nearest MX ONDA Official Technical Service.

INSERTION AND EXTRACTION OF THE POPCORN KETTLE

The kettle can be removed for easy cleaning, remember to unplug the popcorn machine from the mains socket and wait until it is completely cold before cleaning it.

To remove the kettle follows the following process:

1. Disconnect the power plug from the kettle, from the connector located on the top of the inside of the main unit.

2. Gently move the kettle up, remove the lugs from the support brackets and remove the kettle from the main unit.

To insert the kettle follows the following process:

1. Insert the kettle into the interior of the main unit and align the lugs of the kettle with the slots of the support brackets, then slightly move the kettle downwards.

2. Release the kettle so that it is vertical and the gears are engaged.

3. Attach the kettle power plug to the connector on top of the inside of the main unit.

BEFORE USING THE POPCORN MACHINE FOR THE FIRST TIME

• Read all sections of this manual carefully.
• Remove the popcorn kettle (see previous section).
• Clean the inside and outside of the kettle with a cloth lightly moistened with soapy water. Then dry it with a cloth.
• Wash the dosing pans with soapy water, DO NOT use scouring pads or abrasive liquid cleaners, then dry them with a cloth.
• The housing or main body must be cleaned with a slightly dampened cloth. DO NOT use scourers, alcohol, solvents, gasoline or abrasive liquid products, then carefully dry all surfaces with a soft cloth.
• Put the popcorn kettle in its housing.

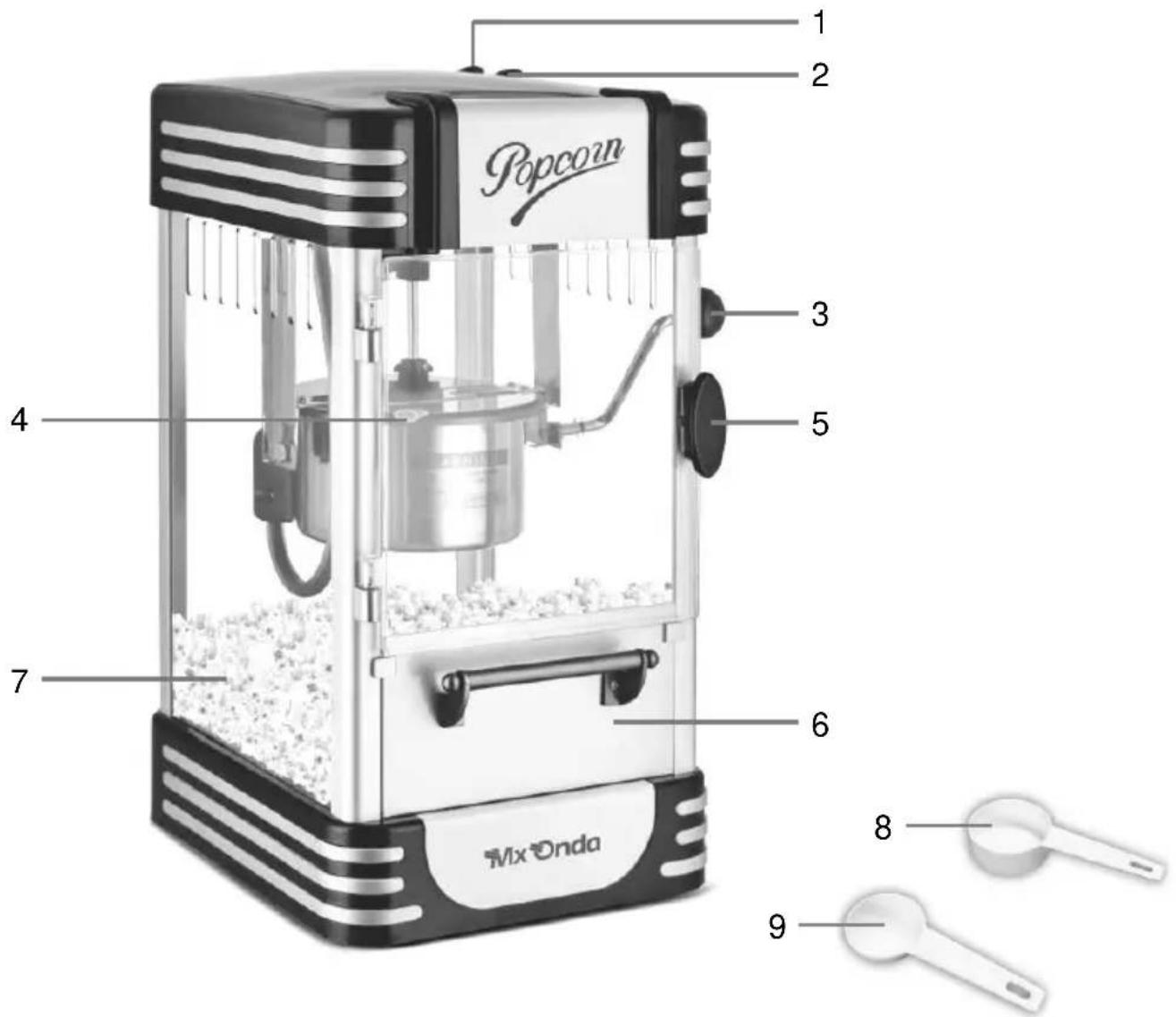

CONTROLS AND FUNCTIONS

1 2 Popcorn 3 5 4 7 6 Mix Onda 8 9

1. Switch and indicator on / off
2. Switch and indicator inside light
3. Popcorn kettle handle
4. Handle of the lid of the kettle
5. Main door handle
6. Folding door
7. Popcorn deposit
8. Measuring spoon for corn grains
9. Oil measuring spoon

USE OF THE POPCORN MACHINE

1. Check that the kettle is correctly attached to the supports, which is vertical and the gears are engaged. Just as the kettle feeding plug is connected to the connector of the main unit.
2. Insert the plug of the power cord into a 230 V mains socket with a ground connection.
3. Turn on the popcorn machine using the on / off switch 1, and wait 3 to 5 minutes for the bucket to preheat. Once the bucket is hot, turn off the popcorn machine with the on / off switch 1.
4. With great care to avoid burns, open the lid of the kettle with the handle 4, and using the oil measuring spoon 9 pour a measure of oil into the inside of the kettle (approximately 3/4 of the dosing spoon). This measure may vary depending on the user's taste.
5. Completely fill the measuring spoon 8 with corn kernels and insert them into the kettle.

VERY IMPORTANT:

• Never add more or less corn grains than can fit in the measuring pan. If you add less, the popcorn will come out very oily and if you add more, the popcorn will not taste properly and you may get burned.

• This product uses oil for its operation, do not put butter or other liquid inside the kettle.

• Once the corn grains and the oil have been poured into the kettle, close the lid again with the handle 4.

• Close the swing door 6 and then close the main door. If you do not close the doors, it may happen that the popcorn is expelled to the outside.

• Press the on / off switch 1 and the popcorn machine will start, after a few minutes popcorn will start to pop into the popcorn machine reservoir 7. The remover system that incorporates the kettle, mixes the oil with the grains of corn and prevents the corn grains from burning.

• When you notice that there are no more popcorn, turn off the popcorn machine by means of the switch 1. Open the main door and with the handle of the kettle 3, tilt the tray to empty it of the popcorn that may be inside the kettle.

• Repeat steps 4 to 9 as many times as necessary, to prepare the desired amount of popcorn.
• Serve the popcorn according to your preferences, as they leave the machine or add salt, pepper, sugar, caramel, etc.

INNER LIGHT

To turn the inner light on or off, press the inner light on / off switch 2.

CLEANING AND MAINTENANCE

1. Unplug the popcorn machine from the mains and wait for the time necessary for it to be completely cold before cleaning it.
2. Remove the kettle as indicated in the section "INSERTION AND EXTRACTION OF THE POPCORN KETTLE".
3. With a kitchen paper napkin, remove any traces of oil and popcorn that may be inside and outside the kettle.
4. Clean the inside and outside of the kettle with a cloth lightly moistened with soapy water, then dry it with a cloth.
5. Clean the inside of the popcorn machine with a cloth slightly moistened with soapy water, then dry it with a cloth.
6. The housing or outside of the popcorn machine can be cleaned with a slightly dampened cloth.
7. Wash the dosing pans with soapy water.
8. Replace the tray in its housing.

Note:

Do not use scouring pads as they can scratch and damage surfaces, nor use abrasive products, alcohol, solvents or gasoline. Dry all surfaces carefully with a soft cloth.

TECHNICAL SPECIFICATIONS

Supply voltage 220 - 240 V \~ 50/60 Hz

Consumption 330 - 360 W

Lighting bulb 10 W E12 type S

Cable length 1 m

Measures 245 x 290 x 440 mm (l, a, height)

Weight 3.3 Kg

Specifications subject to change without notice.

This product complies with the European Directives 2004/108/EC (EMC – Electromagnetic Compatibility) and the 2006/95/EC (LVD – Low Voltage Directive) relative to Low Tension Security.
