USER MANUAL RC Micro HD Air Cam Copter CARRERA

Cartera® RC

# 370503025 Carrera RC Micro HD Cam Copter

D Montage- und Betriebsanleitung
GB USA Assembly and operating instructions
F Instructions de montage et d'utilisation
E Instrucciones de montaje y de servicio
① Istruzioni per il montaggio e l'uso
NL Montage- en gebruiksaanwijzing
P Instruções de montagem e modo de utilização
s Monterings- och bruksanvisning
FIN Asennus- ja käyttöohje
PL Instrukcja montażu i obsługi

QR code image containing encoded data, no visible human-readable text

1 3,7V -240 mAh 0.888 Wh LiPo

2 LED OFF = Charging DEL OFF = En charge LED OFF = Cargando Green = Ready Vert = Prêt Verde = Listo

3 ANDROID APP ON Google play Download on the App Store

Carrera RC HD Air Cam

4 OFF ON WiFi "Carrera-RC-HD-*****" CAREA RC 13 14 15 16 17 18 2019/2/11 L 1 2 R 5 L 3 4 R 10 STOP> 8 9

5 Auto OFF

6 Carrera RC HD Air Cam> 1 Minute/Minuto

Congratulations! You bought a Carrera RC Quadrocopter which has been manufactured according to today's state-of-the-art technology. As it is our constant endeavour to develop and improve our products, we reserve the right to make modifications, either of a technical nature or with respect to features, materials and design, at any time, and without prior notice. For this reason, no claims will be accepted for any slight deviations in your product from the data and illustrations contained in these instructions. These operating and assembly instructions are an integral part of the product. Non-observance of these operating instructions and the safety instructions they contain will render the guarantee null and void. These instructions are to be kept for future reference and in the event that the product is passed on to a third party.

For the latest version of these operating instructions and information on replacement and spare parts available, please visit carrera-rc.com in the service area.

WARNING! Before you first fly the model, find out whether there is a legal requirement to insure model aeroplanes such as this in your country.

Guarantee conditions

Carrera products are technically advanced products (NO TOYS) which should be handled with care. It is important to follow the directions given in the operating instructions. All components have been subjected to careful inspection (technical modifications and alterations to the model for the purpose of product improvement are reserved). Should any faults nevertheless occur, guarantee is assumed within the scope of the following conditions: In accordance with the following provisions, Stadlbauer Marketing + Vertrieb GmbH (hereinafter referred to as "manufacturer") warrants to the endconsumer (hereinafter referred to as "customer") that the Carrera RC-model-Quadrocopter (hereinafter referred to as "product") delivered to the customer shall be free from defects in material or workmanship for two years from the date of purchase (guarantee period). Such defects will, at the manufacturer's option, either be repaired by the manufacturer or fixed by delivering new or refurbished parts free of charge. The warranty does not cover failure due to normal wear and tear, (e.g. to batteries, rotor blades, cabin covering, gear wheels etc.), or damage as a result of improper handling/misuse or unauthorised interference. Any other customer's claims as

serted against the manufacturer, especially action for damages, shall be excluded. The contractual and statutory rights of the customer against the seller (supplementary performance, rescission of the contract, abatement, compensation) which exist with the product not having been free from defects at the time of the passing of risk, shall remain unaffected by this warranty.

Claims from this special warranty shall only be valid if:

• the defect reported has not arisen by damage caused by unintended use or misuse as specified in the instruction manual,
• the failure of the product is not due to normal wear and tear
• the product does not show any signs resulting from repairs or other interferences carried out by workshops not having been authorised by the manufacturer,
• the product has only been operated with accessories authorised by the manufacturer.

Guarantee cards cannot be replaced.

Note for EU countries: Reference is hereby made to the seller's statutory guarantee obligation, to the extent that this guarantee obligation is not restricted by the product guarantee. The manufacturer shall bear the costs for sending in and returning the product. This warranty shall be valid to the extent aforementioned and under the above-named circumstances (including the submittal of the original proof of purchase also in case of resale) for any future owner of the product.

Declaration of conformity

Stadlbauer Marketing + Vertrieb GmbH hereby declares that this model including the controller conforms with the fundamental requirements of the following EC directives: EC Directives 2009/48 and the other relevant regulations of Directive 2014/53/EU (RED). The original declaration of conformity can be requested from carrera-rc.com.

Maximum radio-frequency power transmitted <10 dBm Frequency range: 2400 – 2483.5 MHz

WARNING!

WARNING! This toy contains small parts which can be swallowed and is therefore not suitable for children under 3 years of age. WARNING! Danger of pinching during operation! Remove all packaging materials and wire fastenings before handling the toy over to the child. For information and to answer any questions, please retain packaging, address and instructions in a safe place for future reference. Keep the instructions for use for later reference. Note for adult supervisors: Check if the toy is assembled as instructed. The assembly shall be performed under the supervision of an adult.

WARNING! Not suitable for children under 8 years old!

This product is not intended for use by children without supervision of a parent. Flying the helicopter requires skill and children must be trained under the direct supervision of an adult. Before first use: Read the user's information together with your child. Inappropriate use may result in severe injuries and/or damage to property. It has to be operated with care and caution and requires both mechanical and mental skills. The operating instructions contain notes on safety and technical regulations as well as information on maintaining and operating the product. It is indispensable to read these instructions thoroughly before the first usage. Only this helps to avoid accidents with injuries and damage. Hands, hair and loose clothing, including other objects such as pens and screw-drivers must be kept away from the propeller (rotor). Do not touch the rotating rotor. Especially take care that your hands DO NOT get close to the rotor blades! CAUTION: Risk of eye injuries. Do not fly near your face to avoid injuries. For safe use, the room where the toy is used must be sufficiently large. Start and fly only when the area is appropriate for the intended use (free area, no obstacles) and only within direct visual contact. As user of this product you are solely responsible for handling it safely in order to ensure that neither you nor other persons or their property suffer damages or are endangered. This toy is intended to be used in domestic area (indoor) only.

• Never use your model with weak remote control batteries.
• Avoid busy areas. Always make sure that there is enough space.
• Preferably do not use your model on an open street or in public areas in order not to endanger or hurt anyone.
• CAUTION: Do not start up and fly when persons, a nimals or any obstruc-

tions are within the flying range of the Quadrocopter.

• Start and fly is strictly forbidden near high voltage poles, railway tracks, roads, swimming pools or open water.
• Only operate under good visibility and calm weather conditions.
• Exactly observe the instructions and warnings for this product and for any possible additional equipment (battery charger, rechargeable batteries etc.) being used by you.
• Should the Quadrocopter come into contact with any living thing or solid object, immediately return the gas control to zero, in other words the left-hand joystick must be at the stop at the bottom of the slide!
• Avoid any moisture as this might do damage to the electronics.
• There is a risk to suffer severe injury or even death if you put parts of your model into your mouth or lick them.
• Do not change or modify anything on the Quadrocopter.

If you do not agree to these terms please immediately return the complete Quad-rocopter model in new and unused condition to the retailer.

Important information concerning Lithium Polymer rechargeable batteries Lithium-Polymer (LiPo) rechargeable batteries are significantly more sensitive than traditional alkali- or NiMH-rechargeable batteries normally used with radio control units. Therefore the instructions and warnings have to be observed in detail. In case of improper use of LiPo rechargeable batteries there is a danger of fire. Always follow the manufacturers' instructions if you dispose of LiPo rechargeable batteries.

Regulations on disposal for waste electrical and electronic equipment (WEEE)

This symbol, showing refuse bins with a cross through them, denotes that empty batteries, rechargeable batteries, button cells, recharge able battery packs, equipment batteries, disused electrical equipment, etc. should not be disposed of in domestic refuse, as they are harmful to the environment and health. Please help to preserve environment and health and talk to

your children about the correct disposal of used batteries and disused electrical equipment. Batteries and disused electrical equipment should be handed in to the usual collection points where they can be properly recycled.

Do not mix dissimilar battery types or employ new and used batteries together. Do not attempt to recharge non-rechargeable batteries.

WARNING! Exhausted batteries are to be removed from the toy. Rechargeable batteries should be removed from the product before charging. Supply terminal are not to be short-circuited. Only use the batteries recommended or equivalent types. Batteries are to be inserted with the correct polarity. Rechargeable batteries are only to be charged by adults. The toy is only to be connected to Class II equipment bearing the following symbol.

FCC statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF EXPOSURE STATEMENTS:

Section 2.1091(d) (3) - Mobile devices (a minimum separation distance may be required). The quadcopter must be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons.

IC statement

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Guidelines and warnings for the use of LiPo rechargeable batteries

• You have to charge the attached 3.7 V=240 mAh / 0.888 Wh LiPo rechargeable battery in a safe place and at a safe distance to flammable material.
• Never leave the battery unattended while it is charging
  • After a flight, the rechargeable battery has to cool down to the ambient air temperature before charging it.
• You must always use the corresponding LiPo charging unit (USB cable / remote control). In case of non-compliance with these directions there is a danger of fire resulting

in a health risk and/or damage to property. NEVER use any other battery charger.

• Should the rechargeable battery swell or deform while discharging or recharging, you have to immediately stop charging or discharging the battery. Take the battery out as quickly and carefully as possible and place it in a safe and open area offside any inflammable material and watch it for at least 15 minutes. In case you continue charging or discharging a battery which has already started to swell or deform there is a danger of fire! Even in case of slight deforming or ballooning the rechargeable battery has to be taken out of operation.
• Store the rechargeable battery at ambient temperature in a dry place.
• Always recharge the battery immediately after use to prevent its becoming deep discharged. Please make sure to allow a pause of about 20 minutes between finishing the flight and recharging the battery. Recharge the battery occasionally (suggested every 2-3 months). Failure to treat the battery as described above can lead to its becoming defective.
• When transporting or temporarily storing the rechargeable battery the temperature should be between 5-50°C. If possible, do not store the battery or the model in a car and do not expose it to direct sunlight. In case the battery is broiled it can be damaged or catch fire.

Note: If the battery voltage/output is low you will recognise that a considerable trim and/or controlling is necessary to avoid that the Quadrocopter starts trundling. This usually occurs before reaching a battery voltage of 3 V and it is a good moment to end the flight.

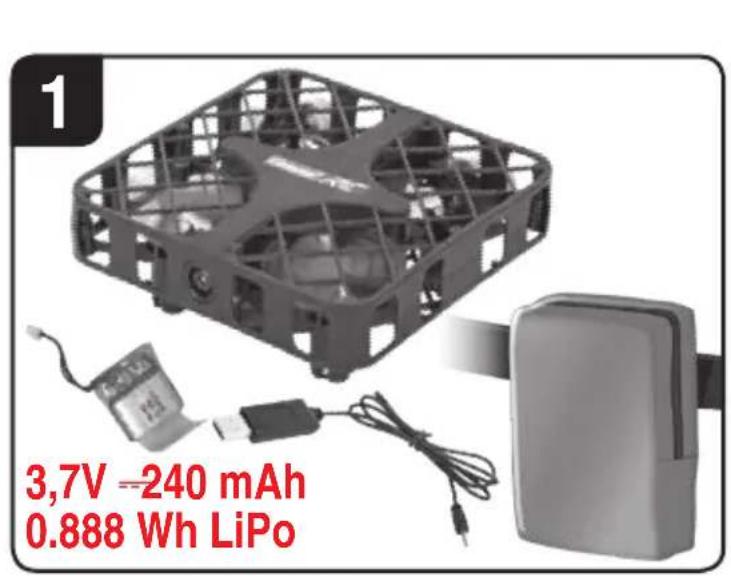

Contents of package

1 x Quadrocopter with 720P Camera

1 x Beltcase

1 x USB charging cable
1x Rechargeable Battery

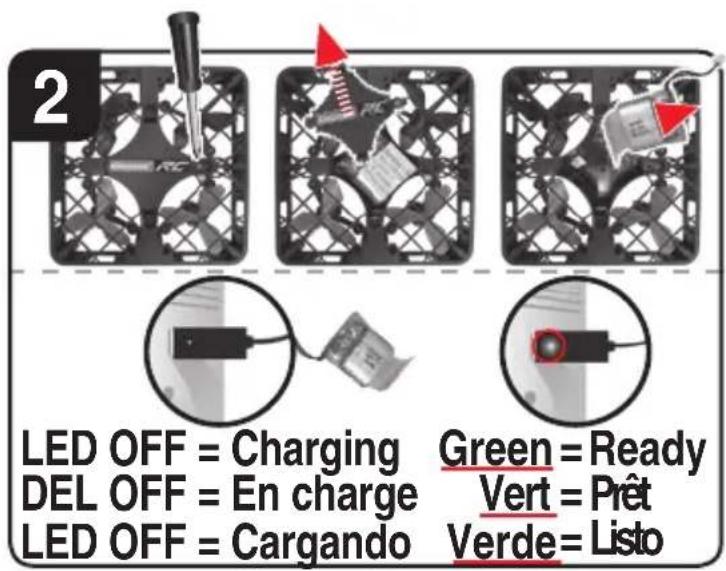

Recharging the LiPo rechargeable battery

Make sure you only charge the LiPo rechargeable battery supplied with the LiPo charging unit also supplied (USB cable). If you try to charge the rechargeable battery with a different LiPo battery charger or any other battery charger, this might cause serious damage. Please carefully read the previous chapter with warnings and guidelines on the usage of rechargeable batteries before proceeding. Supply terminals are not to be short-circuited.

You can charge the rechargeable battery fitted in the Quadrocopter with its USB charging cable from a USB port on a computer:

2 Charging via computer:

- Rechargeable batteries are to be removed from the model before being charged.

• Connect the USB charging cable with the USB port of a computer. The LED on the USB charger cable lights green indicating that the charger unit is correctly connected to the computer. If you plug in a Quadrocopter with a discharged battery, the LED on the USB charging cable no longer lights up, showing that the Quadrocopter battery is being charged. The USB charging cable and the charging socket on the Quadrocopter are designed to make incorrect connection impossible.
• It takes about 60 minutes to recharge a discharged battery (but NOT a deep-discharged one). When the battery is fully charged, the LED display on the USB charger cable lights up green again.

Note: when supplied, the lipo-battery is already partially charged. So the first charging cycle may well take less time.

It is essential to follow the connection sequence given above! Undo the plugged connection on the Quadrocopter when you are not using the Quadrocopter. Failure to observe this precaution may cause battery damage!

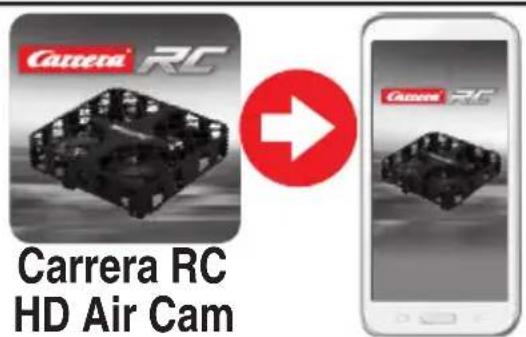

Installing the App on the Smartphone

3 Scan the QR code suitable for your system (IOS or Android), and install the App. Follow the instructions on the screen.

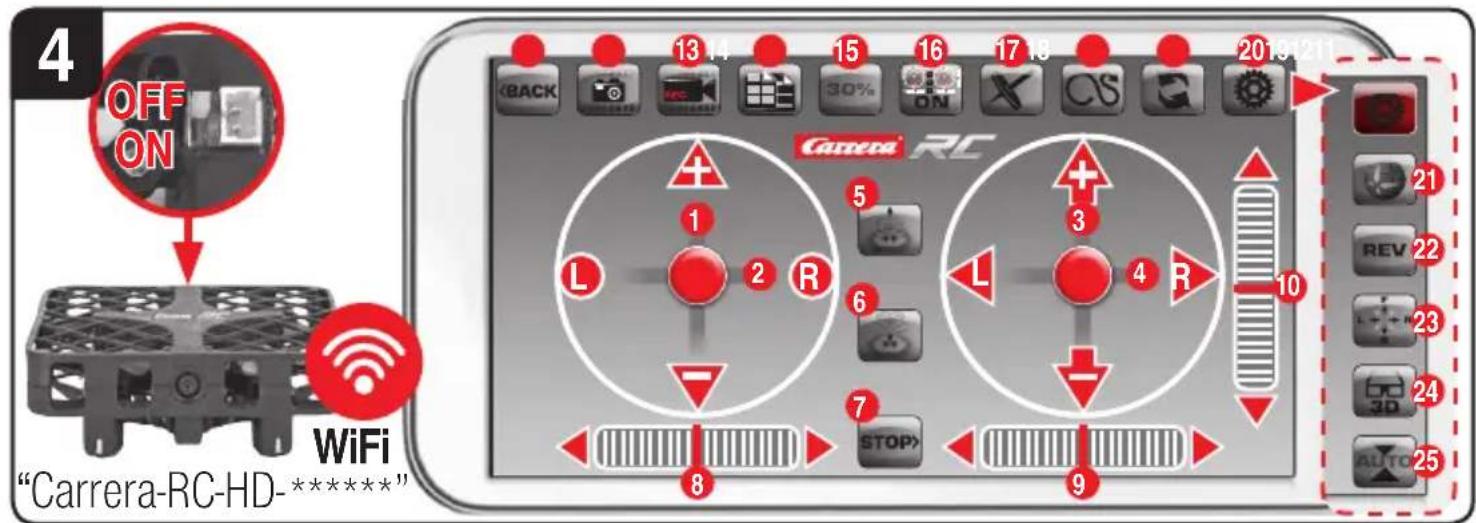

Key assignment

4 1. Gas

1. Circling

2. Forwards / backwards

3. right / left banking
4. 'Auto-start' button
5. 'Auto-landing' button
6. Emergency off
7. Trimmer for circling
8. Trimmer for right / left banking

9. Trimmer for forwards / backwards

10. Back (Return Button)

11. Take a picture
12. Make a video
13. Archive
14. Beginner/Advanced switch (30%/60%/100%)
15. Show/mask joysticks
16. Control sensor (manual joystick or Smartphone)
17. Draw flight route
18. Looping Button
19. Additional settings
20. Gyro / Auto-trim
21. Mirror camera image
22. Headless Mode
23. FPV Mode
24. Automatic height control

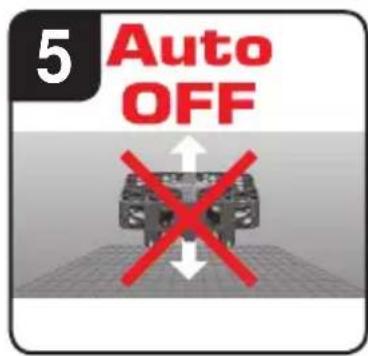

Auto OFF

5 The quadrocopter will automatically switch itself off after c. 1 minute of standstill. Use the On/Off switch to switch the quadrocopter on and off.

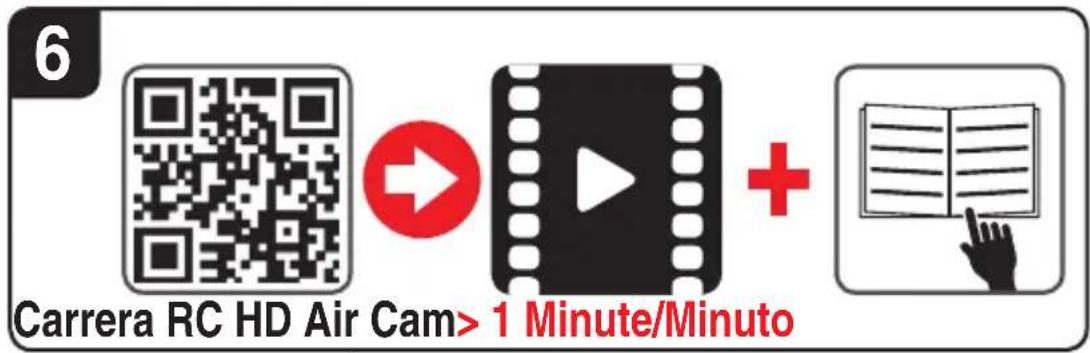

QR code for online instructions

6 Scan the QR code in order to access the Carrera RC product website for more detailed instructions and explanatory videos.

Errors and changes excepted · Colours / final design – changes excepted

Technical changes and design-related changes excepted · Pictograms = symbolic photos
