TSWCBLICDS35BK - Ice Maker Thermostar - Free user manual and instructions

Brand	Thermostar
Model	TSWCBLICDS35BK
Product type	Water dispenser and ice maker
Ice type	Balls
Ice making capacity	8 kg (17.5 lb) per 24 hours
Cold water tank capacity	3.0 L
Maximum ice storage capacity	0.3 kg (0.65 lb)
Cold water flow rate	1 L/min
Cold water temperature	10 °C (50 °F)
Dispensing method	Touch screen with 4 buttons and 4 indicator lights
Cooling type	Compressor
Power supply voltage	110-120 V / 60 Hz
Power	150 W
Dimensions (L x D x H)	31 x 36.83 x 103.6 cm
Weight	Not specified in the manual
Compatible water bottle	11.3 L or 18.9 L (3 or 5 gallons)
Drip tray	Removable for easy cleaning
Dispensing area	For glasses or bottles up to 20.32 cm (8 in)
Plug type	Grounded, 3-prong
Intended use	Dispensing water and ice made from water only
Recommended cleaning	Every 3 months for water lines
Warranty	1 year for original purchaser, against defects in materials and workmanship
Customer service	Tel.: [phone], website: nostalgiaproducts.com

Frequently Asked Questions - TSWCBLICDS35BK Thermostar

How to install the water bottle?

Open the lower door, remove the bottle cap, insert the siphon tube to the bottom, secure the collar on top of the bottle, then close the door. Make sure the collar is securely fastened to avoid leaks.

How long does it take for the water to become cold?

Cold water can take up to 2 hours to reach the desired temperature. The Cold water indicator flashes during cooling and stays on once the temperature is reached.

How to make ice?

Press the Make ice button. The corresponding indicator flashes. When it stops flashing and stays on, the ice is ready. You can then dispense ice by pressing the Ice dispense button.

What to do if the 'Add water' indicator lights up?

This indicates that the water bottle is empty. Replace it with a new 11.3 L or 18.9 L bottle following the installation steps. The indicator will turn off after a few moments.

Why is no water coming out?

Check that the water bottle is not empty. Also make sure to press the water dispense button fully. If the problem persists, verify that the siphon tube is properly placed in the bottle.

How to clean the appliance?

Clean the exterior surfaces with a soft cloth and soapy water. Remove and hand wash the drip tray. Clean the water lines every 3 months with a solution of water and unscented bleach (1 tablespoon of bleach per 4 liters of water), then rinse thoroughly with clear water.

The appliance is making noise, is that normal?

Some operating noise is normal. Make sure the appliance is placed on a flat, stable surface. If the noise is excessive, check that nothing is vibrating against the appliance and that it is at least 10 cm away from walls.

What electrical voltage is required?

This appliance must be plugged into a 120 V wall outlet (110-120 V / 60 Hz). It is imperative to use a grounded 3-prong outlet. Do not use an extension cord or adapter.

Can I use liquids other than water?

No, the appliance is designed exclusively for water. Using any other liquid (coffee, tea, juice, etc.) voids the warranty and may damage the appliance.

What to do if ice is not dispensing?

Check that the Ice indicator is not flashing (this means ice production is in progress). Ensure no ice chunks or debris are blocking the spout. If the problem persists, wait for the machine to finish making ice.

USER MANUAL TSWCBLICDS35BK Thermostar

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2023 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 10/25/23 AQRT)

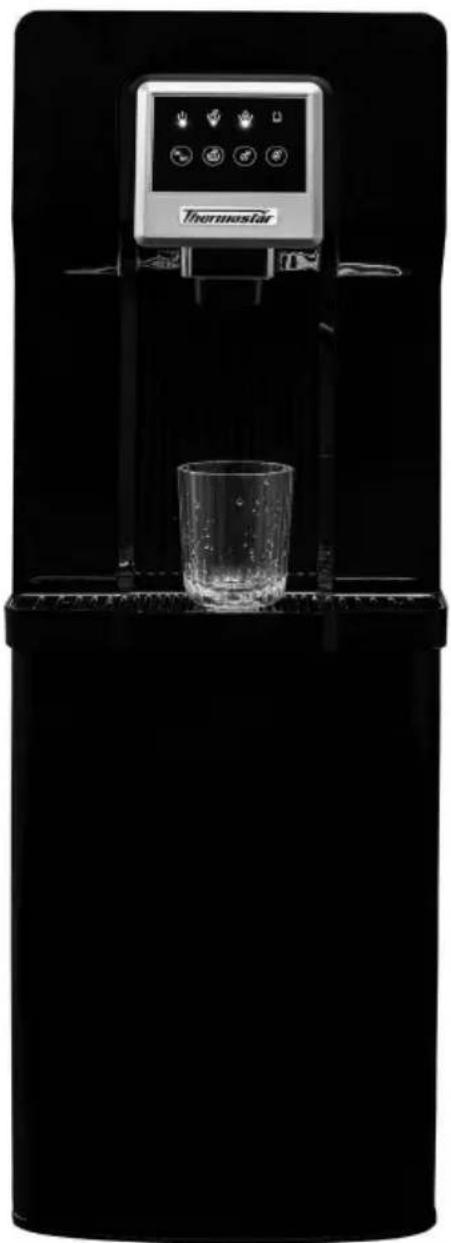

Black and white photo of a Thermostar water dispenser with a glass of water, no visible text or symbols on the device itself.

Water Cooler & Ice Dispenser Enfriador De Agua Y Dispensador De Hielo Refroidisseur D'eau Et Distributeur De Glaçons

Instructions and Recipes Instrucciones y recetas Instructions et recettes

Make everyday a party!

Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

SAFETY 2

IMPORTANT SAFEGUARDS 3

ADDITIONAL IMPORTANT SAFEGUARDS 3

INTRODUCTION 5

PARTS & ASSEMBLY 6

HOW TO OPERATE 7

HELPFUL TIPS 8

CLEANING & MAINTENANCE 9

RETURNS & WARRANTY 10

SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

110-120 Volts, 60 Hz, 150 Watts

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual.

IMPORTANT SAFEGUARDS

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. Turn the appliance OFF, then unplug from the outlet when not in use, before assembling or disassembling parts and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Contact the manufacturer at their customer service telephone number for information on examination, repair, or adjustment. Customer service number is [phone].
8. Unplug from outlet when not in use, before removing parts and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
9. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.
10. The manufacturer does not recommend the use of accessory attachments other than what is provided by the manufacturer. Use of attachments may cause injuries.
11. DO NOT use the appliance for other than its intended use.
12. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
13. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
14. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
15. Extreme caution must be used when moving an appliance containing hot food.
16. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

ADDITIONAL IMPORTANT SAFEGUARDS

Operating Safety Precautions

1. Prior to use, this dispenser must be properly assembled and installed in accordance with this manual.
2. This dispenser is intended only for water dispensing. Do NOT use other liquids. Do NOT use for other purposes. Never use other liquids in the dispenser other than known and microbiologically safe bottled water. Warranty is void if used with any other liquids, such as coffee, tea, juices, beer or wine.

1. Instructions for the Electrical Cord and Plug

1. ELECTRICAL SHOCK HAZARD: Failure to follow these instructions can result in death, fire, or electrical shock.

2. Plug into a grounded 3 prong outlet.
   • DO NOT remove ground prong.
   • DO NOT use an adapter.
   • DO NOT use an extension cord.

3. This unit MUST be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This unit is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

4. WARNING: Improper use of the grounding plug can result in a risk of electric shock. If the plug does not fit fully into the outlet, contact a qualified electrician. Do not attempt to modify the plug in any way.
5. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Thank you for purchasing the WATER COOLER & ICE DISPENSER from Thermostat! With this product, ease is at your fingertips! This bottom-loader gives you ice-cold water in just seconds! This water cooler allows you to load 3 or 5 gallon bottles with no plumbing required! This appliance also produces its own bullet shaped ice and dispenses on demand. The touch screen control panel is equipped with intuitive indicator lights to let you know when cold water and ice is ready, or when more water is needed. Satisfy your thirst with cool water and ice using the brand you can trust!

• ICE TYPE: Bullet
  • ICE MAKING CAPACITY: 17.5 lbs / 24-Hours
  • ICE STORAGE: 0.65 lb.
• SPOUT: One
• BOTTOM LOADING DISPENSER: Uses Standard 3 & 5 Gallon Bottles (Not Included)
  • CONTROL PANEL: Touch screen with 4 buttons and 4 indicator lights.
  • INNOVATIVE & STYLISH DESIGN: Free Standing Slim Black Space Saving Design Ideal For Any Space
• DISPENSING METHOD: Intuitive Touch Screen Panel
• DRIP TRAY: Removable Drip Tray For Easy Cleanup.
  • COOLING TYPE: Compressor Cooling
• DISPENSING AREA: Suitable For Up To 8" Glass or Bottle
  • COLD WATER TANK CAPACITY: 3.0L
  • LARGE WATER FLOW YIELDS: Cold Water 1L Per Minute
  • COLD WATER TEMPERATURE: 50°F / 2L Hour
  • FRONT LEVELING LEGS: N/A
  • ENERGY RATING: cETLus
  • SIZE: 12.2" x 14.5" x 40.8"
  • VOLTAGE:110-120V
• POWER: 60 Hz

PARTS & ASSEMBLY

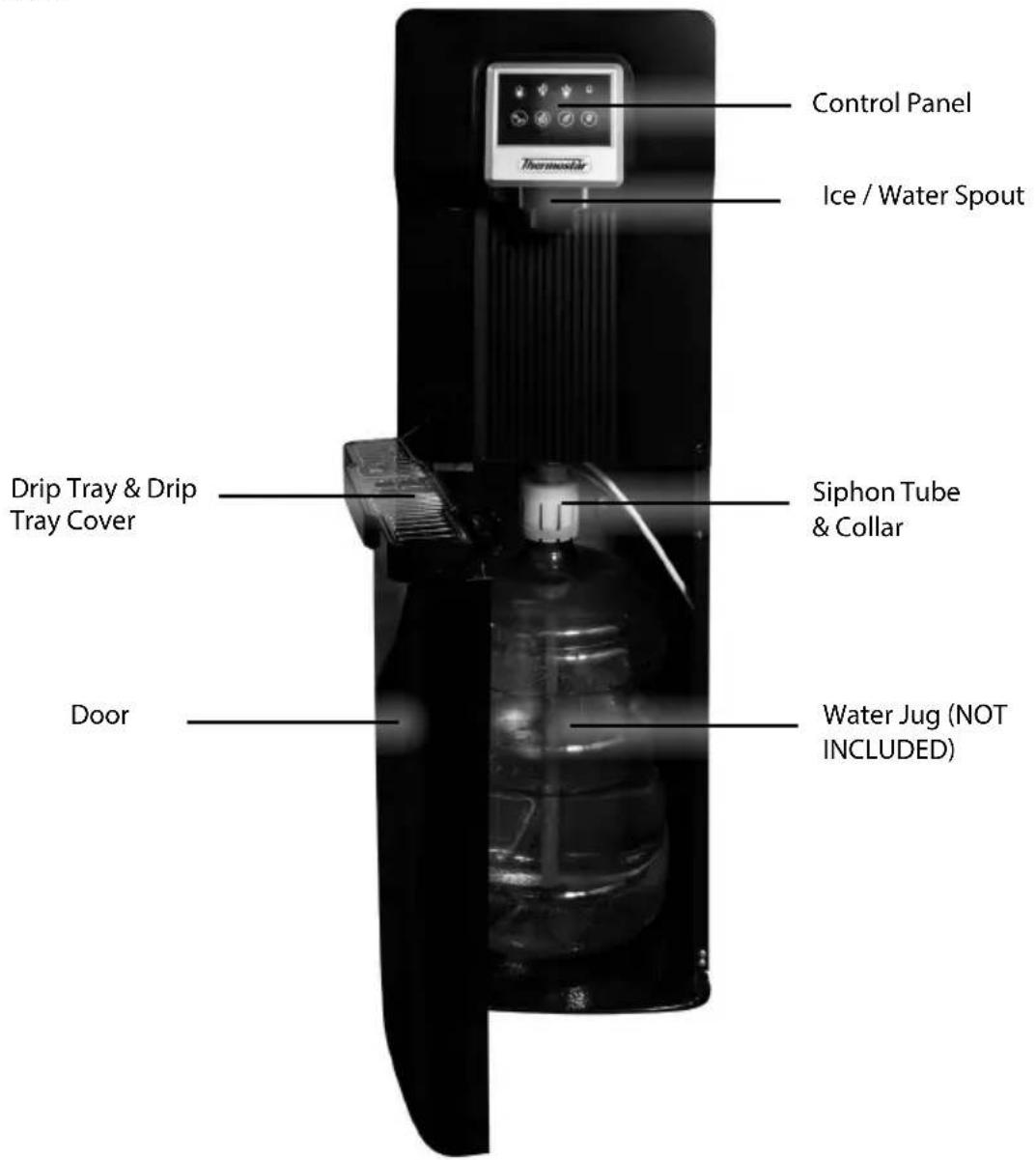

PARTS

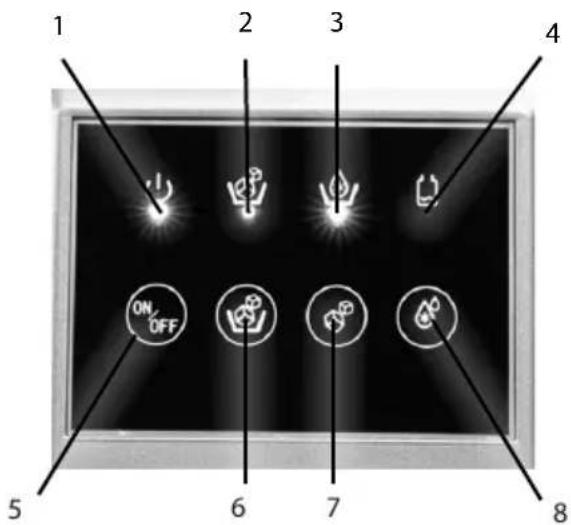

CONTROL PANEL

Indicator Lights

1-Power Indicator
2-Ice Indicator
3-Cold Water Indicator
4-Add Water

Control Buttons

5-Power Button

6-Make Ice Button

7-Dispense Ice

8-Dispense Water

ASSEMBLY

Use EXTREME CAUTION when handling the appliance. When taking out of package, it is recommended to lay the box safely on its side. The WATER COOLER & ICE DISPENSER will be mostly assembled. Once unpacked and standing upright, the Drip Tray Cover will need to be inserted.

LOCATION REQUIREMENTS:

1. Install in the area where it is protected from the elements including direct sun.
2. Install and use only on a hard, flat and level surface.
3. Do NOT place the dispenser inside an enclosed space or cabinet.
4. Position the dispenser no closer than 4 inches from the wall with at least 4 inches clearance on the sides to permit free airflow.

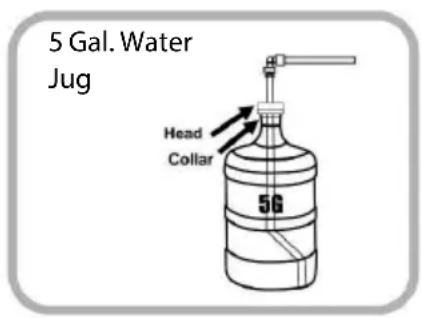

WATER JUG INSTALLATION

Installing and replacing 3 or 5 gallon coolers (not included) is a simple task. NOTE: Excessive weight hazard - It is recommended to use two or more people to move and install bottles. Failure to do so can result in injury.

1. Open up the cabinet Door on the bottom.
2. Remove the water cap off of your standard-sized 3 or 5 gallon water jug.
3. Place the Siphon Tube inside of the water jug so it's touching the bottom. NOTE: When using 3 gallon jugs, place the Siphon Pump into the jug, and then slide the Collar down to the top of the water bottle.
4. Make sure the Collar fits securely over the water jug top, ensuring no leakage.
5. Close the door.

NOTE: The Siphon Tube features a sliding Collar that accommodates both 3 and 5 standard-sized water jugs. Make sure that the Collar fits securely over your water jug before use.

HOW TO OPERATE

WARNING: This unit is intended for water and ice made from water dispensing only. Do NOT use other liquids. Do NOT use for other purposes. Warranty is void if used with any other liquids such as coffee, tea, juices, beer or wine.

This dispenser has been designed to use water bottles with a 3 or 5 gallon capacity. DO NOT use alternative bottles.

Powering On:

1. Make sure you have found a proper location for your WATER COOLER & ICE DISPENSER and have followed the steps to install a water jug.
2. Plug the cord into a properly grounded wall outlet. WARNING: Always make sure that the cord is away from a water source.

3. After the machine has been plugged in, press the power button. The Control Panel will beep and the Power Indicator light will remain on.

4. Press the power button again to shut off the power. This will stop ice and cold water making.

DISPENSING COLD WATER

Once the machine has been powered on, the Cold Water Indicator light will flash, indicating that water is being cooled.

It will take up to 2 hours to get the water to it temperature set point. When it reaches the temperature set point, the Cold Water Indicator light will remain on.

1. Place bottle, glass, or pitcher below the Ice/Water Spout.
2. Press and release the Dispense Water button to start dispensing water. The button backlight will light up while dispensing.
3. Press the Dispense Water button again to stop dispensing. NOTE: The machine will stop dispensing automatically after 1 minute if not stopped manually.

DISPENSING ICE

Press the Make Ice button and the machine will begin ice making production, filling the internal ice storage. At this time, the Ice Indicator light will begin flashing.

When the Ice Indicator light stops flashing and remains on, the ice making cycle has completed. Ice making will be suspended, and you can now dispense ice.

1. Place bottle, glass, or pitcher below the Ice/Water Spout.
2. Press and release the Dispense Ice button to dispense ice automatically. The button backlight will light up while dispensing.
3. Press the Dispense Ice button again to stop dispensing.
   NOTE: The machine will stop dispensing automatically after 10 seconds if not stopped manually.
   NOTE: After ice is full, the machine will stop making ice and start making cold water.
   After ice is dispensed, the machine will start making ice again.

REPLACING AN EMPTY BOTTLE/LOW WATER INDICATOR LIGHTS

Replace the bottle as soon as you notice that it is empty. The Add Water indicator light will tell turn on to tell you that a new bottle is needed. Follow steps in "WATER JUG INSTALLATION" when adding a new water jug.

HELPFUL TIPS

DISPENSER IS NOT WORKING

• Make sure that the power cord is properly connected to a working outlet.
• Replace water bottle if Add Water Indicator light is on.

WATER IS LEAKING

- The most common cause of leaks is a cracked bottle. Replace old water bottle with a new water bottle.

NO WATER IS COMING OUT

• Make sure bottle is not empty. If so, replace it.
• Make sure that you fully press the water control buttons.

WATER DISPENSER IS NOT COLD

- If not making ice, it may take up to 1 hour to cool. If making ice while cooling water, it may take up to 3 hours to cool water.

• Make sure back of the dispenser is at least 4 inches from a wall and that air is free to flow on all four sides of dispenser.
• Make sure the water temperature is below 89^ in water bottle.
• Water may still be cooling. Please dispense water when the cold water indicator light changing from blinking to fully on.

DISPENSER IS NOISY

- Make sure that the dispenser is positioned on a level surface.

ICE NOT BEING MADE

• Place the unit is enough a cool enough location.
• Make sure the water temperature is below 89^ .

ICE NOT DISPENSING

• Your machine may still be producing ice. Check that Ice Indicator light is fully on.
• Check that there are not ice chunks or any other debris blocking the Ice/Water Spout.

CLEANING & MAINTENANCE

General Cleaning

General cleaning should be performed as needed and only takes five minutes or less.

1. Clean the cabinet surfaces using a soft cloth and warm, soapy water. Rinse.
2. Wipe dust in the back of the water cooler to improve efficiency.
3. Remove Drip Tray Cover and hand wash. Take a cloth and warm, soapy water to rinse the inside of the Drip Tray, then rinse.
4. Reattach Removable Drip Tray Cover.

Cleaning Water Lines & Reservoirs

Cleaning the water lines is recommended to happen once every three months. For best results, use a mild bleach and water solution of 1 tablespoon or less of bleach to 1 gallon of water. Make sure to wear gloves when handling solution.

NOTE: Recommended to do before loading a new 3 or 5 gallon jug.

1. Unplug power cord from outlet and remove water cooler bottle.
2. Wash the Siphon Tube and clean with warm, soapy water. Rinse.
3. While wearing rubber gloves, fill an empty water cooler jug with a 1 gallon of water and 1 tablespoon or less of unscented chlorine bleach. Stir well.
4. Install the water jug filled with cleaning solution.
5. Plug your dispenser into, and follow steps to make cold water. Allow the reservoir to fill with the solution. Let the mixture sit for five to 10 minutes to disinfect the reservoir.
6. Unplug the power cord. Drain the cleaning mixture into a bowl or pitcher by unplugging the drain hole in the back of the machine.
7. Refill your empty water bottle with clean water and allow to fill the reservoir again. Drain again. If you detect any taste or scent of bleach, add another two gallons of clean water, drain and retest.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

WATER COOLER & ICE DISPENSER / TSWCBLICDS35BK

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 9:00 AM and 4:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

REVIEW & REGISTRATION

WELCOME TO THE NOSTALGIA PARTY!

Do you love our product?

Give us your product REVIEW, REGISTER for updates, and get entered to WIN PRIZES! You can also gain access to exclusive discounts, fresh new recipes, monthly specials & more!

To leave a review:

• Visit the site you purchased the product from
• Go to the product page
• Leave a 5-star review!

Five gray star shapes arranged horizontally (no text or symbols)

To register for updates:

• Scan the QR Code below or go to nostalgiaproducts.com/pages/warranty-information
• Enter your product name, purchase date, and email to subscribe for prizes!

- Note: warranty registration is not required. Please keep a copy of your purchase receipt in the event service is needed.

If you aren't happy, please let us know so we can help!

Customer service:

[phone] or visit our online contact form: https://nostalgiaproducts.com/pages/support

Make everyday a party!

Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

SEGURIDAD....12

PROTECCIONES IMPORTANTES 13

PROTECCIONES IMPORTANTES ADICIONALES ..... 14

Nostalgia Products, LLC.

1471 Partnership Dr.

Green Bay, WI 54304-5685

Servicio al cliente

CONSERVEZ CES INSTRUCTIONS!

INTRODUCTION

Nostalgie Products LLC

1471 partenariat Dr.

Green Bay WI 54304-5685
