Grill Family 18874-56 - Grill plate GEORGE FOREMAN - Free user manual and instructions

Product type	Electric grill with plates (grill plate)
Brand	George Foreman
Model	Grill Family 18874-56
Dimensions (approx.)	35 x 35 x 17 cm
Weight (approx.)	3.5 kg
Power supply	220-240 V, 50/60 Hz, 1500 W
Indicator lights	Power indicator (red) and thermostat indicator (green)
Tilt function	Tiltable leg for fat drainage or flat cooking
Cooking plates	Non-stick coating, hinged joint for thick foods
Drip tray	Removable, collects juices and fat, dishwasher safe
Temperature	Built-in thermostat, heating indicator light
Usage	For meat, poultry, fish, vegetables, fruits, sandwiches, panini
First use	Wipe plates, possible temporary smoke
Maintenance	Unplug and cool before cleaning; wipe with damp cloth
Cleaning the drip tray	Warm soapy water or dishwasher (top rack)
Recommended utensils	Wood or plastic, never metal or sharp
Safety	Do not immerse, do not use external timer, hot surfaces
Authorized users	Children from 8 years old under supervision, persons with reduced capacities
Power cord	Non-removable, replacement by professional if damaged
Storage	In vertical position, cord wrapped around base
Usage	Domestic only

Frequently Asked Questions - Grill Family 18874-56 GEORGE FOREMAN

How to clean the grill plates?

Unplug the appliance and let it cool. Wipe the plates with a damp cloth. For baked-on stains, use a paper towel with a little cooking oil. Never use a scouring pad or steel wool.

Can I use aluminum foil on the grill?

No, do not wrap food in plastic wrap, polyethylene bags, or aluminum foil. This could damage the grill and cause a fire.

How to tilt the grill to drain fat?

Stretch up the leg located under the grill (see figure A). To flatten, fold the leg back. The drip tray must be centered under the front of the grill.

Why is there smoke during first use?

This is a normal phenomenon due to heating of new components. The smoke will disappear quickly after the first uses.

Which utensils to use on non-stick plates?

Use wooden or plastic utensils. Avoid metal or sharp objects that could scratch or damage the non-stick coating.

How long to cook a beef steak?

Indicative times: filet 5-7 minutes, sirloin 7-8 minutes, 100g hamburger 7-8 minutes, beefsteak (slice) 5-7 minutes. Adjust according to thickness and desired doneness.

Are the cooking plates removable?

No, the cooking plates are not removable. Clean them directly on the appliance after cooling.

Can I cook frozen food?

Yes, add 2-3 minutes for frozen seafood and 3-6 minutes for frozen meat and poultry, depending on thickness. Follow instructions on prepackaged food packaging.

How to store the grill to save space?

Lower the flap element, wrap the cord around the storage space, then store the grill in an upright position.

What to do if the power indicator does not light up?

Check that the appliance is properly plugged in and that the outlet works. If the problem persists, the cord or internal circuit may be defective. Contact an authorized professional for replacement.

USER MANUAL Grill Family 18874-56 GEORGE FOREMAN

George Foreman Fat Reducing Grill

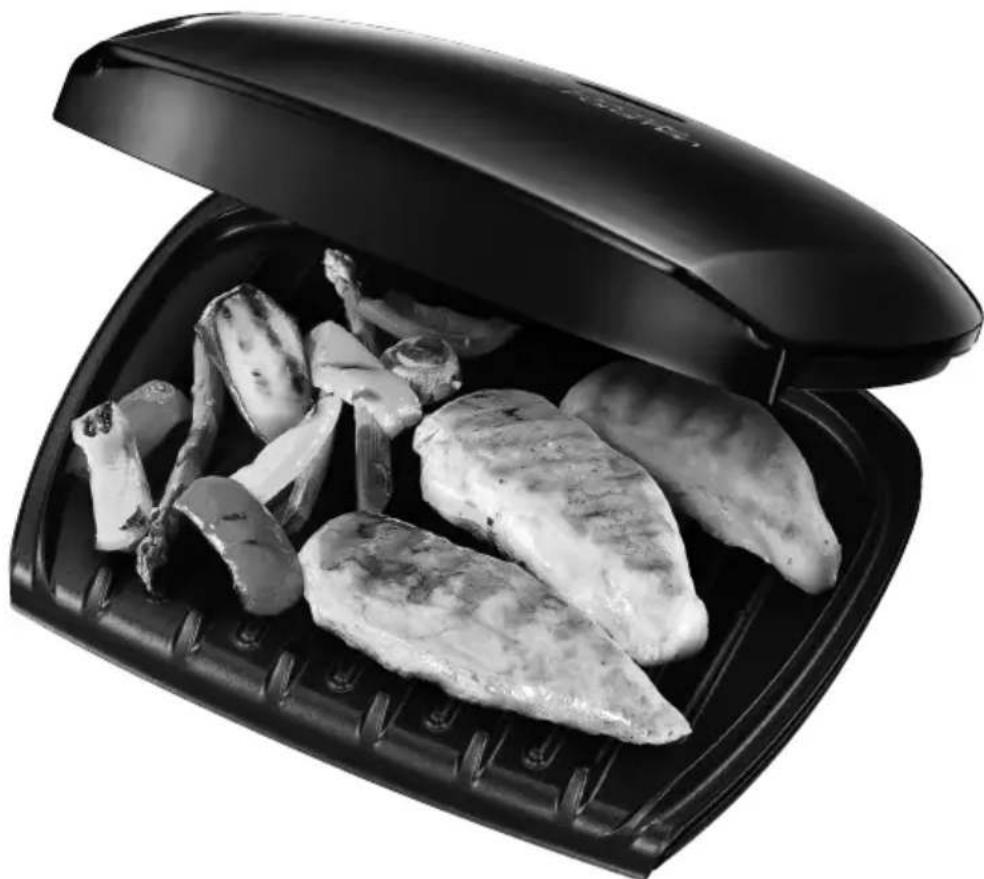

Black and white photo of a griddle grill with cutlery and meat pieces (no text or symbols visible)

instructions 3

pokyny (Slovenčina) 42

instrukcja 45

upute 48

navodila 51

οδηγίες 54

utasítások 57

talimatlar 60

instrucțiuni 63

Read the instructions, keep them safe, pass them on if you pass the grill on.

Remove all packaging before use.

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and cable out of reach of children under 8.

Don't connect the appliance via a timer or remote control system.

The surfaces of the appliance will get hot during use.

If the cable is damaged, return the appliance, to avoid hazard.

Don't put the grill in liquid, don't use it in a bathroom, near water, or outdoors.
- Don't wrap food in plastic film, polythene bags, or metal foil. This will damage your grill and you may cause a fire hazard.
- Don't use your grill for any purpose other than cooking food.
- Don't use your grill if it is damaged or malfunctions.

HOUSEHOLD USE ONLY

PARTS

1. Power light (red)
2. Thermostat light (green)

3. Grill plates

4. Drip tray

5. Foot (underneath)

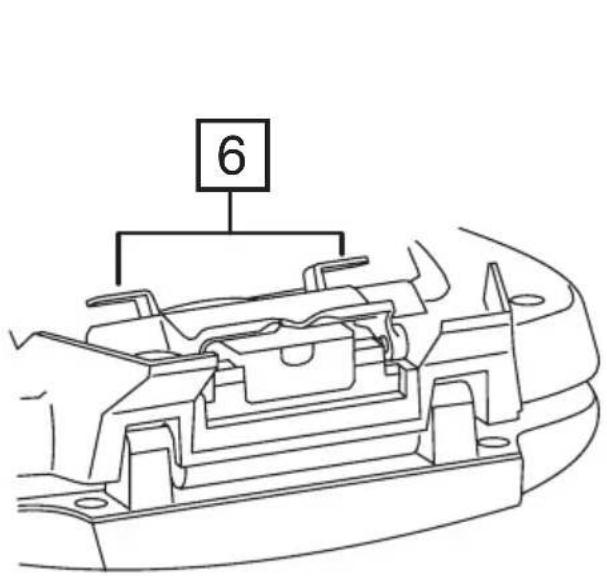

6. Cord storage hooks (on foot)

BEFORE USING FOR THE FIRST TIME

• Wipe the grill plates with a damp cloth.
• Your grill may smoke a little the first time you use it. This is normal and will soon disappear.

TILTING/LEVELLING THE GRILL

You can tilt your grill so that fat and juices run into the drip tray when cooking things like burgers, meat, etc. Alternatively, you can use your grill level for cooking things like panini, sandwiches, etc.

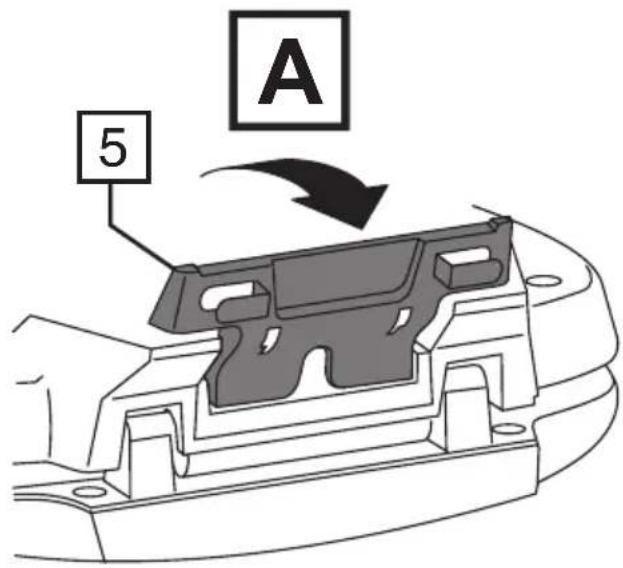

To tilt your grill extend the foot upwards below your grill (FIG A). Fold the foot flat again to level your grill.

USING YOUR GRILL

• Sit your grill on a stable, level, heat-resistant surface.

• Centre the drip tray under the front of the grill, so it catches any run-off.

• Put the plug into the power socket. The power light will come on.

• The grill plates will now start heating up.
• When the thermostat light comes on your grill is at the correct cooking temperature.
• The thermostat light will cycle on and off as the thermostat operates to maintain the temperature.
• Open your grill and carefully lay the food on the bottom grill plate. Close the grill.

• When you have finished cooking unplug your grill.

• Check it's cooked. If you're in doubt, cook it a bit more.

• Cook meat, poultry, and any derivatives (mince, burgers, etc.) till the juices run clear. Cook fish till the flesh is opaque throughout.
• Remove the cooked food with wooden or plastic tools.
• The hinge is articulated to cope with thick or oddly shaped foods.
• The grill plates should be roughly parallel, to avoid uneven cooking.

CARE AND MAINTENANCE

1. Unplug the appliance and let it cool down before cleaning or storing away.
2. Wipe all surfaces with a clean damp cloth.
3. Use a paper towel moistened with a little cooking oil to remove stubborn stains.
4. Wash the drip tray in warm soapy water, or in the top rack of the dishwasher.
5. Don't use scourers, wire wool, or soap pads.
6. At the places where the top and bottom plates make contact, the non-stick surfaces may show signs of wear. This is purely cosmetic, and will not affect the operation of the grill.

STORING

The unit may be stood vertically (on the hinged side) for storage.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol mustn't be disposed of with unsorted municipal waste, but recovered, reused, or recycled.

COOKING TIMES AND FOOD SAFETY

The following times should be used purely as a guide. They are for fresh or fully defrosted food. When cooking frozen foods, add 2-3 minutes for seafood and 3-6 minutes for meat and poultry (depending on the thickness and density of the food).

When cooking pre-packed foods, follow any guidelines on the package or label.

BEEF MINSANDWICHES MIN
fillet 5-7 cheese 2-3
loin steak 7-8 ham (cooked) 5-6
burger, 50g	5-6	roast beef (cooked)	6-7
burger, 100g	7-8	sausage (cooked)	6-7
kebabs, 25mm cube	7-8	turkey (cooked)	6-7
round steak	5-7 SNACKS
sausages (thin)	5-6	hot dogs	2-3
sausages (thick)	7-8	quesadillas	2-3
sirloin	7-9	tacos, meat filling	6-8
T-Bone	8-9 CHICKEN/TURKEY
LAMB		chicken breast pieces	5-7
kebabs, 25mm cube	7-8	burger, 50g, fresh/frozen	4/5
minced	6-7	burger, 100g, fresh/frozen	5/6
loin chops	4-6	kebabs, 25mm cube	7-8
SEAFOOD		thighs (chicken)	5-7
halibut steak, 12-25mm	6-8	minced	7-8
kebabs, 25mm cube	4-6	turkey breast, thin sliced	3-4
prawn	1-2	VEGETABLES
red snapper fillet	3-5	asparagus	3-4
salmon fillet 3-4 carrots, sliced 5-7
salmon steak, 12-25mm	6-8	aubergine, slice/cube	8-9
scallops	4-6	onions, thin slice	5-6
sea bass fillet 3-5 peppers, thin slice 6-8
swordfish steak, 12-25mm	6-9	peppers, grill then skin	2-3
tuna steak, 12-25mm	6-8	whole peppers brushed with oil	8
PORK		potatoes, slice/cube	7-9
chops, 12mm	5-6	squash, slice/cube	6-8
gammon steak	5-6 FRUIT
kebabs, 25mm cube	7-8	apple, halve/slice	6-8
minced	7-8	bananas, slice lengthwise	3-4
sausages (thin)	5-6	nectarines, halve/slice	3-5
sausages (thick)	7-8	peaches, halve/slice	3-5
tenderloin, 12mm	4-6	pineapple, slice	3-7
