USER MANUAL MHL760 BeamZ

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION....4

POWERSUPPLY 4

RIGGING 4

DMX512 CONTROL 5

RDM CONTROL....5

CLEANING 5

REPLACING THE FUSE....6

MAINTENANCE....6

TROUBLE SHOOTING 7

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 8

UITPAKKEN....9

AANSLUITSPANNING....9

RIGGING 9

DMX BEDIENING....10

RDM BEDIENING....10

REINIGEN 10

VERVANGEN ZEKERING 11

ONDERHOUD....11

PROBLEMEN OPLOSSEN....12

DEUTSCH

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to ry, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5mm^2 . The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

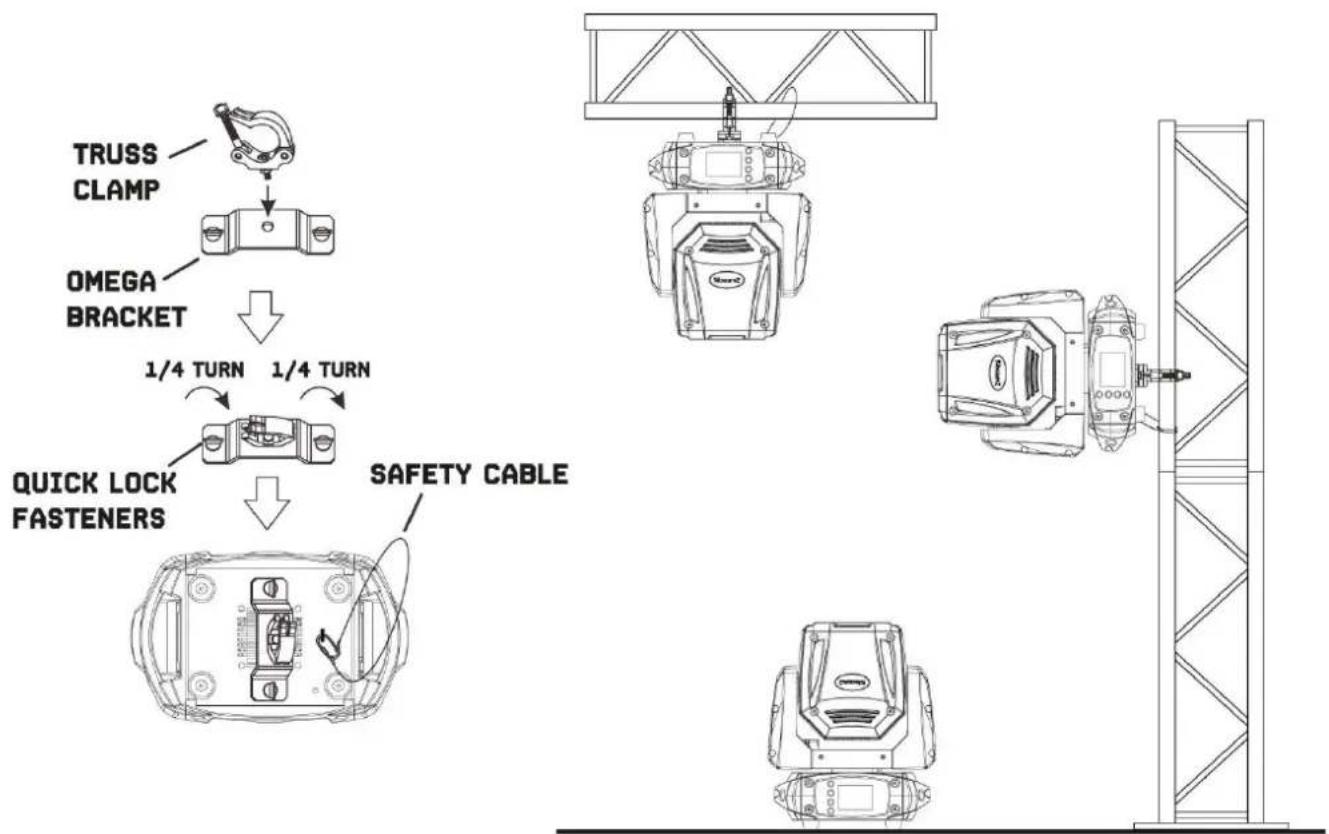

RIGGING

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!

DMX512 CONTROL

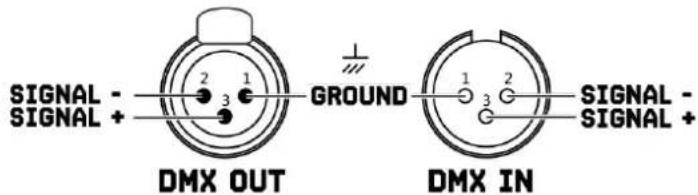

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

SIGNAL - SIGNAL + DMX OUT GROUND DMX IN SIGNAL - SIGNAL + 1 2 3

1 2 3 120 OHM TERMINATOR

RDM CONTROL

This unit can communicate using RDM (Remote Device Management) via DMX512. RDM is a bi-directional communication protocol for use in DMX512 control systems, it is the open standard for DMX512 configuration and status monitoring.

The RDM protocol allows data packets to be inserted into a DMX512 line without affecting the existing non-RDM equipment. The system allows a controller or special RDM controller to send and receive commands from specific fixtures.

The RDM function allows you, for example to remotely set the DMX start address of your fixtures. This is especially useful when the fixture is installed in an inaccessible location. Each unit has an RDM UID (unique identification number).

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
• Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

REPLACING THE FUSE

If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Hand holding a screwdriver with a fuse icon nearby (no text or symbols on the diagram itself)

Procedure:

Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.

Step 2: Remove the old fuse from the fuse holder.

Step 3: Install the new fuse in the fuse holder.

Step 4: Replace the fuse holder in the housing.

MAINTENANCE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.

Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

- Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.

- Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.

- Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.

- Check the mechanically moving parts, these must not show any signs of wear or fatigue.

- Check the electrical power and signal cables, they must not show any damage or fatigue.

- Do not use solvents, abrasives or other aggressive products to clean the unit.

- Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.

• Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained.Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit.Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

Hand holding a screwdriver with a circular icon labeled 'FUBE' and an 'X' symbol, no text or symbols present.

Procedimiento:

REPLACEMENT DU FUSIBLE

	095-099	Focus Motor Reset
	100-119	Internal program 1
	120-139	Internal program 2
	140-159	Internal program 3
	160-179	Internal program 4
	180-199	Internal program 5
	200-219	Internal program 6
	220-239	Internal program 7
	240-255	Internal Sound program 1

66 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	PAN	000-255	Pan movement
2	PAN-FINE	000-255	Fine control of Pan movement
3	TILT	000-255	Tilt movement
4	TILT-FINE	000-255	Fine control of Tilt movement
5	SPEED PAN/TILT	000-225	Max to min speed
		226-235	Blackout by movement
		236-255	No function
6	DIMMER	000-255	Dimmer 0%-100%
7	SHUTTER	000-031	Shutter closed
		032-063	Shutter open
		064-095	Strobe effect slow to fast
		096-127	Shutter open
		128-159	Pulse-effect in sequences slow to fast
		160-191	Shutter open
		192-223	Random strobe effect slow to fast
		224-255	Shutter open
8	RED	000-255	0-100% Red dimmer from dark to bright
9	GREEN	000-255	0-100% Green dimmer from dark to bright
10	BLUE	000-255	0-100% Blue dimmer from dark to bright
11	WHITE	000-255	0-100% White dimmer from dark to bright
12	ZOOM	000-255	In(near) to out(far)
13	ZOOM ROTATION	000-015	Zoom rotation stop
		016-063	shake slow to fast(width by Zoom Angle)
		064-156	Forwards rotation from fast to slow
		157-162	Zoom rotation stop
		163-255	Backwards rotation from slow to fast
14	ZOOM ANGLE	000-255	Zoom Angle(0°~60)
15	VIRTUAL COLOR	000-000	No Function
		001-013	Red
		014-027	Green
		028-041	Blue
		042-055	White
		056-069	Red+White
		070-083	Green+White
		084-097	Blue+White
		098-111	Green+Blue
		112-125	Red+Blue
		126-139	Red+Green
		140-153	Green+Blue+White
		154-167	Red+Blue+White
		168-181	Red+Green+White
		182-195	Red+Blue+Green+White
		196-202	2700K
		203-209	3200K
		210-216	3500K
		217-223	5000K
		224-230	5500K
		231-237	6000K
		238-244	6500K
		245-251	7000K
		252-255	8000K
16	COLOR TEMP	000-015	No Function
		016-045	Below 3200K
		046-075	3200K - 3500K
		076-105	3500K - 5000K
		106-135	5000K - 5500K
		136-165	5500K - 6000K
		166-195	6000K - 6500K
		196-225	6500K - 7000K
		226-255	7000K - 8000K
17	VISUAL TUNGSTEN LAMP	000-015	No function
		016-255	Tungsten lamp effect is gradually enhanced
18	FOREGROUND COLOR FOR PATTERNS	000-000	No Function
		001-013	Red
		014-027	Green
		028-041	Blue
		042-055	White
		056-069	Red+White
		070-083	Green+White
		084-097	Blue+White
		098-111	Green+Blue
		112-125	Red+Blue
		126-139	Red+Green
		140-153	Green+Blue+White
		154-167	Red+Blue+White
		168-181	Red+Green+White
		182-195	Red+Blue+Green+White
		196-202	2700K
		203-209	3200K
		210-216	3500K
		217-223	5000K
		224-230	5500K
		231-237	6000K
		238-244	6500K
		245-251	7000K
		252-255	8000K
19	FOREGROUND DIMMER	000-255	Foreground dimmer 0 - 100%.
20	BACKGROUND COLOR FOR PATTERNS	000-000	No Function
		001-013	Red
		014-027	Green
		028-041	Blue
		042-055	White
		056-069	Red+White
		070-082	Green+White
		084-097	Blue+White
		098-111	Green+Blue
		112-125	Red+Blue
		126-139	Red+Green
		140-153	Green+Blue+White
		154-167	Blue+White
		168-181	Red+Green+White
		182-195	Red+Blue+Green+White
		196-202	2700K
		203-209	3200K
		210-216	3500K
		217-223	5000K
		224-230	5500K
		231-237	6000K
		238-244	6500K
		245-251	7000K
		252-255	8000K
21	BACKGROUND DIMMER	000-255	Background dimmer 0 - 100%.
22	PATTERNS	000-015	No function
		016-030	Static patterns
		031-035	Dynamic Scene1
		036-040	Dynamic Scene2
		041-045	Dynamic Scene3
		046-050	Dynamic Scene4
		051-055	Dynamic Scene5
		056-060	Dynamic Scene6
		061-065	Dynamic Scene7
		066-070	Dynamic Scene8
		071-075	Dynamic Scene9
		076-080	Dynamic Scene10
		081-085	Dynamic Scene11
		086-090	Dynamic Scene12
		091-095	Dynamic Scene13
		096-100	Dynamic Scene14
		101-105	Dynamic Scene15
		106-110	Dynamic Scene16
		111-115	Dynamic Scene17
		116-120	Dynamic Scene18
		121-125	Dynamic Scene19
		126-135	Multicolor Dynamic Scene1
		136-145	Multicolor Dynamic Scene2
		146-155	Multicolor Dynamic Scene3
		156-165	Multicolor Dynamic Scene4
		166-175	Multicolor Dynamic Scene5
		176-185	Multicolor Dynamic Scene6
		186-195	Multicolor Dynamic Scene7
		196-205	Multicolor Dynamic Scene8
		206-215	Multicolor Dynamic Scene9
		216-225	Multicolor Dynamic Scene10
		226-235	Multicolor Dynamic Scene11
		236-245	Multicolor Dynamic Scene12
		246-255	Multicolor Dynamic Scene13
23	STATIC PATTERNS OR PATTERNS SPEED	Static Patterns (If channel Patterns is in the interval 016-030)
		000-007	Static Scene1
		008-015	Static Scene2
		016-023	Static Scene3
		024-031	Static Scene4
		032-039	Static Scene5
		040-047	Static Scene6
		048-055	Static Scene7
		056-063	Static Scene8
		064-071	Static Scene9
		072-079	Static Scene10
		080-087	Static Scene11
		088-095	Static Scene12
		096-103	Static Scene13
		104-111	Static Scene14
		112-119	Static Scene15
		120-127	Static Scene16
		128-135	Static Scene17
		136-143	Static Scene18
		144-151	Static Scene19
		152-159	Static Scene20
		160-167	Static Scene21
		168-175	Static Scene22
		176-183	Static Scene23
		184-191	Static Scene24
		192-199	Static Scene25
		200-207	Static Scene26
		208-215	Static Scene27
		216-223	Static Scene28
		224-231	Static Scene29
		232-239	Static Scene30
		240-247	Static Scene31
		248-255	Static Scene32
		"Dynamic Patterns (If channel Patterns is in the interval 031-255)"
		000-023	No function
		024-137	Forward speed from zero speed to fast speed
		138-141	Stop movement
		142-255	Reverse speed from zero speed to fast speed
24	PIX_DIMMER	000-255	Pix_Dimmer 0%-100%
25	PIX_STROBE	000-255	Pix_Strobe Speed 0%-100%
26	PIX_RED	000-255	0-100% Pix_Red dimmer from dark to bright
27	PIX_GREEN	000-255	0-100% Pix_Green dimmer from dark to bright
28	PIX_BLUE	000-255	0-100% Pix_Blue dimmer from dark to bright
29	PIX_COLOR	000-000	No Function
30	PIX_MACRO	000-015	No Function
		016-029	Pix Dynamic Scene1
		030-043	Pix Dynamic Scene2
		044-057	Pix Dynamic Scene3
		058-071	Pix Dynamic Scene4
		072-085	Pix Dynamic Scene5
		086-099	Pix Dynamic Scene6
		100-113	Pix Dynamic Scene7
		114-127	Pix Dynamic Scene8
		128-141	Pix Dynamic Scene9
		142-155	Pix Dynamic Scene10
		156-169	Pix Dynamic Scene11
		170-183	Pix Dynamic Scene12
		184-197	Pix Dynamic Scene13
		198-211	Pix Dynamic Scene14
		212-225	Pix Dynamic Scene15
		226-239	Pix Dynamic Scene16
		240-255	Pix Dynamic Scene17
31	PIX MACRO SPEED	000-255	Slow to fast
32	EXPAND PATTERNS	000-015	No Function
		016-029	Pix Dynamic Scene1
		030-043	Pix Dynamic Scene2
		044-057	Pix Dynamic Scene3
		058-071	Pix Dynamic Scene4
		072-085	Pix Dynamic Scene5
		086-099	Pix Dynamic Scene6
		100-113	Pix Dynamic Scene7
		114-127	Pix Dynamic Scene8
		128-141	Pix Dynamic Scene9
		142-155	Pix Dynamic Scene10
		156-169	Pix Dynamic Scene11
		170-183	Pix Dynamic Scene12
		184-197	Pix Dynamic Scene13
		198-211	Pix Dynamic Scene14
		212-225	Pix Dynamic Scene15
		226-239	Pix Dynamic Scene16
		240-255	Pix Dynamic Scene17
33	PIX_FOREGROUND DIMMER	000-255	"Pix_Expand Patterns Foreground dimmer 0 - 100%. (Foreground Color Share with ""Pix_Macro""Channel)"
34	PIX_BACKGROUND DIMMER	000-255	Pix_Expand Patterns Background dimmer 0 - 100%.
35	PIX_BACKGROUND RED	000-255	Pix_Expand Patterns Background Red 0 - 100%.
36	PIX_BACKGROUND GREEN	000-255	Pix_Expand Patterns Background Green 0 - 100%.
37	PIX_BACKGROUND BLUE	000-255	Pix_Expand Patterns Background Blue 0 - 100%.
38	RED IN PIXEL 1	000-255	Red in pixel 1 saturation control (0-100%)
39	GREEN IN PIXEL 1	000-255	Green in pixel 1 saturation control (0-100%)
40	BLUE IN PIXEL 1	000-255	Blue in pixel 1 saturation control(0-100%)
41	WHITE IN PIXEL 1	000-255	White in pixel 1 saturation control(0-100%)
42	RED IN PIXEL 2	000-255	Red in pixel 2 saturation control(0-100%)
43	GREEN IN PIXEL 2	000-255	Green in pixel 2 saturation control(0-100%)
44	BLUE IN PIXEL 2	000-255	Blue in pixel 2 saturation control(0-100%)
45	WHITE IN PIXEL 2	000-255	White in pixel 2 saturation control(0-100%)
46	RED IN PIXEL 3	000-255	Red in pixel 3 saturation control (0-100%)
47	GREEN IN PIXEL 3	000-255	Green in pixel 3 saturation control(0-100%)
48	BLUE IN PIXEL 3	000-255	Blue in pixel 3 saturation control(0-100%)
49	WHITE IN PIXEL 3	000-255	White in pixel 3 saturation control(0-100%)
50	RED IN PIXEL 4	000-255	Red in pixel 4 saturation control (0-100%)
51	GREEN IN PIXEL 4	000-255	Green in pixel 4 saturation control(0-100%)
52	BLUE IN PIXEL 4	000-255	Blue in pixel 4 saturation control(0-100%)
53	WHITE IN PIXEL 4	000-255	White in pixel 4 saturation control(0-100%)
54	Red in Pixel 5	000-255	White in pixel 5 saturation control (0-100%)
55	GREEN IN PIXEL 5	000-255	Green in pixel 5 saturation control(0-100%)
56	BLUE IN PIXEL 5	000-255	Blue in pixel 5 saturation control(0-100%)
57	WHITE IN PIXEL 5	000-255	White in pixel 5 saturation control(0-100%)
58	RED IN PIXEL 6	000-255	White in pixel 6 saturation control (0-100%)
59	GREEN IN PIXEL 6	000-255	Green in pixel 6 saturation control(0-100%)
60	BLUE IN PIXEL 6	000-255	Blue in pixel 6 saturation control(0-100%)
61	WHITE IN PIXEL 6	000-255	White in pixel 6 saturation control(0-100%)
62	RED IN PIXEL 7	000-255	White in pixel 7 saturation control (0-100%)
63	GREEN IN PIXEL 7	000-255	Green in pixel 7 saturation control(0-100%)
64	BLUE IN PIXEL 7	000-255	Blue in pixel 7 saturation control(0-100%)
65	WHITE IN PIXEL 7	000-255	White in pixel 7 saturation control(0-100%)
66	SPECIAL FUNCTION	000-019	No function
		020-029	No function
		030-039	No function
		040-079	No function
		080-089	All Motor reset
		090-094	SCAN Motor Reset
		095-099	Focus Motor Reset
		100-119	Internal program 1
		120-139	Internal program 2
		140-159	Internal program 3
		160-179	Internal program 4
		180-199	Internal program 5
		200-219	Internal program 6
		220-239	Internal program 7
		240-255	Internal Sound program 1

TECHNICAL SPECIFICATIONS

Colour temperature 2700K - 8000K

Light source 4-in-1 LED

LED colours Red, Green, Blue, White

LED power (single LED) 60W

Quantity of LEDs 7

Beam angle: Min 6°

Beam angle: Max 60°

Zoom Yes

Illuminance 120.643 lx @ 1m

Head movement: Pan 540°

Head movement: Tilt 270°

Flash rate per second 1 - 21Hz

Modes Automatic programs, DMX, Master/Slave

Sound to light mode Yes

DMX channels 26, 38, 66

DMX connection 3-pin XLR, 5-pin XLR

Display LCD

IP rating IP20

Cooling Temperature controlled fan

Power plug P-Con

Power consumption 4.12 - 2.07A

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) 335 x 215 x 365 mm

Weight (kg) 10.30

Included accessories Mounting bracket, Safety cord, Power cable

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

BEAMZ

offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!
