Interior fittings Sticker “OK” Switching off and disconnecting the appliance Cleaning the appliance Light (LED) Tips for saving energy Operating noises Eliminating minor faults yourself Appliance self-test Customer service

en Table of Contents Safety and warning information Information concerning disposal Scope of delivery Ambient temperature and ventilation Connecting the appliance Getting to know your appliance Switching the appliance on Setting the temperature Usable capacity Refrigerator compartment Super cooling

en enTable of ContentsensnI truticnoforUse

Safety and warning information Before you switch ON the appliance Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.

Technical safety This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite. If damage has occurred ■ Keep naked flames and/or ignition sources away from the appliance, ■ thoroughly ventilate the room for several minutes, ■ switch off the appliance and pull out the mains plug, inform customer service. The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance. ■

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk. Repairs may be performed by the manufacturer, customer service or a similarly qualified person only. Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements. A extension cable may be purchased from customer service only.

Important information when using the appliance ■

Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Risk of explosion!

Never use a steam cleaner to defrost or clean the appliance! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock! Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries. Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!

Do not stand or support yourself on the base, drawers or doors, etc. Before defrosting and cleaning the appliance, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging the cable.

Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position. Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous. Never cover or block the ventilation openings for the appliance. People (childern incl.) who have limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions.

Children in the household ■

Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film! Do not allow children to play with the appliance! If the appliance features a lock: keep the key out of the reach of children!

General regulations The appliance is suitable for refrigerating food. This appliance is intended for use in the home and the home environment. The appliance is suppressed according to EU Directive 2004/108/EC. The refrigeration circuit has been checked for leaks. This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).

Information concerning disposal * Disposal of packaging The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal.

* Disposal of your old appliance Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances. This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment – WEEE. The directive specifies the framework for an EU-wide valid return and re-use of old appliances.

ã=Warning Redundant appliances 1. Pull out the mains plug. 2. Cut off the power cord and discard with the mains plug. 3. Do not take out the trays and receptacles: children are therefore prevented from climbing in! 4. Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Scope of delivery After unpacking all parts, check for any damage in transit. If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service. The delivery consists of the following parts: ■ Free-standing appliance ■ Interior fittings (depending on model) ■ ■ ■ ■ ■ ■

Operating instructions Installation manual Customer service booklet Warranty enclosure Information on the energy consumption and noises Bag containing installation materials

Ambient temperature and ventilation Ambient temperature The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures. The climate class can be found on the rating plate. Fig. , Climate class

SN N ST T Permitted ambient temperature +10 °C to 32 °C +16 °C to 32 °C +16 °C to 38 °C

+16 °C to 43 °C Note The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C.

Ventilation Fig. 3 The air on the rear panel and on the side panels of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigerating unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings!

Connecting the appliance After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system. Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”).

Electrical connection The socket must be near the appliance and also freely accessible following installation of the appliance. The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse. For appliances operated in nonEuropean countries, check whether the stated voltage and current type match the values of your mains supply match the values of the mains supply. This information can be found on the rating plate. Fig. ,

ã=Warning Never connect the appliance to electronic energy saver plugs. Our appliances can be used with mains and sine-controlled inverters. Mainscontrolled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

Getting to know your appliance

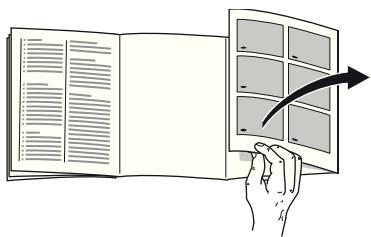

Please fold out the illustrated last page. These operating instructions refer to several models. The features of the models may vary. The diagrams may differ. Fig. 1 * Not all models. 1-4 5 6 7 8 9 10 11 12 13

Controls Light (LED) Glass shelf Condensation outlet Vegetable container with humidity control Height-adjustable feet Butter and cheese compartment * Egg rack* Door shelf Shelf for large bottles

On/Off button Serves to switch the appliance on and off. Temperature display The numbers correspond to the set refrigerator compartment temperatures in °C. Super cooling indicator illuminates when “super cooling” is on. Temperature selection button Press this button to set the temperature.

Switching the appliance on Fig. 2 Switch on the appliance with the On/Off button 1. The temperature display 2 indicates the selected temperature. The appliance starts to cool, the light is switched on when the door is open. When the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put any food in the appliance beforehand.

While the refrigeration unit is running, water droplets or a thin layer of ice may form at the rear panel of the refrigerator. This is nothing unusual. It is not necessary to scrape off the frost or wipe off the water droplets. The rear panel defrosts automatically. The condensation collects in the drainage channel and is carried to the refrigeration unit where it evaporates. If the air humidity is high, condensation may form in the refrigerator compartment, especially on the glass shelves. If this is the case, pack or wrap the food and select a lower temperature in the refrigerator compartment.

Setting the temperature Refrigerator compartment Fig. 2 Keep pressing temperature setting button 4 until the required refrigerator compartment temperature is set. The value last selected is served. The set temperature is indicated on display 2. We recommend a factory setting of +4 °C in the refrigerator compartment. Perishable food should not be stored above +4 °C.

Note Store at the very top of the door e.g. cheese and butter. When served, the cheese will not have lost its flavour and the butter will be easy to spread. Store in the vegetable container fruit and vegetables sensitive to chilling temperatures.

Information on the usable capacity can be found inside your appliance on the rating plate. Fig. ,

Refrigerator compartment The refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk, hard cheese, fruit and vegetables sensitive to cold as well as tropical fruit.

Note when loading products: Wrap or cover food before placing in the appliance. This will retain the aroma, colour and freshness of the food. In addition, flavours will not be transferred between foods and the plastic parts will not become discoloured. Note Avoid contact between food and rear panel. Otherwise the air circulation will be impaired. Food or packaging could freeze to the rear panel.

Note the chill zones in the refrigerator compartment! The air circulation in the refrigerator compartment creates different chill zones: ■

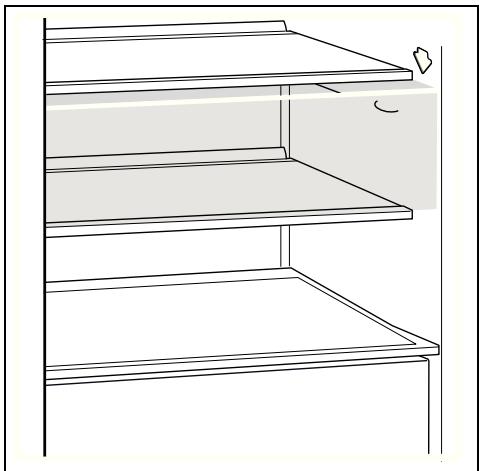

Coldest zone is between the arrow stamped on the side and the glass shelf situated below. Fig. 4 Note Store perishable food (e.g. fish, sausage, meat) in the coldest zones.

Warmest zone is at the very top of the door and in the vegetable container.

Super cooling Super cooling sets the refrigerator temperature to the coldest temperature setting for approx. 15 hours. Then the appliance automatically switches to the temperature set prior to super cooling mode. Switch on super cooling mode, e.g.: ■

before placing large quantities of food in the refrigerator compartment.

to cool drinks quickly.

Note When super cooling is switched on, increased operating noises may occur.

Switching on and off Fig. 2 Keep pressing the temperature setting button 4 until the super indicator 3 is lit.

You can reposition the shelves inside the appliance and the door shelves as required:

(not all models) The “OK” temperature monitor can be used to determine temperatures below +4 °C. Gradually reduce the temperature if the sticker does not indicate “OK”.

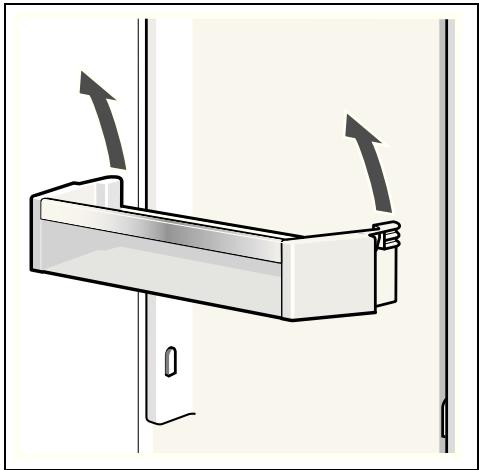

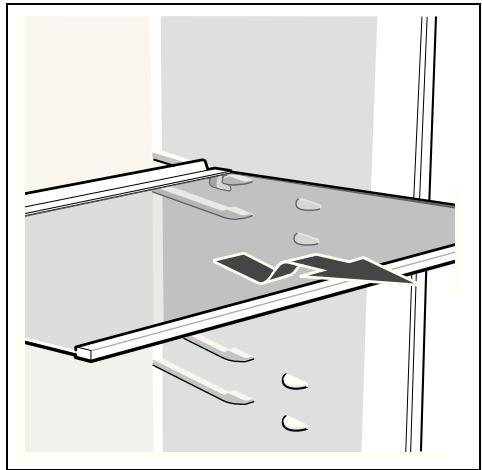

To do this, pull out shelf, lift at the front and take out. Fig. 5 Raise the door shelf and remove. Fig. 6

Note When the appliance is switched on, it may take 12 hours until the temperature is reached.

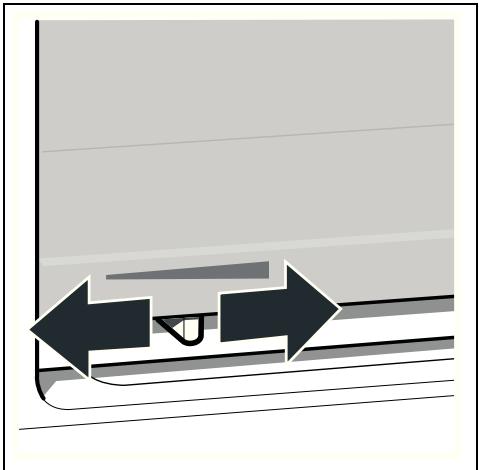

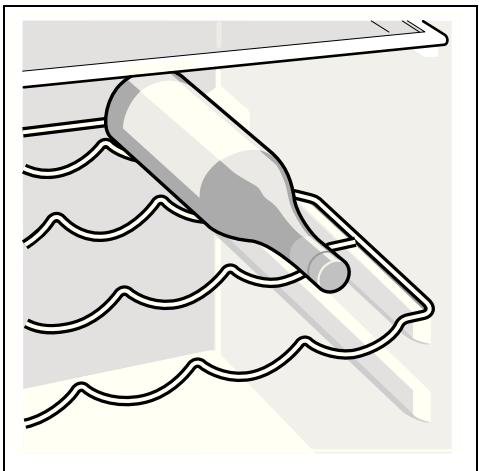

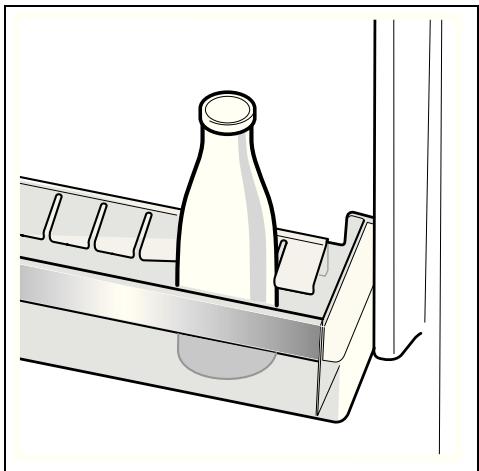

(not all models) Vegetable container with humidity control Fig. 7 To create the optimum storage climate for vegetables, salad and fruit, the air humidity in vegetable container can be regulated according to the quantity stored. Smaller quantities of food – slide the regulator to the right. Larger quantities of food – slide the regulator to the left. Bottle shelf Fig. 8 A/B Bottles can be stored securely on the bottle shelf. The holder can be adjusted. Bottle holder Fig. 9 The bottle holder prevents bottles from falling over when the door is opened and closed.

Switching off and disconnecting the appliance Switching off the appliance Fig. 2 Press the On/Off button 1. Temperature display goes out, refrigerating unit switches off.

Disconnecting the appliance If you do not use the appliance for a prolonged period: 1. Switch off the appliance. 2. Pull out mains plug or switch off fuse. 3. Clean the appliance. 4. Leave the appliance door open.

Cleaning the appliance

Do not use abrasive, chloride or acidic cleaning agents or solvents. Do not use scouring or abrasive sponges. The metallic surfaces could corrode. Never clean shelves and containers in the dishwasher. The parts may become deformed!

Proceed as follows: 1. Before cleaning: Switch the appliance off. 2. Pull out the mains plug or switch off the fuse. 3. Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light. 4. Wipe the door seal with clear water only and then wipe dry thoroughly. 5. Rinsing water must not run through the drainage hole into the evaporation area. 6. After cleaning reconnect and switch the appliance back on.

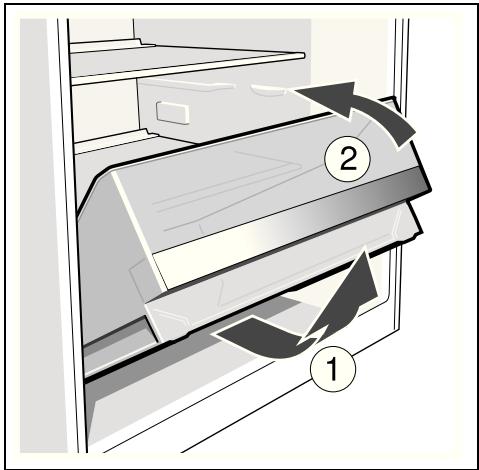

Interior fittings All variable parts of the appliance can be taken out for cleaning. Take out glass shelves Fig. 5 To do this, pull out shelf, lift at the front and take out. Take out shelves in the door Fig. 6 Lift shelves upwards and take out. Condensation channel Fig. * Regularly clean the condensation channel and drainage hole with a cotton bud or similar implement to ensure that the condensation can drain. Removing the container Fig. + Pull out the container all the way, lift at the front and remove.

Light (LED) Your appliance features a maintenancefree LED light. These lights may be repaired by customer service or authorised technicians only.

Tips for saving energy ■

Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker). If required, use an insulating plate.

Allow warm food and drinks to cool down before placing in the appliance!

Open the appliance as briefly as possible. Occasionally clean the rear of the appliance to prevent an increased power consumption. If available: Fit wall spacers to obtain the indicated energy rating of the appliance (see Installation instructions). A reduced wall gap will not restrict the function of the appliance. The energy rating may then change slightly. The gap of 75 mm must not be exceeded.

Operating noises Quite normal noises Droning Motors are running (e.g. refrigerating units, fan). Bubbling, humming or gurgling noises Refrigerant is flowing through the tubing. Clicking Motor, switches or solenoid valves are switching on/off.

Preventing noises The appliance is not level Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them. The appliance is not free-standing Please move the appliance away from adjacent units or appliances.

Eliminating minor faults yourself Before you call customer service: Please check whether you can eliminate the fault yourself based on the following information. Customer service will charge you for advice – even if the appliance is still under guarantee! Fault

The light does not function.

The LED light is defective.

See chapter “Light (LED)” section.

Appliance was open too long. Light is switched off after approx. 10 min.

When the appliance is closed and opened, the light is on again.

Temperature differs greatly from the set value.

Remedial action In some cases it is adequate to switch off the appliance for 5 minutes. If the temperature is too high wait a few hours and check whether the temperature has approached the set value. If the temperature is too low check the temperature again the next day.

Displays do not illuminate.

Power failure; the fuse Connect mains plug. Check whether has been switched off; the power is on, check the fuses. the mains plug has not been inserted properly.

Bottom of the refrigerator compartment is wet.

The condensation channel or drainage hole are blocked.

The temperature in the refrigerator compartment is too cold.

Temperature has been Increase the temperature. set too low.

The refrigerating unit is switching on more frequently and for longer.

Appliance opened frequently.

Do not open the appliance unnecessarily.

The ventilation openings have been covered.

Appliance is not cooling, temperature display and light are lit.

Showroom mode is switched on.

Hold down temperature selection button fig. 2/4 for 10 seconds until an acknowledgement signal sounds. After a short time check whether your appliance is cooling.

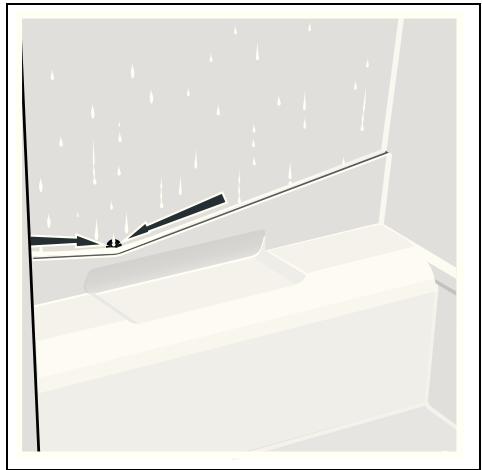

Clean the condensation channel and the drainage hole. See chapter Cleaning the appliance. Fig. *

Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only.

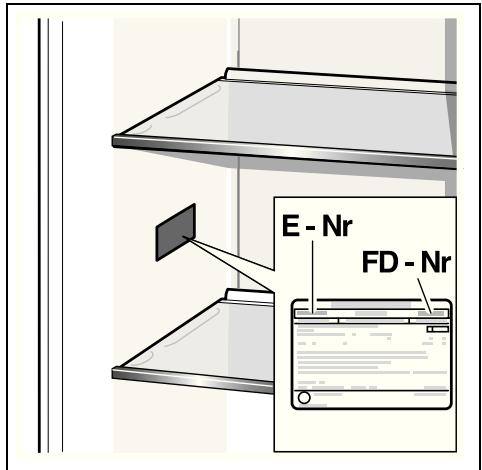

Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD). These specifications can be found on the rating plate. Fig. , To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

Starting the appliance self-test 1. Switch off the appliance and wait 5 minutes. 2. Switch on the appliance and hold down the temperature selection button, Fig. 2/4, for 3–5 seconds within the first 10 seconds until 2 °C is lit on the refrigerator compartment temperature display. The self-test programme starts, when the temperature displays lit up in succession. When after a short time the appliance displays the set temperature prior to the self-test, everything is ok. If the Super display flashes for 10 seconds, an error has occurred. Inform customer service.

Repair order and advice on faults Contact information for all countries can be found on the enclosed customer service list. GB

01450 2655 800 944 2904

Ending the appliance self-test When the programme has ended, the appliance switches over to normal operation.

Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply. toll-free
