(1) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (2) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (3) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:

• hinges and latches (broken or loosened),

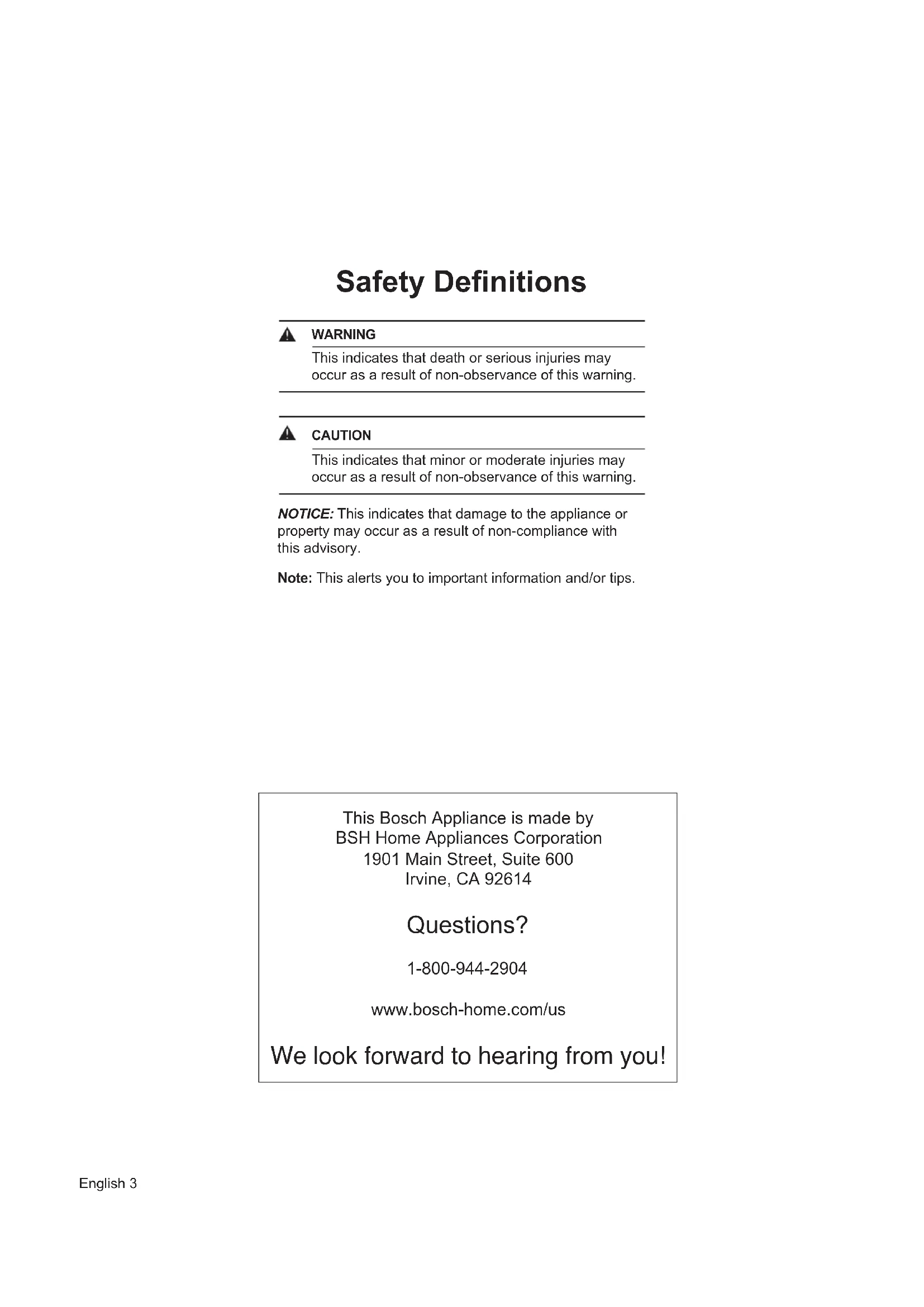

• door seals and sealing surfaces. (4) The oven should not be adjusted or repaired by anyone except properly authorized service personnel. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. Refer all servicing to a factory authorized service center.English 3 Safety Denitions WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note: This alerts you to important information and/or tips. This Bosch Appliance is made by BSH Home Appliances Corporation 1901 Main Street, Suite 600 Irvine, CA 92614 Questions? 1-800-944-2904 www.bosch-home.com/us We look forward to hearing from you!English 4

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

When using the appliance, basic safety precautions should be followed, including the following: WARNING To reduce the risk of burns, electric shock, re, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

2. Read and follow the specic “PRECAUTIONS TO

3. This appliance must be properly grounded. See page

5 for grounding instructions.

4. Install or locate this appliance only in accordance with

the provided Installation Manual.

5. Some products such as whole eggs and sealed

containers - for example, closed glass jars—could explode and should not be heated in this oven.

6. Use this appliance only for its intended use as

described in this manual. Do not use corrosive chemi- cals or vapors in this appliance. This type of oven is specically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

7. As with any appliance, close supervision is necessary

when used by children.

8. Do not operate this appliance if it has a damaged cord

or plug, if it is not working properly or if it has been damaged or dropped.

9. This appliance should be serviced only by authorized

service personnel. Contact nearest Bosch Authorized Servicer for examination, repair or adjustment.

10. Do not cover or block any openings on the appliance.

11. Do not store or use this appliance outdoors. Do not

use this product near water—for example, near a kitchen sink, in a wet basement, near a swimming pool or similar locations.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not climb or sit on the appliance.

15. Be sure that ngers or other objects or materials are

not around the appliance opening when the appliance is closed.

16. Do not put ngers or clothes around the drawer guides

when the appliance is opened or closed; they could be caught in the guides when the appliance is closed.

17. Be sure that the food and container are shorter than

the drawer before closing it. You can refer to the height of the side walls of the drawer.

18. When cleaning appliance sealing surfaces that come

together on closing the drawer, use only mild, non- abrasive soaps or detergents applied with a sponge or soft cloth. See cleaning instructions on page 17.

19. To reduce the risk of re in the appliance cavity.

a. Do not overcook food. b. Carefully attend appliance when paper, plastic or other combustible materials are placed inside the appliance to facilitate cooking. c. Remove wire twist-ties from paper or plastic bags before placing bag in appliance. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the appliance when not in use. If materials inside the appliance ignite, keep appliance door closed, turn microwave off and shut off power at the fuse or circuit breaker panel.

20. Liquids, such as water, coffee or tea are able to be

overheated beyond the boiling point without appear- ing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the appliance is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: a. Do not overheat the liquid. b. Stir the liquid both before and halfway through heating it. c. Do not use straight-sided containers with narrow necks. Use a wide-mouthed container. d. After heating, allow the container to stand in the appliance at least for 20 seconds before removing the container. e. Use extreme care when inserting a spoon or other utensil into the container.

22. Do not use regular cooking thermometers in oven. Most

cooking thermometers contain mercury and may cause electric arc, malfunction, or damage to the oven.

23. To avoid pacemaker malfuction, consult physician or

pacemaker manufacturer about effects of microwave energy on pacemaker.English 5 About Unpacking and Examining Your Drawer Microwave

1. Remove all packing

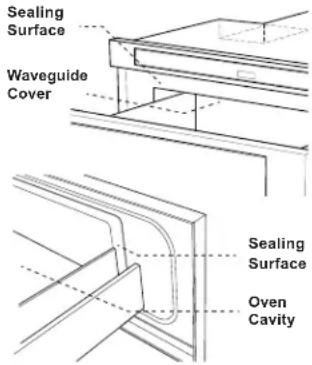

materials from inside the Drawer Microwave. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the top of the Drawer Microwave.

2. NOTICE: Check the

drawer for any damage, such as misaligned or bent drawer, damaged drawer seals or sealing sur- faces, broken or loose drawer guides and dents inside the cavity or on the front side of the drawer. If there is any damage, do not operate the Drawer Microwave. Contact your dealer or Bosch Customer Support. Radio or TV Interference Should there be any interference to your radio or TV caused by the Drawer Microwave, check that the Drawer Microwave is on a different electrical circuit, relocate the radio or TV as far away from the drawer as feasible or check position and signal of receiving antenna. GROUNDING INSTRUCTIONS

• This appliance must be grounded. In the event of an electrical short circuit, ground- ing reduces risk of electric shock by providing an escape wire for the electric current. The Drawer Microwave is equipped with a cord having a grounding wire with a ground- ing plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. WARNING Improper use of the grounding plug can result in a risk of electric shock. Do not use an extension cord. If the power supply cord is too short, have a quali- ed electrician install an outlet near the appliance.

• If you have any questions about the grounding or electrical instructions, consult a qualied electrician. About Your Drawer Microwave ALWAYS have food in the Drawer Microwave when it is on to absorb the microwave energy. The vent under the Drawer Microwave must not be blocked. During microwaving, steam may come from the right side of the vent. When using the Drawer Microwave at power levels below 100%, you may hear the magnetron cycling on and off. It is normal for the exterior of the Drawer Microwave to be warm to the touch when cooking or reheating. Condensation is a normal part of microwave cooking. Room humidity and the moisture in food will inuence the amount of moisture that condenses in the Drawer Micro- wave. Generally, covered foods will not cause as much condensation as uncovered ones. The Drawer Microwave is for food preparation only. It should not be used to dry clothes or newspapers. Your Drawer Microwave is rated 950 watts by using the IEC Test Procedure. In using recipes or package direc- tions, check food a minute or two before the minimum time and add time accordingly. When opening or closing the drawer quickly, food in the drawer may be spilled. To clean, please refer to the Clean- ing and Care section on page 17. About Microwave Cooking

• Arrange food carefully. Place thickest areas towards outside of dish.

• Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

• Cover foods while cooking. Check recipe or cookbook for suggestions: paper towels, wax paper, microwave plastic wrap or a lid may be used. Covers prevent spattering and help foods to cook evenly.

• Shield with small at pieces of aluminum foil any thin areas of meat or poultry to prevent overcooking before dense, thick areas are cooked thoroughly.

• Stir foods from outside to center of dish once or twice during cooking, if possible.

• Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once. Waveguide CoverSealing SurfaceOven CavitySealing Surface Information You Need to KnowEnglish 6

• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from right to left.

• Add standing time. Remove food from Drawer Microwave and stir, if possible. Cover the food during standing time which allows the food to nish cooking without overcooking.

• Check for doneness. Look for signs indicating that cooking temperatures have been reached. Doneness signs include: - Food steams throughout, not just at edge. - Center bottom of dish is very hot to the touch. - Poultry thigh joints move easily. - Meat and poultry show no pinkness. - Fish is opaque and akes easily with a fork.

• A good microwave cookbook is a valuable asset. Check it for microwave cooking principles, techniques, hints and recipes. About Utensils and Coverings It is not necessary to buy all new cookware. Many pieces already in your kitchen can be used successfully in your new Drawer Microwave. Make sure the utensil does not touch the interior walls during cooking. Use these utensils for safe microwave cooking and reheat- ing:

• glass ceramic (Pyroceram

), such as Corningware

• heat-resistant glass (Pyrex

• microwave-safe plastics

• microwave-safe paper plates

• microwave-safe pottery, stoneware and porcelain

• browning dish (Do not exceed recommended preheating time. Follow manufacturer’s directions.) These items can be used for short time reheating of foods that have little fat or sugar in them:

• metal pans and bakeware

• dishes with metallic trim

• non-heat-resistant glass

• non-microwave-safe plastics (margarine tubs)

• recycled paper products

• metal twist-ties Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used. The following coverings are ideal:

• Paper towels are good for covering foods for reheating and absorbing fat while cooking bacon.

• Wax paper can be used for cooking and reheating.

• Plastic wrap that is specially marked for microwave use can be used for cooking and reheating. DO NOT allow plastic wrap to touch food. Vent so steam can escape.

• Lids that are microwave-safe are a good choice because heat is kept near the food to hasten cooking.

• Oven cooking bags are good for large meats or foods that need tenderizing. DO NOT use metal twist ties. Remember to slit bag so steam can escape. How to use aluminum foil in your Drawer Microwave:

• Small at pieces of aluminum foil placed smoothly on the food can be used to shield areas that are either defrosting or cooking too quickly.

• Foil should not come closer than one inch to any surface of the Drawer Microwave. Accessories There are many microwave accessories available for purchase. Evaluate carefully before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in determining correct done- ness and assure you that foods have been cooked to safe temperatures. The manufacturer is not responsible for any damage to the Drawer Microwave when accessories are used. About Safety

• Check foods to see that they are cooked to the United States Department of Agriculture's recommended temperatures. 145˚F

Pork, ground beef/veal/lamb, egg dishes 165˚F

For leftover, ready-to-reheat refrigerated, and deli and carry-out “fresh” food. Whole, pieces and ground turkey/chicken/duck. To test for doneness, insert a meat thermometer in a thick or dense area away from fat or bone. NEVER leave the thermometer in the food during cooking, unless it is approved for microwave use.English 7 WARNING

• ALWAYS use potholders to prevent burns when handling utensils that are in contact with hot food. Enough heat from the food can transfer through utensils to cause skin burns.

• Avoid steam burns by directing steam away from the face and hands. Slowly lift the farthest edge of a dish’s covering and carefully open popcorn and oven cooking bags away from the face.

• Stay near the Drawer Microwave while it’s in use and check cooking progress frequently so that there is no chance of overcooking food.

• NEVER use the Drawer Microwave for storing cookbooks or other items.

• Select, store and handle food carefully to preserve its high quality and minimize the spread of foodborne bacteria.

• Keep waveguide cover clean. Food residue can cause arcing and/or res. See page 17 for cleaning and care information.

• Do not store ammable materials in or near the oven. About Children and the Microwave WARNING Do not allow children to use the Drawer Microwave unattended. Failure to do so can result in burns or serious injury to children. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use. When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualied persons. See page 15 for Panel Lock feature. WARNING State of California Proposition 65 Warning: This product can expose you to chemicals including vinyl chloride, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. About Foods Food Do Don’t Eggs, sausages, fruits & vegetables

• Puncture egg yolks before cooking to prevent “explosion”.

• Pierce skins of potatoes, apples, squash, hot dogs and sausages so that steam escapes.

• Cook eggs in shells.

• Dry nuts or seeds in shells. Popcorn • Use specially bagged popcorn for the microwave.

• Listen while popping corn for the popping to slow to 1 or 2 seconds or use special Popcorn pad.

• Pop popcorn in regular brown bags or glass bowls.

• Exceed maximum time on popcorn package. Baby food • Transfer baby food to small dish and heat carefully, stirring often. Check temperature before serving.

• Put nipples on bottles after heating and shake thoroughly. “Wrist” test before feeding.

• Heat disposable bottles.

• Heat bottles with nipples on.

• Heat baby food in original jars. General • Cut baked goods with lling after heating to release steam and avoid burns.

• Stir liquids briskly before and after heating to avoid “eruption”.

• Use deep bowl when cooking liquids or cereals to prevent boilovers.

• Food should be shorter than the drawer. Please refer to the height of side walls of the drawer.

• Heat or cook in closed glass jars or airtight containers.

• Can in the microwave as harmful bacteria may not be destroyed.

• Dry wood, gourds, herbs or wet papers.English 8

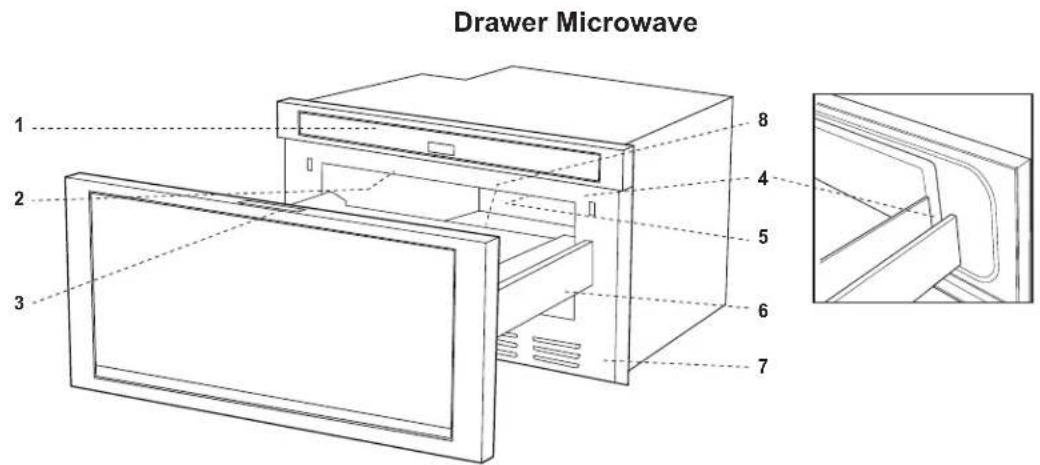

Part Names Drawer Microwave

Menu Label 1 Control Panel 2 Waveguide Cover - DO NOT REMOVE 3 Menu Label 4 Drawer Sealing Surfaces 5 Drawer Light 6 Drawer Guides 7 Vent 8 Name Plate: open the drawer fully. The label is beyond the back wall of the Drawer Microwave cavity facing up from the at surface.

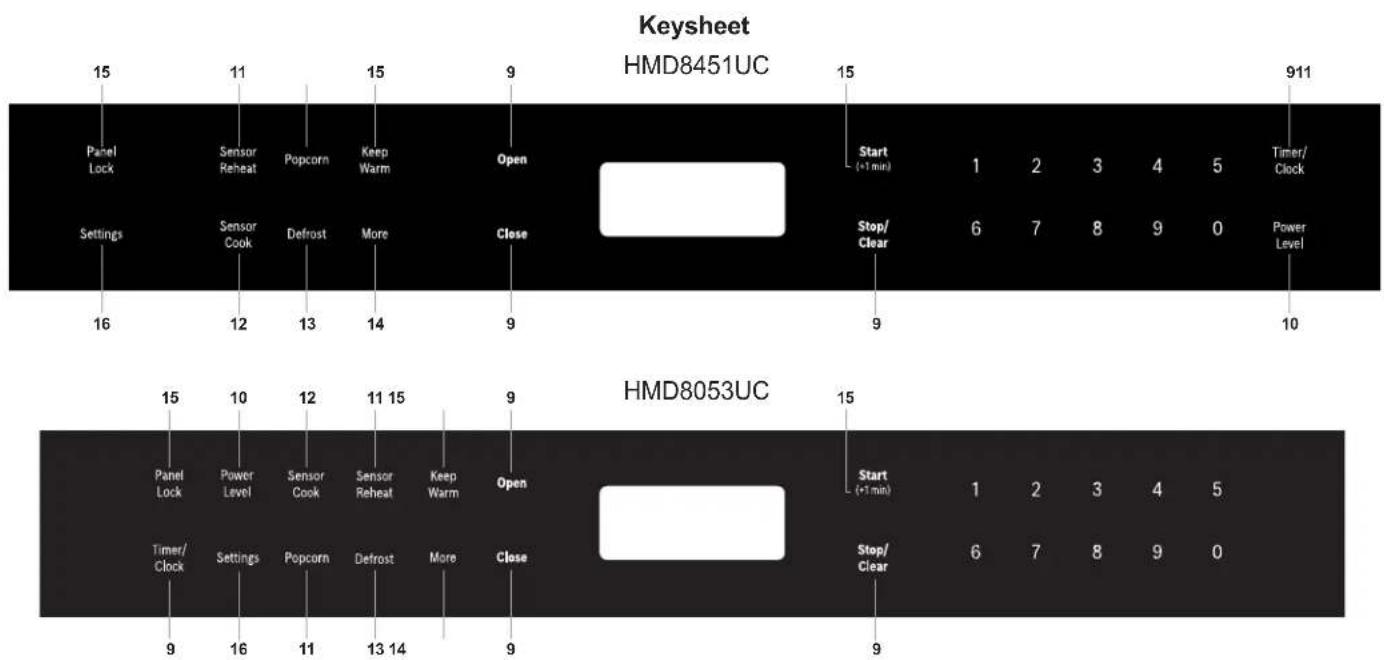

Keysheet HMD8451UC HMD8053UC Numbers next to the keysheet illustration indicate pages on which there are feature descriptions and usage information.English 9 Before Operating Before operating your new Drawer Microwave make sure you read and understand this operation manual completely.

• Before the Drawer Microwave can be used, follow these steps:

1. Plug in the Drawer Microwave.

ENJOY YOUR MICRO- WAVE TOUCH CLEAR AND TOUCH CLOCK will appear.

1. Touch Timer/Clock pad and number 2.

2. Touch number pads for correct time of day and touch

Timer/Clock pad again. This is a 12 hour clock. If you attempt to enter an incorrect clock time, ERROR will appear in the display. Touch the Stop/Clear pad and re-enter the time.

• If the electrical power supply to your Drawer Microwave should be interrupted, the display will intermittently show ENJOY YOUR MICRO- WAVE TOUCH CLEAR AND TOUCH CLOCK after the power is reinstated. If this occurs during cooking, the program will be erased. The time of day will also be erased. Simply touch Stop/Clear pad and reset the clock for the correct time of day. Note:

• The Drawer Microwave can be programmed with the drawer open except for Start (+1 min) Timer

1. Touch Timer/Clock pad and number 1.

3. Touch Timer/Clock pad again.

To cancel timer, touch Stop/Clear. Stop/Clear Touch the Stop/Clear pad to:

• Erase if you make a mistake during programming.

• Stop the Drawer Microwave temporarily during timed cooking.

• Return the time of day to the display.

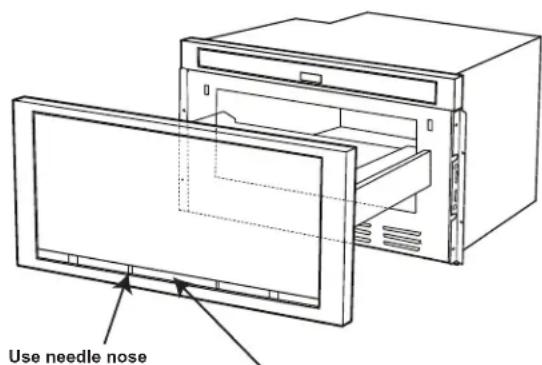

• Cancel a program during cooking; touch twice for timed cooking. Open or Close Drawer Microwave Always press the Open or Close key on the control panel to open or close the drawer. Do not push or pull the drawer by hand, except in case of emergency, such as during a power failure. If necessary, push or pull slowly. Note: If the unit is ush-mounted with no power, open the unit by using the following procedure: Using needle nosed pliers, grab one of the inside columns at the bottom vent of the door (careful not to scratch or damage the plastic/decoration) and pull door open. A 90 degree angled screwdriver and/or angled hex key may also be used by inserting into the middle of the bottom door vent to catch the bottom of the plastic door frame and carefully pull open (see below). Use needle nose pliers to grab plastic vent column.Use 90 degree angled screw driver or an angled hex key and insert through vent opening to pull open.English 10 Time Cooking Your Drawer Microwave can be programmed for 99 minutes 99 seconds (99.99). Always enter the seconds after the minutes, even if they are both zeros.

• To cook for 5 minutes at 100%:

1. Enter cooking time 5 0 0.

2. To cook at 100% power (High), touch Start (+1 min)

pad. To Set Power Level There are eleven preset power levels. Using lower power levels increases the cooking time, which is recommended for foods such as cheese, milk and long slow cooking of meats. Consult a microwave cookbook or recipes for specic recommendations.

• To defrost for 5 minutes at 30%:

2. Touch Power Level pad 8 times.

3. Touch Start (+1 min) pad.

Touch Power Level Pad Number of Times for Desired Power Approximate Percentage of Power Common Words for Power Levels Power Level x 1 100% High Power Level x 2 90% Power Level x 3 80% Power Level x 4 70% Medium High Power Level x 5 60% Power Level x 6 50% Medium Power Level x 7 40% Power Level x 8 30% Med Low/ Defrost Power Level x 9 20% Power Level x 10 10% Low Power Level x 11 0% Sensor Settings The sensor is a semi-conductor device that detects the vapor (moisture and humidity) emitted from the food as it heats. The sensor adjusts the cooking times and power levels for various foods and quantities. Using Sensor Settings:

1. After the Drawer Microwave is plugged in, wait 2

minutes before using any sensor setting.

2. Be sure the exterior of the cooking container and the

interior of the Drawer Microwave are dry. Wipe off any moisture with a dry cloth or paper towel.

3. The sensor works with foods at normal storage tem-

perature. For example, popcorn would be at room temperature.

4. Any sensor selection can be programmed with More or

Less Time Adjustment. See page 16.

5. More or less food than the quantity listed in the charts

should be cooked following the guidelines in any microwave cookbook.

6. During the rst part of sensor use, the food name will

appear on the display. Do not open the drawer or touch Stop/Clear during this part of the cycle. The measure- ment of vapor will be interrupted. If this occurs, an error message will appear. To continue cooking, touch the Stop/Clear pad and cook manually. When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear. The drawer may be opened when the remain- ing time appears on the display. At this time, you may stir or season food, as desired.

7. Except for Popcorn, if the sensor does not detect vapor

properly when cooking other foods, ERROR will be displayed, and the microwave will turn off.

8. Check food temperature after cooking. If additional time

is needed, continue to cook manually.

9. Each food has a cooking hint. Touch the Settings pad

when the HELP indicator is lighted in the display. Microwave cookingEnglish 11 Covering Foods: Some foods cook best when covered. Use the cover recommended in the charts for these foods. You may refer to the hints by touching the Settings pad. See page 16.

wave cooking. Cover dish loosely; allow approximately 1/2 inch to remain uncovered to allow steam to escape. Plastic wrap should not touch food.

3. Wax paper: Cover dish completely; fold excess wrap

under dish to secure. If dish is wider than paper, overlap two pieces at least one inch to cover. Be careful when removing any covering to allow steam to escape away from you. Popcorn / Sensor Reheat Chart Food Amount Procedure Popcorn Only 1 package at a time

(Regular / Regular light)

(Mini / Snack) Use only popcorn packaged for the microwave. Try several brands to decide which you like. Do not try to pop unpopped kernels. Touch Popcorn pad once. Touch Popcorn pad twice. Sensor Reheat 4 - 36 oz. Place in dish or casserole slightly larger than amount to be reheated. Flatten, if possible. Cover with lid, plastic wrap or wax paper. Use covers such as plastic wrap or lids with larger quantities of more dense foods such as stews. After reheating, stir well, if possible. Re-cover and allow to stand 2 to 3 minutes. Foods should be very hot. If not, continue to heat with variable power and time. Popcorn / Sensor Reheat You can pop popcorn and reheat many foods and don’t need to calculate cooking time or power level. Touch Sensor Reheat or Popcorn and Start (+1 min) pad. When the sensor detects the vapor emitted from the food, the remainder of cooking/reheating time will appear. Note:

• The Popcorn setting has 2 choices. Follow directions in the display to choose desired option.English 12 Sensor Cooking

2. See Menu Label. Select desired food by touching

number pad. Ex: Touch 5 for baked potatoes.

• To heat or cook other foods or foods above or below the quantity allowed on the Sensor Cook Chart, cook manually. Sensor Cook Chart Food Amount Procedure

1. Fresh vegetables: Quick

Wash and place in casserole. Add no water if vegetables have just been washed. Cover with lid for tender vegetables. Use plastic wrap for tender- crisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

2. Fresh vegetables: Longer

Carrots, sliced Corn on the cob Green beans Winter squash: diced halves .25 - 1.5 lb.

Place in casserole. Add 1 - 4 tablespoons water. Cover with lid for tender vegetables. Use plastic wrap cover for tender-crisp vegetables. After cooking, stir, if possible. Let stand, covered, for 2 to 5 minutes.

3. Frozen vegetables .25 - 1.25 lb. Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand,

covered, for 3 minutes.

4. Frozen entrees 6 - 17 oz. Use this pad for frozen convenience foods. It will give satisfactory results for

most brands. You may wish to try several and choose your favorite. Remove package from outer wrapping and follow package directions for covering. After cooking, let stand, covered, for 1-3 minutes.

Pierce. Place on paper-towel-lined microwave oven. After cooking, remove from microwave, wrap in aluminum foil and let stand 5 to 10 minutes.

7. Ground meat .25 - 2.0 lb. Use this setting to cook ground beef or turkey as patties or in a casserole to

be added to other ingredients. Place patties on a microwave-safe rack and cover with wax paper. Place ground meat in a casserole and cover with wax paper or plastic wrap. When microwave stops, turn patties over or stir meat in casserole to break up large pieces. Re-cover and touch (+1 min). After cooking, let stand, covered, for 2 to 3 minutes.

8. Fish/seafood .25 - 2.0 lb. Arrange in ring around shallow glass dish (roll llet with edges underneath).

Cover with vented plastic wrap. After cooking, let stand, covered for 3 minutes.

• .5 - 2.0 cups .5 - 2.0 cups Place rice into a deep casserole and add double quantity of water. Cover with lid or plastic wrap. After cooking, stir, cover and let stand 3 to 5 minutes or until all liquid has been absorbed. Rice Water Size of casserole .5 cup p. 1
• cup p. 1
• .5 quart 1 cup p. 2
• cups quart p. 2

2. See Menu Label. Select desired food by touching the

number pad. Ex: Touch 2 for steaks/chops. STEAKS CHOPS ENTER WEIGHT

3. Enter weight by touching number pads.

The oven will stop so that the food can be checked.

5. After the rst stage, open the drawer. Turn steak over

and shield any warm portions. Close the drawer. Touch Start (+1 min) pad.

6. After the second stage, open the drawer. Shield any warm

portions. Close the drawer. Touch Start (+1 min) pad.

7. After defrost cycle ends, cover and let stand as indi-

cated in the chart below. Note:

• Defrost can be programmed with More or Less Time Adjustment. See page 16.

• To defrost other foods or foods above or below the weights allowed on the Defrost Chart, see Manual Defrost below.

• Check foods when oven signals. After nal stage, small sections may still be icy. Let stand to continue thawing. Do not cook until all ice crystals are thawed.

• Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth strips of aluminum foil to cover edges and thinner sections of the food. Defrost Chart Food Amount Procedure

1. Ground meat .5 - 2.0 lb Remove any thawed pieces after each audible signal. Let stand, covered, for 5 to 10

chops .5 - 3.0 lb After each audible signal, rearrange and if there are warm or thawed portions, shield with small at pieces of aluminum foil. Remove any meat or sh that is almost defrosted. Let stand, covered, for 10 to 20 minutes.

poultry .5 - 2.0 lb After each audible signal, if there are warm or thawed portions, rearrange or remove. Let stand, covered, for 10 to 20 minutes.

poultry .5 - 3.0 lb After each audible signal, rearrange pieces or remove portions should they become warm or thawed. Let stand, covered, for 10 to 20 minutes.

5. Roast 2.0 -4.0 lb Start defrosting with fat side down. After each stage, turn roast over and shield the warm

portions with aluminum foil. Let stand, covered, for 30 to 60 minutes.

After each audible signal, break apart and remove any defrosted part. At end, stir well and let stand, covered, for 5 to 10 minutes. Manual Defrost If the food that you wish to defrost is not listed on the Defrost Chart or is above or below the limits in the Amount column on the Defrost Chart, defrost manually. Defrost any frozen food, either raw or previously cooked, by using Power Level at 30%. Follow the exact 3-step procedure found under To Set Power Level on page 10. Estimate defrosting time and touch Power Level pad eight times for 30% power. For either raw or previously cooked frozen food the rule of thumb is approximately 4 minutes per pound. For example, defrost 4 minutes for 1 pound of frozen spaghetti sauce. Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1 minute increments on Power Level 30% until totally defrosted. When using plastic containers from the freezer, defrost only long enough to remove from the plastic in order to place in a microwave-safe dish.English 14 Microwave Cooking More Chart Food Amount Procedure

1 - 8 pcs Use this pad to warm rolls, mufns, biscuits, bagels etc. Large items should be

considered as 2 or 3 regular size. Arrange on plate; cover with paper towel. For refrigerated rolls or mufns, it may be necessary to double the entered amount to ensure the proper serving temperature. For example, enter quantity of 2 for 1 refrigerated mufn.

1 - 8 pcs Use this pad to warm frozen rolls, mufns, biscuits, bagels etc. Large items should

be considered as 2 or 3 regular size. Arrange on plate; cover with paper towel.

3. Reheat Beverage .5 - 2.0 cups This setting for good for restoring cooled beverage to a better drinking tempera-

ture. Touch number 1 pad for a 0.5 cup increase per touch. Stir after heating.

4. Hot Water 1 - 6 cups Use this setting for heating COLD TAP WATER to a temperature somewhat below

the boiling point to make instant coffee or tea. Touch number 1 pad for 1 cup increase per touch. Stir liquid briskly before and after heating to avoid “eruption”.

5. Melt Butter 2 tbsp

.5 cup Use a Pyrex measuring cup. Cover with plastic wrap. Touch 1 once for 2 tbsp. Use a Pyrex measuring cup. Cover with plastic wrap. Touch 1 twice for .5 cup.

6. Melt Chocolate 1 cup chips

1 square Use a Pyrex measuring cup. Cover with plastic wrap. Touch 1 once for 1 cup chips. Use a Pyrex measuring cup. Cover with plastic wrap. Touch 1 twice for 1 square

Do not cover. Touch 1 once for 1 pint. Do not cover. Touch 1 twice for 1.5 quart.

1/4 cup 1/2 cup Use a Pyrex measuring cup. Do not cover. Touch 1 once for 1/4 cup. Use a Pyrex measuring cup. Do not cover. Touch 1 twice for 1/2 cup.

Topping 1/4 cup 1/2 cup Use a Pyrex measuring cup. Do not cover. Touch 1 once for 1/4 cup. Use a Pyrex measuring cup. Do not cover. Touch 1 twice for 1/2 cup. More More automatically computes the correct cook time and microwave power level for foods shown in the chart below.

1. Touch More pad once.

SEE LABEL SELECT FOOD NUMBER

2. See Menu Label. Select desired food by touching

number pad. Ex: Touch 2 for frozen rolls or mufns.

3. Touch the number pad to select quantity. Ex: Touch 2

for 2 rolls or mufns.

• More can be programmed with More or Less Time Adjustment. See page 16.

• To cook other foods or foods above or below the quan- tity allowed on the More Chart, use manual operation.English 15 Keep Warm Keep Warm allows you to keep food warm up to 30 minutes. Direct use

2. Enter desired time by touching the number pads. To

The oven will start. The display will show

and count down. KEEP WARM will be displayed intermit- tently during the count down. With Manual Cooking

1. Enter desired cooking time and power level.

2. Touch Keep Warm pad.

3. Enter desired warming time up to 30 minutes.

4. Touch Start (+1 min) pad.

The operation will start. When the cooking time is complete, a long tone will sound and Keep Warm will start. The display will count down. KEEP WARM will be displayed intermittently during the count down. Note:

• If you attempt to enter more than 30 minutes for Keep Warm, an error message will appear in the display.

• Keep Warm cannot be programmed with Popcorn, Sensor Reheat, Sensor Cook, Defrost or More. Multiple Sequence Cooking Your Drawer Microwave can be programmed for up to 4 automatic cooking sequences, switching from one power level setting to another automatically. Sometimes cooking directions tell you to start on one power level and then change to a different power level. Your Drawer Microwave can do this automatically.

1. First enter cooking time. Then touch Power Level pad

once for 100% cooking or repeat touching Power Level pad for a lower power level.

2. Enter second cooking time. Repeat touching Power

Level pad for desired level. This procedure can be repeated up to 4 times. TOUCH START

• If Power Level pad is touched once, HIGH will be displayed.

• If 100% is selected as the nal sequence, it is not necessary to touch the Power Level pad.

• If you wish to know power level during cooking, simply touch the Power Level pad. As long as the Power Level pad is pressed, the power level will be displayed.

• Keep Warm can be programmed even if 4 cooking sequences have been set. Help Each setting of Sensor Reheat, Sensor Cook, Popcorn, Keep Warm and Defrost has a cooking hint. Only More settings for: Fresh rolls/mufns, Frozen rolls/mufns, Beverage reheat and Beverage hot water have a cooking hint. If you wish to check, touch Settings whenever HELP is lighted in the Interactive Display for these and other manual operation hints. +1 min +1 min will cook for a minute at 100% by simply touching the +1 min pad. Extend cooking time in multiples of 1 minute by repeatedly touching the +1 min pad during manual cooking. Note:

• To use +1 min, touch pad within 3 minutes after cooking, closing the drawer or touching the Stop/Clear pad.

• +1 min cannot be used with Sensor settings, More or Defrost. Panel Lock The Panel Lock prevents unwanted drawer operation, such as by small children. The Drawer Microwave can be set so that the control panel and the automatic door mechanism are deactivated or locked. To Lock Touch Panel Lock pad and hold for 3 seconds. The display shows LOCK ON

To Unlock Touch Panel Lock pad and hold for 3 seconds. The display shows LOCK OFF

The Panel Lock is canceled when the electrical power supply to your oven is interrupted. Set the Panel Lock again when power to the oven is restored. Other FeaturesEnglish 16 Settings If the electrical power supply to the Drawer Microwave should be interrupted, the display will intermittently show ENJOY YOUR MICRO- WAVE TOUCH CLEAR AND TOUCH CLOCK after the power is reinstated. If this occurs, the current Settings option will be erased. Simply touch Stop/Clear pad and reset. Audible Signal Elimination At the end of timed cook, beeps will sound. The audible signal can be turned off if quiet operation is preferred. To Turn Sound Off

2. Touch Settings pad again.

2. Touch Settings pad again.

End Of Cooking Reminder At end of timed cooking, the microwave will signal every 10 seconds for the rst minute; then every 3 minutes until Stop/Clear pad is touched, up to one hour. To Turn Reminder Off

1. Touch Settings pad three times. The display shows

1. Touch Settings pad three times. The display shows

Auto start To program the Drawer Microwave to begin cooking automatically at a designated time of day, follow this procedure. CAUTION To maintain food safety, do not leave food in the oven for more than one hour before or after cooking.

1. Touch Settings pad 4 times. The display shows

3. Enter start time.

5. Touch the number pads to enter cooking time.

TOUCH POWER LEVEL Touch Power Level pad repeatedly until the desired power level is reached. TOUCH START

1. Touch Settings pad ve times. The display shows

DEMO ON? HOLD START 3 SEC

2. Hold Start (+1 min) pad for 3 seconds. The display

1. Touch Settings pad ve times. The display shows

• Drawer Microwave doesn’t heat in Demo Mode.

• Display counts down quickly. Standby Mode This microwave will go into standby mode after a period of inactivity. The backlight of the display will automatically dim after 3 minutes if the unit has not been in operation. If the display is in standby mode, simply touch the control panel or open/close the door to return the backlight to maximum brightness. More or Less Time Adjustment To increase cooking time for any of the Sensor Reheat, Sensor Cook, Defrost, Popcorn or More settings, touch the Power Level pad once after touching your selection. The display will show MORE

To decrease cooking time, touch the Power Level pad twice after touching your selection. The display will show LESS .English 17 Cleaning and Care Stainless Steel Surface Always wipe or rub in the direction of the grain. The exterior should be wiped often with a soft damp cloth and polished with a soft dry cloth to maintain its beauty. There are also a variety of products designed especially for cleaning and shining the stainless exterior of the oven. We recommend that the cleaner be applied to a soft cloth and then carefully used on the stainless exterior rather than sprayed directly on to it. Follow package directions carefully. Front side of the Drawer Wipe the window on both sides with a soft damp cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a soft damp cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the drawer surface. Touch Control Panel If desired, the touch pads may be deactivated before cleaning. See the Panel Lock information on page 15 of this manual. Wipe the panel with a cloth dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close drawer and follow directions on page 15 for turning Panel Lock off. Touch Stop/Clear. Interior Before cleaning the Drawer Microwave, touch and hold the Panel Lock button for 3 seconds to lock the control pad and the automatic door mechanism. The drawer can be locked in either the open or closed position. The display will show LOCK ON . This will prevent the drawer from accidentally opening or closing during cleaning. After cleaning, touch and hold the Panel Lock button for 3 seconds to turn the lock off. The display will show LOCK OFF

Cleaning is easy because no heat is generated to the interior surfaces; therefore, there is no baking and setting of spills or spattering. To clean the interior surfaces, including drawer sealing surfaces, wipe with a soft damp cloth. DO NOT USE ABRASIVE OR HARSH CLEANERS OR SCOURING PADS. For heavier soil, use mild soap; wipe clean with a soft damp cloth. Do not use any chemical oven cleaners. Odor Removal Occasionally, a cooking odor may remain in the drawer. To remove odor, combine 1 cup water, grated peel and juice of one lemon and several whole cloves in a 2-cup glass microwave-safe measuring cup. Boil for several minutes using 100% power. Leave in the drawer until water cools. Wipe interior with a soft cloth. Drawer Microwave Guides Remove the food crumbs from the drawer guides. Wipe with a soft dry cloth in order to keep the drawer opening and closing smoothly. Waveguide Cover CAUTION The waveguide cover, located on the inside top of the drawer area, is made from mica, so it requires special care. Keep the waveguide cover clean to assure good microwave performance. Carefully wipe with a soft damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch re. Do not remove the waveguide cover.English 18 Please check the following before calling for service. It may save you time and expense. Problem Possible cause Solution

1. Part or all of Drawer Micro-

wave does not operate.

• Power cord of Drawer Microwave is not completely connected to the electrical outlet.

• Fuse/circuit breaker doesn’t work.

• Drawer Microwave is in Demo Mode.

• Make sure the power cord is tightly connected to the outlet.

• Check house lights to be sure. Call your local electric company for service.

2. Food in Drawer Microwave

• No power to the appliance.

• Drawer controls improperly set.

• Drawer is in Demo Mode.

• See Solution for Problem 1.

• Check if the controls have been properly set.

3. Drawer Microwave light

• Light bulb is loose or burned out. • Call Bosch Customer Support for service. Always have the complete model number and FD number available prior to calling.

4. Touch controls will not

• Panel Lock is on. • See page 15 to unlock.

5. Display ashes. • Power failure. • Touch Stop/Clear pad and reset the clock. If

the Drawer Microwave was in use, you must reset the cooking function.

6. Steam from the vent. • During microwaving, steam may

come from the right side of the vent. Before You Call Bosch Customer Support for ServiceEnglish 19

STATEMENT OF LIMITED PRODUCT WARRANTY

What this Warranty Covers & Who it Applies to The limited warranty provided by BSH Home Appliances Corporation (BSH) in this Statement of Limited Product Warranty applies only to the BOSCH Drawer Microwave sold to you, the rst using purchaser, provided that the Product was purchased:

• For your normal, household (non-commercial) use, and has in fact at all times only been used for normal household purposes.

• New at retail (not a display, "as is", or previously returned model), and not for resale, or commercial use.

• Within the United States or Canada, and has at all times remained within the country of original purchase. The warranties stated herein apply only to the rst purchaser of the Product and are not transferable. BSH reserves the right to request proof of purchase at the time any warranty claim is submitted to conrm that the Prod- uct falls within the scope of this limited product warranty. Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for BSH to notify you in the unlikely event of a safety notice or product recall. How Long the Warranty Lasts BSH warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty-ve (365) days from the date of purchase. The fore- going time line begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chips, dents, or other damage to the nish) of the Product, for a period of thirty (30) days from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as differences caused by kitchen lighting, product location, or other simi- lar factors. This cosmetic warranty specically excludes any display, oor, “As Is”, or “B” stock appliances. Repair/Replace as Your Exclusive Remedy During this warranty period, BSH or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then BSH will replace your Product (upgraded models may be available to you, in BSH's sole discretion, for an additional charge). All removed parts and components shall become the property of BSH at its sole option. All replaced and/ or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. BSH's sole liability and responsibility hereunder is to repair manu- facturer-defective Product only, using a BSH-authorized service provider during normal business hours. For safety and property damage concerns, BSH highly recommends that you do not attempt to repair the Product yourself, or use an un-authorized servicer; BSH will have no responsibility or liability for repairs or work performed by a non-authorized servicer. If you choose to have someone other than an authorized service provider work on your Product, THIS WARRANTY WILL AUTOMATICALLY BECOME NULL AND VOID. Authorized service providers are those persons or companies that have been specially trained on BSH products, and who possess, in BSH's opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, afliates or representatives of BSH). Notwithstanding the foregoing, BSH will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably inaccessible, hazardous, threatening, or treacherous locale, surround- ings, or environment; in any such event, if you request, BSH would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call. Out of Warranty Product BSH is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, prorates, or Product replacement, once this warranty has expired. Warranty Exclusions The warranty coverage described herein excludes all defects or damage that are not the direct fault of BSH, including without limitation, one or more of the following:

• Use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels).

• Any party's willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self performed "xing" or exploration of the appliance's internal workings).English 20

• Adjustment, alteration or modication of any kind.

• A failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local re and building codes and regulations.

• Ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product.

• Any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, oods, res, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding the appliance, and acts of God. In no event shall BSH have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, oors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are Products on which the serial numbers have been altered, defaced, or removed; service visits to teach you how to use the Product, or visits where there is nothing wrong with the Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other con- necting facilities, for proper foundation/ooring, and for any alterations including without limitation cabinetry, walls, oors, shelving, etc.); and resetting of breakers or fuses. TO THE EXTENT ALLOWED BY LAW, THIS WAR-

RANTY SETS OUT YOUR EXCLUSIVE REMEDIES

WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT

TIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING

WITHOUT LIMITATION TIME AWAY FROM WORK,

HOTELS AND/OR RESTAURANT MEALS, REMODEL-
