| Product Type | Pain therapy device (electrostimulation) |
| Brand | Revitive |
| Model | Medic Knee 5574AQ |
| Dimensions | 360 mm (diameter) x 76.5 mm (height) |
| Weight | 1.4 kg |
| Mains power supply | Universal adapter 100-240 V AC, 50/60 Hz, 0.18 A → 5 V DC, 1.0 A |
| Battery power supply | Integrated rechargeable lithium-ion battery 1200 mAh, 3.7 V (battery life ~3.5 h) |
| Stimulation modes | EMS (electrical muscle stimulation) and TENS (transcutaneous electrical nerve stimulation) |
| Included accessories | SoftTouch foot rest, 2 small body electrodes, 2 large thigh electrodes, cords, remote control, AAA batteries x 2, mains adapter |
| Main features | Knee Program (EMS), TENS pain relief, foot rest with IsoRocker, wireless remote control, adjustable timer (up to 60 min) |
| Recommended usage duration | 30 to 60 minutes per day for foot rests; 20 min (EMS knee) or 20-30 min (TENS) per session |
| Maintenance | Wipe with a soft, damp cloth; do not use chemicals; do not immerse in water |
| Storage | Dry, cool place, away from direct sunlight |
| Safety | Do not use in the presence of a pacemaker, pregnancy, deep vein thrombosis, skin lesions; consult a doctor if in doubt |
| Spare parts and repairability | Reusable electrodes (20-30 times) available on the Revitive website; integrated battery not user-replaceable; do not open the device |
| Warranty | 24 months (manufacturer's warranty) after registration on support.revitive.fr |
| Standards and certifications | CE (medical device), UKCA, FCC, IP21 |
| Device lifespan | 4 years |
| Manufacturer | Actegy Ltd |
Frequently Asked Questions - Medic Knee 5574AQ REVITIVE
User questions about Medic Knee 5574AQ REVITIVE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pain therapy device in PDF format for free! Find your manual Medic Knee 5574AQ - REVITIVE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Medic Knee 5574AQ by REVITIVE.
USER MANUAL Medic Knee 5574AQ REVITIVE
Please read the user's manual Carefully before using this product. USE ONLY AS DIRECTED.
If symptoms persist, consult your healthcare professional.
For videos of setup and using your Revitive system, go to: support_REVITE.com
What is inside the box? 4
Parts and Controls 5-6
Introduction to Revitive 7-8
Operator profile 7
Indications for use 8
Important Safeguards 9-12
Who should NOT use Revitive 9
Warnings and Cautions 10-11
Safety Precautions 12
Adverse Reactions 12
Instructions for use 13-24
Step 1: Setting up Revitive for the first time 13
Step 2: Powering Revitive 14
Step 3: Using the foot-pads 15-17
Step 4: Using the Dual Mode Body Pads 18-22
4.1: Switching between EMS and TENS mode 23
Cleaning and storing 24
Replacing the batteries & electrode pads 24
Troubleshooting 25-26
Technical Specifications 27-29
Warranty 30
What's in the box?
On opening the carton, please check that the following components are provided. If you think anything is missing, please contact us using the helpline numbers on the back of this booklet.

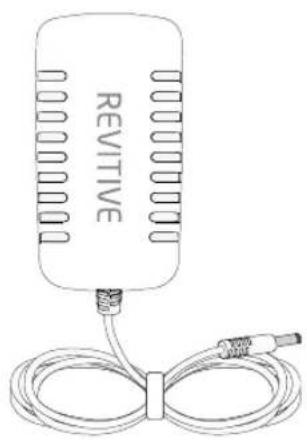

AC/DC power adaptor Cable length 180cm

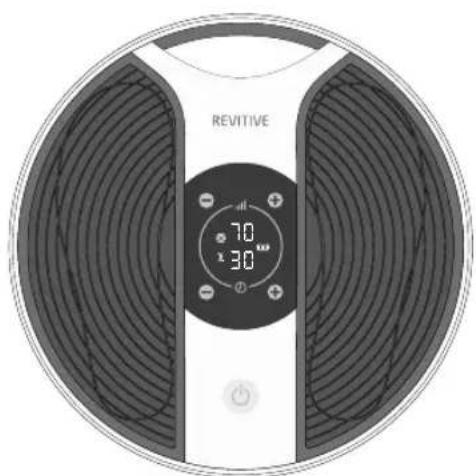

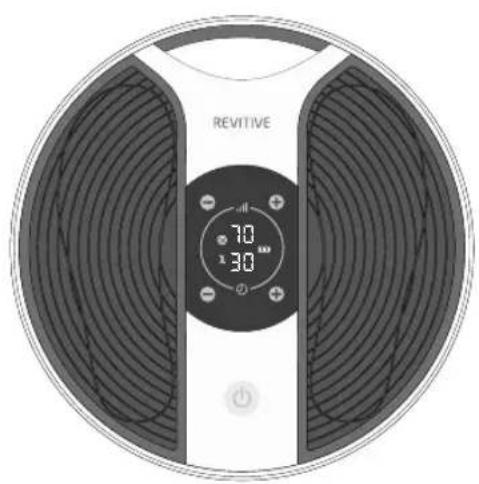

Revitive Medic Knee

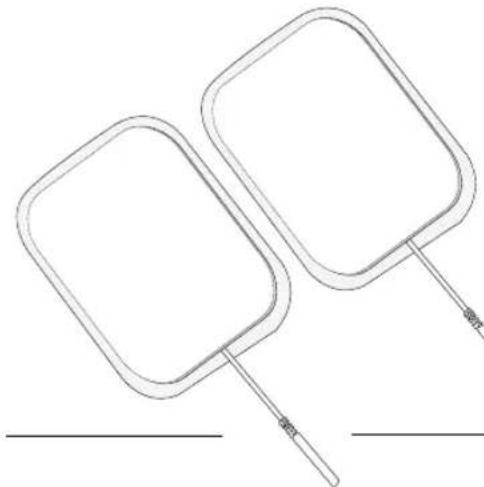

Small Electrode Body Pads
Large Electrode Thigh Pads
Electrode cord Cable length 150cm
Remote control
AAA batteries x 2

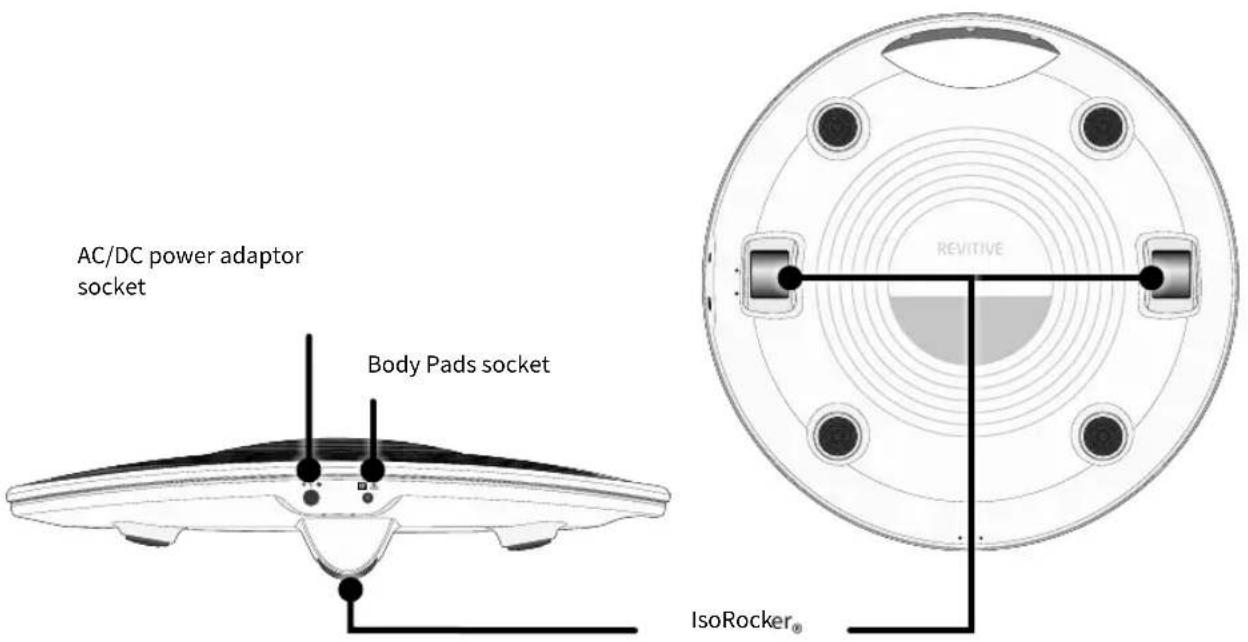

Parts and controls

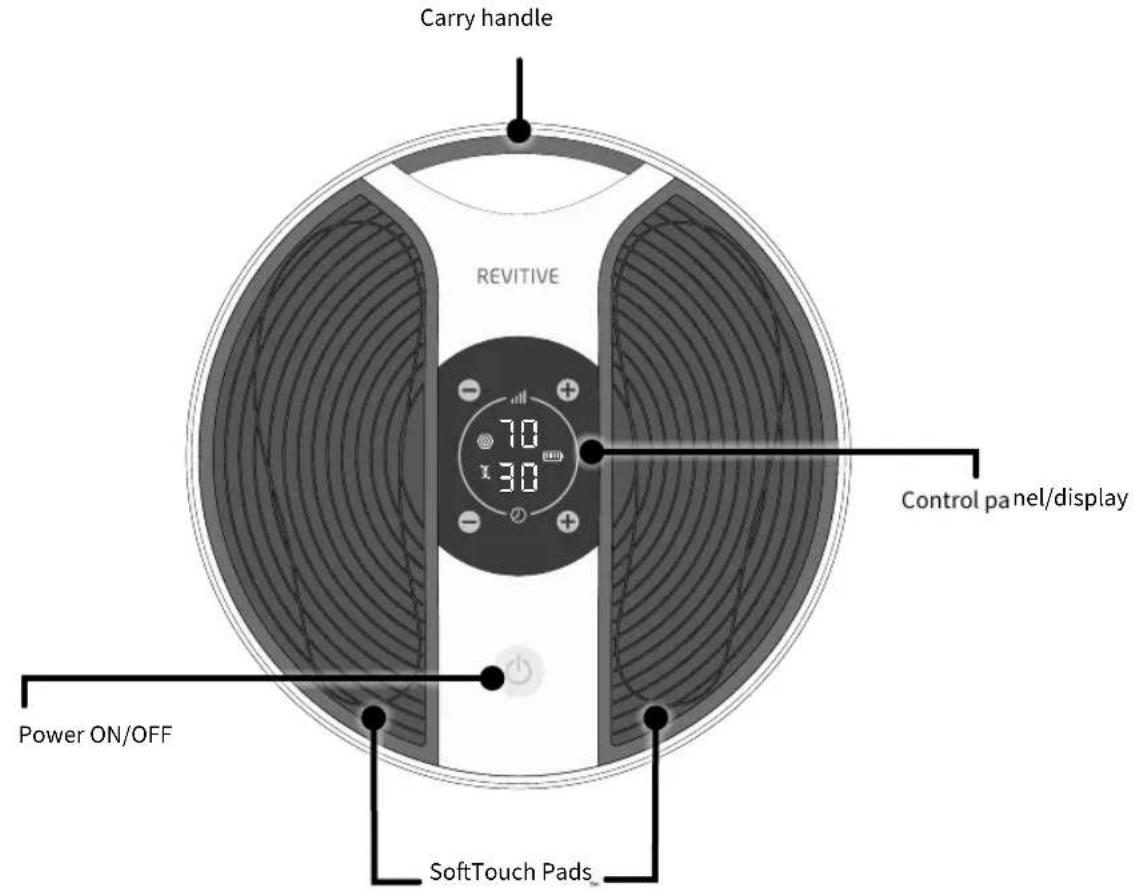

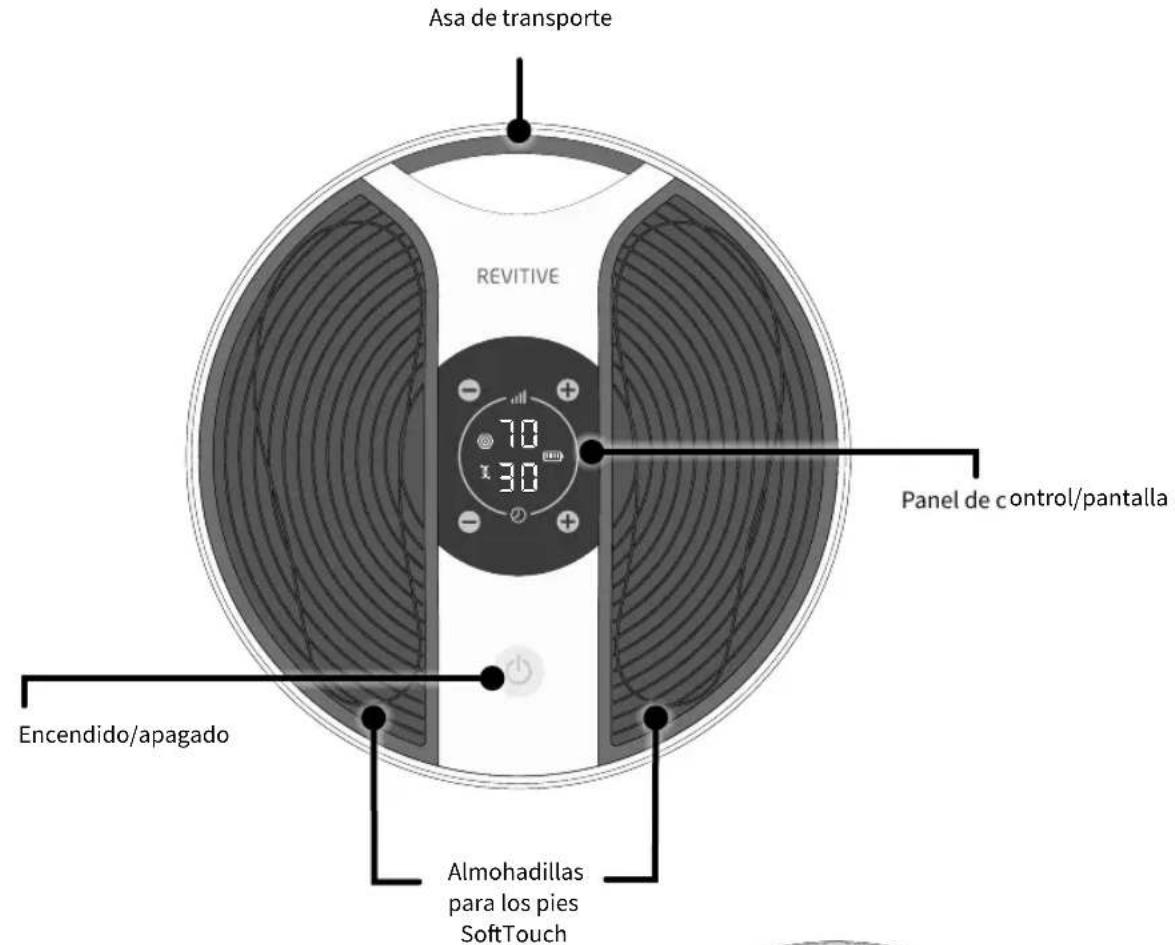

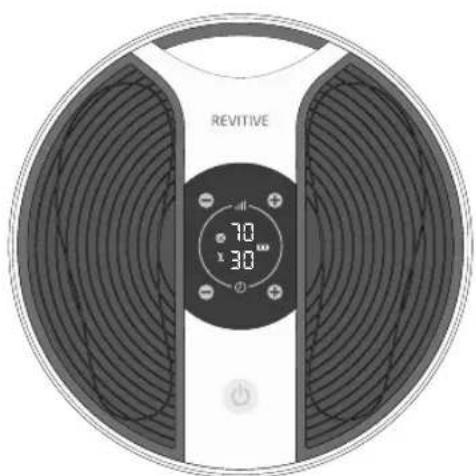

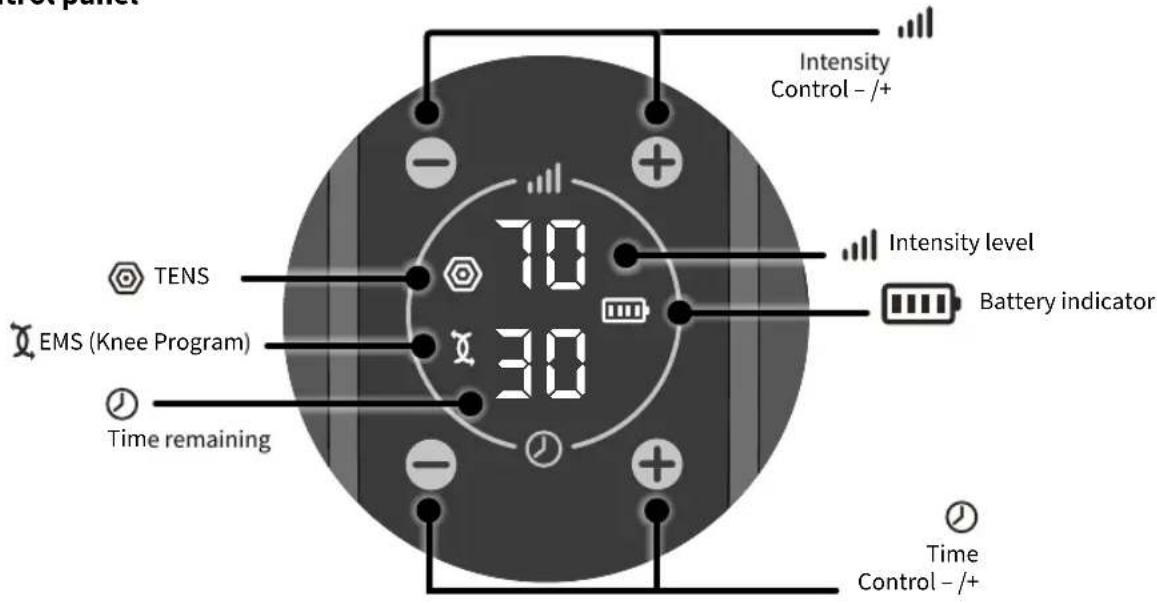

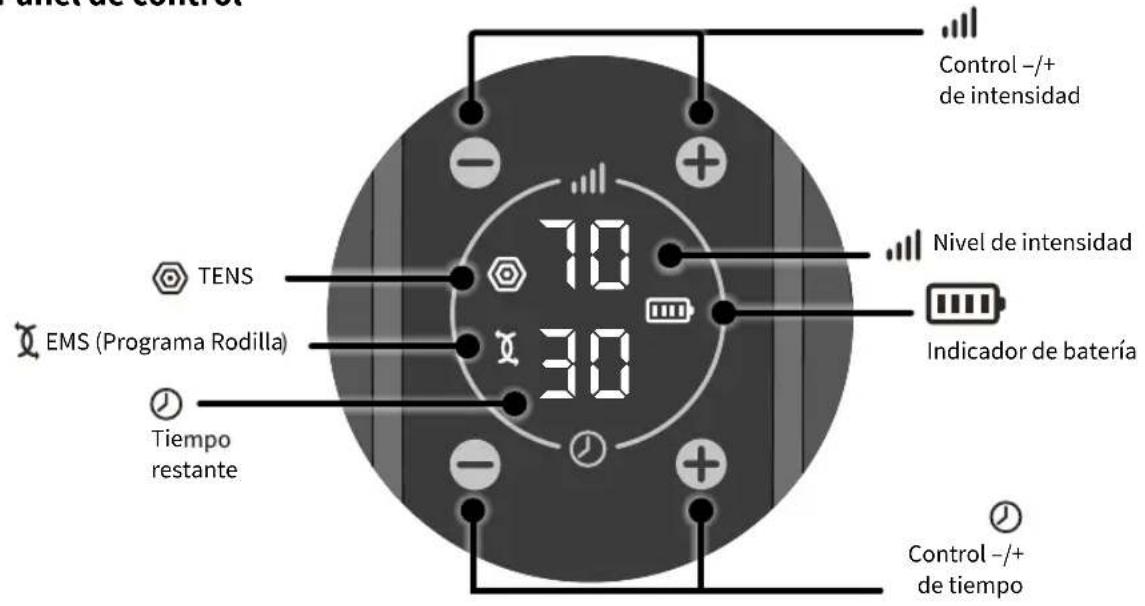

Control panel

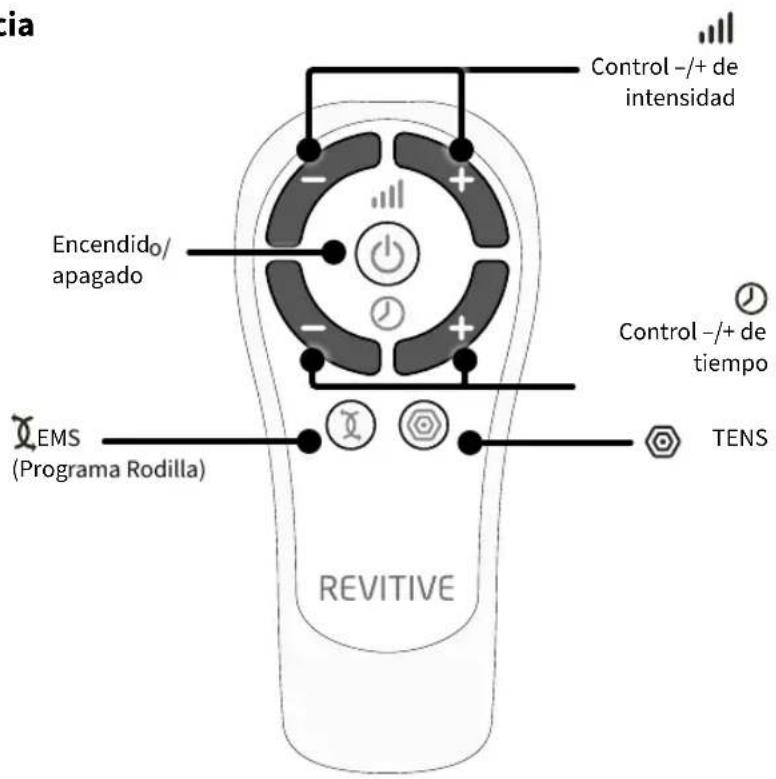

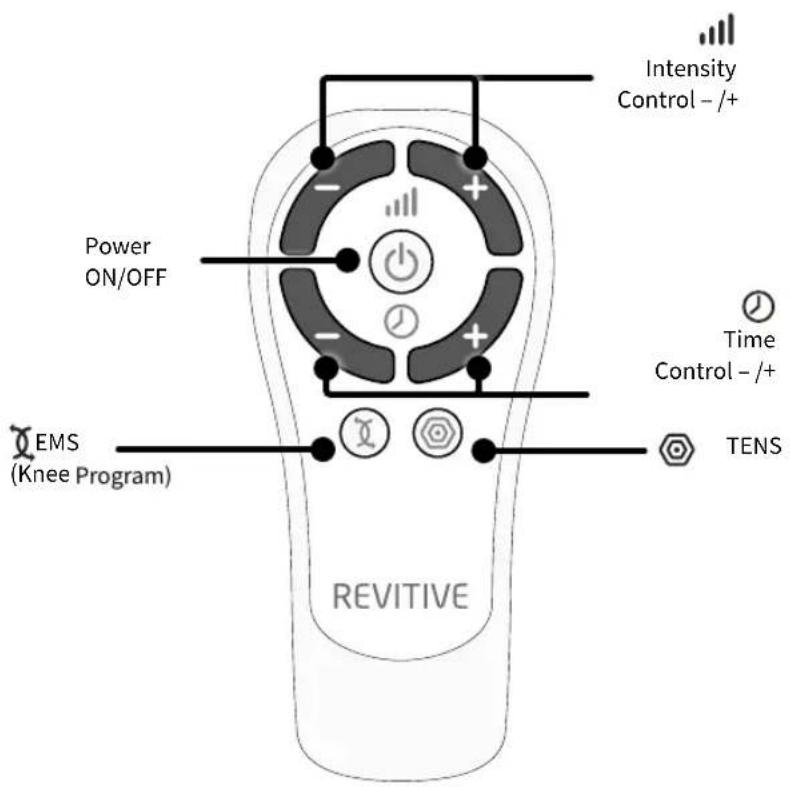

Remote control
Operator Profile
The intended operator profile is based on users in the home environment who may suffer from immobility, osteoarthritis of the knee, poor circulation and related issues such as pain, leg stiffness and swelling in the legs, ankles and feet. It is also suitable for rehabilitation following knee-surgery.
Revitite is intended for use by the end user in a non-clinical setting and without the supervision or intervention of a clinician during use.
A typical user may be of any adult age range and is not specific to any demographic of gender, ethnicity or educational background.
Electrical Muscle Stimulation (EMS) Indications for use
When using electrode pads, applied to the legs, Revitive is intended to:
- Reduce pain and discomfort in the knee caused by swelling (oedema) due to knee osteoarthritis, or following knee surgery.
- Reduce swelling in the knee cause by immobility due to osteoarthritis, or in the ankle following acute ankle injury.
- Improve circulation to reduce or prevent blood-pooling (stasis) - caused by being immobile following lower limb surgery or diabetes
- Increase muscle strength to help regain mobility in the legs affected by being immobile due to knee osteoarthritis, following lower limb surgery; or COPD
- Reduce pain and discomfort in the legs/feet/ankles caused by diabetic peripheral neuropathy
When using the foot-pads, Revitive is intended to:
- Reduce pain and discomfort in the legs/ankles/feet - caused by poor circulation (Peripheral Arterial Disease).
- Improve circulation in the legs - caused by Peripheral Arterial Disease.
- Improve circulation to reduce or prevent blood-pooling (stasis) - caused by poor circulation (Chronic Venous Insufficiency/varicose veins).
- Increase walking distance before the onset of claudication symptoms (pain) - caused by Peripheral Arterial Disease.
- Improve symptoms associated with varicose veins/ Chronic Venous Insufficiency.
- Help maintain leg vein health - by increasing circulation, delivering more oxygenated-blood and reducing swelling (oedema) in the legs, feet & ankles.
If you are otherwise healthy and have a sedentary lifestyle or spend long periods inactive, Revitive may help to:
- Alleviate tired, aching & heavy legs, including cramp
- Reduce swollen feet & ankles
Help maintain leg vein health - Strengthen leg muscles
- Actively increase circulation
Transcutaneous Electrical Nerve Stimulation (TENS) Indications for use
When using electrode pads, Revitive is intended to provide:
Relief of arthritis-associated pain
Relief of post-surgical and post-traumatic pain
Relief and management of chronic pain, associated with musculoskeletal pain, knee osteoarthritis and fibromyalgia
- Temporary relief of pain of musculoskeletal or neuropathic origin
The above Indications for Use are certified under the Medical Devices Directive 93/42/EEC.
Visit www_REVitive.com for more information
Read all instructions before use.
Save these instructions.
Revitive should not be used by some people.
Do not use if (contraindications):
- You are fitted with an electronic implanted device such as a heart pacemaker or Automatic Implantable Cardioverter Defibrillator (AICD)
- You are pregnant
- You are being treated for, or have the symptoms of, an existing Deep Vein Thrombosis ("DVT")
Long periods of inactivity can put you at greater risk of developing Deep Vein Thrombosis (DVT). DVT is a blood clot and usually occurs in a deep leg vein. If part of the DVT breaks off it may lead to potentially life-threatening complications such as pulmonary embolism.
If you have been inactive for prolonged periods and suspect you may have a DVT, consult your doctor immediately. To prevent dislodging the clot do not use Revitive.
In some cases of DVT there may be no symptoms. However it is important to be aware of the symptoms that may include:
-
Pain, swelling and tenderness in one of your legs (usually your calf)
A heavy ache in the affected area
Warm skin in the area of the clot -
Redness of your skin, particularly at the back of your leg, below the knee
Consult your doctor as soon as possible if you show any signs of the above symptoms.
Warnings
Consult with your doctor before using this device if:
- You are in the care of a doctor
- You have a history of heart problems
- You have had medical or physical treatment for your pain
- You have suspected or diagnosed heart disease
- You have suspected or diagnosed epilepsy
- You are unsure about the suitability of the device for you
- You are unsure about the cause of your symptoms
If you have a metallic implant:
- If you have a metallic implant, you may experience pain or discomfort near the implant when applying electrical stimulation. If this should occur discontinue use and seek advice from your doctor
- The electrical stimulation may feel more intense close to a metallic implant. It is safe to continue use provided no pain is experienced. You may need to adjust the intensity to a comfortable level
When applying foot-pads or electrode body/thigh pads:

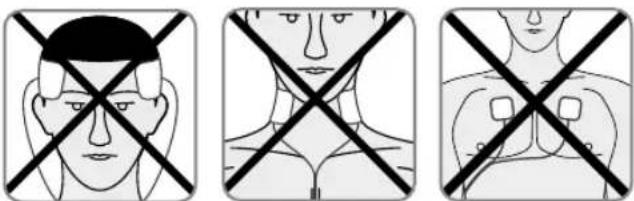

- Do not use the electrode pads on your head, face, neck or chest
Application of the electrodes near the thorax (chest) may increase the risk of cardiac fibrillation
Only apply to areas with intact/unbroken skin - Do not apply foot-pads or electrode pads directly or adjacent to these areas:
on cut or broken skin, open wounds or rashes; swollen, red, infected or inflamed areas; or skin eruptions (such as phlebitis, thrombophlebitis, varicose veins, cellulitis). Check under your feet and toes before using the device
- on, or close to, malignant tumours
- on areas treated with radiotherapy (within the past 6 months)
on reproductive organs
on opposing thighs and refer to pad placement diagrams in this User's Manual for correct placement
over the carotid sinus nerves (front of the neck), particularly in patients with a known sensitivity to the carotid sinus reflex
- When using TENS do not apply to areas of skin that lack sensation
-
Electrode pads are for single person use only. Do not share Body Pads with others
-
Do not use electrode pads after their use-by date
- There is a chance you may experience skin irritation or burns beneath the electrodes or hypersensitivity due to the electrical stimulation
- Ensure that any moisturiser/gel/balm is evenly applied and thoroughly absorbed into the skin before applying stimulation. There is a chance that uneven application of a moisturiser/gel/balm could increase the risk of skin irritation or burn, when using the electrical stimulation
- Symptoms may worsen during the initial treatment phase before getting better. This may occur if the body has not fully adjusted to increased muscular activity and blood circulation. If this occurs, reduce the intensity and the duration of treatment which will reduce the initial symptoms. If symptoms persist consult with your doctor
When not to use Revitive:
- Do not use the device:
- In the presence of electronic monitoring equipment
- Together with a life-supporting medical electronic device
- When you are in the bath or shower
While you are sleeping - In conjunction with a brace or cast without first consulting with your doctor
Warnings
When not to use Revitive:
- Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally
AdditionalWarnings:
-
Use of accessories and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.
-
Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30~cm (12 inches) to any part of the Revitive System, including cables specified by the manufacturer
Cautions
When applying foot-pads or electrode body/thigh pads:
- Be careful when applying stimulation over areas of skin that lack normal sensation. It may cause skin irritation due to the inability to feel stimulation until the intensity is too high. Use a low intensity to achieve a gentle muscle contraction, and/or use for a shorter time, to avoid over-stimulation. Check for signs of skin irritation (redness), bruising or pain. If in doubt consult your doctor
This product is not intended for use by persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety
When using EMS:
- Be careful when applying stimulation:
Over the abdomen during menstruation
After recent surgical procedures (within the past 6 months) as stimulation may disrupt your healing process
If your tissues are likely to bleed following an injury such as a muscle tear - it is recommended not to stimulate the immediate area within the first 12 hours after sustaining the injury. Use a low intensity and/or shorter time to avoid over-stimulation
After a long period of immobility or inactivity - use a low intensity and shorter time to avoid over-stimulation or muscle fatigue
When using TENS:
It is possible Revitive may reduce the sensation of pain that would normally act as a warning of an underlying problem
If your pain does not improve, gets worse or continues for more than 5 days, stop using the device and seek advice from your doctor
- TENS is not effective in treating the original source or cause of pain
Additional Cautions:
- The long term effects of electrical stimulation are unknown
- Electrical stimulation may not work for every user, please seek advice from your doctor
Safety Precautions
- Do not stand on the machine. Use only when seated
- Do not position the Revitive so that it is difficult to disconnect or turn off
- Use the device only for its intended purpose
- Do not expose the device to extreme heat
- Do not spill liquid on the device or its accessories
- Do not overload the electrical socket
- Keep device out of the reach of children
- Keep power cords and cables out of the reach of children to prevent risk of strangulation
- Revitive foot-pads may be used by multiple persons. Ensure device is cleaned after each use
- During use, do not touch foot-pads with your hands until the paused feature is enabled or device has powered off.
- Use Revitive only with the accessories supplied by, or purchased from, the manufacturer
- Check Body Pads, cords and cables periodically for damage
- Do not open Revitive or repair it yourself. This will invalidate your warranty and may cause serious harm
- In the unlikely event your Revitive malfunctions, disconnect it from the power source and contact your nearest authorised agent
It has been reported that some universal remote control devices (e.g. for TV etc.) can change the settings on Revitive if used during a treatment. If this should occur, simply adjust the time or intensity settings on Revitive back to where you want them using the Revitive Remote Control, or using the device Control Panel - Revitive has passed the required tests for Electromagnetic Interference (EMI); it may still be affected by excessive emissions and/or may interfere with more sensitive equipment
- After any exposure to hot or cold temperatures outside the specified operating range of 10 - 40^ allow the product to re-adjust to the recommended operating temperatures to ensure continued product performance
Adverse Reactions
- If you experience adverse reactions, stop using Revitive and consult with your doctor immediately.
Step 1: Setting up Revitive for the first time
a Remove all parts from the box:
- AC/DC power adaptor
Revitive Medic Knee device - Remote control
- AAA batteries x 2
- Small Electrode Body Pads
Large Electrode Thigh Pads - Electrode cord
See What is inside the Box? on page 4 to help identify the parts.
bLocate the remote control and insert the batteries.
Before you use Revitive for the first time, read the Important Safeguards on pages 9-12. If in doubt, consult your doctor before using the product.
Step 2: Powering Revitive
Revitive can be powered from either the internal rechargeable battery or by connecting it to an electrical socket.
Mains power option
a Locate the AC/DC power adaptor.
Plug the small end of the power cord into the adaptor socket on the side of the device.
Plug the power adaptor into the nearest electrical socket. This will also start charging the (integrated) rechargeable battery.
Once you have connected Revitive to the electrical socket, follow 'Step 3: Using the SoftTouch foot-pads' or 'Step 4: Using the Dual Mode Electrode Pads' to continue setting up Revitive.
Battery power option
a Follow steps a-c in the mains power option. This will start charging the (integrated) rechargeable battery.
b When Revitive is switched off but on charge, the battery indicator icon will constantly scroll during charging; when the battery is full,
The battery indicator on Revitive indicates the battery's charge level.
c Once fully charged, the full battery indicator will stay illuminated until the power adaptor is unplugged from the device or the electrical socket.
A full charge will take approximately 3 hours. A full charge enables approximately 3 12 hours of use (the equivalent of one 30 minute session each day for one week).
When the device is running from the battery, an indicator will show the remaining battery level.
If you turn the device off and the low battery level indicator blinks for
10 seconds, the battery requires recharging.
Please note you can use the device while it is charging but the battery indicator will not show
Step 3: Using the foot-pads
The SoftTouch foot-pads will deliver the Medic Program, with clinically proven and patented waveforms, to your feet and legs. You can use the Body Pads to receive EMS (Knee Program) or TENS, see pages 18-23 for details.
For best results:
Use Revitive foot-pads for at least 30 to 60 minutes each day, 7 days a week. If you have varicose veins (CVI), use Revitive foot-pads for 60 minutes per day.
- It is important to use Revitive at a high enough intensity to give you a strong comfortable muscle contraction. Most people achieve a strong muscle contraction over intensity level 40 (intensity range 1-50).
- If you are diagnosed with a long term medical condition such as High Blood Pressure, High Cholesterol, Diabetes, Osteoarthritis, Chronic Venous Insufficiency (CVI), Peripheral Arterial Disease (PAD), or COPD, it can take up to 8 weeks to help reduce symptoms associated with these chronic conditions.
Do not use Revitive, using EMS stimulation, for more than 6 sessions of 30 minutes (or the equivalent) per day.
Sit with both bare feet on the foot-pads
a It is important that you are well hydrated. We recommend that you apply a moisturiser to the soles of the feet to help hydrate the skin and improve the delivery of electrical stimulation.
Note: Very dry feet may cause Revitive to auto-pause, and stimulation will not be possible until the soles of your feet are hydrated. In this case it will be necessary to apply a moisturiser.
We also recommend drinking a glass of water before using Revitite.
b Get into a comfortable seated position.
For best results sit with your knees at a 90 degree angle (right angle).
C Place Revitive on the floor in front of you.
Revitive is designed to be used while seated. Never stand on the Revitive unit.
d Place both bare feet on the foot-pads. Make sure you remove all footwear, including socks/stochings.
e Press the power button on the device or on the remote control to turn Revitive on.
You will hear a beep and the display will light up. The time will read 30 minutes and Intensity will read 00.
To turn off Revitive at any time during operation, press the power button on the device or on the remote control.

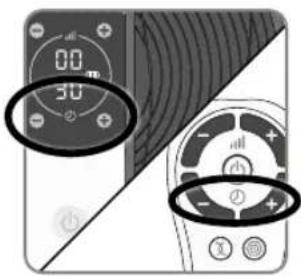

f Set the time for Revitive. The default time is 30 minutes. You can set the timer for up to 60 minutes.
If you do not want to use the default time of 30 minutes, set the time for the number of minutes you want. You can use the controls on the control panel or on the remote control.
Press the (+) Time Control to increase the time. Press the (-) Time Control to decrease the time.
g Press the (+) intensity Control one time to start stimulation.
You can use the buttons on the control panel or remote control. Ensure both feet are on the foot-pads when increasing the intensity
Press the (+) button to increase the level. Press the (-) button to decrease the level.
h Ensure you familiarise yourself with the feeling of the Medic Program. Use on a low intensity for 30-60 minutes once per day for a few days.
Set the intensity at a level where you can feel the stimulation in your feet which creates a calf muscle contraction.
It is normal to feel tingling or varying sensations in your feet and calf muscles.
Revitdevotsnotvibrate.
i After a few days of familiarisation, use a higher intensity that provides you with strong but comfortable calf muscle contractions.
Most people experience a strong contraction at intensity level 40 or over.
The IsoRocker® enables Revitive to rock up and down once muscle contractions are nearing the desired level. The rocking is caused by muscle contractions in the leg, and the resulting ankle movement allowed by the IsoRocker is a good indicator that the intensity level is sufficient to provide the therapy. Increasing the intensity above this level will enhance the therapy, but should not be allowed to become uncomfortable.
You can set the intensity between 1-99.
Please note that the intensity required may vary from day to day.
If you feel pain or discomfort:
- Remove one or both feet from the foot-pads to stop the stimulation
Lower the intensity of the foot-pads using the ^(-) Intensity Control on the control panel, or remote control, before replacing your feet on Revitive
j If you remove one or both feet from the foot-pads, Revitive will pause the stimulation for up to 10 minutes.
The display will blink on and off and you will hear a beep. The timer will stop until the session is resumed. Do not touch the foot-pads with your hands or pick up device until paused is enabled.
The stimulation can be resumed by placing both feet back on the foot-pads and then pressing the ^(+) button on the Intensity Control.
While Revitive is paused, the intensity level can be reduced by pressing the (-) button on the Intensity Control.
Intensity cannot be increased while Revitive is paused.
After 10 minutes of being in the paused state, Revitive will switch itself off.
k The ② Time Display will start to count down in minutes as Revitive cycles through its program.
When Revitive times out, the ② Time Display reads 00 and you will hear three beeps.
m Revitive switches itself off automatically.
Step 4: Using the Dual Mode Electrode Pads
Electrode Body and Thigh Pads are for single person use only. Do not share with others.
Full Body Pain Management is achieved with the use of Electrode Body Pads, by selecting from two proven therapies EMS (Knee Program) and TENS.
1.EMS (Knee Program) Mode 2. TENS Mode
Use the large Revitive Thigh Pads in EMS mode to deliver the unique Knee Program to strengthen the muscles at the front of your thigh (quadiceps).
Strengthening your quadriceps muscles may help to support and stabilise the knee, reduce stress on the knee and relieve knee pain.
Use Thigh Pads on the thigh of your affected leg (knee) once a day for 20 minutes, 5 days per week at an intensity that provides you with strong but comfortable muscle contractions.
Do not use Revitive more than 6 sessions of 30 minutes (or the equivalent) per day. This may result in muscle fatigue.
Use the smaller Revitive Body Pads in TENS mode for pain relief from arthritic/knee-joint pain. Use for 20-30 minutes per session as and when required.
Use at an intensity that provides a strong but comfortable tingling sensation without causing you pain.
The Body Pads cannot be used at the same time as the foot-pads. Using the Body Pads will automatically turn the foot-pads off.
Do NOT use the Body Pads on your head, face, neck or chest.
a Clean and dry the area you will place the Electrode Pads (see next page for positioning instructions).
b Make sure Revitive is switched off. If the control panel is still illuminated, press the power button and turn Revitive off.
C Attach the ends of the Electrode Pads to the Electrode cord.
Press connectors until there is no gap between them.
Leaving a gap may cause discomfort.
d Plug the other end of the Electrode cord into the opening on the side of Revitive.
- Remove the plastic liner from the Electrode Pads, by peeling it off carefully. Replace the Electrode Pads onto the plastic liner after use.

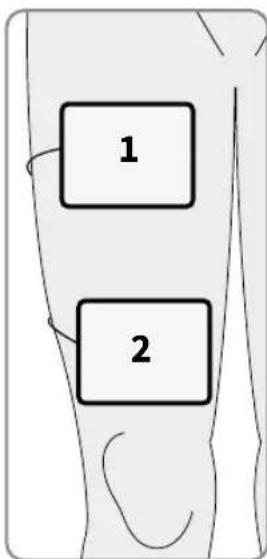

Large Electrode Thigh Pad placement for muscle strengthening Knee Program - EMS Mode
f Gently press one Thigh Pad across your thigh (1), a few centimetres away from your groin area, with the adhesive side against the skin.
Gently press second Thigh Pad across your thigh (2), a few centimetres from the top of your kneecap, with the adhesive side against the skin.
The Thigh Pads do not need to be lined up exactly with each other. They need to be in a position that is comfortable and that allows you to see your thigh muscles contract & relax.
EMS mode (Knee Program) should only be used with the large electrode thigh pads. The small electrode body pads will not be effective in EMS mode.
Small Electrode Body Pad placement for pain relief - TENS Mode
G Gently press one Body Pad above the knee (1), and one Body Pad below the knee(2), with the adhesive side against the skin.
Find a placement that best surrounds your most concentrated area of pain. Do not place directly on the knee joint.
Revitive Electrode Pads are designed to be used whilst seated.

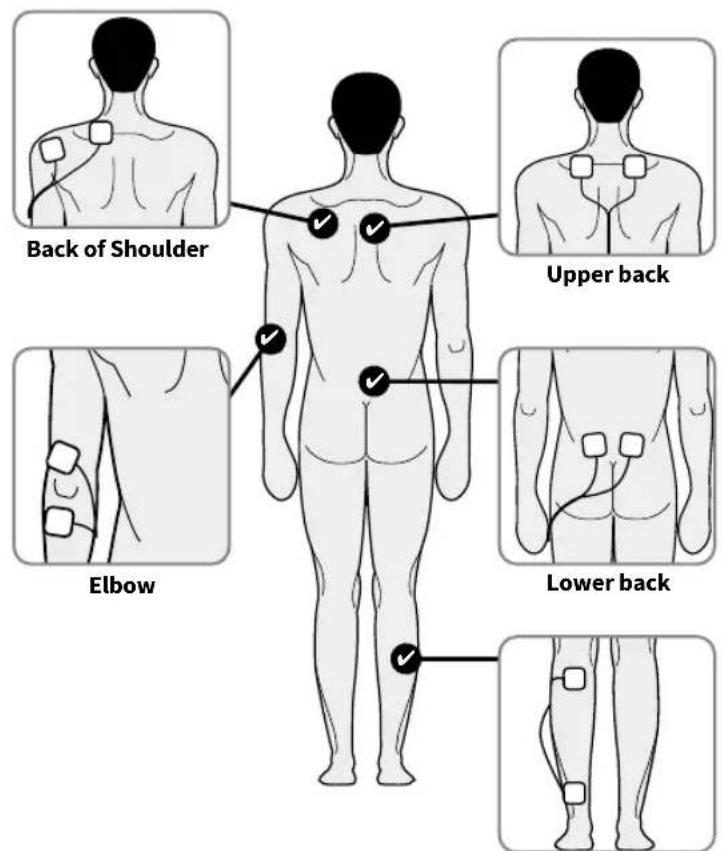

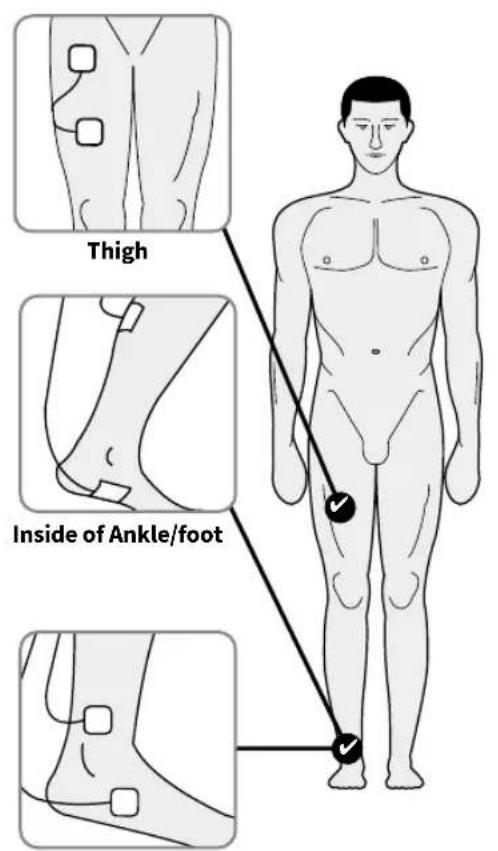

Body Pads can also be used to treat other areas of the body. Select the area you wish to apply electrical stimulation, positioning the Body Pads on either side of the area causing you pain. Recommended Body Pad placements are shown below:
Outside of Ankle/foot
Calf
h Press the power button on the device or on the remote control to turn Revitive on.
You will hear a beep and the display lights will light up.
The time will read 20 minutes, the Intensity will read 00 and the EMS symbol will be displayed.
Revitive Electrode Pads will automatically provide stimulation in EMS mode.
If you wish to use Revitive Body Pads in TENS Mode press the TENS button on the remote control.
You will then see the TENS symbol on the display.
See page 28 for further instructions on how to switch between EMS and TENS mode.

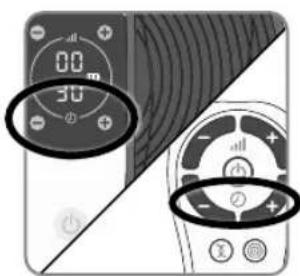

i Set the time for the number of minutes you want to use Revitive. The default time for the Thigh Pads in EMS mode is 20 minutes and 30 minutes for the Body Pads in TENS mode.
You can use the buttons on the device or remote control.
Press the (+) button to increase the time.
Press the (-) button to decrease the time.
Adjusting the intensity level in EMS mode - At the start of the Knee Program there will be 30 seconds of stimulation to help you set the right intensity level. This is followed by a rest period of 30 seconds, when you will feel no stimulation.
For the remainder of the therapy session you will feel 10 seconds of stimulation, followed by a 20 second rest period which repeats until the end of therapy.
The EMS icon will flash during the rest period, it is not possible to adjust the intensity during this time.
You can adjust the intensity when you can feel the stimulation being applied to your thigh and the EMS icon is not flashing.

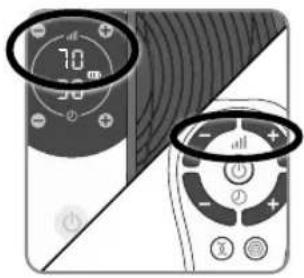

j Press the (+) Intensity Control once to start stimulation.
Continue to increase the intensity until you can feel the stimulation.
You can set the intensity between 1-99.
You can use the buttons on the device or remote control.
Press the (+) button to increase the level.
Press the (-) button to decrease the level.
It is normal to feel tingling or varying sensations in the muscles you are treating.
Please note that the intensity required may vary from day to day.
If you feel pain or discomfort:
- Lower the intensity of the Electrode Pads using the Intensity Control on the device or remote control.
- You can also choose to stop therapy before the end of the default session to avoid skin irritation and/or muscle fatigue. You can do this by pressing the power button on the device or on the remote control.
k The Tine display will start to count down in minutes as Revitive cycles through its program.
When Revitive times out, you will hear three beeps, and the device will switch itself off automatically.
Ensuring that the device is switched off, gently peel the Electrode Pads from the skin.
Do not pull the Electrode Pads off the skin using the Electrode cords as this may damage the cords.
m Replace the Electrode Pads onto their plastic liner after use.
n Unplug the Electrode cord from the socket on Revitive.
The stimulation can be paused if necessary by unplugging the electrode cord from Revitive or from the pads. Revitive will pause for up to 10 minutes during which time you can re-connect and press (+) to re-start the stimulation.
After 10 minutes of being in the paused state, Revitive will switch itself off.
Step 4.1: Switching between EMS and TENS mode
To change between EMS and TENS mode, press the button of the stimulation mode you require on the remote control.
You will see the mode selected highlighted on the display.
During use, switching from EMS to TENS mode (or vice versa), will reset the timer back to the relevant default time. The intensity will also be reset to zero.
Cleaning and storing Revitive
a Ensure Revitive is switched off.
b Wipe down the foot-pads with a soft damp cloth.
Do
not
clean
with
chemicals.
Do not immerse Revitive in water.
Store Revitive in a cool, dry and dust-free location and out of direct sunlight.
d Place Electrode Pads onto the plastic liner.
Store the Electrode Pads in a dry and ventilated location and out of direct sunlight.
You do not have to detach the Electrode Pads from the Electrode cords to store them.
Replacing the Batteries
The remote control requires two AAA 1.5V batteries to operate.
Replacing the Electrode Pads
The Electrode Pads are reusable up to 20-30 applications. If the Electrode Pads start to lose their adhesiveness, rub a few drops of water into the surface. Replacement Electrode Pads can be obtained via www_REVITE.com.
Problem Possible Cause
Solution
| Revitive is on (lights illuminated on the LED display) but I cannot feel the electrical stimulation through the foot-pads. | Not placing both bare feet on the foot-pads at the same time. | Ensure that your feet are bare and each foot is placed on each of the foot-pads at the same time. Keep increasing the intensity up to a maximum of 99 until you feel the stimulation. |
| Your feet may be dry. Moisturise the | soles of your feet to improve conductivity and stimulation and try the procedure again. You may also have to increase the intensity level. | |
| You may be dehydrated. Drink plenty of water before and after using the device. The device uses your body to create the electrical circuit. Water is an excellent conductor of electricity and if your body is less hydrated (below 60%) then the stimulation may be less, therefore it is important to always remain well hydrated. | ||
| The intensity level may be on too low a setting. | This is a very safe device. Keep increasing the intensity level towards 99 until you feel the stimulation. You may find that you have to increase the intensity level as you get used to the therapy. The aim is not to get to 99 but to find a setting that produces strong muscle contractions in your calves and is comfortable for you. | |
| Electrode cord is connected to device. | Disconnect the Electrode cord - the foot-pads will not work while the Electrode cord is plugged in. | |
| Revitive may be in auto-pause Ensure that you have drunk plenty of water and that your feet are well moisturised. Place both feet onto the foot-pads, then press (+) intensity button to resume stimulation. | ||
| If, having tried the solutions above, you still cannot feel the stimulation: | Test the device by placing one hand across both foot-pads at the same time (The heel end of the foot-pads is easiest). With your other hand, and starting from zero, increase the intensity level until you can feel the stimulation. If you can feel the stimulation through your hand then the device is working. If on 99 you still cannot feel the stimulation then please contact your authorised dealer. | |
| No power or lights to Revitive when it is switched on. | AC Adaptor not switched on at the electrical socket or AC Adaptor not plugged into device properly. | Check electrical socket power is switched on and the AC Adaptor is plugged into the device correctly. If still not working - contact your authorised dealer. |
| Flat battery Plug device in an electrical socket and charge battery or run using mains power option. | ||
| Revitive is not vibrating. | REVATIVE IS NOT DESIGNED TO VIBRATE. | |
| The IsoRocker® is not "rocking". | It is the muscles in your legs that cause the "rocking", the IsoRocker® is a pivot. | The IsoRocker® will only rock when increased to an intensity which causes sufficient calf muscle contraction. It may be that you cannot comfortably increase the intensity high enough until you get used to the sensation. It is important that intensity is adjusted to a level that is comfortable. |
| The device is too far in front of you. | Sit with your knees at a 90 degree angle. | |
Problem Possible Cause Solution
| When using the IsoRocker® on a hard floor it makes a tapping noise. | Incorrect positioning of the device or too high an intensity level. | Adjust the positioning of the device or lower the intensity level to reduce the device tapping. Alternatively use a floor mat under the device to cushion the sound. |
| My legs are aching after treatment. | You may have the intensity on too high a setting and your muscles are being overworked. | Leave adequate time after each treatment to allow the muscles to recover (just like after vigorous exercise!). On your next session start on a lower setting (where you can feel the mild electrical stimulation and it is comfortable) and reduce the duration until your muscles have acclimatised to the stimulation. |
| I have placed my feet on the device but am unable to see the TENS symbol on the control panel | TENS is only available through the Electrode Pads. | |
| When using the Electrode Pads, the stimulation feels uncomfortable. | The level of stimulation you are using may be too high or you may have broken skin. | Decrease the stimulation level using the (-) intensity control on the device or remote control. You may need to discontinue use until skin has healed. |
| I am unsure of which therapy mode I am using when using the Electrode Pads. | Look at the display on the device. If the Electrode Pads are in EMS mode, you will see the EMS symbol. If the Electrode Pads are in TENS mode, you will see the TENS symbol. | |
| I suddenly can’t feel stimulation when using the Electrode Pads. | You may have pressed the other stimulation mode button by accident. | Pressing the opposite stimulation mode button (i.e. pressing the TENS button when already in EMS mode or vice versa), will reset the timer back to 30 minutes. The intensity will also be reset to zero. The mode, intensity and time settings will need to be re-made. |
| You may have accidentally paused the stimulation session by disconnecting a pad. | Reconnect the pads to your body or re-connect the cord and press the (+) to resume your session. | |
| When using the Thigh Pads, my thigh muscles are aching before the end of the treatment. | Your muscles may not yet be strong enough to carry out a full 20 minute session. | Turn the device off and end the session before the end of the 20 minutes. On your next session start on a lower setting (where you can feel the mild electrical stimulation and it is comfortable) and reduce the duration until your muscles have acclimatised to the stimulation. |
| When using the Thigh Pads, I can’t feel the stimulation in my thigh. | Therapy has started and has reached the rest period. | You will need to wait for up to 20 seconds before the stimulation will start again. |
For more information including Frequently Asked Questions, please visit www_REVitive.com
Technical Specifications
| Name of product Revitive Medic Knee | |
| Model 5574AQ | |
| Frequency (+/- 10%) | EMS: 20Hz - 53Hz TENS: 80Hz - 130Hz |
| Output current | EMS: Max 15mA TENS: Max 19mA |
| Weight (+/- 0.5kg) 1.4 Kg | |
| Dimensions 360mm (Ø) x 76.5mm (D) | |
| Power consumption 5W | |
| AC adaptor | CE Approved |
| Power source Input (adaptor used) ⊙ Output ⊙ | 100-240V AC (⊙), 50/60Hz, 0.18A 5V (⊙) DC — — ,1.0A |
| Battery | Lithium Ion, 1200mAh, 3.7V |
| Battery Life | 500 charge cycles |
| Applied parts Parts of Revitive that in normal use come into physical contact with the user. | Small Electrode Body Pads - 5cm x 5cm = 25cm² Large Electrode Thigh Pads - 10cm x 12.5cm = 125cm² SoftTouch Pads (Foot-Pads) - 253.69cm² |
| Durable Period (Service Life) of Device and remote control | 4 Years |
The Remote Control replicates the controls found on the device
| Operating Frequencies 38 KHz | |
| Operating Range Distance | 0 to 25m at horizontal 0 to 18m at +/- 30 degree angle from the horizontal. |
Technical Specifications
Output Specifications for Electrical Muscle Stimulation (EMS):
| Waveform Biphasic | ||
| Shape Square symmetrical with polarity reversal | ||
| Maximum Output Voltage (+/-15%) @500Ω Foot: 35V Body: 33V | ||
| Pulse Duration (+/-10%) Foot: 450-970μs Body: 450μs | ||
| Net Charge @ 500Ω [0.001]mC | ||
| Maximum Power Density @ 500Ω | Foot: 0.414 mW/cm2 | Body: 3.98 mW/cm2 |
| ON Time (+/- 10%) | Foot: 1.90 - 8.30s | Body: 13 - 33s |
| OFF Time (+/- 10%) | Foot: 1.00 - 1.50s | Body: 17 - 27s |
Output Specifications for Transcutaneous Electrical Nerve Stimulation (TENS):
| Waveform Biphasic | |
| Shape Rectangular | |
| Maximum Output Voltage: @ 500Ω 50V | |
| Pulse Duration: 100μs | |
| Net Charge (per pulse @ 500Ω) | 0μC |
| Maximum Average Power Density @ 500Ω 4.19 mW/cm | 2 |
The values of PULSE DURATIONs, PULSE repetition frequencies and amplitudes, including any d.c. component, shall not deviate by more than ± 20% when measured with a load resistance within the range specified.
If confirmation is required that the Revitive works within its Essential Performance after a certain period of time, contact the manufacturer
Symbols
| Complies with European Medical Devices Directive (93/42/EEC) | CE 2797 | |
| UK Conformity Assessed Product conforms to all applicable U.K. legislative requirements. | UK CA 0086 | |
| Device serial number including year (YYYY) and month (MM) of manufacture can be found on the box and back of unit | LOT #YYYYMMXXXXX | |
| Item number | REF | |
| Contraindications,Warnings and Cautions Make sure you understand these before using Revitive | ! | |
| Power | ○ | |
| Time Remaining | ○ | |
| Intensity Level | , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , TENS Mode | × |
| EMS Mode | × | |
| TENS Mode | × | |
| Battery Indicator | III | |
| Center Positive Polarity | ○-○-○ | |
| Class II medical electrical equipment double insulated | □ | |
| Type BF medical electrical equipment | ▲ | |
| Legal manufacturer of the device | ▲ | |
| EU/EC European Authorised Representative | EC REP | |
| Consult instructions for use | ▲ | |
| Ingress Protection Rating | IP21 |
| FCC mark Certification mark employed on electronic products manufactured or sold in the United States which certifies that the electromagnetic interference from Revitive is under limits approved by the Federal Communications Commission. Actegy Ltd complies with all applicable FCC rules. | FC |
| The Waste Electrical and Electronic Equipment Directive (WEEE Directive). At the end of the product lifecycle, do not throw this product into normal household garbage, but take it to a collection point for the recycling of electronic equipment | |
| Use-by date YYYY MM DD | |
| Humidity, temperature and air pressure limit for storage and transport | 90% 20% -20°C 1060 hPa 500 hPa |
| Humidity, temperature and air pressure limit for operating conditions After any exposure to hot or cold temperatures outside the specified operating range of 10 - 40°C allow the product to re-adjust to the recommended operating temperatures to ensure continued product performance. | 75% 30% 40°C 10°C 1060 hPa 700 hPa |
| Indoor Use Only | |
| Medical device does not contain natural rubber latex | LATEX |
| Do not disassemble |
Your 2-year warranty
It is important to retain the retailer's receipt as proof of purchase. Staple your receipt to this back cover for future reference.
Please quote the following information if the product develops a fault. These numbers can be found on the base of the product:
Model no:
Lot no:
All Revitive devices are individually tested before leaving the factory. In the unlikely event of any device proving to be faulty within 30 days of purchase, it should be returned to the place of purchase for it to be replaced.
If the fault develops after 30 days and within 24 months of original purchase, you should contact your local distributor quoting model number and LOT number on the product, or write to your local distributor at the address shown.
You will be asked to return the product (in secure, adequate packaging) to the address shown with a copy of proof of purchase.
Subject to the exclusions set out below (see Exclusions) the faulty device will then be repaired or replaced and dispatched, usually within 14 working days of receipt.
If, for any reason, this item is replaced during the 2-year guarantee period, the guarantee on the new item will be calculated from the original purchase date. Therefore, it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.
To qualify for the 2-year guarantee, the device must have been used according to the manufacturer's instructions supplied.
Exclusions
1 Actegy, manufacturer of Revitive devices, shall not be liable to replace the goods under the terms of the guarantee where:
- The fault has been caused or is attributable to accidental use, misuse, negligent use or used contrary to the manufacturer's recommendations or where the fault has been caused by power surges or damage caused in transit.
- The device has been used on a voltage supply other than that stated on the product or used with a power adaptor other than the one supplied with the product.
- Repairs have been attempted by persons other than our service staff (or authorised dealer).
- The device has been used for hire purposes or nondomestic use.
The device is second hand.
2 Actegy are not liable to carry out any type of servicing work, under the guarantee.
3 Accessories such as Electrode Body Pads and bags are not covered by the guarantee.
4 Remote control batteries and any damage from leakage are not covered by the guarantee.
5 This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.
To activate your free 2-year warranty please register your device at: support_REVitive.com
Revitive Medic Genou
Petites electrodes corporelles
Grandes electrodes cuisses
Revitive Medic Rodilla
Cable de electrodo
Cable de 150 cm de长大o
Mando a distancia
2 pilas AAA

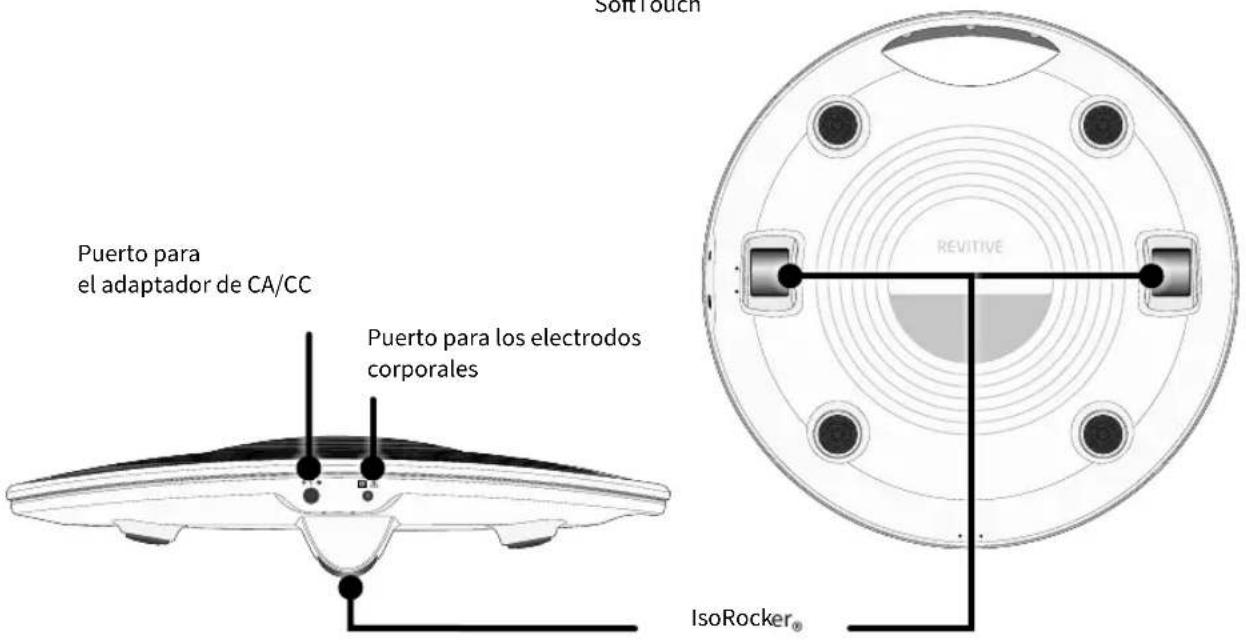

Piezas y mandos
Panel de control
Mando a distancia
Perfil del usuario
m Revitise apaga automatically.
30175 Hannover, Germany.
Distributor/Distributeur/Vertrieb/Distributore/Distribuidor
UK:
Imported by and
UK Responsible Person:
Actegy Ltd
1 West Point
Western Road
Bracknell, RG12 1HJ
United Kingdom
Tel: +44 (0)800 014 6377
info.uk@actegy.com
FR/IT/ES/NL/BE:
Revitive SAS
Kundenservice@revitive.de
Kundenservice@revitive.at
Copyright © 2024 Actegy Ltd. All rights reserved. Actegy®, Revitive®, Revitive Medic® and Circulation Booster® are registered trademarks of Actegy Ltd. The Revitive product is a proprietary design and is protected by applicable design laws.
