USER MANUAL Terrazza XL Jøtul

Exterior view of a modern metal fire extinguisher with visible flames and smoke (no text or symbols)

Cat.no. 50053507

Warning sign with pictograms and symbols: warning triangle, van, house, tent, tree with checkmark

Icon of a person reading a document inside a gray circle (no text or symbols)

Two metallic metal profiles with cutouts, shown side by side against a white background (no text or symbols)

Close-up of a metallic ruler with measurement markings (no visible text or symbols)

Fig. 4

Close-up of a metallic pipe inserted into a corner with a small component, no visible text or symbols

Fig. 5

Close-up of a metallic U-shaped metal bracket with a looped hook (no text or symbols visible)

Metal bracket with angled cutouts and mounting holes (no text or symbols visible)

Fig. 7

Metal V-shaped bracket component with a recessed cutout (no text or symbols visible)

3D rendering of a square metal cube with a vertical rod inserted into the center (no text or symbols)

Solid gray square with no text, symbols, or markings

Metallic support structure with a curved arrow indicating rotation or force (no text or symbols)

Metallic metal bracket with U-shaped cutouts and a flat base (no text or symbols)

Fest skruene "under" bunnplaten.

DANSK

Warning sign with pictograms and symbols: a person in a triangular warning triangle, a van with fire, a house with flame, a tent with flame, and a tree with fire.

Icon of a person reading a book inside a gray circle (no text or symbols)

Two metallic metal profiles with cutouts, shown against a white background (no text or symbols)

Close-up of a metallic pipe inserted into a triangular channel, no visible text or symbols

Fig. 5

Close-up of a metallic U-shaped metal bracket with a small attached clip (no text or symbols visible)

Close-up of a metallic door or panel with a cutout, showing surface texture and no visible text or symbols.

Fig. 6

Metal bracket with angled support and vertical slots (no text or symbols)

Fig. 7

Metal V-shaped metal bracket with a recessed cutout (no text or symbols visible)

Solid gray square with no text, symbols, or markings

Metallic metal bracket with U-shaped cutouts and mounting holes (no text or symbols)

3D rendering of a square metal frame with a vertical rod inserted into the center (no text or symbols)

Sæt topladen på med vinklerne nedad.

Fig. 11

Metallic support structure with a curved arrow indicating rotation or force (no text or symbols)

- Læg ind et 50 mm tykt lag med sand / grus i bunden av pejsen for stabilitet og isolation.

Warning sign with pictograms and symbols indicating hazard, vehicle, house, campfire, and tree fire

Icon of a person using a laptop inside a gray circle (no text or symbols)

Two metallic metal profiles with cutouts, shown side by side (no text or symbols)

Close-up of a metallic pipe inserted into a corner with a small square component, no visible text or symbols

Fig. 5

Metal pipe joint with a U-shaped groove and metal clamps (no text or symbols visible)

Close-up of a metallic mechanical part with a cutout, showing no text or symbols

Fig. 6

Metal bracket with angled cutouts and a vertical slot, no visible text or symbols

Fig. 7

Metal V-shaped metal component with a recessed slot (no text or symbols visible)

3D rendering of a square metal cube with a vertical rod inserted into the center (no text or symbols)

Solid gray square with corner markers (no text or symbols)

Metallic support structure with a curved arrow indicating rotation or force (no text or symbols)

Fig. 9

Metallic metal bracket with U-shaped cutout and flat base (no text or symbols)

Warning sign with pictograms and symbols: a person using a device, a van, a house, a tent, and a tree with fire.

Icon of a person reading a document inside a gray circle (no text or symbols)

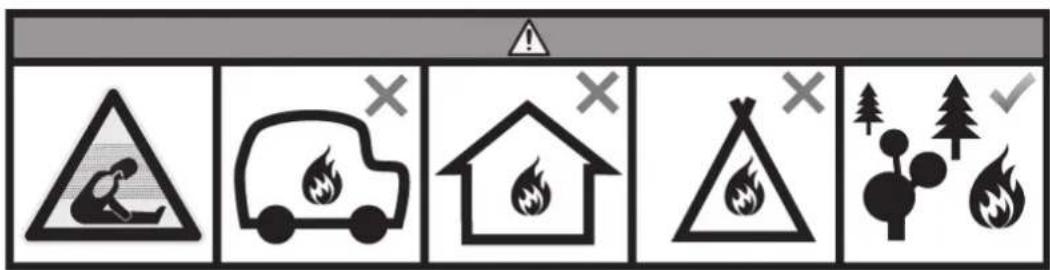

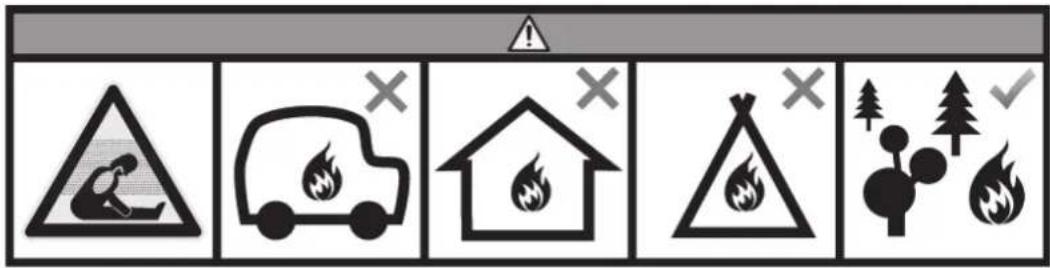

Warning! The fireplace must not be used inside confined or inhabited spaces, such as houses, tents, camper vans, caravans or boats. Doing so may cause carbon monoxide poisoning, which can be fatal.

NB: These Installation and Operating Instructions should be kept for the entire service life of the product.

Follow the installation instructions as illustrated in Figure 1-11.

- Do not over-tighten the screws.

Safety precautions

The process of installing the product must be in compliance with all local ordinances, including those that refer to national and European standards. The fi replace must always be installed in compliance with national laws and regulations.

Position

• There must be a minimum distance of 1.5m from the sides of the fi replace to any combustible surfaces and materials. (15 ft minimum required in the USA).
• The fi replace must be placed on a non-combustible surface, such as bricks, concrete, rock or stone.
• The fireplace must not be placed inside confined spaces, tents, camper vans, caravans, boats or indoors.
• The fi replace must not be placed beneath a roof overhang or low branches on trees.
• The fireplace should be placed on a flat, solid, stable surface. It might also be a good idea to check with neighbours about the position of the fi replace to ensure that smoke and smells do not cause a nuisance.

Using the fi replace

• Never leave the fi replace unattended when it is lit. We recommend you have a bucket of water close by.
• The fi replace should ONLY be used with dry, untreated logs/charcoal.
• Warning! Never use petrol, paraffin, methylated spirit or similar liquids to light the fi re. You could injure yourself and damage the product. We recommend using Jøtul Firestarters to get the fi re going. Any other material may damage the fi replace and shorten its service life.
• The fireplace must not be filled with too much wood. Doing so causes it to become hotter than it is designed for.
• Never move or touch the fireplace when it is lit. After use, let it cool for some time before touching it.
• Make sure at all times that children and animals do not get too close to the fi replace.
• Let the logs burn out and the fi replace cool down.
• Remove the remains of logs or charcoal, as logs can spontaneously ignite after use. Clean the fi replace with a rag/cloth.

Weather conditions:

Keep a careful eye on the fi replace in windy weather. The fi ames could burn in an uncontrolled way. If conditions are not ideal, we recommend waiting for the weather to improve before lighting the fi replace.

After using the fi replace

We recommend storing the fi replace somewhere dry when not being used.

Maintenance

The fi replace is made of 2 mm Corten steel, which develops a "rough" rusted surface after a short time. This rusty layer protects the metal fireplace from the elements, which means it can be left outdoors all year round. Corten steel is also used on building façades to achieve a rusted look.

NB: Rust can run down onto the surface and cause stains that are difficult to remove. The surface should therefore be covered to protect it.

NB: The fi replace must not be surface treated.

Technical data:

Height: 168 cm

Width: 57 cm

Depth: 57 cm

Weight: 40 kg

Warranty

2 years from the date of purchase.

NB: The heat may cause the fireplace to marginally change shape (straight surfaces may become slightly rounded). This is a natural occurrence when the fi replace is used and does not constitute a reason for any claim for compensation.

Optional equipment:

item. no. 51012326 - Kit for Grill

Item. no. 51012325 - fi rescreen

ENGLISH/USA

Installation of the fi replace:

Fig. 1

Two metallic rectangular metal profiles with cutouts, shown against a white background (no text or symbols)

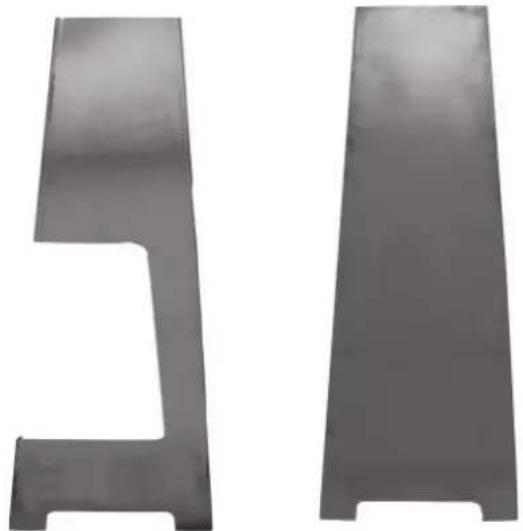

Put the steel plates towards each other (fig. 1 and 2).

Fig. 3

Close-up of a metallic cylindrical object with a hole, possibly a tool or component (no visible text or symbols)

Fig. 4
Fig. 2

Close-up of a metallic pipe inserted into a corner with a small metal bracket attached (no text or symbols visible)

Fig. 5

Metal V-shaped metal bracket with a small hook at the top (no text or symbols)

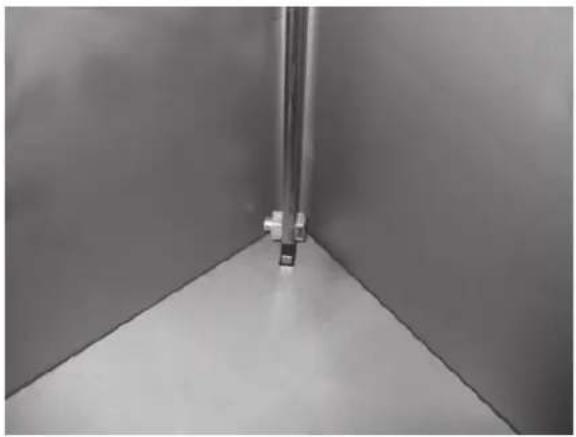

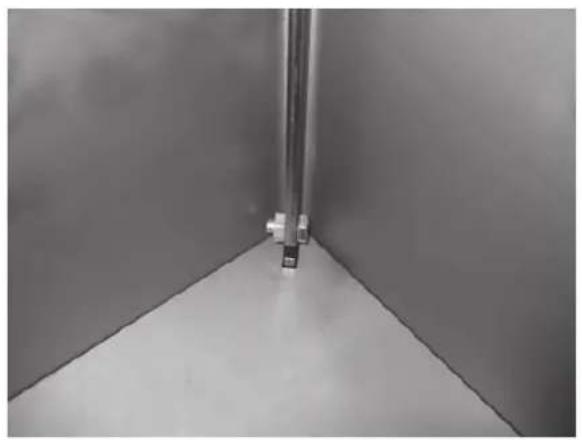

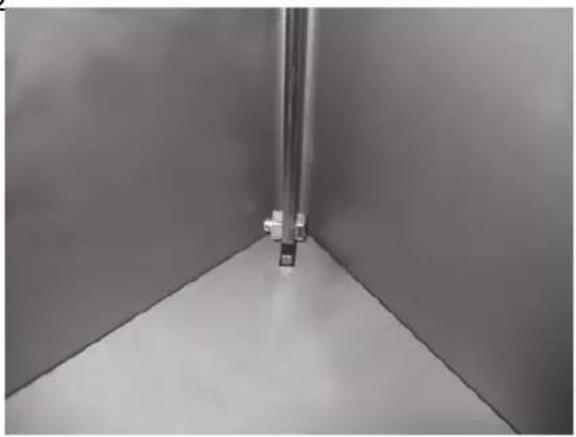

Attach the screws and nuts to the tracks as shown (fig. 3, 4, 5 and 6).

Fig. 6

Metal bracket with angled cutouts and a vertical seam (no text or symbols)

Fig. 7

Metal V-shaped metal bracket with a recessed cutout (no text or symbols)

Put the fireplace up-side down for easier assembly of the bottom plate.

Fig. 8

Solid gray square with no text, symbols, or markings

Drop the bottom plate down through the opening.

Fig. 9

Top-down view of a gray metal bracket or container with two U-shaped cutouts (no text or symbols visible)

Attach the screws beneath the bottom plate.

Fig. 10

3D rendering of a square metal frame with a central hole (no text or symbols)

Put on the top plate with the angles down.

Fig. 11

Metallic 3D object with a curved arrow indicating rotation or force (no text or symbols)

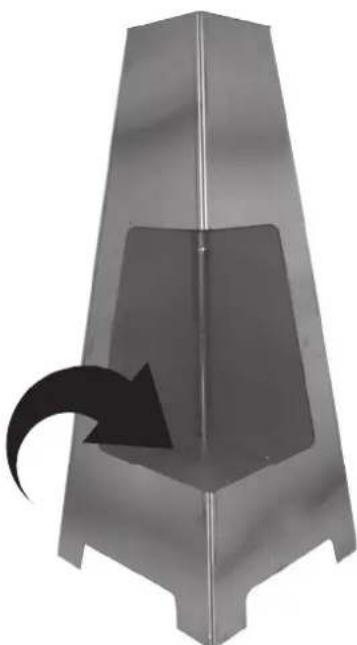

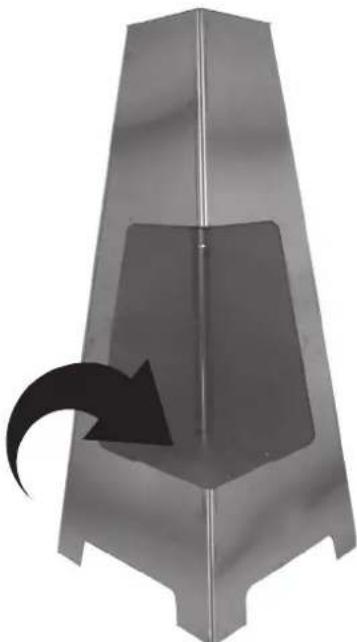

1) Apply a 50 mm thick layer of sand/gravel for stability/insulation in the bottom.

2) The fi replace is ready for use.

FRANCAIS

Warning sign with pictograms and symbols indicating hazard, vehicle, house, campfire, and tree fire

Icon of a person reading a document inside a gray circle (no text or symbols)

Two metallic metal profiles with cutouts, shown side by side (no text or symbols)

Close-up of a metallic mechanical part with a hole and textured surface (no visible text or symbols)

Fig. 4

Close-up of a metallic pipe with a small square object inserted into a triangular channel (no text or symbols visible)

Fig. 5

Close-up of a metallic U-shaped metal bracket with a looped neck (no text or symbols visible)

Metal bracket with angled cutouts and a vertical seam (no text or symbols)

Fig. 7

Metal V-shaped metal component with a central slot and rounded corners (no text or symbols)

Solid gray square with no text, symbols, or markings

Poser la plaque foyère en place.

Fig. 9

Metallic metal bracket with U-shaped cutouts and a flat base (no text or symbols)

3D rendering of a square metal cube with a vertical rod inserted into the center (no text or symbols)

Metallic support structure with a curved arrow indicating rotation or force (no text or symbols)

Warning sign with pictograms and symbols indicating vehicle safety, fire, house, campfire, and tree fire hazard

Icon of a person sitting and using a laptop, no text or symbols present

Two metallic metal profiles with cutouts, shown from different angles (no text or symbols)

Close-up of a metallic panel or clip with a hole, no visible text or symbols

Abb. 4

Close-up of a metallic pipe inserted into a triangular channel, no visible text or symbols

Abb. 5

Metal V-shaped metal bracket with a small attached bracket (no text or symbols visible)

Metal bracket with angled cutouts and vertical slots (no text or symbols)

Abb. 7

Metal V-shaped metal component with a recessed slot, shown in grayscale (no text or symbols)

Solid gray square with no text, symbols, or markings

Top-down view of a gray metal frame or support structure with two U-shaped cutouts and bolted corners (no text or symbols visible)

3D rendering of a square metal cube with a central vertical rod (no text or symbols)

Metallic support structure with a curved arrow indicating rotation or force (no text or symbols)

Warning sign with pictograms and symbols indicating vehicle safety, fire, house, campfire, and tree fire hazard

Icon of a person sitting and using a laptop, no text or symbols present

Two metallic metal profiles with cutouts, shown side by side (no text or symbols)

Close-up of a metallic mechanical part with a hole and textured surface (no visible text or symbols)

Afb. 4

Close-up of a metallic pipe inserted into a corner with a small square object attached (no text or symbols visible)

Afb. 5

Close-up of a metallic U-shaped metal bracket with a looped hook (no text or symbols visible)

Metal bracket with angled cutouts and a vertical seam (no text or symbols)

NEDERLANDS

Afb. 7

Metal V-shaped object with a recessed rectangular cutout and a small rectangular hole (no text or symbols visible)

Solid gray square with no text, symbols, or markings

Metallic metal bracket with U-shaped cutout and flat base (no text or symbols)

3D rendering of a square metal cube with a vertical line inside, no text or symbols visible

Metallic support structure with a curved arrow indicating rotation or force (no text or symbols)

Warning sign with icons and symbols: a person sitting on a triangular warning triangle, a van with flame, a house with flame, a tent with flame, and a tree with fire.

Icon of a person reading a document inside a gray circle (no text or symbols)

Two metallic metal profiles with no text or symbols, showing structural details (no visible text or symbols)

Close-up of a metallic object with a hole, possibly a tool or component (no visible text or symbols)

Fig. 4

Close-up of a metallic pipe inserted into a corner with a white material, no visible text or symbols

Fig. 5

Close-up of a metallic U-shaped metal bracket with a small hook and mounting bracket (no text or symbols visible)

Metal bracket with angled cutouts and vertical slots (no text or symbols)

Fig. 7

Metal V-shaped metal bracket with a recessed cutout (no text or symbols)

Solid gray square with no text, symbols, or markings

Top-down view of a gray metal frame or support structure with no visible text or symbols

3D rendering of a square metal frame with a vertical rod inserted into the center (no text or symbols)

Metallic support structure with a curved arrow indicating rotation or force (no text or symbols)

Outdoor Fireplace Safety

Outdoor fireplaces are very popular in backyards throughout North America. Although their use is typically allowed under state or provincial fire codes, there may be restrictions with which residents must comply. Adhering to these requirements and safety tips will assure a safe and enjoyable outdoor experience.

CHECK WITH YOUR LOCAL CODE OFFICIAL REGARDING SPECIFIC OUTDOOR BURNING ORDINANCES.

• Only seasoned firewood should be used as fuel for outdoor fires.
• Outdoor fires should be located away from any adjoining property lines and 15 feet from any combustible structure or materials. Combustible structures include dwellings, garages, sheds, decks and fences.

General Safety Practices:

• Do not use the fireplace during high wind conditions.
• Jøtul highly recommends use of our optional Spark Arrest Screen to provide additional safety. Check with your local building and fire code jurisdiction as a spark arrest screen may be required on wood-burning outdoor fireplaces in your area.
• The fireplace should be located on a firm, non-combustible surface such as a brick, stone, or concrete patio.
  • DO NOT burn leaves, trash or yard debris.
• The fire must be attended to at all times. If the fire is to be left unattended, it should first be extinguished.
• Never use a flammable liquid to start the fire.
• Prior to removing ashes, allow them to cool for at least twenty-four (24) hours. Keep the ashes in a metal waste can with a tight-fitting metal lid and AWAY FROM BUILDINGS AND COMBUSTIBLE MATERIALS.
• Keep your neighbors in mind while burning outdoors. Smoke and other products of combustion can have an impact on surrounding yards and be drawn into neighboring houses.

Cat.no. 10053562 -P05Jøtul AS, Jan. 2022	Jøtul arbeider kontinuerlig for om mulig å forbedre sine produkter, og vi forbeholder oss retten til å endre spesifikasjoner, farger og utstyr uten nærmere kunngjøring.Jøtul bemüht sich ständig um die Verbesserung seiner Produkte, deshalb können Spezifikationen, Farben und Zubehör von den Abbildungen und den Beschreibungen in der Broschüre abweichen.Jøtul pursue a policy of constant product development. Products supplied may therefore differ in specification, colour and type of accessories from those illustrated and described in the brochure.Jøtul vise sans cesse à améliorer ses produits. C'est pourquoi, il se réserve le droit de modifier les specifi cations, couleurs et équipements sans avis prélable.Jøtul se esfuerza constantemente por mejorar sus productos. Por lo tanto, Jøtul se reserva el derecho de cambiar las especificaciones, los colores y el equipamiento sin previo aviso.
