Product Type	Subwoofer
Brand	ESX
Model	Quantum Q201A
Speaker Size	20 cm (8 inches)
RMS Power Output	1 x 100 W
Maximum Power Output	1 x 200 W
Frequency Range	20 – 150 Hz
Adjustable Low-Pass Filter	50 – 150 Hz
Subsonic Filter	Fixed at 20 Hz
Adjustable Phase	0° / 180°
Adjustable Bass Boost	0 – 12 dB @ 45 Hz
Power Supply	+12 V (9 – 15 V), negative ground
Fuse	15 A
Dimensions (W x H x D)	210 x 73 x 290 mm
Weight (estimated)	Approximately 3.5 kg
Auto Turn-On Function	Yes (voltage detection on high-level input)
Remote Bass Level Control	Yes (wired, included)
Protection	Protection LED (overheating, short circuit)
Inputs	RCA (line) and high-level (HI LEVEL IN)
Recommended Installation	Trunk, with sufficient airflow

Frequently Asked Questions - Quantum Q201A ESX

How to connect the power supply of the Quantum Q201A subwoofer?

First disconnect the negative terminal of the battery. Connect the GND terminal of the amplifier to the negative pole of the battery with a cable of sufficient gauge. Connect the +12 V terminal to the battery via a fuse (15 A) placed within 30 cm of the positive pole. Finally, connect the REM wire to the remote output of the car radio.

Can I use high-level and RCA inputs at the same time?

No, never use both simultaneously. This could seriously damage the device. Choose one or the other depending on your car radio's outputs.

How to adjust the input sensitivity (INPUT LEVEL)?

Set the car radio volume to halfway. Turn the INPUT LEVEL control until you hear a medium volume. This ensures sufficient power reserve and a good signal-to-noise ratio.

What does the red PROTECT light mean?

The PROTECT LED lights up in case of overheating or short circuit (too low impedance). The protection circuit automatically cuts off the amplifier. Let the device cool down and check the speaker connections. The light will turn off after the problem is resolved.

How to use the Auto Turn-On function?

Set the AUTO TURN ON switch to ON. The amplifier then detects a voltage of 6 V on the high-level input when the car radio turns on, and turns on automatically. This function works with most modern sources.

How to adjust the low-pass filter (LOW PASS)?

Adjust the LOW PASS control between 50 and 150 Hz according to the characteristics of your midrange speakers. A lower frequency reserves the bass for the subwoofer, a higher one allows better integration with satellites.

What is the purpose of the PHASE SHIFT switch (0°/180°)?

It allows inverting the phase of the signal to synchronize the subwoofer with the other speakers in the vehicle. Test both positions and choose the one that gives the most bass presence.

How to use the Bass Boost?

Turn the BASS BOOST control to add 0 to 12 dB of amplification at 45 Hz. Caution: excessive use can damage the speaker. Use it in moderation.

How to connect the remote bass level control?

Connect the supplied remote control to the REMOTE connector of the amplifier using the included cable. You can then adjust the bass level from the driver's seat.

What to do if the amplifier does not turn on?

Check that the inline fuse (near the battery) and the amplifier fuses are intact. Ensure the ground is connected to a clean metal surface. Verify the presence of 9-16 V on the +12 V terminal and the REM wire. If using the high-level input, check that the AUTO TURN ON switch is set to ON.

USER MANUAL Quantum Q201A ESX

Abstract geometric logo design with stylized letter 'S' and intersecting lines (no text or symbols)

QUANTUM

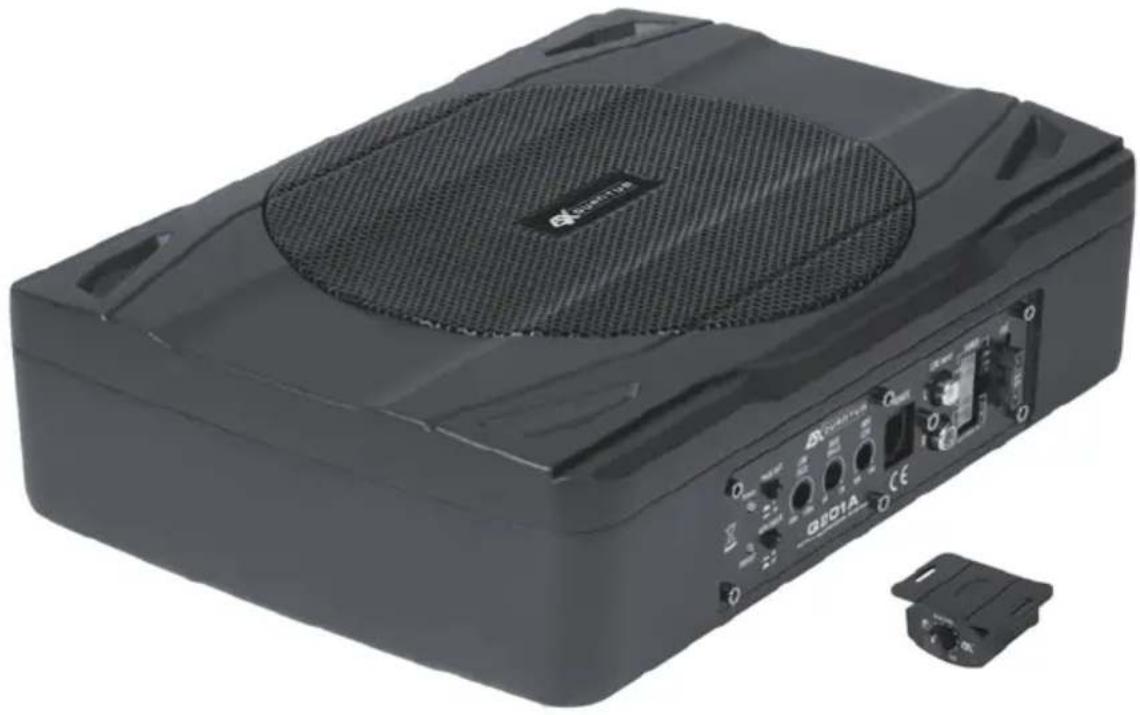

Black electronic device with ventilation grille and control buttons (no visible text or symbols)

ACTIVE SUBWOOFER SYSTEM

Q201A

INHALTSVERZEICHNIS TABLE OF CONTENT TABLE DES MATIÈRES SOMMARIO INDICE

HOCHPEGELEINGÄNGE

AUTOMATISCHE EINSCHALTFUNKTION

Please read the user's manual carefully before the installation and the first operation of the amplifier.

SPECIFICATIONS	Q201A
Subwoofer	20 cm (8")
Output Power RMS	1 x 100 W
Output Power Max	1 x 200 W
Frequency Range	20 – 150 Hz
Lowpass Filter	50 – 150 Hz
Subsonic Filter	Fixed at 20 Hz
Phase Shift	0° / 180°
Bass Boost	0 – 12 dB @ 45 Hz
Operating Voltage	+12 V (9 – 15 V), negative ground
Fuse Rating	15 A
Dimensions (B x H x L)	210 x 73 x 290 mm

All Specifications are subject to change

IMPORTANT NOTES PRIOR TO INSTALLATION

• This device is only suited for a 12 volt system with negative ground.
• The radiated heat while operation requires sufficient air circulation at the place of installation. It is very important that the heat sink fins do not have contact with any metal parts or any surfaces which could impair air circulation. The amplifier may not be installed in small closed location or spaces without air circulation. We recommend the installation in the vehicle's trunk. Ensure sufficient protection against vibrations, dust and dirt.
• Ensure that the input and output cables are sufficiently separated from the power supply cables. Otherwise, interferences may occur.
• Ensure the accessibility of the fuse and the operating elements after installation.
• The reliability and performance of the amplifier depends on the quality of installation. Preferably consult an expert to install the system.
• Avoid any damage or removing of the components of the vehicle like wires, cables, board computer, seat belts, gas tank or the like.

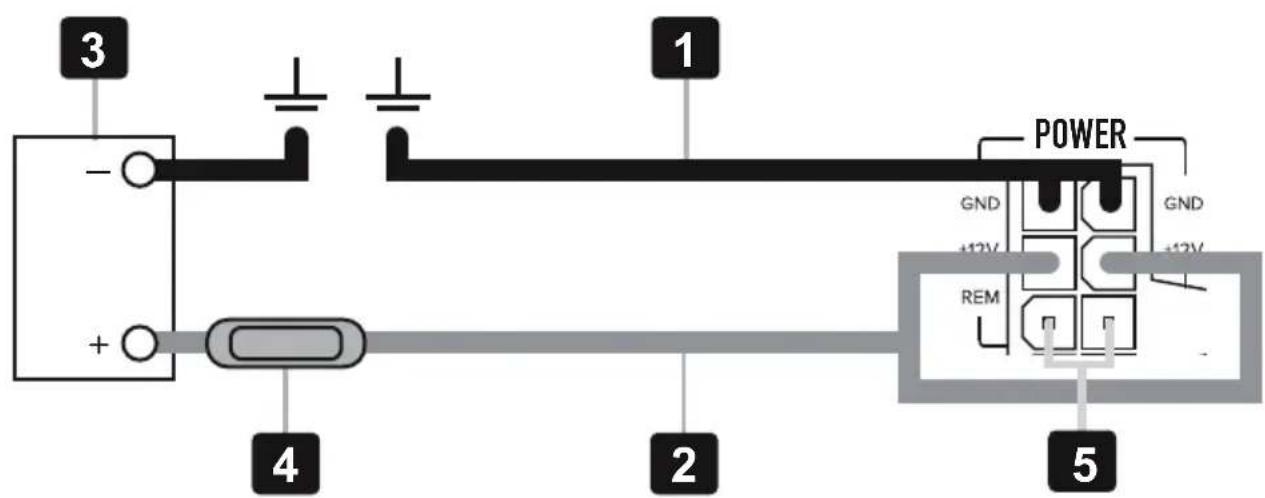

POWER SUPPLY AND TURN-ON-CONNECTION

ATTENTION: Before you start with the installation, disconnect the ground connection from the vehicle's battery in order to prevent short circuits. Use the enclosed cable plug to connect each terminal.

The power wiring which is usually installed in on-board car networks is not sufficient for a power amplifier's demands. Make sure that the power wires to GND and to the +12 V terminal has been sufficiently specified.

First connect the GND terminal [1] of the amplifier to an appropriate ground connection at the chassis. To ensure a good connection, residue dirt and dust from the connection point. A loose connection may cause malfunctions or interferences noise and distortion.

Then connect the +12 V terminal [2] of the amplifier with the battery by using an appropriate cable including an in-line fuse. This fuse [4] should be located very close to the battery [3]; for safety reasons not more than 30 cm away. Only insert the fuse when the installation, including the connection of the loudspeakers, has been accomplished.

Then connect the remote turn-on-wire [5] from the head unit with the amplifier's REM terminal. A cable with a cross-section of 0.5mm^2 is adequate.

AUDIO SIGNAL CABLES

When installing the audio cables between the RCA outputs of the head unit and the RCA inputs of the amplifier [6], the audio and power supply cables should, if possible, not be routed along the same side of the vehicle. We recommend a separated installation, e.g. routing the power cable through the cable channel on the left side and the audio cables through the cable channel of the vehicle on the right side or vice versa. This prevents interferences due to crosstalk into the audio signal.

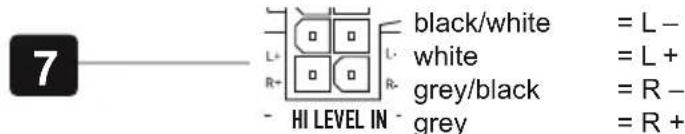

HIGH LEVEL INPUTS & AUTO TURN ON

The high level inputs under HI LEVEL IN [7] is suitable to connect the device input with speaker wires, if your head unit is not equipped with pre-amplifier RCA outputs. Extend therefore every regarding speaker cable from your head unit with appropriate speaker cables from your car audio retailer to the mounting location of the amplifier. Then connect the each matching loudspeaker cable with the cables of the included High Level Input jack.

CAUTION: Never use the high level inputs and the RCA inputs at the same time. This may damage the device seriously. Use the enclosed cable plug to connect each terminal.

AUTO TURN ON

Push the AUTO TURN ON switch [8] to ON position. The amplifier detects now a voltage rise (6 Volts) over the connected input signal on the HI LEVEL IN [7] when the head unit will be switched on. Hence, the amplifier will also be turned on. As soon as the head unit will be turned off, the amplifier turns also automatically off. In this case the turn-on connection [5] is not needed.

NOTE: The AUTO TURN ON function usually works with 90% of all head units, because they are equipped with "High Power"-outputs. Only with a few older and still existing head units the Auto Turn On function is not working.

INPUT SENSITIVITY

Turn the INPUT LEVEL [9] controller of the amplifier to the MIN position. Then turn the volume controller of the head unit to 80 - 90% of its full setting. Now turn INPUT LEVEL [9] clockwise until you hear some distortion. Then turn back INPUT LEVEL [9] slightly until you hear a cleaner sound.

VARIABLE BASS BOOST

By using the BASS BOOST controller [10] you are able to increase the bass enhancement from 0 to 12 dB. ATTENTION: Use the BASS BOOST wisely!

PHASE SHIFT SWITCH

The PHASE SHIFT switch [11] allows to switch the phase from 0^ to 180^ to match the output signal with the vehicle's interior acoustic.

VARIABLE LOW PASS FILTER

Set the desired crossover frequency by using the controller LOW PASS [12]. Thus to that only the frequencies below the chosen crossover frequency will be amplified and the subwoofer plays more precisely and efficient.

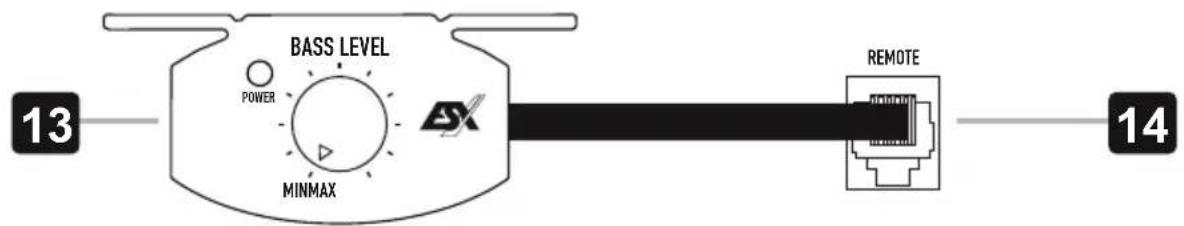

With the included bass level cable remote controller [13] allows to adjust the bass level e.g. out of the driver's seat. Connect the remote controller and the REMOTE terminal [14] with the enclosed cable.

PROTECTION CIRCUIT

The PROTECT LED [15] lights up red, when the amplifier is overheated, or a short circuit occurs respective a too low impedance load is connected to the speaker outputs. If this events, the internal built-in protection circuit shuts down the amplifier automatically. The amplifier should work again properly after you have solved the problems.

The POWER LED [16] lights up green, if the amplifier is in operation.

TROUBLESHOOTING

If you are having problems after installation follow the Troubleshooting procedures below.

Procedure 1:

Check Amplifier for proper connections.

Verify that POWER LED lights up green. If this is the case, skip to Step 3, if not continue.

1. Check in-line fuse on battery positive cable. Replace if necessary.

2. Check fuse(s) on amplifier. Replace if necessary.

3. Verify that Ground connection is connected to clean metal on the vehicle's chassis. Repair/replace if necessary.

4. Verify there is 9 to 16 Volts present at the positive battery and remote turn-on cable. Verify quality connections for both cables at amplifier, stereo, and battery/fuse holder. Repair/replace if necessary.

5. Check that the AUTO TURN ON switch is in the ON position and the HI LEVEL IN is connected correctly, if you don't use the RCA inputs LINE INPUT.

Procedure 2:

PROTECT LED lights up red.

1. If the PROTECT LED lights up, this is a sign of driving the device at very high power levels without adequate airflow around the device. Shut off the system and allow device to cool down. Check that the vehicle charging system is maintaining proper voltage. If the previous items do not solve the problem, a fault may be in the device.

Procedure 3:

Check Amplifier for audio output.

1. Verify good RCA input connections at stereo and amplifier. Check entire length of cables for kinks, splices, etc. Test RCA inputs for AC volts with stereo on. Repair/replace if necessary.

Procedure 4:

Check Amplifier for a popping noise while turning on.

1. Disconnect input signal to amplifier and turn amplifier on and off.

2. If the noise is eliminated, connect the remote lead of amplifier to source unit with a delay turn-on module.

Procedure 5:

Check Amplifier if you experience excess Engine Noise.

1. Route all signal carrying wires (RCA, speaker cables) away from power and ground wires.

OR

1. Bypass any and all electrical components between the head unit and the amplifier(s). Connect stereo directly to input of amplifier. If noise goes away the unit being bypassed is the cause of the noise.

OR

1. Remove existing ground wires for all electrical components. Reground wires to different locations. Verify that grounding location is clean, shiny metal free of paint, rust etc.

OR

1. Add secondary ground cable from negative battery terminal to the chassis metal or engine block of vehicle.

OR

1. Have alternator and battery load tested by your mechanic. Verify good working order of vehicle electrical system including distributor, spark plugs, spark plug wires, voltage regulator etc.

ENTRÉE HAUT NIVEAU

When installing the audio cables between the RCA outputs of the head unit and the RCA inputs of the amplifier [6], the audio and power supply cables should, if possible, not be routed along the same side of the vehicle. We recommend a separated installation, e.g. routing the power cable through the cable channel on the left side and the audio cables through the cable channel of the vehicle on the right side or vice versa. This prevents interferences due to crosstalk into the audio signal.

INGRESSO ALTO LIVELLO

CONTROLLO REMOTO DAL LIVELLO DEI BASSI

ENTRADAS DE ALTO NIVEL

CONTROL REMOTO DE GRAVES
