USER MANUAL Vision V1600A ESX

Abstract geometric logo design with stylized letter 'S' and intersecting lines (no text or symbols)

VISION

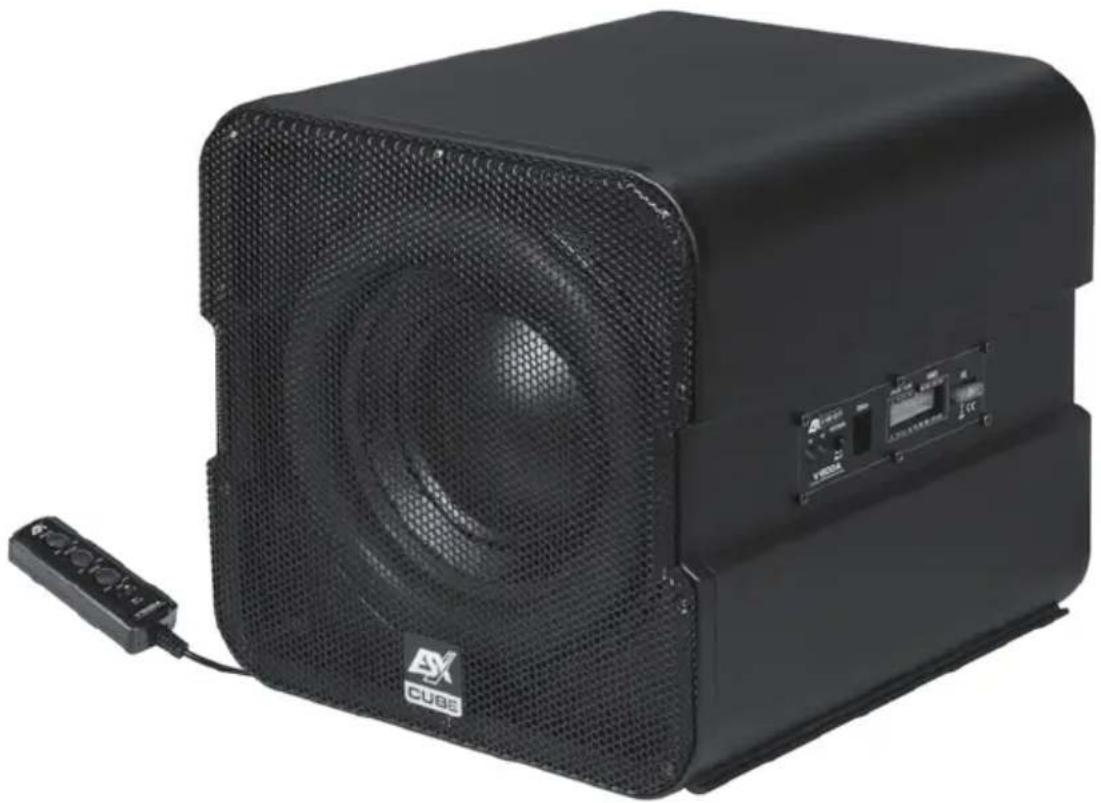

Black cube-shaped electronic device with mesh ventilation grille and control panel (no visible text or symbols)

ACTIVE SUBWOOFER SYSTEM
V1600A

INHALTSVERZEICHNIS TABLE OF CONTENT TABLE DES MATIÈRES SOMMARIO INDICE

Please read the user's manual carefully before the installation and the first operation of the amplifier.

SPECIFICATIONS	V1600A
Subwoofer	20 cm (8")
Passive Radiator	20 cm (8")
Output Power RMS	1 x 150 W
Output Power Max	1 x 300 W
Frequency Range	20 – 150 Hz
Lowpass Filter	50 – 150 Hz
Subsonic Filter	Fixed at 20 Hz
Phase Shift	0° / 180°
Bass Boost	0 – 12 dB @ 45 Hz
Operating Voltage	+12 V (9 – 15 V), negative ground
Fuse Rating	25 A
Dimensions (B x H x L)	291 x 251 x 256 mm

All Specifications are subject to change

IMPORTANT NOTES PRIOR TO INSTALLATION

• This device is only suited for a 12 volt system with negative ground.
• The radiated heat while operation requires sufficient air circulation at the place of installation. It is very important that the heat sink fins do not have contact with any metal parts or any surfaces which could impair air circulation. The amplifier may not be installed in small closed location or spaces without air circulation. We recommend the installation in the vehicle's trunk. Ensure sufficient protection against vibrations, dust and dirt.
• Ensure that the input and output cables are sufficiently separated from the power supply cables. Otherwise interferences may occur.
• Ensure the accessibility of the fuse and the operating elements after installation.
• The reliability and performance of the amplifier depends on the quality of installation. Preferably consult an expert to install the system.
• Avoid any damage or removing of the components of the vehicle like wires, cables, board computer, seat belts, gas tank or the like.

INTERCONNECTION

ATTENTION: Before you start with the installation, disconnect the ground connection from the vehicle's battery in order to prevent short circuits. Use the enclosed cable plug to connect each terminal.

First connect the GND terminal of the amplifier to an appropriate ground connection at the chassis. To ensure a good connection, residue dirt and dust from the connection point. A loose connection may cause malfunctions or interferences noise and distortion.

Then connect the +12 V terminal of the amplifier with the battery by using an appropriate cable including an in-line fuse. This fuse should be located very close to the battery; for safety reasons not more than 30 cm away. Only insert the fuse when the installation, including the connection of the loudspeakers, has been accomplished.

CAUTION: Never use the high level inputs and the RCA inputs at the same time. This may damage the device seriously. Use the enclosed cable plug to connect each terminal.

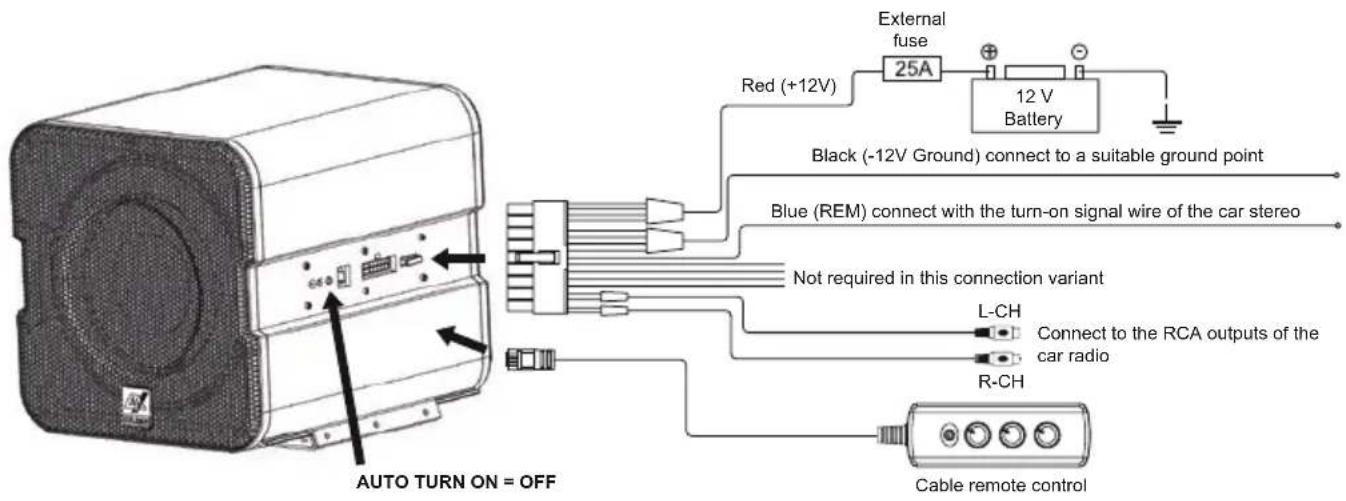

INTERCONNECTION BY RCA INPUTS WITH TURN-ON SIGNAL (REM):

AUTO TURN ON = OFF Red (+12V) External fuse 25A 12 V Battery Black (-12V Ground) connect to a suitable ground point Blue (REM) connect with the turn-on signal wire of the car stereo Not required in this connection variant L-CH Connect to the RCA outputs of the car radio R-CH Cable remote control

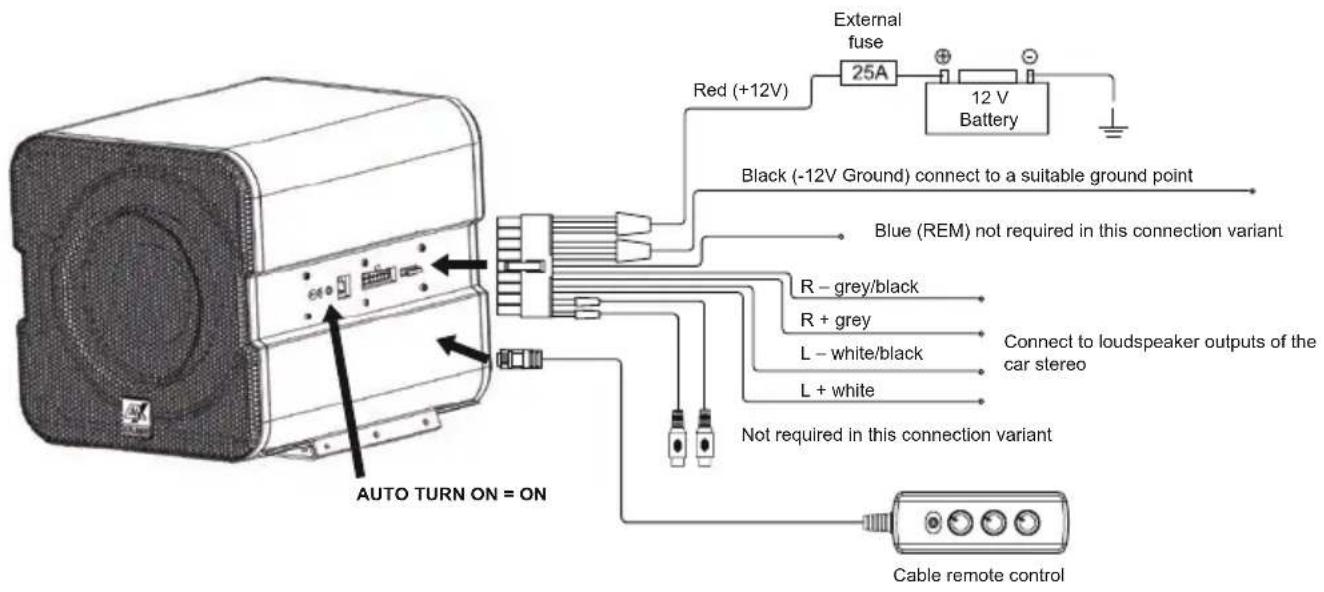

INTERCONNECTION BY HIGH LEVEL INPUTS WITH AUTO TURN-ON:

Red (+12V) External fuse 25A 12 V Battery Black (-12V Ground) connect to a suitable ground point Blue (REM) not required in this connection variant R - grey/black R + grey L - white/black L + white Connect to loudspeaker outputs of the car stereo Not required in this connection variant Cable remote control AUTO TURN ON = ON

INPUT SENSITIVITY

Turn the INPUT LEVEL controller of the amplifier to the MIN position. Then turn the volume controller of the head unit to 80 - 90% of its full setting. Now turn INPUT LEVEL clockwise until you hear some distortion. Then turn back INPUT LEVEL slightly until you hear a cleaner sound.

VARIABLE BASS BOOST

By using the BASS BOOST controller you are able to increase the bass enhancement from 0 to 12 dB.

ATTENTION: Use the BASS BOOST wisely!

VARIABLE LOW PASS FILTER

Set the desired crossover frequency by using the controller LOW PASS. Thus to that only the frequencies below the chosen crossover frequency will be amplified and the subwoofer plays more precisely and efficient.

PHASE SWITCH

The PHASE switch allows to switch the phase from 0^ to 180^ to match the output signal with the vehicle's interior acoustic.

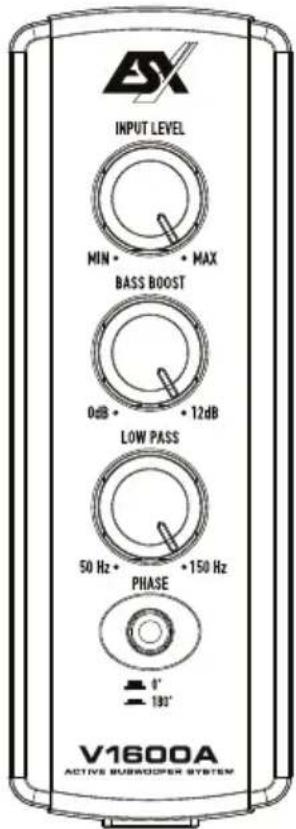

INPUT LEVEL MIN • • MAX BASS BOOST 0dB • • 12dB LOW PASS 50 Hz • • 150 Hz PHASE 8° 180° V1600A ACTIVE BURWOCER SYSTEM

PROTECTION CIRCUIT

The PWR LED lights up green, if the amplifier is in operation.

The PRO LED lights up red, when the amplifier is overheated, or a short circuit occurs respective a too low impedance load is connected to the speaker outputs. If this events, the internal built-in protection circuit shuts down the amplifier automatically. The amplifier should work again properly after you have solved the problems.

Troubleshooting

• Check all connections for defects or short circuits and correct them.
• Provide sufficient cooling in the event of overheating and reduce the volume.

AUTO TURN ON

Push the AUTO TURN ON switch to ON position. The amplifier detects now a voltage rise (6 Volts) over the connected input signal on the HI LEVEL IN when the head unit will be switched on. Hence, the amplifier will also be turned on. As soon as the head unit will be turned off, the amplifier turns also automatically off. In this case the turn-on connection is not needed.

NOTE: The AUTO TURN ON function usually works with 90% of all head units, because they are equipped with "High Power"-outputs. Only with a few older and still existing head units the Auto Turn On function is not working.

Technical line drawing of a rectangular electronic device with a circular vent and labeled ports (no text or symbols beyond 'x1' label)

x2 x1 x6 x1 x3

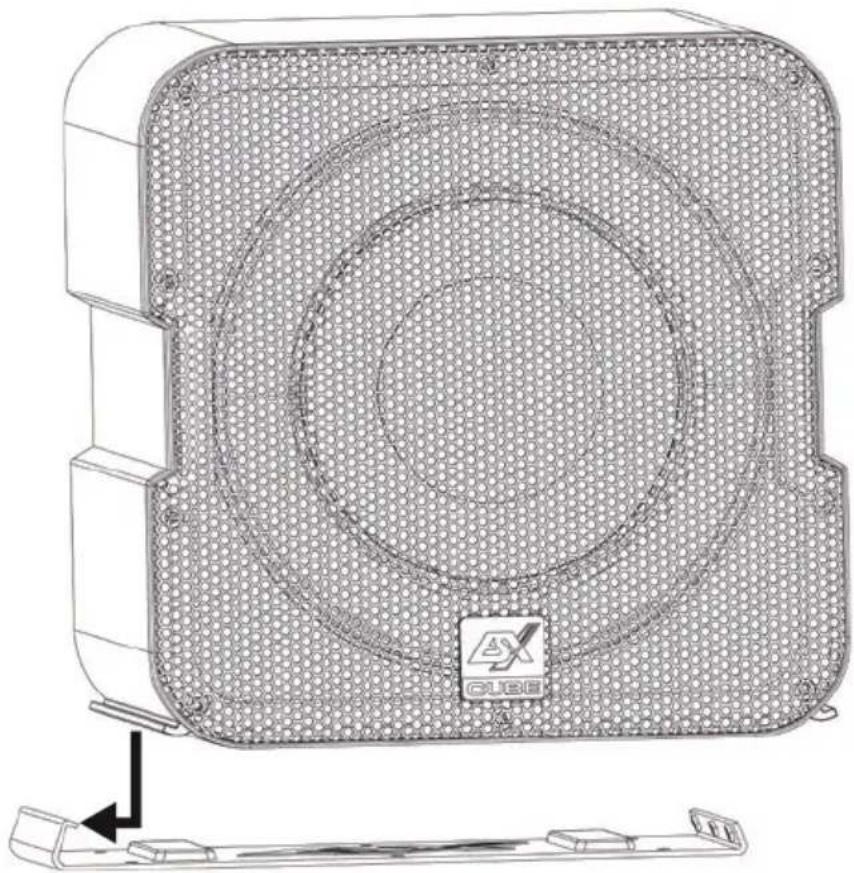

INSTALLATION / INSTALLATION / INSTALLATION / INSTALLAZIONE / INSTALACIÓN

1.

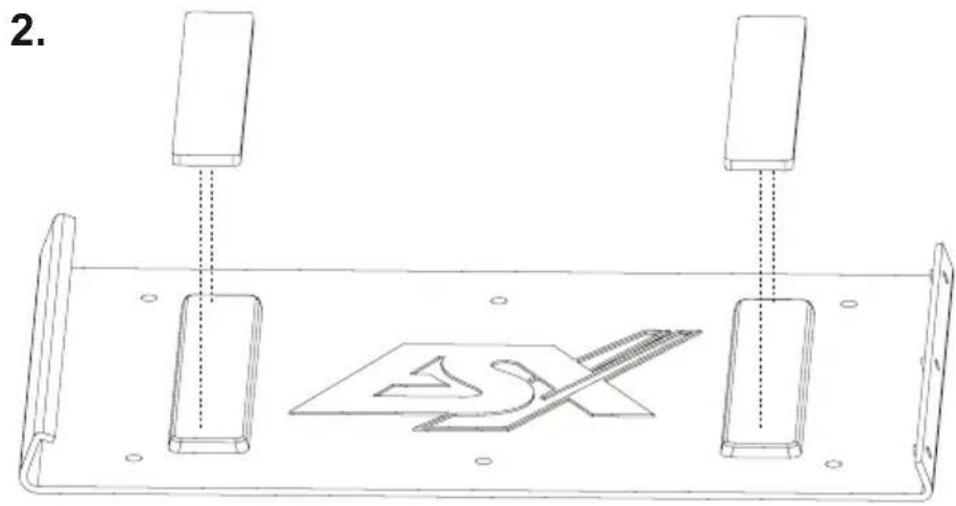

Technical line drawing of a mechanical assembly with two vertical supports and a base plate (no text or symbols)

INSTALLATION / INSTALLATION / INSTALLATION / INSTALLAZIONE / INSTALACIÓN

1.

Technical line drawing of a 3D mechanical component with circular cutouts and mounting base (no text or symbols)

4.5.

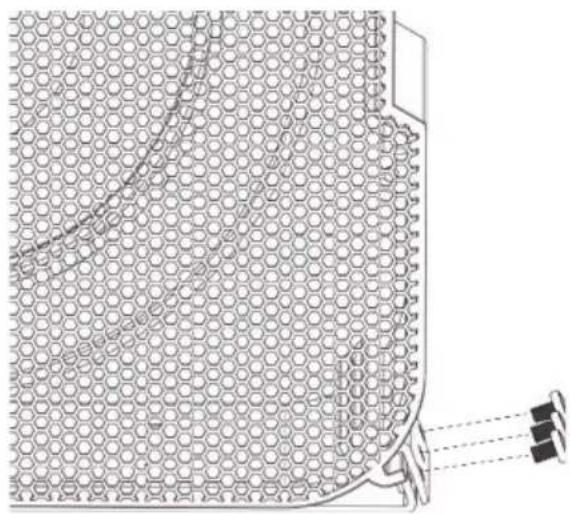

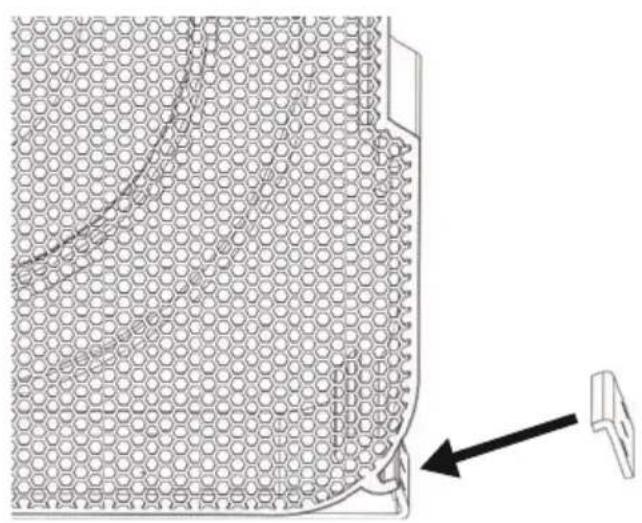

Diagram of a microfluidic device with hexagonal grid pattern and directional arrow (no text or symbols)

Diagram of a hexagonal grid structure with internal curved lines and a dashed arrow pointing to a small object (no text or symbols present)
