| Product type | Combined refrigerator freezer |
| Brand | HOTPOINT |
| Model | E4DG AA X MTZ |
| Power supply | 220-240 V, 50 Hz |
| Maximum power | 150 W |
| Freezing capacity | 4 kg/24h |
| Cooling system | No Frost |
| Special functions | I-Care, Holiday, Quick Freeze, Safe Defrost, MTZ (Fruits & Vegetables, Meat & Fish, OFF), Active Oxygen, Child Lock, Open door and temperature alarms |

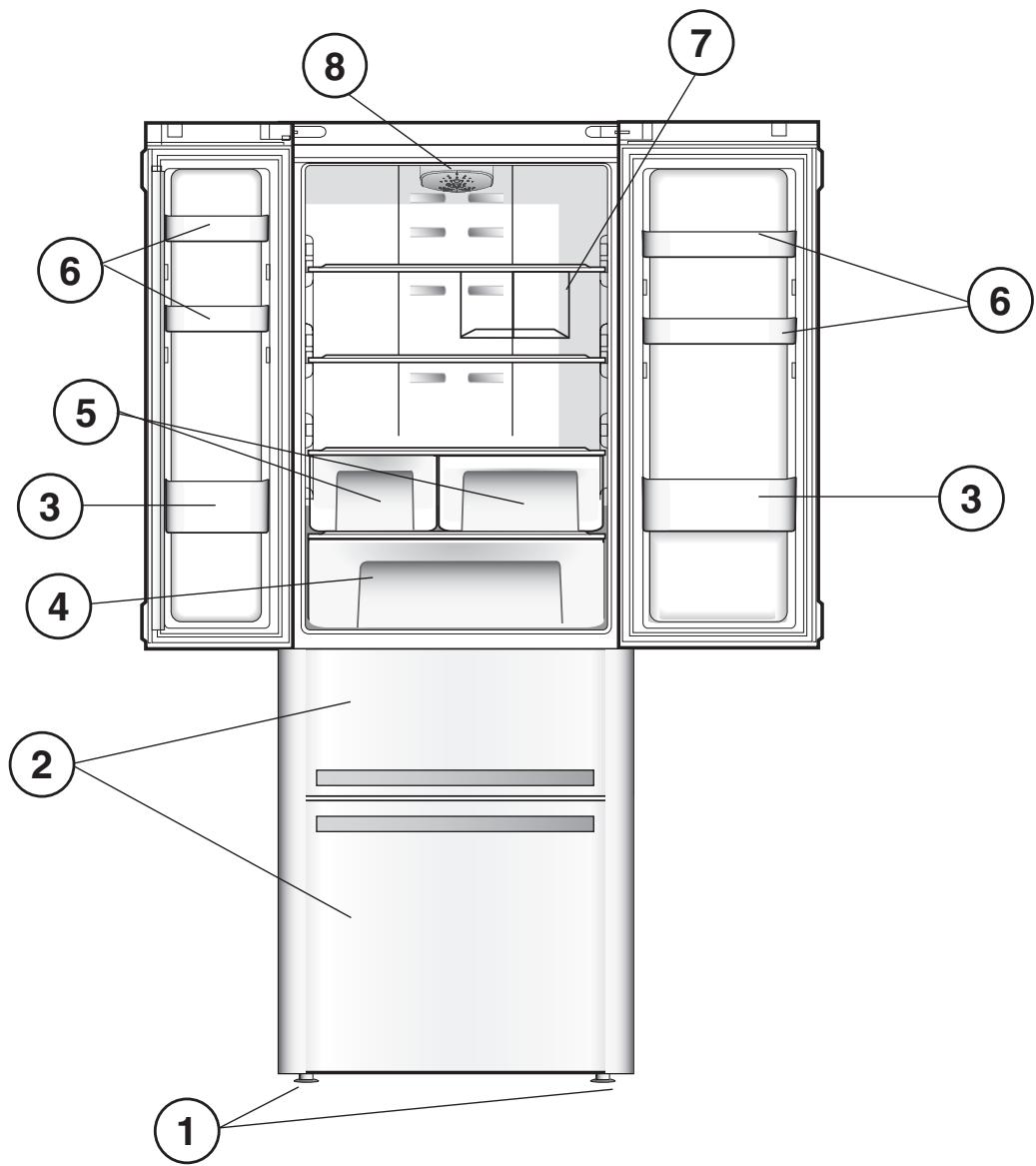

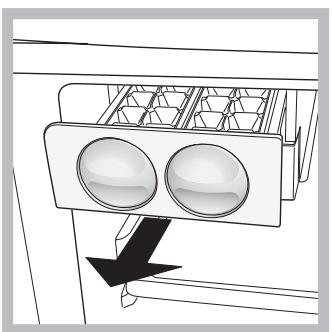

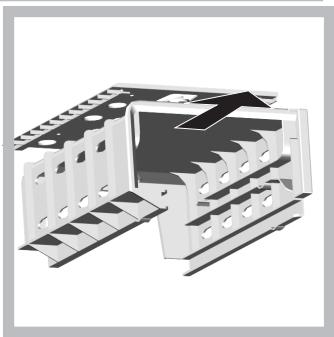

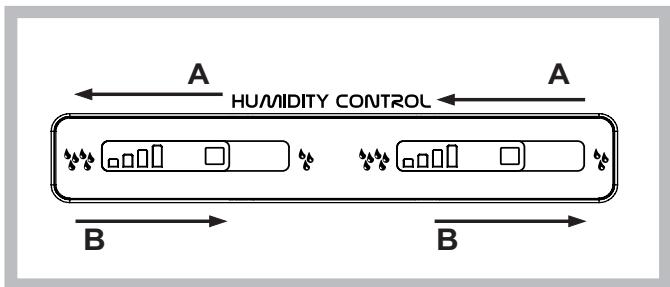

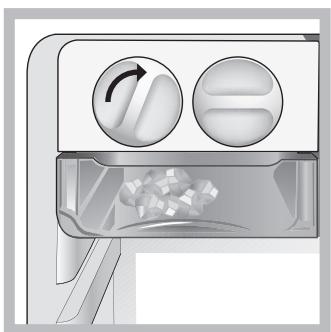

| Compartments | Food Care Zone, fruit and vegetable bin with humidity regulator, adjustable shelves, door bins, WINE RACK, ice maker system |
| Lighting | Double LED (replacement by authorized service) |
| Refrigerator temperature range | +2°C to +8°C |
| Freezer temperature range | -18°C to -26°C |
| Temperature indicator | Yes (displays OK in the coldest zone) |
| Safety | Child lock, motor protection (start after 8 min), mandatory grounding |
| Maintenance and cleaning | Clean interior with warm water and baking soda; do not use solvents or abrasive products; clean the back with a vacuum cleaner |
| Spare parts and repairability | Use only original parts; contact an authorized service for any repair |
| General information | Domestic use; compliant with EC directives (Low Voltage, EMC, WEEE) |
Frequently Asked Questions - E4DG AA X MTZ HOTPOINT
How to adjust the temperature of the refrigerator and freezer?

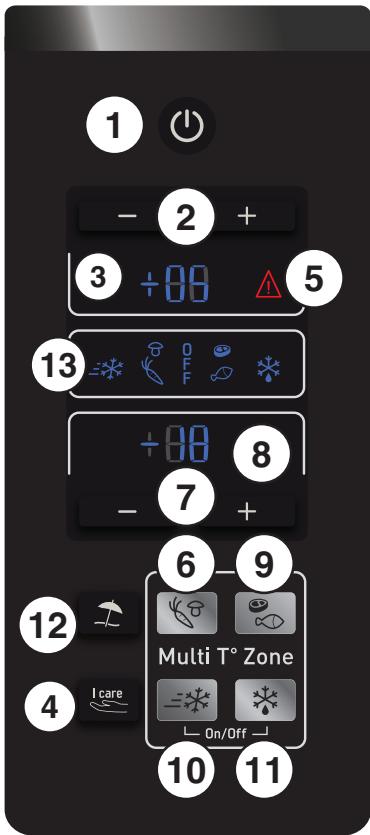

Use the + and - buttons corresponding to each compartment. For the refrigerator, the possible temperatures are from +2°C to +8°C; for the freezer from -18°C to -26°C. Each press changes the temperature in steps.
What is the I-Care function and how to activate it?
The I-Care function automatically optimizes the temperature to save energy while preserving food. Press the I-Care button to activate it (the corresponding LED lights up). A long press of 8 seconds allows manual adjustment of the fridge temperatures (+4°C to +6°C) and freezer (-18°C to -20°C).
How to use the Quick Freeze function?
Activate Quick Freeze 24 hours before introducing fresh food to freeze. The function flashes until the ideal temperature is reached, then a beep sounds. You can then place the food in the first compartment of the freezer. It deactivates automatically after 24 hours.
What to do in case of audible alarm and display 'd' or 'A2'?
For the 'd' alarm (door open), close the door or turn the appliance off/on. For the 'A2' alarm (dangerous warming), do not consume the food. Open and close the door or press once the + and - buttons of the freezer to stop the audible signal, then a second time to return to normal operation.
How to activate the child lock?
Press the Child Lock button for 2 seconds: a short beep confirms activation and the corresponding LED lights up. To deactivate, repeat the same operation.
How to clean the inside of the refrigerator?
Unplug the appliance. Clean the interior, gaskets and accessories with a sponge soaked in warm water mixed with baking soda or mild soap. Rinse and dry. Never use solvents, abrasive products, bleach or ammonia.
What does the 'OK' message on the temperature indicator mean?
The temperature indicator displays OK when the coldest zone of the refrigerator is at the correct temperature. If OK is not displayed, set the temperature to a higher number (colder) and wait about 10 hours before checking again.
How to change the LED bulb?
The lighting uses a double LED. In case of failure, contact authorized technical support for replacement. Do not attempt to do it yourself.
What is the No Frost system?
The No Frost system diffuses a continuous flow of cold air that prevents the formation of frost and ice. It maintains adequate humidity in the refrigerator and avoids manual defrosting. Do not place food against the back wall to avoid blocking the air vents.

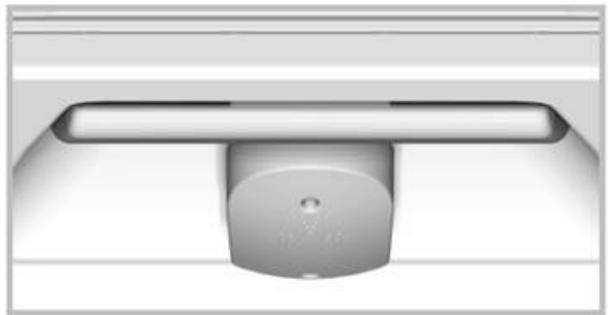

How to activate the Active Oxygen function?
The Active Oxygen function releases ozone to reduce bacteria and bad odors. Press the button on the device cover in the refrigerator compartment. A green LED indicates ozone emission, and a blue LED indicates standby mode.
