JR-001 - Coffee machine Bravilor Bonamat - Free user manual and instructions

USER MANUAL JR-001 Bravilor Bonamat

Important safety instructions 4
Unpacking 6
Product Overview 6
Use and Care 7
First Time Use 8
Operation 9
Cleaning 10
Dscaling. 10
Troubleshooting 11
Specifications 11

Model nr.: JR-001

Premium filter coffee machine

Designed & Engineered in the Netherlands

Important safety instructions

General safety

• Remove the packaging and check the appliance for completeness.
• Read the user manual carefully and keep it for future reference.
• Check whether the voltage of the appliance corresponds to the voltage of the local mains before using the appliance.
• Make sure the appliance is placed on a flat and stable surface.
• Do not use the appliance outdoors.
• Keep the appliance away from hot surfaces, moisture and sharp edges.
• The appliance is developed for domestic use.
• Do not use the appliance other than its intended use to avoid potential injuries.
• The machine can be used by children aged over 8 and by individuals with reduced physical, sensory or mental capacities, or those who lack knowledge or experience, providing that they are under supervision or have received instructions on how to use the machine and understand the hazards involved.
• Children shall not play with the machine. The machine must not be maintained or cleaned by children younger than 8 years and without supervision.
• Keep the appliance and its cord out of reach of children younger than 8 years.
• Be aware that the hot plate may become very hot during use.

Special safety

• Do not immerse the appliance in water or any other liquid, nor make it wet with a very wet cloth, sponge, or the like.
• The appliance must be turned off and the plug must be pulled out of the socket when cleaning, not in use or if problems occur during brewing.
• Never place the machine in a room where the temperature can drop to below 0^ C / 32^ F .
• Check the appliance, cord and plug regularly on any damage.
• Do not use the appliance if the cord, plug or the appliance itself is damaged. If damaged it must be repaired by the manufacturer, its service agent or similarly qualified persons in order to avoid hazardous situations.
• This machine is exclusively designed for domestic use and similar usages.
• The machine should not be placed in a cabinet when in use.

Product safety

• Never touch hot surfaces, always use the handles or buttons of the machine.
• Do not place the coffee jug in a microwave oven.
• The water tank must be filled with fresh cold drinking water, never use warm or hot water.
• Never use polluted, unsafe, or suspicious water.
• Do not fill the water tank with water above the indication for 1.25 litres.

The environment

This marking indicates that this product should not be disposed with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling..

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order to fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

EN

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

• main unit
  coffee jug
• measuring spoon
• spray head key
• instruction manual

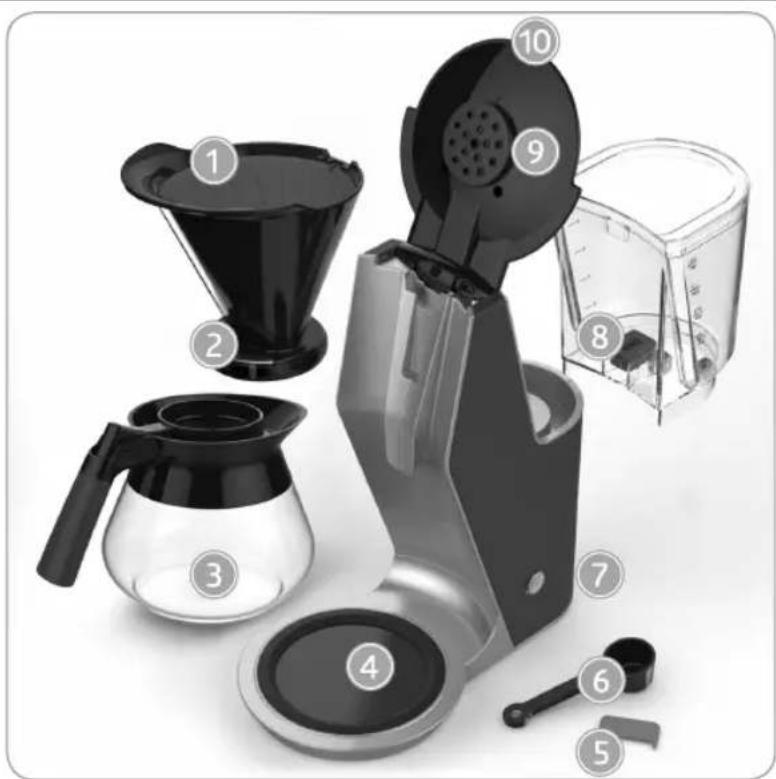

Product Overview

Filter basket
Flow control dial
Coffee jug
Hot plate
Spray head key
Measuring spoon
Start/Stop button
Water tank
Spray head
Filter basket lid

Use and Care

To reduce the risk of fire or electrical shock, do not remove any service covers. There are no user serviceable parts inside. Repairs should be done by qualified personnel only.

Jug

The jug may break if the following instructions are not followed:

1. Do not set a hot jug on a wet or cold surface.
2. Do not use a cracked jug or a jug with a loose or weakened handle.
3. Do not clean the jug with cleaners, steel wool pads or other abrasive materials.
4. Avoid sharp blows, scratches or rough handling

Filter basket

1. Do not clean the filter basket in the dishwasher.
2. Remove the coffee filter immediately after brewing coffee and rinse the filter basket with warm water.
3. Do not use abrasives, corrosive cleaning products, or hard brushes to clean the filter basket.

First Time Use

1. Place the unit on a flat and stable surface.
2. Remove the water tank and fill it with fresh cold water.

• The water tank must be filled with fresh cold drinking water, never use warm or hot water.

• Do not fill the water tank above the indication of 1.25 litres.

• Put the water tank back in the unit.

• Ensure the filter basket is firmly and properly placed into position.

Do not put a filter and/or ground coffee in the filter basket.

1. Place the coffee jug on the hot plate.
2. Plug into a socket.
3. Press the Start/Stop button once to start the brewing cycle.
4. Set the flow control; make sure it is NOT set on 'Stop'. The unit will beep once and the Start/Stop button light will start blinking.
5. Let the unit operate until the water tank is empty. When the water tank is empty, the unit he Start/Stop button light will lit-up.
6. Press the Start/Stop button once to switch off the unit. The unit will beep once and the Start/Stop button light will turn off.
7. Wash the coffee jug and the filter basket with warm, soapy water.
8. Rinse and dry thoroughly and place the coffee jug and filter basket back into position.
9. The coffee machine is now ready for use.

EN

Operation

1. Remove the water tank and fill it with fresh cold water up to the desired level.

• The water tank must be filled with fresh cold drinking water, never use warm or hot water.
• The number of litres is clearly marked on one side of the water tank whereas the number of cups is marked on the other side of the water tank.

• Do not fill the water tank above the indication of 1.25 litres.

• Put the water tank back in the unit.

• Ensure the filter basket is firmly and properly placed into position.
• Open the filter basket lid. Place the paper coffee filter (type 1x4) in the filter basket and add the desired amount of ground coffee in the coffee filter. We recommend one measuring spoon of ground coffee per cup.
• Close the filter basket lid.
• Set the flow control; you can choose between or We recommend to turn the flow control to itres for brewing up to 6 cups of coffee and for brewing over 6 cups of coffee.
• Place the coffee jug on the hot plate.
• Press the Start/Stop button once to start the brewing cycle. The unit will beep once and the Start/Stop button light will start blinking.
• Let the unit operate until the water tank is empty. Once all the coffee has dripped through, the coffee is ready to be served and the Start/Stop button light will lit-up. When the brewing cycle is complete, the unit will keep your coffee warm for approximately 40 minutes. Afterwards the unit will automatically switch off. The unit will beep once and the Start/Stop button light will turn off.

• If you wish to interrupt the brewing cycle, set the flow control to 'Stop'. The drip stop allows you to remove the coffee jug during the brewing cycle. However, it is better to wait until the end of the brewing cycle to ensure an optimum flavour and a high coffee quality.

• If you wish to switch off the unit within the keeping-warm period, press the Start/Stop button once.

• Remove the filter basket and throw away the used paper filter and coffee grounds.

• Rinse the filter basket with warm water.
• Ensure the filter basket is firmly and properly placed back into position.

EN

Cleaning

• Be sure to unplug this appliance before cleaning. To protect against electrical shock, do not immerse the mains cable, mains plug or the appliance in water or liquids.

• Never clean any parts of the coffee machine in the dishwasher.

• Wipe the appliance's exterior surface with a soft, damp cloth to remove stains. Wash the coffee jug and filter basket with hot soapy water. Do not use strong detergents or aggressive cleaners.

• Remove the filter basket lid with the spray head key. Insert one end of the key into the hole, slide to the left and lift out the lid.
• Detach the spray head from the lid with the spray head key. Insert both ends of the key into the spray head then turn anticlockwise to remove.
• Wash the lid and spray head with hot soapy water.
• Dry thoroughly and re-attach to the unit.

Dscaling

To keep your coffee maker operating efficiently, you should regularly clean mineral deposits left by the water. The amount of mineral deposit will depend on the water quality in your area and the frequency of use.

1. Fill the water tank with an appropriate descaling agent for home coffee machines.
2. Place the coffee jug on the hot plate.
3. Press the Start/Stop button once to start the brewing cycle.
4. Turn the flow control to 'stop'. halfway the brewing cycle. Let the coffee machine descale for 15 to 20 minutes.
5. Turn back the flow control to and wait until the brewing cycle is complete.
6. Let the coffee machine complete two more brewing cycles with fresh water to remove any descaling agent and scale residues.
7. If necessary, clean the removable parts (see Cleaning section).

Troubleshooting

Problem Cause/Solution
The machine does not start brewing and the Start/Stop button keeps blinking.	·The water tank is still empty and needs to be filled with fresh water. ·The flow control is still set on its ‘Stop’ function. ·The water tank is not in place. ·The lid is not closed.
The machine does not start brewing and the Start/Stop button keeps blinking fast.	The filter basket lid has been opened during the brewing cycle.
The brewing takes longer and longer.	Descale the machine.
The machine makes more noise than before.	Descale the machine.
The machine produces more steam than before.	Descale the machine.

Specifications

Voltage Rating 230V~50-60Hz
Power Consumption 1550W
Capacity 10 cups, 1.25 litres

Features and specifications are subject to change without prior notice

Notes

EN

Junior

ANLEITUNGSHANDBUCH

Inhalt

DE

MANUEL D'INSTRUCTIONS

Sommaire

Designed by Bravilor Coffee Appliances B.V.

Pascalstraat 20

All rights reserved.

Specifications subject to change without notice.

700.403.754 G
