USER MANUAL IS530.RG i.safe Mobile

Document No. 1036MM10REV02

Version: 2023-02-14

(c) 2023 i.safe MOBILE GmbH

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

Tel. [phone]

[e-mail]

www.isafe-mobile.com Template:TEMPMM01REV10

CONTENTS

English....4

Deutsch....16

Česky 28

Dansk 40

Español....52

Suomi....64

Français....76

Magyar 88

Italiano 100

Nederlands 112

Norsk 124

Polski 136

Português (BR) 148

Русский....160

Svenska 172

Korean 184

Japanese 196

Chinese 208

Arabic 220

This Operating Manual complies with these standards:

IEC 60079, IEC 82079, ANSI Z535.6

IEC 60079, IEC 82079, ANSI Z535.6

ENGLISH

>READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS530.RG (model M53A01). This Operating Manual provides important information for safe use of the device.

» Before using the device, read this Operating Manual carefully and pay particular attention to the "Safety" section and the warnings highlighted with the warning symbol.
» Also read the Safety Instructions before using the device. You can find these at www.isafe-mobile.com/en/support/downloads
» Make sure you have access to this Operating Manual when you need it. You can find the current Operating Manual at www.isafe-mobile.com/en/support/downloads
» Follow all instructions given on the device and on the packaging.
» Follow local safety regulations.

INTENDED USE

The IS530.RG is an Internet-capable communication device for industrial use.

Only use the device as described in this Operating Manual. Any other use is considered improper and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by improper use. The warranty expires in the event of improper use.

WARRANTY

You can find the warranty conditions at www.isafe-mobile.com/en/support/service

For any damage caused by computer viruses that you download while using the Internet functions responsibility is at your hand.

There is no right of recourse against i.safe MOBILE GmbH.

EU/UK DECLARATION OF CONFORMITY

You will find the EU/UK declaration of conformity at www.isafe-mobile.com/en/support/downloads

FCC/IC STATEMENT

The FCC/IC declaration can be found at www.isafe-mobile.com/en/support/downloads

>DEVICE OVERVIEW/FUNCTIONS

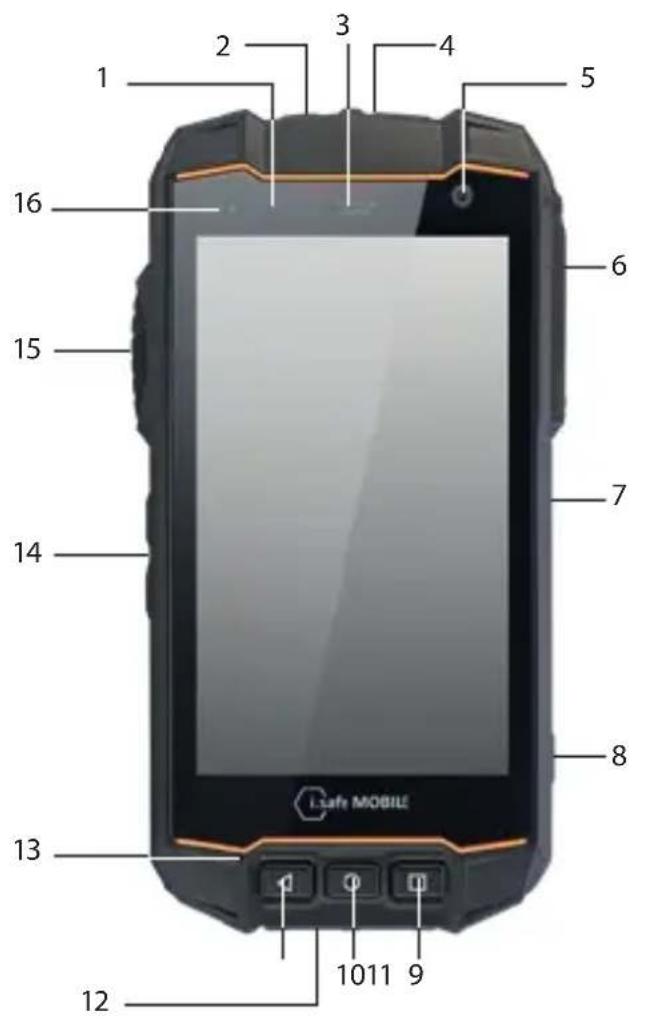

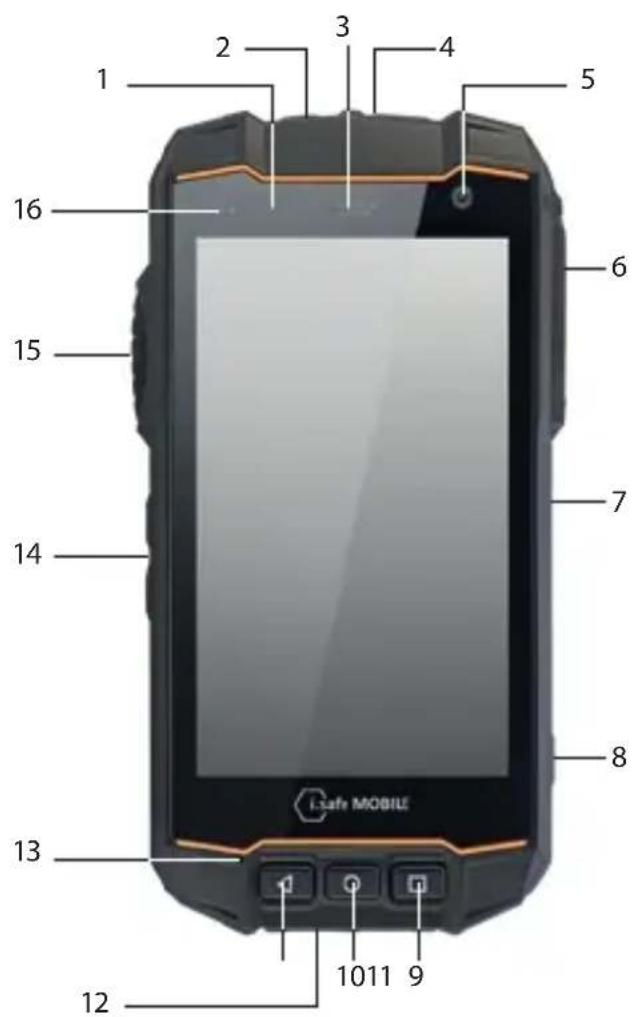

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Safe MOBILE

17 18 19 20 21 ISSRD 80 Litter MOBILE P568 CE MFC 4 Litter MOBILE 8000 Litter Technologies 20 P568 Litter Macromedia, Germany DEEMIX ELECTRICATI & AIR ECONOM

1) STATUS LED: Display for notifications and charging status.
2) SOS KEY: A long press of the SOS key sends an emergency call to a pre-saved emergency number (only in connection with a Lone Worker Protection app).
3> LOUDSPEAKER
4) POWER KEY: A long press switches the device on/off. A short press switches the standby mode on/off.
5>FRONT CAMERA
6) 13-PIN ISM INTERFACE: Connection for approved accessories. Also see section "Connecting approved accessories".
7) MAGNETIC CHARGER PORT: Connection for the Magnetic Charger Cable. Also see section "Charging".
8) SIDE KEY RIGHT: Optional function, e.g. camera - function can be assigned via Button App (system integrated).
9) CURRENT APPLICATION: Shows all open applications.
10> HOME KEY: Switch to the main screen.
11) BACKKEY: Go to the previous screen.
12) USB INTERFACE: Connection for the USB-C Cable or for connection to other devices. Also see sections "Charging" and "Connecting approved accessories".
13> MICROPHONE
14) LOUDNESS CONTROL: Volume up/Volume down.
15> SIDE KEY LEFT: Optional function - function can be assigned via Button App (system integrated).
16) SENSORS: Proximity sensor, light sensor.

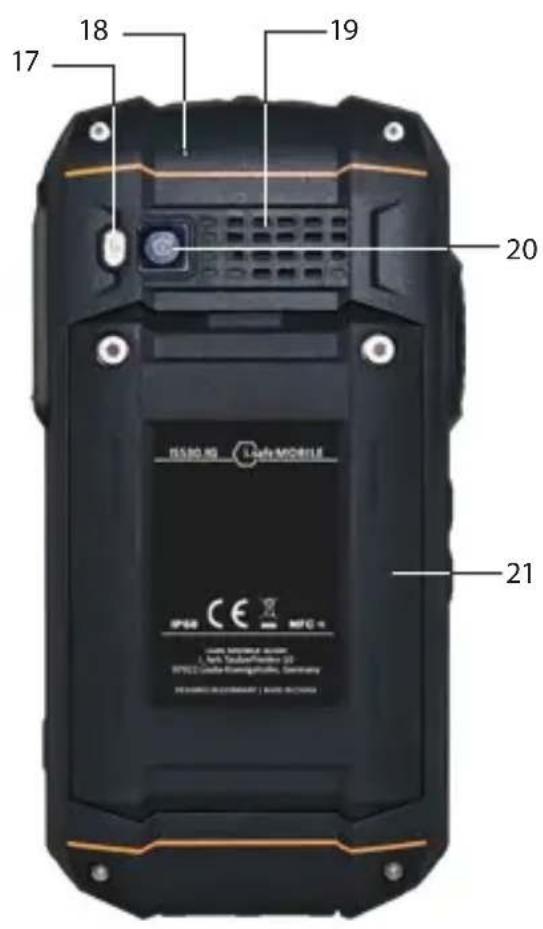

17>LED FLASH
18> NOISE CANCELLING: Noise cancelling microphone.
19> LOUDSPEAKER: Loudspeaker for hands-free function.

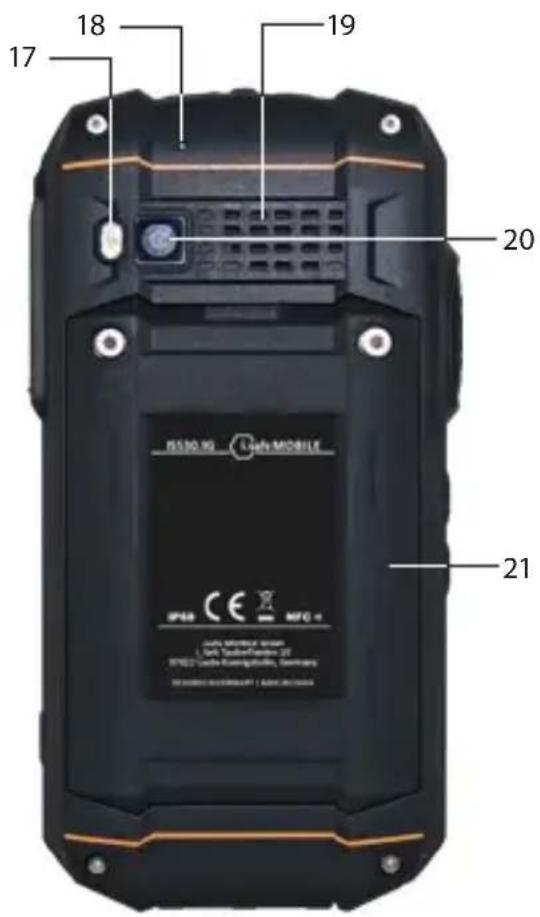

20>BACK CAMERA
21 >BATTERY

> SAFETY

Read the "Safety" section of this Operating Manual carefully before using the device. If you do not follow these instructions or do not understand them, this could lead to death, severe injuries and damage to the device.

USER

Only trained users who have read and understood this Operating Manual may use this device.

USE OUTSIDE OF EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Do not use the device in explosion hazardous areas.
» Make sure that no gap can be seen between the two halves of the device.

» Do not use the device in places where its use is prohibited.

» Turn off the device in clinics or other medical facilities.

» Always keep a safety distance of at least 15 cm between the device and a pacemaker or hearing aid. The device can affect the functioning of medical devices such as pacemakers and hearing aids.

» When using the device while driving a motor vehicle, be sure to comply with applicable national laws.

» Make sure you prevent the user errors described in the section entitled "Possible User Errors".

» Only charge the device as described in the "Charging" section.

CAUTION

When using earphones or headsets at the maximum volume setting, you can damage your hearing.

» First set the volume control on the device to 50 % of the maximum volume.
» Gradually adjust the volume.

NOTICE

Incorrect use can damage the device.

» Only use accessories approved by i.safe MOBILE, as described in the section on "Connecting approved accessories".
» Protect the device and the Power Adapter from strong electrical magnetic fields as for example those emitted by induction cookers or microwave ovens, for example.
» Do not touch the display with sharp objects.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

» Do not modify the device structurally.
» Do not expose the device to high temperatures.
» Do not expose the device to strong UV radiation.
» Do not expose the device to processes with high electrical charges.
» Do not expose the device to aggressive acids or bases.

>SCOPE OF DELIVERY

Your device packaging contains the following:

1 x IS530.RG
1 x Battery
1 x Quick Start Manual
1 x Safety Instructions
1 x Display Protection Foil
1 x USB-C Cable
1 x Magnetic Charger Cable
1 x Power Adapter universal (power supply unit and various country-specific adapters)
1 x Torx Screwdriver
1 x Display cleaning cloth

CELL BROADCAST

The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to all recipients within a cell.

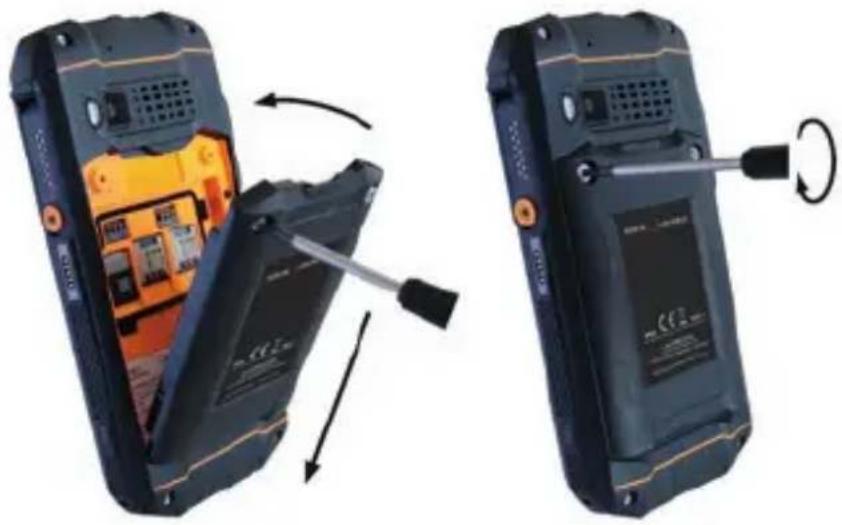

INSTALLING THE BATTERY

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

» Place the battery in the battery compartment as shown.
» Hand-tighten the screws using the Torx Screwdriver provided.
» Check that the battery is seated correctly and securely.

> INSERT/REMOVE SIM CARD

NOTICE

Proceeding incorrectly when inserting/removing the SIM card can damage the device and the SIM card. Switch off the device before inserting or removing a SIM card. Do not charge the device while inserting or removing a SIM card.

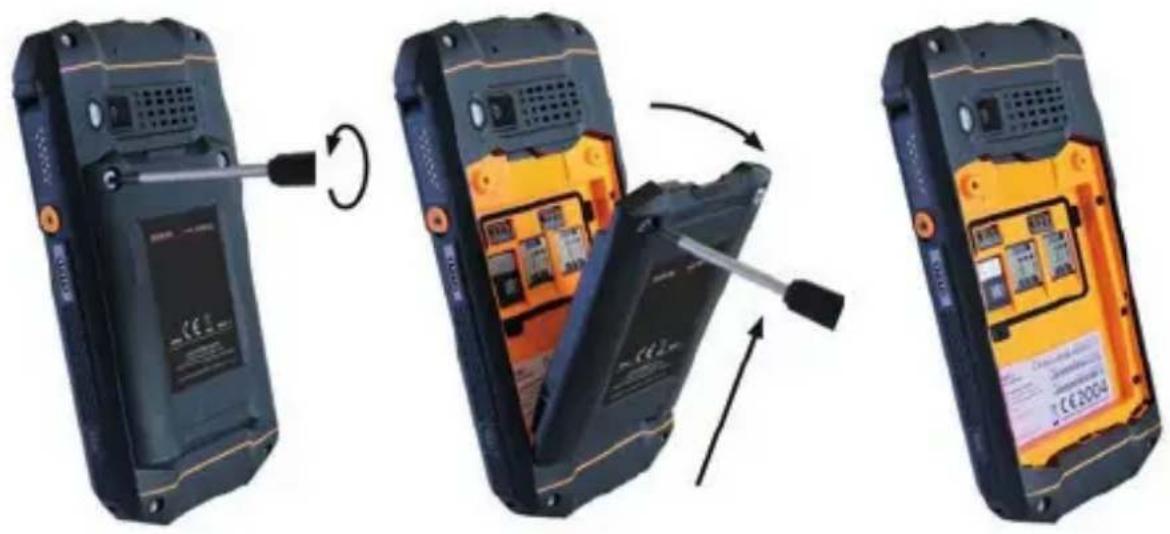

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable (no text or symbols)

» Loosen the screws on the battery using the Torx Screwdriver provided.
» Remove the battery from the battery compartment.

» Insert the SIM card into the slot. The device has two slots for one SIM card each. The slots are marked "SIM 1" and "SIM 2".

» If you have inserted two SIM cards, select a favorite card. Information on operating the device can be found at www.isafe-mobile.com/en/support/service under the menu item „FAQ“.

»Reinstall the battery. See section "Installing the battery".

> INSERT/REMOVE microSD CARD

NOTICE

Proceeding incorrectly when inserting/removing the microSD card can damage the device and the microSD card. Switch off the device before inserting or removing a microSD card. Do not charge the device while inserting or removing a microSD card.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

» Loosen the screws on the battery using the Torx Screwdriver provided.

» Remove the battery from the battery compartment.

» Insert the microSD card into the slot provided. The device has a slot for a microSD card up to 128 GB. The slot is marked "microSD".

»Reinstall the battery. See section "Installing the battery".

CHARGING

DANGER

Improper use can result in death or severe injuries! Do not charge the device in the vicinity of flammable substances.

NOTICE

Incorrect charging can cause damage to the device. Please note the following when charging:

» Only charge the device at ambient temperatures between +5 °C to +35 °C (+41 °F to +95 °F).

» Charge the device under dry indoor conditions only.

» Do not charge the device in environments dusty or humid.

Your device package contains a power supply unit, various country-specific adapters, an USB-C Cable and an Magnetic Charger Cable.

» Connect the adapter suitable for your country to the power supply unit.

» Connect the USB-C Cable or the Magnetic Charger Cable to the power supply unit.

» Connect the USB-C Cable to the USB interface of the device, or connect the Magnetic Charger Cable to the magnetic charging port on the device.

> SWITCHING ON/OFF

» Press and hold the on/off key for about 3 seconds.

» Enter the device or SIM PIN when the input dialog for the device or SIM PIN appears after switching on.

» Select the menu item if the power off menu appears when switching off.

>USING THE DEVICE

» When turning on the device for the first time, follow the instructions on the screen.

Further information on operating the device can be found at

www.isafe-mobile.com/en/support/service under the menu item "FAQ".

Detailed information on operating the Android operating system can be found at:

https://support.google.com/android

CONNECTING APPROVED ACCESSORIES

» Only connect accessories approved by i.safe MOBILE to the device. Accessories approved by i.safe MOBILE can be found at www.isafe-mobile.com/en/products

Approved accessories can be connected to any 13-pin ISM interface and to the USB interface.

13-PIN ISM INTERFACE

Diagram showing a screwdriver inserted into a device, with motion arrows indicating rotation (no text or symbols)

» Loosen the screw on the 13-pin ISM interface cover using the Screwdriver included in the accessory package and remove the cover as shown.

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

» Connect the plug of the approved accessory to the 13-pin ISM interface as shown.

» Hand-tighten the screws.

» Check that the plug is seated correctly and securely.

USB INTERFACE

The USB interface is used for charging and data transfer.

»Connect approved accessories or other devices to the USB interface only by using the USB-C Cable.

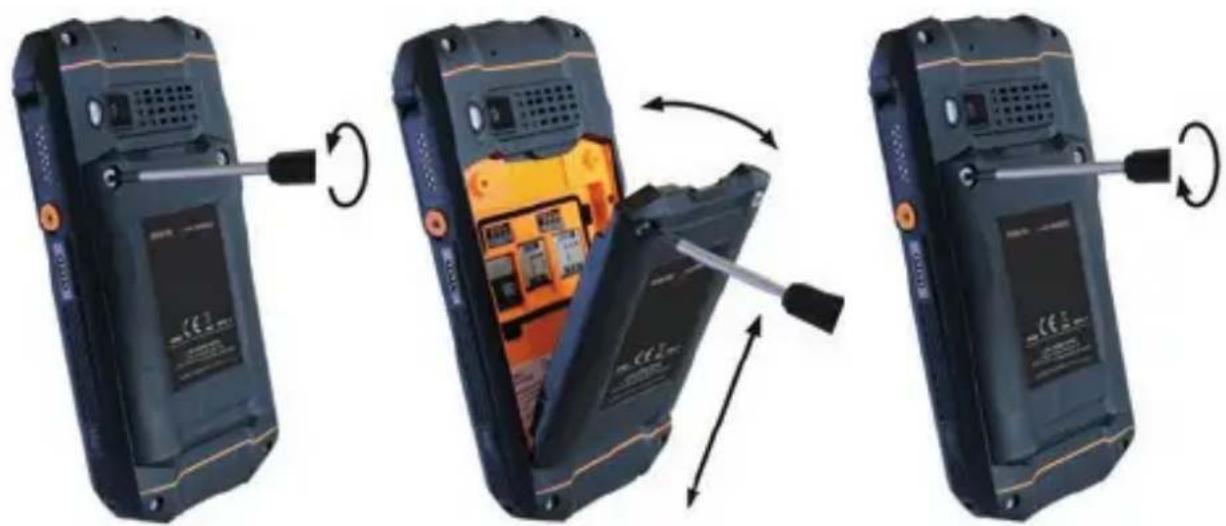

CHANGING THE BATTERY

An approved replacement battery can be found on the website www.isafe-mobile.com/en/products

Three-step illustration of a mobile phone's open rear door, showing battery, keypad, and scroll wheel (no text or symbols)

» Loosen the screws on the battery using the Torx Screwdriver provided.
» Remove the battery from the battery compartment as shown.
» Place the approved replacement battery in the battery compartment as shown.
» Hand-tighten the screws using the Torx Screwdriver provided.
» Check that the battery is seated correctly and securely.

POSSIBLE DEVICE PROBLEMS

You can find information on possible device problems and how to rectify them at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

If you have any further questions, please contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

MAINTENANCE/REPAIR

The device itself has no serviceable parts.

WARNING

Incorrect repairs present a risk of explosion or fire, which can result in death or severe injuries! Do not open the device or carry out any repairs yourself.

» Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service if the device is not working normally, if the device needs to be repaired or if a replacement part is required.

RETURN SHIPMENT

Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

DISTRIBUTION PARTNER

You can find the specialist distribution partner responsible for your country at www.isafe-mobile.com/en/contact

CLEANING

NOTICE

Incorrect cleaning can cause damage to the device. Please note the following when cleaning:

» Turn off the device before cleaning.

» Do not charge the device while cleaning.

» Do not use chemical agents for cleaning.

» Clean the device and the Power Adapter with a soft, moistened antistatic cloth.

» Clean the display screen regularly with a soft, antistatic cloth.

>STORAGE

NOTICE

Incorrect storage can cause damage to the device. Store the device at ambient temperatures between +5 °C to +35 °C (+41 °F to +95 °F) and a humidity between 10 % to 60 %.

RECYCLING

NOTICE

Incorrect disposal of electronic products, batteries and packaging material puts the environment at risk. Please note the following when disposing of items:

» DO NOT throw away batteries with household waste.

» Always dispose electronic products, batteries and packaging material at the appropriate collection points. This way, you prevent uncontrolled waste disposal and promote the recycling of material resources.

You can obtain further information from regional waste disposal companies, state authorities or the i.safe MOBILE service centre responsible for your country or region at www.isafe-mobile.com/en/support/service

TRADEMARKS

i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH.

EEA Version: Comes with the Google™ app and Google Chrome™

Google and Google Play are trademarks of Google LLC.

All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

Two views of a black flip phone showing internal components and battery casing, with tool splicing (no text or symbols visible)

Three-panel illustration of a mobile phone showing battery, switch, and internal components (no text or symbols)

Three-panel illustration of a mobile phone showing battery, switch, and internal components (no text or symbols)

Diagram showing a screwdriver inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and screw installation (no text or symbols)

Three-step diagram showing a mobile phone's open rear door with battery, showing internal circuitry and battery casing (no text or symbols)

www.isafe-mobile.com/en/support/downloads

PROHLÁŠENÍ FCC/IC

www.isafe-mobile.com/en/support/downloads

PŘEHLED O ZAŘÍZENÍ/FUNKCÍCH

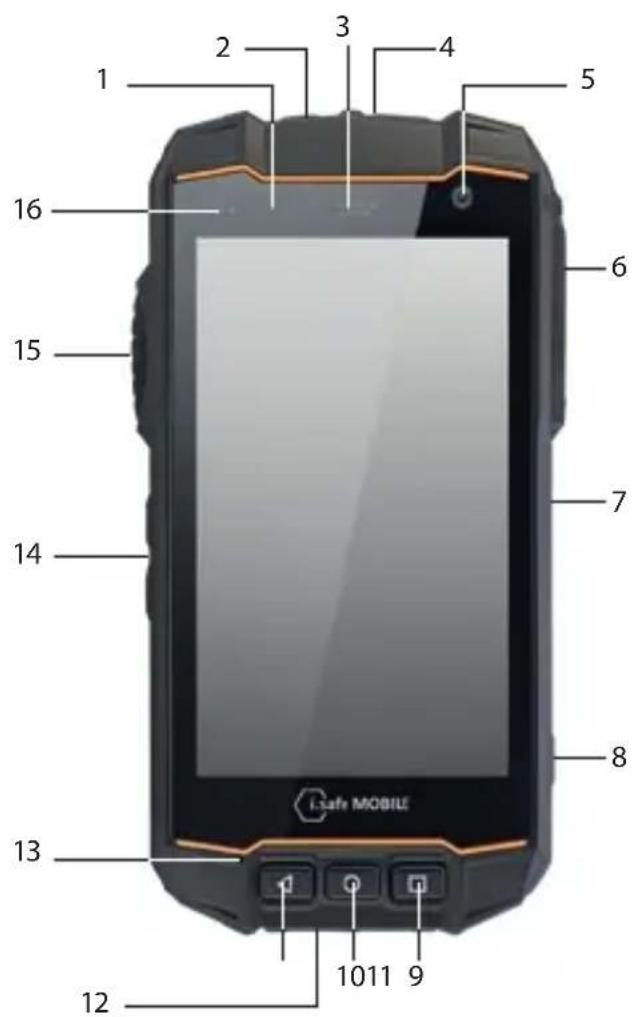

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 iSafe MOBILE

17 18 19 20 21 N530.16 Link MOBILE SP68 CE MFC 4 Link Mobile System Link Technologies 20 B7002 Ltrs-Neuropologie, Germany 22 MFBX100000000 / 22M-20100000

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable (no text or symbols)

Three-step illustration of a mobile phone's internal components being adjusted, showing battery, cable, and keypad assembly (no text or symbols)

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and disassembly process (no text or symbols)

Three-step diagram showing a mobile phone's open rear panel being adjusted for battery charging, with arrows indicating the process (no text or symbols present)

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Diagram showing a screwdriver inserted into a device, with motion arrows indicating rotation (no text or symbols)

Three-step diagram showing cable fastening process: left panel with cable attachment, right panel with screwdriver inserted (no text or symbols)

Three-step illustration of a mobile phone's open rear door, showing battery, switch, and scroll (no text or symbols)

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, cable, and charging mechanism (no text or symbols)

https://support.google.com/android

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening techniques: press, switch, and screwdriver (no text or symbols)

Three-step diagram showing a mobile phone's open rear panel being adjusted for battery charging, with arrows indicating the process (no text or symbols present)

www.isafe-mobile.com/en/support/downloads

FCC-/IC-LAUSUNTO

www.isafe-mobile.com/en/support/downloads

> LAITTEEN YLEISKUVA JA TOIMINNOT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 iSafe MOBILE

17 18 19 20 21 N530.16 Link MOBILE SP68 CE MFC 4 Link Mobile System Link Technologies 20 B7002 Ltrs-Neuropologie, Germany 22 MFBX100000000 / 22M-20100000

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

https://support.google.com/android

HYVÄKSYTTYJEN LISÄLAITTEIDEN LIITTÄMINEN

Diagram showing a screwdriver inserted into a device, with motion arrows indicating rotation (no text or symbols)

Three-step diagram showing cable fastening and mounting mechanism (no text or symbols)

Three-step diagram showing a mobile phone's open rear panel being adjusted for battery charging, with arrows indicating the process (no text or symbols present)

DÉCLARATION DE CONFORMITÉ EU/UK

Two views of a black flip phone showing internal components and battery casing, with tool splicing (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear door, showing battery, switch, and battery casing (no text or symbols)

MISE EN MARCHE/ARRÊT

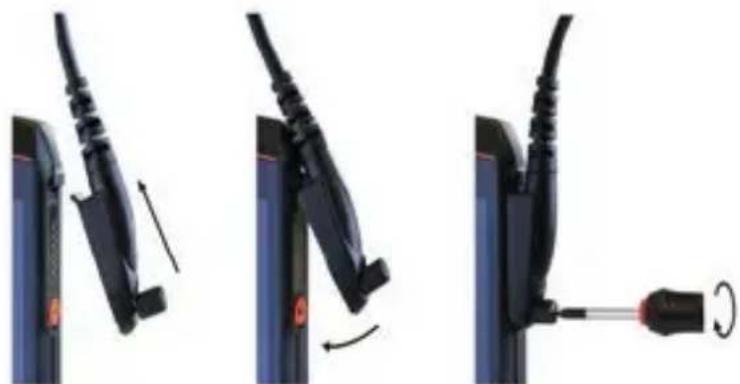

INTERFACE 13-PIN ISM

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and disassembly process (no text or symbols)

Three-step diagram showing a mobile phone's open rear door with battery, showing internal circuitry and battery casing (no text or symbols)

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open case showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable assembly (no text or symbols)

Diagram showing a screwdriver being inserted into a U-shaped device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable installation steps: refueling, fastening, and fastening (no text or symbols)

Three-step diagram showing a mobile phone's open rear door mechanism, with arrows indicating the sequence (no text or symbols present)

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

DICHIARAZIONE FCC/IC

www.isafe-mobile.com/en/support/downloads

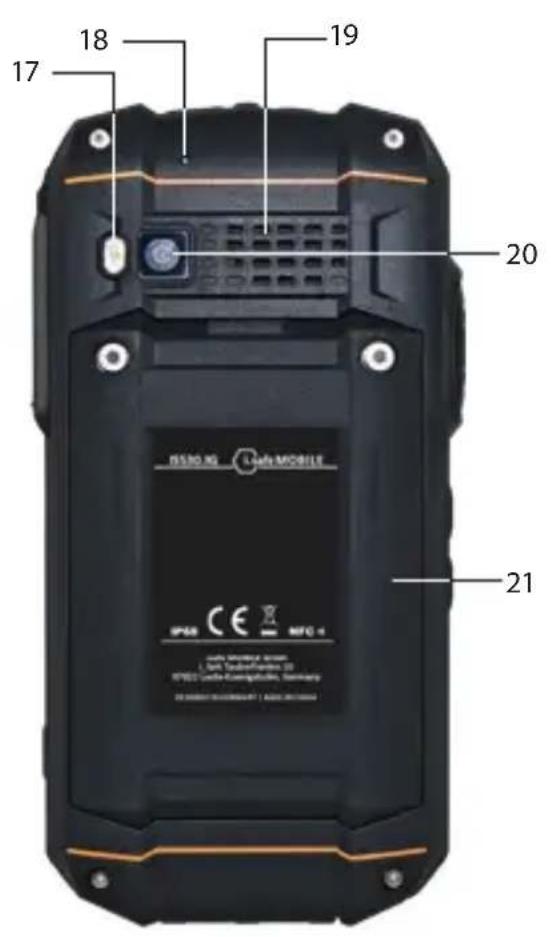

PANORAMICA/FUNZIONI DEL DISPOSITIVO

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Safe MOBILE

17 18 19 20 21 JSSRO.NG Light-MOBILE SP68 CE MFC 4 Light Brighter System Light Brighter System 20 MFTOS Latino-Guernaphobia, Germany 20 SABB/TECHNOLOGY / ABB-20170004

USO FUORI DALLE AREE A RISCHIO DI ESPLOSIONE

PERICOLO

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open case showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and disassembly process (no text or symbols)

Three-step diagram showing a mobile phone's open rear panel being adjusted for battery charging, with arrows indicating the process (no text or symbols present)

Two views of a black flip phone showing internal components and battery casing, with tool splicing (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, cable, and charging mechanism (no text or symbols)

https://support.google.com/android

GOEDGEKEURDE ACCESSOIRES AANSLUITEN

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening process: left panel with cable attachment, right panel with screwdriver inserted (no text or symbols)

Three-step illustration of a mobile phone's open rear door, showing battery, keypad, and scroll wheel (no text or symbols)

www.isafe-mobile.com/en/support/downloads

FCC/IC UTTALELSE

FCC/IC-erklæringen finner du på www.isafe-mobile.com/en/support/downloads

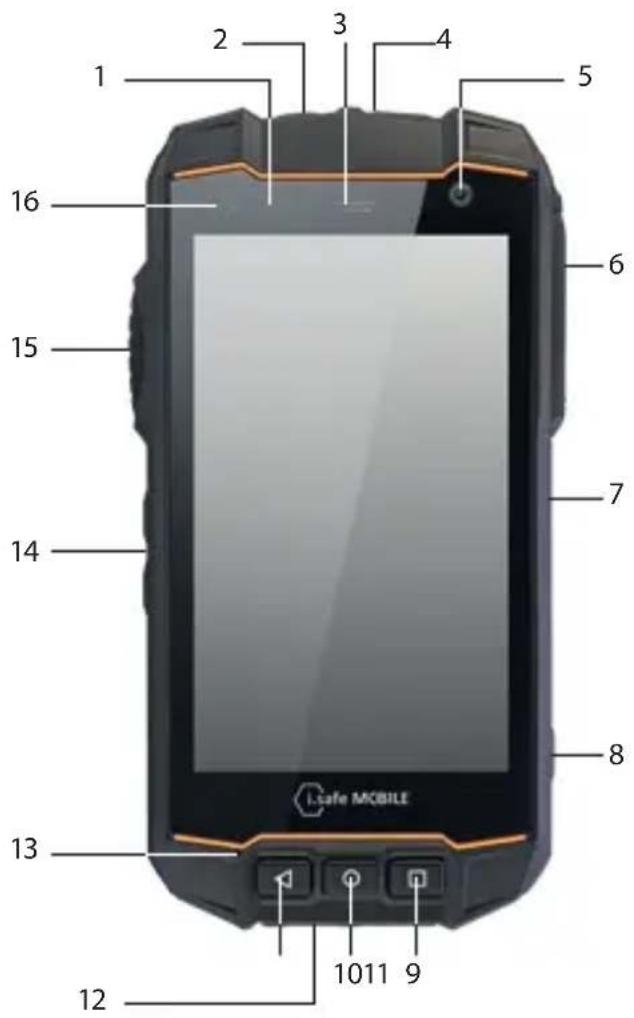

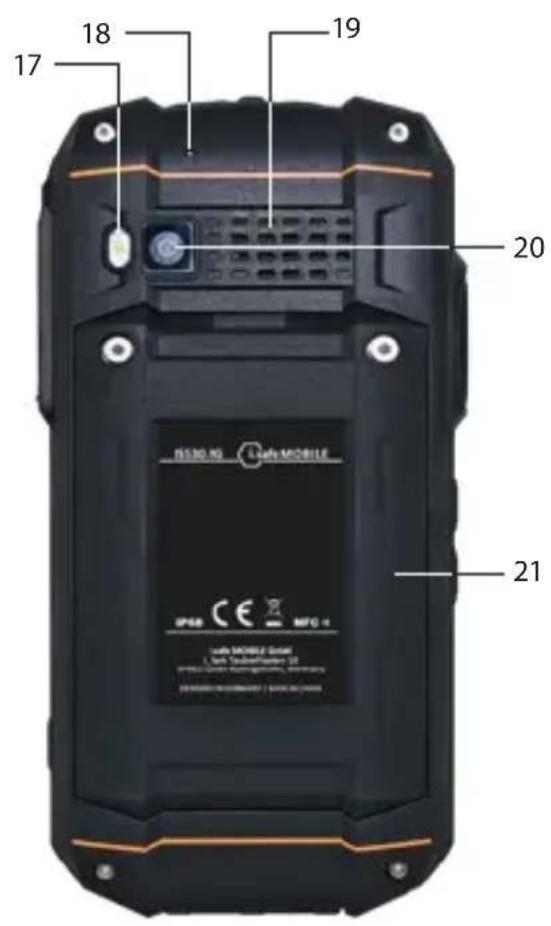

ENHETSOVERSIKT/FUNKSJONER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 I-Safe MCBILE

17 18 19 20 21 USB MOBILE USB MOBILE Smart USB Telecommunications 32 MFC 4

Two views of a black flip phone showing internal components and battery casing, with tool splicing (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable (no text or symbols)

https://support.google.com/android

TILKOBLING AV GODKJENT TILBEH∅R

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

Three-step diagram showing a mobile phone's open rear panel being adjusted for battery charging, with arrows indicating the process (no text or symbols present)

VEDLIKEHOLD/REPARASJON

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a black and yellow mobile phone with a switch, showing internal components and battery casing (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

» Posicione a bateria no compartimento de bateria conforme exibido.
»Aperte os parafusos usando a chave Torx fornecida.
» Verifique se a bateria está encaixada corretamente e com firmeza.

>INSERIR/REMOVER CARTÃO SIM

OBSERVAÇÃO

Three-panel illustration of a mobile phone showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and internal circuitry (no text or symbols)

INTERFACE 13-PIN ISM

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening process: left panel with cable attachment, right panel with cable being inserted (no text or symbols)

Three-step diagram showing a mobile phone's open rear door and battery compartment, with arrows indicating rotation and adjustment (no text or symbols present)

» Solte os parafusos da bateria utilizando a chave Torx fornecida.
» Remova a bateria do compartimento de bateria, conforme exibido.
» Posicione a bateria substituta aprovada no compartimento de bateria, conforme exibido.
» Aperte os parafusos usando a chave Torx fornecida.
» Verifique se a bateria está encaixada corretamente e com firmeza.

POSSÍVEIS PROBLEMAS DO DISPOSITIVO

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

ЗАЯВЛЕНИЕ FCC / IC

www.isafe-mobile.com/en/support/downloads

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a black and yellow mobile phone with a scroll wheel, showing internal components and battery casing (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and fastening process (no text or symbols)

Three-step diagram showing a mobile phone's open rear door, battery compartment, and cable switch mechanism (no text or symbols)

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

» Placera batteriet i batteriutrymmet enligt bild.

Three-step illustration of a mobile phone's open case showing battery, switch, and battery cover (no text or symbols)

Three-panel illustration of a black and yellow mobile phone with attached buttons and a cable, showing internal components and battery casing (no text or symbols)

https://support.google.com/android

>ANSLUTNING GODKÄNDA TILLBEHÖR

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open battery showing internal components and battery casing (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening process: left panel with cable being inserted, right panel with cable being inserted and then being adjusted (no text or symbols)

Three-step diagram showing a mobile phone's open rear panel being adjusted for battery charging, with arrows indicating the process (no text or symbols present)

Two views of a black flip phone showing internal components and battery casing, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and fastening process (no text or symbols)

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

17 18 19 20 21 ISSIO-5G Life-MOBILE SP60 CE X NFC 4 Life-MOBILE device Life Technologies (2) PTN2 Life-Mobility, Germany

Two views of a black flip phone showing internal components and battery modules, with a screwdriver inserted (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

使用随附的梅花螺丝刀拧松电池上的螺钉。

》将电池从电池仓中取出。

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

Three-step diagram showing a mobile phone's open rear panel being adjusted for battery charging, with arrows indicating the process (no text or symbols present)

www.isafe-mobile.com/cn/support/downloads

www.isafe-mobile.com/en/support/downloads

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

Two views of a black mobile phone showing internal components and battery modules, with arrows indicating rotation (no text or symbols visible)

Three-step photo showing a black flip phone with internal components being inserted, showing the battery and switch mechanism (no text or symbols visible)

."SIM 2,, & "SIM 1,,

Three-step illustration of a mobile phone's open battery showing internal components and battery release (no text or symbols)

تحتوي حزمة جهازك على وحدة إمداد طاقة ومحولات متنوعة خاصة بكل بلد وكابل USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped. USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped, USB-C Ped

Two-step diagram showing a switch mechanism and a screwdriver tool (no text or symbols)

Three-step diagram showing a cable being inserted into a device, with no visible text or symbols.

Three-step diagram showing a mobile phone's open rear door mechanism, with arrows indicating the sequence (no text or symbols present)

A plain gray background with a single horizontal red line at the bottom (no text or symbols)

CONTACT/SERVICE CENTRE

FOR FURTHER QUESTIONS PLEASE CONTACT OUR SERVICE CENTRE:

» i.safe MOBILE GmbH, i_Park Tauberfranken 10, 97922 Lauda-Koenigshofen, Germany
» [e-mail]
» https://support.isafe-mobile.com

Nighttime exterior view of a large industrial chemical plant with illuminated towers and piping (no visible text or signage)

WWW.ISAFE-MOBILE.COM
