USER MANUAL BattleBunk X Rocker

Technical line drawing of a modular bed structure with perforated panels and metal frame (no text or symbols)

Dimensions

Width - 77.6in

Depth - 41.3in

Height - 72in

NEED HELP?

EMAIL:[e-mail]

BESOIN D'AIDE?

COURRIEL:[e-mail]

¿NECESITAS AYUDA?

CORREO ELECTRÓNICO:[e-mail]

IMPORTANT: You must Keep your original retail receipt as proof of purchase.

Read Before Beginning Assembly

• Call 866-969-2603 if you need assistance.
• Work in a spacious area and near where the unit will be used, preferably on a carpet, or use a piece of the cardboard packaging to protect your floor and product.
• Recommended # of people needed for assembly: 2 (however it is always better to have an extra hand).
  • Estimated assembly time is 3 hours.
• Make sure all parts are included. Most parts are labeled or stamped on the raw edge.
• Read each step carefully. It is very important that each step of the instructions is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur.

Caution

• This product is designed for home use and not intended for commercial use.
• This product contains small components. Please ensure that they are kept away from small children.
• Clean the product with a soft damp cloth. DO NOT use harsh chemicals or abrasive cleaners.
• Periodically check and ensure that the guardrail, ladder, and other components are in their proper position, free from damage, and that all connectors are tight.

Handy Hints

• Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
• Your furniture can be disassembled and reassembled to move.
• Assemble all parts and bolts loosely during assembly, only once the product is complete should you fully tighten the bolts
• Regularly check and ensure that all bolts and fittings are tightened properly.

WARNINGS

• Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed.
• Always use the recommended size mattresses or mattress supports, or both, to help prevent the likelihood of entrapment or falls.
• Use only a twin mattress which is 74"-75" long and 37 12 " - 38 12 " wide on upper bunk.
• Ensure thickness of mattress on upper bunk is greater than 4" and that it does not exceed 6".
• Surface of mattress must be at least 5" (127 mm) below the upper edge of guardrails.
• Do not allow children under 6 years of age to use the upper bunk.
• Do not allow horseplay on or under the bed and prohibit jumping on the bed.
• Prohibit more than one person on upper bunk.
• Always use the ladder for entering and leaving the upper bunk.
• Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
• Use of a night light may provide added safety precaution for a child using the upper bunk.
• Always use guardrails on both long sides of the upper bunk. If the bunk bed will be placed next to the wall, the guardrail that runs the full length of the bed should be placed, against the wall to prevent entrapment between the bed and wall.
• The use of water or sleep flotation mattresses is prohibited.
• STRANGULATION HAZARD-Never attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, beltsand jump ropes.
• Keep these instructions for future reference .

Please check you have all the panels listed below

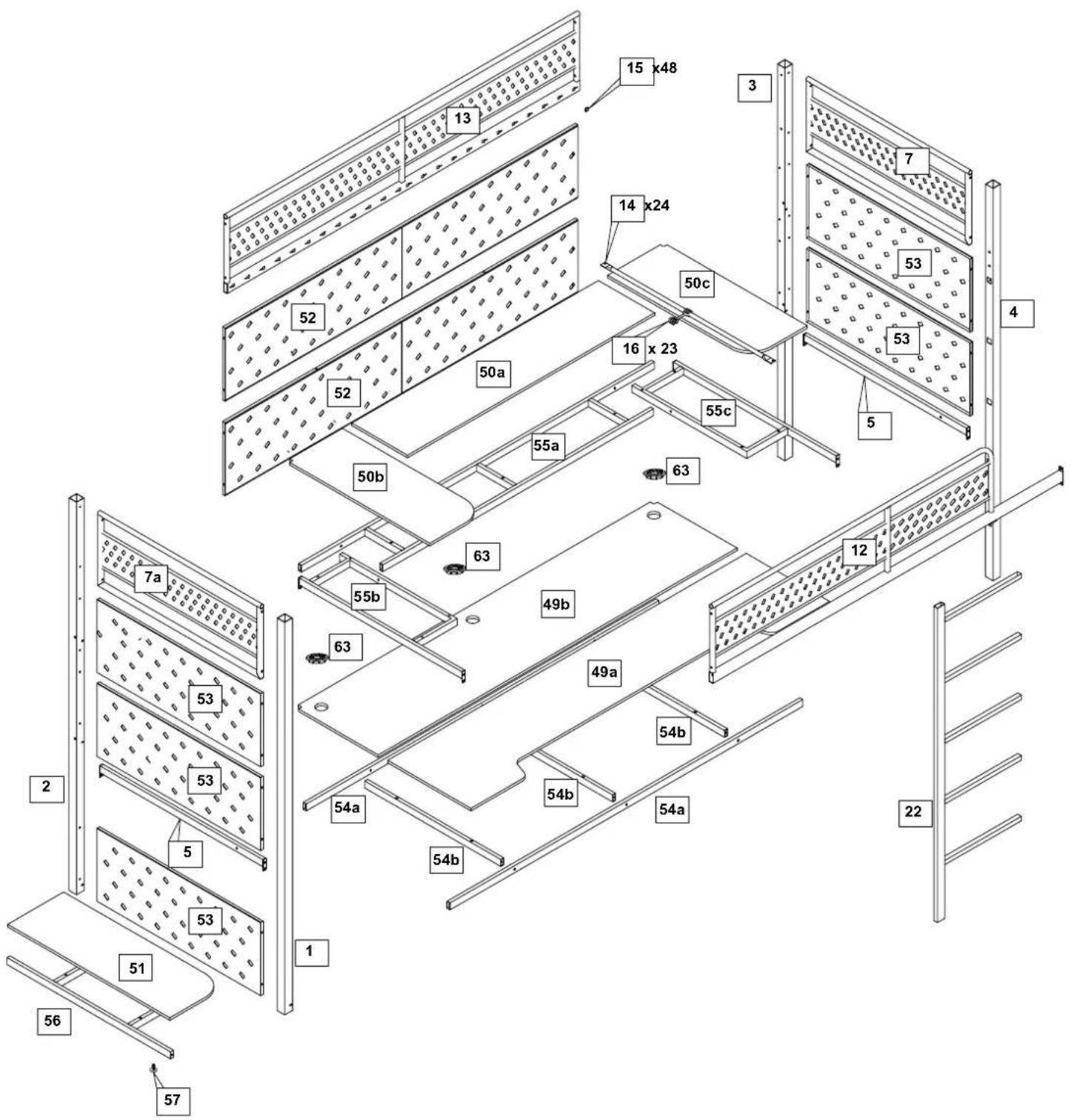

PARTS

Technical diagram of a multi-level building facade with numbered components and material specifications

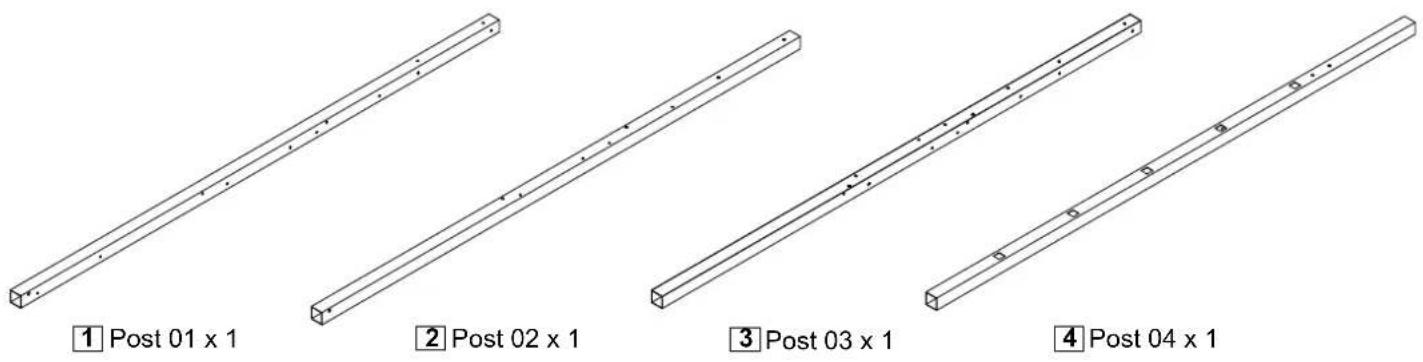

Components - Panels

Please check you have all the panels listed below

Simple line drawing of a diagonal metal rod or beam (no text or symbols)

5 Side Rail x 2

Isometric line drawing of a rectangular frame with evenly spaced circular holes, no text or symbols present.

7 Right Guard Rail x 1

Isometric line drawing of a rectangular panel with evenly spaced circular indentations on one side (no text or symbols)

7a Left Guard Rail x 1

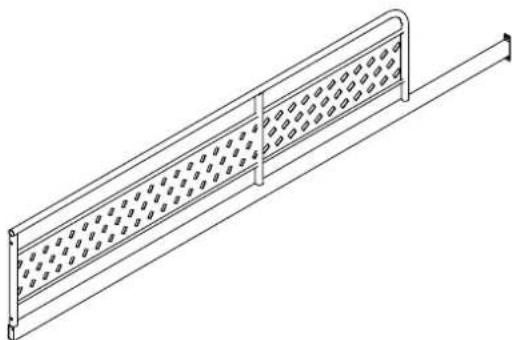

Technical line drawing of a metal grate with perforated panels and a curved top (no text or symbols)

12 Front Guard Rail x 1

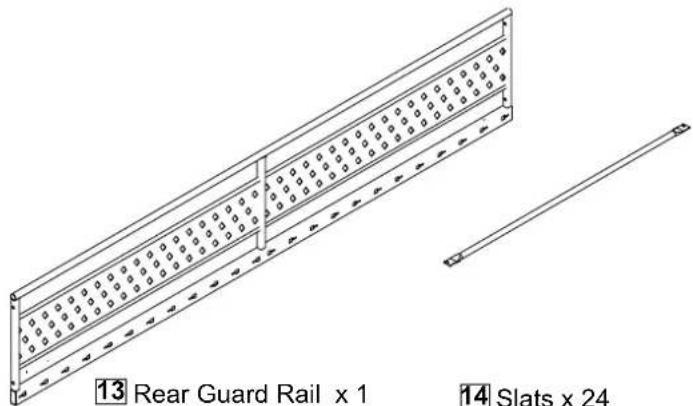

13 Rear Guard Rail x 1 14 Slats x 24

15 Plastic Plug x 48

16 Slat Spacer x 23

Technical line drawings of three mechanical components with no visible text or symbols

22 Ladder x 1
49a Front Desktop x 1
49b Rear Desktop x 1

Components - Panels

Please check you have all the panels listed below

Simple 3D isometric view of a rectangular prism (no text or symbols)

50a Main Shelf x 1

Simple line drawing of a rectangular object with rounded top and bottom edges (no text or symbols)

50b Left Shelf x 1

Simple 3D line drawing of a rectangular block with rounded edges (no text or symbols)

50c Right Shelf x 1

Simple 3D rectangular shape with rounded corners, no text or symbols present

51 Bottom Shelf x 1

Two rectangular metal plates with square holes, one divided into two sections (no text or symbols)

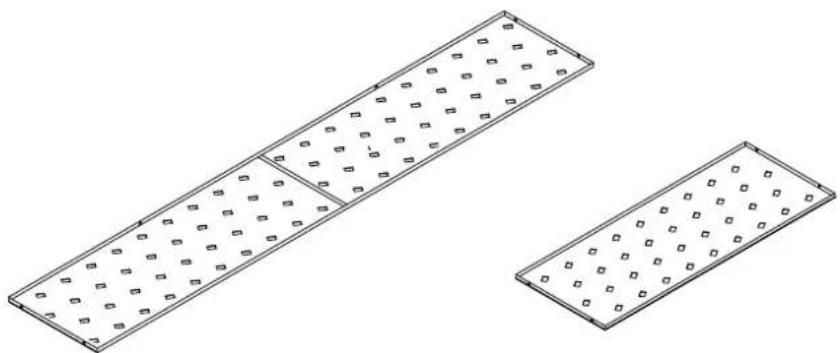

52 Rear Mesh Panel x 2

Line drawing of a 54a Desk Support Rail 02 x 2, showing a diagonal line with no text or symbols on the diagram itself.

53 Side Mesh Panel x 5

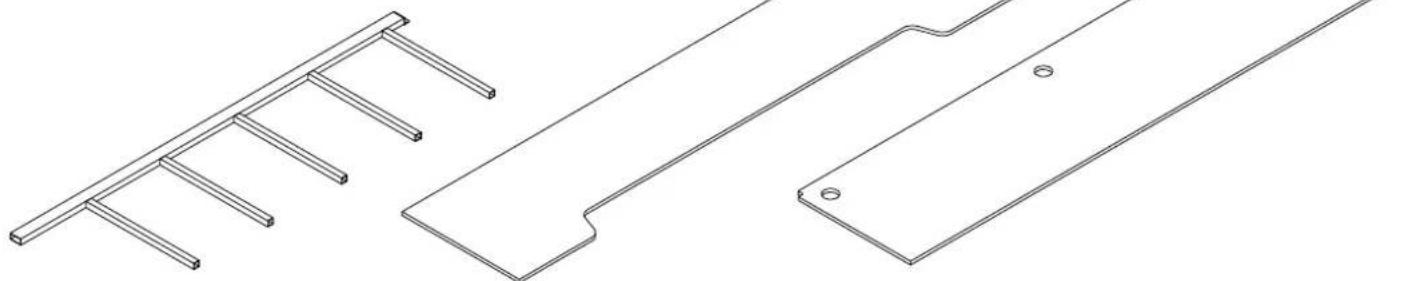

54a Desk Support Rail 02 x 2

54b Desk Support Rail 01 x 3

Isometric line drawing of a ladder structure with no text or symbols

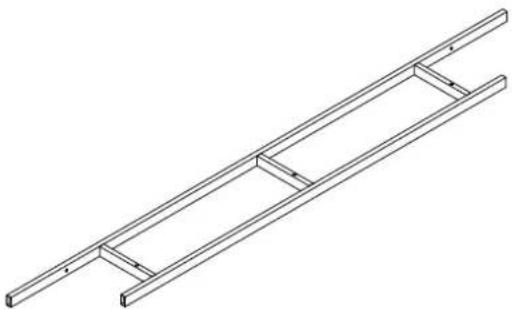

55a Main Shelf Support x 1

Isometric line drawing of a metal frame structure with no text or symbols

55b Left Shelf Support Frame x 1

Isometric line drawing of a rectangular frame with supports (no text or symbols)

55c Right Shelf Support Frame x 1

Isometric line drawing of a structural beam with three supports (no text or symbols)

56 Lower Shelf Support x 1

57 Pad x 2

63 Cable Capx 3

Components - Fittings

Please check you have all the panels listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied as required.

N17mm Bolt M6 x 39 25mm Bolt M6 x 7	B	C30mm Bolt M6 x14
D38mm Bolt M6x33	●60mm Bolt M6 x 6	HM6 x 2
I[M6 Spring washer x 8	●M6 Metal washer x 8	●KM6 Plastic washer x 8
LAllen Key x 1	MWrench x 1

Tools required

Ruler/tape measure

Ruler - User this ruler to help correctly identify the screws

05101520253036404550558085707580959095100105110115120125130135140145150155160165170

The image contains a standard ruler with evenly spaced tick marks and no numerical data. According to the rules, such lines must be ignored and not converted into any textual representation for accurate OCR processing. Therefore, the correct OCR output is empty.

(No text to output)

Assembly Instructions

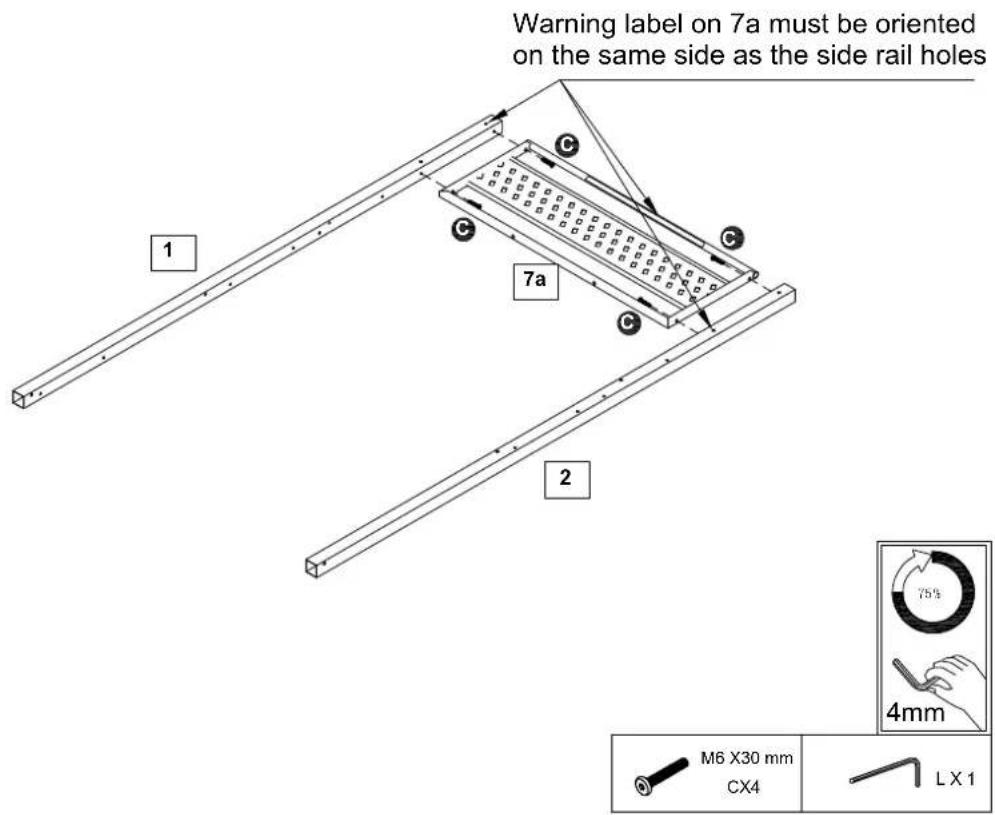

Step 1

Attach Left Guard Rail 7a to Post 01 1 and Post 02 2 with C

Warning label on 7a must be oriented on the same side as the side rail holes 1 C 7a C 2 M6 X30 mm CX4 L X 1 75% 4mm

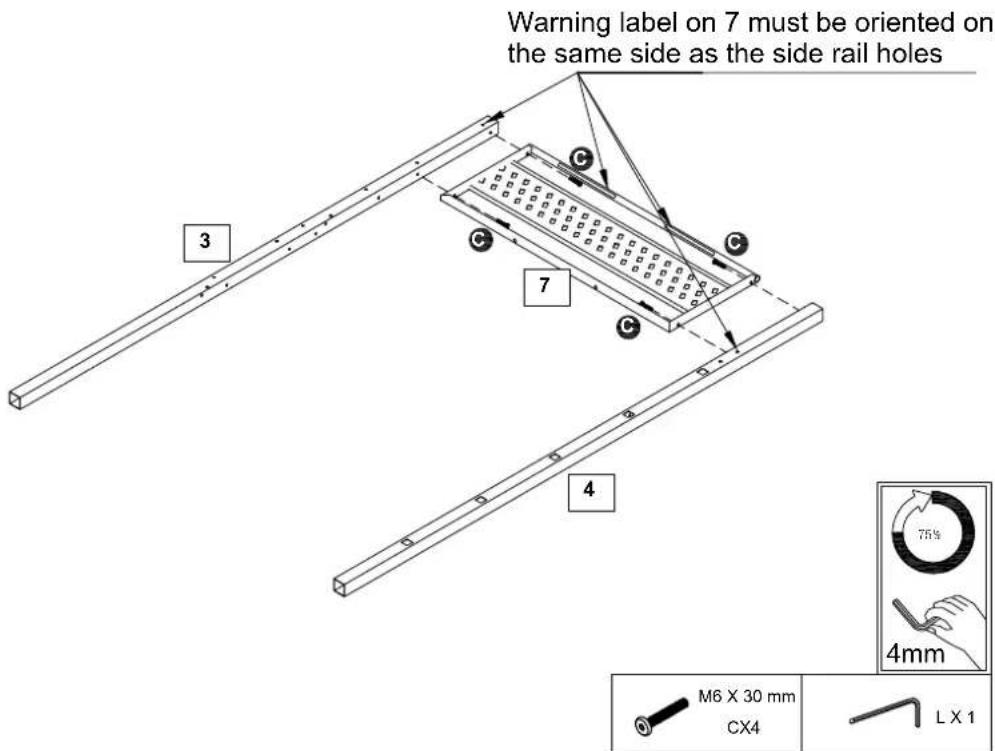

Step 2

Attach Right Guard Rail 7 to Post 03 3 and Post 04 4 with ©.

Warning label on 7 must be oriented on the same side as the side rail holes 3 C 7 C 4 M6 X 30 mm CX4 L X 1 75% 4mm

Assembly Instructions

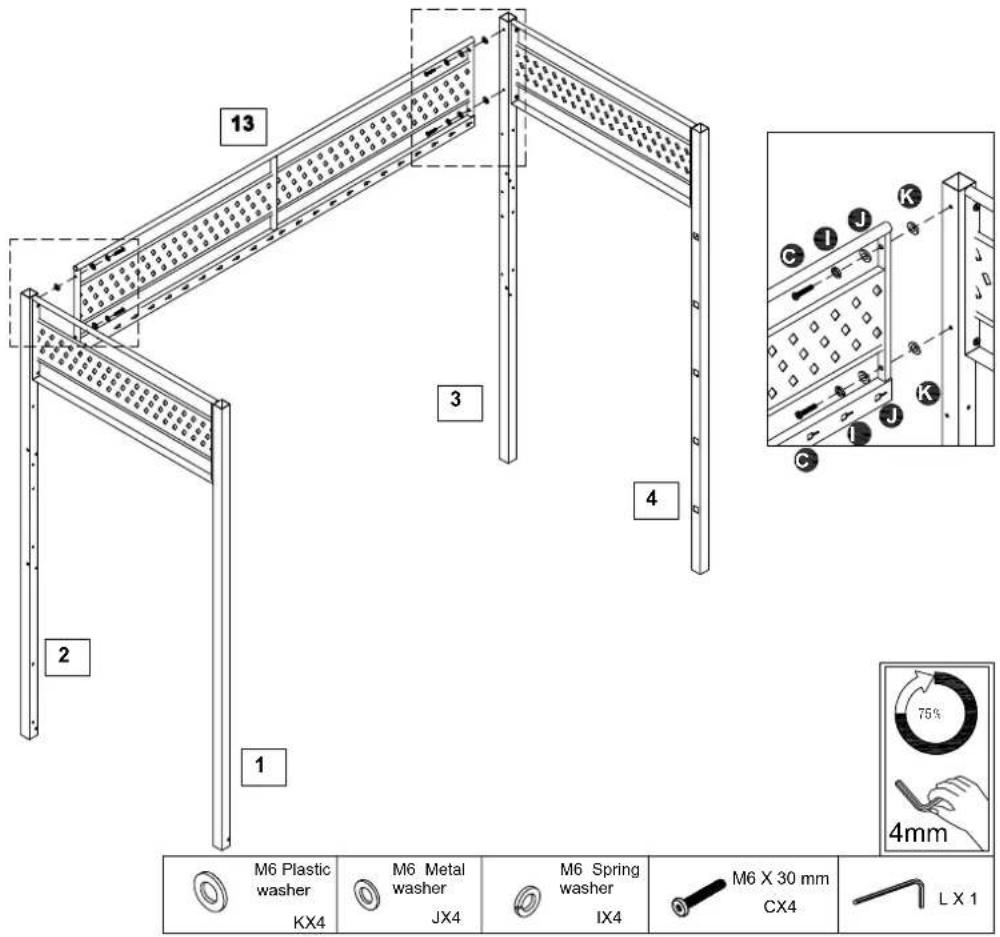

Step 3

Attach Rear Guard Rail 13 to Post 02 2 and Post 03 3 with C I J K

13 2 1 3 4 M6 Plastic washer KX4 M6 Metal washer JX4 M6 Spring washer IX4 M6 X 30 mm CX4 L X 1 75% 4mm

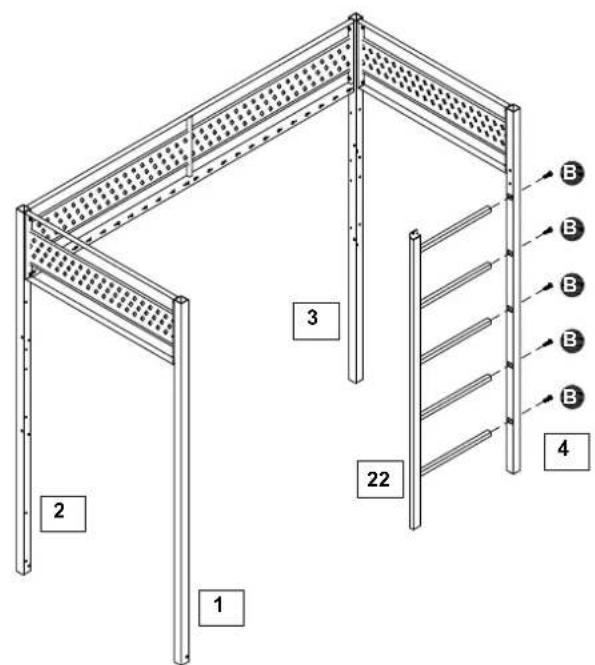

Step 4

Insert Ladder 22 into Post 04 4 with B.

You may need to adjust the tread manually to insert to the holes one by one on Post 04 4.

M6 X 25 mm BX5 75% 4mm L X 1

Assembly Instructions

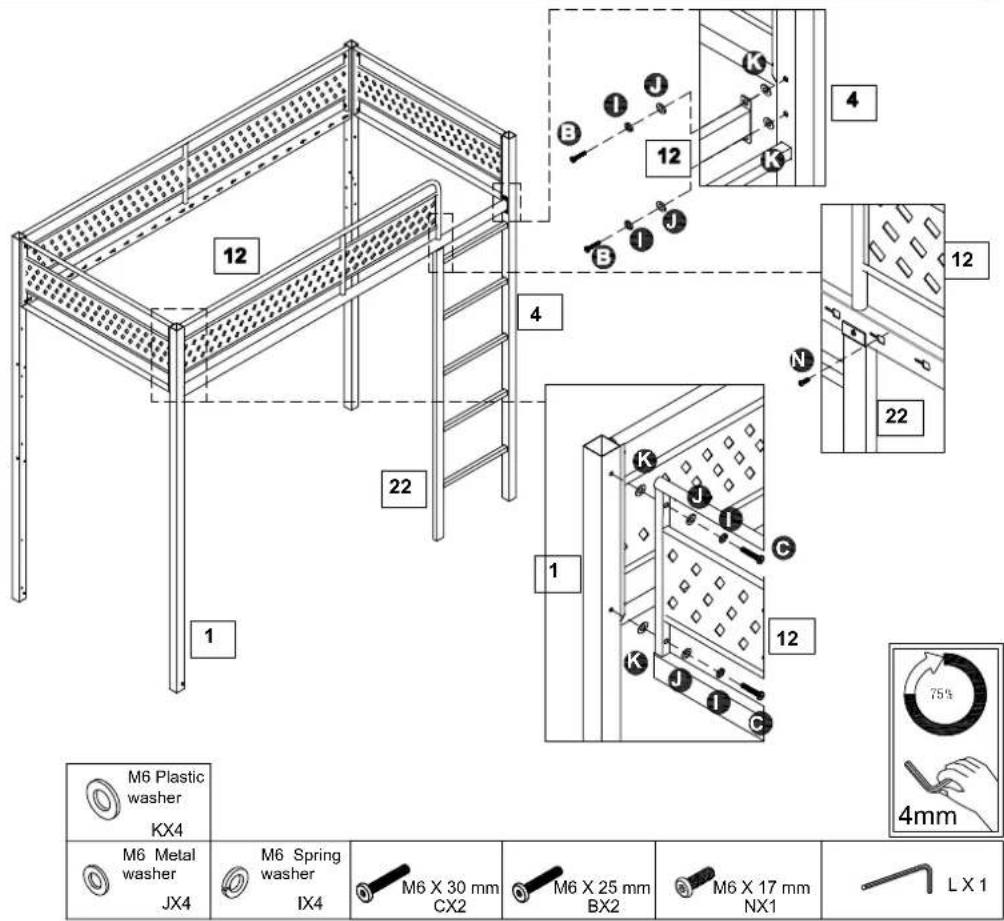

Step 5

a:Attach Front Guard Rail 12 to Post 01 1 with C, I, J, K and Post 04 with B I J K

b:Attach Ladder 22 to Front Guard Rail 12 with N

M6 Plastic washer KX4 M6 Metal washer JX4 12 1 22 4 12 1 22 1 22 4mm 75% L X 1 M6 Spring washer IX4 M6 X 30 mm CX2 M6 X 25 mm BX2 M6 X 17 mm NX1

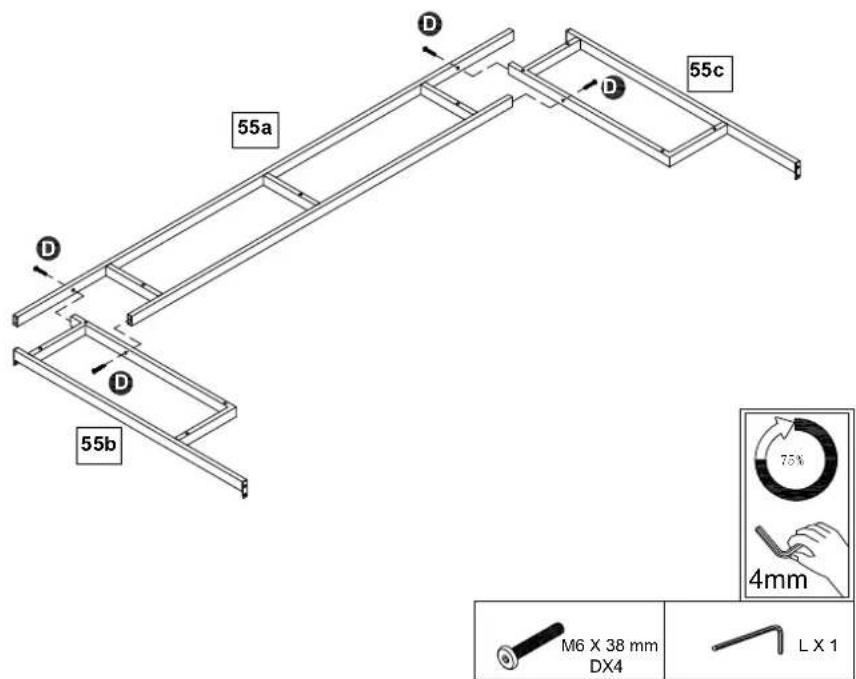

Step 6

Attach Left Shelf Support Frame 55b and Right Shelf Support Frame 55c to Main Shelf Support 55a with D.

55a 55b D D D 55c M6 X 38 mm DX4 L X 1 75% 4mm

Assembly Instructions

Step 7

a: Attach Left Shelf Support Frame 55b to Post 01 1 and Post 02 2 with N.

b: Attach Right Shelf Support Frame 55c to Post 03 3 and Post 04 4 with N.

c: Attach Main Shelf Support 55a to Post 02 2 and Post 03 3 with F.

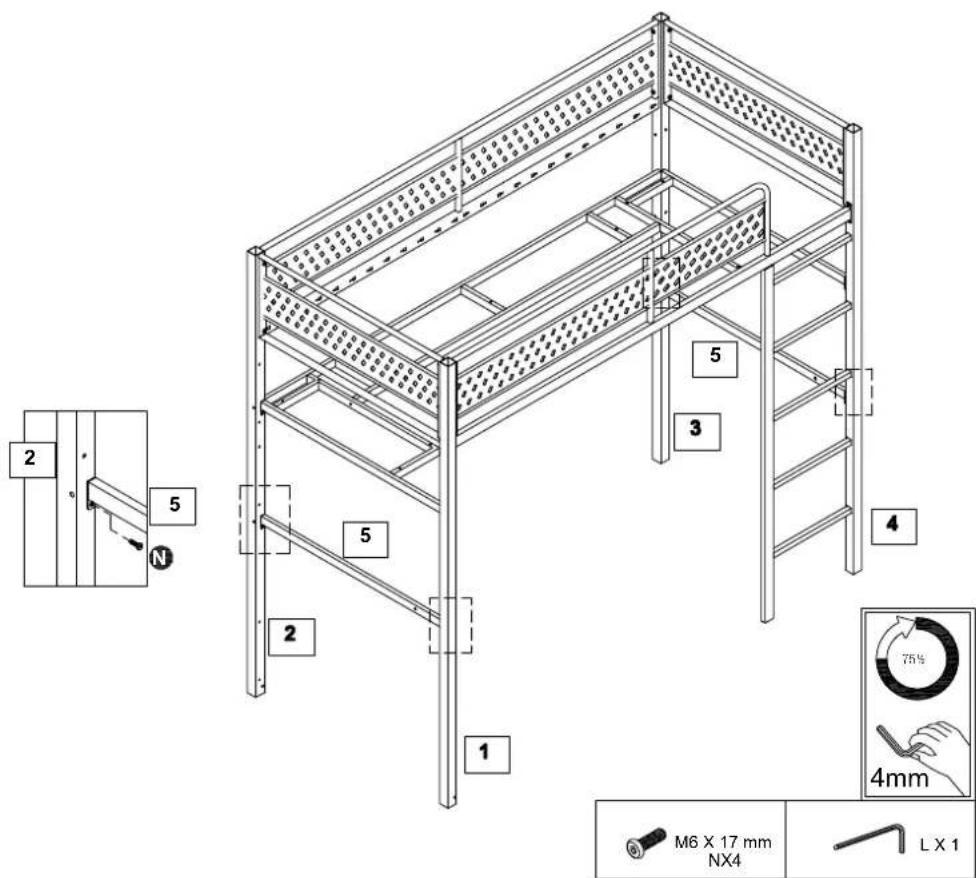

Step 8

a: Attach Side Rail 5 to Post 01 1 and Post 02 2 with N.

b: Attach Side Rail 5 to Post 03 3 and Post 04 4 with N.

55a 2 E N 55b 55a 55c 3 1 55b 2 1 4 75% 4mm M6 X 17 mm NX4 M6 X 60 mm EX2 L X 1

2 5 N 1 2 5 3 5 4 M6 X 17 mm NX4 L X 1 75% 4mm

Assembly Instructions

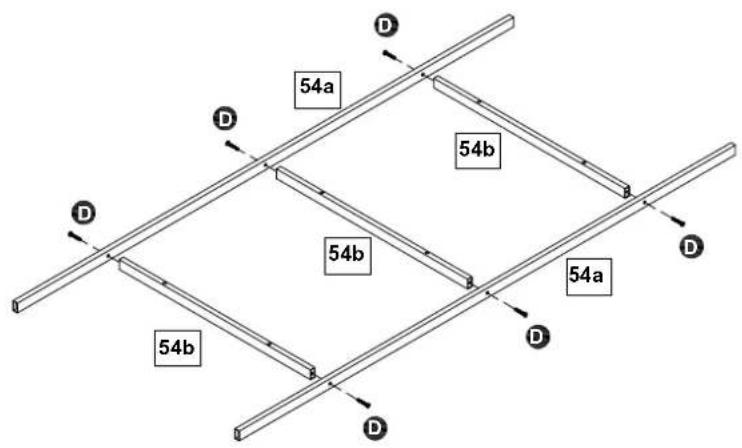

Step 9

Attach Desk Support Rail 0154b x3 to Desk Support Rail 0254a x2 with D.

54a 54b 54b 54a 54b D D D

M6 X 38 mm DX6 75% 4mm LX1

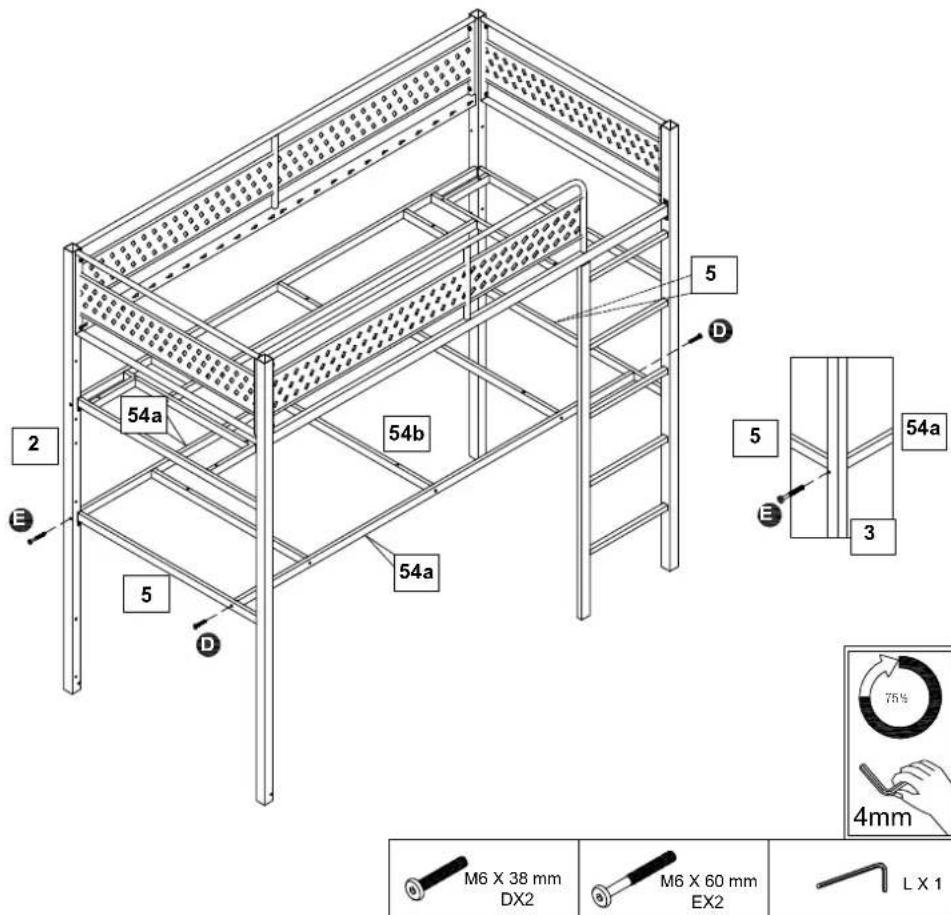

Step 10

a:Attach Desk Support Rail 0254a to Side Rail 5 with D.

b:Attach Desk Support Rail 0254a to Post 022 and Post 033 with E.

54a 54b 5 5 54a 5 E E D 2 5 54a 3 M6 X 38 mm DX2 M6 X 60 mm EX2 L X 1 75% 4mm

Assembly Instructions

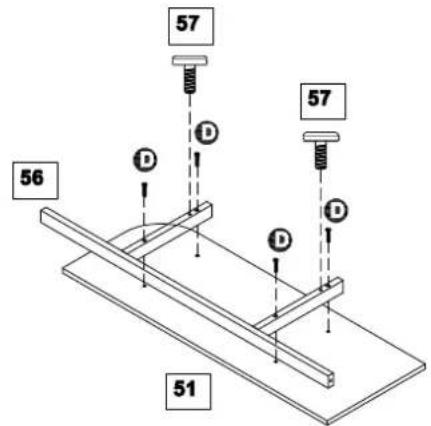

Step 11

a:Attach Lower Shelf Support 56 to Bottom Shelf 51 with D.

b:Attach Pad 57 x2 to Lower Shelf Support 56.

Step 12

Attach Lower Shelf Support 56 to Post 01 1 and Post 02 2 with

57 D 56 D 51 57 D

M6 X 38 mm DX4 75% 4mm L X 1

2 E 51 1 56 E

M6 X 60 mm EX2 75% 4mm L X 1

Assembly Instructions

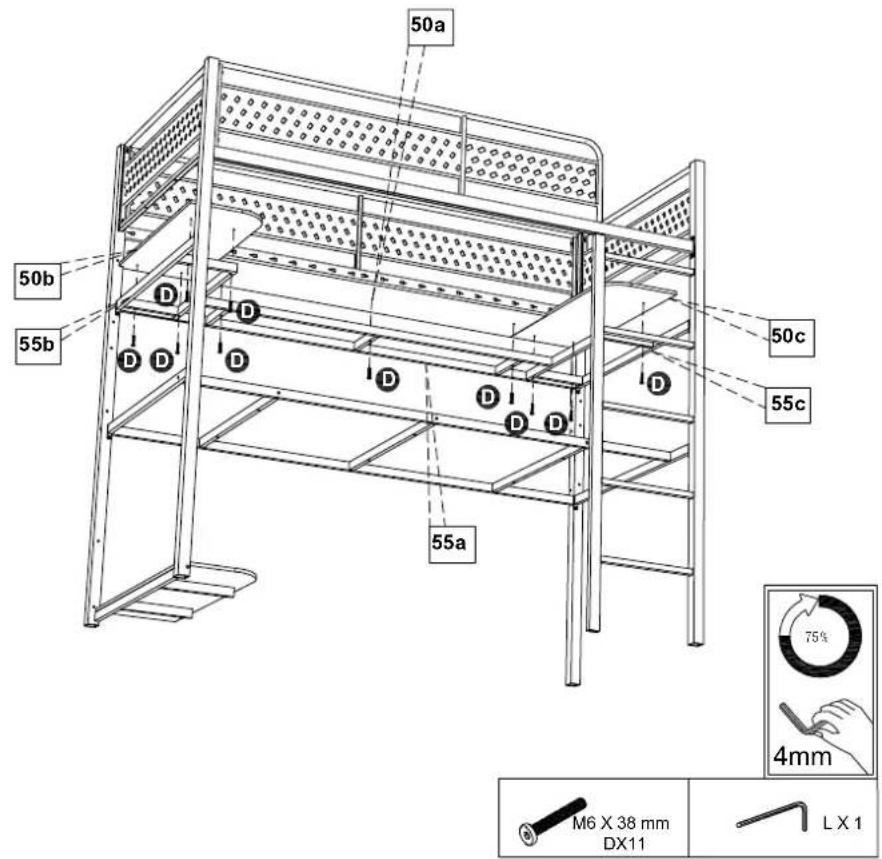

Step 13

a: Attach Left Shelf 50b to Left Shelf Support Frame 55b with D

b: Attach Right Shelf 50c to Right Shelf Support Frame 55c with D.

c: Attach Main Shelf 50a to Main Shelf Support 55a with D.

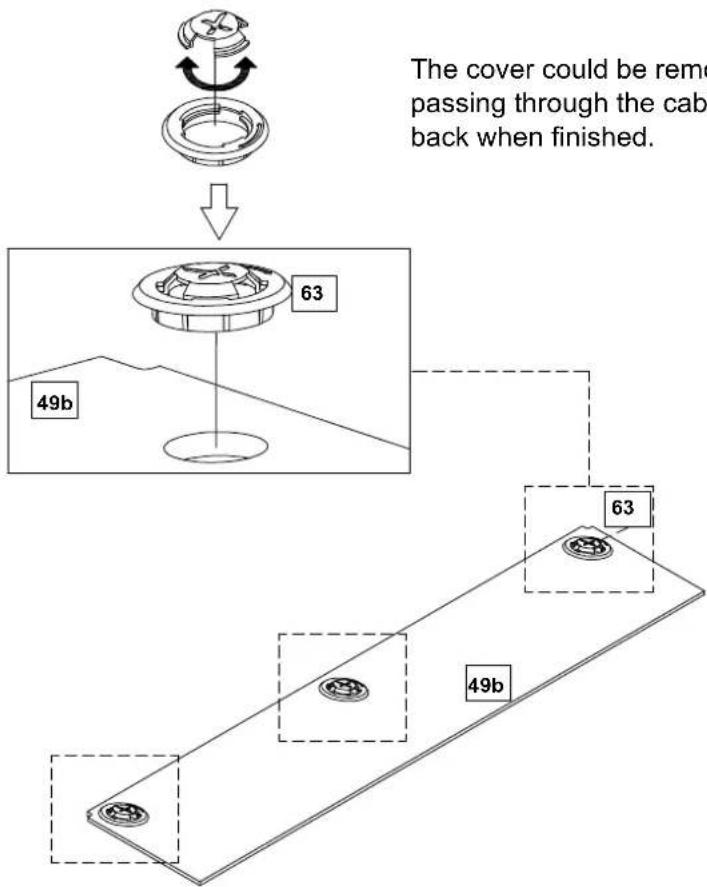

Step 14

Attach Cable Cap 63x3 to Rear Desktop 49b.

50a 50b 55b D D D D D D 55a 50c 55c 75% 4mm M6 X 38 mm DX11 L X 1

The cover could be remo passing through the cab back when finished.

The cover could be removed before passing through the cable assembled back when finished.

Assembly Instructions

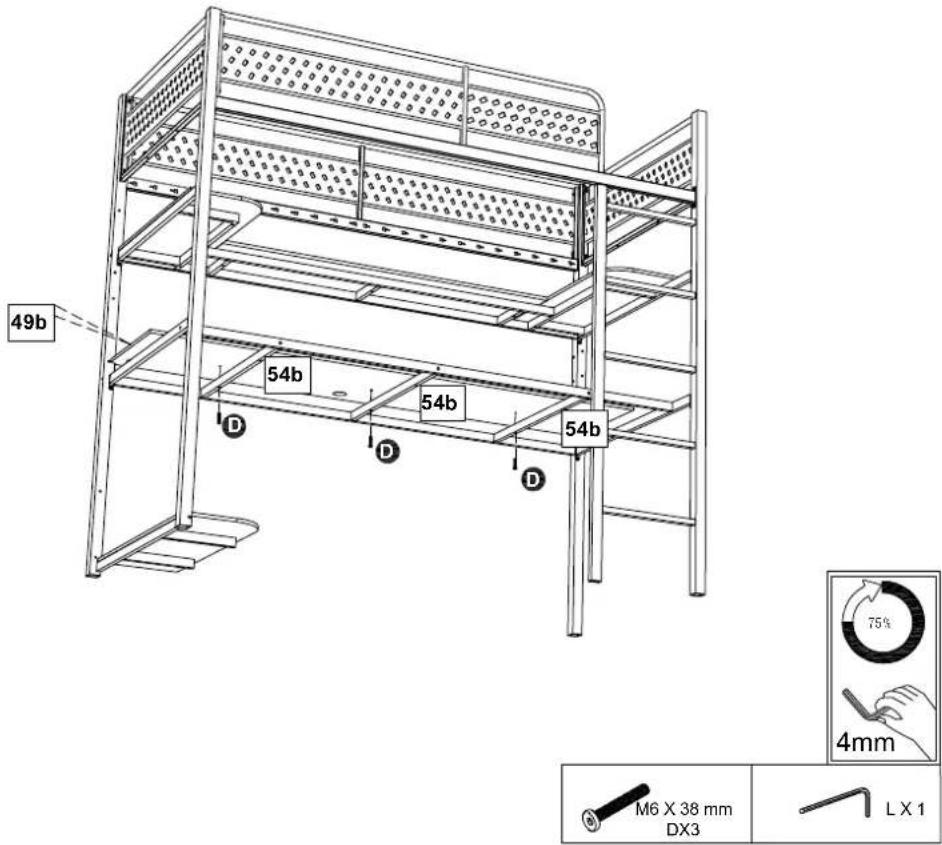

Step 15

Attach Rear Desktop 49b to Desk Support Rail 0154b with D.

49b 54b 54b 54b 75% 4mm M6 X 38 mm DX3 L X 1

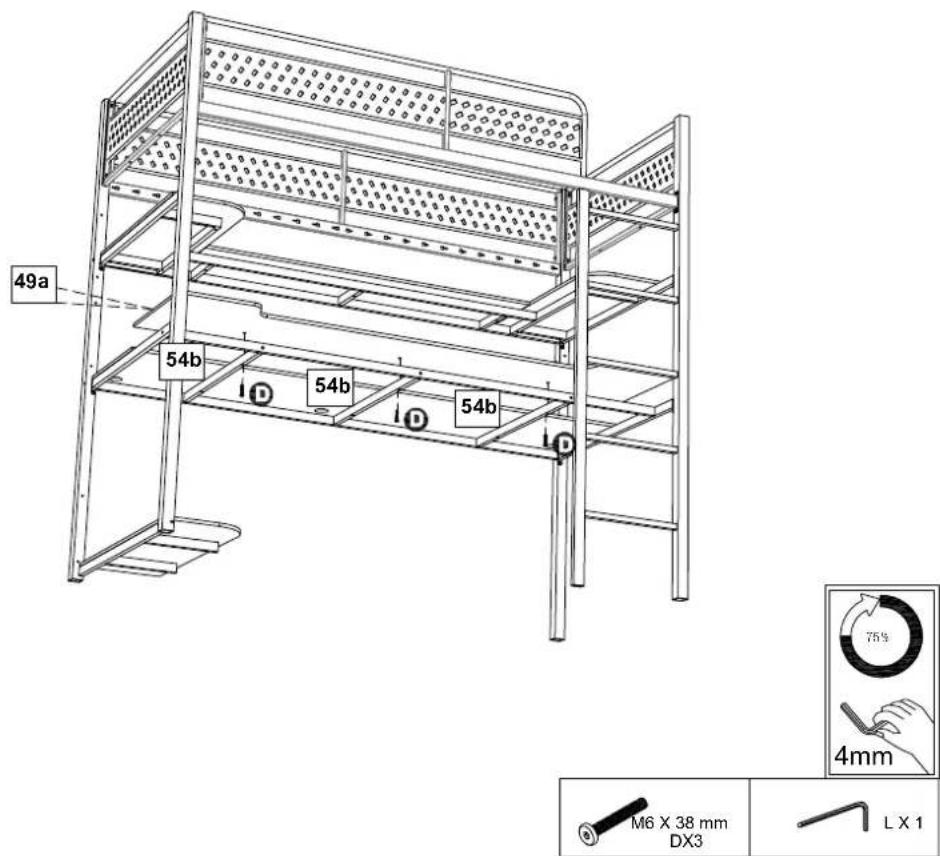

Step 16

Attach Front Desktop 49a to Desk Support Rail 01 54b with D.

49a 54b 54b 54b M6 X 38 mm DX3 L X 1 75% 4mm

[M6 X 38 mm DX3]

Assembly Instructions

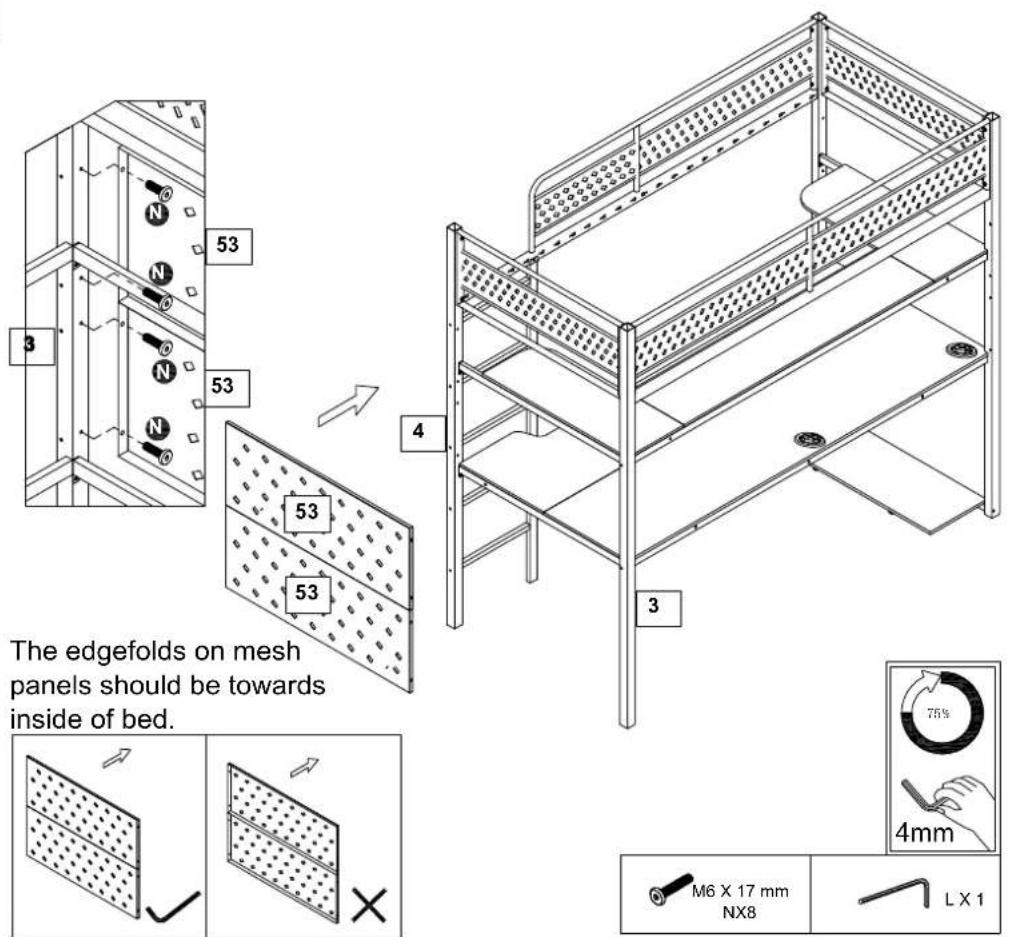

Step 17

Attach Side Mesh Panel 53 x2 to Post 03 3 and Post 04 4 with N.

The edgefolds on mesh panels should be towards inside of bed. M6 X 17 mm NX8 L X 1 4mm 75%

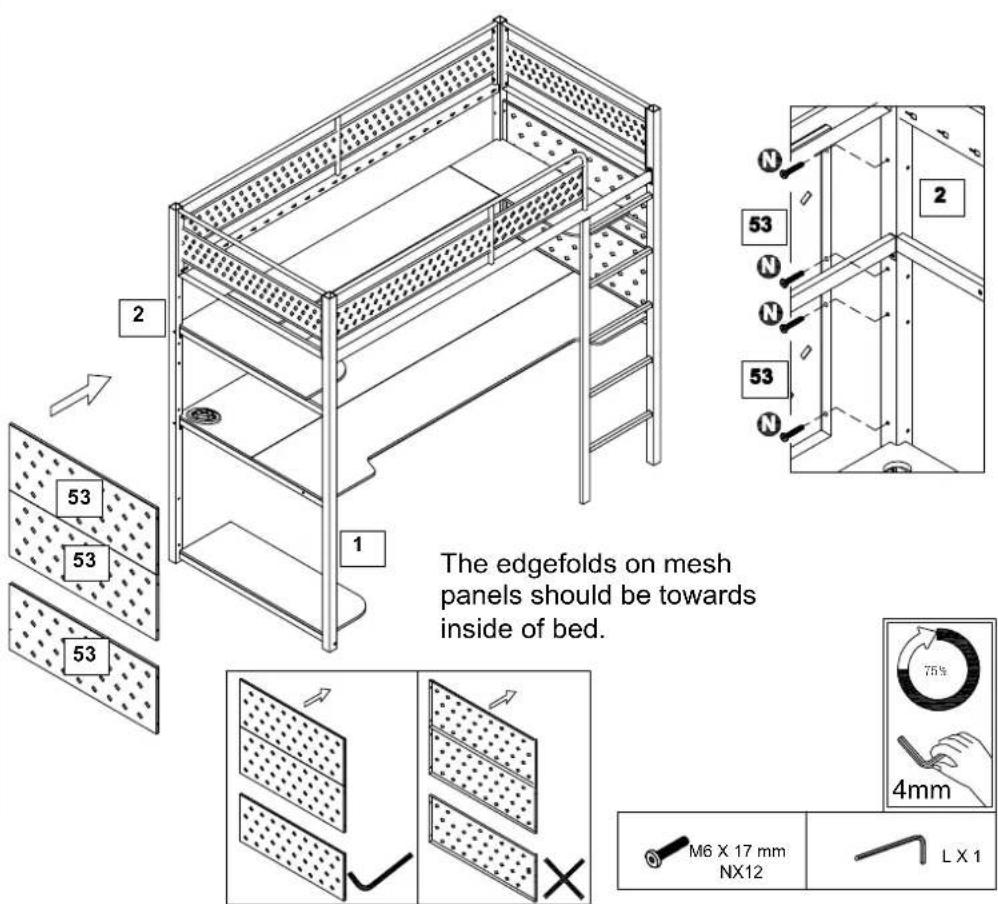

Step 18

Attach Side Mesh Panel 53x3 to Post 01 1 and Post 02 2 with N.

The edgefolds on mesh panels should be towards inside of bed. M6 X 17 mm NX12 L X 1 4mm 53 N N N N 2 53 53 1

Assembly Instructions

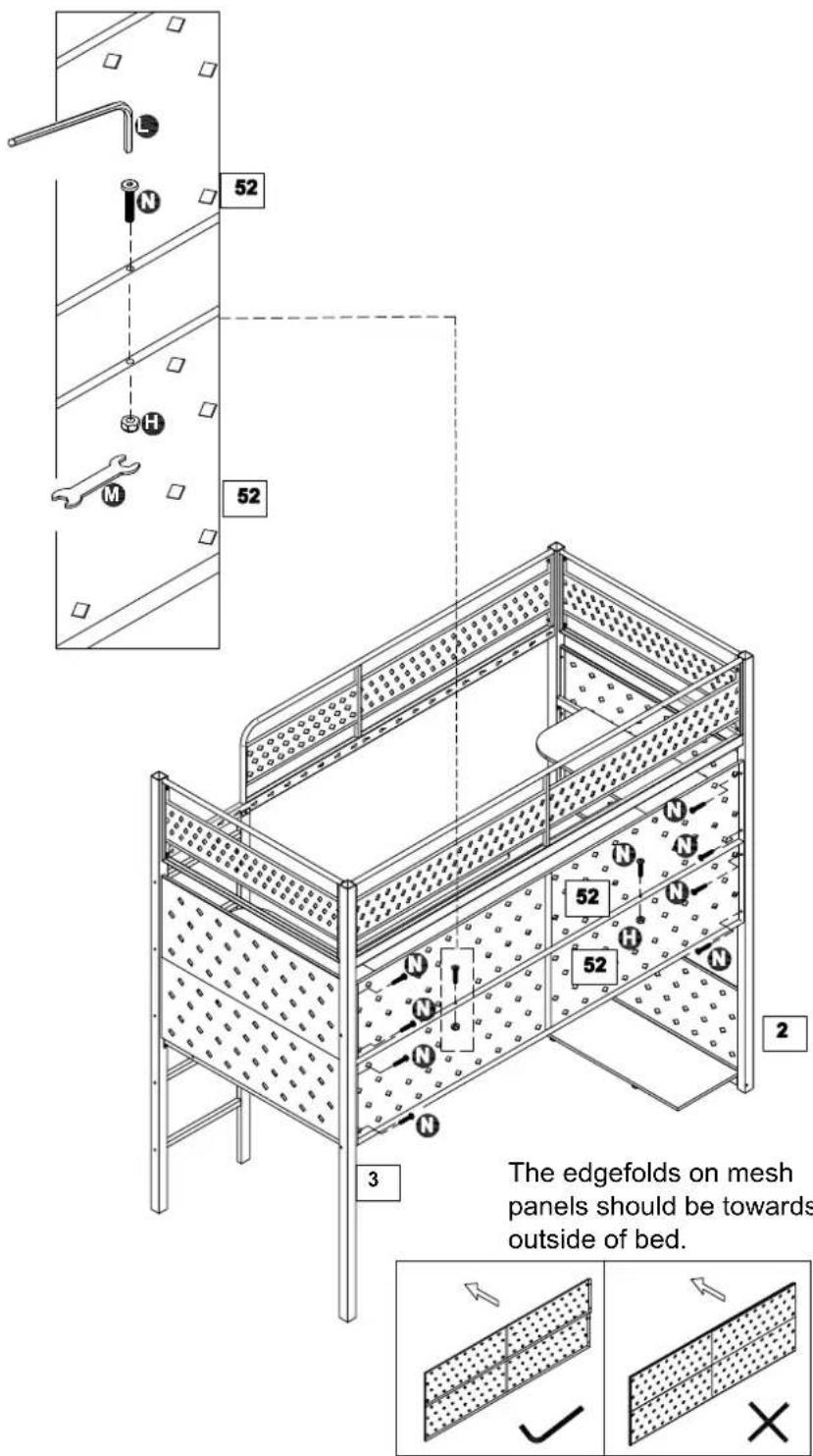

Step 19

a:Attach Rear Mesh Panel 52 x2 to Post 02 2 and Post 03 3 with N

b:Attach Rear Mesh Panel 52 x2 together with N H

52 N H M 52 N N N N N N N N N N N N N N N N N N N N N N 3 The edgefolds on mesh panels should be towards outside of bed. 2 The edgefolds on mesh panels should be towards outside of bed.

[H430] M6 X 17 mmNX10

[YTKX] M6HX2

L X 1

-

MX 1

Assembly Instructions

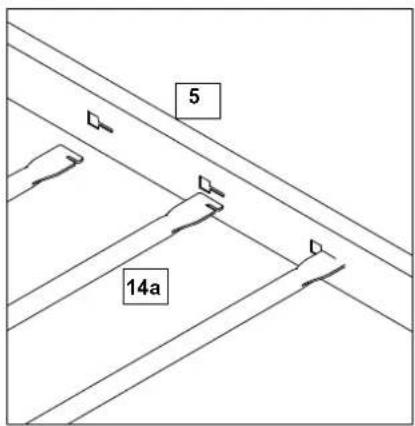

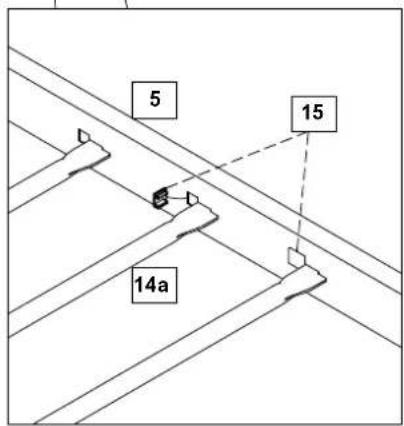

Step 20

a: Secure the Slats 14a x2to Rear Guard Rail 13 and Front Guard Rail 12.

b: Secure the Plastic Plug 15x48to Rear Guard Rail 13 and Front Guard Rail 12.

14a 5

X 14a 5

b:
a:

5 14a

5 15 14a

Technical line drawing of a multi-level metal shelving unit with perforated panels and structural supports (no text or symbols)

Assembly Instructions

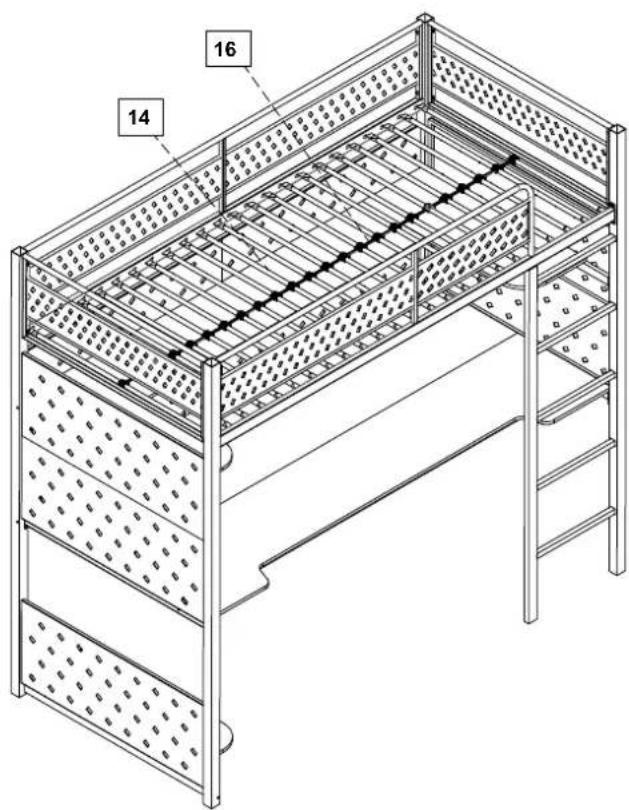

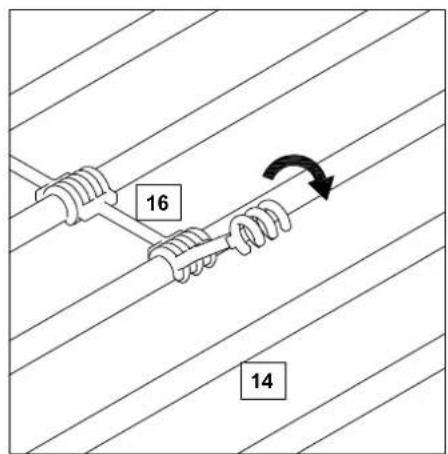

Step 21

Secure slat spacer 16x23to slats 14x24.

16 14

14 16

Assembly Instructions

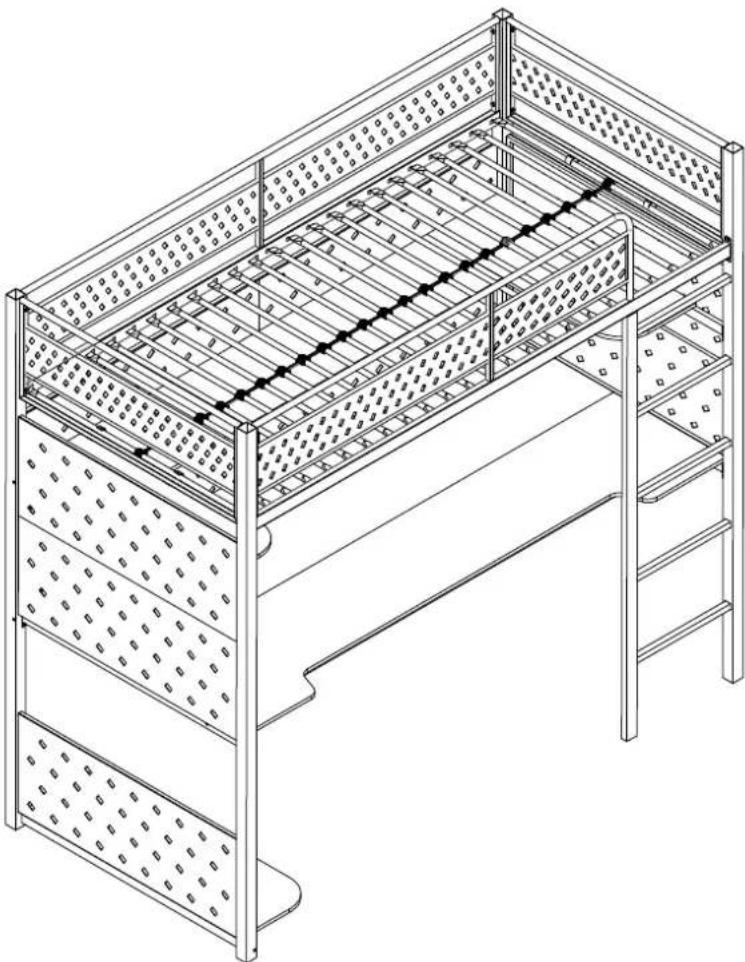

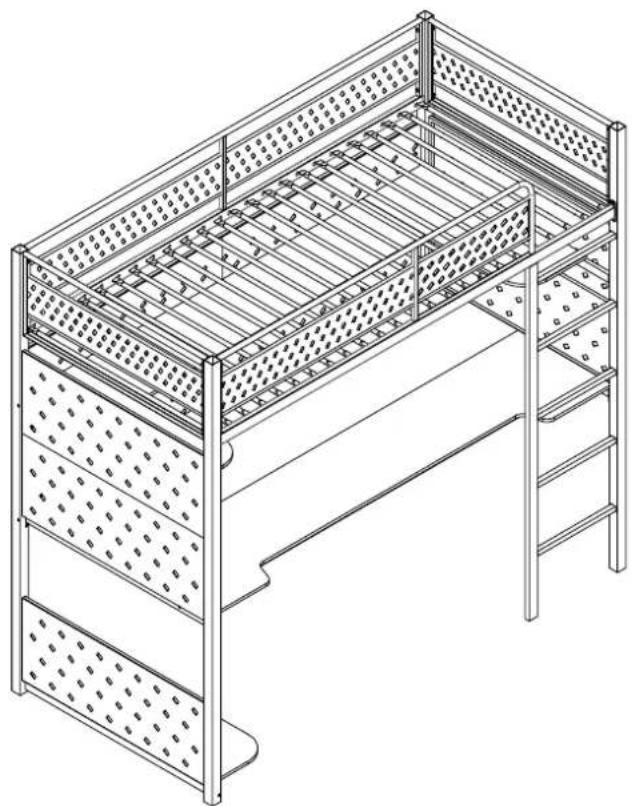

Step 22

Technical line drawing of a multi-level modular bed structure with perforated panels and mesh grid (no text or symbols)

Assembly is complete
