USER MANUAL BP 740 LG

Please read this manual carefully before operating your set and retain it for future reference.

BP740 / BP740N

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD,DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

Disposal of your old appliance

This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.

2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www/lg.com/global/recycling

Disposal of waste batteries/accumulators

1 This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2 All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3 The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4 For more detailed information about disposal of your old batteries/ accumulators, please contact your city office, waste disposal service or the shop where you purchased the product. (http://www/lg.com/global/ sustainability/environment/take-backrecycling/global-network-europe)

For Wireless product European Union Notice

C∈0197①

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Please contact to the following address for obtaining a copy of the DoC (Declaration of Conformity).

Contact office for compliance of this product:

LG Electronics Inc.

EU Representative, Krijgsman 1,

1186 DM Amstelveen, The Netherlands

• Please note that this is NOT a Customer Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product.

Indoor use only.

RF Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Notes on Copyrights

• Because AACs (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc., of AACs protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACs after the production of this product.
• Furthermore, BD-ROM Mark and BD + are additionally used as content protection systems for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD + protected contents. To obtain additional information on AACS, BD-ROM Mark, BD + , or this product, please contact an authorized Customer Service Center.
• Many BD-ROM/DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.
• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/or criminal liability.

Important Notice for TV color system

The color system of this player differs according to currently playing discs.

For example, when the player plays the disc recorded in the NTSC color system, the image is output as an NTSC signal.

Only the multi system color TV can receive all signals output from the player.

• If you have a PAL color system TV, you will see just distorted images when using discs or video contents recorded in NTSC.
• The multi system color TV changes the color system automatically according to input signals. In case that the color system is not changed automatically, turn it off and then on to see normal images on screen.
• Even if the disc recorded in NTSC color system are well displayed on your TV, these may not be recorded correctly on your recorder.

Caution

• Watching a 3D content for a long period time may cause dizziness or tiredness.
• It is not recommended to watch a movie in 3D mode for infirm, child and pregnant woman.
• If you are experiencing headache, tiredness or dizziness while viewing contents in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

Table of Contents

1 Getting Started

2 Safety Information
8 Introduction
8 - Playable Discs and symbols used in this manual
9 - About the "∅" Symbol Display
9 - Regional Code
9 - System Select
10 Remote Control
11 - Magic remote control functions
12 Front Panel
12 Rear Panel

2 Connecting

13 Connecting to Your TV
14 - What is SIMPLINK?
14 - Resolution Setting
15 Connecting to an Amplifier

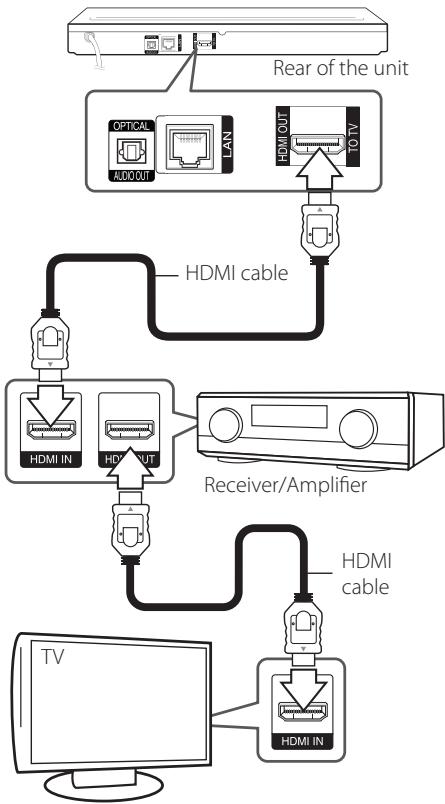

15 - Connecting to an Amplifier via HDMI Output

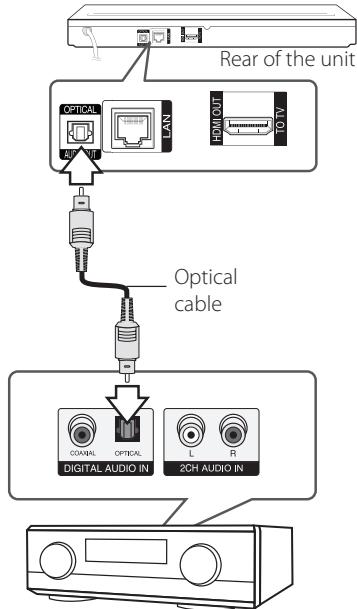

16 - Connecting to an Amplifier via Digital Audio Output
17 Connecting to your Home Network

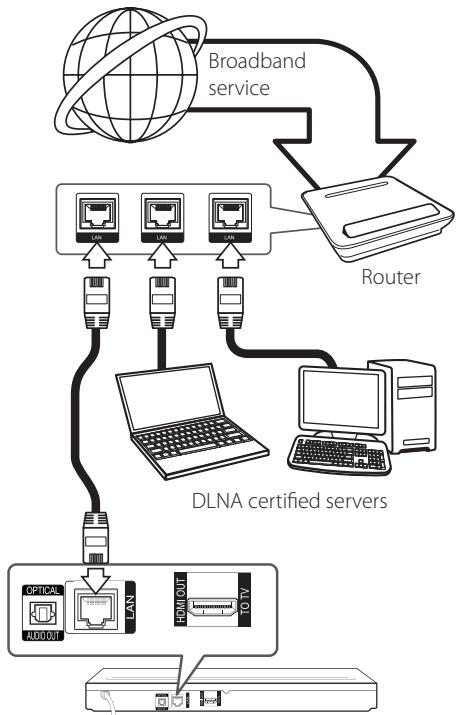

17 - Wired network connection
18 - Wired Network Setup

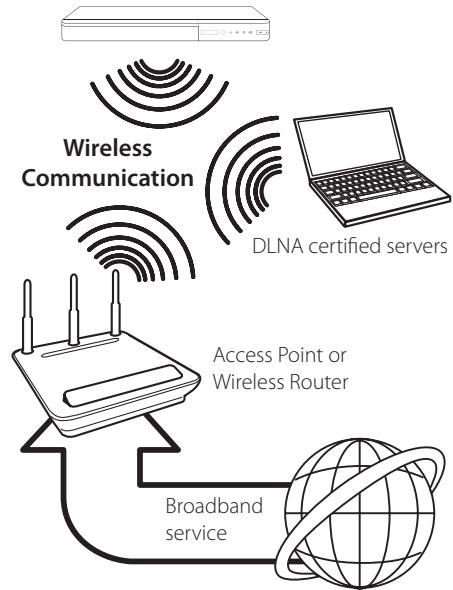

19 - Wireless network connection
19 - Wireless network setup

3 System Setting

22 Initial Setup
23 Settings

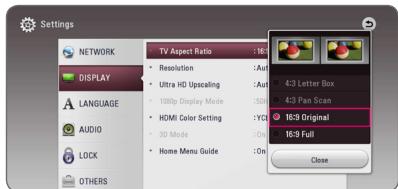

23 - Adjust the Setup Settings
23 - [NETWORK] Menu
25 - [DISPLAY] Menu
27 - [LANGUAGE] Menu
27 - [AUDIO] Menu
29 - [LOCK] Menu
30 - [OTHERS] Menu

4 Operating

32 Home Menu Display

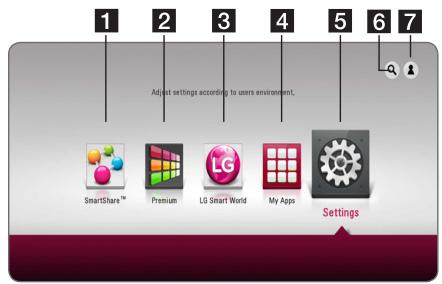

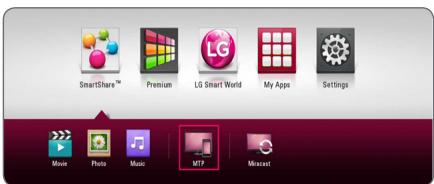

32 - Using [HOME] menu
32 - Using the SmartShare
33 Playing the Linked Devices
33 - Playing a Disc
33 - Playing Blu-ray 3D disc

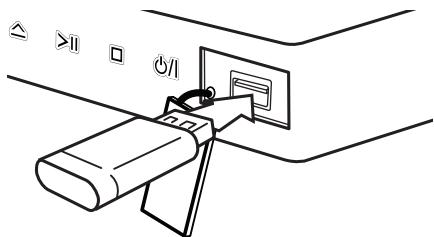

34 - Playing a file on disc/USB device

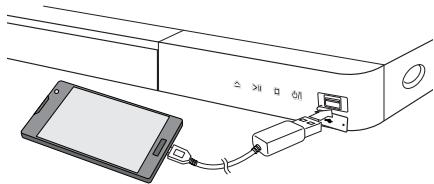

35 - Playing a file on Android device
36 - Playing a file on a network server
37 Using Home Network Server for PC
37 - About SmartShare PC Software (DLNA)
37 - Downloading SmartShare PC Software (DLNA)
37 - Installing SmartShare PC Software (DLNA)
38 - Sharing files and folders
38 - System requirements
39 General Playback
39 - Basic operations for video and audio content
39 - Basic operations for photo content
40 -Resume playback
40 - Last Scene Memory
41 On-Screen Display
41 - To control video playback
42 - To control photo view
43 Advanced Playback
43 -Repeat playback
43 - Repeating a specific portion
43 - Playing from selected time
44 - Selecting a subtitle language
44 - Hearing a different audio
44 - Watching from a different angle
44 - Changing the TV Aspect Ratio

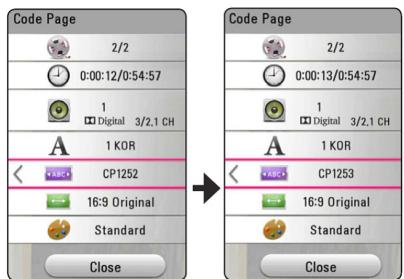

45 - Changing subtitle Code Page

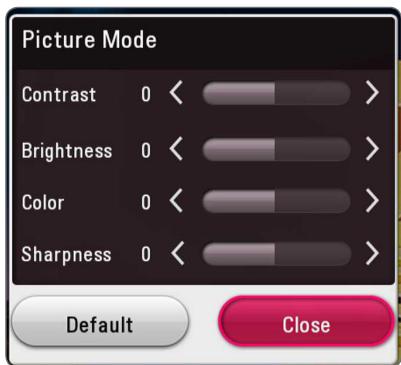

45 - Changing the Picture Mode
46 - Viewing content information

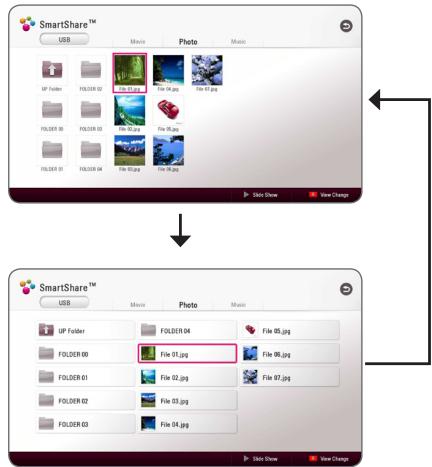

46 - Changing content list view
47 - Selecting a subtitle file

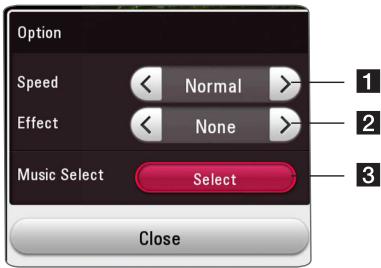

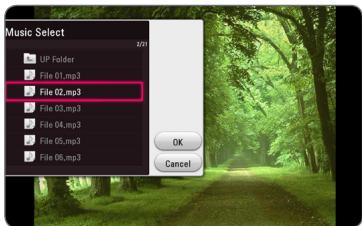

47 - Listening to music during slide show
48 - Playing content to 3D
49 Advanced Features

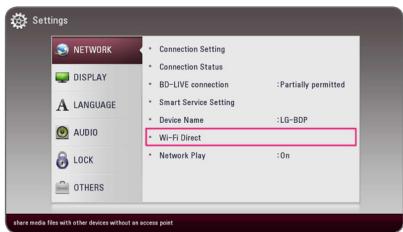

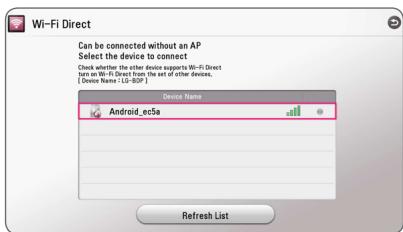

49 - Wi-Fi DirectTM
50 -Enjoying MiracastTM

50 -Enjoying BD-LiveTM
51 -Enjoying web browsing
52 - LG AV Remote
52 - Private Sound Mode
52 - Using an USB keyboard or mouse
53 Using the Premium
53 Using the LG Smart World
54 - Signing in
54 - Searching online content
55 Using the My Apps Menu

73 Important Information Relating to Network Services

5 Troubleshooting

56 Troubleshooting
56 - General
57 - Network
58 - Picture
58 - Customer support
58 - Open source software notice

6 Appendix

59 About Magic Remote Control
60 Network Software Update
60 - Network update notification

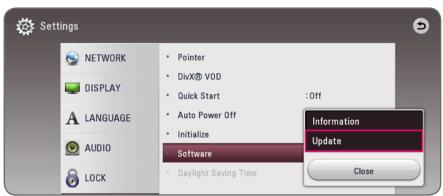

60 - Software update
62 Additional Information
62 - File requirement
63 - AVCHD (Advanced Video Codec High Definition)
64 - About DLNA
64 - Certain system requirements
64 - Compatibility notes
65 Audio Output Specifications
67 Area Code List
68 Language Code List
69 Trademarks and Licenses
71 Specifications
72 Maintenance
72 - Handling the unit
72 - Notes on discs

Some of the content in this manual may differ from your player depending on the software of the player or your service provider.

Introduction

Playable Discs and symbols used in this manual

Media/Term	Logo	Symbol	Description
Blu-ray	Blu-rayDisc 3D Blu-ray 3D ONLY	BD	·Discs such as movies that can be purchased or rented. ·"Blu-ray 3D" discs and "Blu-ray 3D ONLY" discs. ·BD-R/RE discs that are recorded in BDAV format.
		MOVIE MUSIC PHOTO	·BD-R/RE discs that contain Movie, Music or Photo files. ·ISO 9660+JOLIET, UDF and UDF Bridge format
DVD-ROM	DVD VIDEO DVD-R	DVD	·Discs such as movies that can be purchased or rented. ·Movie mode and finalized only ·Supports the dual layer disc also
DVD-RW	DVD-RW	AVCHD	Finalized AVCHD format
DVD-RW DVD+R	DVD+R	MOVIE MUSIC PHOTO	·DVD±R/RW discs that contain Movie, Music or Photo files. ·ISO 9660+JOLIET, UDF and UDF Bridge format
DVD+RW	DVD-ReWritable
DVD-RW (VR)	DVD RW	DVD	VR mode and finalized only
Audio CD	COMPACT DISC DIGITAL AUDIO	ACD	Audio CD
CD-R/RW	COMPACT DISC DIGITAL AUDIO Recordable ReWritable	MOVIE MUSIC PHOTO	·CD-R/RW discs that contain Movie, Music or Photo files. ·ISO 9660+JOLIET, UDF and UDF Bridge format
Note	-	!	Indicates special notes and operating features.
Caution	-	!	Indicates cautions for preventing possible damages from abuse.

! Note

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.
  Depending on the recording software & the finalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.
• BD-R/RE, DVD±R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player's lens.
• If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)
• This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.
• Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions to ensure compatible playback.
• Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.
• You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live System, you cannot use it on LG player. (Mastered/Live File System : Disc format system for windows Vista)

About the “ ” Symbol Display

"O" may appear on your TV display during operation and indicates that the function explained in this owner's manual is not available on that specific media.

Regional Code

This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labelled same as the rear of the unit or "ALL".

System Select

Open the disc tray using the (OPEN/CLOSE) button and then, press and hold red (R) colored button for more than five seconds to change the color system (PAL/NTSC/AUTO).

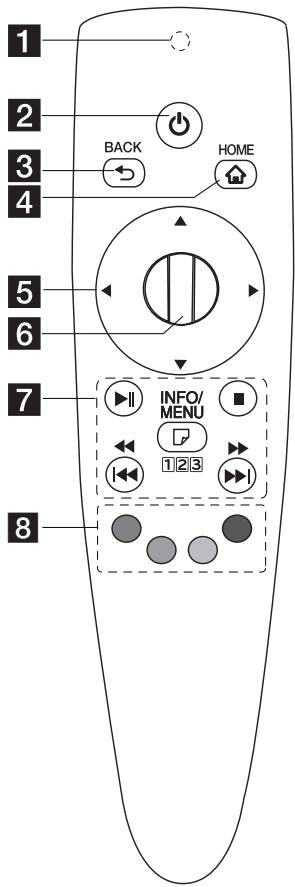

Remote Control

Remote Control Indicator: (RF & Bluetooth transmitter) Blinks when operating.
2 (POWER): Switches the unit ON or OFF.
3 BACK (念) : Exits the menu or returns to the previous screen.
4 HOME (): Displays the Home screen.
5 Direction buttons ( / / / ) : Selects an option in the menu.

If you press the navigation button while moving the pointer on the screen, the pointer disappears, and the Magic remote control works as a regular remote control. To display the pointer again, shake the Magic remote control from side to side.

6 Wheel (B): Selects menus or options and confirms your input; Scrolls the screen to search a menu on the web browser.
7 II (Play/Pause):Starts playback./Pauses playback.

(Stop): Stops playback.
Searches backward or forward. (Press and hold
1▶/▶: Moves previous/ next track or file.
( INFO/MENU): Displays or exits On-Screen Display.
123: If necessary, you can use a virtual numbered keypad. (Press and hold (INFO/MENU))
Colored (R, G, Y, B) buttons:

Use to navigate BD-ROM menus. They are also used as shortcut buttons for specific menus.

Magic remote control functions

The Magic remote control operates by pairing with your unit. Once you purchased the unit, please register the Magic remote control as follows;

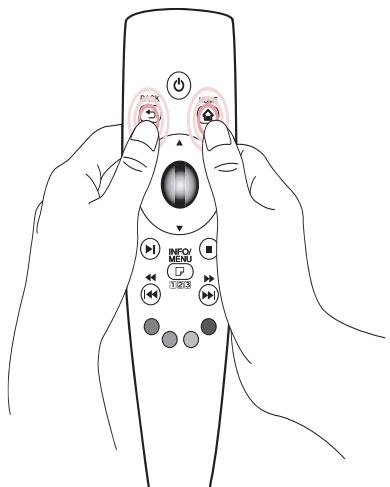

To register the Magic remote control

To use the Magic remote control, register it with your unit first.

1. Turn on the unit and wait for about 10 seconds and then press and hold Wheel (D) button while pointing the remote control at the unit.
2. The remote control is automatically registered and a registration completion message appears on the screen.

Note

If you failed to register the Magic remote control, turn off the unit and try again.

Replacement of battery

Open the battery cover at the bottom of the Remote Control, and insert two (1.5 V AA) alkaline batteries with and matched correctly.

Caution

Do not mix old and new batteries, as this may damage the remote control.

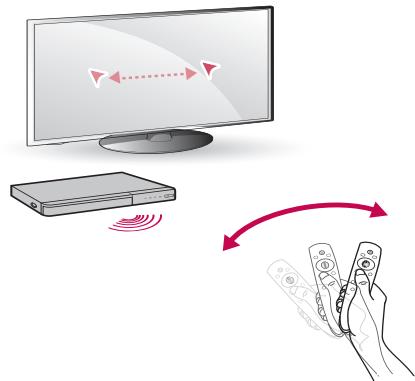

How to use Magic remote control

• Shake the remote control slightly to make the pointer appear on the screen.
• Shake the Magic remote control slightly to the right and left to make the pointer appear on the center of screen.
• The magic pointer disappears when the remote control is not moved for five seconds.

How to use Magic remote tip

• When you press the wheel, it also functions as Selection button.
• You can scroll through menus using the wheel.
• Use your wrist to move the pointer more easily.

Note

• If the Magic remote control's connection is unstable or has any problems, cancel the registration and try it again. (page 59)
  Depending on the content, the pointing of the magic remote control does not work. For controlling, please use the direction keys on the remote.

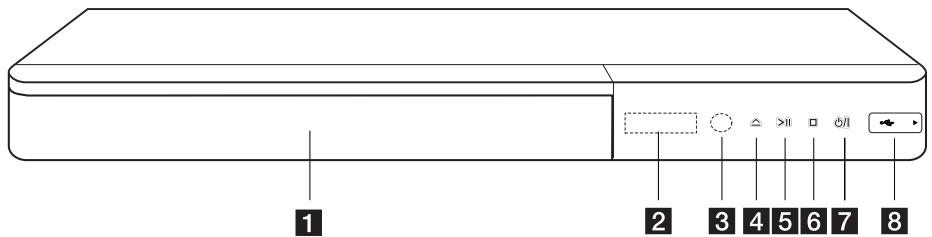

Front Panel

1 Disc Tray
2 Display Window
Remote Sensor
4 (OPEN / CLOSE)

5 >II (PLAY/PAUSE)
6 (STOP)
7 1/1 (POWER)
USB Port

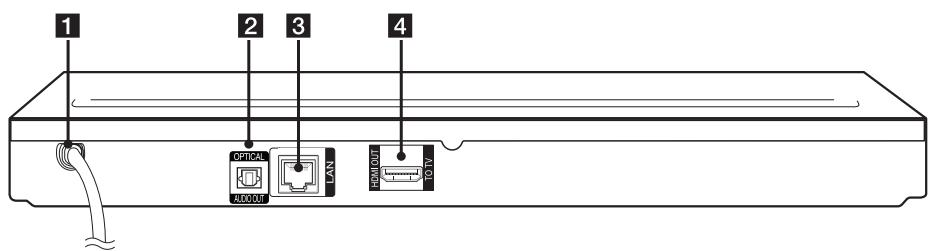

Rear Panel

1 AC power cord
2 DIGITAL AUDIO OUT (OPTICAL)

3 LAN port
4 HDMI OUT

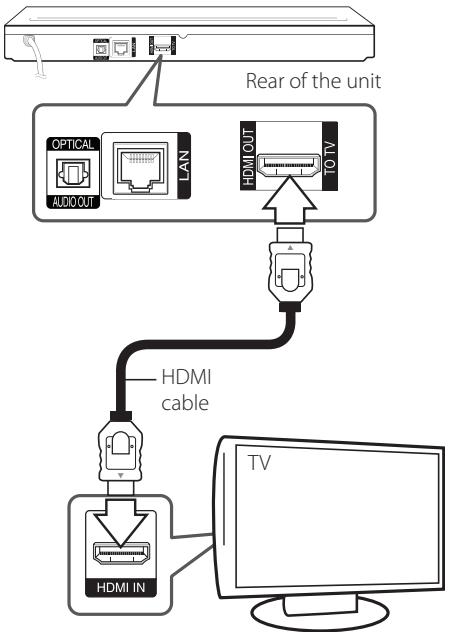

Connecting to Your TV

If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High Speed HDMI™ Cable). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor.

Set the TV's source to HDMI (Refer to TV's Owner's manual).

Note

Please refer to the manuals of your TV, Stereo System or other devices as necessary to make the best connections.

Additional Information for HDMI

• When you connect a HDMI or DVI compatible device make sure of the following:

• Try switching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

• The connected device's video input is set correctly for this unit.

• The connected device is compatible with 720x576p, 1280x720p, 1920x1080i or 1920x1080p video input.

• Not all HDCP-compatible HDMI or DVI devices will work with this player.

• The picture will not be displayed properly with non-HDCP device.

Note

• If a connected HDMI device does not accept the audio output of the player, the HDMI device's audio sound may be distorted or may not output.
• When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to "Resolution Setting" on page 14)
• Select the type of video output from the HDMI OUT jack using [HDMI Color Setting] option on the [Settings] menu (see page 26).
• Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again.
• When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.
• If there are noises or lines on the screen, please check the HDMI cable (length is generally limited to 4.5m ).

What is SIMPLINK?

SIMPLINK

Some functions of this unit are controlled by the TV's remote control when this unit and LG TV's with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV's remote control; Play, Pause, Scan, Skip, Stop, Power Off, etc.

Refer to the TV owner's manual for the details of SIMPLINK function.

LG TV's with SIMPLINK function has the logo as shown above.

Note

Depending on the disc type or playing status, some SIMPLINK operation may differ from your purpose or not work.

Resolution Setting

The player provides several output resolutions for HDMI OUT jack. You can change the resolution using [Settings] menu.

1. Press HOME (A).
2. Use / to select the [Settings] and press Wheel (D). The [Settings] menu appears.
3. Use / to select [DISPLAY] option then press to move to the second level.
4. Use / to select the [Resolution] option then press Wheel (D) to move to the third level.

1. Use / to select the desired resolution then press Wheel (D) to confirm your selection.

Note

• If your TV does not accept the resolution you have set on the player, you can set resolution to 576p as follows:

• Press to open the disc tray.

• Press (STOP) for more than 5 seconds.
• If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].
• If you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.
• The 1080p video output frame rate may be automatically set to either 24Hz or 50Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

Connecting to an Amplifier

Make one of the following connections, depending on the capabilities of your existing equipment.

HDMI Audio connection (page 15)
Digital Audio connection (page 16)

Since many factors affect the type of audio output, see "Audio Output Specifications" for details (page 65).

About Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this, you need a multi-channel Audio/Video Receiver that supports one or more of the audio formats supported by your player. Check the logos on the front of the Audio/ Video receiver and the manual. (PCM Stereo, PCM Multi-Ch, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and/or DTS-HD)

Connecting to an Amplifier via HDMI Output

Connect the player's HDMI OUT jack to the corresponding in jack on your amplifier using a HDMI cable.

Connect the amplifier's HDMI output jack to HDMI input jack on your TV using a HDMI cable if your amplifier has HDMI output jack. (Refer to amplifier's owner's manual)

You will need to activate the player's digital output. (See "[AUDIO] Menu" on page 27.)

Connecting to an Amplifier via Digital Audio Output

Connect the player's OPTICAL AUDIO OUT jack to the corresponding in jack on your amplifier using an optional digital audio cable.

Receiver/Amplifier

You will need to activate the player's digital output.

(See "[AUDIO] Menu" on page 27.)

Connecting to your Home Network

This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module.

By connecting the unit to a broadband home network, you have access to services such as software updates, BD-Live interactivity and on-line content services.

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.

Please refer to the documentation for your network device for further instructions.

Connect the player's LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable.

Note

• When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.
• Do not connect a modular phone cable to the LAN port.
• Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider.
• If you want to access content from DLNA servers, this player must be connected to the same local area network with them via a router.
• To set your PC as a DLNA server, install the SmartShare PC Software on your PC. (page 37)

Rear of the unit

Wired Network Setup

If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player's network setting to be adjusted. Adjust the [NETWORK] setting as follow.

Preparation

Before setting the wired network, you need to connect the broadband internet to your home network.

1. Select [Connection Setting] option in the [Settings] menu then press Wheel (D).

1. Read the preparations for the network settings and then press Wheel (D) while [Start] is highlighted.

Network will automatically be connected to the unit.

Advanced Setting

If you want to set the network settings manually, use / to select [Advanced Setting] on the [Network Setting] menu and press Wheel (ID).

1. Use / to select [Wired] and press Wheel (D).

1. Use / / / to select the IP mode between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP address automatically.

! Note

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server].

1. Select [Next] and press Wheel (D) to apply network settings.

Network connection status is displayed on the screen.

1. Press Wheel (D) while [OK] is highlighted to finish the wired network settings.

Wireless network connection

Another connection option is to use an Access Point or a wireless router. The network configuration and connection method may vary depending on the equipment in use and the network environment.

Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

For best performance, a direct wired connection from this player to your home network's router or cable/DSL modem is always the best option. If you do chose to use the wireless option, note that performance can sometimes be affected by other electronic devices in the home.

Wireless network setup

For the wireless network connection, the player needs to be set up for network communication. This adjustment can be done from the [Settings] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network.

Preparation

Before setting the wireless network, you need to:

• connect the broadband internet to the wireless home network.
• set the access point or wireless router.

• note the SSID and security code of the network.

• Select [Connection Setting] option in the [Settings] menu then press Wheel (D).

• Read the preparations for the network settings and then press Wheel (B) while [Start] is highlighted.

If wired network is not connected to the unit, all available networks are displayed on the screen.

1. Use / to select a desired SSID of wireless network and press Wheel (B).

If you have security on your access point, you need to input the security code as necessary.

! Note

If you use other characters than the english alphabet or digits for the SSID name of your access point or wireless router, it may be displayed differently.

Note

• WEP security mode generally have 4 keys available on an access point setting. If your access point or wireless router use WEP security, enter the security code of the key "No.1" to connect on your home network.

• An Access Point is a device that allows you to connect to your home network wirelessly.

• Use / / / to select the IP mode between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP address automatically.

Note

If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server].

1. Select [Next] and press Wheel (D) to apply network settings.

Network connection status is displayed on the screen.

1. Select [OK] and press Wheel (P) to complete the network connection.

Advanced Setting

If you want to set the network settings manually, use / to select [Advanced Setting] on the [Network Setting] menu and press Wheel (ID).

1. Use / to select [Wireless] and press Wheel (D).

[AP List] - Scans all available access points or wireless routers within range and display them as a list.

[Network name (SSID)] - Your access point may not be broadcasting its network name (SSID). Check your access point settings through your computer and either set your access point to broadcastSSID, or manually enter the network name in [Network nameSSID)].

[PBC] - If your access point or wireless router that supports the PBC (Push Button Configuration) method, select this option and press the Push Button on your access point within 120 counts. You do not need to know the network name (SSID) and security code of your access point.

[PIN] - If your access point supports the PIN Code configuration method based on WPS(Wi-Fi Protected Setup), select this option and note the code number on the screen. And then, enter the PIN number on a setting menu of your access point to connect. Refer to the documentation for your network device.

1. Follow the instructions of each connection method on the screen.

Note

To use PBC and PIN network connection, security mode of your access point must be set to OPEN or AES.

Notes on Network Connection

• Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the player to the home network, quickly power off and/or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.
• Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.
• Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.
• The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.
• Some internet contents may require a higher bandwidth connection.
• Even if the player is properly connected and configured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.
• Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.
• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
• A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.
• You must use a Router to use xDSL service.
• A DSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and

subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

• The use of a "Router" may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.
• The wireless network operates at 2.4 GHz radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be affected by interference from them.
• Turn off all unused network equipment in your local home network. Some devices may generate network traffic.
• For the purpose of the better transmission, placing the player from the access point as close as possible.
• In some instances, placing the access point or wireless router at least 0.45m above the floor may improve the reception.
• Move closer to the access point if possible or reorient the player so there is nothing between it and the access point.
• The reception quality over wireless depends on many factors such as type of the access point, distance between the player and access point, and the location of the player.
• Set your access point or wireless router to Infrastructure mode. Ad-hoc mode is not supported.

Initial Setup

When you turn on the unit for the first time, the initial setup wizard appears on the screen. Set the display language and network settings on the initial setup wizard.

1. Press (POWER).

The initial setup wizard appears on the screen.

1. Use / / / to select a display language and press Wheel (B).

1. Try the some features of your Magic remote control by following the guide on the screen.

1. Read and prepare the preparations for the network settings and then press Wheel (I) while [Start] is highlighted.

If wired network is connected, the network connection setting will automatically be finished.

1. All available networks are displayed on the screen. Use / to select [Wired Network] or desired SSID of wireless network and press Wheel (D).

If you have security on your access point, you need to input the security code as necessary.

1. Use / / / to select the IP mode between [Dynamic] and [Static].

Normally, select [Dynamic] to allocate an IP address automatically.

1. Select [Next] and press Wheel (P) to apply network settings.

Network connection status is displayed on the screen.

For details on network settings, refer to "Connecting to your Home Network" on page 17.

1. Check all the settings that you have set in the previous steps.

Press Wheel (▶) while [Finish] is highlighted to finish the initial setup settings. If there is any settings to be changed, use / / / to select and press Wheel (▶).

1. Displays private sound mode guide. Press Wheel (D).

Settings

Adjust the Setup Settings

You can change the settings of the player in the [Settings] menu.

1. Press HOME (A).

1. Use / to select the [Settings] and press Wheel (P). The [Settings] menu appears.

1. Use / to select the first setup option, and press Wheel (to the second level.

1. Use / to select a second setup option, and press Wheel (P) to move to the third level.

1. Use / to select a desired setting, and press Wheel (P) to confirm your selection.

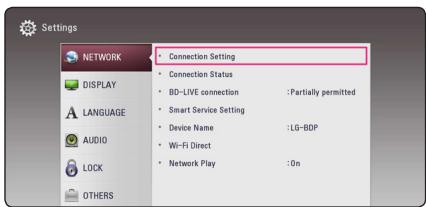

[NETWORK] Menu

The [NETWORK] settings are needed to use the software update, BD-Live and on-line content services.

Connection Setting

If your home network environment is ready to connect the player, the player needs to be set the wired or wireless network connection for network communication. (See "Connecting to your Home Network" on page 17.)

Connection Status

If you want to check the network status on this player, select the [Connection Status] options and press Wheel (P) to check whether a connection to the network and the internet have been established.

BD-LIVE connection

You can restrict Internet access when BD-Live functions are used.

[Permitted]

Internet access is permitted for all BD-Live contents.

[Partially permitted]

Internet access is permitted only for BDLive contents which have content owner certificates. Internet access and AACS Online functions are prohibited for all BD-Live contents without a certificate.

[Prohibited]

Internet access is prohibited for all BD-Live contents.

Smart Service Setting

[Country Setting]

Select your area for displaying proper online content service.

[Initialize]

Depending on the region, [Initialize] function may not be available.

Device Name

You can make a network name using virtual keyboard. This player will be recognised by the name you are entering on your home network.

Wi-Fi Direct

This player is a Wi-Fi Direct™ certified device. Wi-Fi Direct is the technology that devices to connect each other without connecting to an Access point or a router. Press Wheel (1) to display the Wi-Fi Direct menu. Refer to page 49 for the device connection.

Network Play

This function allows you to control the playback of media streamed from DLNA media server by a DLNA certified smartphone. Most DLNA certified smartphone has a function to control the playback media on your home network. Set this option to [On] for allowing your smartphone to control this unit. Refer to instructions of your DLNA certified smartphone or the application for more detailed information.

Note

• This unit and the DLNA certified smartphone must be connected to the same network.
• To use the [Network Play] function using a DLNA certified smartphone, press HOME (to display the home menu before connecting to this unit.
• While controlling the unit using the [Network Play] function, the remote control may not work.
• Available file formats described on page 62 are not always supported on [Network Play] function.

[DISPLAY] Menu

TV Aspect Ratio

Select a TV aspect ratio option according to your TV type.

[4:3 Letter Box]

Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.

[4:3 Pan Scan]

Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both sides of the picture are cut off.

[16:9 Original]

Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.

[16:9 Full]

Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to fill the entire screen.

Note

You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

Resolution

Sets the output resolution of the HDMI video signal. Refer to page 14 for details about the resolution setting.

[Auto]

If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.

[576p]

Outputs 576 lines of progressive video.

[720p]

Outputs 720 lines of progressive video.

[1080i]

Outputs 1080 lines of interlaced video.

[1080p]

Outputs 1080 lines of progressive video.

Ultra HD Upscaling

This feature allows the unit to up-scale the original video resolution to Ultra HD resolution and output via HDMI connection.

[Auto]

If you connect a display capable of displaying Ultra HD resolution, this unit will output video signals in Ultra HD resolution automatically.

[Off]

The unit will turn off the Up-scaling feature.

Note

• This unit will output video signals in Ultra HD resolution when it plays BD-ROM disc formatted in 24Hz .
• The playback pictures may be momentarily interrupted when the resolutions switch.

108Op Display Mode

When the resolution is set to 1080p, select [24 Hz] for smooth presentation of film material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input.

Note

• When you select [24 Hz], you may experience some picture disturbance when the video switches video and film material. In this case, select [50 Hz].
• Even when [1080p Display Mode] is set to [24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 50 Hz to match the video source format.

HDMI Color Setting

Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device.

[YCbCr]

Select when connecting to a HDMI display device.

[RGB]

Select when connecting to a DVI display device.

3D Mode

Select the type of output mode for Blu-ray 3D disc playback. (This function is activated only when 3D TV is connected.)

[On]

Blu-ray 3D disc playback will output as 3D mode.

[Off]

Blu-ray 3D disc playback will output as 2D mode like a normal BD-ROM disc playback.

Home Menu Guide

This function allows you to display or delete the guide bubble on the Home Menu. Set this option to [On] for displaying guide.

[LANGUAGE] Menu

Display Menu

Select a language for the [Settings] menu and on-screen display.

Disc Menu/Disc Audio/ Disc Subtitle

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

[Original]

Refers to the original language in which the disc was recorded.

[Other]

Press Wheel (D) to select another language. Enter the corresponding 4-digit number according to the language code list on page 68.

[Off] (Disc Subtitle only)

Turn off subtitle.

Note

Depending on the disc, your language setting may not work.

[AUDIO] Menu

Each disc has a variety of audio output options. Set the player's Audio options according to the type of audio system you use.

Note

Since many factors affect the type of audio output, see "Audio Output Specifications" on page 65 for details.

Digital Output

[Auto]

Select if you connect this unit's DIGITAL AUDIO OUT and HDMI OUT jack to a device with LPCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS and DTS-HD decoder.

[PCM]

Select if you connect this unit's HDMI OUT jack to a device with digital decoder or DIGITAL AUDIO OUT jack to a device with two channel digital stereo decoder.

[DTS Re-Encode]

Select if you connect this unit's HDMI OUT or DIGITAL AUDIO OUT jack to a device with DTS decoder.

Note

• When [Digital Output] option is set to [Auto], the audio may output as bitstream. If the bitstream information is not detected from HDMI device with EDID, the audio may output as PCM.
• If the [Digital Output] option is set to [DTS Re-Encode], the DTS Re-Encode audio is outputted for BD-ROM discs with secondary audio and the original audio is outputted for the other discs (like [Auto]).

Sampling Freq. (Digital Audio Output)

[48kHz]

Select this if your A/V Receiver or Amplifier is not capable of handling 192 kHz and 96 kHz signal. When this choice is made, this unit automatically converts any 192 kHz and 96 kHz signals to 48 kHz so your system can decode them.

[96kHz]

Select this if your A/V Receiver or Amplifier is not capable of handling 192kHz signals. When this choice is made, this unit automatically converts any 192kHz signals to 96kHz so your system can decode them.

[192 kHz]

Select this if your A/V Receiver or Amplifier is capable of handling 192kHz signals.

Check the documentation for your A/V Receiver or Amplifier to verify its capabilities.

DRC (Dynamic Range Control)

This function allows you to listen to a movie at a lower volume without losing clarity of sound.

[Auto]

The dynamic range of the Dolby TrueHD audio output is specified by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode.

[On]

Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output.

[Off]

Turns off this function.

Note

The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

[LOCK] Menu

The [LOCK] settings affect only BD-ROM and DVD playback.

To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created.

If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press Wheel (P) to create a new password.

Password

You can create or change the password.

[None]

Enter a 4-digit password twice, and press

Wheel (D) to create a new password.

[Change]

Enter the current password and press Wheel

(1). Enter a 4-digit password twice, and press

Wheel (D) to create a new password.

If you forget your password

If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.
2. Highlight [Password] option in the [Settings] menu.
3. Use colored buttons to enter "Red -> Green -> Yellow -> Green -> Yellow -> Blue".

The password is cleared.

DVD Rating

Blocks playback of rated DVD based on their content. (Not all discs are rated.)

[Rating 1-8]

Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

[Unlock]

If you select [Unlock], parental control is not active and the disc plays in full.

Blu-ray Disc Rating

Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing.

[255]

All BD-ROM can be played.

[0-254]

Prohibits play of BD-ROM with corresponding ratings recorded on them.

Note

The [Blu-ray Disc Rating] will be applied only for the Blu-ray disc that containing the Advanced Rating Control.

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 67.

[OTHERS] Menu

Pointer

Sets the speed and size of the Magic remote control's magic pointer.

[Speed]

Sets the moving speed of the magic pointer.

[Size]

Chooses the size of the magic pointer.

DivX® VOD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVXVIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.

[Register]

Displays the registration code of your player.

[Deregister]

Deactivate your player and display the deactivation code.

Note

All the downloaded videos from DivX(R) VOD with this player's registration code can only be played on this unit.

Quick Start

This player can stay in standby mode with low power consumption, so that the player can instantly boot without delay when you turn on this unit. Set this option to [On] for activating [Quick Start] function.

Note

• If [Quick Start] option is set to [On] and an AC power is accidentally re-connected to the player by power failure etc., the player automatically boots itself to be the standby status. Before operating the player, wait for a while until the player is in standby status.
• When [Quick Start] is set to [On], power consumption will be higher than when [Quick Start] is set to [Off].

Auto Power Off

The screen saver appears when you leave the player in Stop mode for about 5 minutes. If you set this option to [On], the unit automatically turns off within 15 minutes since the Screen Saver is displayed. Set this option to [Off] to leave the screen saver until the unit is operated by the user.

Initialize

[Factory Set]

You can reset the player to its original factory settings.

[Blu-ray Storage Clear]

Initializes the BD-Live contents from the connected USB storage.

Note

If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the on-line services and network settings again.

Software

[Information]

Displays the current software version.

[Update]

You can update the software by connecting the unit directly to the software update server (see page 60).

Daylight Saving Time

When you use the BBC App, this function sets the time ahead one hour for daylight saving time (GMT+1).

[On]

Sets the time ahead one hour.

[Off]

Turns off this function.

Home Menu Display

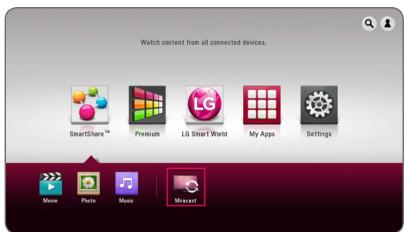

Using [HOME] menu

The home menu appears when you press HOME (). Use / / / to select a category and press Wheel ().

Note

Depending on the region, the [LG Smart World], [My Apps], [Q] and [A] may not be available.

1 [SmartShare] - Displays SmartShare menu.
[Premium] - Displays the Premium home screen. (page 53)
[LG Smart World] - Displays LG Apps titles provided to the unit. (page 53)
[My Apps] - Displays the [My Apps] screen. (page 55)
[Settings] - Adjusts the system settings.
[Q] - Searches for desired LG Apps and other content.
7 [2] - Displays login menu.

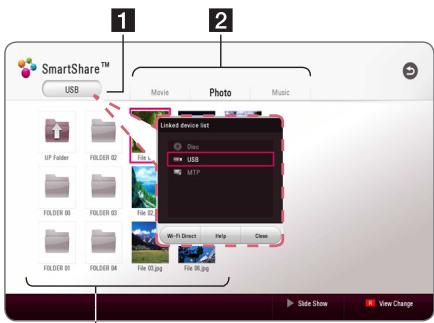

Using the SmartShare

You can play video, photo and audio content on the unit by inserting a disc, connecting an USB device and Android device (MTP) or using home network (DLNA).

1. Press HOME (to display the home menu.
2. Select [SmartShare] and press Wheel (D).

3

1 Displays all linked devices.
2 Displays video, photo or audio content.
3 Displays the file or folder on linked device.

Playing the Linked Devices

Playing a Disc

BD DVD AVCHD ACD

1. Press (OPEN/CLOSE), and place a disc on the disc tray.
2. Press (OPEN/CLOSE) to close the disc tray. For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.
3. Press HOME (H) and then select [SmartShare].
4. Select disc icon.

! Note

• Playback functions described in this manual are not always available in every files and media. Some functions can be restricted depending on many factors.
  Depending on the BD-ROM titles, a USB device connection may be needed for the proper playback.
• Unfinalized DVD-VR format discs may not be played in this player.
• Some DVD-VR discs are made with CPRM data by DVD REORDER. This unit cannot support these kinds of discs.

Playing Blu-ray 3D disc

BD

This player can play the Blu-ray 3D discs which contains separate views for the left and right eyes.

Preparation

In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to:

• Check your TV is 3D capable and has HDMI input(s).
• Wear 3D glasses to enjoy the 3D experience if it is necessary.
• Check whether the BD-ROM title is the Blur ray 3D disc or not.

• Connect an HDMI cable (Type A, High Speed HDMI™ Cable) between the player's HDMI output and TV's HDMI input.

• Press HOME (u), and set the [3D Mode] option on the [Settings] menu to [On] (page 26).

• Press (OPEN/CLOSE), and place a disc on the disc tray.
• Press (OPEN/CLOSE) to close the disc tray. The playback starts automatically.
• Refer to the owner's manual of your 3D-ready TV for the further instruction.

You may need to adjust the display settings and focus on your TV's setting for the improved 3D effect.

Caution

• Watching a 3D content for a long period time may cause dizziness or tiredness.
• It is not recommended to watch a movie in 3D mode for infirm, child and pregnant woman.
• If you are experiencing headache, tiredness or dizziness while viewing contents in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

Playing a file on disc/USB device

MOVIE MUSIC PHOTO

This player can play video, audio and photo files contained in the disc or USB device.

1. Insert a data disc on the tray or connect an USB device.

When you connect the USB device on the HOME menu, the player plays an audio file contained in the USB storage device automatically. If the USB storage device is containing various types of files, a menu for the file type selection will appear.

File loading may take few minutes depending on the number of content stored in the USB storage device. Press Wheel (D) while [Cancel] is selected to stop loading.

1. Press HOME (A).
2. Select [SmartShare] and press Wheel (D).

1. Select the desired linked device in the category.
2. Select [Movie], [Photo] or [Music].
3. Select a file using / / / , and press Play/Pause or Wheel (D) to play the file.

Notes on USB device

• This player supports USB flash drive/external HDD formatted in FAT32 and NTFS when accessing files (music, photo, movie). However, for BD-Live, use the USB flash drive / external HDD formatted in FAT32.
  This unit can support up to 4 partitions of the USB device.
• Do not extract the USB device during operation (play, etc.).
• An USB device which requires additional program installation when you have connected it to a computer, is not supported.
• USB device: USB device that supports USB1.1 and USB2.0.
• Video, audio and photo files can be played. For details of playing each file type, refer to the relevant pages.
• Regular back up is recommended to prevent data loss.
• If you use an USB extension cable, USB HUB or USB Multi-reader, the USB device may not be recognized.
• Some USB device may not work with this unit.
• Some digital cameras and mobile phones are not supported.
• USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device.

Playing a file on Android device

MOVIE MUSIC PHOTO

This player can play video, audio and photo files contained in the Android device.

1. Connect the Android device to the unit with USB cable. Make sure that MTP is activated on Android device.

1. Press HOME (A).
2. Select [MTP] and press Wheel (B).

File loading may take few minutes depending on the number of content stored in the Android device.

1. Select [Movie], [Photo] or [Music].

1. Select a file using / / / , and press Play/Pause) or Wheel (D) to play the file.

Notes on Connecting Android device

• This unit can support only the MTP (Media Transfer Protocol) Android device.
• Do not extract the Android device during operation (play, etc.).
• Video, audio and photo files can be played. For details of operations on each file, refer to relevant pages.
• Regular back up is recommended to prevent data loss.
• If you use an USB extension cable, USB HUB or USB Multi-reader, the Android device may not be recognized.
• Some Android devices may not work with this unit.
• When you use MTP, playing some music, photo, movie, or subtitle files may not work depending on the Android device.

Playing a file on a network server

MOVIE MUSIC PHOTO

This player can play video, audio and photo files located in a DLNA server through your home network.

1. Check the network connection and settings (page 17).
2. Press HOME (A).
3. Select [SmartShare] and press Wheel (D).

1. Select a DLNA media server in the category.
2. Select [Movie], [Photo] or [Music].
3. Select a file using / / / , and press Play/Pause) or Wheel (D) to play the file.

! Note

• The file requirements are described on page 62.
• The thumbnail of the unplayable files can be displayed, but those cannot be played on this player.
• The subtitle file name and video file name have to be the same and located at the same folder.
• The playback and operating quality may be affected by your home network condition.
• You may experience connection problems depending on your server's environment.
• To set your PC as a DLNA server, install the SmartShare PC Software on your PC. (page 37)

Using Home Network Server for PC

DLNA stands for Digital Living Network Alliance, which allows users to access video, photo and audio files stored in server and enjoy them on TV via home networking.

Before connecting to PC to play a file, SmartShare PC Software (DLNA) should be installed on your PC.

About SmartShare PC Software (DLNA)

SmartShare PC Software (DLNA) is for sharing video, audio and photo files stored on your computer to this unit as a DLNA-compatible digital media server.

Downloading SmartShare PC Software (DLNA)

1. Start up your computer, visit http://www-lg.com. If necessary, select your region.
2. Click support tab.
3. Fill your model name on the cover of owner's manual in search bar.
4. Find and download the "SmartShare PC Software (DLNA)" file.

Installing SmartShare PC Software (DLNA)

1. Before installation, close all running programs including firewall and Anti-Virus programs.
2. Unzip and double-click "Setup.exe" to install SmartShare PC Software (DLNA). The installation is prepared and the installation wizard appears.
3. Follow the directions of the installation wizard displayed on the screen.
4. Click the [Exit] button to complete the installation.

! Note

• SmartShare PC Software is not supported with Mac OS.
• The SmartShare PC Software (DLNA) is a customized software edition only for sharing files and folders to this player.
• This manual explains operations with the English version of SmartShare PC Software (DLNA) as examples. Follow the explanation referring to the actual operations of your language version.

Sharing files and folders

On your computer, you must share the folder containing video, audio and/or photo content to play them on this player.

This part explains the procedure for selecting the shared folders on your computer.

1. Double-click the "SmartShare" icon.
2. Click [Movie], [Photo] or [Music] icon on the center, and then click [Settings] on the top right corner of the SmartShare PC Software. The [Settings] menu appears on the screen.
3. Click [My Shared Contents] tab, and then click icon. The [Add/Remove Shared Folders] menu appears on the screen.
4. Click the folder containing the files you want to share and then click the [OK]. The checked folder is added to the [My Shared Contents] and then click the [OK] at the bottom of the [Settings] menu.
5. Make sure that the SmartShare (DLNA) service turns on at the [Service] tab.

Note

• If the shared folders or files are not displayed on the player, click the [My Shared Contents] on the [Settings] menu, and then click icon.
• For more information, click [HELP] on the [Settings] menu.

System requirements

Minimum System

CPU: Intel® 2.0 GHz or AMD Sempron™ 2000+ processors
Memory:1GBof free RAM
- Graphics card : 64 MB video memory, minimum resolution of 1024 x 768 pixels, and 16 bit color settings
Free Disk Space : 200 MB
- Windows® XP (Service Pack 2 or higher), Windows Vista®, Windows® 7, Windows® 8.0, Windows® 8.1
- Windows® Media Player® 11.0 or higher
Network environment: 100 Mb Ethernet, WLAN

Recommended System

CPU: Intel® Core™ Duo or AMD Athlon™ 64X2, 1.7 GHz or better
Memory:2GBof free RAM
- Graphics card : 128 MB video memory, minimum resolution of 1024 × 768 pixels,and 16 bit color settings
Free Disk Space : 200 MB
- Windows® XP (Service Pack 2 or higher), Windows Vista®, Windows® 7, Windows® 8.0, Windows® 8.1
- Windows® Media Player® 11.0 or higher
Network environment: 100 Mb Ethernet, WLAN

GeneralPlayback

Basic operations for video and audio content

To stop playback

Press (STOP) during playback.

To pause playback

Press (Play/Pause) during playback. Press (Play/Pause) to resume playba

To scan forward or backward

Press and hold 1 or 2 to play fast forward or fast reverse during playback. On scanning you can change the various playback speeds by pressing 1 or 2 repeatedly.

To slow down the playing speed (Video)

While the playback is paused, press and hold and press repeatedly to play various speeds of slow motion.

To skip to the next/previous chapter/track/file

During playback, press or to go to the next chapter/track/file or to return to the beginning of the current chapter/track/file.

Press twice briefly to step back to the previous chapter/track/file.

In the file list menu of a server, there may have many types of content in a folder together. In this case, press 14 or 24 to go to the previous or next content with same type.

Basic operations for photo content

To play a slide show

Press (Play/Pause) to start slide show.

To stop a slide show

Press (STOP) while slide show.

To pause a slide show

Press▶II Play/Pause) while slide show. Press▶II Play/Pause) to re-start the slide show.

To skip to the next/previous photo

While viewing a photo in full screen, press or to go to the previous or next photo.

Resume playback

BD DVD AVCHD MOVIE ACD

MUSIC

The unit records the point where you pressed the

(STOP) depending on the disc.

If"■ (Resume Stop)" appears on the screen briefly, press (Play/Pause) to resume playback (from the scene point).
If you press (STOP) twice or unload the disc,
"■(Complete Stop)" appears on the screen. The unit will clear the stopped point.

Note

• The resume point may be cleared when a button is pressed (for example; (POWER), (OPEN/CLOSE), etc).
• On BD-ROM discs with BD-J, the resume playback function does not work.
• If you press (STOP) once during BD-ROM interactive title playback, the unit will be in Complete Stop mode.

Last Scene Memory

BD DVD

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch off the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note

• Last Scene Memory function for a previous disc is erased once a different disc is played.
• This function may not work depending on the disc.
• On BD-ROM discs with BD-J, the last scene memory function does not work.
• This unit does not memorize settings of a disc if you switch off the unit before commencing to play it.

On-Screen Display

You can display and adjust various information and settings about the content.

To control video playback

BD DVD AVCHD MOVIE

You can control playback and set options while watching videos.

During playback, press INFO/MENU

1 Progress bar - Displays the current position and total playing time.
2 [Disc Menu] - Accesses menu on a disc.
3 [Title/Popup] - Displays the DVD title menu or BD-ROM's pop-up menu, if available.
4 [Option] - Displays playback information.
5 [Repeat] - Repeats a desired section or sequence. (page 43)
6 [3D] - Adjusts the 3D setting. (page 48)

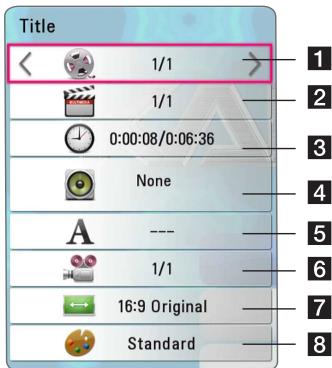

Displaying content information on-screen

BD DVD AVCHD MOVIE

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (D).

1 Title - Current title number/total number of titles
Chapter - Current chapter number/total number of chapters
Time - Elapsed playing time/total playback time
4 Audio - Selected audio language or channel
5 Subtitle - Selected subtitle.
6 Angle - Selected angle/total number of angles
TV Aspect Ratio - Selected TV aspect ratio
Picture Mode - Selected picture mode

! Note

• If no button is pressed for a few seconds, the on-screen display disappears.
• A title number cannot be selected on some discs.
• Available items may differ depending on discs or titles.
• If an interactive Blu-ray Disc is playing back, some setting information is displayed on the screen but prohibited to be changed.

To control photo view

Controls playback and sets options while viewing pictures in full screen.

You can control playback and set options while viewing pictures in full screen.

While viewing pictures, press INFO/MENU () .

1 [Slideshow] - Starts or pause slide show.
2 [Music] - Select the background music for the slide show.
3 [Option] - Displays slide show options.
4 [Rotate] - Rotates the photo clockwise.
5 [Zoom] - Displays the [Zoom] menu.

Setting the slide show option

You can use various options during viewing a photo in full screen.

1. While viewing pictures, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (B).

1 [Speed] - Use / to select a delaying speed between photos in a slide show.
2 [Effect] - Use / to select a transition effect between photos in a slide show.
3 [Music Select] - Select the background music for the slide show (page 47).

AdvancedPlayback

Repeat playback

BD DVD AVCHD ACD MUSIC MOVIE

Blu-ray Disc / DVD / Video files

1. During playback, press INFO/MENU (□).
2. Select an [Repeat] using / , and press Wheel (D)

A-B - Selected portion will be repeated continually.

Chapter – The current chapter will be played back repeatedly.

Title - The current title will be played back repeatedly.

All - All the titles or files will be played back repeatedly.

Off - Returns to normal playback.

Audio CDs/Audio files

During playback, select [Repeat] and press Wheel (P) repeatedly to select a desired repeat mode.

• Selected portion will be repeated continually. (Audio CD only)
  Track - The current track or file will be played back repeatedly.
  All - All the tracks or files will be played back repeatedly.
  All - All the tracks or files will be played back repeatedly in random order.
• The tracks or files will be played back in random order.

Note

This function may not work on some disc or title.

Repeating a specific portion

BD DVD AVCHD ACD MOVIE

This player can repeat a portion you have selected.

1. During playback, press INFO/MENU () .
2. Select an [Repeat] using / , and press Wheel (D).
3. Select [A-B] and press Wheel (D).
4. Press Wheel (1) at the beginning of the portion you wish to repeat.
5. Press Wheel (D) at the end of the portion. Your selected portion will be repeated continually.

Note

• You cannot select a portion less than 3 seconds.
  This function may not work on some disc or title.

Playing from selected time

BD

DVD

AVCHD

MOVIE

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (B).
3. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right.

For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter "21020".

Press to skip the playback 60 seconds forward or backward.

1. Press Wheel (D) to start playback from selected time.

Note

• This function may not work on some disc or titles.
• This function may not work depending on the file type and ability of the DLNA server.

Selecting a subtitle language

BD DVD AVCHD MOVIE

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (D).
3. Use / to select the [Subtitle] option.
4. Press / to select desired subtitle language. By pressing Wheel (D), you can set various subtitle options.
5. Press BACK (D) to exit the On-Screen display.

! Note

Some discs allow you to change subtitle selections only via the disc menu. If this is the case, choose the appropriate subtitle from the selections on the disc menu.

Hearing a different audio

BD DVD AVCHD MOVIE

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (B).
3. Use / to select the [Audio] option.
4. Use / to select desired audio language, audio track or audio channel.
5. Press BACK (S) to exit the On-Screen display.

! Note

• Some discs allow you to change audio selections only via the disc menu. In this case, choose the appropriate audio from the selections on the disc menu.
• Immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound.
• On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display.

Watching from a different angle

BD DVD

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (D).
3. Use / to select the [Angle] option.
4. Use / to select desired angle.
5. Press BACK (S) to exit the On-Screen display.

Changing the TV Aspect Ratio

BD AVCHD MOVIE

You can change the TV aspect ratio setting during playback.

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (D).
3. Use / to select the [TV Aspect Ratio] option.
4. Use / to select desired option.
5. Press BACK (D) to exit the On-Screen display.

! Note

Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Settings] menu is not changed.

Changing subtitle Code Page MOVIE

If the subtitle is displayed in broken letter, you can change the subtitle code page to view the subtitle file properly.

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (B).
3. Use / to select the [Code Page] option.
4. Use / to select desired code option.

1. Press BACK (D) to exit the On-Screen display.

Changing the Picture Mode BD DVD AVCHD MOVIE

You can change the [Picture mode] option during playback.

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (P).
3. Use / to select the [Picture Mode] option.
4. Use / to select desired option.
5. Press BACK (D) to exit the On-Screen display.

Setting the [User setting] option

1. During playback, press INFO/MENU (□).
2. Select an [Option] using / , and press Wheel (D).
3. Use / to select the [Picture Mode] option.
4. Use / to select the [User setting] option, and press Wheel (P).

1. Use / / / to adjust the [Picture Mode] options.

Select [Default] option then press Wheel (D) to reset the all video adjustments.

1. Use / / / to select the [Close] option, and press Wheel (D) to finish setting.

Viewing content information

MOVIE

The player can display the content information.

1. Select a file using / / / .
2. Press INFO/MENU (□) to display the option menu.

The file information appears on the screen.

Note

The information displayed on the screen may not correct comparing actual content information.

Changing content list view

MOVIE MUSIC PHOTO

On the [SmartShare] menu, you can change the content list view.

Press red (R) colored button repeatedly.

Selecting a subtitle file

MOVIE

If the subtitle file name is different from the video file name, you need to select the subtitle file on the [Movie] menu before playing the movie.

1. Use / / / to select the subtitle file you wish to play in the [Movie] menu.
2. Press Wheel (D).

Press Wheel (P) again to deselect the subtitle file. Selected subtitle file will be displayed when you play the video file.

Note

• If you press (STOP) during playback, the subtitle selection is cancelled.
• This function is not available for playing file on a server via home network.

Listening to music during slide show


You can display photo files while listening to audio files.

1. While viewing a photo in full screen, press INFO/MENU (□) to display the option menu.
2. Select an [Option] using / , and press Wheel (B).
3. Use / to select [Music Select] option, and press Wheel (D) to display the [Music Select] menu.
4. Use / to select a device, and press Wheel (D).

Available device may differ depending on the location of the current photo file.

Photo location	Available Device
Disc, USB	Disc, USB
MTP	MTP
DLNA server	DLNA server

1. Use / to select a file or a folder you wish to play.

Select and press Wheel (D) to display the upper directory.

Note

When selecting audio file from a server, folder selection is not available. Only file selection is available.

1. Use to select [OK], and press Wheel (D) to complete music selection.

Playing content to 3D

BD DVD AVCHD MOVIE

This function allows you to convert 2D content to 3D and to play 3D content in case of file encoded in 3D also. You can adjust 3D's depth and distance on the [3D] option while playing back.

Converting 2D content to 3D

1. During playback, press INFO/MENU (□).
2. Select an [3D], and press Wheel (D).
3. Select by using / / / to convert 2D contents to 3D.

Playing file encoded in 3D

1. During playback, press INFO/MENU (□).
2. Select [3D], and press Wheel (D).
3. Select suitable mode (side by side, top and bottom) which is same way as file encoded in 3D by using / / / .

3D Setting

1. During playback, press INFO/MENU (□).
2. Select an [3D], and press Wheel (D).
3. Select an [3D Setting], and press Wheel (P). You can adjust 3D's depth and distance. Select [Initialize] option then press Wheel (P) to reset the all adjustments.

Reverting

1. During playback, press INFO/MENU (□).
2. Select an [3D], and press Wheel (P).
3. Select by using / / to revert.

! Note

• When you have set to Ultra HD resolution, if you select the [On] in [3D], the Ultra HD resolution is automatically changed to the original resolution.
• Movie files which is upper 30 fps (frame rate) may not be converted to 3D.
• If the subtitle is displayed abnormally, set the TV's 3D option to off and the unit's 3D option to on.

Advanced Features

Wi-Fi DirectTM

Connecting to a Wi-Fi Direct™ certified device

MOVIE MUSIC PHOTO

This player can play movie, music and photo files located in a Wi-Fi Direct™ certified device. The Wi-Fi Direct™ technology make the player to be directly connected to a Wi-Fi Direct™ certified device without connecting to a network device such as an access point.

On Wi-Fi Direct™ certified device

1. Turn on the Wi-Fi Direct™ certified device and run its Wi-Fi Direct function.
2. Run DLNA application on the device.

On your player

1. Select [NETWORK] option in the [Settings] menu then press Wheel (B).
2. Select [Wi-Fi Direct] option, and press Wheel (B).

5. Select a Wi-Fi Direct™ device on the list using / , and press Wheel (1).

Wi-Fi Direct™ connection will be proceeded. follow the procedure on the screen.

If you want to rescan available Wi-Fi DirectTM device, select the [Refresh List] and press Wheel (D).

To select a server from the device list, files or folders must be shared by DLNA server from the connected Wi-Fi Direct™ device.

1. Select [Movie], [Photo] or [Music] using / / / , and press Wheel (B).

1. Select a file using / / / , and press Wheel (P) to play the file.

! Note

• For the purpose of the better transmission, placing the player from the Wi-Fi Direct™ certified server as close as possible.
  This unit can connect only 1 device at a time. Multiple connection is not available.
• If you try to connect wireless network while a device is connected by Wi-Fi Direct™ function, Wi-Fi Direct™ connection will be force disconnected.
• If this player and a Wi-Fi Direct™ device are connected to the different local area network, Wi-Fi Direct™ connection may not be available.
• If a Wi-Fi Direct™ certified device is not in Wi-Fi direct standby mode, this player can not find the device.
• When you connect a Wi-Fi Direct™ certified device to your player, PIN network connection is not supported.
• This player cannot connect to a Wi-Fi direct device which is in Group Owner mode.

Enjoying Miracast™

You can mirror Miracast certified device's screen and sound onto TV screen through your player wirelessly.

On Miracast™ certified device

1. Turn on the Miracast certified device and run its [Miracast] function.

On your player

1. Press HOME (A).
2. Select [Miracast] and press Wheel (D).

1. Select a Miracast device on the list using / , and press Wheel (P).

Miracast function will be proceeded automatically.

If you want to rescan available Miracast device, select [Refresh List] and press Wheel (B).

Note

• For the purpose of the better mirroring, place Miracast certified device from the player as close as possible.
• This unit can connect only 1 device at a time. Multiple connection is not available.
• While mirroring, Wireless network or Wi-Fi Direct cannot be used simultaneously.
• If a Miracast certified device is not in [Miracast] standby mode, this player cannot find the device.
  Depending on your wireless network condition, mirroring may be unstable.
• While mirroring, the screen may be cut off depending on your TV's setting. In this case, please adjust the display settings on your TV.

Enjoying BD-Live™

BD

BD-ROM supporting BD-Live that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings (page 17).
2. Insert an USB storage device to the USB port on the front panel.

An USB storage device is needed to download bonus content.

1. Press HOME (H), and set the [BD-LIVE connection] option on the [Settings] menu (page 23).

Depending on a disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted].

1. Insert a BD-ROM with BD-Live.

The operations may differ depending on the disc. Refer to the manual supplied with the disc.

Caution

Do not extract the connected USB device while content is being downloaded or a Blur ray disc is still in the disc tray. Doing so may damage the connected USB device and BDLive features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

Note

• Some BD-Live content may be restrictively accessed in some territories by content provider's own decision.
• It may take up to several minutes to load and start enjoying BD-Live content.
• For BD-Live, use the USB flash drive / external HDD formatted in FAT32 only.

Enjoying web browsing

Types URL manually on the screen or visits web sites added to Favorite.

1. Press HOME (A).
2. Select the [Internet] in the [My Apps] and press Wheel (P).
3. Enter search terms in the blank.

1 Types in the web address or URL.
2 Selects when opening several web browsers.
3 Add the current page to favorites.
4 Moves to a previously visited website.

! Note

• For best service quality, subscribe to an Internet service of 4.0 Mbps (1.5 Mbps or faster). Contact the ISP (Internet service provider) for any problems related to Internet speed.
• Internet only works with pre-installed plugins.
• Internet only plays the following media file formats:"jpeg","png","gif","wmv","asf","wma","mp3","mp4".
• Internet is forcibly closed when memory is insufficient.
• For the internet, fonts installed on the unit are used and may not be displayed normally depending on the content played.
• Internet does not support file and font download.
• Internet is made only for this unit. So it may have different operation from PC browsers.

LG AV Remote

You can control this player with your iPhone or Android phone via your home network. This player and your phone must be connected to your wireless network device such as access point. Visit "Apple iTunes" or "Google Android Market (Google Play Store)" for detailed information of "LG AV Remote".

Private Sound Mode

By downloading "LG AV Remote" application on your smart phone or tablet, you can connect your headsets, and enjoy the sound from your player on your smart devices.

This feature transmits video signal to TV through HDMI and Audio signal to smart phone or tablet through Wi-Fi. For more detailed information, please refer to "LG AV Remote" application.

Using an USB keyboard or mouse

You can connect an USB keyboard and/or mouse to type text and navigate menus.

1. Connect an USB keyboard or mouse to the USB port on the front panel.
2. Use the keyboard to type text, or the mouse to navigate menus.

Note

The following keyboards and mice are recommended.

• Logitech Wireless Combo MK520
• Logitech Wireless Combo MK320
• Logitech Wireless Combo MK260
• Microsoft Wireless Desktop 5000
• Microsoft Wireless Desktop 3000
• Microsoft Wireless Desktop 2000
• Microsoft Wireless Desktop 800

Using the Premium

You can use various content services via Internet with the Premium feature.

1. Check the network connection and settings (page 17).
2. Press HOME (A).
3. Select the [Premium] using / , and press Wheel (P).

1. Select an online service using / / / , and press Wheel (D).

Note

• For detailed information of each service, contact to the content provider or visit support link of the service.
• The content of Premium services and service related information, including user interface, is subject to changes. Please refer to the web site of each service for most up-to-date information.
• Using Premium features with wireless network connection may result in improper streaming speed by interference from household devices that are using radio frequencies.
• For the first time to access [Premium] or [LG Smart world] feature, current country setting appears.
• If you want to change the country setting, go to [Settings] > [NETWORK] > [Smart Service Setting] > [Country Setting]. Select [Manual] and press Wheel (D) on [Country Setting] menu.

Using the LG Smart World

You can use the LG application services on this player via Internet. You can easily find and download various applications from LG Smart World.

1. Check the network connection and settings (page 17).
2. Press HOME (H).
3. Select the [LG Smart World], and press Wheel (D).

1. Select a category using / , and press Wheel (B).
2. Use / / / to select an application, and press Wheel (D) to display the information.
3. Press Wheel (P) while [Install] icon is highlighted. The application will be installed to the player.

To install an application to the player, user needs to sign in. Refer to page 54 for more information of signing in.

1. Press red (R) colored button to display the [My Apps] screen.
2. Select the installed application and press Wheel (P) to excute it.

Note

Depending on the region, the [LG Smart World], [My Apps], [Q] and [A] may not be available.
To install a paid application, you need to be a paid member. Visit www.lgappstv.com for more information.

Signing in

To use the [LG Smart World] feature, you need to sign in with your account.

1. On the home menu, select [ ] icon and press Wheel (D).
2. Fill the [ID] and [Password] field using the virtual keyboard.

If you do not have an account, press red (R) colored button to register.

1. Use / / / to select [OK], and press Wheel (P) to sign in with your account.

If you select the [Auto Sign In] check box, your ID and password are remembered and automatically signed in without entering them.

Note

To view the information of your account and applications, select [ ] icon and press Wheel ( ) on the home menu, and select [My Page] option.

Searching online content

If you are having difficulties finding specific content from online services, you can use the all-in-one search function by entering keywords in the search menu.

1. Press HOME (A).
2. Select the [Q] icon on the home menu using / / / , and press Wheel (H). The search menu appears on the screen.
3. Press Wheel (B). The virtual keyboard appears automatically.
4. Use / / / to select letters then press Wheel (D) to confirm your selection on the virtual keyboard.
5. When you finish entering the keyword, select [←] and press Wheel (D) to display search result.
6. Use / / / to select a desired content, and press Wheel (D) to move to the selected content directly.

Note

• Depending on the region, the [LG Smart World], [My Apps], [Q] and [A] may not be available.
• The search function does not search content in every online services. It works only in certain online services.

Using the My Apps Menu

You can move or delete an installed application in the [My Apps] menu.

1. Press HOME (A).
2. Select the [My Apps], and press Wheel (D).

1. On the [My Apps] menu, press red (R) colored button.

Move an application

1. Select an application, and press Wheel (P) to display the options.
2. Use / to select [Move], and press Wheel (1).
3. Use / / / to select a position you want to move to, and press Wheel (HP).

Delete an application

1. Select an application, and press Wheel (P) to display the options.
2. Use / to select [Delete], and press Wheel (1).
3. Use / to select [OK], and press Wheel (P) to confirm.

Note

Depending on the region, the [LG Smart World], [My Apps], [Q] and [M] may not be available.

Troubleshooting

General

Symptom	Cause & Solution
The Power does not turned on.	• Plug the power cord into the wall outlet securely.
The unit does not start playback.	• Insert a playable disc.(Check the disc type, color system, and regional code.) • Place the disc with the playback side down. • Place the disc on the disc tray correctly inside the guide. • Clean the disc. • Cancel the Rating function or change the rating level.
The connected USB storage device is not recognized.	• Try using different USB cable, some USB cables may not support enough current for normal USB operation. • If you use an USB extension cable or USB HUB, the USB devices may not be recognized. • An USB device which requires additional program installation when you have connected it to a computer is not supported. • This unit supports only USB Flash Drive and USB External HDD with FAT32 or NTFS format.
The angle cannot be changed.	• Multi-angles are not recorded on the DVD Video being played.
Cannot play movie, photo or music files.	• The files are not recorded in a format that the unit can play. • The unit does not support the codec of the movie file.
The remote control does not work properly.	• The remote control is not pointed at the remote sensor of the unit. • The remote control is too far from the unit. • There is an obstacle in the path of the remote control and the unit. • The batteries in the remote control are exhausted.
The unit is plugged in, but the power will not turn on or off.	You can reset the unit as follows. • Unplug the power cord, wait at least five seconds, and then plug it in again.
The unit is not operating normally.

Network

Symptom	Cause & Solution
BD-Live feature does not work.	·The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space. ·Ensure that the unit is correctly connected to the local area network and can access the internet (see page 17). ·Your broadband speed may not fast enough to use the BD-Live features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended. ·The [BD-LIVE connection] option in the [Settings] menu is set to [Prohibited]. Set the option to [Permitted].
Streaming video services (such as YouTube™, etc.) are often stopped or "buffer" during playback.	·Your broadband service speed may not be fast enough to stream video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.
Media servers are not displayed on the device list.	·The firewall or anti-virus software on your media server is running. Turn off the firewall or anti-virus software running on your media server. ·The player is not connected to the local area network that your media server is connected.
Cannot connect the player to the access point or wireless LAN router.	·The wireless communication may be interrupted from household devices that are using radio frequencies. Move the player away from them.
Access point is not displayed on the "Access point name" list.	·The access point or wireless LAN router may not broadcast its SSID. Set your access point to broadcast its SSID through your computer. ·Your network device such as access point may not set with available frequency range and channel that this player can support. Try setting the frequency range and channel on the network device setting.


Symptom	Cause & Solution
There is no picture.	• Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen. • Connect the video connection securely. • Check the [HDMI Color Setting] in the [Settings] menu is set to the appropriate item that conforms to your video connection. • Your TV may not support the resolution you have set on the player. Change the resolution that your TV accepts. • The player's HDMI OUT jack is connected to a DVI device that does not support copyright protection.
Picture noise appears.	• You are playing a disc recorded in a color system that is different from your TV. • Set the resolution which your TV accepts.
Blu-ray 3D disc playback does not output 3D views.	• Connect the player to your TV with HDMI cable (Type A, High Speed HDMI™ Cable). • Your TV may not support "HDMI 3D mandatory format". • The [3D Mode] option in the [Settings] menu is set to [Off]. Set the option to [On].

Customer support

You can update the player using the latest software to enhance the products operation and/or add new features. To obtain the latest software for this player (if updates have been made), please visit http://www.lq.com or contact LG Electronics customer care center.

Open source software notice

To obtain the corresponding source code under GPL, LGPL and other open source licenses, please visit http://opensource.lge.com. All referred license terms, warranty disclaimers and copyright notices are available to download with the source code.

About Magic Remote Control

To re-register the Magic remote control

Press the HOME (A) and BACK (B) buttons at the same time for about 5 seconds. The Magic remote control will be unpaired with your unit.

! Note

• Press the BACK (D) button while pointing the remote control at the unit for 5 seconds to reset and re-register it.
• Set the speed and size of the Magic pointer that appears on the screen. Refer to the setting the Magic pointer (page 30).
• If the Magic pointer has not been used for a certain period of time, it will disappear. When the Magic pointer disappears from the screen, shake the Magic remote control to the right and left. Then, it appears again.
• If you press the navigation button while moving the Magic pointer on the screen, the Magic pointer disappears, and the Magic remote control works as a regular remote control.

Caution

• Use within an effective distance of 33 ft. (10 meters). Using the Remote Control from greater distances or when obstructions block the sight line may cause malfunctions.
• Electronic devices nearby may cause communication interference. Devices such as microwave oven and wireless LAN use the same frequency range (2.4 GHz) as the Magic remote control, which may interfere with the remote control.
• The Magic remote control may be broken if dropped or damaged in any other way.
• Do not drop or subject the Magic remote control to heavy impacts.

Network Software Update

Network update notification

From time to time, performance improvements and/or additional features or services may be made available to units that are connected to a broadband home network. If there is new software available and the unit is connected to a broadband home network, the player will inform you about the update as follows.

Option 1:

1. The update menu will appear on the screen when you turn on the player.
2. Use / to select a desired option and then press Wheel (D).

[OK]	Starts the software update.
[Cancel]	Exits the update menu and the home menu appears.

Option 2:

If the software update is available from the update server, the "Update" icon appears in the Home menu. Press blue (B) colored button to start the update procedure.

Software update

You can update the player using the latest software to enhance the products operation and/or add new features. You can update the software by connecting the unit directly to the software update server.

! Note

• Before updating the software in your player, remove any disc and USB Device from the player.
• Before updating the software in your player, turn the player off and then turn it back on.
• During the software update procedure, do not turn off the player or disconnect AC power, or do not press any button.
• If you cancel the update, turn off the power and turn it on for stable performance.

• This unit cannot be updated to previous software version.

• Check the network connection and settings (page 17).

• Select [Software] option in the [Settings] menu then press Wheel (P).
• Select [Update] option, and press Wheel (D).

The player will check for the newest update.

! Note

• Pressing Wheel (P) while checking for the update will end the process.

• If there is no update available, the Message, "No update is found." appears. Press Wheel (O) to return to the [Home] menu.

• If newer version exists, the message "A new update was found. The update takes a few minutes. Do you want to update?" appears.

• Select [OK] to start update. (Selecting [Cancel] will end the update.)
• The player starts downloading the newest update from the server. (Downloading will takes several minutes depending on your home network condition)
• To update software the next time, the software update procedure has to be started from the beginning again.

Caution

Do not turn off the power during the software update.

Note

If the software includes the driver update, disc tray may open during the process.

1. When update is completed, the power will be turned off automatically in a few seconds.
2. Turn the power back on. The system now operates with the new version.

Note

The Software Update function may not work properly depending on your internet environment. In this case, you can obtain the latest software from the authorized LG Electronics Service Center then update your player. Refer to "Customer support" on page 58.

Additional Information

File requirement

Video files

File Location	File Extension	Codec Format	Audio Format	Subtitle
Disc, USB	".avi",".divx",".mpg", "mpeg",".mkv", "mp4",".asf",".wmv", "m4v"(DRM free), .vob",".3gp",".mov", "trp",".m2t",".mpe", "m1v",".m2v",".wm", "flv",".ts",".dat"	DIVX3.11, DIVX4, DIVX5, DIVX6, (standard playback only) XVID, MPEG1 SS, H.264/ MPEG-4 AVC, MPEG2 PS, MPEG2 TS, VC-1 SM (WMV3)	Dolby Digital, DTS, MP3, WMA, AAC, AC3	SubRip (.srt / .txt), SAMI (.smi), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)
DLNA	".avi",".divx",".mpg", "mpeg",".mkv", "mp4",".asf",".wmv", "m4v"(DRM free), "3gp",".mov",".mpe", "m1v",".m2v",".flv", "ts",".dat"	DIVX3.11, DIVX4, DIVX5, DIVX6, (standard playback only) XVID, MPEG1 SS, H.264/ MPEG-4 AVC, MPEG2 PS, MPEG2 TS, VC-1 SM (WMV3)	Dolby Digital, DTS, MP3, WMA, AAC, AC3	SubRip (.srt / .txt), SAMI (.sm), SubStation Alpha (.ssa/.txt), MicroDVD (.sub/.txt), SubViewer 1.0 (.sub), SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD Subtitle System (.txt)

Audio files

File Location	File Extension	Sampling Frequency	Bitrate	Note
Disc, USB	"mp3","wma", .wav",.m4a" (DRM free), "flac","ogg", "aiff"	within 32 - 48 kHz (WMA), within 16 - 48 kHz (MP3)	within 32 - 192 kbps (WMA), within 32 - 320 kbps (MP3)	Some wav files are not supported on this player.
DLNA	"mp3","wma", .wav",.m4a" (DRM free), "flac","ogg"	within 32 - 48 kHz (WMA), within 16 - 48 kHz (MP3)	within 32 - 192 kbps (WMA), within 32 - 320 kbps (MP3)	Some wav files are not supported on this player.

Photo files

File Location	File Extension	Recommended Size	Note
Disc, USB, DLNA	".jpg", "jpeg", ".png", "gif", ".mpo", "jps"	Less than 4,000 x 3,000 x 24 bit/pixel Less than 3,000 x 3,000 x 32 bit/pixel	Progressive and lossless compression photo image files are not supported.

! Note

The file name is limited to 180 characters.
Maximum files/Folder: Less than 2000 (total number of files and folders)
Depending on the size and number of the files, it may take several minutes to read the content on the media.
- File compatibility may differ depending on the server.
- Because the compatibility on DLNA server are tested on the DLNA server (SmartShare PC Software) environment, file requirements and playback functions may differ depending on media servers.
- The file requirements on page 62 are not always compatible. There may have some restrictions by file features and media server's ability.
- Playing video subtitle files are only available on DLNA media server created by SmartShare PC Software downloaded from website.
- The files from removable media such as USB drive, DVD-drive etc. on your media server may not be shared properly.
- The total playback time of audio file indicated on the screen may not correct for VBR files.
- HD video files contained on the CD/DVD or USB 1.0/1.1 may not played properly. Blu-ray Disc or USB 2.0 are recommended to play back HD video files.
- This player supports H.264/MPEG-4 AVC profile Main, High at Level 4.1. A file with higher level may not be supported.
- This player does not support files that are recorded with GMC ^1 or QpeI ^2 .

*1 GMC - Global Motion Compensation

*2 Qpel – Quarter pixel

! Note

• A "avi" file which is encoded "WMV 9 codec" is not supported.
• This player supports UTF-8 files even it contains Unicode subtitle content. This player can not support the pure Unicode subtitle files.
  Depending on the types of file or ways of recording, it may not play back.
• A disc which was recorded by multi-session on normal PC is not supported on this player.
• To be playback a video file, video file name and Subtitle file name must be the same.
• When you play a video file with a extension such as ".ts","m2ts",".mts",".tp","Trp" or ".m2t", your player may not support subtitle files.
• The total playback time of audio file indicated on the screen may not correct for VBR files.
  Video / Audio codec compatibility may differ depending on video file.

AVCHD (Advanced Video Codec High Definition)

• This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.
• The AVCHD format is a high definition digital video camera format.
• The MPEG-4 AVC/H.264 format is capable of compressing images at higher efficiency than that of the conventional image compressing format.
• This player can playback AVCHD discs using "x.v.Color" format.
• Some AVCHD format discs may not play depending on the recording condition.
• AVCHD format discs need to be finalized.
• "x.v.Color" offers a wider color range than normal DVD camcorder discs.

About DLNA

This Player is a DLNA Certified digital media player that can display and play video, photo and audio content from your DLNA-compatible digital media server (PC and Consumer Electronics).

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network.

The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Certain system requirements

For high definition video playback:

• High definition display that has HDMI input jack.
  BD-ROM disc with high definition content.
• HDMI or HDCP capable DVI input on your display device is required for some content (as specified by disc authors).

For Dolby® Digital Plus, Dolby TrueHD and DTS-HD multi-channel audio playback:

• An amplifier/receiver with a built-in (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD) decoder.
• Main, center, surround speakers and subwoofer as necessary for chosen format.

Compatibility notes

• Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Center.
• This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-ROM supporting BONUSVIEW (BD-ROM version 2 Profile 1 version 1.1). Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.
  Viewing high-definition content and up-converting standard DVD content may require a HDMI-capable input or HDCP-capable DVI input on your display device.
• Some BD-ROM and DVD discs may restrict the use of some operation commands or features.
• Dolby TrueHD, Dolby Digital Plus and DTS-HD are supported with maximum 7.1 channels if you use HDMI connection for the audio output of the unit.
• You can use an USB device to store some disc related information, including downloaded online content. The disc you are using will control how long this information is retained.

Audio Output Specifications

Source\Jack/Setting	OPTICAL (DIGITAL AUDIO OUT)
	PCM	DTS Re-encode *3	Auto
Dolby Digital	PCM 2ch	DTS	Dolby Digital
Dolby Digital Plus	PCM 2ch	DTS	Dolby Digital
Dolby TrueHD	PCM 2ch	DTS 2ch	Dolby Digital
DTS	PCM 2ch	DTS	DTS
DTS-HD	PCM 2ch	DTS	DTS
Linear PCM 2ch	PCM 2ch	DTS 2ch	PCM 2ch
Linear PCM 5.1ch	PCM 2ch	DTS	PCM 2ch
Linear PCM 7.1ch	PCM 2ch	DTS	PCM 2ch

Source\Jack/Setting	HDMI OUT
	PCM	DTS Re-encode *3	Auto *1 *2
Dolby Digital	PCM 2ch	DTS	Dolby Digital
Dolby Digital Plus	PCM 2ch	DTS	Dolby Digital Plus
Dolby TrueHD	PCM 2ch	DTS 2ch	Dolby TrueHD
DTS	PCM 2ch	DTS	DTS
DTS-HD	PCM 2ch	DTS	DTS-HD
Linear PCM 2ch	PCM 2ch	DTS 2ch	Linear PCM 2 ch
Linear PCM 5.1ch	PCM 5.1ch	DTS	Linear PCM 5.1ch
Linear PCM 7.1ch	PCM 7.1ch	DTS	Linear PCM 7.1ch

1 The secondary and interactive audio may not be included in the output bitstream if [Digital Output] option is set to [Auto]. (Except LPCM Codec : the output always include interactive and secondary audio.)
2 This player automatically selects the HDMI audio according to the decoding capability of the connected HDMI device even though [Digital Output] option is set to [Auto].
*3 If the [Digital Output] option is set to [DTS re-encode], the audio output is limited to 48 kHz and 5.1Ch. If the [Digital Output] option is set to [DTS re-encode], the DTS Re-encode audio is outputted for BD-ROM discs, and the original audio is outputted for the other discs (like [Auto]).

• If the HDMI OUT jack is connected to your TV with High Speed HDMI™ Cable and Dolby Digital Plus/Dolby TrueHD is outputted from HDMI OUT jack, DIGITAL AUDIO OUT jack is limited to "PCM 2ch" (When the HDMI and DIGITAL AUDIO OUT are connected simultaneously).

The audio is outputted up to PCM 48 kHz/16 bit for MP3/WMA file and PCM 44.1kHz/16 bit for Audio CD during playback.
- You must select a digital audio output and a maximum sampling frequency that your Amplifier (or AV receiver) accepts using [Digital Output] and [Sampling Freq.] options on the [Settings] menu (page 27).
- With digital audio connection (DIGITAL AUDIO OUT or HDMI OUT), Disc Menu button sounds of BD-ROM may not be heard if the [Digital Output] option is set to [Auto].
- If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
- Multi-channel Digital Surround Sound via digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.

Area Code List

Choose an area code from this list.

Area	Code	Area	Code	Area	Code	Area	Code
Afghanistan	AF	Fiji	FJ	Monaco	MC	Singapore	SG
Argentina	AR	Finland	FI	Mongolia	MN	Slovak Republic	SK
Australia	AU	France	FR	Morocco	MA	Slovenia	SI
Austria	AT	Germany	DE	Nepal	NP	South Africa	ZA
Belgium	BE	Great Britain	GB	Netherlands	NL	South Korea	KR
Bhutan	BT	Greece	GR	Antilles	AN	Spain	ES
Bolivia	BO	Greenland	GL	New Zealand	NZ	Sri Lanka	LK
Brazil	BR	Hong Kong	HK	Nigeria	NG	Sweden	SE
Cambodia	KH	Hungary	HU	Norway	NO	Switzerland	CH
Canada	CA	India	IN	Oman	OM	Taiwan	TW
Chile	CL	Indonesia	ID	Pakistan	PK	Thailand	TH
China	CN	Israel	IL	Panama	PA	Turkey	TR
Colombia	CO	Italy	IT	Paraguay	PY	Uganda	UG
Congo	CG	Jamaica	JM	Philippines	PH	Ukraine	UA
Costa Rica	CR	Japan	JP	Poland	PL	United States	US
Croatia	HR	Kenya	KE	Portugal	PT	Uruguay	UY
Czech Republic	CZ	Kuwait	KW	Romania	RO	Uzbekistan	UZ
Denmark	DK	Libya	LY	Russian Federation	RU	Vietnam	VN
Ecuador	EC	Luxembourg	LU	Saudi Arabia	SA	Zimbabwe	ZW
Egypt	EG	Malaysia	MY	Senegal	SN
El Salvador	SV	Maldives	MV
Ethiopia	ET	Mexico	MX

Language Code List

Use this list to input your desired language for the following initial settings: [Disc Audio], [Disc Subtitle] and [Disc Menu].

Language	Code	Language	Code	Language	Code	Language	Code
Afar	6565	French	7082	Lithuanian	7684	Sindhi	8368
Afrikaans	6570	Frisian	7089	Macedonian	7775	Singhalese	8373
Albanian	8381	Galician	7176	Malagasy	7771	Slovak	8375
Amharic	6577	Georgian	7565	Malay	7783	Slovenian	8376
Arabic	6582	German	6869	Malayalam	7776	Spanish	6983
Armenian	7289	Greek	6976	Maori	7773	Sudanese	8385
Assamese	6583	Greenlandic	7576	Marathi	7782	Swahili	8387
Aymara	6588	Guarani	7178	Moldavian	7779	Swedish	8386
Azerbaijani	6590	Gujarati	7185	Mongolian	7778	Tagalog	8476
Bashkir	6665	Hausa	7265	Nauru	7865	Tajik	8471
Basque	6985	Hebrew	7387	Nepali	7869	Tamil	8465
Bengali; Bangla	6678	Hindi	7273	Norwegian	7879	Telugu	8469
Bhutani	6890	Hungarian	7285	Oriya	7982	Thai	8472
Bihari	6672	Icelandic	7383	Panjabi	8065	Tonga	8479
Breton	6682	Indonesian	7378	Pashto, Pushto	8083	Turkish	8482
Bulgarian	6671	Interlingua	7365	Persian	7065	Turkmen	8475
Burmese	7789	Irish	7165	Polish	8076	Twi	8487
Byelorussian	6669	Italian	7384	Portuguese	8084	Ukrainian	8575
Chinese	9072	Japanese	7465	Quechua	8185	Urdu	8582
Croatian	7282	Kannada	7578	Rhaeto-Romance	8277	Uzbek	8590
Czech	6783	Kashmiri	7583	Rumanian	8279	Vietnamese	8673
Danish	6865	Kazakh	7575	Russian	8285	Volapük	8679
Dutch	7876	Kirghiz	7589	Samoan	8377	Welsh	6789
English	6978	Korean	7579	Sanskrit	8365	Wolof	8779
Esperanto	6979	Kurdish	7585	Scots Gaelic	7168	Xhosa	8872
Estonian	6984	Laotian	7679	Serbian	8382	Yiddish	7473
Faroese	7079	Latin	7665	Serbo-Croatian	8372	Yoruba	8979
Fiji	7074	Latvian, Lettish	7686	Shona	8378	Zulu	9085
Finnish	7073	Lingala	7678

Trademarks and Licenses

Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™, BONUSVIEW™ and the logos are trademarks of the Blu-ray Disc Association.

"DVD Logo" is a trademark of DVD Format/Logo Licensing Corporation.

Java

Java is a trademark of Oracle and/or its affiliates.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

"x.v.Color" is a trademark of Sony Corporation.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

The Wi-Fi Protected Setup Mark is a trademark of the Wi-Fi Alliance.

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2013 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Specifications

General
Power requirements	Refer to main label on the rear panel.
Power consumption	16 W
Dimensions (W x H x D)	Approx. 430 mm x 43.5 mm x 205 mm
Net Weight (Approx.)	1.58 kg
Operating temperature	5 °C - 35 °C
Operating humidity	5 % - 90 %

Outputs
HDMI OUT (video/audio)	19 pin (Type A, HDMI™ Connector)
DIGITAL AUDIO OUT (OPTICAL)	3 V (p-p), Optical jack x 1

System
Laser	Semiconductor laser
Wavelength	405 nm / 650 nm
Signal system	Standard PAL/NTSC color TV system
LAN port	Ethernet jack x 1, 10BASE-T / 100BASE-TX
Wireless LAN (internal antenna)	Integrated IEEE 802.11n (5 GHz and 2.4 GHz bands) wireless networking access, compatible with 802.11a/b/g Wi-Fi networks.
Bus Power Supply (USB)	5 V = 500 mA

Motion Remote Control
Model	M4-Media
Range of frequency	2.400 GHz - 2.4835 GHz
Channel	79 channels
Transmission	Under 10 dBm
Reception sensitivity	-86 dBm
Dimensions	42.4 mm x 47 mm x 186 mm
Weight	80 g ± 5 g (excluding battery)
Power source	AA 1.5 V, 2 alkaline batteries
Operational temperature range	0 °C - 60 °C

• Design and specifications are subject to change without notice.

Maintenance

Handling the unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.
• Wiping with strong pressure may damage the surface.
• Do not leave rubber or plastic products in contact with the unit for a long period of time.

Maintaining the unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center.

Notes on discs

Handling discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Important Information Relating to Network Services

All information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content ("Content") and all services and offerings ("Services") provided or made available by or through any third party (each a "Service Provider") is the sole responsibility of the Service Provider from whom it originated.

The availability of and access to Content and Services furnished by the Service Provider through the LGE Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider's website for the most up-to-date information. LGE is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers.

Please note that LGE is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services.

LG

Life's Good
