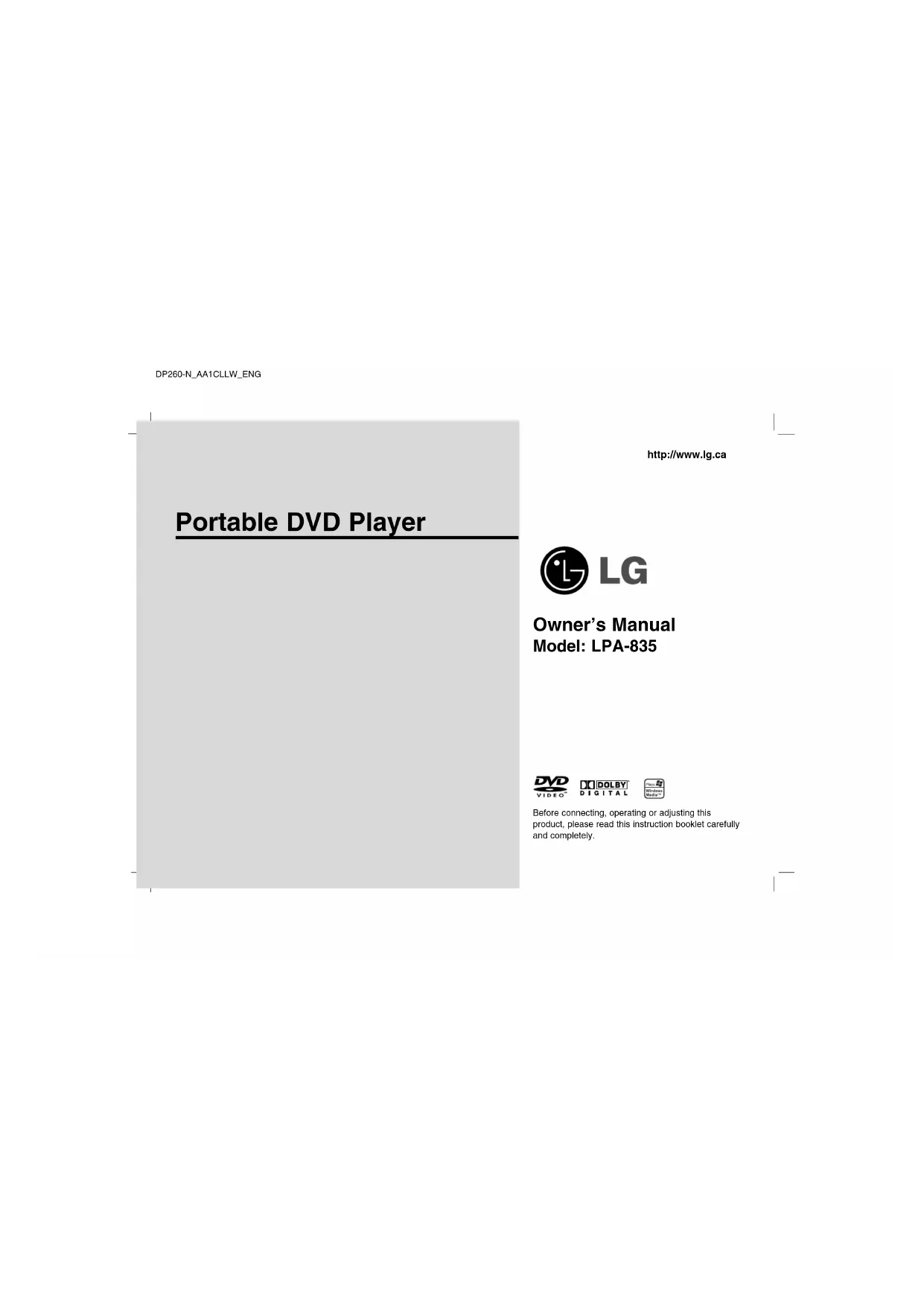

USER MANUAL DP260 LG

Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

Safety Precautions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: Do not install this equipment in a confined space such as a bookcase or similar unit.

CAUTION:

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction have been adhered to.

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read this owner's manual carefully and retain it for future reference. Should the unit require maintenance, contact an authorized service center.

Performing controls, adjustments, or carrying out procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

NOTES ON COPYRIGHTS:

It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission.

This product features the copy protection function developed by

Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs on a VCR, picture noise will appear.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety Precautions (Continued)

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit:

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER'S MANUAL AND THOSE MARKED ON THE PRODUCT. RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

This product has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the following procedures for installation, use, and servicing. This product does not contain any parts that can be repaired by the user.

DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.

1. Read these Instructions. - All these safety and operating instructions should be read before the product is operated.
2. Keep these Instructions. - The safety, operating and use instructions should be retained for future reference.
3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.
4. Follow all Instructions. - All operating and use instructions should be followed.
5. Do not use this apparatus near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; or near a swimming pool; and other areas located near water.
6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. - Slots and openings in the cabinet are pro

vided for ventilation and to ensure reliable operation of the product and to protect it from over-heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

1. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
2. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

IMPORTANT SAFETY INSTRUCTIONS

1. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
2. Only use attachments/accessories specified by the manufacturer.
3. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with apparatus. When a cart is used, use caution when moving the cart/product combination to avoid injury from tip-over.

1. Unplug this product during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

Table of Contents

Introduction

Safety Precautions 2-3

Table of Contents 6

Before Use. 78 About the Symbol Display . 7

Symbol used in this Manual. 7
Notes on Discs 7

Types of Playable Discs 8 Identification of Control 9.13

Main Unit. 9-10

Remote Control 11-12

Preparation

Power Connection 13-16
AC Adapter 13
Aeroporator Aorto 14
Automotive Adapter 14
Batterie Pack. 15,16
Audio/video Connection 17-18
Rotate the LCD 19

Initial Settings 20-25

General Operations 20
GENERAL OPERATION 203
LANGUAGE 21
DISPLAY 21
AUDIO 22
LOCK(Parental Control) 23-24 OTHERSTIC

OTHERS. 25

Operation

General Feature 26-28

Resume Play 263
MOVTO another T11LE 26
Title Menu 26
BineM
Disc. Menu: 26
Moving to another CHAPTER/TRACK 26

Slow Motion 26
Changing the Audio Language 26
Search 27
Still Picture and Frame-by-Frame Playback 27
Marker Search 27
Beneat A-B 28
Zoom 28
Camera Angle 28
Subtitles 28
Last Scene Memory 28

Screen Saver/Auto Power Off 28
Playing an Audio CD and MP3/WMA Disc 29

Erasing a Track from Program list 30

Viewing a JPEG disc 31

Moving to another File 31
To rotate picture 31
Still Picture 31
Zoom 31

SPG disc compatibility with this player is limited as follows 31

Reference

Maintenance and Service 32
Language Code List 33
Area Code. 34 Troubleshooting. 35
Specifications 36

Before Use

To ensure proper use of this product, please read this owner's manual carefully and retain for future reference.

This manual provides information on the operation and maintenance of your DVD player. Should the unit require service, contact an authorized service location.

About the Symbol Display

may appear on your LCD display during operation and indicates that the function explained in this owner's manual is not available on that specific Disc.

Symbol Used in this Manual

Note

Indicates special notes and operating features.

Tip

Indicates tips and hints for making the task easier. A section whose title has one of the following symbols is applicable only to the disc represented by the symbol.

ALL All discs and files listed below

DVD

DVD discs

VCD

Video CDs.

ACD

Audio CDs

MP3

MP3 discs

WMA

WMA discs

Notes on Discs

Handling Discs

Do not touch the playback side of the disc. Hold the disc by the edges so that fingerprints do not get on the surface. Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Dlscs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records.

Before Use

Types of Playable Discs

VIDEO

DVD

(8cm/12cm disc)

Video CD(VCD)

(8cm/12cm disc)

Audio CD

(8cm/12cm dlsc)

In addition, this unit plays DVD_±R / RW and CD-R/RW, SVCC that contains audio titles, MP3, WMA, and/or JPEG files.

Notes

• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/±RW) disc itself, some CD-R/RW (or DVD±R/±RW) discs cannot be played on the unit.
• Do not attach any seal or label to either side (the labeled side or the recorded side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal). It may result in malfunctions.

Regional Code

This unit has a regional code printed on the bottom of the unit. This unit can play only DVD discs labelled same as the bottom of the unit or "ALL".

Notes on Regional Codes

• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number must match your unit's regional code or the disc cannot play.
• If you try to play a DVD with a different regional code from your player, the message "Check Regional Code" appears on the TV screen.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc.

Identification of Controls

Main Unit

LCD screen
2 Speaker
3 Power: Switches the player ON or OFF.
4 DISPLAY:Accesses On-Screen display.
5 Menu Control Buttons

• ▲ ▷▼ (left/right/up/down)
  Selects an item in the menu
  -▲ Adjusts the COLOR/BRIGHT.
• ENTER: Confirms menu selection.

6 Function Buttons

• MENU:Accesses menu on a DVD disc.
• TITLE: Displays title menu, if available
• LCD MODE: NORMAL 4:3 OFF
• ANGLE: Selects a DVD camera angle, if available.
• COLOR/BRIGHT: Selects the mode of LCD adjustment Brightness Color OFF
  -SETUP:Accesses or removes setup menu.

7 Disc Lid
8 OPEN button : Push this button to open the Dlsc lid.

Note

Place a disc with the playback side down on the spindle, and push gently on the center of the disc so it goes into position.

Identification of Controls (Continued)

Main Unit

Volume Control
2 Earphones jacks
3 COAXIAL Jack
VIDEO/AUDIO Out jack
5 DC 9.5V IN
Connect the AC adapter or Automotive adapter.
Remote sensor

Receive the signal from the Remote Control for operation.

7 Battery charge indicator

During recharging, charge indicator is red. If recharging is

complete, charge indicator changes to green color.

3Playback buttons

• /II (PLAY): Starts playback/ Pauses playback temporarily.
• STOP: Stops playback.
• (Reverse SKIP/SEARCH)

Search backward*/ go to beginning of current chapter or

track or go to previous chap

H (Forward SKIP/SEARCH)
Search forward*/ go to next chapter or track.

• Press and hold button for about two seconds.

Identification of Controls (Continued)

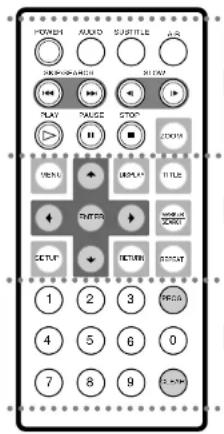

Remote Control

POWER

Switches DVD Player ON or OFF. AUDIO

Selects an audio language (DVD).

SUBTITLE

Selects a subtitle language.

A-B

Repeat sequence.

Reverse SKIP/SEARCH (1)

Search backward*/ go to beginning of

current chapter or track or go to previous

chapter or track.

Forward SKIP/SEARCH (▶▶)

Search forward*/ go to next chapter or track.

• Press and hold button for about two

seconds.

SLOW（<1/1>）

Reverse/Forward slow playback.

PLAY

Starts playback.

PAUSE

Pauses playback temporarily/ press repeated

ly for frame-by-frame playback.

STOP（）

Stops playback.

ZOOM

Enlarges video image.

MENU

Accesses menu on a DVD disc.

DISPLAY

Accesses On-Screen display.

left/right/up/down

Selects an item in the menu.

ENTER

Confirms menu selection.

SETUP

Accesses or removes setup menu.

TITLE

Displays title menu, if available.

MARKER/SEARCH

Marks any point during playback.

Displays MARKER SEARCH menu.

REPEAT

Repeat chapter, track, title all.

RETURN

Removes the setup menu.

PROG.

Places a track on the program list.

CLEAR

Removes a track number on the

program list or a mark on the

MARKER SEARCH menu.

0-9 number buttons

Selects numbered items in a menu.

Identification of Controls (Continued)

Insert the battery (Lithium battery)

Notes

• Do not expose the Remote Control sensor to bright light.
• Do not place obstacles between the Remote Control sensor and the Remote Control.

Replacing the button-type battery

The battery normally lasts for about a year. Replace the battery if the Remote Control fails to operate the unit when used within the operation range.

Button-type battery (Lithium battery)

1. Pinch the battery holder clip together then pull the tab to remove the battery holder.
2. Insert the battery with the ^+ facing in the same direction as the ^+ on the battery holder.
3. Replace the battery holder with battery into the Remote Control unit making sure that it is fully inserted.

Notes

• Replace Remote Control unit battery with 3V micro lithium cells such as CR. 2025 or its equivalent.
• Dispose of battery safely in accordance with local laws. Do not dispose of in fire.

Warning: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, incinerate, or heat above 100^ (212 F). Replace the battery with Matsushita Elec. Ind. Co., Ltd. (Panasonic), part no. CR. 2025 only. Use of another battery may present a risk of fire or explosion. Dispose of used batteries. Keep batteries away from children. Do not disassemble or dispose of in fire.

Power Connection

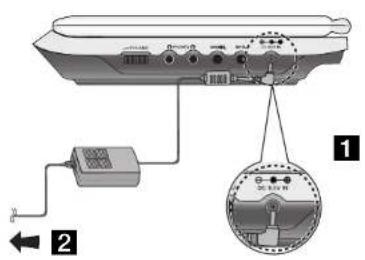

Connect the AC adapter.

1 Connect the AC Adapter to the DC INgOn the unit.
2 Connect the AC adapter to the wall outlet.

Caution

• Do not connect the power plug to a power outlet other than that indicated on the label, as this can result in a risk of fire or electric shock.
• Do not connect or disconnect the power plug with wet hands. Doing so may cause electric shock.
• Do not use an AC adapter other than one specified, as it can cause a fire or damage to the player.

AC adapter

This AC adapter operates on 100-240V-50-60Hz 1.5A.
- Contact an electrical parts distributor for assistance in selecting a suitable AC plug adapter or AC cord set.
Manufactured by WANLIDA GROUP Co., Ltd.

Power Connection (Continued)

Connect the Automotive adapter

This unit and its automotive adaptor are designed for use in vehicles that have 12 volt, negative ground electrical systems. (This is standard for most vehicles.) If your vehicle has a different type of electrical system, the DC power system cannot be used.

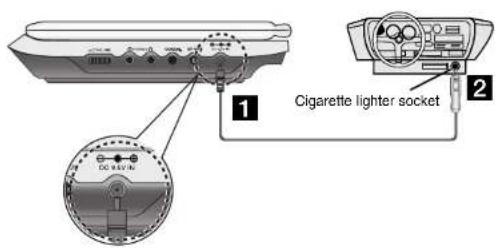

Connect the automotive adapter to the DC IN the unit.
2 Connect the automotive adapter to the car's cigarette lighter socket.

Caution

• To prevent electrical shock and possible damage to your DVD player or vehicle, always unplug the automotive adapter from the cigarette lighter socket before you remove the plug from your DVD player.
• A 3 amp. 250V fuse for protection is installed in the automotive adapter,
  While the engine is being started, disconnect the automotive adapter from the car's cigarette lighter socket.
• Do not operate your unit when the car battery is discharged. Peak current from the car generator may cause the DC fuse to blow.
• If the vehicle's supply voltage drops below approximately 10 volts, your DVD player may not work properly.
  Do not leave your DVD player in a place where the temperature exceeds 70^ (158^) or the pick-up device may be damaged. Examples include:
• Inside a car with the windows closed and in direct sunshine.
• Near a heating appliance.

Automotive adapter

This automotive adapter operates on DC 12V.
- Contact an electrical parts distributor for assistance in selecting a suitable automotive adapter.
Manufactured by WANLIDA GROUP Co., Ltd.

Power Connection (Continued)

Battery Pack

Charge the battery pack before using it for the first time.

- Attaching the battery pack (supplied)

1 Match the hooks of the battery pack into the holes on the bottom of the player.

Press and slide the battery pack until the hooks click.

Notes

• Do not detach the battery pack during playback.
• Be careful not to drop the battery pack.

Detaching the battery pack

1 Press the PUSH knob.
2 Pull the battery pack until the hooks click.

1 Hooks

ATTENTION

The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it's useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste/officials for details in your area for recycling options or proper disposal.

Power Connection (Continued)

Charging the battery pack
1. Attach the battery pack to the player.
2. Connect the AC adapter to the player and then plug into an AC outlet.

When charging starts, the charge indicator lights up in red.

1. When recharging is complete, the indicator turns up in green.
2. Disconnect the AC adapter from the player and pull out the plug from the AC outlet after charging.
   If there is not enough battery, " " flashes on the LCD screen

Recharging and play times

Recharging Play time (DVD-VIDEO)
withoutPlaybackLCD	On
Approx.Approx. 2.5 hours 3 hours*

• When Brightness control is set to minimum. - using the headphones.

• at room temperature (25°C)

Notes

• Recharging times shown above depend on operating conditions.
• When the power is ON, you cannot charge the battery.
• Charge the battery at a temperature of +5^ (+41^) to +35^ (+95^) .

The charging time may vary, depending on the surrounding temperature.

The battery will not be charged when it is naturally or purposely discharged. The unit cannot detect the battery voltage, even when the charger is attached. When you are in this situation, power on the unit and then power off again. Then battery charging will begin.

Audio/Video Connection

The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. If this occurs, position the player away from the TV, VCR, or radio, or turn off the unit after removing the disc.

AV output Connections

Depending on your TV and other equipment there are various ways you can connect the unit. Please refer to the manuals of your TV, stereo system or other devices as necessary for additional connection information.

AV output Connections to Your TV

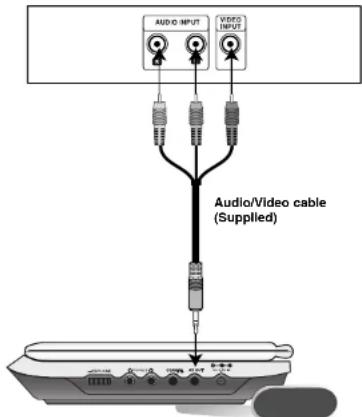

1. Connect the black end of supplied AV cable to the AV OUT jack on the unit.
2. Connect the yellow end of supplied AV cable to the VIDEO Input jack on your TV.
3. Connect the red and white ends of supplied AV cable to the AUDIO Input jacks on your TV.

NOTE

Make sure the DVD player is connected directly to the TV and not to a VCR, otherwise the DVD image could be distorted by the copy protection system.

Rear of TV
Right side of unit

Audio/Video Connection

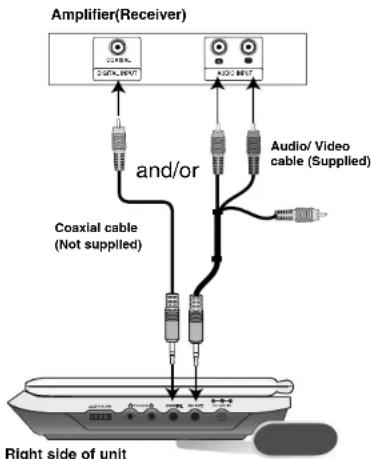

Audio Connection to Optional Equipment

Connect the DVD player to your optional equipment for audio output.

Amplifier equipped with 2-channel analog stereo or Dolby Pro Logic II / Pro Logic: Connect the AV OUT jacks on the DVD player to the audio left and right IN jacks on your amplifier, receiver, or stereo system, using the audio cables.

Amplifier equipped with 2-channel digital stereo (PCM) or audio / video receiver equipped with a multi-channel decoder (Dolby DigitalTM, MPEG 2, or DTS): Connect one of the unit Coaxial jack to the corresponding In jack on youramplifier. Use an optional digital audio cable.

Digital Multi-channel sound

A digital multi-channel connection provides the best sound quality. For this you need a multi-channel audio / video receiver that supports one or more of the audio formats supported by your DVD player such as MPEG 2, Dolby Digital and DTS. Check the receiver manual and the logos on the front of the receiver.

Notes

• If the audio format of the digital output does not match the capabilities of your receiver, the receiver produces a strong, distorted sound or no sound at all.
• Six Channel Digital Surround Sound via a digital connection can only be obtained if your receiver is equipped with a Digital Multi-channel decoder.
  To see the audio format of the current DVD in the on-screen display, press AUDIO.

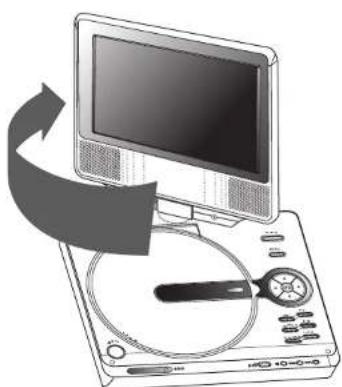

Rotating the LCD

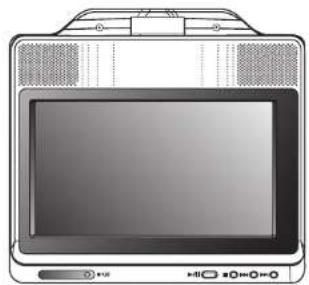

You can rotate the LCD clockwise 180 degrees, however, if you turn it by force, it can cause serious damage.

After rotating LCD completely, you can fold the LCD screen as shown above.

Initial Settings

On-Screen Display

Some items can be changed using the menu.

1. Press DISPLAY during playback.
2. Press to select an item.
   The selected item is highlighted.
3. Press / to change the setting.

Press ENTER.

You can also use the number buttons if appropriate.

(e.g. Inputting the title number).

T 0264 : Title(Track) Number, Time search
6 02/04 : Chapter Number (DVD disc only)

Note

If no button is pressed for a few seconds, the on-screen display disappears.

By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 21 to 25.

To display and exit the Menu:

Press SETUP to display the menu. A second press of SETUP will take you back to initial screen.

To go to the next level:

Press on the Remote Control.

To go back to the previous level:

Press on the Remote Control.

General Operation

1. Press SETUP. The Setup menu appears.
2. Use to select the desired option then press or ENTER to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s).
3. Use / to select the second desired option then press to move to the third level.
4. Use / to select the desired setting then press ENTER to confirm your selection. Some items require additional steps.
5. Press SETUP, RETURN or PLAY to exit the Setup menu.

Initial Settings (Continued)

LANGUAGE

Menu Language

Select a language for the Setup menu and on-screen display.

Disc Audio / Subtitle / Menu

Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu.

Original: Refers to the original language in which the disc was recorded.

Other: To select another language, press numeric buttons and then ENTER to enter the corresponding 4-digit number according to the language code list on the page 33. If you enter the wrong language code, press CLEAR.

Off (for Disc Subtitle) - Tum off Subtitle.

DISPLAY

TV Aspect

4:3: Select when a standard 4:3 TV is connected.

16:9: Select when a 16:9 wide TV is connected.

Note

If the TV Aspect option is set to 16:9, the Display Mode setting is automatically set to Widescreen.

Display Mode

Display Mode setting works only when the TV Aspect mode is set to "4:3".

LetterBox: Displays a wide picture with bands on the upper and lower portions of the screen.

Panscan: Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit.

Initial Settings (Continued)

AUDIO

Each DVD disc has a variety of audio output options. Set the player's AUDIO options according to the type of audio system you use.

Dolby Digital / DTS / MPEG

Bitstream: Select "Bitsstream" if you connect the DVD Player's DIGITAL OUT jack to an amplifier or other equipment with a Dolby Digital, DTS or MPEG decoder.

PCM (for Dolby Digital / MPEG): Select when connected to a two-channel digital stereo amplifier. DVDs encoded in Dolby Digital or MPEG will be automatically downmixed to two-channel PCM audio.

Off (for DTS): If you select "Off", the DTS signal is not output through the DIGITAL OUT jack.

Sample Freq. (Frequency)

If your receiver or amplifier is NOT capable of handling 96 KHz signals, select 48 KHz. When this choice is made, this unit automatically converts any 96 KHz signals to 48 KHz so your system can decode them.

If your receiver or amplifier is capable of handling 96 KHz signals, select 96 KHz. When this choice is made, this unit passes each type of signal through without any further processing.

Check the documentation for your amplifier to verify its capabilities.

DRC (Dynamic Range Control)

With the DVD format, you can hear a program's soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect.

Initial Settings (Continued)

LOCK (Parental Control)

Rating

Blocks playback of rated DVDs based on their content. Not all discs are rated.

1. Select Rating on the LOCK menu then press
2. Select a rating from 1 to 8 using the / buttons and press. The password widow will appear.

Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive.

Unlock: If you select unlock, parental control is not active and the disc plays in full.

Note

If you set a rating for the player, all disc scenes with the same rating or lower are played. Higher rated scenes are not played unless an alternate scene is available on the disc. The alternative must have the same rating or a lower one. If no suitable alternative is found, playback stops.
You must enter the 4-digit password or change the rating level in order to play the disc.

3. If you have not entered password yet:

When the "New Password" section is highlighted, enter a 4-digit password using the numbered buttons then press ENTER. Enter the 4-digit password again to verify when the "Confirm Password" section is highlighted. The "OK" will be highlighted.

If you have entered password already:

Enter a 4-digit password you have entered using the numbered buttons. The "OK" will be highlighted.

1. Press ENTER to confirm your rating selection, then press SETUP to exit the menu.

Tips

• If you make a mistake before pressing ENTER in each section, press CLEAR to enter again or repeatedly to delete password numbers one by one then correct it.
• If you enter the wrong password, you can not proceed to the next step.

Initial Settings (Continued)

Password

You can create or change password.

1. Select Password on the LOCK menu then press . The "Change" is highlighted
2. Press ENTER then the password window will appear.
3. To make a new password:

When the "New Password" section is highlighted, enter a 4-digit password using the numbered buttons then press ENTER. Enter the 4-digit password again to verify when the "Confirm Password" section is highlighted, then the "OK" will be highlighted.

To change the password:

When the "Old Password" section is highlighted, enter the 4-digit password you have created then press ENTER. The "New Password" section will be highlighted. Enter a new 4-digit password using the numbered buttons then press ENTER. Enter the new 4-digit password again to verify when the "Confirm Password" section is highlighted, then the "OK" will be highlighted.
4. Press SETUP to exit the menu.

If you forget your password

If you forget your password you can clear it using the following steps:
1. Remove any disc from the unit and close the disc tray.
2. Press SETUP and setup menu appears on the TV screen. Use the numbered buttons to enter the 6-digit number "210499".
3. Enter a new password as described above.

Area Code

Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 34.

1. Select "Area Code" on the LOCK menu then press
2. Select the first character using buttons.
3. Shift the cursor using button and select the second character using / buttons then press ENTER, the password window will appear.
4. Follow step 3 as shown previous page (Rating).
5. Press ENTER to confirm your Area Code selection, then press SETUP to exit the menu.

Initial Settings (Continued)

OTHERS

The PBC, Auto Play, B.L.E. settings can be changed.

PBC

Set Playback Control (PBC) to On or Off.

On: Video CDs with PBC are played according to the PBC.

Off: Video CDs with PBC are played in the same way as Audio CDs.

Auto Play

You can set up the DVD Player so a DVD disc automatically starts playing whenever the DVD is inserted.

If Auto Play mode is set to On, this DVD player will search for title that has the longest playback time and then play back the title automatically.

On: Auto Play function is activated.

Off: Auto Play function is not activated.

Note

The Auto Play function may not work for some DVDs.

B.L.E. (Black Level Expansion)

To select the black level of playback pictures. Set your preference and monitor's ability.

On: Expanded grey scale. (0 IRE cut off)

Off: Standard grey scale. (7.5 IRE cut off)

General Features

If a menu screen is displayed

DVD

Use the buttons to select the title/chapter you want to view, then press ENTER to start. Press TITLE or MENU to return to the menu screen.

Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu.

Resume Play ALL

When play is stopped, the unit records the point where STOP was pressed (RESUME function).

Press PLAY and play will resume from this point.

Moving to another TITLE DVD

When a disc has more than one title, you can move to another title. Press DISPLAY during playback or resume play then the appropriate number (0-9) or use / to move to another title.

Title Menu DVD

Checking the contents of DVD discs: Menu

DVDs may offer menus that allow you to access special features. To use the disc menu, press TITLE.

Input the corresponding number or use the buttons to highlight your selection. Then press ENTER.

Disc Menu DVD

Press MENU and the disc menu is displayed. Press MENU again to exit.

Moving to another CHAPTER/TRACK ALL

During playback, press SKIP/SEARCH (or to go to the next chapter/track or to return to the beginning of the current chapter/track.

Press SKIP twice briefly to step back to the previous chapter/track.

Slow Motion VcDD

1. Press SLOW or during playback. The player will enter SLOW mode.

DVD disc; 4 steps

1. To exit slow motion mode, press PLAY.

Changing the Audio Language DVD

Press AUDIO repeatedly during playback to hear a different audio language or audio track.

VCD

Press AUDIO repeatedly during playback to hear a different audio channel (STEREO, LEFT, or RIGHT).

General Features

Search ALL

1. Press and hold SKIP/SEARCH (or for about two seconds during playback.
   The player will now go into SEARCH mode.
2. Press and hold SKIP/SEARCH (I or ) repeatedly to select the required speed.

DVD:4 steps

Video CDs, MP3, WMA, Audio CD: 3 steps

1. To exit SEARCH mode, press PLAY.

Still Picture and Frame-by-Frame Playback

ALL

During playback, press to pause playback.

VCDD

Press repeatedly to play Frame-by-Frame.(Remote Control Only) To exit still motion mode, press PLAY.

Repeat ALL

During playback, press REPEAT repeatedly to select a desired repeat mode.

DVD Discs: Chapter/Title/Off

Video CDs, Audio CD, MP3/WMA discs: Track/All/Normal

Notes

• On a Video CD with PBC, you must set PBC to Off on the setup menu to use the repeat function (See "PBC" on page 25).
• If you press SKIP once during Repeat Chapter (Track) playback, the repeat playback cancels.

Marker Search VcDD

Storing a MARKER in the DVD memory is similar to marking your page in a book. It allows you to quickly return to any point on the disc.

Storing a marker in the memory

1. Press MARKER/SEARCH during play.
   The MARKER SEARCH menu appears on the screen.
2. During playback, press ENTER when playback reaches the spot that you want to memorize.
3. Press to select the other marker.
   Repeat step 2 to enter up to nine Marker points on a disc.
4. To remove the MARKER SEARCH menu, press
   MARKER/SEARCH.

To Recall or Clear a Marked Scene

1. Press MARKER/SEARCH during playback.
   The MARKER SEARCH menu will appear on the screen.
2. Press to select the marker to be recalled/ cleared.
3. Press ENTER to recall a marker.

Press CLEAR to clear a marker.

Play resumes from the point corresponding to the selected marker, or the selected marker is cleared.

General Feature

Repeat A-B

ALL

To repeat a sequence.

1. Press A-B at your chosen starting point. "A" appears briefly on the TV screen.
2. Press A-B again at your chosen end point. "A B" appears briefly on the TV screen and the repeat sequence begins.
3. Press A-B again to cancel.

Zoom

VCDD

Use zoom to enlarge the video image.

1. Press ZOOM during playback to activate the Zoom function.
2. Each press of the ZOOM button changes the screen in the sequence: 200% 300% 400% Normal (4 steps).
   3 Use the buttons to move through the zoomed picture.
3. To resume normal playback, press CLEAR.

Note

Zoom may not work on some DVDs.

Camera Angle DVD

If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback.

Press ANGLE repeatedly during playback to select a desired angle.

Note that the number of the current angle appears on

Subtitles DVD

Press SUBTITLE repeatedly during playback to display the different subtitle languages.

Last Scene Memory

ACDI

This player memorizes last scene from the last disc that is viewed.

The last scene remains in memory even if you remove the disc

from the player or switch off the player. If you load a disc that has the scene memorized, the scene is automatically recalled.

Note

This player does not memorize the scene of a disc if you switch off the player before commencing to play the disc.

Screen Saver/Auto Power Off

The screen saver appears when you leave the DVD player in Stop

mode for about five minutes. If the Screen Saver is displayed for

five minutes, the DVD Player automatically turns itself off.

Playing an Audio CD or MP3/WMA Disc

The DVD player can play MP3/WMA formatted recordings on CD-ROM, CD-R, or CD-RW, DVD discs.

MP3/WMA/Audio CD

Once you insert an MP3/WMA files recorded media or Audio CD, a menu appears on the TV screen.

Press / to select a track/file then press PLAY or ENTER and playback starts. You can use variable playback functions. Refer to page 26-28.

Audio CD Menu MP3/WMA Menu

Tips

• If you are in a file list on the MUSIC menu and want to return to the Folder list, use the / to highlight and press PLAY or ENTER.

• Press MENU to move to the next page.
  Press TITLE to move to the previous page.

• On a CD with MP3/WMA and JPEG you can switch MP3/WMA and JPEG.

Press / to select a folder, and press ENTER to see the folder contents.

MP3 / WMA disc compatibility with this player is limited as follows:

Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA).
- Bit rate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA)
- The player cannot read an MP3/WMA file that has a file extension other than ".mp3" /".wma".
CD-R physical format should be ISO 9660
- If you record MP3 / WMA files using software that cannot create a file system (eg. Direct-CD) it is impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
- File names should have a maximum of 8 letters and must incorporate an .mp3 or .wma extension.
They should not contain special letters such as /?*:<>I etc.
The total number of files on the disc should be less than 648.

This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Programmed playback

The program function enables you to store your favorite tracks from any disc in the player memory.
A program can contain 30 tracks (Audio CD, MP3/WMA).

1. Insert a disc. (Audio CD, MP3 or WMA.)
2. Press / to select the desired file.
3. Press PROG. during playback or in the stop mode. Repeat press PROG. to place additional tracks on the program list.
4. Press DISPLAY. Program List menu appear. Press / to select the track you want to start playing. Press MENU to move to the next page. Press TITLE to move to the previous page.

Audio CD Menu MP3/WMA Menu

Erasling a Track from program list

1. Use / to select the track that you wish to erase from the program list.
2. Press CLEAR. Repeat to erase additional tracks on the program list.

For details on each operations item, refer to relevant page. (See pages 26-28)

1. Press PLAY or ENTER to start.

2. To resume normal playback from programmed playback. Press DISPLAY then select a track of list and then press PLAY or ENTER.

Viewing a JPEG Disc

Using this DVD Player you can view discs with JPEG files.

1. Insert a disc and close the tray.

The PHOTO menu appears on the TV screen.

1. Press / to select a folder, and press ENTER or PLAY.

A list of files in the folder appears. If you are in a file list and want to return to the previous Folder list, use the / buttons on the remote to highlight and press ENTER or PLAY.

1. If you want to view a particular file, press / to highlight a file and press ENTER or PLAY. Viewing the file proceeding starts. While viewing a picture, you can press STOP to move to the previous menu (PHOTO menu).

Tips

• Press MENU to move to the next page.
  Press TITLE to move to the previous page.
• On a CD with MP3/WMA and JPEG you can switch MP3/WMA and JPEG. Press / to select a folder, and press ENTER to see the contents.

Moving to another File

Press SKIP (I or I) once while viewing a picture to advance to the next or previous file.

To rotate picture

Press during showing a picture to rotate the picture clockwise or counter clockwise.

Still Picture

1. Press PAUSE during slide show.
   The player will now go into PAUSE mode.
2. To return to the slide show, press PLAY, ENTER or press PAUSE again.

Zoom

Use zoom to enlarge the image.
1. Press ZOOM during playback to activate the Zoom function.
2. Each press of the ZOOM button changes the screen sequence: 100% 150% 200% 100%
3 Use the buttons to move through the zoomed picture.
4. To resume normal playback, press CLEAR or press ZOOM repeatedly to select the 100% .

JPEG disc compatibility with this player is limited as follows:

• Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc's contents. If you don't see an on-screen display after several minutes, some of the files may be too large - reduce the resolution of the JPEG files to less than 2M pixels as 2760 × 2048 pixels and burn another disc.
• The total number of files and folders on the disc should be less than 648.
• Ensure that all the selected files have the "jpg" extensions when copying into the CD layout.
• If the files have "jpeg" or "jpeg" extensions, please rename them as "jpg" file.
• File names without "jpg" extension can not be read by this DVD player. Even though the files are shown as JPEG image files in Windows Explorer.

Maintenance and Service

Refer to the information in this chapter before contacting a service technician.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.
• Do not leave rubber or plastic products in contact with the unit for a long period of time. Since they leave marks on the surface.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution.

Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The DVD player is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished.

Depending on the operating environment, regular inspection and maintenance are recommended after every 1,000 hours of use.

For details, please contact your nearest authorized service center.

Language Code List

Use this list to input your desired language for the following initial settings:
Disc Audio, Disc Subtitle, Disc Menu.

Language Code

Abkazlian 8566

Alar 6565

Afrikaans 6570

Albanian 8381

Ameharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Aymara 6588

Azerbaijan 6590

Bashkir 6665

Basque 6985

Bengali; Bangla 6678

Bhutani 6890

Bharli 6672

Breton 6682

Bulgarian 6671

Burmese 7789

Byelorussian 6669

Cambodian 7577

Catalan 6765

Chinese 9072

Corsican 6779

Croatian 7282

Czech 6783

Danish 6865

Dutch 7876

English 6978

Esperanto 6979

Estonian 6984

Faroeese 7079

Language Code
Fiji	7074
Finnish	7073
French	7082
Frisian	7089
Gallician	7176
Georgian	7565
German	6869
Greek	6976
Greengliandic	7576
Guarani	7178
Gujarati	7185
Hausa	7265
Hobrow 7387
Hindi	7273
Hungarian	7285
Icelandic	7383
Indonesian	7378
Interlingua 7365
Irish	7165
Italian	7384
Japanese	7465
Javanese 7487
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz	7589
Korean	7579
Kurdish 7585
Laothian	7679
Latin	7665
Latvian, Lottish	7686

Language Code
Lingala	7678
Liluhuanian	7684
Macedonian	7775
Malagasy 7771
Malay	7783
Malayalam 7776
Maltese	7784
Maori	7773
Marathi 7782
Moldavian	7779
Mongolian	7778
Nauru	7865
Nopali 7869
Norwegian	7879
Oriya	7982
Panjabi 8065
Pashto, Pushto	8083
Persian 7065
Polish	8076
Portuguese	8084
Quechua	8185
Rhaetov-Romance	8277
Rumanian	8279
Russian	8285
Samoan	8377
Sanskrit	8365
Scotts Gaelic	7168
Serbian 8382
Serbo-Croatian	8372
Shona	8378
Sindhi	8368

Language Code
Singhaiese 8373
Slovak	8375
Slovenian	8376
Somali	8379
Spanish	6983
Sudanese	8385
Swahili	8387
Swedish	8386
Tagalog	8476
Tajik	8471
Tamil	8485
Tatar	8484
Telugu 8469
Thai	8472
Tibetan	8679
Tigrinya	8473
Tonga	8479
Turkish	8482
Turkmen 8475
Twi	8487
Ukrainlan 8575
Urdu	8582
Uzbek 8590
Vietnamese	8673
Volapuk	8679
Welsh	6789
Wolof 8779
Xhosa 8872
Yiddish	7473
Yoruba	8979
Zulu	9085

Area Code

Choose an area code from this list.

Area Code

Afghanistan AF

Argentina AR

Australia AU

Austria AT

Belgium BE

Bhutan BT

Bolivia BO

Brazil BR

Cambodia KH

Canada CA

Chile CL

ChinaCN

Colombia CO

Congo CG

Costa Rica CR

Croatia HR

Czech Republic CZ

Denmark DK

Ecuador EC

Egypt EG

El Salvador SV

Area Code

Ethiopia ET

Fiji FJ

Finland FI

France FR

Germany DE

Great Britain GB

Greece GR

Greenland GL

Heard and McDonald Islands HM

Hong Kong HK

Hungary HU

India IN

Indonesia ID

Israel IL

Italy IT

Jamaica JM

Japan JP

Kenya KE

Kuwait KW

Libya LY

Luxembourg LU

Area Code

Malaysia MY

Maldives MV

Mexico MX

Monaco MC

Mongolia MN

Morocco MA

Nepal NP

Netherlands NL

Netherlands Antilles AN

New Zealand NZ

Nigeria NG

Norway NO

Oman OM

Pakistan PK

Panama PA

Paraguay PY

Philippines PH

Poland PL

Portugal PT

Romania RO

Russian Federation RU

Area Code

Saudi Arabia SA

Senegal SN

Singapore SG

Slovak Republic SK

Slovenia SI

South Africa ZA

South Korea KR

Spain ES

Sri Lanka LK

Sweden SE

Switzerland CH

Taiwan TW

Thailand TH

Turkey TR

Uganda UG

Ukraine UA

United States US

Uruguay UY

Uzbekistan UZ

Vietnam VN

Zimbabwe ZW

Troubleshooting

Symptom	Cause	Correction
No power.	• The power cord is disconnected.	• Plug the power cord into the wall outlet securely.
	• The battery is discharged.	• Recharge the battery.
No picture on the LCD or TV (including video from another unit).	• The video cable is not connected securely.	• Connect the video cable into the jacks securely.
	• LCD mode is set to OFF.	• Select a LCD mode other than OFF.
	• The TV is not set to receive DVD signal output.	• Select the appropriate video input mode on the TV so the picture from the DVD player appears on the screen.
No sound.	• The equipment connected with the audio cable is not set to receive DVD signal output.	• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player.
	• The audio cables are not connected securely.	• Connect the audio cable into the jacks securely.
The DVD player does not start playback.	• An unplayable disc is inserted.	• Insert a playable disc. (Check the disc type, color system and Regional code.)
	• The Rating level is set.	• Cancel the Rating function or change the rating level.
No response when buttons are pressed.	• Some discs prohibit certain operations.	• " " may appear on the screen during operation.
The Remote Control does not work properly.	• The Remote Control is too far from the DVD player.	• Operate the Remote Control within about 23 ft (7 m).

Specifications

DVD Player

Power supply:

DC 9.5V (AC adapter terminal), DC 7.4V (Battery)

Power consumption: 12W with battery

Weight: 1.6 lbs (0.74 kg) (without battery pack)

External dimensions (W x H x D):

7.5 x 6.8 x 1.5 inches (191 x 174 x 39 mm)

Signal system: NTSC

Laser:

DVD Laser wavelength 662+25 / 662-15 nm

CD Laser wavelength 785+25/785-15 nm

Frequency range (audio):

DVD linear sound: 48kHz sampling 8 Hz to 20 kHz

96kHz sampling 8 Hz to 44 kHz

Signal-to-noise ratio (audio): More than 80 dB

Dynamic range (audio): More than 80 dB

Harmonic distortion (audio): 0.03%

Operating conditions:

Temperature: 0^ to 40^ , Operation status: Horizontal

Connectors

Video output (VIDEO Out):

1.0 V (p-p), 75 Ω, negative sync., 03.5mm minl jack x 1

Audio output (AUDIO Out, analog audio):

1.6 Vrms(1 KHz, 0 dB), 03.5mm mini jack x 1

Earphone terminal: 03.5mm stereo mini jack x 2

Liquid Crystal Display

Panel size: 7 inches wide (diagonal)

Projection system: R.G.B. stripe

Driving system: TFT active matrix

Resolution: 234 × 480 × 3 (effective pixel rate: more than 99.99% )

Supplied Accessories

RCA Audio/Video cable. 1
- AC Adapter (DPAC1T) 1
Automotive Adapter (DPDC1) 1
Battery Pack (DPB125) 1
Remote control. 1
- Battery for Remote control (Lithium Battery) 1

Design and specifications are subject to change without notice.

P/NO:MFL37883940

DP260-N AA1CLLW FRE

regressive/progréssive.

PLAY(

Connector I'adaptataur AC.

9,5 VCC (borne adaptateur CA), 7,4 VCC (battery)

Sortle audio (AUDIO out, analogue audio):

1,6 Vrms(1 KHz, 0 dB), mini-ficheø3.5mm x 1

Driving system: TFT active matrix
