USER MANUAL FFTSl M22 9X2WSB EE WHIRLPOOL

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION.

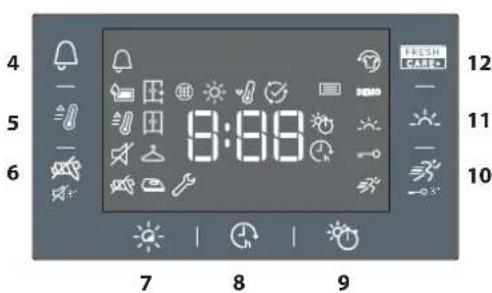

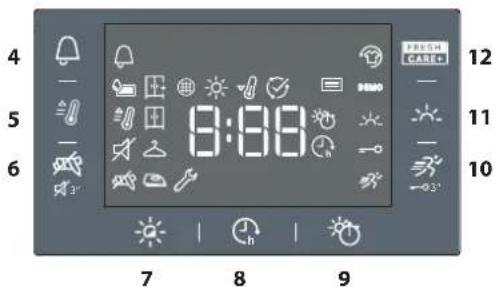

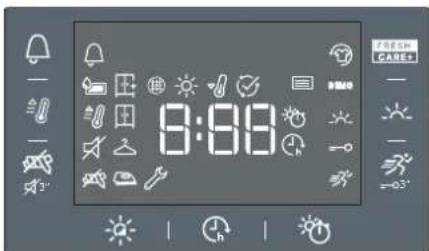

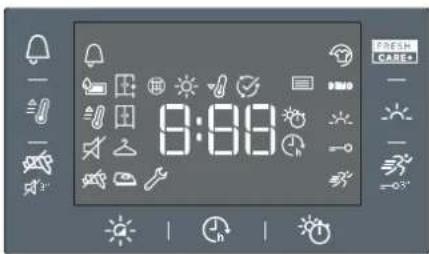

CONTROL PANEL

1 ON/OFF button (hold for Reset)
2 Programme selection Knob
3 Start/Pause

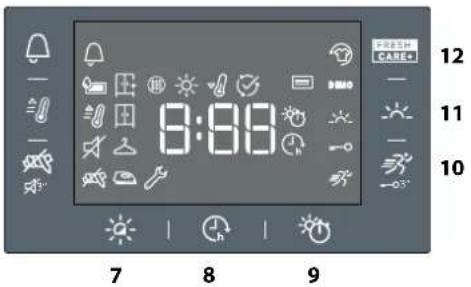

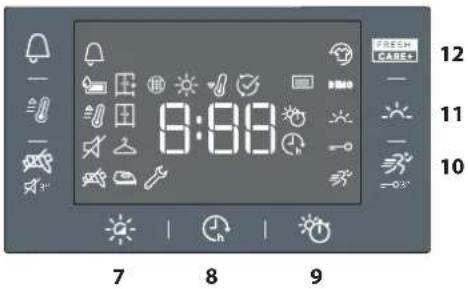

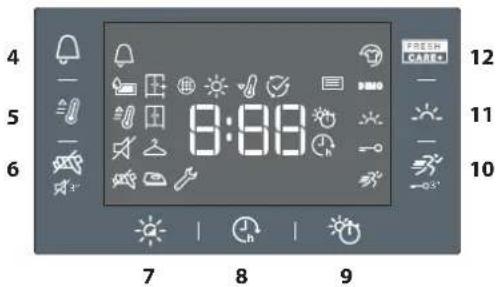

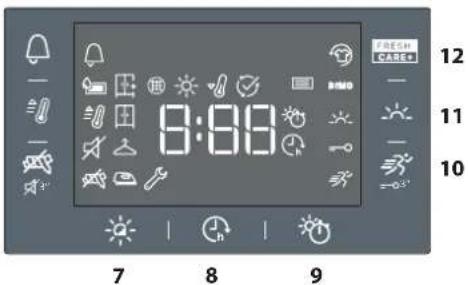

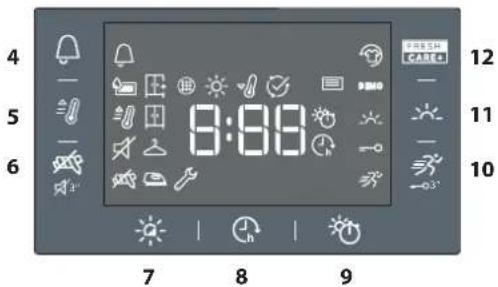

Options Buttons\*

4 Cycle end
5 High heat
6 Anti tangle (hold for Mute)
7 Dryness level
8 Start delay
9 Timed drying
10 Rapid (hold for Key lock)
11 Gentle
12 FreshCare+

Cross-sectional diagram of a circular ring with shaded inner area and labeled point '2' (no text or symbols beyond label)

4

8:00 7 8 9 FRESH CARE+ 12 11 10

*Note: some models may have the wording in full instead of the icons.

INDICATORS

Dryness level: Dry dry - Hanger dry - Cupboard dry - Extral dry Cycle phase: Drying - Cool down - End of cycle Empty water tank - Clean door filter - Clean bottom filter

Refer to troubleshooting section: 📋Failure: Call after sales service

FIRST TIME USE

Make sure that the water tank is correctly inserted. Make sure that the drain hose on the back of the dryer is fixed correctly, either to the dryer's water tank, or to your domestic drainage system.

The dryer must be installed in a room with a temperature ranging between 5°C and 35°C to ensure proper operation. Before you use your dryer ensure that it has been in a upright position for at least 6 hours.

DAILY USE

Doing this will keep your machine working at its BEST:

- remember to empty your water tank after each drying cycle.

- remember to clean your filters after each drying cycle. Refer to the Care & Maintenance section.

1. Plug the dryer into the power supply socket.

2. Open the door and load garments; always refer to instructions on clothing labels and the max loads indicated in the programme section. Empty pockets. Make sure garments do not get caught between the door and/or the door filter. Do not load items that are dripping wet. Do not tumble dry large, very bulky items. For optimal drying result, garments should be loaded one by one.

3. Close the door.

4. Press the "On/Off" button.

5. Select the most suitable programme for the type of fabric in that load.

6. Select the options, if necessary.

7. Press the "Start/Pause" button to begin drying.

8. At the end of the drying cycle, a buzzer will beep. An indicator on the control panel signals the end of the cycle. Turn the machine off by pressing the "On/Off" button, open the door and pull the clothing immediately out to prevent the formation of creases on laundry.

If the machine is not switched off manually, after about a quarter of an hour from the end of the cycle, the appliance turns off automatically to save energy.

Note that some models perform a final cool tumble phase, for this reason the fabrics may not feel hot.

In case of power failure, it is necessary to press the "Start/Pause" button to restart the cycle

Opening the door during the cycle

The tumble dryer door can be opened at any time during the cycle to check progress and remove any garments already dry. However, since opening the door can extend the drying time, the recommendation is to keep the door closed throughout the cycle process to save time and energy.

After closing the door, press the "Start/Pause" button within 15 minutes to resume the machine operation.

CARE LABEL

Always check the care labels, especially when placing garments in the tumble dryer for the first time. Below are the most commonly used symbols:

☐ May be tumble dried.
Do not tumble dry.
Tumble dry – high heat.
Tumble dry – low heat.

PROGRAMS

The duration of these programs will depend on the size of the load, types of textiles, the spin speed used in your washer and any extra options selected. In machines equipped with display, the duration of the cycles is shown on the control panel. The remaining time is constantly checked and adjusted during the drying cycle to show the best possible estimate. Option to use - If all your loads on Automatic Cycles are consistently less dry or more dry than you would like, you may increase or decrease the dryness level using the specific option.

Eco kg Max\*

This is the most efficient programme in terms of energy consumption and is suitable for drying normal wet cotton laundry. The values on the Energy Label are based on this programme.

NOTE: For optimal energy efficiency this cycle by default is set up to "Cupboard Dry" level. For a higher dryness level we suggest using the Cotton cycle.

Cotton kg Max\*

Cycle suitable for drying all types of cotton, ready to be placed in the cupboard.

Mixed kg 4

This programme is ideal for drying cotton and synthetic fabrics together.

Bed linen kg Max\*

This programme is intended for drying cotton sheets.

Duvet

Programme intended to dry bulky items, such as a single duvet.

Shirts kg 3

This is a programme for Shirts made from cotton or cotton blend/synthetics.

Jeans kg 3

For drying sturdy cotton including denim trousers and jackets.

Easy ironing

This cycle relaxes fibres, thus making ironing and folding easier. Suitable for small load of damp or dry cotton and cotton blend fabrics. Not for wet items.

Refresh

A short programme suitable for refreshing fibres and garments through the emission of fresh air. Do not use on wet items. It can be used on with any load size but is more effective with small loads. It lasts about 20 minutes.

Rapid 30' kg 0.5

Ideal for drying cotton garments spun at high speed in the washing machine.

Sport kg 4

For drying synthetics or cotton sports garments.

Silk kg 0.5

Gentle drying of silk garments.

Wool kg 1

Programme for drying wool clothes. It is advisable to turn the items inside out before drying. If heavy edges remain damp, leave them to dry naturally.

Delicates kg 2

For drying delicate laundry requiring gentle treatment.

Synthetics kg 4

For drying synthetic fabrics.

*MAX LOAD 9 Kg (Dry load)

OPTIONS

These buttons allow you to personalise the selected programme according to personal requirements. Not all options are available for all programmes. Some options may be incompatible with ones you have previously set; if so, you will be alerted by the buzzer and/or blinking indicators. If the option is available, the option indicator will stay on. The programme may retain some options selected in previous drying cycles.

Dryness level

Press the related button several times to obtain a different level of residual moisture on garments. An indicator signals the level being selected.

Iron dry: very delicate drying. Items will be more easily ironed immediately after the cycle.
Hanger dry: a level intended for delicate garments ready to be hanged.
Cupboard dry: the laundry is ready to be folded and put away.
Extra dry: for laundry intended to be worn at the end of the cycle.

Timed drying

This option is to manually set the drying time. Press the corresponding button to set the required time for drying. An indicator on the control panel signals the time being selected.

Start delay

This option is for delaying the start of the cycle. Press the corresponding button several times to find the required delay. Once the max time is reached, the option is reset by pressing the button again. An indicator on the control panel signals the time being selected. After pressing the "Start/Pause" button, the machine signals the time remaining to the start of the cycle. If the door is opened, press the "Start/Pause" button once the door has been closed.

Rapid

Enables quicker drying.

FRESH

FreshCare+

CARE+ If laundry is left inside of the drum once the cycle has ended, it can be subjected to bacterial proliferation. This option helps to prevent this from happening by controlling the temperature and gently rotating the drum. This will continue for up to 6 hours after the end of the cycle. This setting will remain in the memory of the previous cycle. If this is used alongside Start Delay, a crease treatment will be performed during this phase by periodic rotations of the drum.

) Key lock

This option makes all machine controls inaccessible, except the "On/Off" button. When the machine is on:

• to activate the option, keep the button pressed until the machines signals that the option has been enabled.
• to disable the option, keep the button pressed until the machine signals that the option has been disabled. This option remains in memory if selected in previous drying.

Cycle end

This option activates a prolonged buzzer at the end of the cycle. Enable it if you are not sure to hear the normal sound at the end of the cycle. This option remains in memory if selected in the previous drying.

Mute

This option turns off all sounds of control panel. Only warnings remain active.

• to activate the option, keep the button pressed until the indicator goes on.
• to disable the option, keep the button pressed until the indicator goes off.

High heat

It improves the drying capacity. Option suitable for drying tough garments, it is used with timed cycles.

Anti tangle

This option performs a special drum movement that reduces tangling and knotting of your clothes. It gives best results when used with smaller loads.

Gentle

Enables a more gentle treatment of the laundry by reducing the drying temperature.

CLEANING AND MAINTENANCE

WARNING: unplug the dryer during the cleaning and maintenance procedures.

Emptying the water tank after each cycle (see Fig. A).

Pull the container out of the dryer and empty it into a sink or other suitable drain, then place it back properly. Do not use the dryer without having inserted the container back in place.

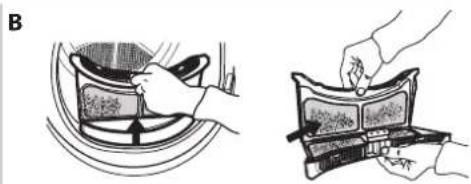

Cleaning the door filter after each cycle (see Fig. B).

Pull the filter out and clean it by removing the lint from the filter surface under running water or using a vacuum cleaner. For optimal performance, dry up the filter before inserting it back in place.

Do not use the dryer without having reinserted the filter in place.

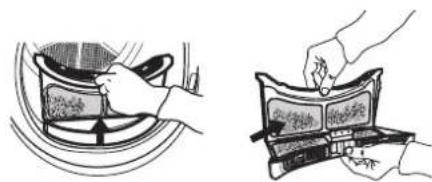

Remove the door filter as described below:

1. Open the door and pull the filter upwards.

2. Open the filter and remove the lint from all its parts. Replace the filter correctly making sure it is fully seated.

Cleaning the bottom filter when the relevant indicator turns on (see Fig. C).

Pull the filter out and remove the lint from its surface by washing it under running water or by using a vacuum cleaner.

However, it is advisable to clean this filter after each cycle to optimise drying performance.

Do not use the dryer without having reinserted the filter in place.

Remove the bottom filter as described below:

C1. Open the bottom cover; take the handle and pull the filter out.

C2. Open the rear side of the filter and remove the lint from the inner surface of the mesh.

C3/C4. Check the bottom filter chamber every month. If you see residual lint accumulated on the metal fins, clean it with a vacuum cleaner, using a nozzle with a brush.

It's crucial to do vertical movements, you may destroy the component if you try to clean it in horizontal direction. Avoid the direct contact of the hand with the fins - risk of cut.

C5. Close the rear side of the filter and place it back by checking it is perfectly integrated into its seat, then lower the filter handle.

C6. Close the bottom cover.

Make sure the air intake is free.

The filters are essential parts for drying. They are intended to collect the lint formed during the drying process. In case of clogged filters, the air flow inside the dryer would be seriously affected: the drying times would be longer, the energy consumption would increase and the dryer could be damaged. If these procedures are not carried out properly, the dryer may not start.

NOTE: After cleaning the filters the relevant indicator remains on; this is normal, it will disappear when you start a new drying cycle.

Cleaning the tumble dryer

• The external metal, plastic and rubber parts can be cleaned with a damp cloth.
• Clean the front air intake grille regularly (every 6 months) with a vacuum cleaner to remove any lint, fluff or dust deposits. Furthermore, remove any lint deposits from the filters area, using a vacuum cleaner every so often.
• Do not use solvents or abrasives.

TRANSPORT AND HANDLING

Never lift the dryer by holding it at the worktop.

1. Unplug the dryer.
2. Remove the water from the water tank completely.
3. Make sure that door and water tank are properly closed.
4. If the drain hose is connected to your drainage system, re-connect it to the back of the dryer (see "Installation" section in the Safety Instruction guide).

Power consumption
off-mode (Po) - Watts 0.42
left-on mode (PI) - Watts 2.00
Programs Kg kWh Minutes
Eco*	9 2.13 21
Eco	4.5 1.19 1	31
Synthetics 4 0.73 95
*This is the reference programme for the energy label and suitable to dry normal wet cotton laundry. This is the most efficient programme in terms of energy consumption for drying wet cotton laundry (Standard/Default starting configuration).

Heat Pump System

The heat pump contains fluorinated greenhouse gases, contained in a hermetically sealed unit. This sealed unit contains 0.18 kg of the R134a gas. GWP = 604 (1 t CO _2 ).

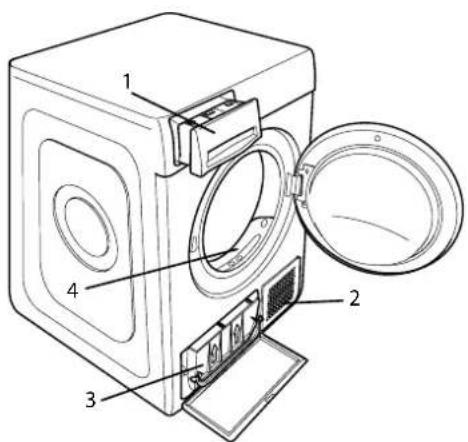

PRODUCT DESCRIPTION

1. Water Tank
2. Air Intake
3. Bottom filter
4. Door filter

Technical diagram of a washing machine with numbered components and labeled parts

B

TROUBLESHOOTING

EN

Before contacting the After-sales Service, refer to the table below. Often the malfunctions are minor and can be solved in few minutes.

Malfunction Possible cause Solution

The drying times are very long.	An appropriate maintenance was not carried out.	Refer to the Cleaning & Maintenance section and perform the operations described.
	The garments are too wet.	Carry out a washing cycle with higher spin speed to remove as much water as possible.
	Room temperature.	The drying time may be longer if the room temperature falls outside the 14-30°C range.
	The programme, the time and/or the drying level set are not suitable for the type and the amount of load inserted into the dryer.	Refer to Programmes and Options sections to find the programme and options most suitable for the type of load.
	The dryer may be overloaded.	Refer to the Programmes section to check the max load for each programme.
The tumble dryer does not turn on.	The "On/Off" button was not pressed.	Press the "On/Off" button.
	The plug is not inserted into the socket.	Insert the plug into the socket.
	The socket is faulty.	Try to plug another appliance in the same socket. Do not use connecting electrical devices to the socket, such as adapters or extensions.
	A power failure occurred.	Wait for the power supply to be restored and switch the fuse on again if necessary.
The tumble dryer does not start.	The door has not been closed properly.	Close the door.
	A time delay was set to the start of the cycle.	For machines equipped with this function: wait for the set delay to end or switch the machine off to reset it. Refer to the Options section.
	The "Start/Pause" button was not pressed. Press the "Start/Pause" button.
	The Key Lock function was enabled (for machines equipped with this option).	If Key Lock was selected, disable it. Switching the machine off will not disable this option. Refer to the Options section.
Garments are wet at cycle completion.	Small load.	The automatic programme has not sensed the required final moisture so that the dryer completes the programme and stops. If this happens simply select an additional short period of drying or select Extra Dry option if available.
	Large loads or heavier fabrics.	Dryness levels can be modified to the specific dryness desired. Extra Dry is recommended for ready to wear items.
	The drying cycle was paused and then not reactivated within 15 minutes, causing the machine to shut down.	The drying cycle has to be set up once more and restarted.
	A power failure might have occurred, causing the machine to shut down.	The drying cycle has to be set up once more and restarted.

Lights on or flashing

Water tank	The water tank is full. Empty the water tank. Refer to the Cleaning & Maintenance section.
Door fi Iter	Failure of the air flow necessary for machine operation.	Clean the door fi Iter and check whether air intake is free. Carrying out these operations improperly may cause damages. Refer to Cleaning & Maintenance section.
Bottom fi Iter*	The bottom fi Iter requires cleaning. Clean the bottom fi Iter. Refer to Cleaning & Maintenance section.
The presence of wrench symbol signals a malfunction. The	machine sensors detected a failure.	Switch the dryer off and unplug it. Open the door immediately and pull laundry out, to allow the heat to dissipate. Wait for about 15 minutes. Reconnect the dryer to the power supply, load the laundry and restart the drying cycle. If the problem still occurs, contact the After-Sales Service Centre and communicate the letters and digits fl ashing on the display.For instance: F3 and E2.

*Note: some models are auto-cleaning and not equipped with bottom filter. Please refer to the Cleaning & Maintenance section.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code in your appliance
- Visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com
- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

БЛАГОДАРИМ ВИ, ЧЕ ЗАКУТИХТЕ ПРОДУКТ НА WHIRLPOOL.

Circular diagram with concentric rings and a shaded inner ring, no text or symbols present

4 5 6 8:00 7 8 9 FRESH CASH C 12 11 10

Technical diagram of a washing machine with numbered components for identification

Cross-sectional diagram of a ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

4

8:00 7 8 9

12

11

Technical diagram of a washing machine with numbered parts for identification

B

PROBLÉMY A JEJICH ŘEŠENÍ

CS

TAK FORDI DU HAR K∅BT ET WHIRLPOOL PRODUKT.

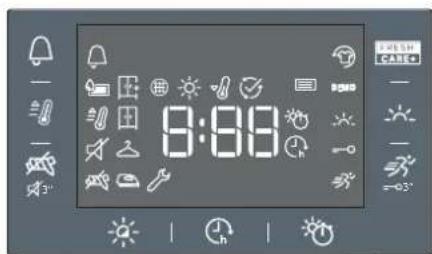

Cross-sectional diagram of a ring with shaded inner area and labeled point '2' (no text or symbols beyond label)

4

8:00

7
8
9
12

11

Technical diagram of a washing machine with numbered components for identification

A

B

C

•

FEJLFINDING

DA

DANKE, DASS SIE SICH FÜR EIN WHIRLPOOL PRODUKT ENTSCHIEDEN HABEN.

Cross-sectional diagram of a ring with shaded inner area and labeled point '2' (no text or symbols beyond label)

4 5 6 7 8 9 9:00 FRESH CASH 12 11 10 7 8 9

Technical diagram of a washing machine with numbered components for identification

B

FEHLERSUCHE

DE

Cross-sectional diagram of a ring with shaded inner area, no text or symbols present

4

9:00

7
8
9
12

11

Technical diagram of a washing machine with numbered components for identification

Diagram showing a hand holding a device with a black arrow indicating direction (no text or symbols present)

B

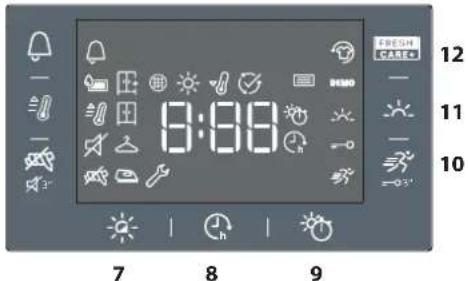

Cross-sectional diagram of a ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

4

8:00 GREEN CARE+

7
8
9
12
11

10

Technical diagram of a washing machine with numbered components for identification

B

PROBLEMAS Y SOLUCIONES

ES

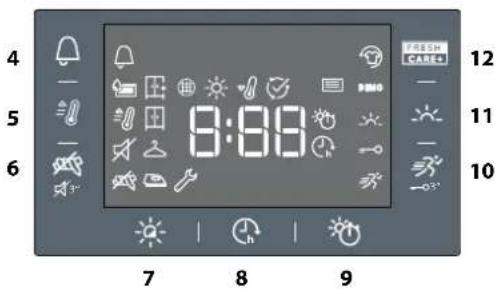

Cross-sectional diagram of a ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

4

5

•

8:00 7 8 9 FRESH CASH 12 11 10

12

11

10

Technical diagram of a washing machine with numbered parts for identification

Illustration showing hand cleaning a car wheel and inspecting a battery pack (no text or symbols)

ONGELMAT JA RATKAISUT

FI

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL.

Circular diagram with concentric rings and shaded inner region, labeled '2' at bottom (no text or symbols within the diagram itself)

4 5 6 8:00 7 8 9 FRESH CARE 12 11 10

Technical diagram of a washing machine with numbered parts for identification

A

B

ZAHVALJUJEMO VAM NA KUPOVINI PROIZVODA WHIRLPOOL.

Kako bismo vam mogli pružiti potpuniju pomoć, registrirajte svoj uređaj na adresi www.whirlpool.eu/register

Pažljivo pročitajte sigurnosne upute prije upotrebe uređaja.

SKENIRAJTE QR KOD NA SVOM UREĐAJU DA BISTE DOBILI VIŠE INFORMACIJA.

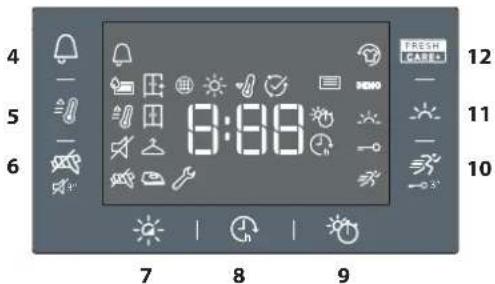

UPRAVLJAČKA PLOČA

1 Uključivanje/lsključivanje (Ako se dulje pritisne: Reset)
2 Ručica programa
3 Start/Pauza

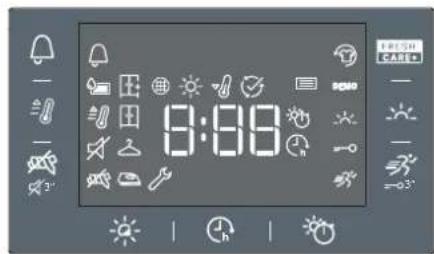

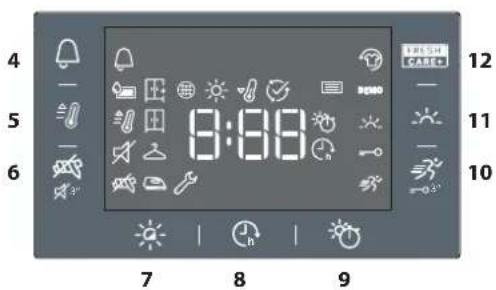

Opcijske tipke\*

4 Kraj ciklusa
5 Visoka temperatura
6 Anti tangle (ako se dulje pritisne Utišano)
7 Razina sušenja
8 Odgoda starta
9 Vremensko sušenje
10 Brzo (ako se dulje pritisne Zaključanex tipke)
11 Nježno
12 FreshCare+

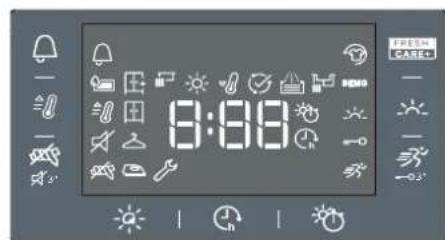

Cross-sectional diagram of a ring with shaded inner area and labeled point '2' (no text or symbols beyond label)

4 5 6 8:00 12 11 10 7 8 9

Technical diagram of a washing machine with numbered components for identification

A

B

PROBLEMI I RJEŠENJA

HR

Cross-sectional diagram of a ring with shaded inner area and labeled point '2' (no text or symbols beyond label)

4

8:00

7
8
12

11

Technical diagram of a washing machine with numbered parts for identification

B

Cross-sectional diagram of a ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

4 5 6 8:00 7 8 9 12 11 10

Technical diagram of a washing machine with numbered parts for identification

Illustration of a hand holding a smartphone with a black arrow pointing to the screen (no text or symbols)

B

Cross-sectional diagram of a ring with shaded inner area and labeled point '2' (no text or symbols beyond label)

4

8:00 FRESH CASEL

7
8
9
12

[Non-Text]

Technical diagram of a washing machine with numbered components for identification

A

B

PROBLEMEN EN OPLOSSINGEN

NL

TAKK FOR AT DU HAR KJ∅PT ET WHIRLPOOL-PRODUKT.

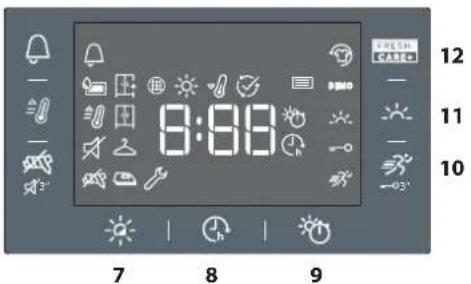

Cross-sectional diagram of a circular ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

4 5 6 8:88 7 8 9 FRESH CARE 12 11 10

PLEIE OG VEDLIKEHOLD

Technical diagram of a washing machine with numbered components for identification

B

FEILS∅KING

Cross-sectional diagram of a circular ring with shaded inner area and centerlines, labeled '2' at bottom (no text or symbols within the diagram itself)

4

8:00 7 8 9 12 11 10

Technical diagram of a washing machine with numbered parts for identification

Illustration showing hand positioning a car wheel and its open lid (no text or symbols)

ROZWIAZYWANIE PROBLEMÓW

PL

Cross-sectional diagram of a circular ring with shaded inner area and labeled number 2 (no text or symbols beyond label)

4

8:00 7 8 9 FRESH CARES 12 11 10

12

Technical diagram of a washing machine with numbered components for identification

Illustration of a hand holding a device with a black arrow pointing to the screen (no text or symbols present)

B

Line drawing of a mechanical device with internal compartments and a handle, labeled C2 (no text or symbols on the diagram itself)

PROBLEMAS E SOLUÇÕES

PT

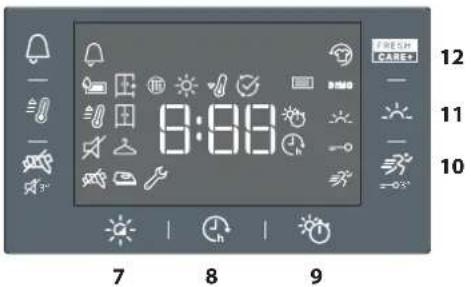

Circular diagram with concentric rings and shaded inner region, no text or symbols present

4 5 6 8:00 7 8 9 12 11 10 FRESH CAST

Technical diagram of a washing machine with numbered components for identification

Illustration of a hand holding a device with a black arrow pointing to the screen (no text or symbols present)

B

REMEDIEREA DEFECTIUNILOR

RO

Circular diagram with a shaded inner ring and marked points, no text or symbols present.

4

8:00 7 8 9 FRESH CARTS 12 11 10

Technical diagram of a washing machine with numbered components and labeled parts

B

PROBLÉMY A ICH RIEŠENIA

SK

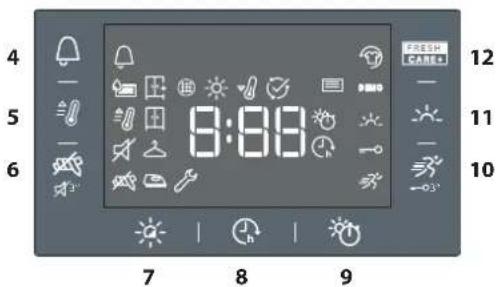

Circular diagram with concentric rings and shaded inner region, labeled '2' at bottom (no text or symbols within the diagram itself)

4 5 6 8:08 7 8 9 FRESH CABLE 12 11 10

Technical diagram of a washing machine with numbered parts for identification

Illustration of a hand holding a device with a black arrow indicating direction (no text or symbols)

B

Illustration showing two hand-drawn steps: one applying material to a container, the other handling a tray with contents (no text or symbols)

ODPRAVLJANJE TEŽAV

SL

TACK FÖR ATT DU HAR KÖPT EN PRODUKT FRÅN WHIRLPOOL.

Cross-sectional diagram of a circular ring with shaded inner area and labeled point '2' (no text or symbols beyond label)

4 5 6 9:00 7 8 9 12 11 10

Technical diagram of a washing machine with numbered parts for identification

Diagram showing a hand pressing down on a device with a black arrow indicating force or direction (no text or symbols present)

B
