AB-K2 - Air bed Active Era - Free user manual and instructions

Product Type	Inflatable Air Bed
Model	AB-K2
Brand	Active Era
Dimensions (L x W x H)	203.2 x 152.4 x 55.88 cm
Weight	10.5 kg
Power Supply	AC 220-240 V, 50 Hz
Power	150 W
Maximum Weight Capacity	250 kg
Usage	Indoor Only
Built-in Pump	Yes, rotary control (inflation/deflation)
Manual Valve	Yes
Inflation Time	Approximately 1.5 to 3 minutes
Deflation Time	Up to 3 minutes
Material	Durable Vinyl
Cleaning	Soft damp cloth, vacuum for ventilation slots
Repair	Repair kit included
Carry Bag	Included
Safety	Minimum clearance of 50 cm; not recommended for babies under 15 months
Folding and Storage	Fold into thirds and roll, store in bag

Frequently Asked Questions - AB-K2 Active Era

Why does my inflatable mattress deflate during first uses?

During first uses, the new vinyl naturally stretches. It is normal for the mattress to soften and require reinflation after the first inflations. Inflate it at least 30 minutes before first use and adjust if necessary.

Why does my mattress lose air during normal use?

All inflatable mattresses are designed to lose a small amount of air through the seams to prevent tearing or bursting. This loss is normal and expected.

Do temperature variations affect mattress firmness?

Yes, the air inside expands in hot weather and contracts in cold weather. In cold weather, reinflate slightly; in hot weather, release some air to avoid excessive pressure.

How to spot a puncture on my inflatable mattress?

Fill a spray bottle with soapy water (dish soap). Fully inflate the mattress, then spray the surface. Bubbles will form at the leak. Dry and repair with the provided kit.

How to repair a puncture with the repair kit?

Clean and dry the area around the puncture. Apply the glue from the kit to the repair patch, press firmly, and let dry according to instructions. Make sure the surface is clean and dry before repair.

How to clean my Active Era air bed?

Clean the outer surface with a soft damp cloth, then dry with a clean cloth. Use a vacuum cleaner with a brush attachment for the pump ventilation slots. Do not use abrasive cleaners.

What are the essential safety precautions?

Always unplug the pump before moving or cleaning it. Do not cover the pump. Leave at least 50 cm clearance around the bed. Never place a baby under 15 months on this bed. Use only on a flat, dry surface.

Can I use a manual pump if electricity is not available?

Yes, a standard foot or manual pump can be connected to the manual valve for inflation. Make sure the manual valve is closed when using the electric pump.

What is the maximum weight capacity of this bed?

The maximum weight capacity is 250 kg (550 lb) for most Active Era models. Check your product specifications for confirmation.

How to properly store the air bed after use?

Fully deflate the mattress, clean and dry it. Fold it in thirds lengthwise, then roll it carefully. Store it in the provided carry bag in a dry, cool place away from sunlight.

USER MANUAL AB-K2 Active Era

Line drawing of a rectangular electronic device with five wavy internal slots and a 'ACTIVE ERA' logo on the side (no text or symbols on the device itself)

LUXURY AIR BED

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG

MODE D'EMPLOI

EN Safety Instructions....Page 3

Specifications ...... Page 5

Symbols Explained ...... Page 5

Operating Instructions ...... Page 6

Frequently Asked Questions......Page 8

Storage Page 9

Cleaning and Maintenance ...... Page 9

Important Advice ...... Page 9

Recycling and Disposal ...... Page 10

DE Deutsch ...... Page 11

FR Français Page 20

Thank you for choosing to purchase a product from Active Era. Please read the entire manual carefully prior to first use and keep in a safe place for future reference.

SAFETY INSTRUCTIONS

PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons, including the following:

⚠ WARNING: To avoid the risk of electrical shock, fire or injury to people, always make sure the appliance is unplugged from the electrical outlet before relocating, servicing, or cleaning it.

• Do not cover the electric pump whilst in use.
• Use this air bed only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to person.
• Keep the air bed out of reach of children and pets.
• The air bed must have a minimum 50cm clearance around all sides
  • Children must be supervised not play with the air bed.
• This air bed is not a toy. Children must not be left unattended when using the air bed
• Cleaning and user maintenance shall not be made by children unless continuously supervised.
• The air bed is not to be used by by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction.
• Never leave the air bed unattended while in use. Always turn the appliance off and disconnect from the power supply when not in use.

- Avoid placing the power cord in areas where it can become a tripping hazard. Do not place the power cord under carpeting or cover it with rugs, runners or similar.

- Place the air bed on a flat, stable and dry surface.

- Ensure that the mains supply (including voltage, frequency and power) complies with the rating label of the electric pump.

- There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.

- Do not cover, obstruct or push objects into the openings of the electric pump as this may cause an electric shock, fire or the electric pump or air bed.

- Do not operate the electric pump with wet hands.

- Do not use this air bed near water or in the immediate surroundings of a bath, shower or a swimming pool. Never place the air bed where it may fall into a bathtub or other water container.

- Do not allow water or other liquids to run into the interior of the electric pump, as this could create a fire and/or electrical hazard.

- This air bed is intended for indoor household use and similar applications. Do not use outdoors.

- Do not use the air bed near petrol, paints, flammable gases, ovens, or other heating sources.

- The mains cable should hang down from the surface on which the air bed is placed in order to prevent the air bed from being pulled down.

- To avoid a circuit overload when using this appliance, do not operate another high-wattage appliance on the same electrical circuit.

- Always plug the electric pump directly into a wall socket. Avoid using extension leads where possible as they may overheat and cause a risk of fire.

- Do not use this electric pump with an external programmer, timer switch or any other device which would switch the appliance on automatically unless this has already been pre-built into the air bed by the manufacturer.

- Do not pull on the power cord. Never move, carry, or hang the air bed by the power cord.

- Ensure the mains cable is fully extended before use and arrange it so that it is not in contact with any part of the air bed.

- Do not operate the electric pump if there are any signs of damage to the electric pump or the air bed itself.

- Do not attempt to repair or adjust any electrical or mechanical elements in the electric pump. Doing so may be unsafe and will void your warranty.

•

Prohibition sign showing a person crossed out with a diagonal line, enclosed in a circle (no text or symbols)

WARNING: RISK OF SUFFOCATION. Infants have suffocated on inflatable air beds. Never place an infant 15 months or younger to sleep on this inflatable air bed. Infants can suffocate on an under-inflated or deflated air bed, on bedding, by co-sleeping with another person, and by

entrapment between the air bed and a vertical surface. Children can be entrapped between the inflatable air bed and an adjacent vertical surface. Provide at least a shoulder-width space between the inflatable air bed and the adjacent vertical surfaces such as walls, dressers, or other objects. Always keep the inflatable air bed fully inflated when in use.

SPECIFICATIONS

Dimensions AB-K2: 203.2 x 152.4 x 55.88cm | AB-S2: 190.5 x 99.06 x 53.34cm

Weight AB-K2: 10.5kg | AB-S2: 6.8kg

Power: 150W

Voltage: AC 220-240V

Frequency: 50Hz

SYMBOLS EXPLAINED

	For indoor use only. Please read instruc		nual and retain for future use.
	Equipment complies with the applicable UK safety requirements and regulations.		Equipment complies with the applicable EU safety requirements and regulations.

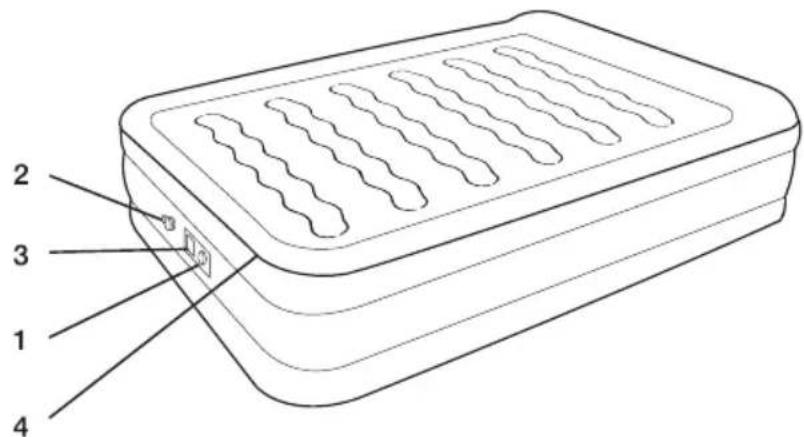

Parts

1. Control dial
2. Manual valve
3. Power cord compartment cover
4. Air Bed

2 3 1 4

Inflation

1. Choose a flat, indoor surface large enough to accommodate the inflated air bed.
2. Remove any sharp or pointy objects on or near the surface.
3. Lay the air bed out with the bottom surface touching the floor.

4. Open the cover at the side of the air bed where the power cord is stored.

5. Make sure the manual inflation valve is closed.

6. Plug the power cord into an electrical outlet.

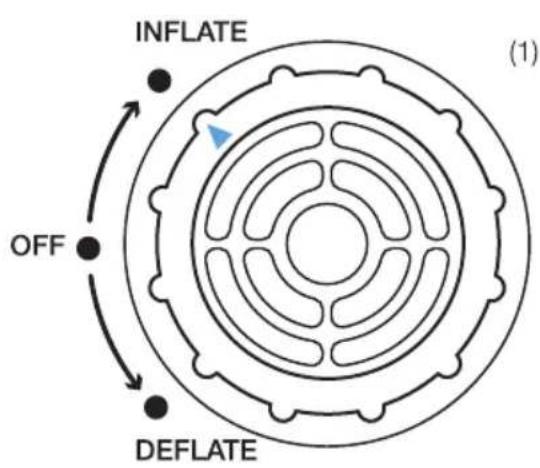

7. Turn the control dial clockwise until the arrow points to INFLATE (Image 1).

8. The single and twin air bed will take up to 2 minutes to inflate. The queen and king size air bed will take up to 3 minutes to inflate.

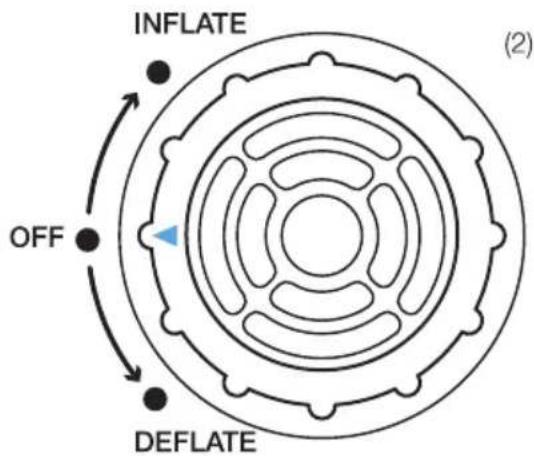

9. When the airbed is fully inflated, turn the control dial one click anti-clockwise until the arrow points to OFF (Image 2).

10. Lie down on the air bed to test the firmness. If too soft, repeat steps 7 – 9 as necessary.

11. Unplug the cord and store in the power cord compartment.

INFLATE OFF DEFLATE (1)

INFLATE OFF DEFLATE (2)

Inflation Option

If electrical power is not available, then a conventional foot or manual operated air pump can be connected to the air bed.

Deflation

1. Open the cover at the side of the air bed where the power cord is stored.
2. Make sure the manual inflation valve is closed.
3. Plug the power cord into an electrical outlet.

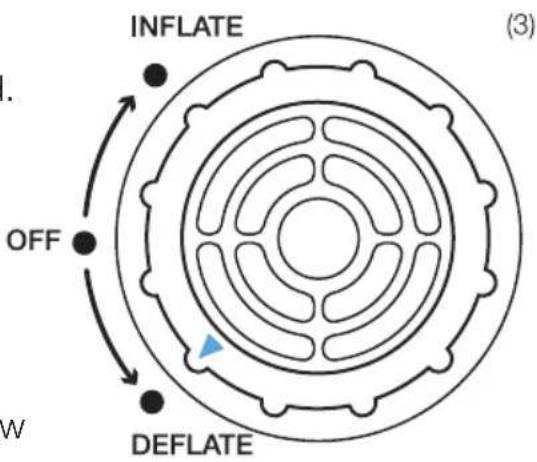

4. Turn the control dial anti-clockwise until the arrow points to DEFLATE (Image 3).
5. The air bed will take up to 3-4 minutes to deflate.
6. When the air bed is fully deflated, turn the control dial one click clockwise until the arrow points to OFF.
7. Unplug the cord and store in the power cord compartment.

INFLATE OFF DEFLATE W (3)

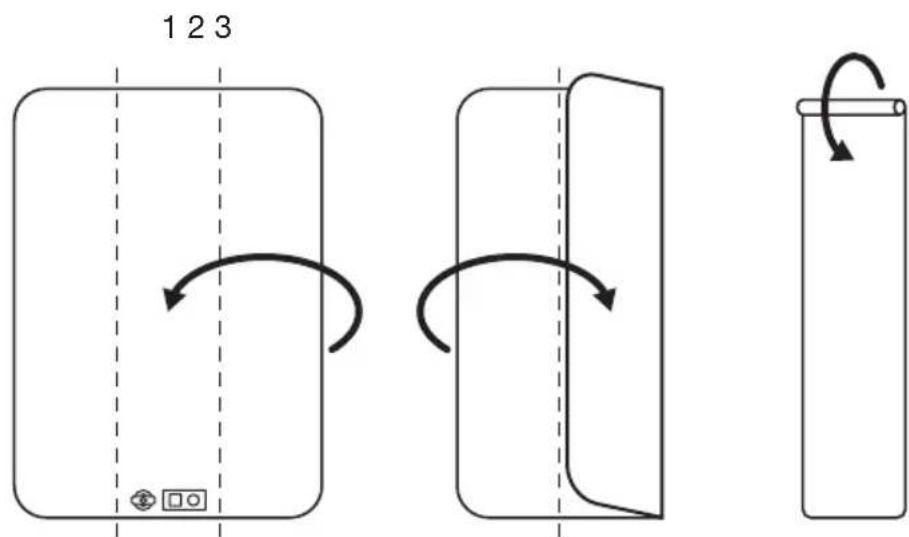

Folding Instructions

1. Lay the carry bag at the end of the mattress by the deflation valve (ensure the deflation valve is open). The carry bag will serve as a rough measuring tool for folding the air bed. Ensure the power cord is packed away into the cord storage.
2. Fold the air bed into thirds that are narrower than the width of the carry bag.
3. Roll the mattress carefully, reclose the deflation valve and store in the carry bag.

Why is my air bed deflating?

There are a few reasons your air bed may be losing air:

• First Uses: During its first few uses, your Active Era Air Bed may sag and require additional inflation to maintain its desired firmness. This is because stretching is a natural characteristic of new vinyl and is normal for the first few days of use. Inflate your air bed at least 30 minutes prior to first use and top up as required to allow the air bed to stretch to its natural shape.
• Normal Use: All air beds are designed to lose a small amount of air through their seams during use to reduce the risk of tears and bursting when pressure is added. This also helps to prevent over-inflation.
• Increased Pressure: Your air bed may be deflating because the weight limit has been exceeded. Most of our air beds have a weight limit of 250kgs or 550lb. Please check the product page or the specifications in your instruction manual for product specific weight limits.
• Varying Temperatures: Air inside the air mattress can expand or contract when exposed to hot or cold temperatures. At cold temperatures, air naturally contracts inside the air bed and can lead to sagging. If deflation occurs, pump some more air into the mattress. At hot temperatures, air can expand inside the air bed and it will become hard and in extreme circumstances, burst. Release air to avoid damage to your air bed. Where possible, aim to keep surrounding temperatures consistent during use.
• Puncture: Your air bed may be deflating because it has a puncture.

How do I find a puncture?

To find a puncture, please follow these steps:

1. Fill a spray bottle with soapy water e.g. washing up liquid.
2. Inflate your air bed fully and unplug the power cord from the mains power supply.
3. Spray the surface of the inflated air mattress, avoiding the air pump and electrical components.
4. Visually inspect the air bed. If there is a puncture, bubbles will start to form over the puncture as air starts to leak out.
5. Wipe your air bed dry with a soft dry cloth.
6. Repair your puncture with the provided puncture kit.

STORAGE

1. Deflate the airbed following the 'deflation' instructions.
2. Make sure the airbed is clean and dry.
3. Lay bed flat with sleeping surface facing upwards. Fold the airbed loosely and avoid sharp bends, corners and creases which can damage the airbed.
4. Store the air bed in cool and dry location.

CLEANING AND STORAGE

WARNING: Always turn the electric pump OFF and unplug the power cord from the electrical outlet before handling or cleaning it.
CAUTION: Do not allow water or other liquids to run into the interior of the air pump, as this could create a fire and/or electrical hazard.
CAUTION: Do not use any abrasive cleaners or solvents, as this will damage the air bed.

• Do not attempt to clean the air bed in any other way than that detailed by the manufacturer.
• Clean the exterior surface of the air bed by wiping it with a soft, damp cloth. Dry the appliance with a soft, clean cloth.
• Clean the vents and openings of the electric pump regularly with a vacuum cleaner, using the brush attachment to avoid any dust build-up.
• To store your air bed, we recommend using the original or a similar-sized box.
• Store the air bed in a safe, clean and dry place, away from direct sunlight and out of reach of children when not in use.

IMPORTANT ADVICE

The ambient temperatures of air have an effect on the air bed internal pressure. At low ambient temperatures the air will contract within the air bed and the air bed will feel softer: add air as necessary. At high ambient temperatures the air within the air bed will expand significantly and the air bed will become hard and may burst: release air to avoid damage to the air bed or to soften the feel. Do not expose the air bed to extreme temperatures.

Air inside of air bed may expand and contract with varying temperatures leading to reduced pressure inside of air bed. If this occurs, simply add more air issuing the pump to achieve desired firmness.

Stretching is a natural characteristic of new vinyl. During initial use, the air bed may become soft and require additional inflation to maintain desired firmness. This is normal for the first few days of use.

Under no circumstances will Active Era be liable for damages to the air bed caused by negligence, ordinary wear and tear, abuse and carelessness or external forces.

RECYCLING AND DISPOSAL

Waste electrical and electronic products (WEEE), batteries, accumulators and packaging should not be disposed of with general household waste. This is to prevent possible harm to the environment and human well-being, and to help conserve our natural resources. Most electrical products with a plug, battery, or cable can be recycled.

Contact your local council, household waste disposal service, or the store where you purchased the product for information regarding the collection schemes in your area.

Waste Electrical and Electronic Equipment (WEEE)

This symbol on the product and/or packaging indicates that Waste Electrical products (WEEE) under Directive 2012/19/EU which governs used electrical and electronic appliances, should not be disposed of with general household waste.

The Mobius Loop

This symbol indicates that the product or packaging is capable of being recycled.

Take-Back Scheme

Waste electrical products (WEEE) can be sent to One Retail Group for recycling and disposal when you purchase a new product from One Retail Group, on a like-for-like basis. For more information on how to recycle this product please visit www.activeera.com.

The end-user of electrical and electronic products (WEEE) is responsible for separating old batteries and lamp bulbs before they are handed over to a designated disposal and recycling service. Waste batteries can also be disposed of in collection bins, which can be found in most local supermarkets and household waste recycling centres.

Prohibition sign with pictogram of a person running away from the wheel and a crossed-out circle, indicating no movement or restriction.

Prohibition sign with pictogram of a person crossed out, indicating no smoking or doping

⚠ AVERTISSEMENT: RISQUE D'ASPHYXIE. Des

DOMANDE FREQUENTI

Prohibition sign showing a person crossed out with no other text or symbols

• WAARSCHUWING: RISICO OP

Diagram of a rectangular device with labeled parts, showing internal structure and mounting points.

Opladen

VEELGESTELDE VRAGEN

Prohibition sign showing a person crossed out with a diagonal line, enclosed in a circle (no text or symbols)

Prohibition sign showing a person crossed out with no other text or symbols

Diagram of a rectangular device with labeled parts, showing internal structure and mounting points.

RECYKLING I USUWANIE

One Retail Group, Ryland House,

24a Ryland Road, London, NW5 3EH, United Kingdom

EU Authorised Representative: One Retail Group EU Ltd., No. 1, Ent. A, St. Racho Dimchev 1, Sofia, 1000, Bulgaria

Compliance Contact: [e-mail]

www.activeera.com
