USER MANUAL IS530.2 i.safe Mobile

www.isafe-mobile.com Template:TEMPMM01REV10

CONTENTS

English....4

Deutsch....18

Česky 32

Dansk 46

Español....60

Suomi....74

Français....88

Magyar 102

Italiano 116

Nederlands 130

Norsk 144

Polski 158

This Operating Manual complies with these standards:

IEC 60079, IEC 82079, ANSI Z535.6

IEC 60079, IEC 82079, ANSI Z535.6

ENGLISH

>READ AND UNDERSTAND THE INSTRUCTIONS

PROTECT YOUR LIFE AND READ THE OPERATING MANUAL

This Operating Manual is part of the device IS530.2 (model M53A01). This Operating Manual provides important information for safe use of the device.

» Before using the device, read this Operating Manual carefully and pay particular attention to the "Safety" section and the warnings highlighted with the warning symbol.
» Also read the Safety Instructions before using the device.

You can find these at www.isafe-mobile.com/en/support/downloads

» Make sure you have access to this Operating Manual when you need it. You can find the current Operating Manual at www.isafe-mobile.com/en/support/downloads
» Follow all instructions given on the device and on the packaging.
»Follow local safety regulations.

INTENDED USE

The IS530.2 is an Internet-capable communication device for industrial use in explosion hazardous areas of Zone 2/22, in accordance with Directives 2014/34/EU, SI 2016 No. 1107, 1999/92/EC and the IECEx system, among others.

Only use the device as described in this Operating Manual. Any other use is considered improper and can lead to death, severe injuries and damage to the device.

The manufacturer i.safe MOBILE GmbH does not assume any liability for damage caused by improper use. The warranty expires in the event of improper use.

WARRANTY

You can find the warranty conditions at www.isafe-mobile.com/en/support/service

For any damage caused by computer viruses that you download while using the Internet functions responsibility is at your hand.

There is no right of recourse against i.safe MOBILE GmbH.

EU/UK DECLARATION OF CONFORMITY

You will find the EU/UK declaration of conformity at www.isafe-mobile.com/en/support/downloads

FCC/IC STATEMENT

The FCC/IC declaration can be found at www.isafe-mobile.com/en/support/downloads

EX MARKINGS

» ATEX:

II 3G Ex ic IIC T4 Gc IP64

II 3D Ex ic IIIC T135°C Dc IP64

Certificate of Conformity:

EPS 19 ATEX 1 070 X

CE-designation: C€

IECEx:

Ex ic IIC T4 Gc IP64

Ex ic IIIC T135°C Dc IP64

IECEx Certificate: IECEx EPS 19.0033X

UKEX:

II 3G Ex ic IIC T4 Gc IP64

II 3D Ex ic IIIC T135°C Dc IP64

CML 21UKEX2494X

UKCA-designation:

» North America:

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

» Temperature range:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

» Manufactured by:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

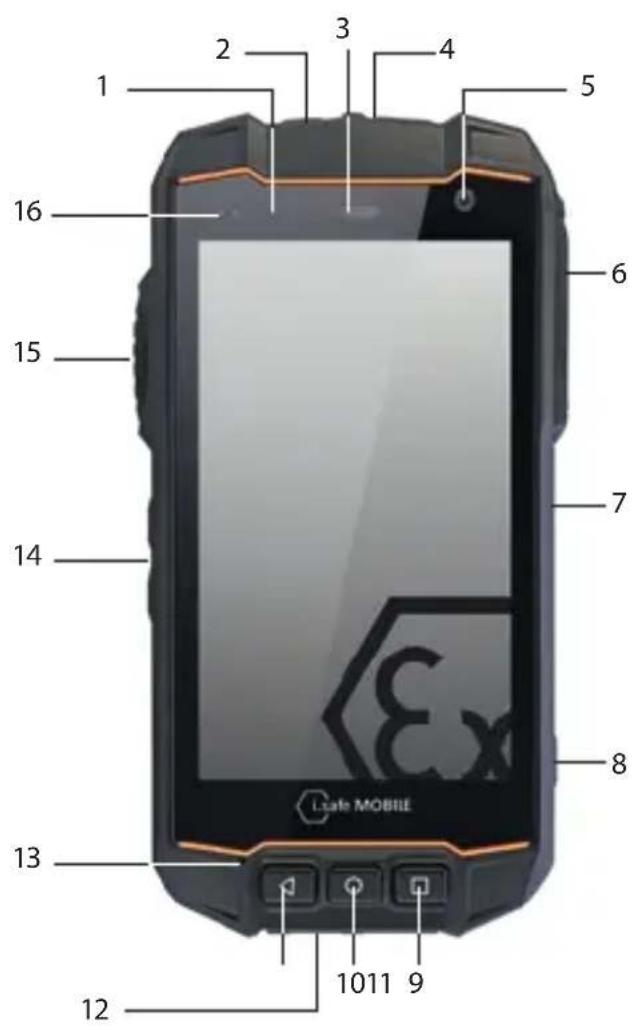

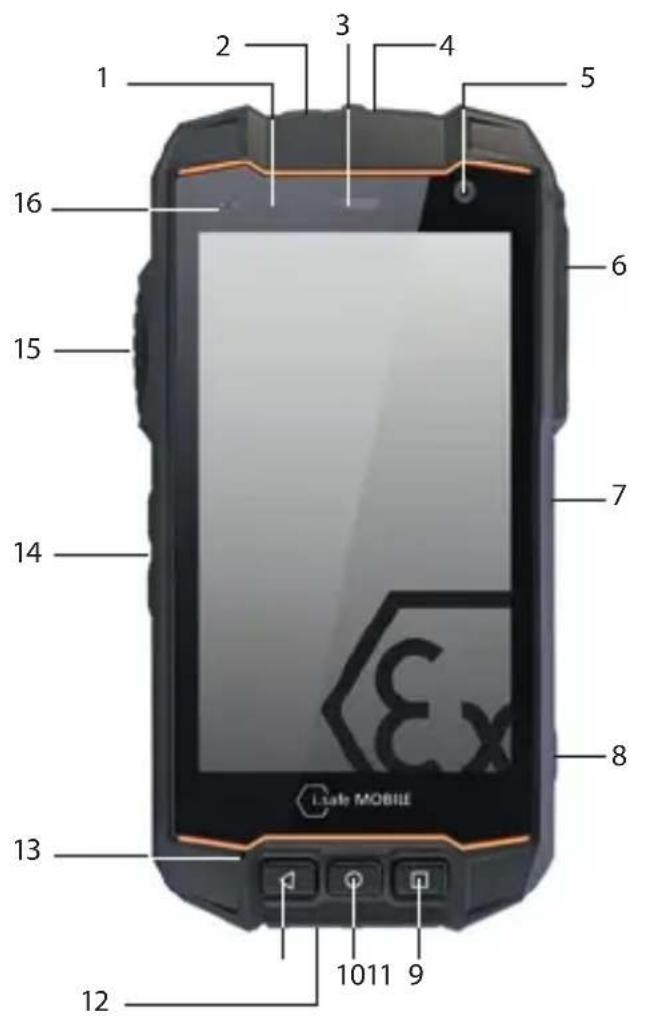

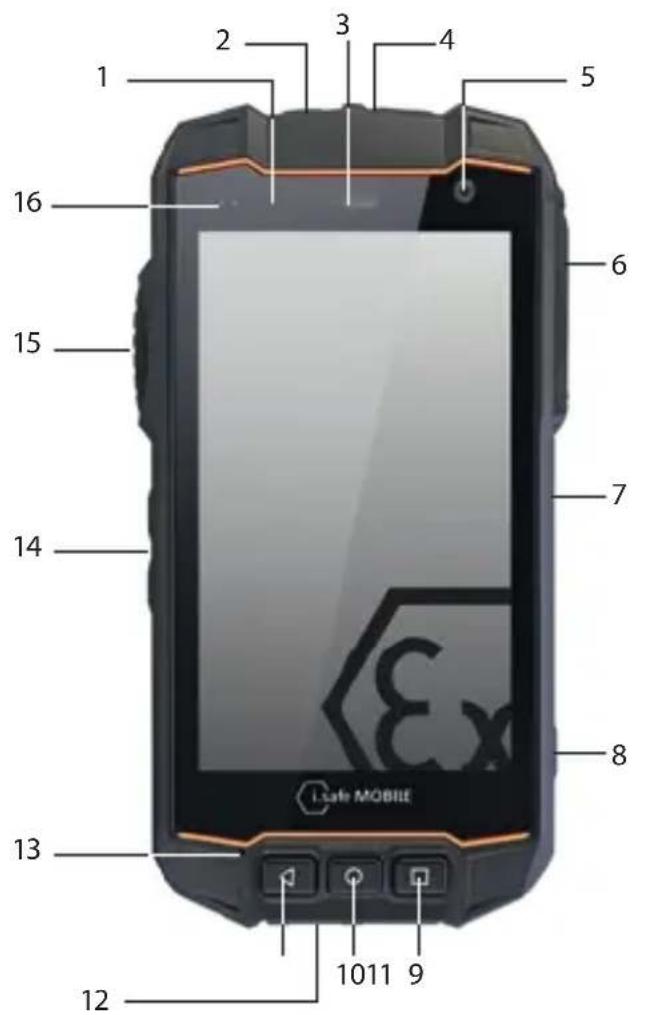

>DEVICE OVERVIEW/FUNCTIONS

1 2 3 4 5 6 7 8 1011 9 12 13 14 15 16 Late MOBILE

17 18 19 20 21 ISSUE 2 HOLI MOBILE N V E C E N A H C T W S X P S X A B R D A H B C Y L I M T X O L P M X E N Z R A F E A K L P S X C N L Z U S E X S U S X T N A H C T W S X P M X T N Z R A F C Y L I M T X O L P M X R E N E P S X Y L I M T X T N L G T C H S X C E UK C E CA M T E X

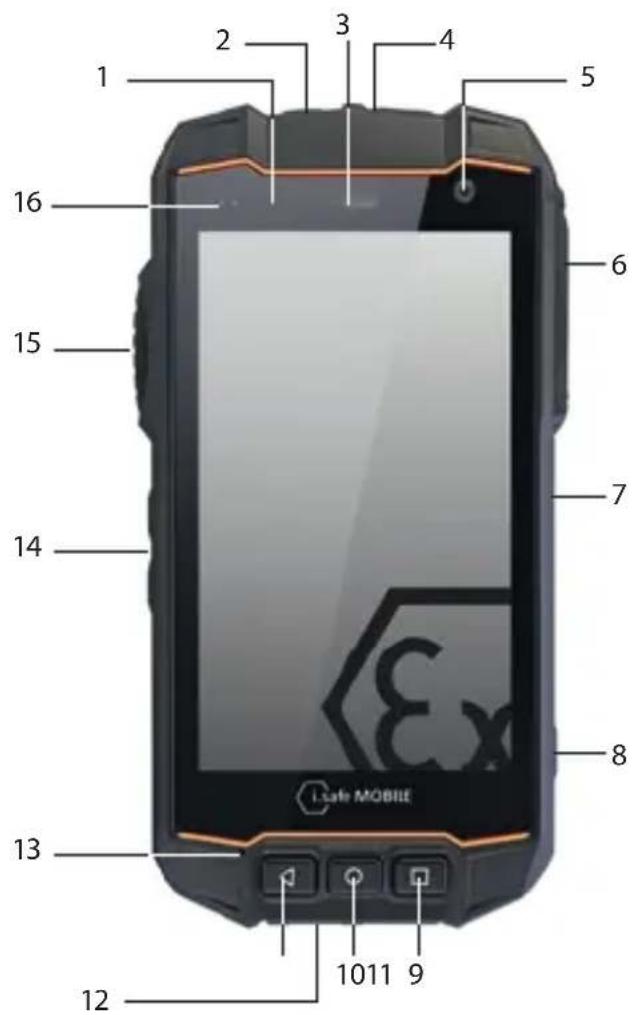

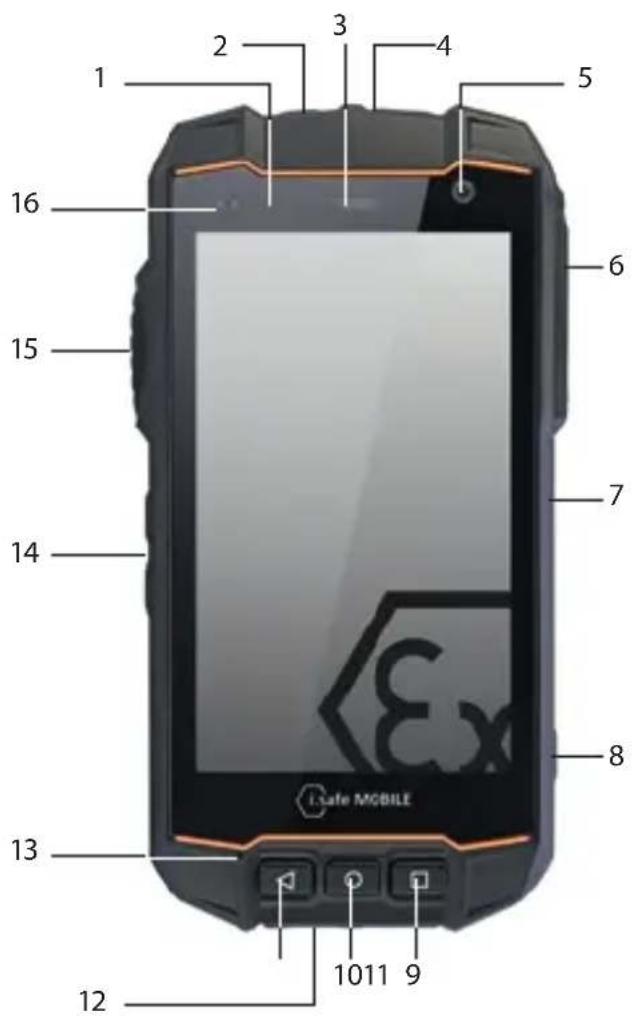

1) STATUS LED: Display for notifications and charging status.
2) SOS KEY: A long press of the SOS key sends an emergency call to a pre-saved emergency number (only in connection with a Lone Worker Protection app).

3> LOUDSPEAKER

4) POWER KEY: A long press switches the device on/off. A short press switches the standby mode on/off.

5>FRONT CAMERA

6) 13-PIN ISM INTERFACE: Connection for approved accessories. Also see section "Connecting approved accessories".

7) MAGNETIC CHARGER PORT: Connection for the Magnetic Charger Cable. Also see section "Charging".

8) SIDE KEY RIGHT: Optional function, e.g. camera - function can be assigned via Button App (system integrated).

9) CURRENT APPLICATION: Shows all open applications.

10> HOME KEY: Switch to the main screen.

11) BACKKEY: Go to the previous screen.

12) USB INTERFACE: Connection for the USB-C Cable or for connection to other devices. Also see sections "Charging" and "Connecting approved accessories".

13> MICROPHONE

14) LOUDNESS CONTROL: Volume up/Volume down.

15> SIDE KEY LEFT: Optional function - function can be assigned via Button App (system integrated).

16) SENSORS: Proximity sensor, light sensor.

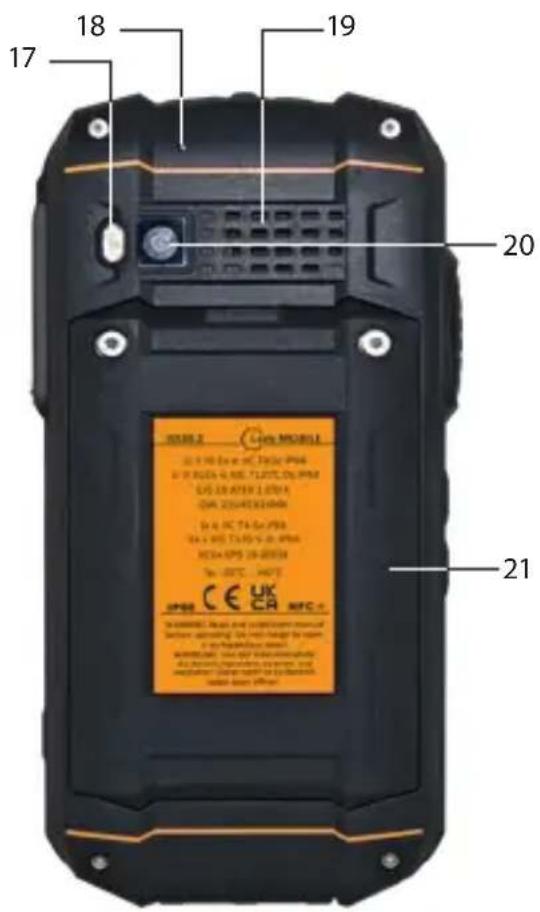

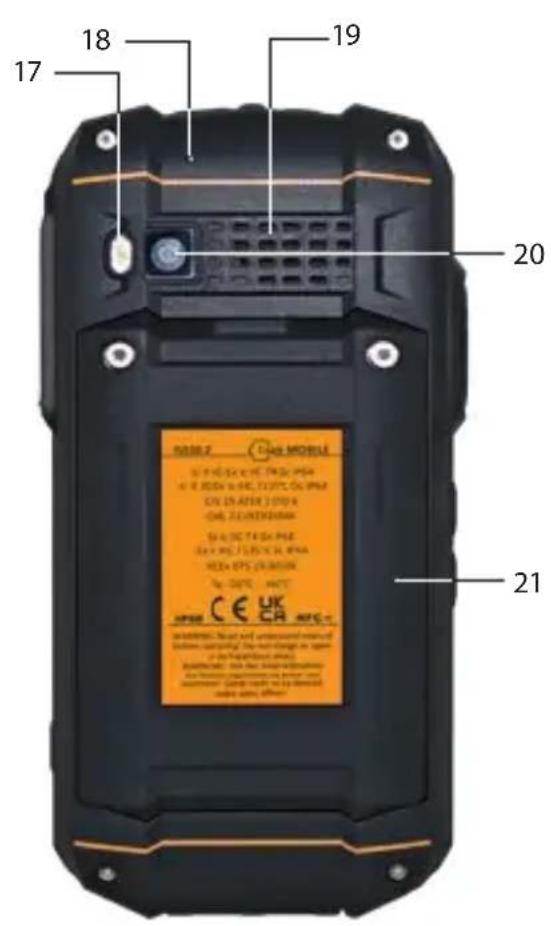

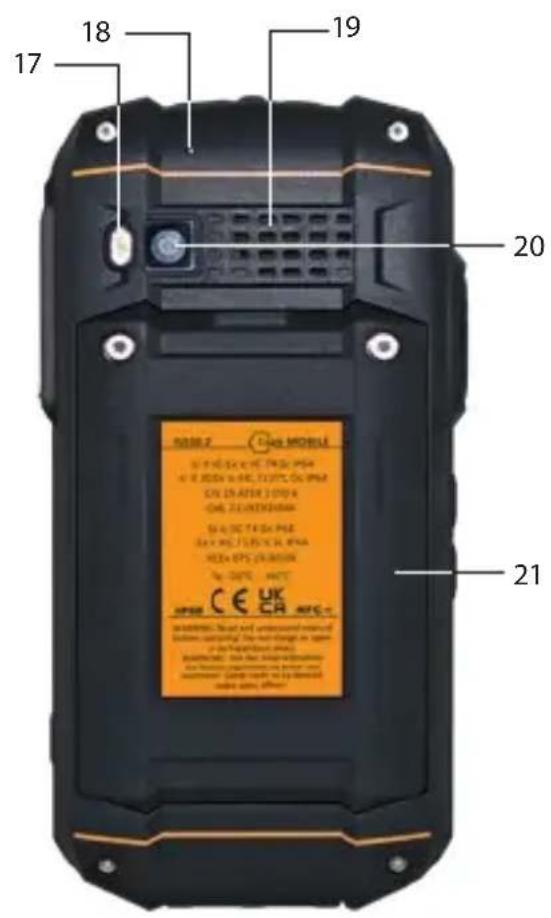

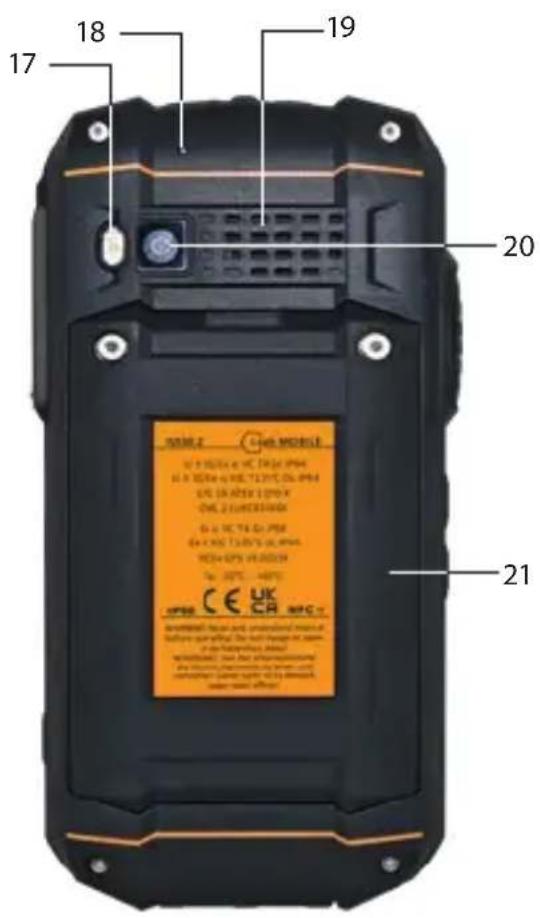

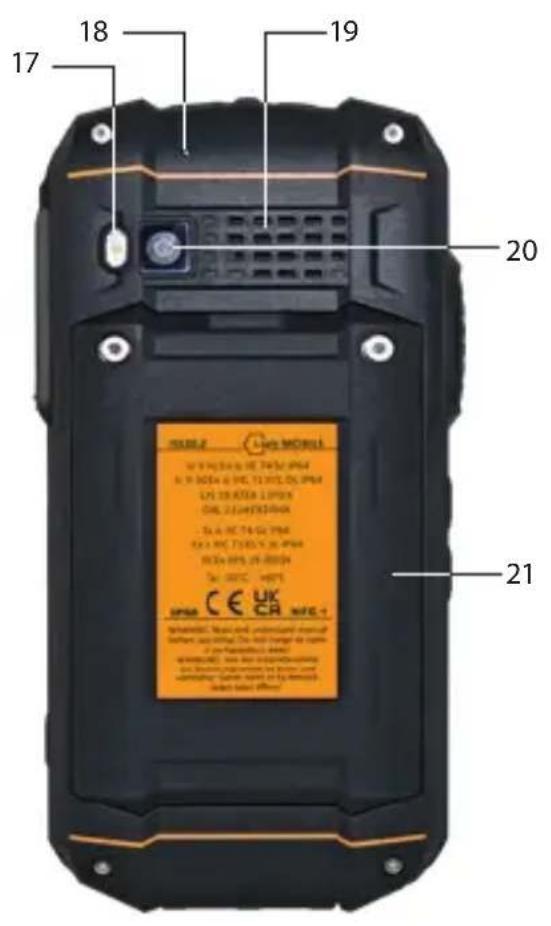

17>LED FLASH

18> NOISE CANCELLING: Noise cancelling microphone.

19> LOUDSPEAKER: Loudspeaker for hands-free function.

20>BACK CAMERA

21 >BATTERY

> SAFETY

Read the "Safety" section of this Operating Manual carefully before using the device. If you do not follow these instructions or do not understand them, this could lead to death, severe injuries and damage to the device.

USER

Only trained users who are qualified in the use of Ex devices in explosion hazardous areas and who have read and understood this Operating Manual may use this device.

USE IN EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Only use the device in explosion hazardous areas of zones 2/22 or outside of explosion hazardous areas.
» Before entering an explosion hazardous area with the device,

• make sure that only approved accessories are connected to the device, see section "Connecting approved accessories",
  • make sure that no gap can be seen between the two halves of the device,
  • make sure the device is not damaged,
  • make sure that all the labels on the device are readable,
  • make sure the battery is screwed tight.

» If you use the device in an explosion hazardous area, read and follow the instructions in the "Possible User Errors" section.
» Switch off the device immediately and leave the explosion hazardous area without delay if

• malfunctions occur on the device,
• you have damaged the housing of the device,
• you have exposed the device to excessive loads,
• the labels on the device are no longer readable.

USE OUTSIDE OF EXPLOSION HAZARDOUS AREAS

DANGER

Improper use can result in death or severe injuries!

» Do not use the device in places where its use is prohibited.
» Turn off the device in clinics or other medical facilities.
» Always keep a safety distance of at least 15 cm between the device and a pacemaker or hearing aid. The device can affect the functioning of medical devices such as pacemakers and hearing aids.
» When using the device while driving a motor vehicle, be sure to comply with applicable national laws.
» Make sure you prevent the user errors described in the section entitled "Possible User Errors".
» Only charge the device as described in the "Charging" section.

CAUTION

When using earphones or headsets at the maximum volume setting, you can damage your hearing.

» First set the volume control on the device to 50 % of the maximum volume.
» Gradually adjust the volume.

NOTICE

Incorrect use can damage the device.

» Only use accessories approved by i.safe MOBILE, as described in the section on "Connecting approved accessories".
» Protect the device and the Power Adapter from strong electrical magnetic fields as for example those emitted by induction cookers or microwave ovens, for example.
» Do not touch the display with sharp objects.

POSSIBLE USER ERRORS

DANGER

Improper use can result in death or severe injuries! Follow the instructions below:

» Do not modify the device structurally.
» Do not expose the device to high temperatures.
» Do not expose the device to strong UV radiation.
» Do not expose the device to processes with high electrical charges.
» Do not expose the device to aggressive acids or bases.

When working in explosion hazardous areas, please note:

» Do not loosen the screws on the device.
» Do not connect any accessories to the device.
» Do not open any interface cover.
» Do not charge the device.
» Do not open the device.
» Do not damage the device.

> SCOPE OF DELIVERY

Your device packaging contains the following:

1 x IS530.2
1 x Battery
1 x Quick Start Manual
1 x Safety Instructions
1 x Display Protection Foil
1 x USB-C Cable
1 x Magnetic Charger Cable
1 x Power Adapter universal (power supply unit and various country-specific adapters)
1 x Torx Screwdriver
1 x Display cleaning cloth

CELL BROADCAST

The device supports cell broadcast. Cell broadcast is a cellular service for sending messages to all recipients within a cell.

>INSTALLING THE BATTERY

DANGER

Installing the wrong battery in the device, poses a risk of explosion, which could result in death or serious injuries! Only fit the battery supplied or an approved replacement battery in the device outside of explosion hazardous areas. The approved replacement battery can be found on the website www.isafe-mobile.com/en/products

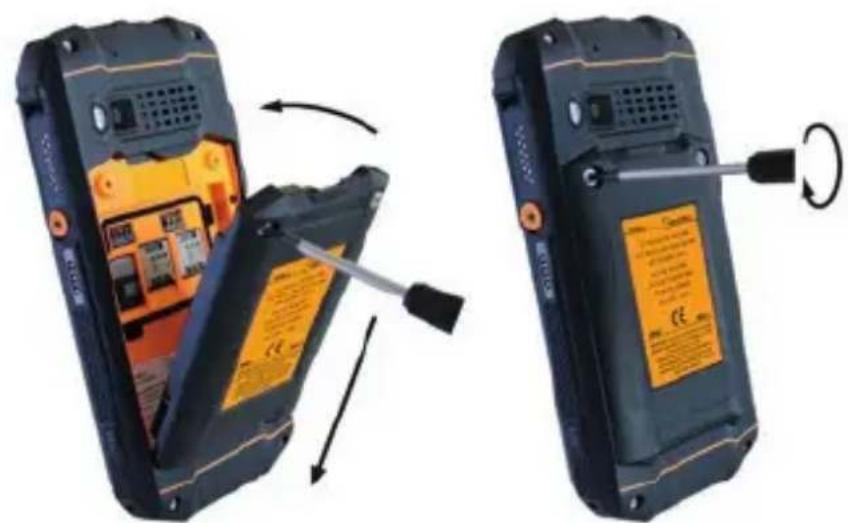

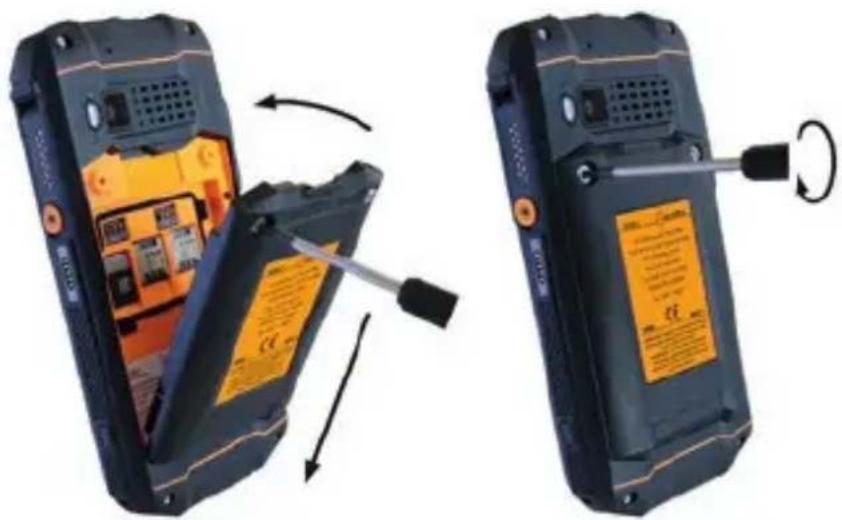

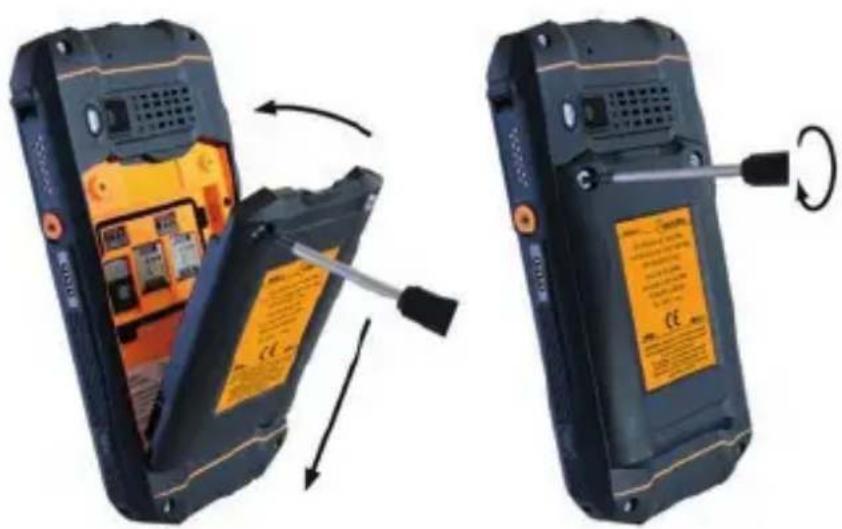

Two views of a black flip phone showing internal components and battery casing, with arrows indicating rotation (no text or symbols visible)

» Place the battery in the battery compartment as shown.
» Hand-tighten the screws using the Torx Screwdriver provided.
» Check that the battery is seated correctly and securely.

INSERT/REMOVE SIM CARD

DANGER

An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries! Only open the device outside of explosion hazardous areas to insert or remove the SIM card.

NOTICE

Proceeding incorrectly when inserting/removing the SIM card can damage the device and the SIM card. Switch off the device before inserting or removing a SIM card. Do not charge the device while inserting or removing a SIM card.

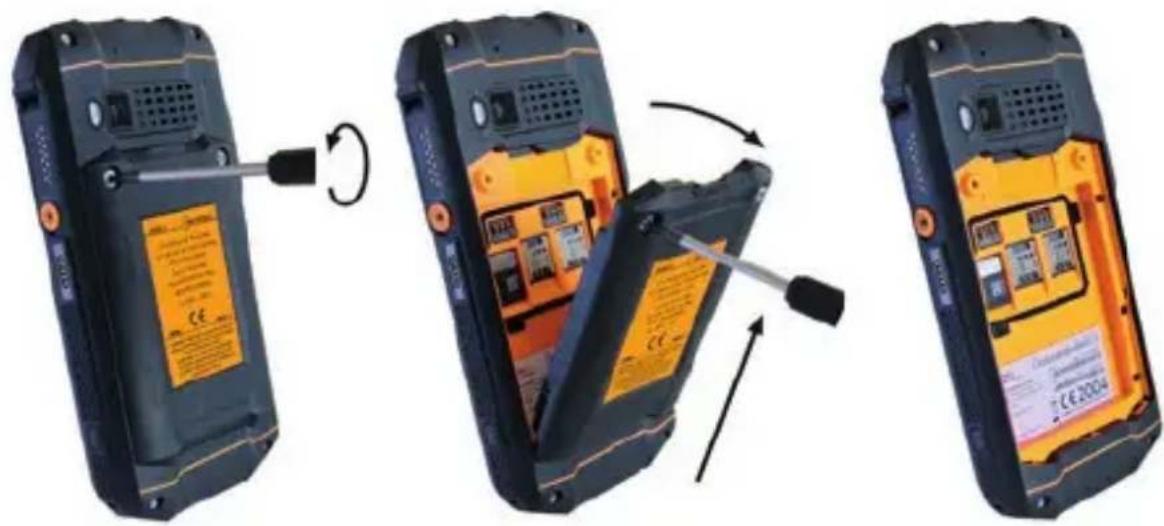

Three-step illustration of a mobile phone's open rear panel showing battery, cable, and switch mechanism (no text or symbols)

» Loosen the screws on the battery using the Torx Screwdriver provided.
» Remove the battery from the battery compartment.
» Insert the SIM card into the slot. The device has two slots for one SIM card each. The slots are marked "SIM 1" and "SIM 2".
» If you have inserted two SIM cards, select a favorite card. Information on operating the device can be found at www.isafe-mobile.com/en/support/service under the menu item „FAQ”.
»Reinstall the battery. See section "Installing the battery".

> INSERT/REMOVE microSD CARD

DANGER

An incorrect procedure in explosion hazardous areas poses a risk of death or severe injuries! Only open the device outside of explosion hazardous areas to insert or remove the microSD card.

NOTICE

Proceeding incorrectly when inserting/removing the microSD card can damage the device and the microSD card. Switch off the device before inserting or removing a microSD card. Do not charge the device while inserting or removing a microSD card.

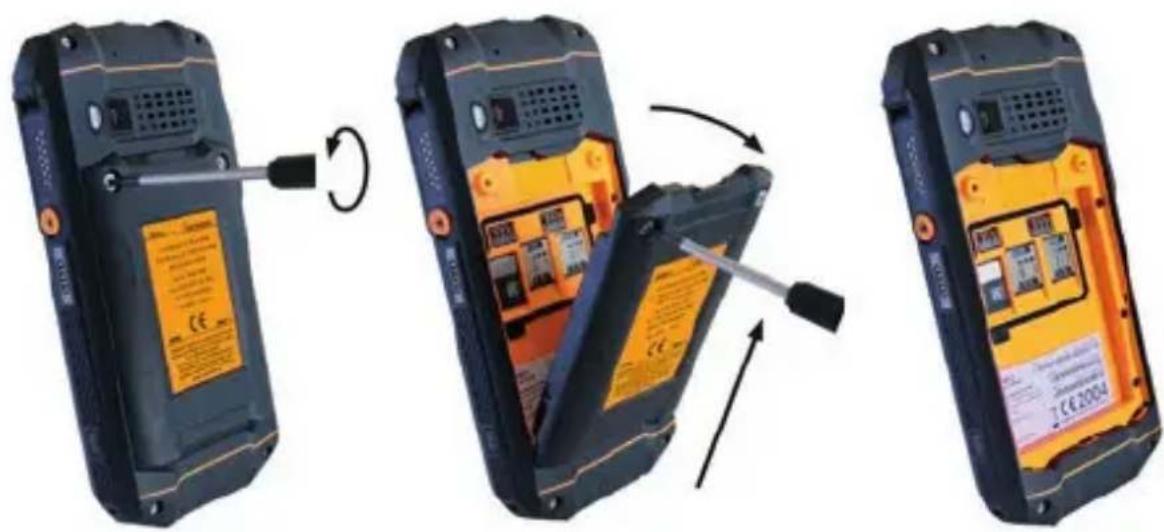

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

» Loosen the screws on the battery using the Torx Screwdriver provided.
» Remove the battery from the battery compartment.
» Insert the microSD card into the slot provided. The device has a slot for a microSD card up to 128 GB. The slot is marked "microSD".
»Reinstall the battery. See section "Installing the battery".

>CHARGING

DANGER

An incorrect procedure in explosion hazardous areas poses risk of death or severe injuries! Only charge the device outside of explosion hazardous areas. Do not charge the device in the vicinity of flammable substances.

NOTICE

Incorrect charging can cause damage to the device. Please note the following when charging:

» Only charge the device using the USB-C Cable supplied or with the Magnetic Charger Cable supplied.
» Only charge the device at ambient temperatures between +5 °C to +35 °C (+41 °F to +95 °F).
» Charge the device under dry indoor conditions only.
» Do not charge the device in environments dusty or humid.

Your device package contains a power supply unit, various country-specific adapters, an USB-C Cable and an Magnetic Charger Cable.

» Connect the adapter suitable for your country to the power supply unit.
» Connect the USB-C Cable or the Magnetic Charger Cable to the power supply unit.
»Connect the USB-C Cable to the USB interface of the device, or connect the Magnetic Charger Cable to the magnetic charging port on the device.

> SWITCHING ON/OFF

» Press and hold the on/off key for about 3 seconds.
» Enter the device or SIM PIN when the input dialog for the device or SIM PIN appears after switching on.
» Select the menu item if the power off menu appears when switching off.

>USING THE DEVICE

» When turning on the device for the first time, follow the instructions on the screen.

Further information on operating the device can be found at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

Detailed information on operating the Android operating system can be found at: https://support.google.com/android

CONNECTING APPROVED ACCESSORIES

» Only connect accessories approved by i.safe MOBILE to the device. Accessories approved by i.safe MOBILE can be found at www.isafe-mobile.com/en/products

Approved accessories can be connected to any 13-pin ISM interface and to the USB interface.

DANGER

Improper use can result in death or severe injuries! If you need approved accessories in explosion hazardous areas, please note the following before connecting:

» Connect approved accessories to the 13-pin ISM interface of the device only outside of explosion hazardous areas.
»Operate approved accessories in explosion hazardous areas only on the 13-pin ISM interface of the device. Wired connections via the USB interface are prohibited.
» Connect the plug of the accessory securely to the 13-pin ISM interface on the device.
» Close the 13-pin ISM interface with the cover provided when you are not using accessories.

13-PIN ISM INTERFACE

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

» Loosen the screw on the 13-pin ISM interface cover using the Screwdriver included in the accessory package and remove the cover as shown.

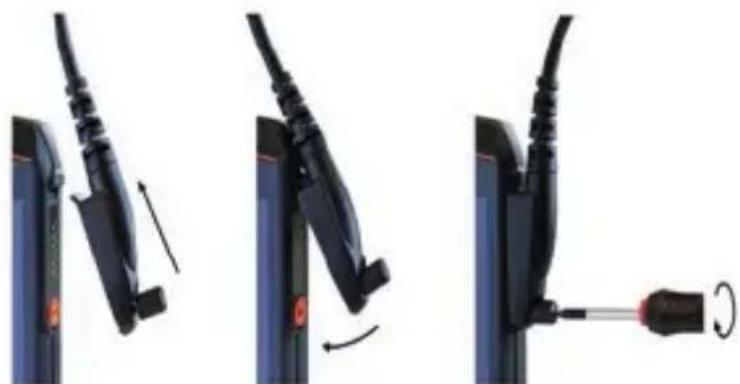

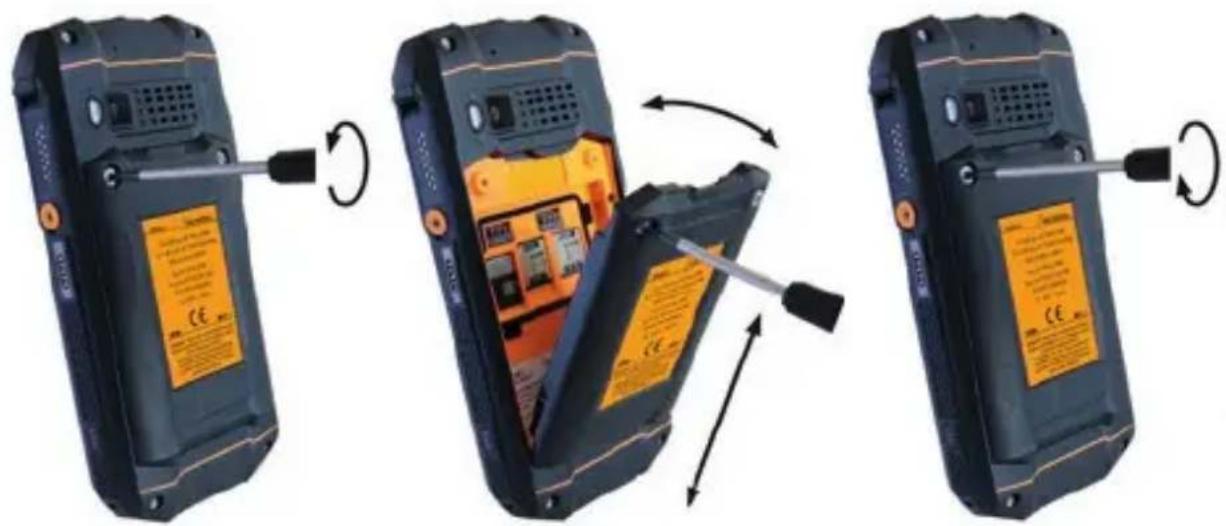

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

» Connect the plug of the approved accessory to the 13-pin ISM interface as shown.
»Hand-tighten the screws.
» Check that the plug is seated correctly and securely.

USB INTERFACE

DANGER

Improper use can result in death or severe injuries! Only use USB interface outside of explosion hazardous areas. You should never open the cover of the USB interface in explosion hazardous areas.

The USB interface is used for charging and data transfer.

» Connect approved accessories or other devices to the USB interface only by using the USB-C Cable.

CHANGING THE BATTERY

WARNING

If you replace the battery with the wrong battery in the device, there is a risk of explosion, which could result in death or serious injuries! Only replace the battery with an approved replacement battery outside of explosion hazardous areas. An approved replacement battery can be found on the website www.isafe-mobile.com/en/products

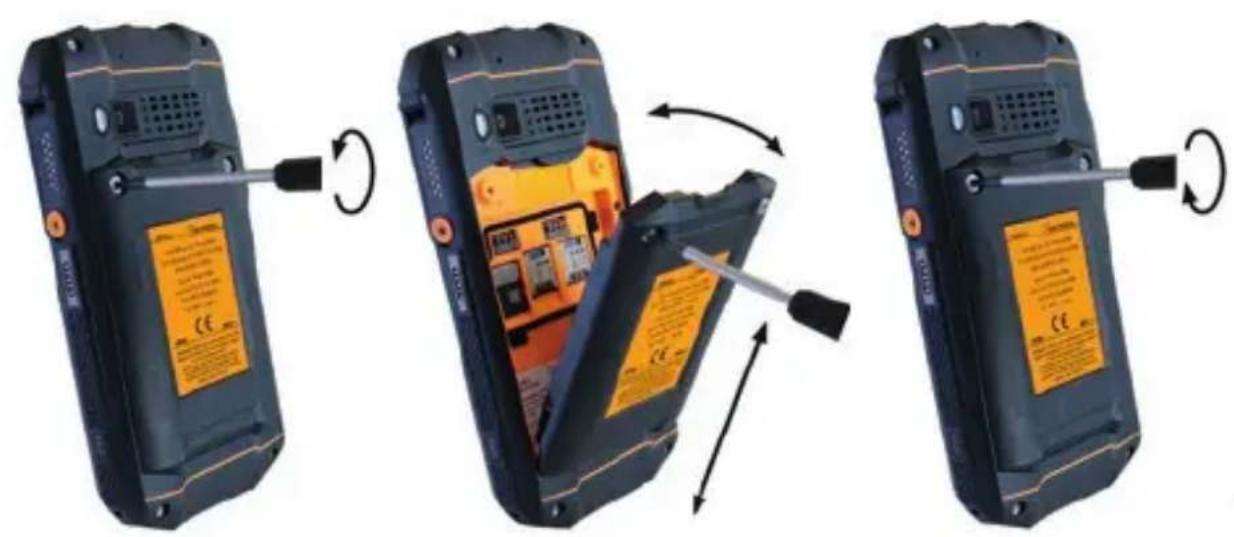

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

» Loosen the screws on the battery using the Torx Screwdriver provided.
» Remove the battery from the battery compartment as shown.
» Place the approved replacement battery in the battery compartment as shown.
» Hand-tighten the screws using the Torx Screwdriver provided.
» Check that the battery is seated correctly and securely.

POSSIBLE DEVICE PROBLEMS

You can find information on possible device problems and how to rectify them at www.isafe-mobile.com/en/support/service under the menu item "FAQ".

If you have any further questions, please contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

MAINTENANCE/REPAIR

The device itself has no serviceable parts.

WARNING

Incorrect repairs present a risk of explosion or fire, which can result in death or severe injuries! Do not open the device or carry out any repairs yourself.

» Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service if the device is not working normally, if the device needs to be repaired or if a replacement part is required.

RETURN SHIPMENT

Contact the i.safe MOBILE repair service at www.isafe-mobile.com/en/support/service

DISTRIBUTION PARTNER

You can find the specialist distribution partner responsible for your country at www.isafe-mobile.com/en/contact

>CLEANING

NOTICE

Incorrect cleaning can cause damage to the device. Please note the following when cleaning:

» Turn off the device before cleaning.

» Do not charge the device while cleaning.

» Do not use chemical agents for cleaning.

» Clean the device and the Power Adapter with a soft, moistened antistatic cloth.

» Clean the display screen regularly with a soft, antistatic cloth.

>STORAGE

NOTICE

Incorrect storage can cause damage to the device. Store the device at ambient temperatures between +5 °C to +35 °C (+41 °F to +95 °F) and a humidity between 10 % to 60 %.

RECYCLING

NOTICE

Incorrect disposal of electronic products, batteries and packaging material puts the environment at risk. Please note the following when disposing of items:

» DO NOT throw away batteries with household waste.

» Always dispose electronic products, batteries and packaging material at the appropriate collection points. This way, you prevent uncontrolled waste disposal and promote the recycling of material resources.

You can obtain further information from regional waste disposal companies, state authorities or the i.safe MOBILE service centre responsible for your country or region at www.isafe-mobile.com/en/support/service

TRADEMARKS

i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH.

EEA Version: Comes with the Google™ app and Google Chrome™

Google and Google Play are trademarks of Google LLC.

All other trademarks and copyrights are the properties of their respective owners.

DEUTSCH

www.isafe-mobile.com/de/support/downloads

FCC/IC ERKLÄRUNG

www.isafe-mobile.com/de/support/downloads

EX-KENNZEICHNUNGEN

» ATEX:

E1 II 3G Ex ic IIC T4 Gc IP64

II 3D Ex ic IIIC T135°C Dc IP64

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

»Temperaturbereich:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

»Hersteller:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

>GERÄTEÜBERSICHT/FUNKTIONEN

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 iSafe MCBILE

20 21 17 18 19 20 21 BLUE CHA MIDDLE M. 3 PONCE & PC, PPO, PPO4, M. 6 BTR4 & PC, TLDTC, DL, PPO4, ATC 15-APEN & LDPN, ONE ZUAN/ERIOM D. 6 VCTE & APEN D. 6 VCTE & APEN HCP+ GPS 15-APEN N. 3075, HPT CE UK CA CR MC Reversible: Open and uncontrolled: Uncontrolled: Open and uncontrolled: Closed or open with the following: a) Transferrant input w/DC/DC/DC - Not clear when necessary and not clear when necessary uncontrolled: Clear system to be closed. under reset, offset?

Two views of a black flip phone showing internal components and battery compartment, with arrows indicating the process (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

Three-step diagram showing a mobile phone's internal mechanism: battery, battery pack, and battery cover (no text or symbols present)

www.isafe-mobile.com/en/support/downloads

PROHLÁŠENÍ FCC/IC

www.isafe-mobile.com/en/support/downloads

ZNAČENÍ SOUVISEJÍCÍ S NEBEZPEČÍM VÝBUCHU

» ATEX:

① II 3G Ex ic IIC T4 Gc IP64
II 3D Ex ic IIIC T135°C Dc IP64

Osvědčení o shodě:

EPS 19 ATEX 1 070 X

CE-Identifikace:

IECEx:

Ex ic IIC T4 Gc IP64

Ex ic IIIC T135°C Dc IP64

IECEx Certifikát: IECEx EPS 19.0033X

UKEX:

II 3G Ex ic IIC T4 Gc IP64
① II 3D Ex ic IIIC T135°C Dc IP64

CML 21UKEX2494X

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

»Teplotní rozsah:

-20°C ... +60°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

» Výrobce:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Německo

PŘEHLED O ZAŘÍZENÍ/FUNKCÍCH

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 i.ele MOBILE

17 18 19 20 21 SPB 2 CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY MODULE CLAY Module

Two views of a black flip phone showing internal components and battery casing, with arrows indicating the mechanism (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and fastening process (no text or symbols)

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

»Temperaturområde:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

»Procuent:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Tyskland

OVERSIGT OVER ENHEDEN/FUNKTIONER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 i.ele MOBILE

17 18 19 20 21 MODEL 2 Light MODULE S: X HU-Exn YC, TcXuO SPB S: X HU-Exn YC, TcXuO SPB EXLOR SPB LONY K TAL ZUNHESI RAN S: X HU-Exn YC TAL X HU-Exn YC, SPB EXLOR SPB LONY K TAL SPB - 400V SPB UK CA MFC-1 20 21

Two views of a mobile phone showing internal components and battery casing assembly (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable assembly (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening process: wire insertion, switch press, and end cap (no text or symbols)

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

Class I Div 2 Groups A, B, C, D, T4
Class II Div 2 Groups F, G, T135°C
Class III Div 2
CSA19CA70220252

» Intervalo de temperatura:

-20°C ... +60°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

» Fabricado por:

i.safe MOBILE GmbH

i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Alemania

17 18 19 20 21 VOLUME USB MODULE V. 3 V/35 V 6 V, DC 24 V, PDA V. 3 V/35 V 6 V, DC 24 V, DC 24 V, PDA V. 3 V/35 V 6 V, DC 24 V, DC 24 V, PDA V. 3 V/35 V 6 V, DC 24 V, DC 24 V, PDA V. 3 V/35 V 6 V, DC 24 V, DC 24 V, PDA V. 3V/35 V 6V/35 V, DC 24 V, DC 24 V, PDA V. 3V/35 V 6V/35 V, DC 24 V, DC 24 V, PDA V. 3V/35 V 6V/35 V, DC 24 V, DC 24 V, PDA V. 3V/35 V 6V/35 V, DC24 V, DC24 V, DC24 V, PDA V. 3V/35 V 6V/35 V, DC24 V, DC24 V, PDA V. 3V/35 V 6V/35 V, DC24 V, DC24 V, PDA V. 3V/35 V 6V/35 V, DC24 V, DC24 V, PDA V. 3V/35 V 6V/35 V, DC24 V, DC28 V, DC28 V, PDA V. 3V/35 V 6V/35 V, DC24 V, DC24 V, PDA V. 3V/35 V 6V/35 V, DC24 V, DC24 V, PDA V. 3V/35 V 6V/35 V, DC24 V, DC24 V, PDA V. 3C UK CE CA MFC SUPPORT: Full and partial capacity of the main components of the device. SUPPORT: Full and partial capacity of the main components of the device. Copyright: www.wacai.org

www.isafe-mobile.com/en/products

Two views of a black flip phone showing internal components and battery labels, with arrows indicating the process (no text or symbols on device)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable assembly (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, cable, and keypad assembly (no text or symbols)

Diagram showing a screwdriver inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and disassembly process (no text or symbols)

Three-step diagram showing a mobile phone's open rear panel with battery, switch, and cable (no text or symbols)

www.isafe-mobile.com/en/support/downloads

FCC-/IC-LAUSUNTO

www.isafe-mobile.com/en/support/downloads

EX-MERKINNÄT

» ATEX:

II 3G Ex ic IIC T4 Gc IP64
① II 3D Ex ic IIIC T135°C Dc IP64

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

» Lampotila-alue:

-20°C ... +60°C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

»Valmistaja:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Saksa

> LAITTEEN YLEISKUVA JA TOIMINNOT

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Luke MOBILE

17 18 19 20 21 TITLE: LDO MOBILE W 4.563A 6.0E-745V RPM N 3.3 MDA 6.9% 12.4% 0.5 RPM LQ 3.8 RDA 5.0% 0.5 GDL 2.2/45/45/45/45 - DA 4.0 E 74-G 7PM R 4.3 RCT 73/85 X 3.0 RPM RCA 0.5% 25-800Hz T 0.0°C 40Hz CE UK CR MFC-1 SINEMA: Meas and uncontrolled circuit shells used within the cell charger for operation of the Pulsification system. SINEMA: Meas and uncontrolled circuit shells used within the cell charger for operation with current power.

Two views of a portable mobile phone showing internal components and battery compartment, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

DÉCLARATION DE CONFORMITÉ UE/UK

Certification UKCA: UK CA

»Amérique du Nord :

Class I Div 2 Groups A, B, C, D, T4 Class II Div 2 Groups F, G, T135°C Class III Div 2 CSA19CA70220252

»Plage de temperature:

-20°C ... +60°C (EN/IEC 60079-0) -10°C ... +50°C (EN/IEC 62368-1)

»Fabrique par:

i.safe MOBILE GmbH

i_Park Tauberfranken 10 97922 Lauda-Koenigshofen Allemagne

SYNOPTIQUE DES APPAREILS/FONCTIONS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 LIFE MOBILE

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Two views of a black flip phone showing internal components and battery pack, with arrows indicating the mechanism (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Three-step illustration of a mobile phone's internal components being adjusted, showing battery, cable, and keypad assembly (no text or symbols)

MISE EN MARCHE/ARRÊT

INTERFACE 13-PIN ISM

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols)

Three-step diagram showing cable fastening process: left panel with cable attachment, right panel with screwdriver insertion (no text or symbols)

Three-step diagram showing a mobile phone's open battery with screwdriver, showing internal components and rotation arrows (no text or symbols)

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

»Hömerseklet tartomany:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

» Gyarto:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Németország

> A ESZKÖZ ÁTTEKINTÉSE/FUNKCIÓK

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 iSafe MOBILE

17 18 19 20 21 NOSER Z COLD MODULE S. P. 15-34, C. E. T. 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99

Two views of a black flip phone showing internal components and battery labels, with arrows indicating the process (no text or symbols visible)

Three-step illustration of a mobile phone's internal components being adjusted, showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and mounting mechanism (no text or symbols)

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

DICHIARAZIONE FCC/IC

www.isafe-mobile.com/en/support/downloads

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

USO IN AREE A RISCHIO DI ESPLOSIONE

PERICOLO

USO FUORI DALLE AREE A RISCHIO DI ESPLOSIONE

PERICOLO

Two views of a black flip phone showing internal components and battery labels, with arrows indicating the mechanism (no text or symbols visible)

Three-step illustration of a mobile phone's open case showing battery, switch, and battery cover (no text or symbols)

Three-step diagram showing device disassembly with labeled buttons and a scroll, illustrating battery state changes.

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening process: left panel with cable attachment, right panel with screwdriver insertion (no text or symbols)

Three-step diagram showing a device being opened, with arrows indicating the process (no text or symbols present)

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

»Temperatuurbereik:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

» Vervaardigd door:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Duitsland

> APPARAATOVERZICHT/-FUNCTIONS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 iSafe MOBILE

17 18 19 20 21 NOSER Z COLD MODULE S. P. 15-34, E. 17-36, P. 18-37, O. 19-20, P. 21-22, A. 23-24, P. 25-26, A. 27-28, P. 29-30, A. 31-32, P. 33-34, A. 35-36, P. 37-38, A. 39-40, P. 41-42, A. 43-44, P. 45-46, A. 47-48, P. 49-50, P. 51-52, P. 53-54, P. 55-56, P. 57-58, P. 59-60, P. 61-62, P. 63-64, P. 65-66, P. 67-68, P. 69-70, P. 71-72, P. 73-74, P. 75-76, P. 77-78, P. 79-80, P. 81-82, P. 83-84, P. 85-86, P. 87-88, P. 89-90, P. 91-92, P. 93-94, P. 95-96, P. 97-98, P. 99-100

Two views of a portable mobile phone showing internal components and battery compartment, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

https://support.google.com/android

GOEDGEKEURDE ACCESSOIRES AANSLUITEN

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and mounting mechanism (no text or symbols)

Three-step illustration of a mobile phone's internal components being adjusted, showing battery, switch, and scroll (no text or symbols)

www.isafe-mobile.com/en/support/downloads

FCC/IC UTTALELSE

FCC/IC-erklæringen finner du på www.isafe-mobile.com/en/support/downloads

EX-MERKING

» ATEX:

II 3G Ex ic IIC T4 Gc IP64

EII 3D Ex ic IIIC T135°C Dc IP64

Samsvarssertifikat:

EPS 19 ATEX 1 070 X

CE-merke:€

》IECEx:

Ex ic IIC T4 Gc IP64

Ex ic IIIC T135°C Dc IP64

IECEx sertifikat: IECEx EPS 19.0033X

UKEX:

① II 3G Ex ic IIC T4 Gc IP64

II 3D Ex ic IIIC T135°C Dc IP64

CML 21UKEX2494X

UKCA-merke:

» Nord Amerika:

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

»Temperaturomrade:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

» Produsert av:

i.safe MOBILE GmbH

i Park Tauberfranken 10

97922 Lauda-Koenigshofen

Tyskland

ENHETSOVERSIKT/FUNKSJONER

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 iSafe MCBILE

20 21 17 18 19 20 21 NAMBLE CHA MOBILE M. 3 PONION & M. 45/2016 M. 4 2016 & M. 45/2016 M. 5 15/2016 M. 6 2016 M. 7 15/2016 M. 8 2016 M. 9 15/2016 M. 10 2016 M. 11 15/2016 M. 12 2016 M. 13 15/2016 M. 14 2016 M. 15 15/2016 M. 16 2016 M. 17 15/2016 M. 18 2016 M. 19 15/2016 M. 20 2016

Two views of a black flip phone showing internal components and battery casing, with arrows indicating rotation (no text or symbols visible)

Three-step illustration of a mobile phone's internal components being adjusted, showing battery, cable, and keypad (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable (no text or symbols)

https://support.google.com/android

TILKOBLING AV GODKJENT TILBEH∅R

Diagram showing a screwdriver inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

Three-step diagram showing a mobile phone's open rear door, battery compartment, and cable switch mechanism (no text or symbols)

VEDLIKEHOLD/REPARASJON

Class I Div 2 Groups A, B, C, D, T4
Class II Div 2 Groups F, G, T135°C
Class III Div 2
CSA19CA70220252

»Zakres temperatur:

20^ C + 60^ C (EN/IEC 60079-0)
-10°C ... +50°C (EN/IEC 62368-1)

» Producent:

i.safe MOBILE GmbH

i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Niemcy

> OPIS OGÓLNY/FUNKCJE URZĄDZENIA

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Li Lake MOBILE

17 18 19 20 21 VOLUME C: CHG MOBILE X: PATEX & DC TPGC P4M X: R-SEK & DC YLDTC OL P4M LTR 15 ATEX 1.070 V ONL 21/ME3306A D: HCTA D.P4M D: XMC TLDTC SL P4M WEC+ EPS 18.000 No. 2075 - 100% SPB: CE UK CA MFC: Supplemental power and transmission above power, power, and power above the main power, power above the main Power, power above the main Power, power above the main Power, power above the main Power, power above the main

Two views of a black mobile phone showing internal components and tool application (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's internal components being adjusted, showing battery, switch, and battery cover (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and disassembly process (no text or symbols)

Three-step illustration of a mobile phone's open door, showing battery, switch, and scroll (no text or symbols)

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

» Faixa de temperatura:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

» Fabricado por:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Alemanha

VISÃO GERAL/FUNÇÕES DO DISPOSITIVO

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 iSafe MOBILE

20 19 18 17 21 SOSOZ Gas MOBILE N° 45.63" X 17" PAG-PMX N° 8" RSDA 6.4K, 11/27" C6 PAG EN 15" ASTR 3 DPG-4 ONL ZIENTECHAM SH 6" CT 7" SA-PMX SA× HCL 7.5" S 10" RPM HES+ EPS 25.000M No. DATE: MATT SPB UK APC-1 20 21

www.isafe-mobile.com/en/products

Two views of a black remote control device showing internal components and battery compartment, with arrows indicating rotation (no text or symbols visible)

» Posicione a bateria no compartimento de bateria conforme exibido.
» Aperte os parafusos usando a chave Torx fornecida.
» Verifique se a bateria está encaixada corretamente e com firmeza.

>INSERIR/REMOVER CARTÃO SIM

PERIGO

Three-step illustration of a mobile phone's open case showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's internal components being adjusted, showing battery, switch, and battery cover (no text or symbols)

INTERFACE 13-PIN ISM

Two-step diagram showing a screwdriver being inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and screwdriver insertion (no text or symbols)

www.isafe-mobile.com/en/products

Three-step diagram showing device disassembly with labeled buttons and arrows indicating rotation or repair.

» Solte os parafusos da bateria utilizando a chave Torx fornecida.
»Remova a bateria do compartimento de bateria, conforme exibido.
» Posicione a bateria substituta aprovada no compartimento de bateria, conforme exibido.
» Aperte os parafusos usando a chave Torx fornecida.
» Verifique se a bateria está encaixada corretamente e com firmeza.

POSSÍVEIS PROBLEMAS DO DISPOSITIVO

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

Two views of a portable mobile phone showing internal components and battery compartment, with no visible text or symbols.

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Three-step illustration of a mobile phone's internal components being adjusted, showing battery, switch, and battery cover (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with rotation arrows indicating motion (no text or symbols)

Three-step diagram showing cable fastening and disassembly process (no text or symbols)

Three-step diagram showing a mobile phone's open battery with screwdriver, demonstrating the mechanism of battery disassembly (no text or symbols present)

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

»T온도 범위:

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

》제조업체:

i.safe MOBILE GmbH,

i_Park Tauberfranken 10,

97922 Lauda-Koenigshofen,

Germany

>장치 개요/기능

1 2 3 4 5 6 7 8 1011 9 12 13 14 15 16

17 18 19 20 21 SPB 2 Cable Module1 32.5 x 10 Box x DC TSCX P94 6.7 x 10 Box x DC TSCX P94 6.5 x 10 Box x DC TSCX P94 6.5 x 10 Box x DC TSCX P94 6.5 x 10 Box x DC TSCX P94 6.5 x 10 Box x DC TSCX P94 6.5 x 10 Box x DC TSCX P94 6.5 x 10 Box x DC TSCX P94 SPB 2 CE UK CA MFC SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 SAPF-2 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 TSCX P94 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2 SAPR-2

Two views of a black flip phone showing internal components and cable being inserted (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols)

Three-step diagram showing cable fastening process: left panel with cable attachment, right panel with cable being inserted (no text or symbols)

Three-step illustration of a mobile phone's open rear door, showing battery, switch, and scroll (no text or symbols)

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135°C

Class III Div 2

CSA19CA70220252

》温度範囲：

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

》製造元：

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

>デバイスの概要と機能

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Luke MOBILE

20 19 18 17 21 BLUE LINE MODULE CE: 10000 x DC, PDC, IP4 CE: 10000 x DC, TLD, DC, IP4 LTC: DN, ATRX, L207X ONL: 2 LTRX, R306X G: DC, T4, DC, IP4 CA: DC, TLD, DC, IP4 VCC: GPN, FL, R223X Tc: JPC, HP3 CE: UK CA: MTC

Two views of a black flip phone showing internal components and battery casing, with arrows indicating the process (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable assembly (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening process: left panel with cable attachment, right panel with cable being inserted (no text or symbols)

Three-step diagram showing a mobile phone's open rear door mechanism with screwdriver, no text or symbols present.

Class I Div 2 Groups A, B, C, D, T4

Class II Div 2 Groups F, G, T135° C

Class III Div 2

CSA19CA70220252

》温度范围

-20^ C ·s +60^ C

》制造商：

i.safe MOBILE GmbH

i_Park Tauberfranken 10

97922 Lauda-Koenigshofen

Germany

设备总览/功能

1 2 3 4 5 6 7 8 1011 9 11 12 13 14 15 16 Li Safe MOBILE

17 18 19 20 21 NAME: CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE CNR MOBILE 17 20 21

Two views of a black flip phone showing internal components and battery casing, with arrows indicating the mechanism (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and battery cover (no text or symbols)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable disassembly (no text or symbols)

Diagram showing a screwdriver being inserted into a device, with motion arrows indicating rotation (no text or symbols present)

Three-step diagram showing cable fastening and disassembly process (no text or symbols)

Three-step illustration of a mobile phone's open rear door, showing battery, switch, and scroll (no text or symbols)

www.isafe-mobile.com/cn/support/downloads

www.isafe-mobile.com/en/support/downloads

www.isafe-mobile.com/en/support/service

www.isafe-mobile.com/en/support/downloads

نطاق درجة الحرارة

-20°C ... +60°C (EN/IEC 60079-0)

-10°C ... +50°C (EN/IEC 62368-1)

المُصْنَع:

i.safe MOBILE GmbH

i_Park Tauberfranken 10

Lauda-Koenigshofen 97922

اللمانيا

Two views of a mobile phone showing internal components and battery casing changes (no text or symbols visible)

Three-step illustration of a mobile phone's open rear panel showing battery, switch, and cable (no text or symbols)

."SIM 2,, & "SIM 1,,

Three-step illustration of a mobile phone's open battery showing internal components and battery release (no text or symbols)

Close-up of a screwdriver inserted into a black plastic component, with a curved arrow indicating rotation (no text or symbols visible)

Close-up of a black cable being inserted into a device, with a circular arrow indicating rotation (no text or symbols visible)

Close-up of a black mechanical device with a curved arrow indicating rotation (no visible text or symbols)

Close-up of a black mechanical device with a handle and arrow indicator (no visible text or symbols)

Three-step diagram showing a device being opened into a closed panel, with arrows indicating the process (no text or symbols present)

A plain gray background with a single horizontal red line at the bottom (no text or symbols)

CONTACT/SERVICE CENTRE

FOR FURTHER QUESTIONS PLEASE CONTACT OUR SERVICE CENTRE:

» i.safe MOBILE GmbH, i_Park Tauberfranken 10, 97922 Lauda-Koenigshofen, Germany
» [e-mail]
» https://support.isafe-mobile.com

Nighttime exterior view of a large industrial chemical plant with illuminated towers and piping (no visible text or signage)

WWW.ISAFE-MOBILE.COM
