USER MANUAL dot v1 Phil & Teds

text_image INSTRUCTIONS - INSTRUCTIONS - INSTRUCCIONES - GERBRAUCH SANWEISUNG - INSTRUKSJONER - INSTRUKTJONER phil&teds FOR YOUR CHILD'S SAFETY READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

phil&teds®

DOT™ 2.0

KEEP FOR FUTURE REFERENCE

Phil & Teds dot v1 - 1

philandteds.com

Congratulations on choosing the DOT™ 2.0!

Phil & Teds dot v1 - Congratulations on choosing the DOT™ 2.0! - 1

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Phil & Teds dot v1 - Congratulations on choosing the DOT™ 2.0! - 2

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Phil & Teds dot v1 - Congratulations on choosing the DOT™ 2.0! - 3

Configurations / Konfigurationen / Configuraciones / Configuratives

Phil & Teds dot v1 - Congratulations on choosing the DOT™ 2.0! - 4

Features / Caractérisiques / Produkteigenschaften / Características / Kenmerken

Phil & Teds dot v1 - Congratulations on choosing the DOT™ 2.0! - 5

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

Phil & Teds dot v1 - Congratulations on choosing the DOT™ 2.0! - 6

DOT™ 2.0

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandteds.com/register

Phil & Teds dot v1 - GENERAL INSTRUCTIONS - 1

This vehicle is intended for children from newborn to 5 years.

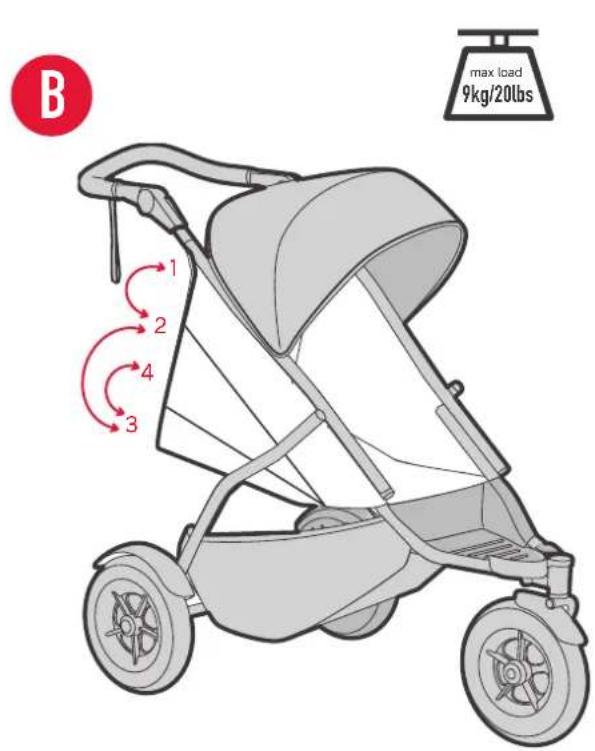

Maximum weight in the newborn position 20lbs/9kg

Maximum weight in the upright main seat 44lbs/20kg

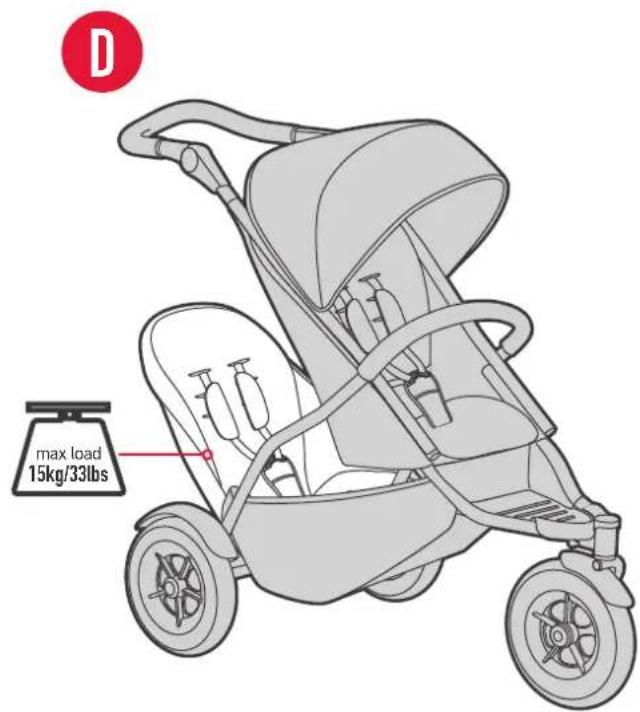

Maximum weight in the double kit - on rear 33lbs/15kg

Maximum weight in the double kit - on front 44lbs/20kg

Maximum weight in the parent facing seat 26lbs/12kg

CLEANING & CARING

Check the DOT™ 2.0 for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support) from where you can access a local customer care team.

Caring for DOT™ 2.0

Unlike children, your DOT™ 2.0 likes to stay clean.

  • Brush dirt off frame and wheels regularly.
  • Clean with non-abrasive household cleaner and a soft cloth.
  • Wash off sand and salt after visiting the beach.
    • Always dry frame if wet.
  • Fabrics can be sponge cleaned with warm water, using a mild natural soap.
  • Do not use detergents or bleach.
  • Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
  • Improper care will void any warranties. Do not use the DOT™ 2.0 if deterioration is detected or suspected.

IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Do not use stroller on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:

Fraying - especially webbing straps and safety harness.

Wear - locks, snap fasteners, tyres, plastic and moving parts.

Safety - locks must not be loose.

Tyres & Tubes

  • The valve is car-size. Manually inflate to 20 – 22psi max. Releasing air gives a softer ride but lower pressure reduces tread life.
  • New inner tubes and tyres are generally available (10") from philandteds.com. Standard tyre kits can repair punctures.
  • A flat tyre can result from grit holding the valve open; to check: inflate tyre, deflate rapidly, and re-inflate.
  • Tyres and tubes are not under warranty. Do not over inflate. Tyre pressure is affected by heat especially when inside parked cars.

For rights & remedies, refer www.philandteds.com/warranty

Phil & Teds dot v1 - Tyres & Tubes - 1

DOT ^TM 2.0

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

The DOT™ 2.0 complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNINGS

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

  • This vehicle is intended for children from newborn up to 5 years and up to a maximum weight of 20kg/44lbs.
  • The buggy shall only be used for a maximum of 2 children.
  • Never leave your child unattended.

  • Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.

  • Any load attached to the handle and/or back of the backrest and/or the sides of the stroller will affect stability of the stroller.
    • Always use the restraint system.
    • Always use the crotch strap in combination with the waist belt.

  • Check that the pram body or seat unit attachment devices are correctly engaged before use.
  • This product is not suitable for running or skating.
  • Ensure that all locking devices are engaged before use.
  • Use a harness as soon as your child can sit unaided.
  • The parking device shall be engaged during the loading and unloading of children.
  • The carry handles must be left out of the reclined position when in use (if applicable).
  • The reclined position is suitable for a child who cannot sit up by itself, roll over and

cannot push itself up on its hands and knees. Maximum weight of child in reclined position is 9kg.

  • To avoid injury ensure that your child is kept away when unfolding and folding this product.
  • Do not let your child play with this product.
  • It is recommended that the most reclined position be used for new born babies.
  • Do not place more than 5kg/11lbs in the parcel tray.
  • Do not add a mattress thicker than 20mm.

Phil & Teds dot v1 - European Safety Standard states: - 1

WARNINGS

American Safety Standard states:

  • Never leave your child unattended in the stroller.
    • Always use the safety harness to avoid serious injury from falling or sliding out.
    • Always secure all safety harness straps. Child may slip into leg openings and strangle. Never

use in a reclined carriage position unless child securely restrained - see p45 & 46.

  • This vehicle is intended for children from newborn to 5 years and up to a maximum weight of 20kg/44lbs.
  • To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.
  • Do not place more than 5kg/11lbs in the parcel tray.

WARNINGS

Australia / New Zealand Safety Standard states:

To avoid injury or death:

  • Always apply the brakes whenever the stroller is stationary.
  • Do not leave children unattended.
  • Secure the child in the harness at all times.

Phil & Teds dot v1 - Australia / New Zealand Safety Standard states: - 1

DOT ^TM 2.0

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

  • Do not carry extra children or bags on this stroller.
  • Make sure children are clear of any moving parts if you adjust the stroller.
  • Use the harness at all times.
  • When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation.
  • Do not use this seat with any other models of stroller.
  • It is unsafe to use accessories other than those approved by the vehicles manufacturer.
  • Care should be taken if the stroller is used on stairs or escalators.
  • The stroller should not be used near an open fire or exposed flame.
  • This vehicle is intended for children up to a maximum weight of 20kg/44lbs.

WARNINGS

Canadian Safety Standard states:

  • Never leave your child unattended in the stroller.
    • Always use the safety harness to avoid serious injury from falling or sliding out.
  • Do not place more than 5kg/11lbs in the parcel tray.
  • The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.
  • The stroller may become unstable if the recommended load is exceeded.
    • Take care when folding or unfolding the stroller to prevent your fingers being entrapped.
natural_image Blank white image with no visible content, text, or symbols

Phil & Teds dot v1 - Canadian Safety Standard states: - 1

natural_image Blank white image with no visible content, text, or symbols
natural_image Blank white image with no visible content, text, or symbols.

Phil & Teds dot v1 - Canadian Safety Standard states: - 2

natural_image Blank white image with no visible content, text, or symbols.
natural_image Blank white image with no visible content, text, or symbols.

Phil & Teds dot v1 - Canadian Safety Standard states: - 3

natural_image Blank white image with no visible content, text, or symbols.

European Safety Standard:

text_image Technical diagram of a two-wheeled stroller with numbered parts for identification

01 Handle bar
02 Handle bar adjustor
03 Wrist strap
04 Sunhood
05 Grab bar
06 Retaining strap
07 Double kit
08 Mud guards
09 Parcel tray
10 Recline strap

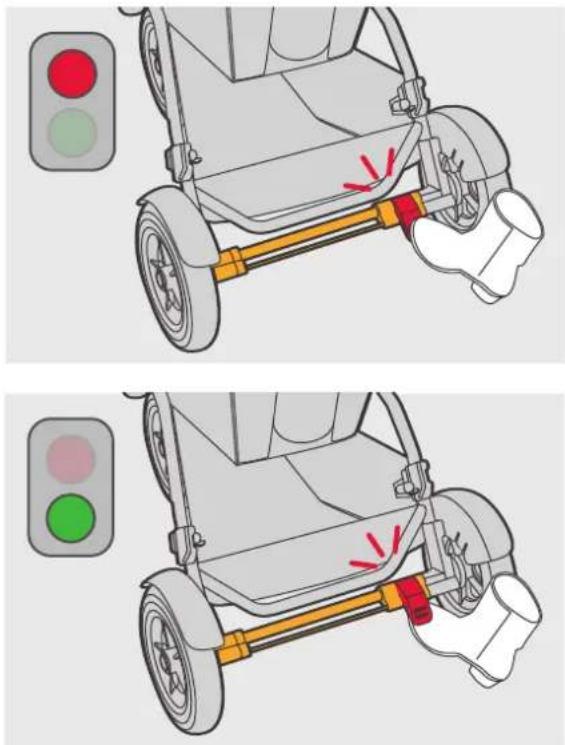

11 Brake

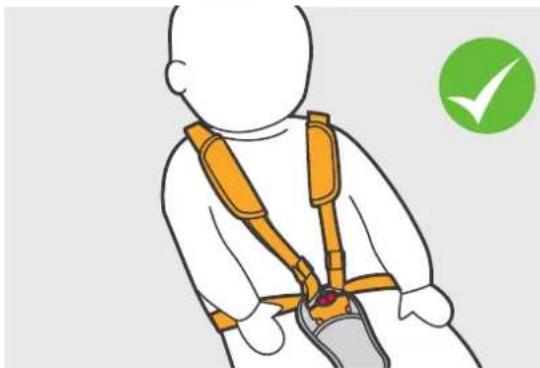

12 Harness
13 Single hand fold

01 Guidon

text_image sold separately

1a

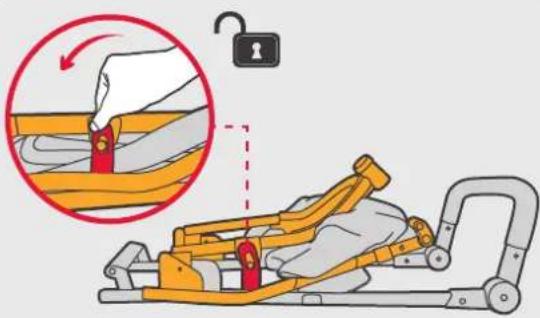

Phil & Teds dot v1 - European Safety Standard: - 1

text_image Illustration showing a mechanical device with a lock icon and a magnified view of the process being locked.

●

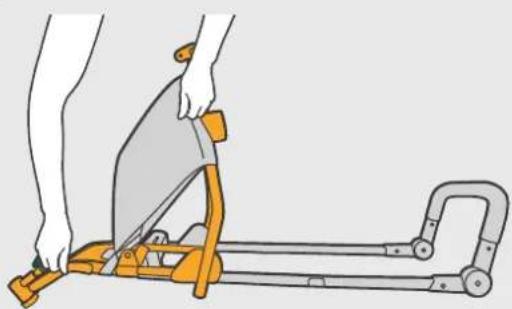

Phil & Teds dot v1 - European Safety Standard: - 2

natural_image Illustration of a person using a manual saw to cut the blade (no text or symbols present)

Phil & Teds dot v1 - European Safety Standard: - 3

1c
Phil & Teds dot v1 - European Safety Standard: - 4

text_image Diagram illustrating a bicycle steering mechanism with labeled parts and a lock icon, showing hand positioning and motion arrows.

●
Phil & Teds dot v1 - European Safety Standard: - 5

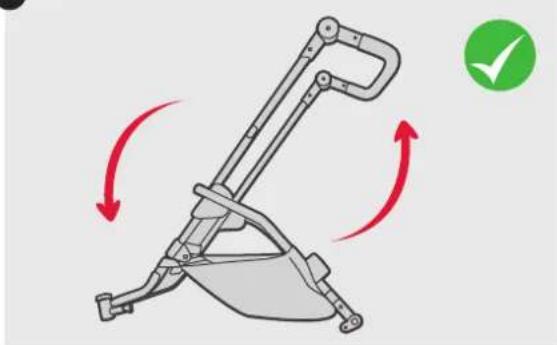

natural_image Diagram of a mechanical device with red and green arrows indicating rotational motion (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 6

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

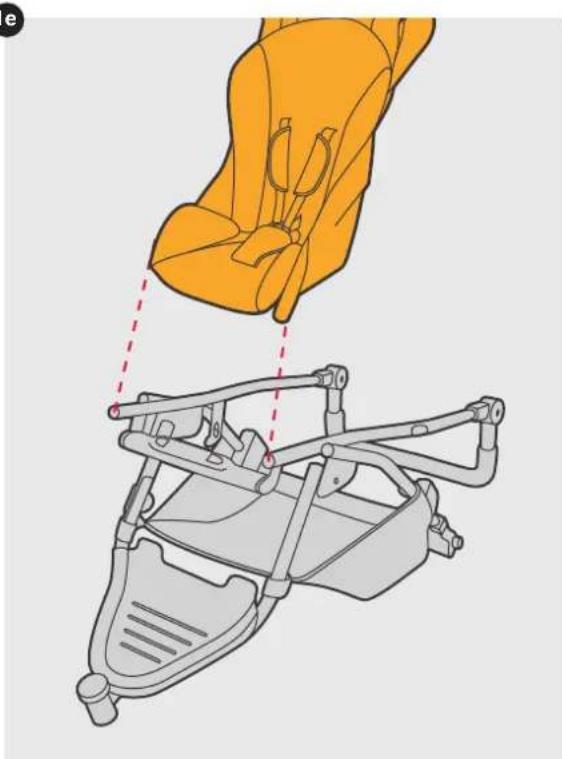

1e
Phil & Teds dot v1 - European Safety Standard: - 7

natural_image Illustration of a car seat assembly with orange seat and mechanical components (no text or symbols)

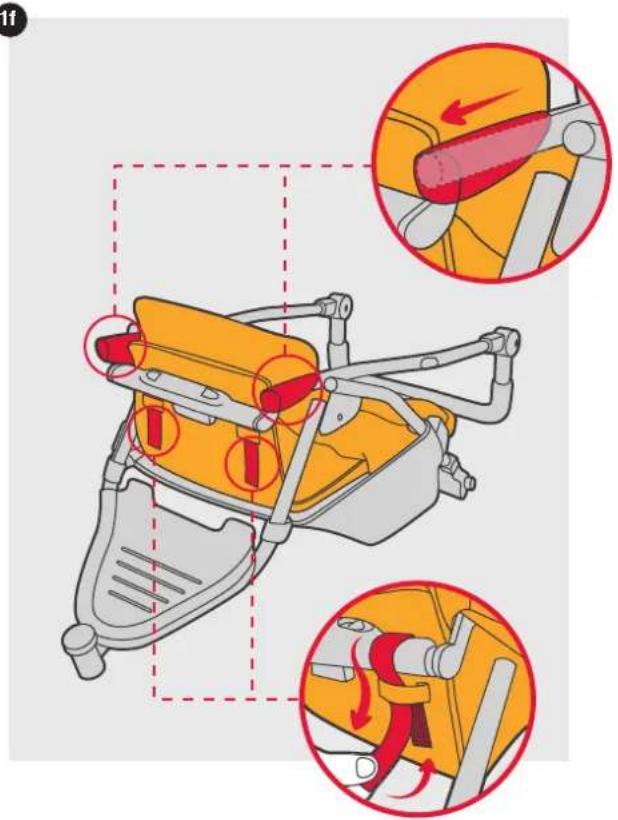

11
Phil & Teds dot v1 - European Safety Standard: - 8

text_image Diagram illustrating seatbelt mechanism with labeled parts and directional arrows indicating movement or force directions.

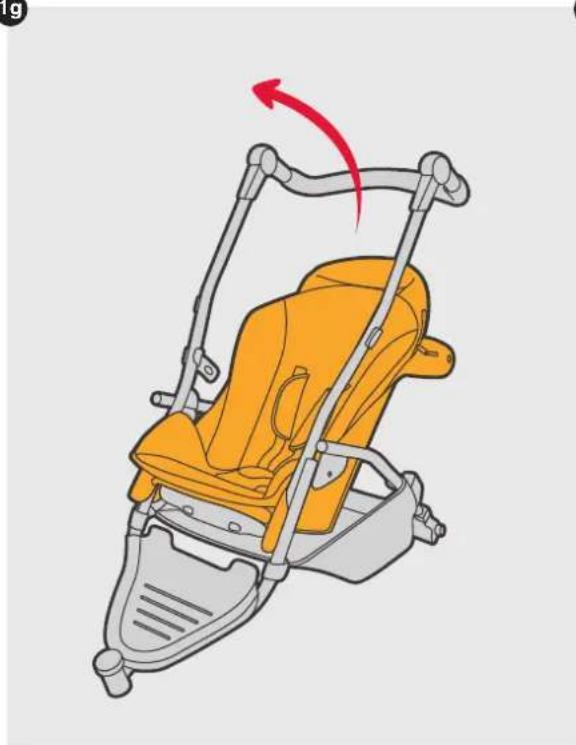

1g
Phil & Teds dot v1 - European Safety Standard: - 9

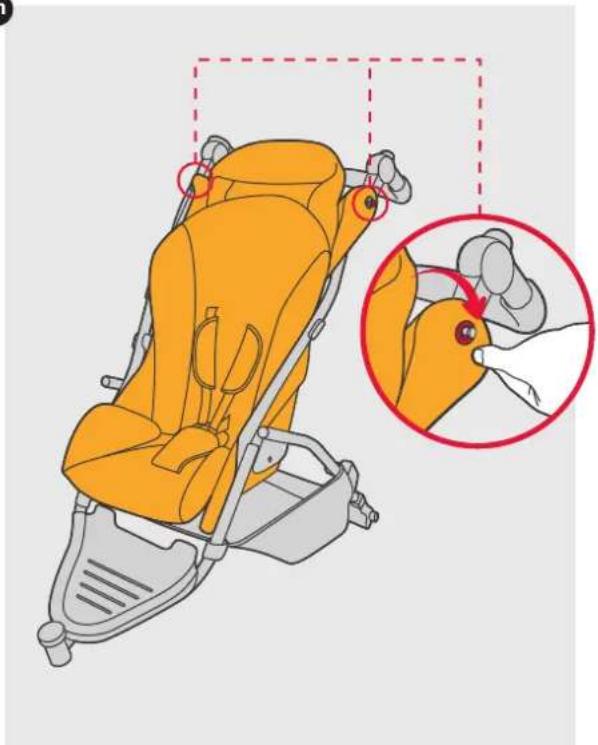

natural_image Illustration of a yellow and orange baby seat with mechanical arms and a red arrow indicating motion (no text or symbols)

1h

Phil & Teds dot v1 - European Safety Standard: - 10

text_image Diagram illustrating the step of adjusting a yellow bicycle seat, with an inset showing the hand positioning and adjustment of the seat.

Phil & Teds dot v1 - European Safety Standard: - 11

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

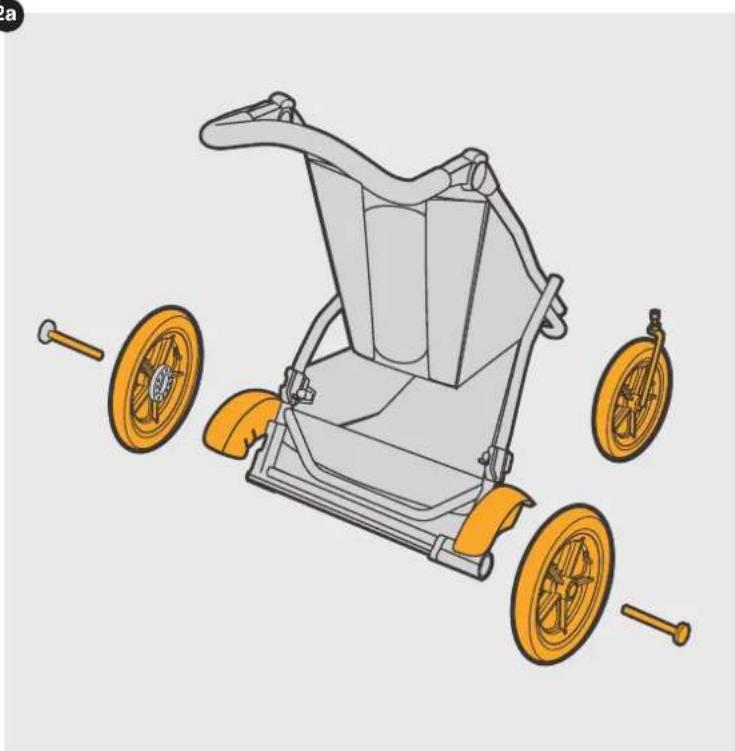

2a
Phil & Teds dot v1 - European Safety Standard: - 12

natural_image Illustration of a wheelchair with four wheels and a small screw, no text or symbols present

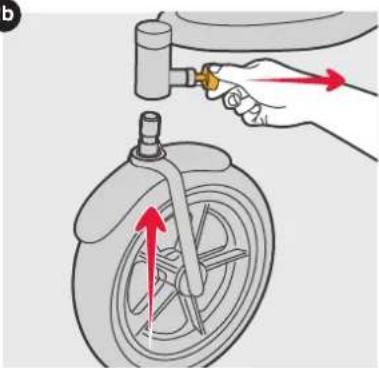

2b
Phil & Teds dot v1 - European Safety Standard: - 13

natural_image Illustration of a hand using a tool to lift a bicycle tire, with red arrows indicating motion direction (no text or symbols)

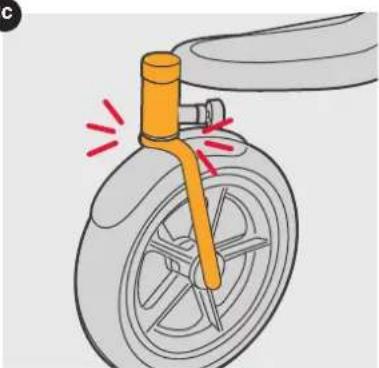

2c
Phil & Teds dot v1 - European Safety Standard: - 14

natural_image Illustration of a bicycle steering wheel with orange suspension and red motion arrows (no text or symbols)

2d
Phil & Teds dot v1 - European Safety Standard: - 15

natural_image Diagram of a mechanical assembly with orange and yellow components, no visible text or symbols

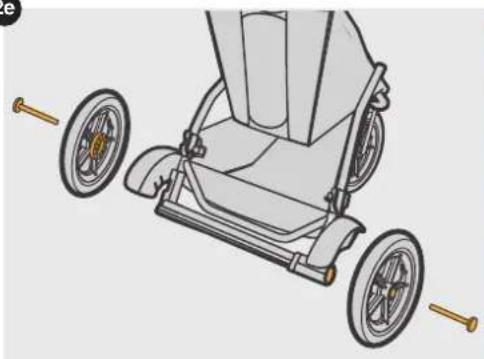

2e
Phil & Teds dot v1 - European Safety Standard: - 16

natural_image Illustration of a small wheeled vehicle with four wheels and a handle, no text or symbols present

Phil & Teds dot v1 - European Safety Standard: - 17

natural_image Illustration of a hand using a tool to adjust or install a tire component (no text or symbols visible)

2f

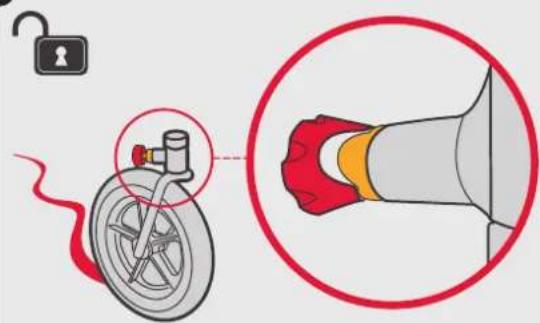

Phil & Teds dot v1 - European Safety Standard: - 18

text_image Diagram illustrating a mechanical device with a lock icon and magnified view of the handle, likely illustrating safety or safety concept.

Phil & Teds dot v1 - European Safety Standard: - 19

Phil & Teds dot v1 - European Safety Standard: - 20

natural_image Diagram of a bicycle wheel with a sensor and mechanical component, no text or symbols present

Phil & Teds dot v1 - European Safety Standard: - 21

natural_image Simple line drawing of a bottle with red cap and yellow base, enclosed in a red circle (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 22

Phil & Teds dot v1 - European Safety Standard: - 23

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds dot v1 - European Safety Standard: - 24

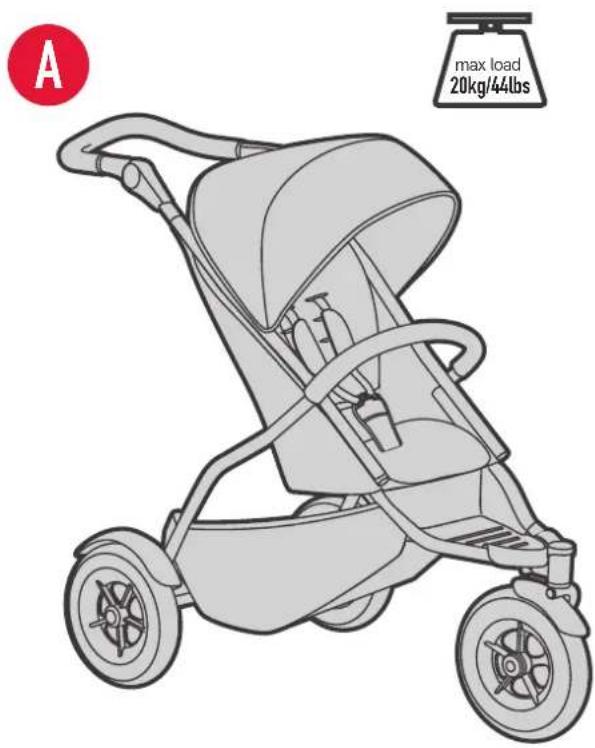

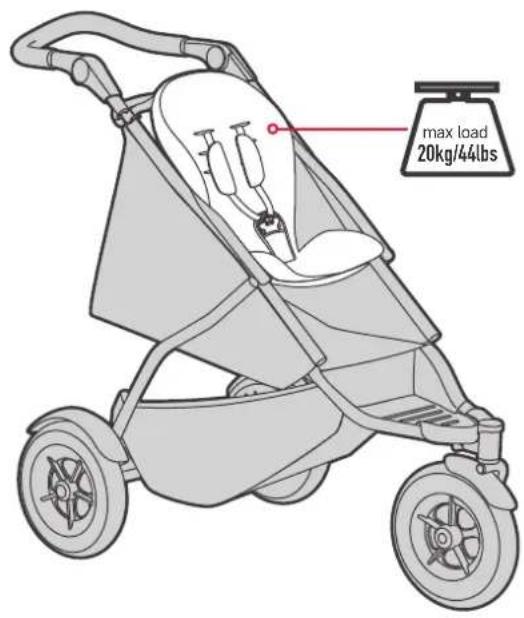

text_image A max load 20kg/44lbs

Phil & Teds dot v1 - European Safety Standard: - 25

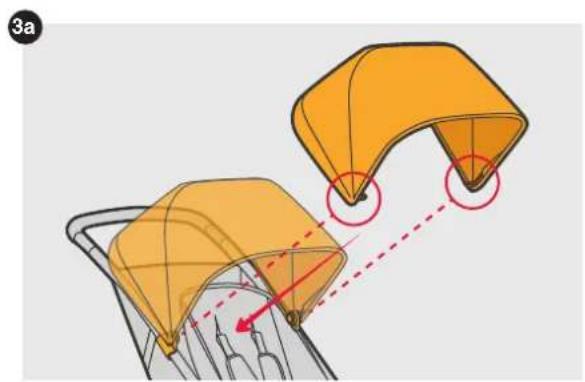

natural_image Diagram showing two orange fabric pieces with red arrows indicating movement or force, no text or symbols present

Phil & Teds dot v1 - European Safety Standard: - 26

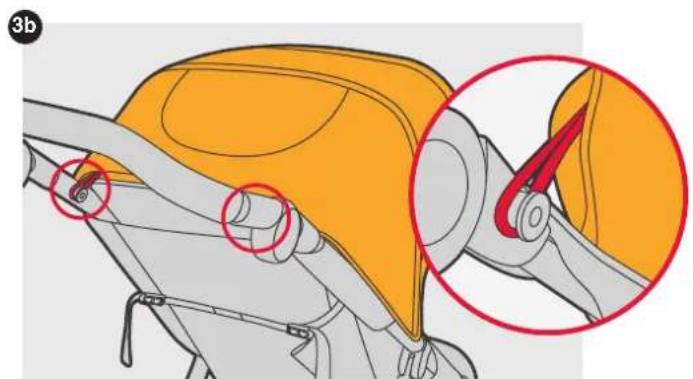

text_image 3b

Phil & Teds dot v1 - European Safety Standard: - 27

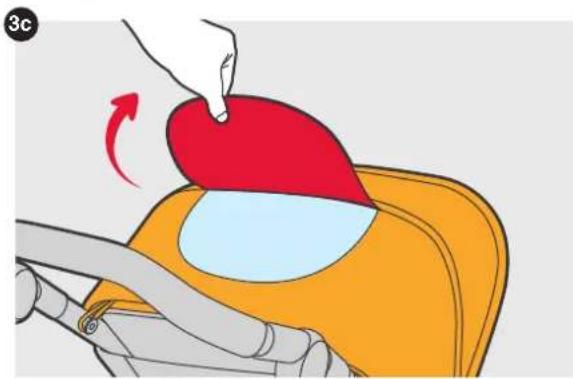

natural_image Illustration of a hand pressing down on a red heart-shaped object on an orange chair, with a blue circular area underneath (no text or symbols)

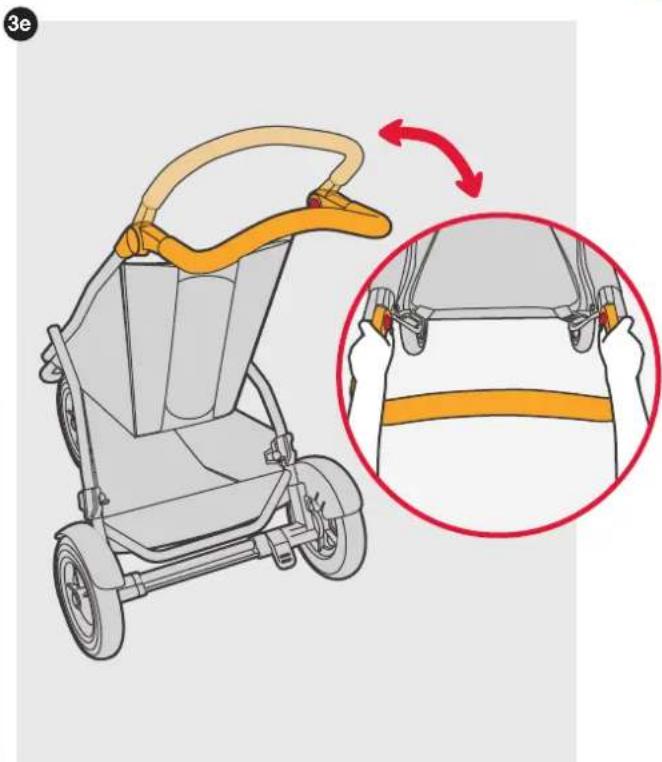

Phil & Teds dot v1 - European Safety Standard: - 28

text_image 3e

Phil & Teds dot v1 - European Safety Standard: - 29

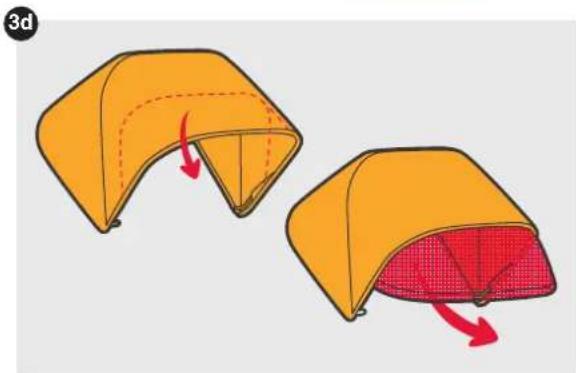

natural_image Two fabric folds with red hatching and arrows indicating folding or shading (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 30

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds dot v1 - European Safety Standard: - 31

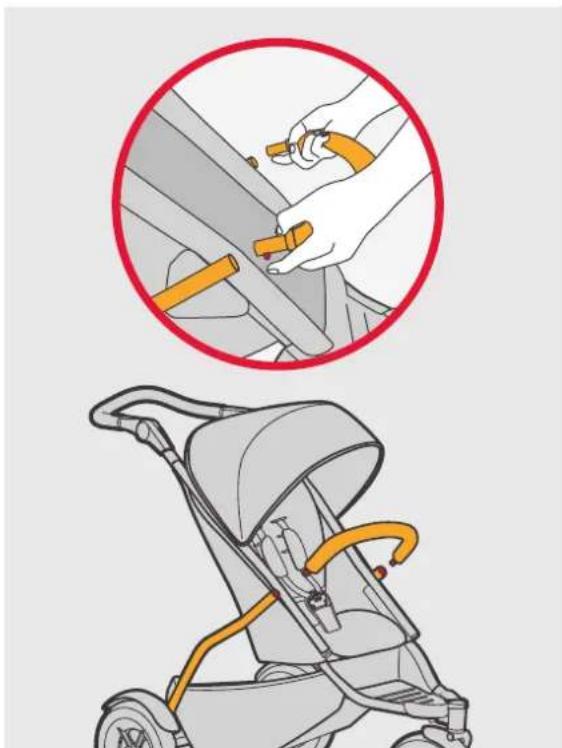

natural_image Illustration of a hand using a tool to adjust or install a car seatbelt, with a stroller base view below (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 32

text_image Diagram illustrating vehicle steering wheel and battery mechanism with red and green indicator lights and directional arrows indicating motion.

Phil & Teds dot v1 - European Safety Standard: - 33

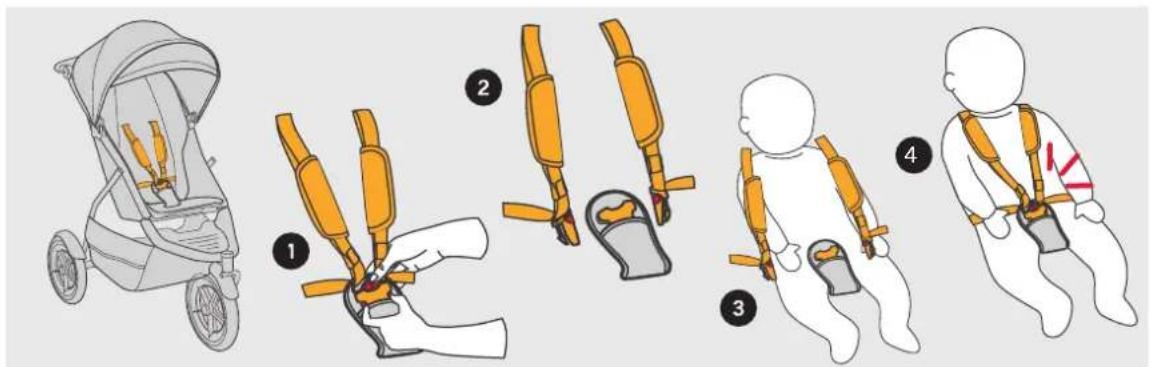

text_image Illustration showing a stroller with four different seatbelt configurations, labeled 1 to 4.

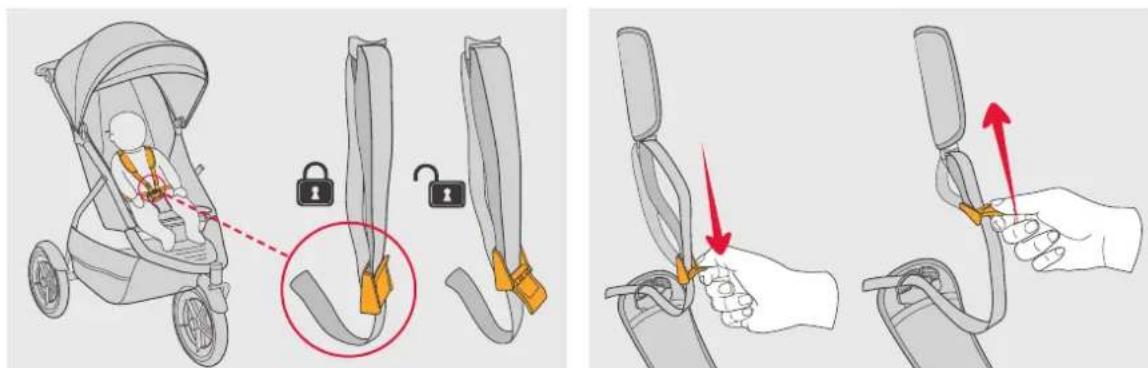

Phil & Teds dot v1 - European Safety Standard: - 34

text_image Illustration showing how to adjust seatbelt between a stroller and a car, with labeled parts and directional arrows.

Phil & Teds dot v1 - European Safety Standard: - 35

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds dot v1 - European Safety Standard: - 36

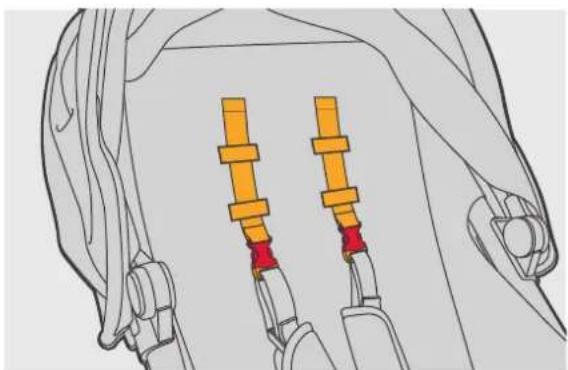

natural_image Diagram of two orange and red mechanical components mounted on a vehicle chassis (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 37

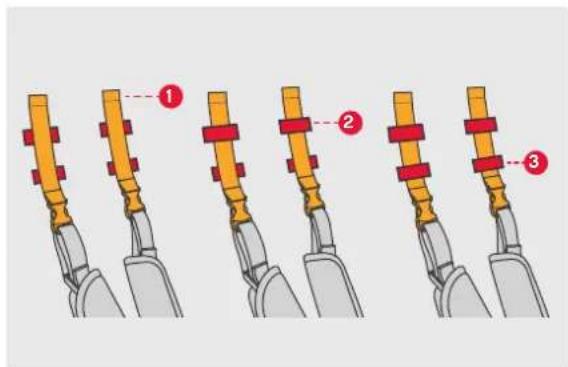

text_image Diagram showing three-step assembly steps of a robotic arm with labeled parts 1, 2, and 3

Phil & Teds dot v1 - European Safety Standard: - 38

natural_image Illustration of a person wearing an orange safety harness, sitting with a green checkmark icon (no text or symbols on the diagram itself)

Phil & Teds dot v1 - European Safety Standard: - 39

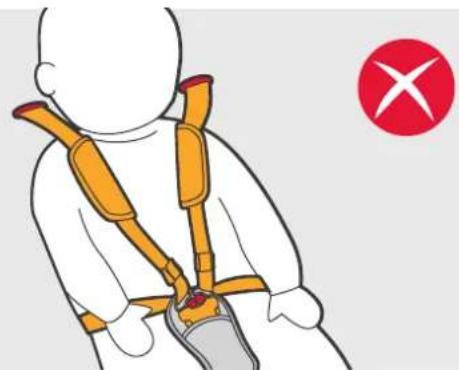

natural_image Illustration of a person wearing an orange safety harness and seatbelt, with a red circular symbol containing a white cross (no text or symbols on the diagram itself)

Phil & Teds dot v1 - European Safety Standard: - 40

Phil & Teds dot v1 - European Safety Standard: - 41

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

4d

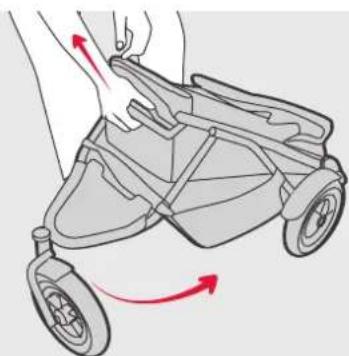

Phil & Teds dot v1 - European Safety Standard: - 42

natural_image Illustration of a stroller with hand and red directional arrows indicating motion (no text or symbols)

4e

Phil & Teds dot v1 - European Safety Standard: - 43

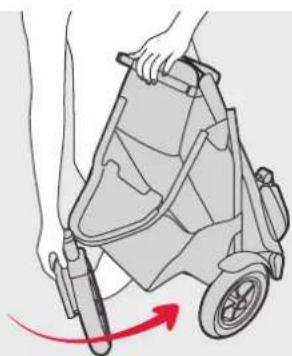

natural_image Illustration of a person pushing a stroller with a red arrow indicating motion (no text or symbols)

4f

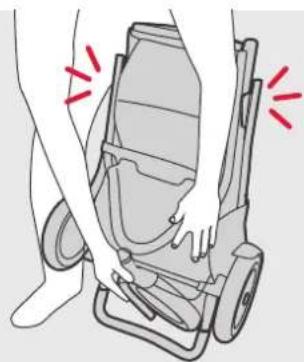

Phil & Teds dot v1 - European Safety Standard: - 44

natural_image Illustration of a person using a lawn mower to lift a seatbelt, with red arrows indicating motion (no text or symbols)

4g

Phil & Teds dot v1 - European Safety Standard: - 45

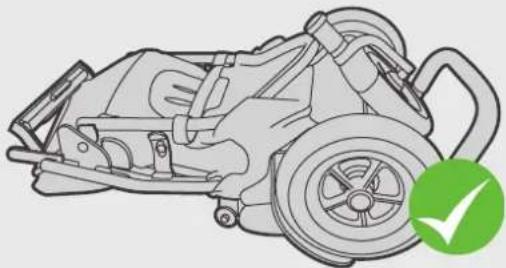

natural_image Line drawing of a wheelchair seat with handle and wheels, no text or symbols present

Phil & Teds dot v1 - European Safety Standard: - 46

text_image B 1 2 3 4 max load 9kg/20lbs

Phil & Teds dot v1 - European Safety Standard: - 47

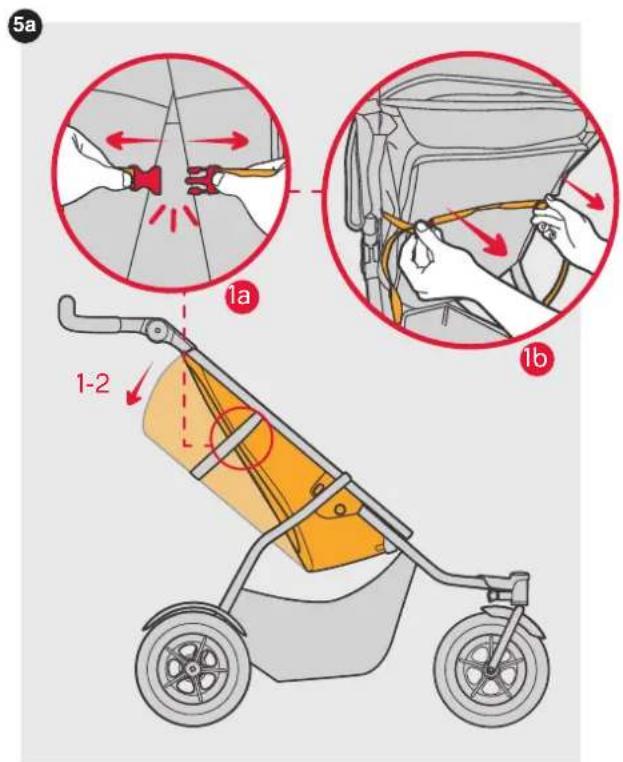

text_image 5a 1a 1b 1-2

Phil & Teds dot v1 - European Safety Standard: - 48

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

5b

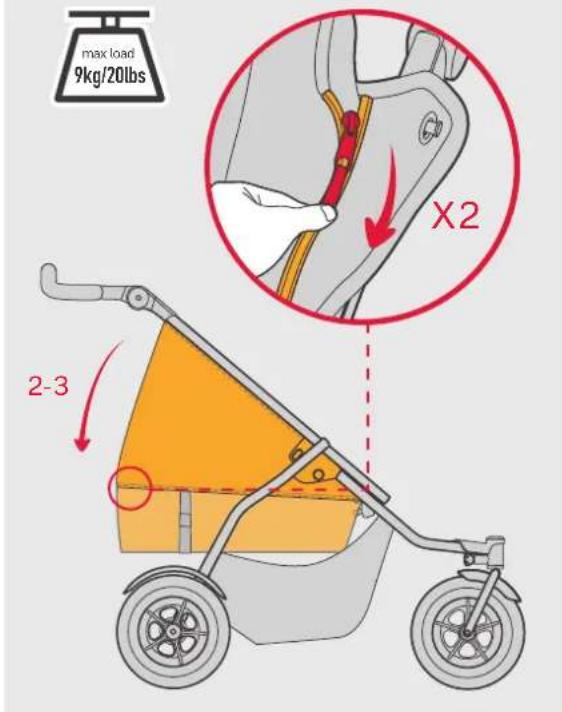

Phil & Teds dot v1 - European Safety Standard: - 49

text_image max load 9kg/20lbs X2 2-3

5c
Phil & Teds dot v1 - European Safety Standard: - 50

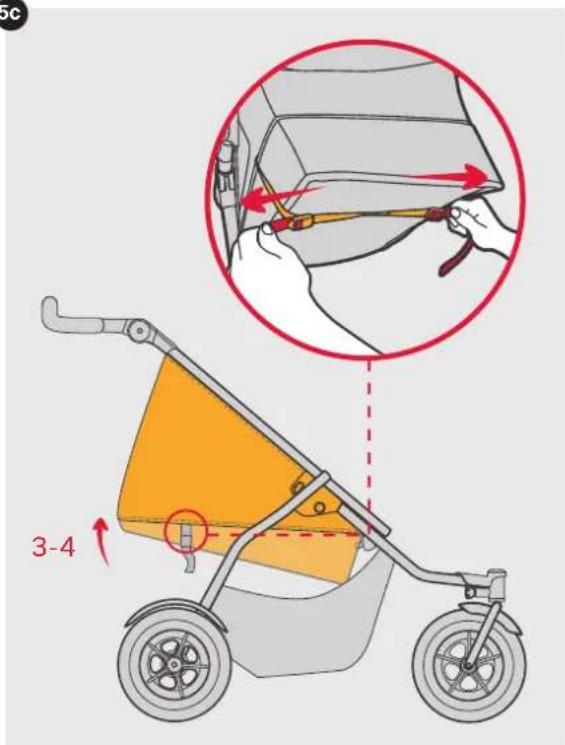

text_image 3c 3-4

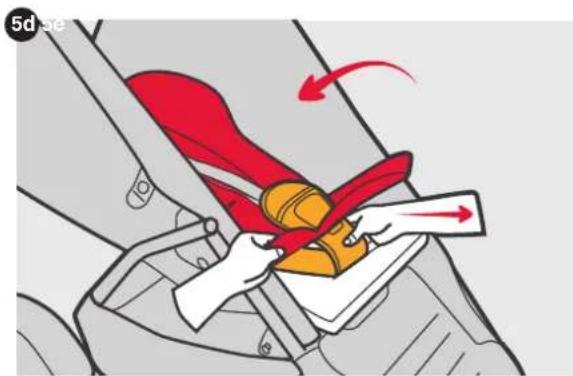

Phil & Teds dot v1 - European Safety Standard: - 51

text_image 5d se

Phil & Teds dot v1 - European Safety Standard: - 52

natural_image Illustration of a red and orange seatbelt buckle being inserted into a vehicle's seatbelt (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 53

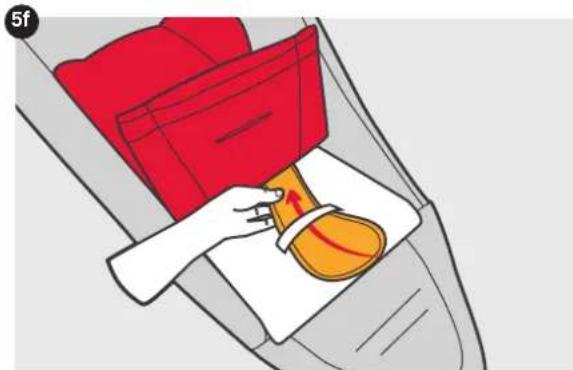

natural_image Illustration of a hand placing an orange object onto a white surface, with red boxes on the left (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 54

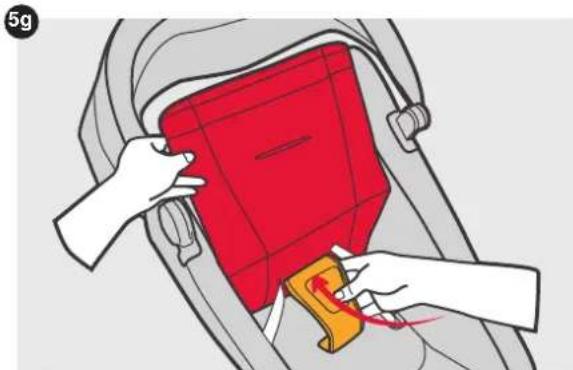

natural_image Illustration of a red seatbelt being adjusted for a person's seatbelt, with hands adjusting the belt (no text or symbols present)

Phil & Teds dot v1 - European Safety Standard: - 55

Phil & Teds dot v1 - European Safety Standard: - 56

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

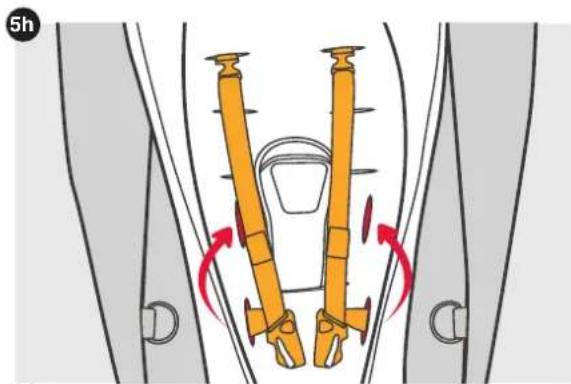

Phil & Teds dot v1 - European Safety Standard: - 57

natural_image Diagram of a car seatbelt mechanism with orange railings and red directional arrows indicating motion (no text or symbols)

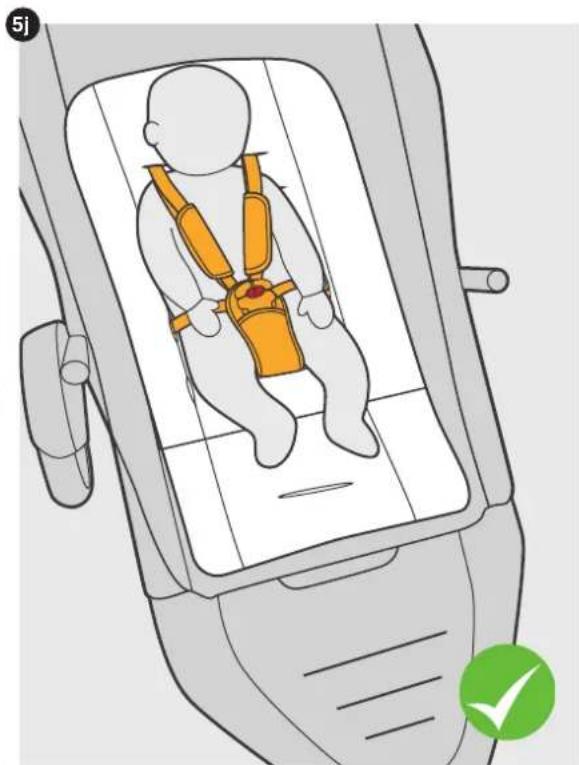

Phil & Teds dot v1 - European Safety Standard: - 58

natural_image Illustration of a baby in a child's seat using an orange safety harness, enclosed in a vehicle compartment (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 59

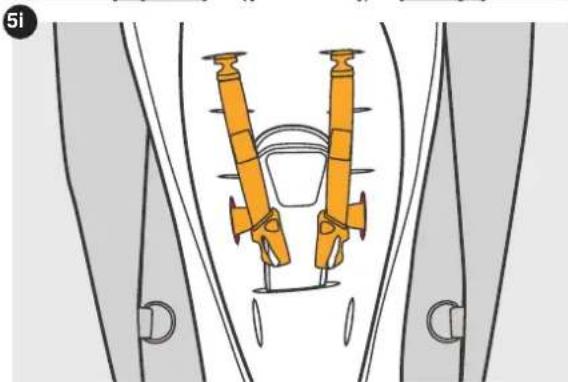

natural_image Diagram of a mechanical device with orange components and mounting brackets, no text or symbols present

C
Phil & Teds dot v1 - European Safety Standard: - 60

text_image max load 20kg/44lbs

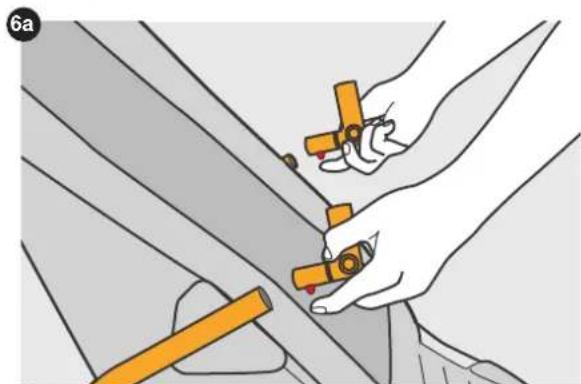

Phil & Teds dot v1 - European Safety Standard: - 61

natural_image Illustration of hands using a tool to adjust or install components on a vehicle (no text or symbols visible)

Phil & Teds dot v1 - European Safety Standard: - 62

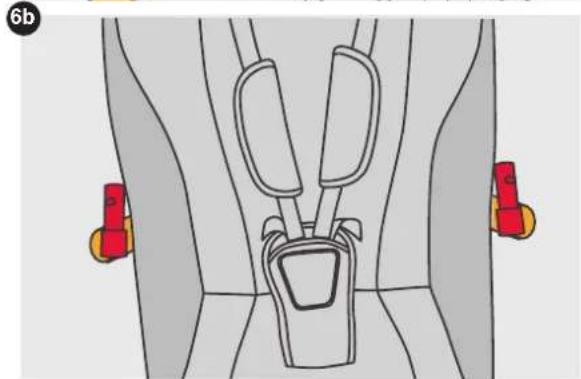

natural_image Diagram of a car seatbelt with red and yellow connectors, no text or symbols present

Phil & Teds dot v1 - European Safety Standard: - 63

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

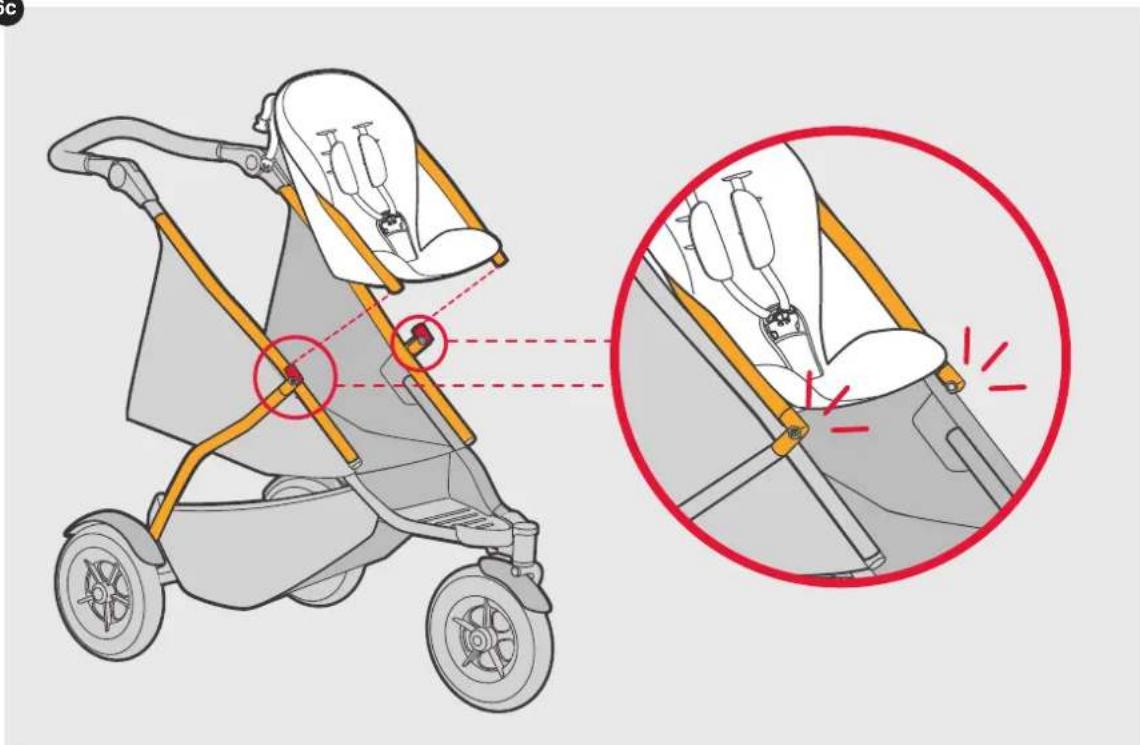

6c
Phil & Teds dot v1 - European Safety Standard: - 64

text_image Diagram illustrating the use of a stroller with hand positioning and safety instructions, including a close-up view of the device's grip.

6d
Phil & Teds dot v1 - European Safety Standard: - 65

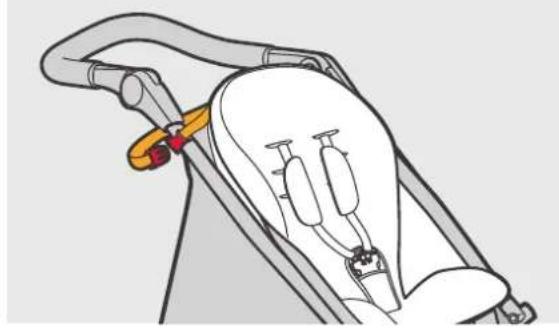

natural_image Illustration of a hand holding a medical device with attached tubing (no text or symbols)

6f
Phil & Teds dot v1 - European Safety Standard: - 66

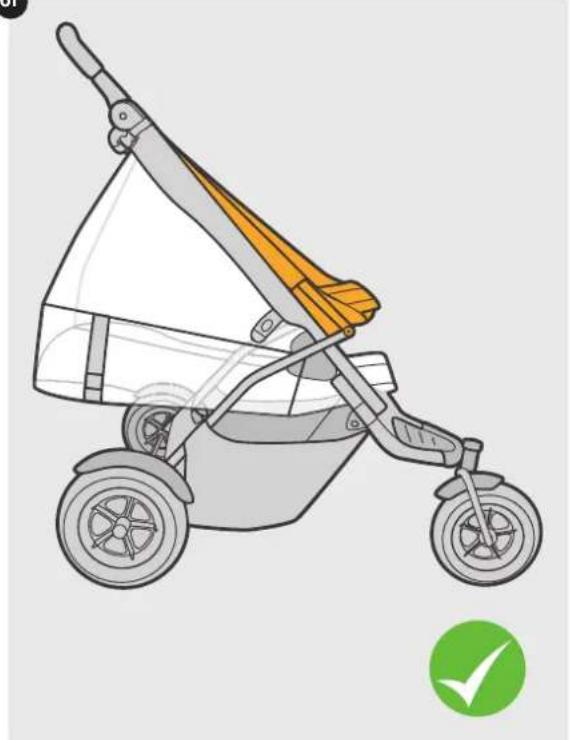

natural_image Illustration of a stroller with orange canopy and green checkmark (no text or symbols)

6e

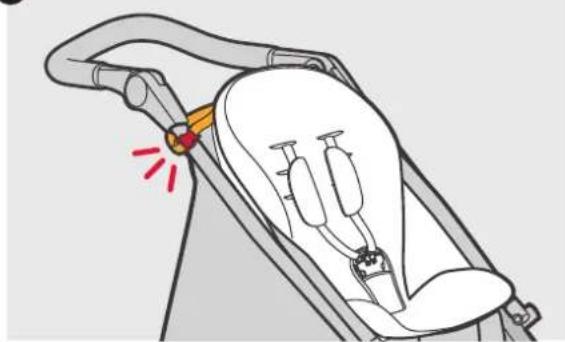

Phil & Teds dot v1 - European Safety Standard: - 67

natural_image Illustration of a hand holding a device with a red laser beam and orange tip, no text or symbols present

Phil & Teds dot v1 - European Safety Standard: - 68

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds dot v1 - European Safety Standard: - 69

text_image D max load 15kg/33lbs

7a

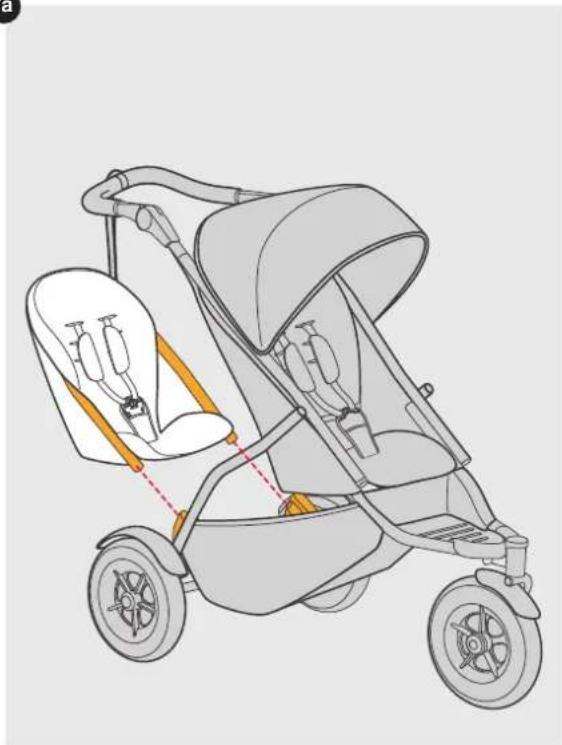

Phil & Teds dot v1 - European Safety Standard: - 70

natural_image Line drawing of a two-wheeled stroller with seat, wheels, and orange belt (no text or symbols)

7b
Phil & Teds dot v1 - European Safety Standard: - 71

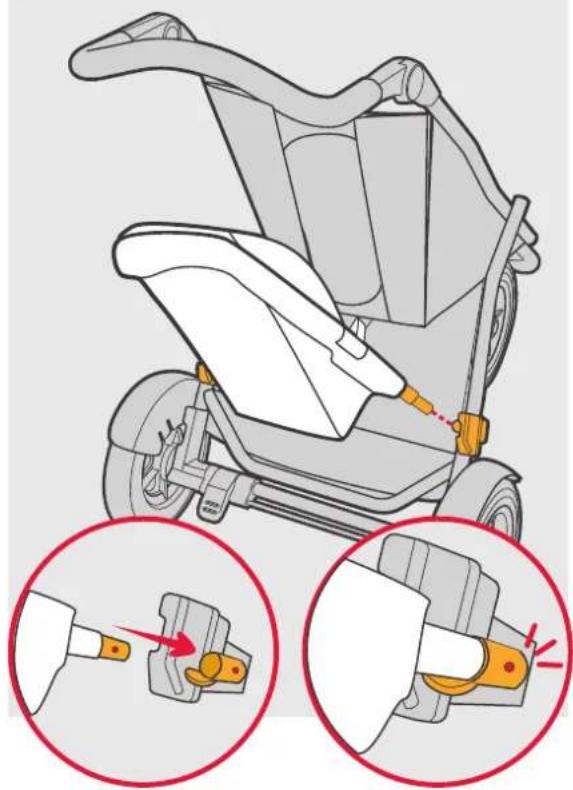

text_image Diagram illustrating how to adjust seatbelt between a car in a stationary chair, with magnified insets showing the mechanism.

7c
Phil & Teds dot v1 - European Safety Standard: - 72

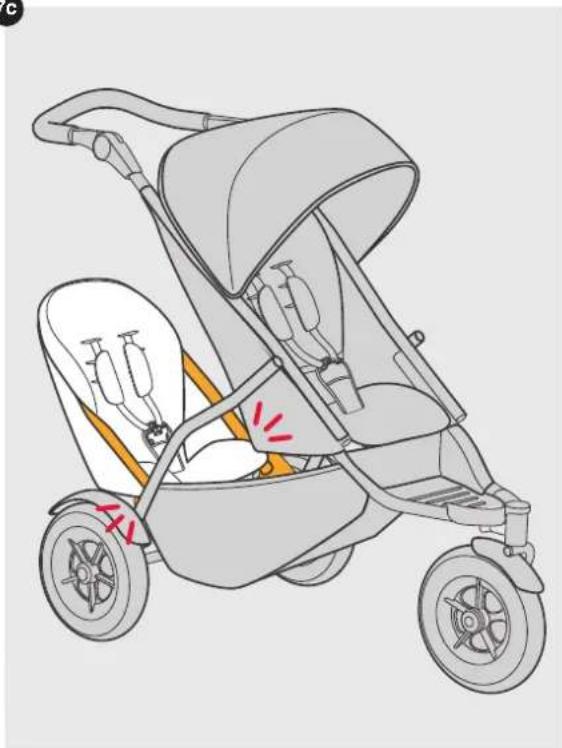

natural_image Illustration of a stroller with orange exhaust cone and red warning arrows indicating safety (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 73

Phil & Teds dot v1 - European Safety Standard: - 74

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

Phil & Teds dot v1 - European Safety Standard: - 75

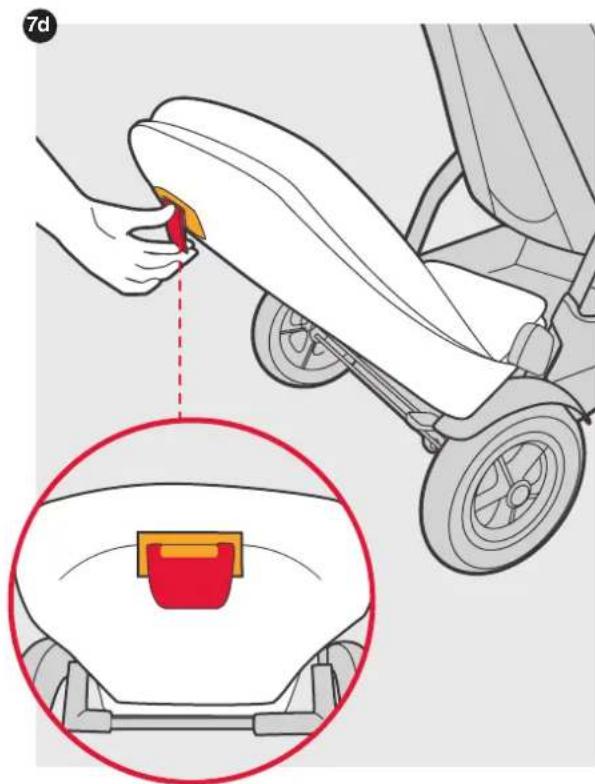

text_image 7d

Phil & Teds dot v1 - European Safety Standard: - 76

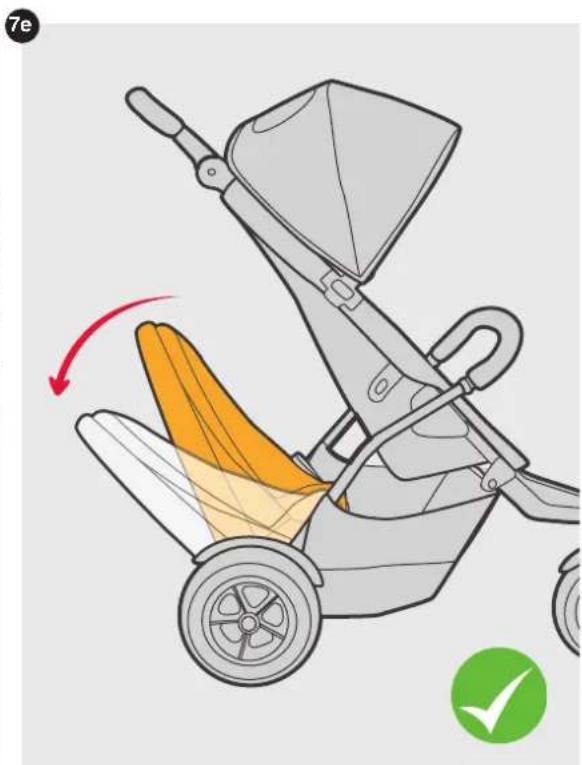

natural_image Illustration of a stroller with orange seat and orange blade, showing motion direction (no text or symbols)

Phil & Teds dot v1 - European Safety Standard: - 77

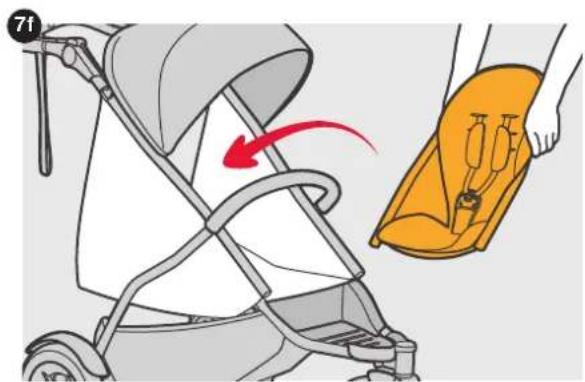

natural_image Illustration of a stroller with a hand holding an orange bag, showing a red arrow indicating motion (no text or symbols)

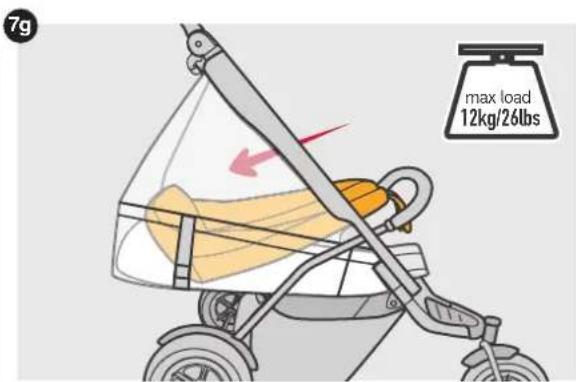

Phil & Teds dot v1 - European Safety Standard: - 78

text_image 79 max load 12kg/26lbs

Phil & Teds dot v1 - European Safety Standard: - 79

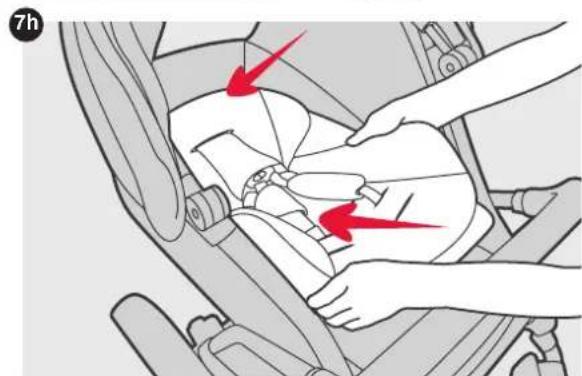

text_image 7h

Phil & Teds dot v1 - European Safety Standard: - 80

text_image Diagram illustrating car seatbelt usage with highlighted safety zones and a close-up of the belt switch mechanism.

Phil & Teds dot v1 - European Safety Standard: - 81

DOT™ 2.0

Instructions / gebrauchsanweisung / instrucciones / instructies

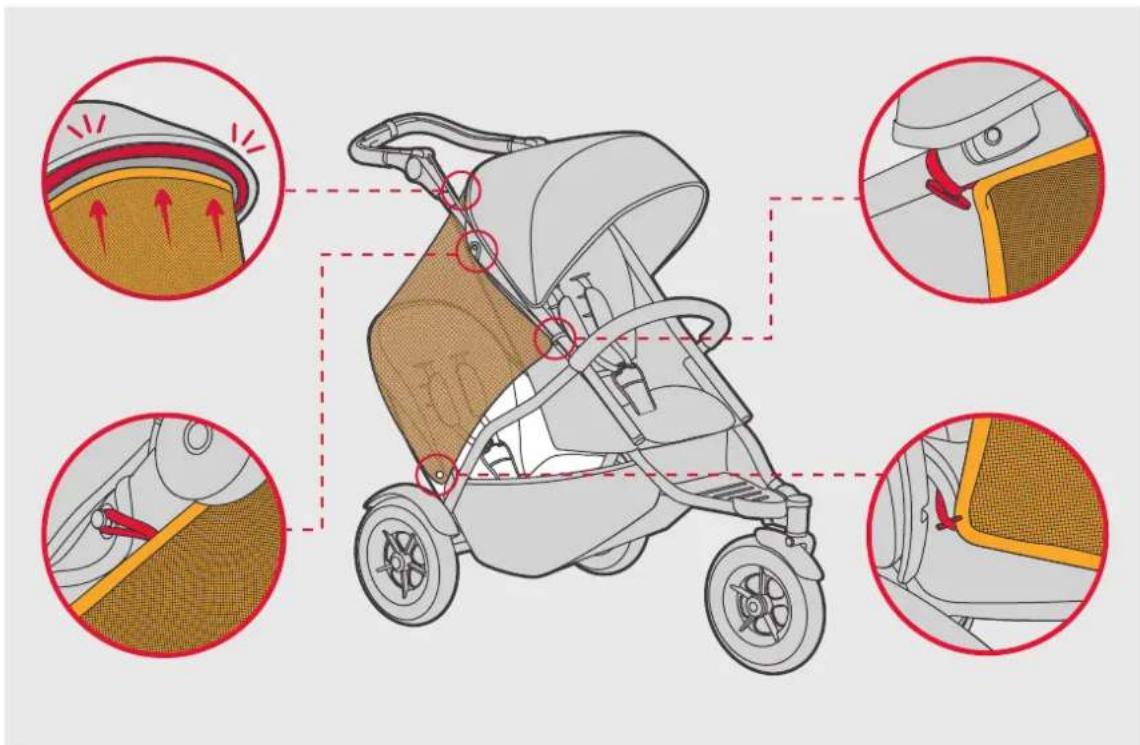

Phil & Teds dot v1 - European Safety Standard: - 82

text_image Diagram illustrating the use of a stroller with labeled parts and directional arrows indicating motion or assembly.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the phil&teds, adapt&survivel, &, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

natural_image Blank white image with no visible content, text, or symbols

Phil & Teds dot v1 - European Safety Standard: - 83

natural_image Blank white image with no visible content, text, or symbols

phil&teds

adapt&survive!

AUS/NZL

phil&teds

102-112 Daniell Street

Newtown, Wellington 6021

New Zealand

+6443800833

EUR

phil&teds Spain

Designed in New Zealand. Made in China

natural_image Line drawing of a stroller with four wheels and handlebars (no text or symbols)
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Phil & Teds

Model : dot v1

Category : Stroller
