dot v3 - Stroller Phil & Teds - Free user manual and instructions

USER MANUAL dot v3 Phil & Teds

This document contains instructions and must be kept for future reference.

Please read thoroughly before use.

please register your product

purchase online now

philandteds.com/register

Red stylized illustration of a rabbit sitting on a grassy hill with a wooden bench in the background (no text or symbols)

cleaning & caring

check dot™ for cuts & bruises. if your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support). here you can get in touch with a local customer care team, made of real live people.

caring for dot™

unlike your children, your dot™ likes to stay clean.

• code brown got you down? never fear! dot ^TM fabric can be sponge cleaned with warm water, using mild natural soap. do not use detergents or bleach on dot ^TM .
• improper care will void any warranties. do not use dot ^™ if deterioration is detected or suspected.

important information

aerotech tyres

- tyres are not under warranty, however dot ^™ uses aerotech tyres which are immune from punctures & eliminate the need for tube replacements.

for more information on caring for your dot™, philandteds.com/support

Diagram of a stroller with numbered parts for identification and labeling

Technical diagram of a vehicle suspension system with labeled component 11

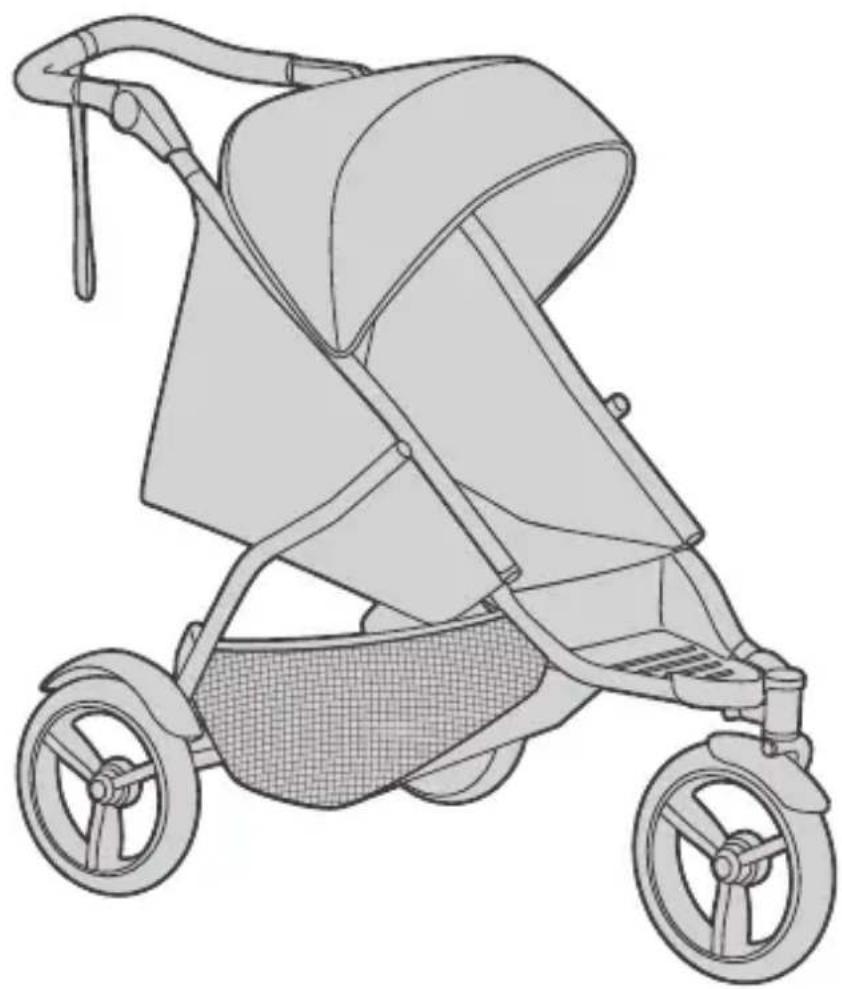

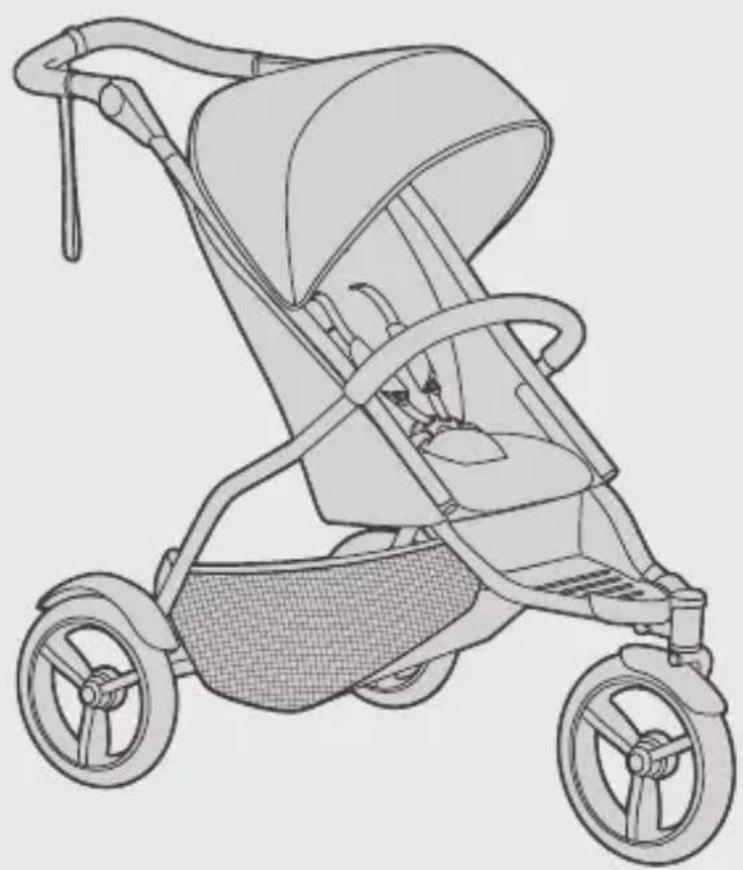

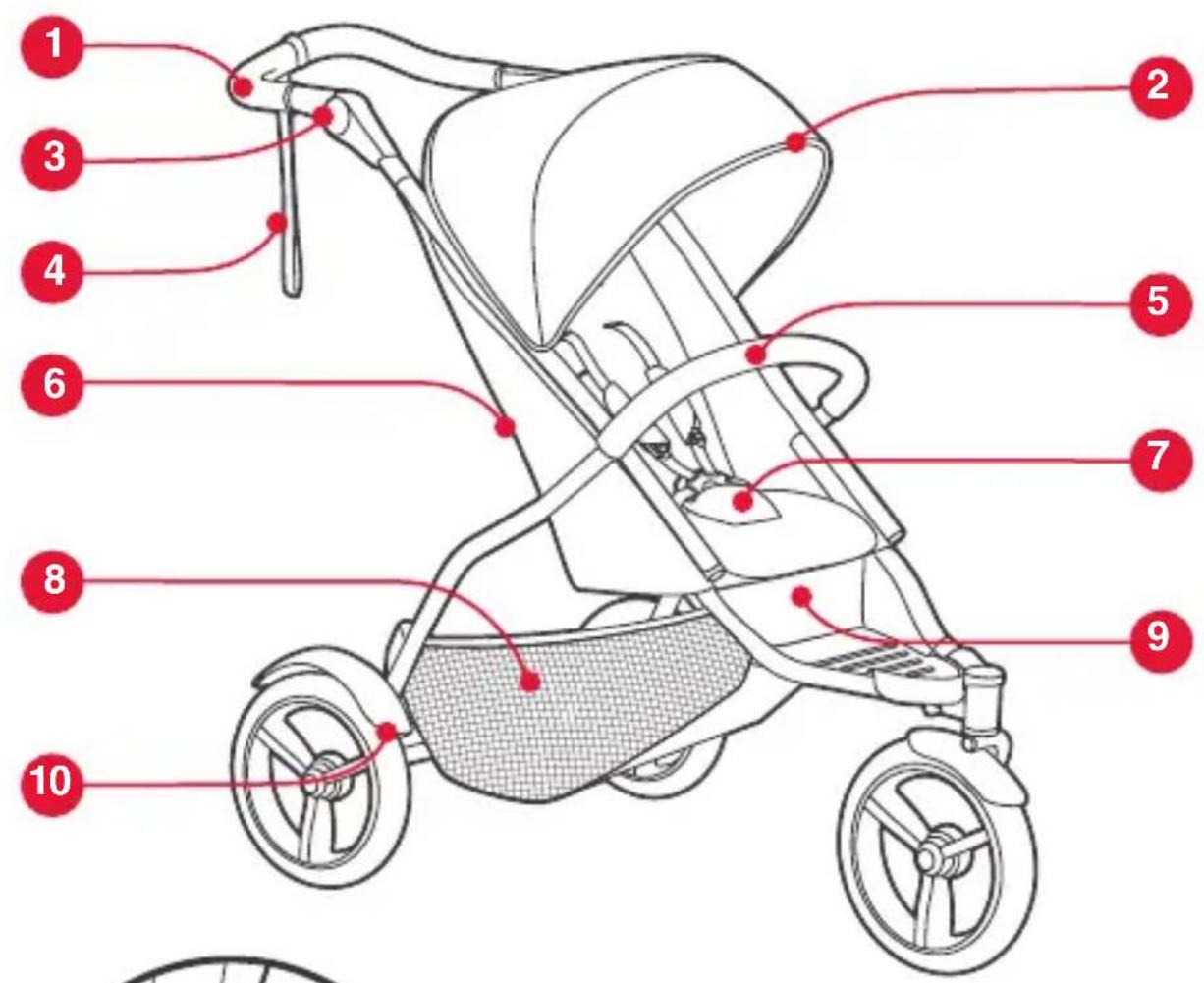

1 handlebar
2 sunhood
3 handlebar adjustor
4 wrist strap
5 grab bar
6 recline strap
7 harness
8 parcel tray
(max load 5kg/11lbs)
9 fast fold
10 mud guards

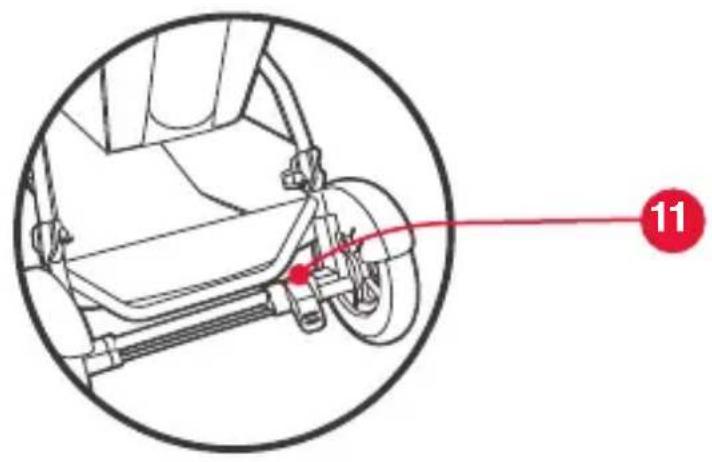

11 brake

(max load 5kg / 11lbs)

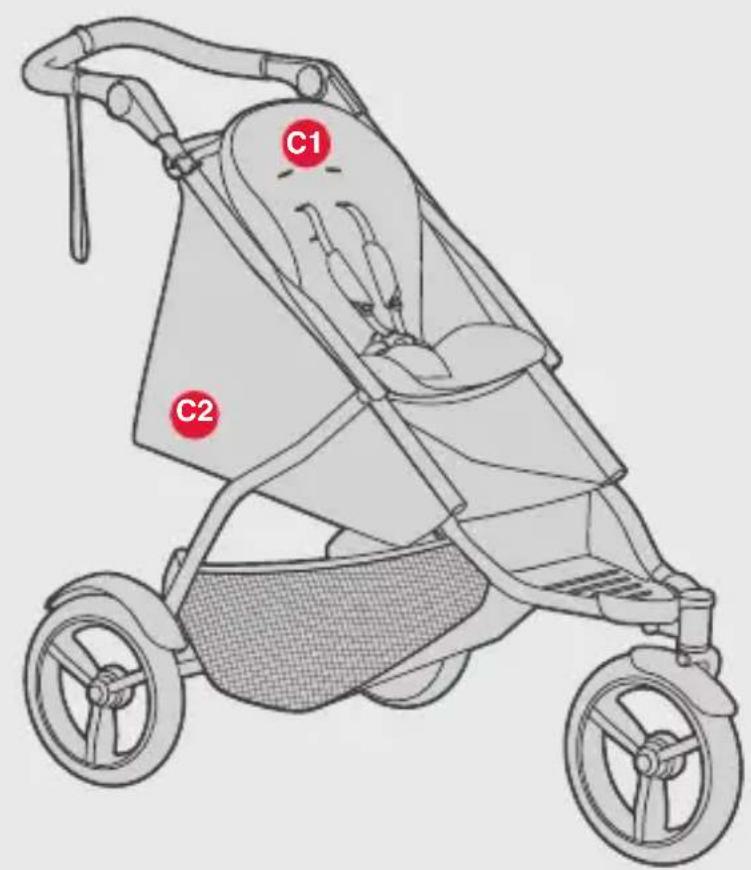

Line drawing of a two-wheeled stroller with a mesh backrest and front wheel (no text or symbols)

A

max load

20kg / 44lbs

Line drawing of a two-wheeled stroller with a mesh backrest and front wheel (no text or symbols)

B

max load

9kg / 20lbs

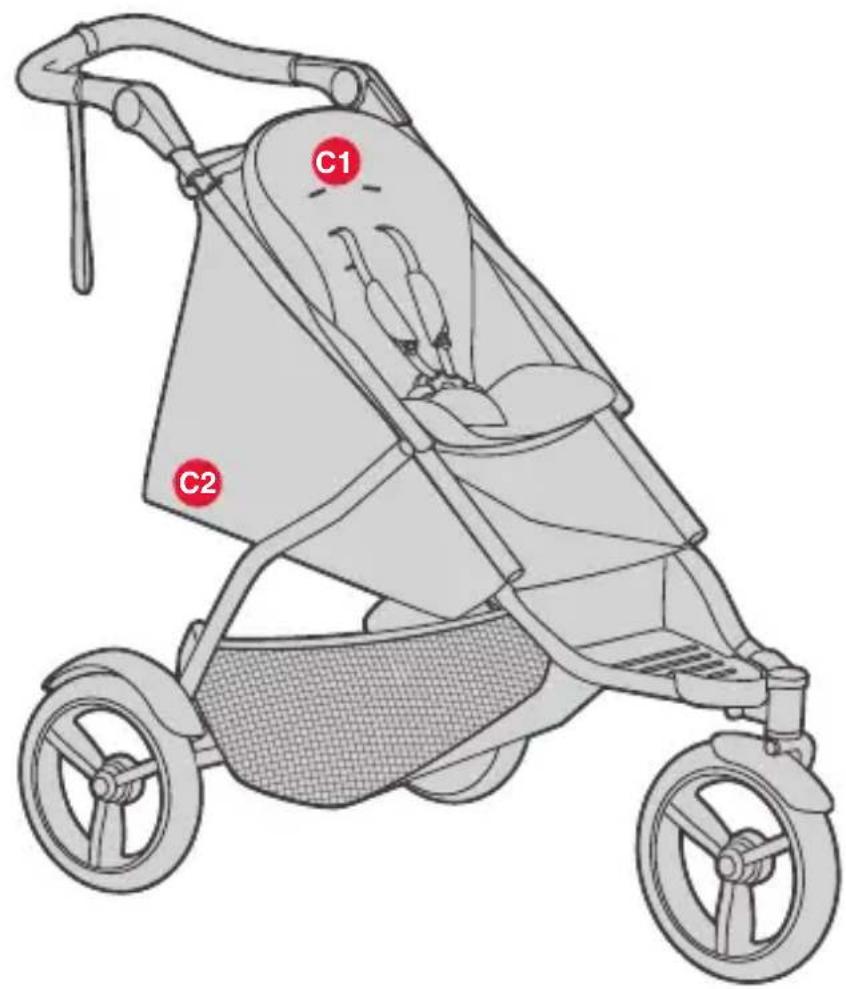

C1 C2

C

max load

20kg / 44lbs

max load

9kg / 20lbs

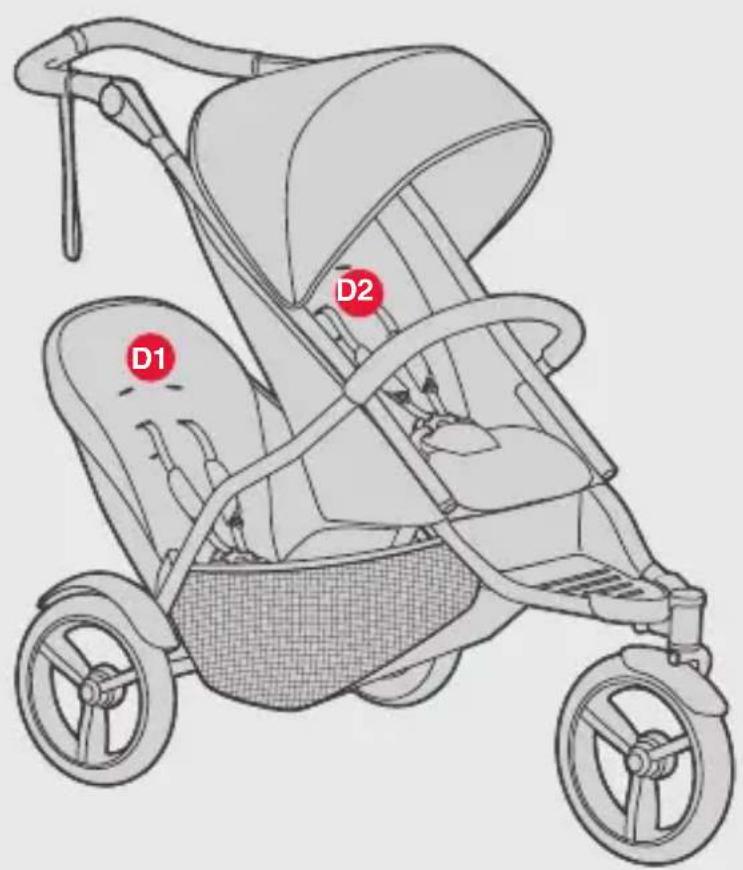

D1 D2

Red circular logo with white letter D (no additional text or symbols)

max load
15kg / 33lbs
max load
20kg / 44lbs

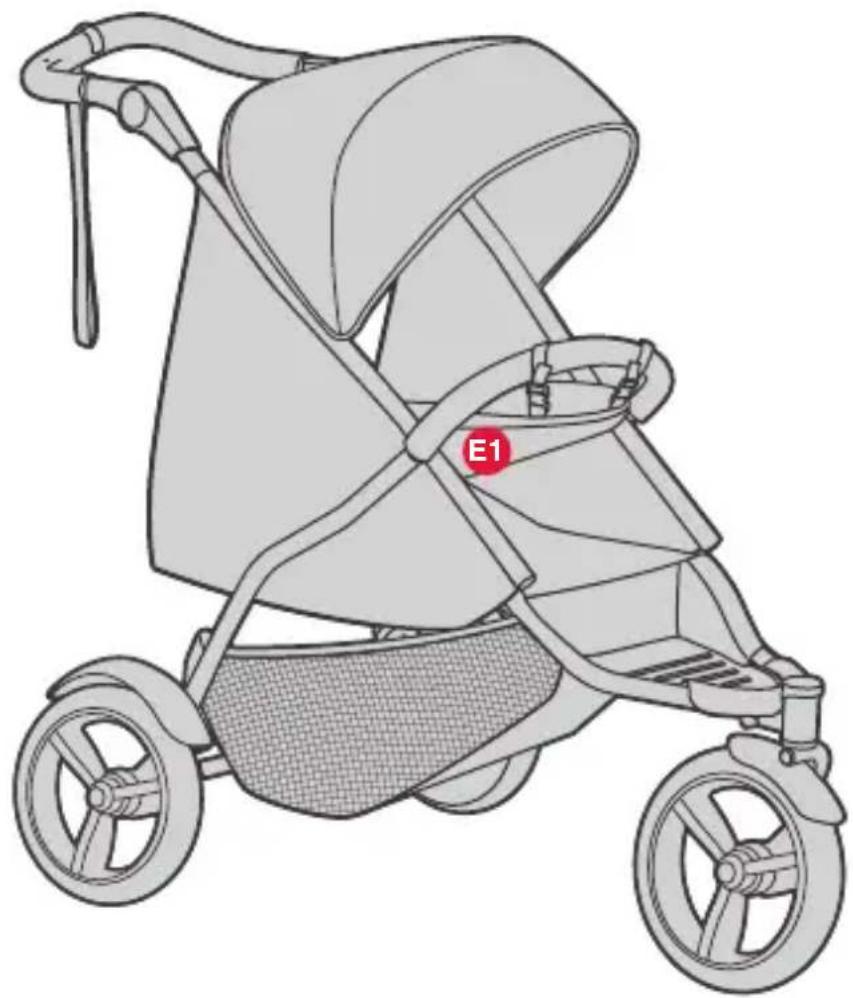

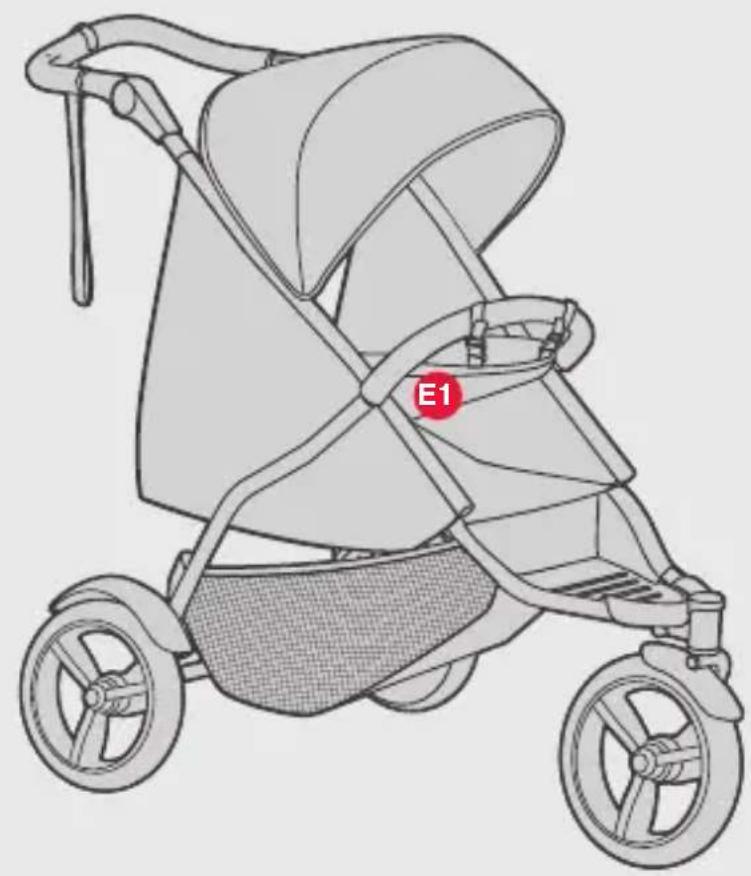

Line drawing of a two-wheeled stroller with a red label 'E1' on the side (no text or symbols on the device itself)

E

max load

12kg / 26lbs*

*parent facing mode

is for single use only

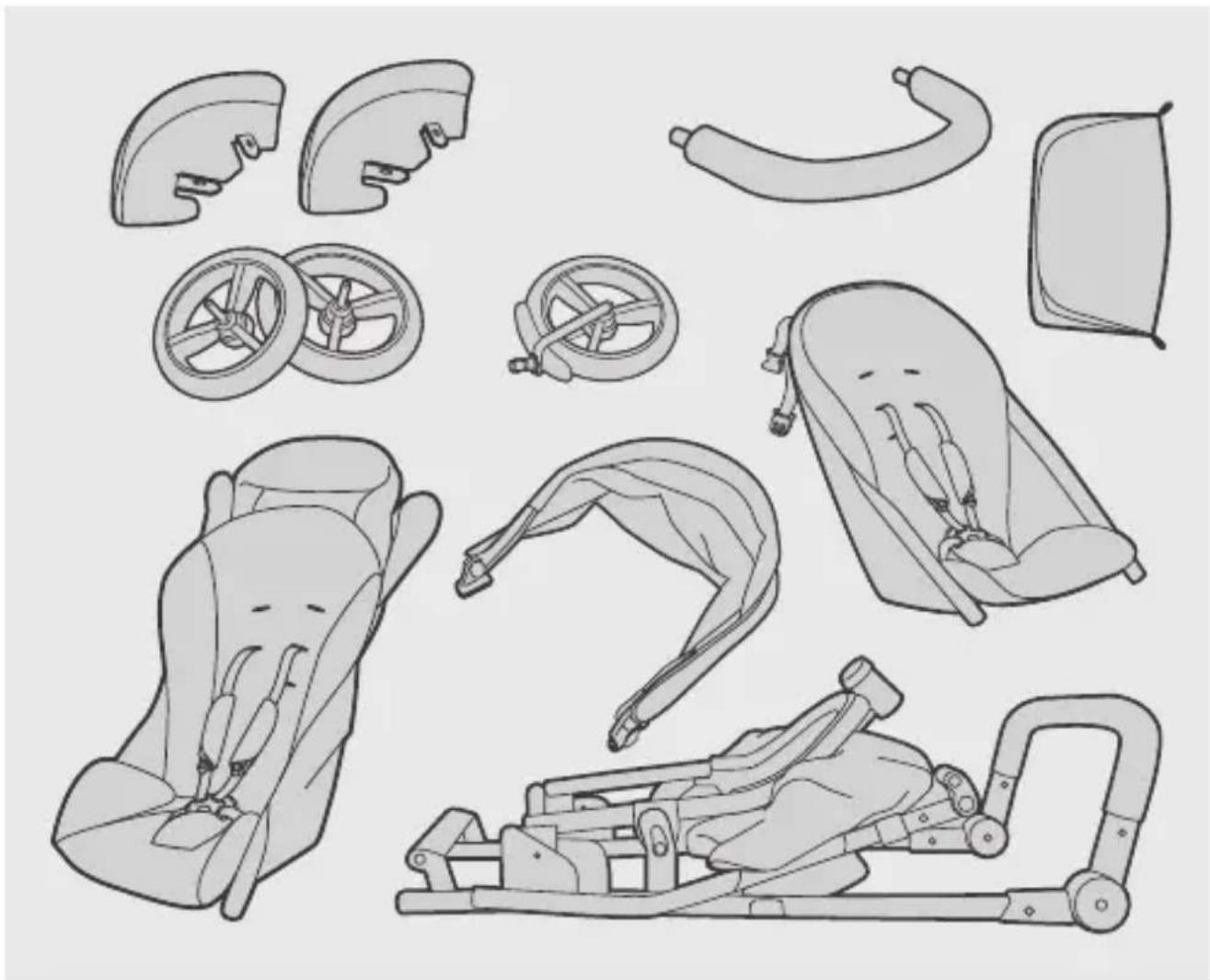

Illustration of various car seat components including seats, wheel rim, and passenger seat (no text or labels)

1

Diagram illustrating a mechanical device with red adjustment arrows and a magnified inset showing a hand adjusting a lock mechanism.

2

Illustration showing a person using a leg exercise machine with red arrows indicating rotation and a lock icon, alongside a close-up of the device's seat assembly.

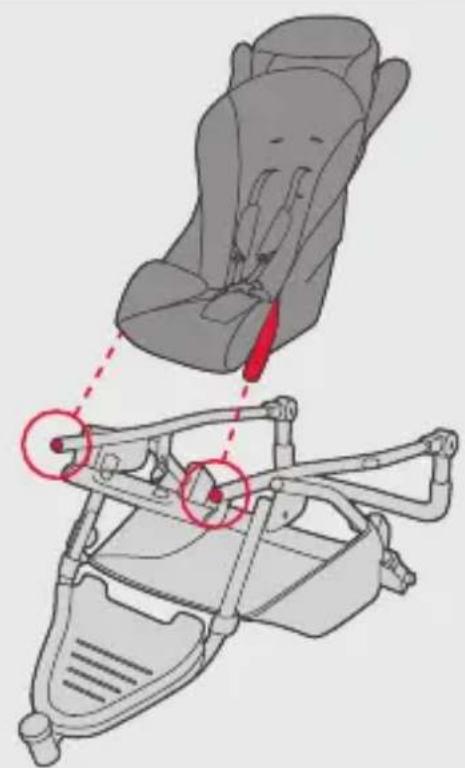

1

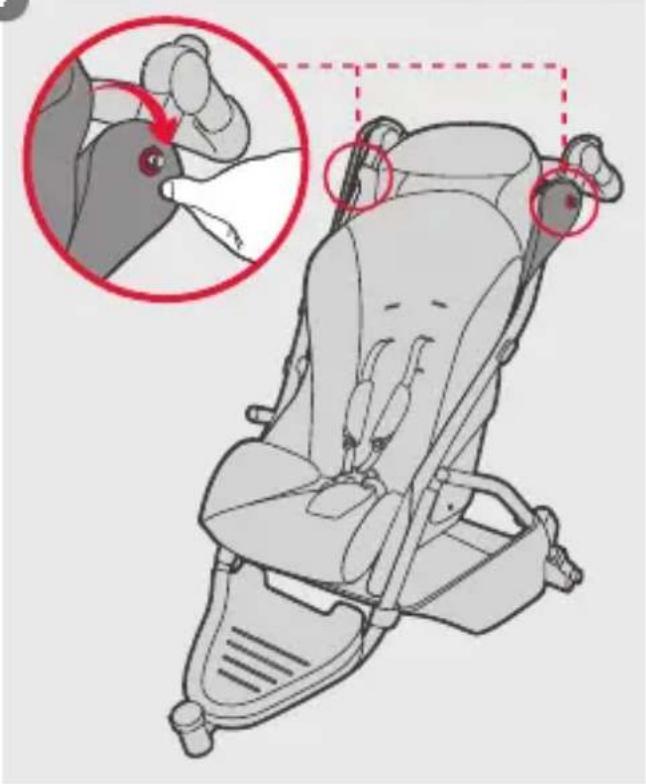

Diagram of a car seat assembly showing front and side views with red circles highlighting specific components (no text or labels)

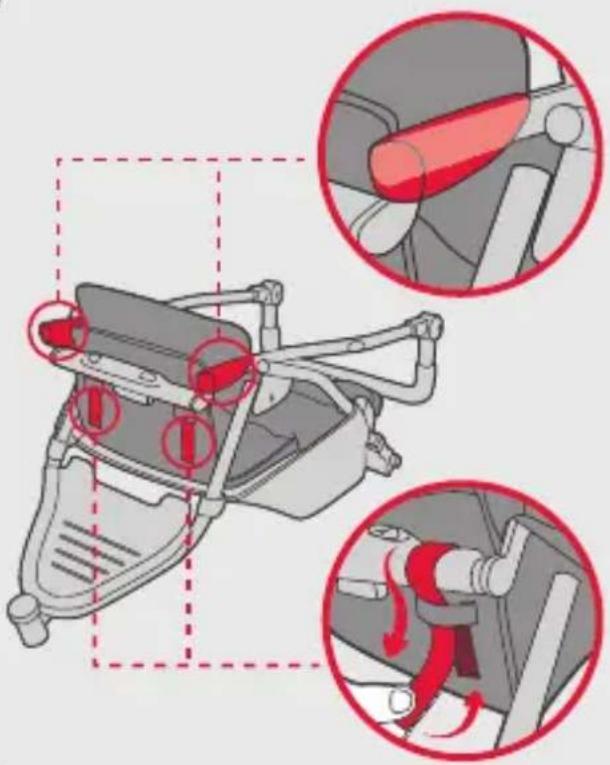

2

Diagram illustrating car air intake system with labeled components and airflow indicators

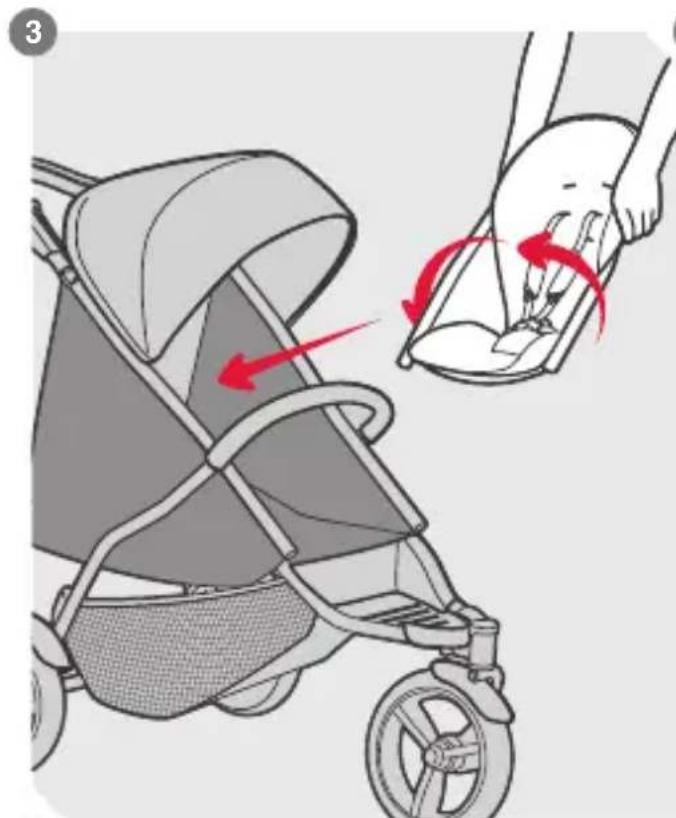

3

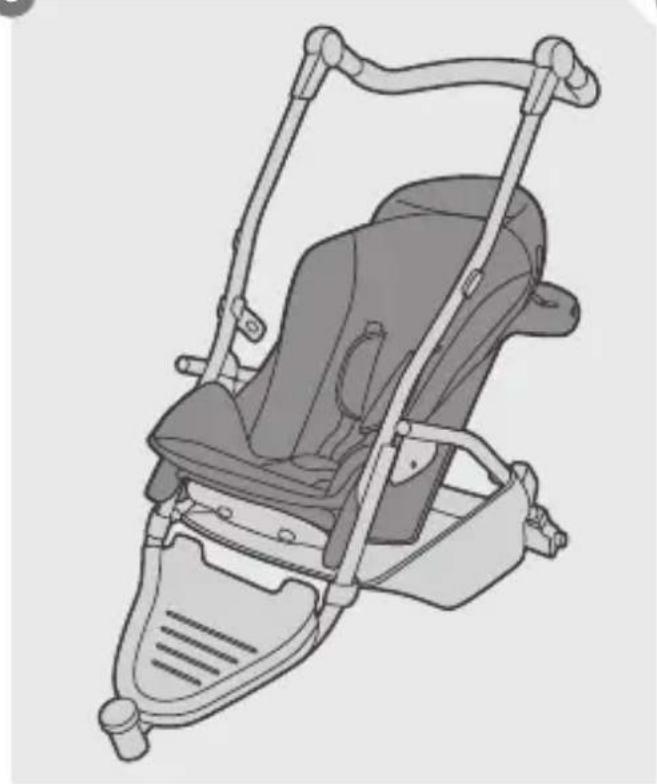

Illustration of a baby stroller with adjustable arms and seat (no text or symbols)

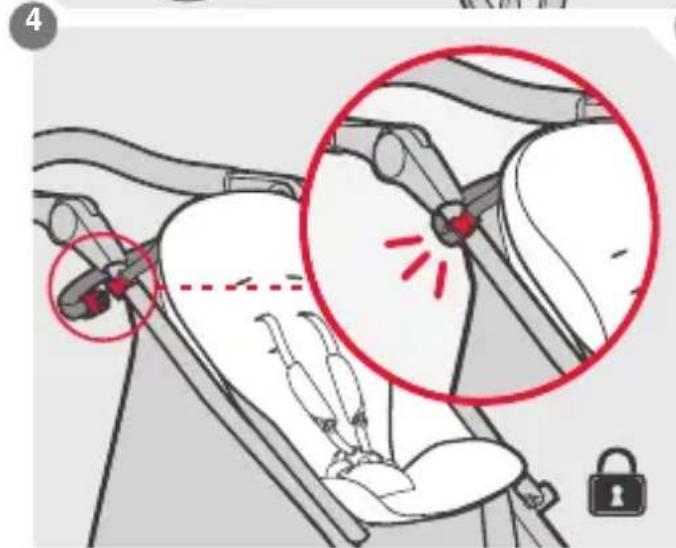

4

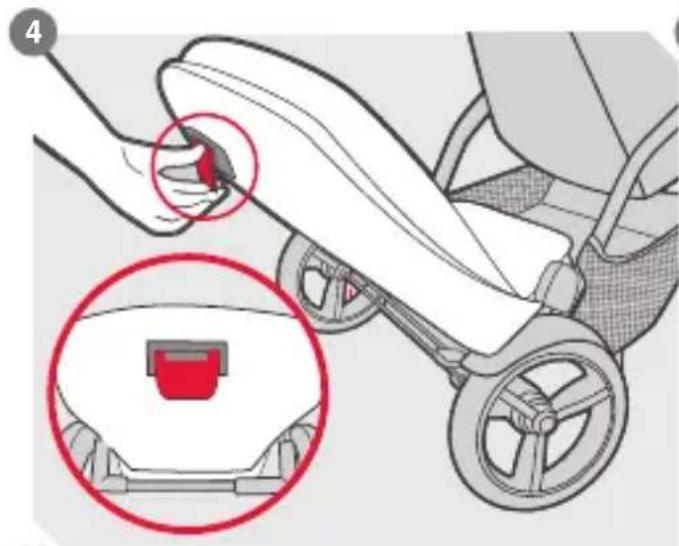

Diagram illustrating the use of a car seatbelt device with labeled parts and zoomed-in detail view

1

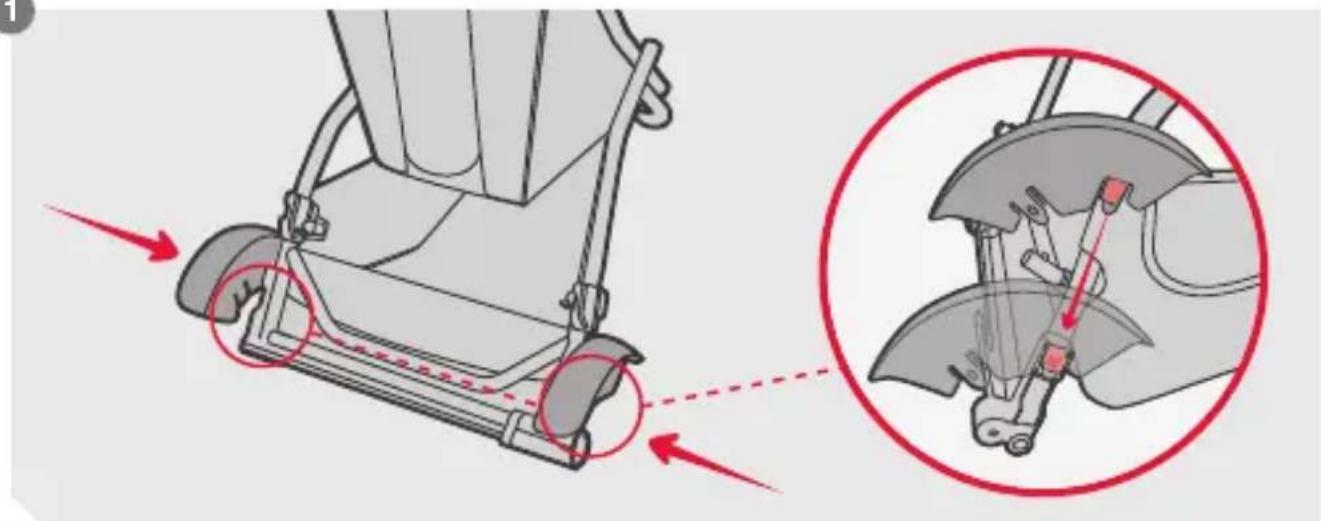

Technical diagram showing mechanical assembly with red arrows indicating motion and a magnified inset highlighting internal components.

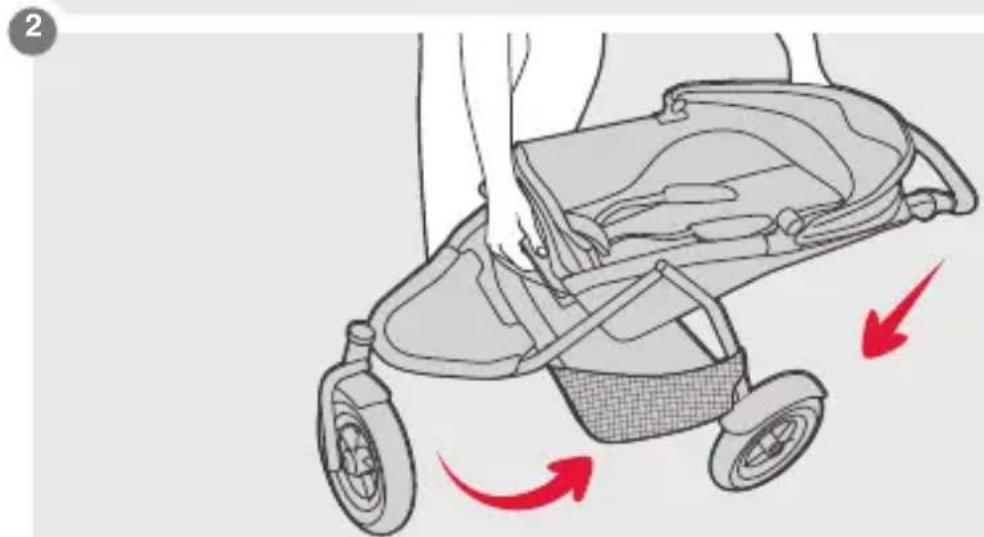

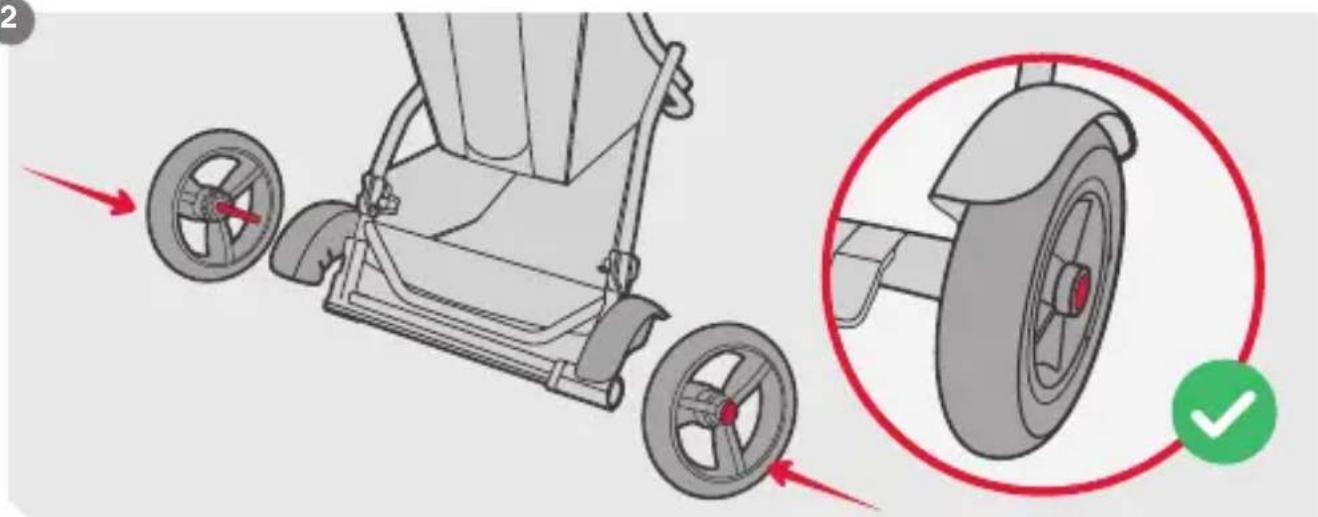

2

Diagram showing a stroller with wheels and a magnified view of the wheel, indicating steering or positioning adjustment.

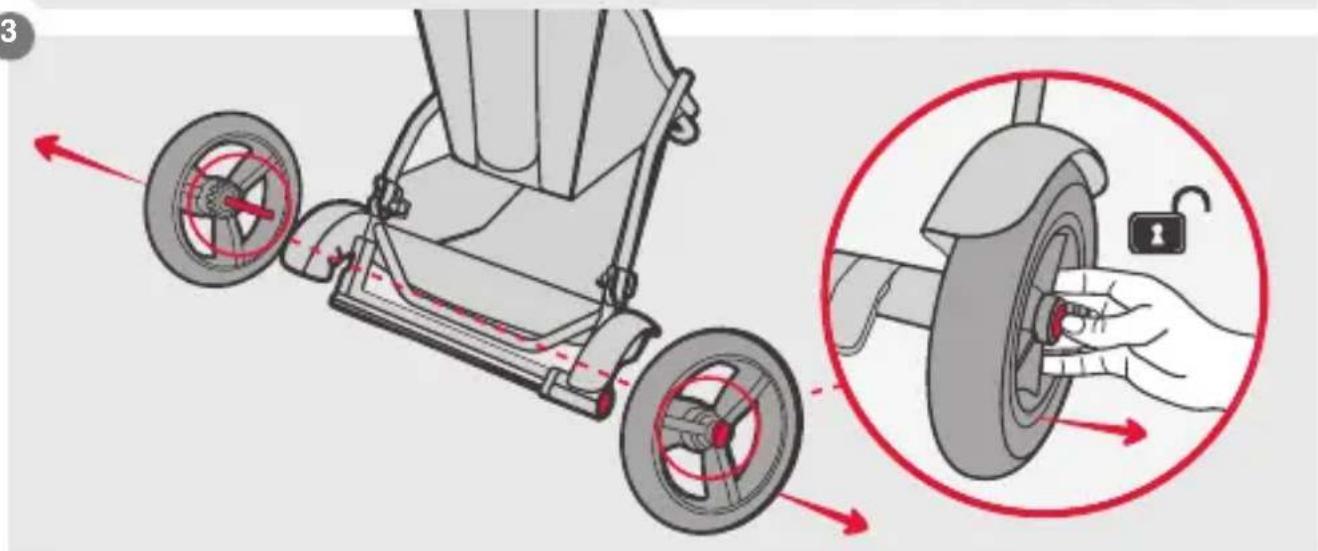

3

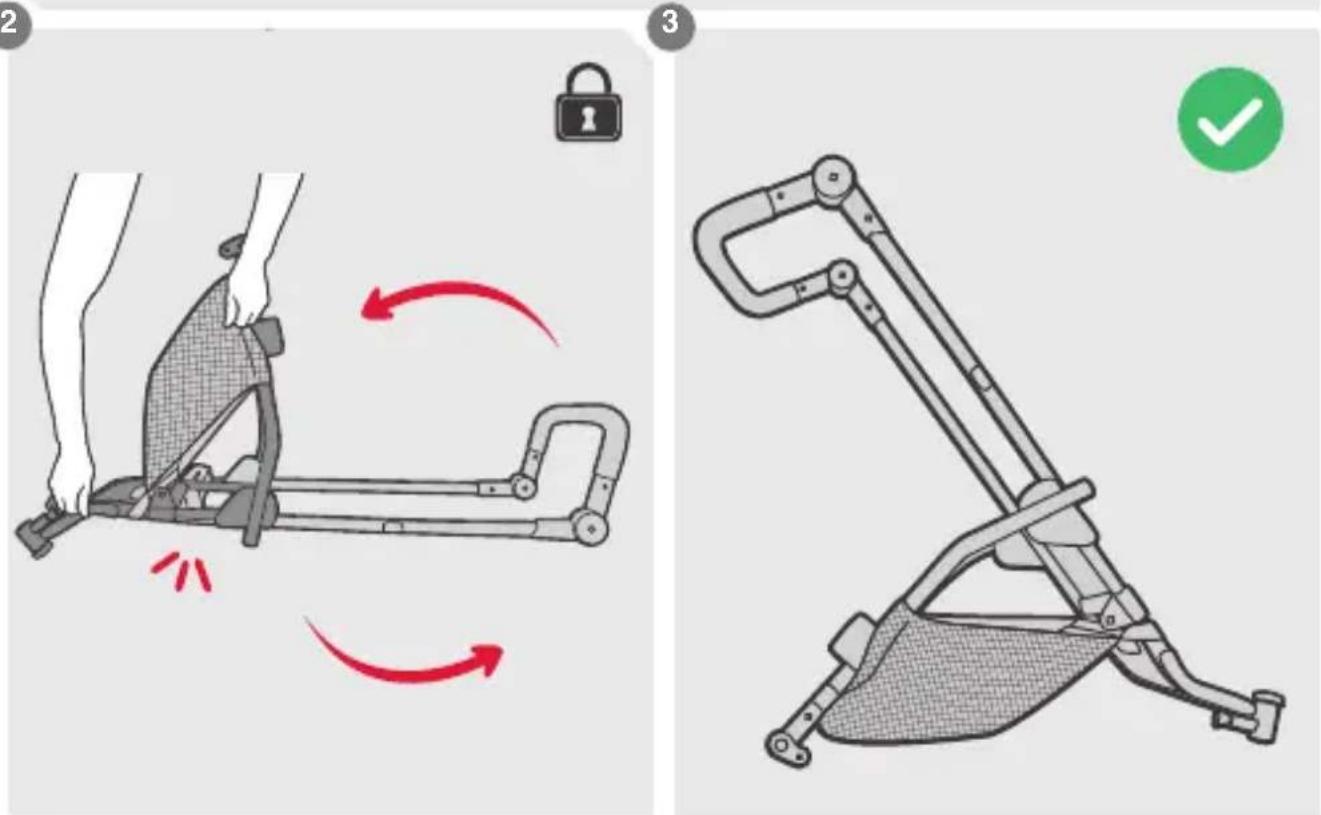

Diagram illustrating the use of a bicycle steering wheel, showing hand positioning and lock mechanism with red arrows indicating motion direction.

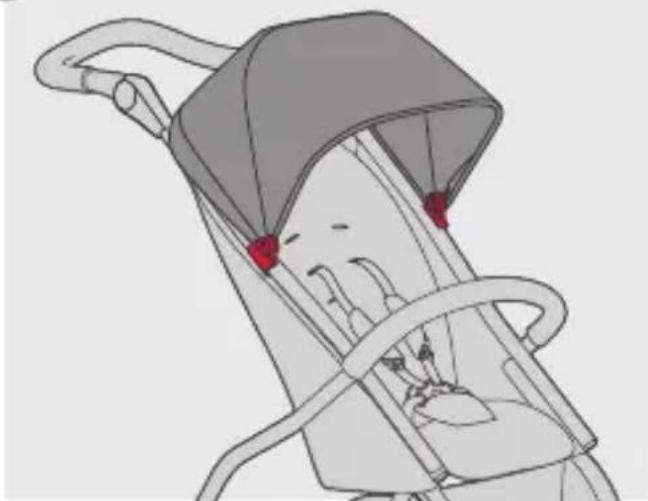

Line drawing of a two-wheeled stroller with a canopy and seat cover (no text or symbols)

1

Mechanical assembly diagram showing a cam mechanism with red arrows indicating motion or force direction (no text or symbols present)

2

Illustration of a car seatbelt with handle and seat, showing mechanical components (no text or symbols)

3

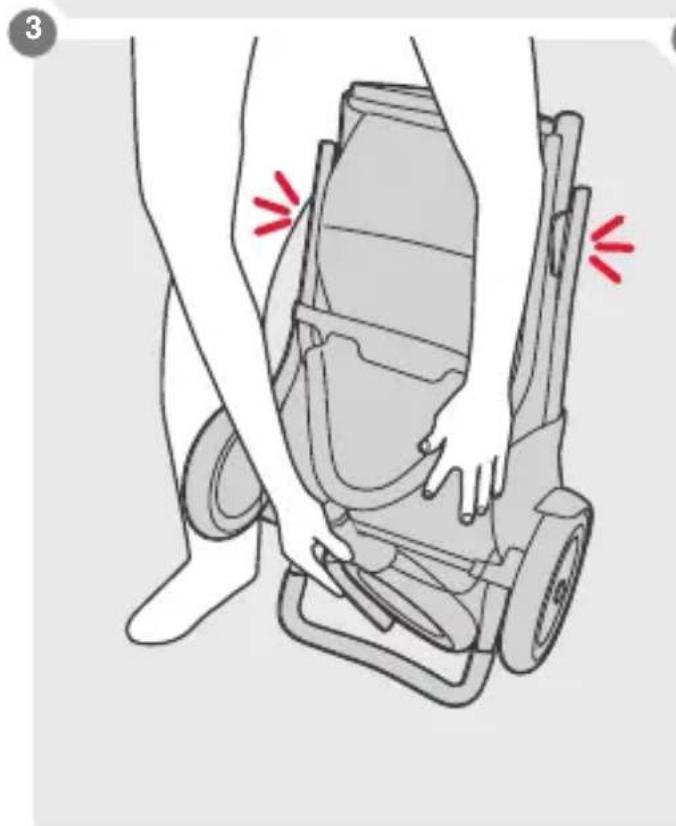

Diagram of a person's shoulder and shoulders with red arrows indicating motion or force points (no text or symbols present)

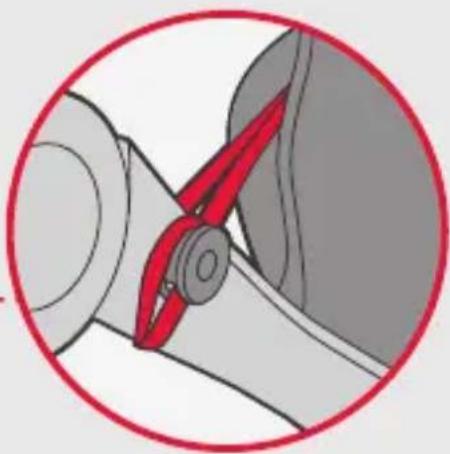

Diagram of a mechanical component with red clamping mechanism (no text or symbols)

4

Technical illustration of a bicycle seat assembly showing gear shift and adjustment (no text or symbols)

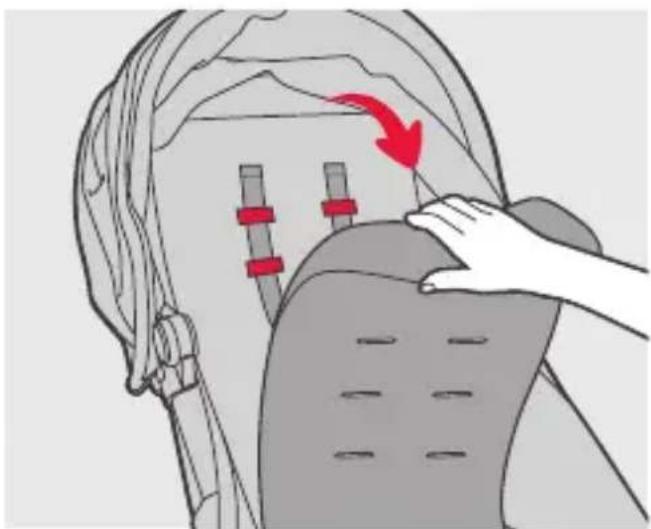

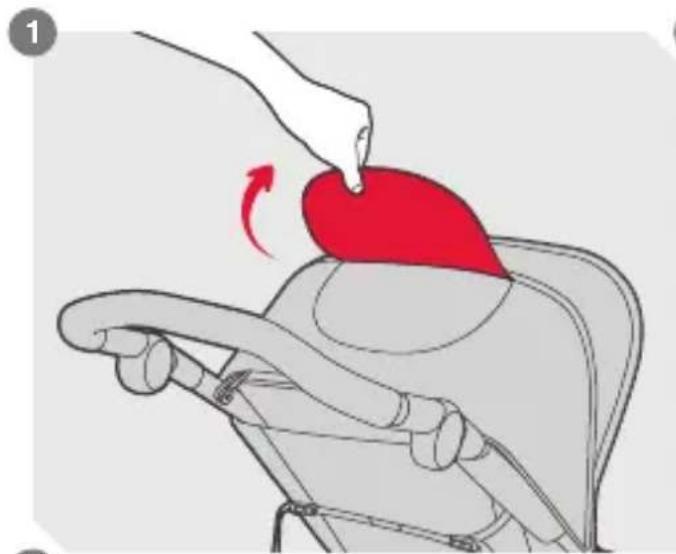

Illustration of a hand pressing down on a red heart-shaped object on a chair, with no text or symbols present.

Diagram illustrating the step of using a bicycle seatbelt, showing how to adjust the seatbelt and adjust the seatbelt.

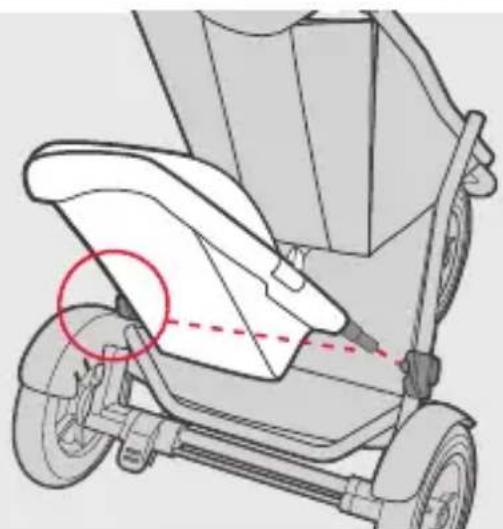

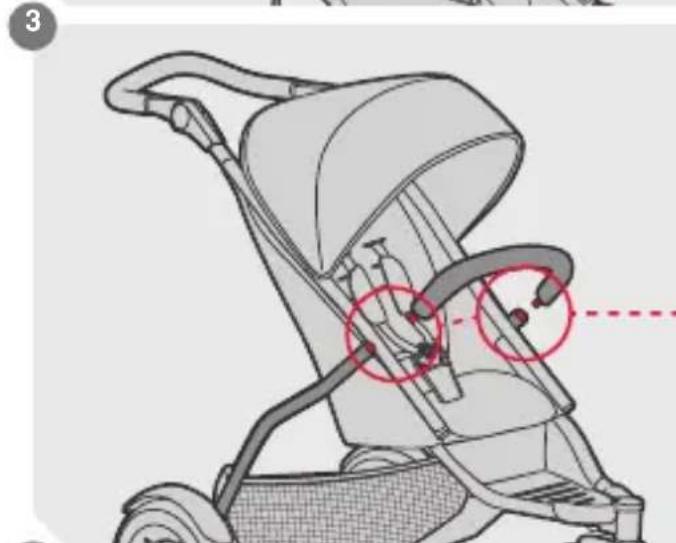

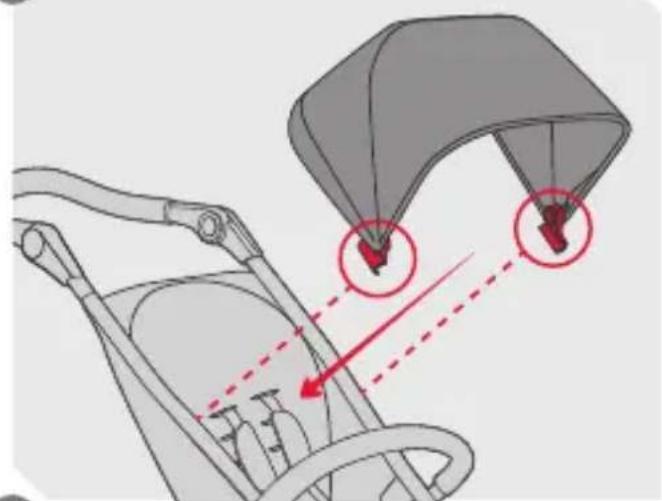

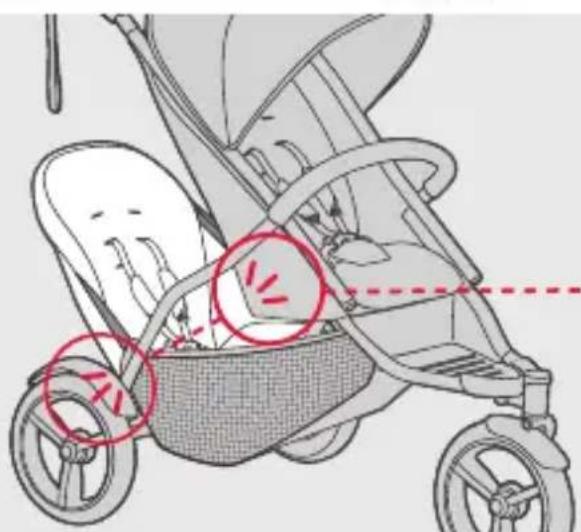

Technical illustration of a stroller with highlighted parts and a red circle highlighting a specific component (no text or symbols present)

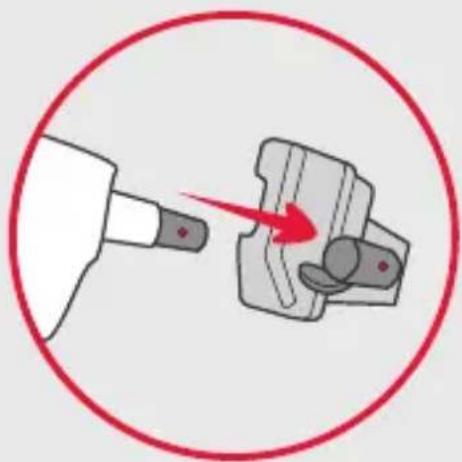

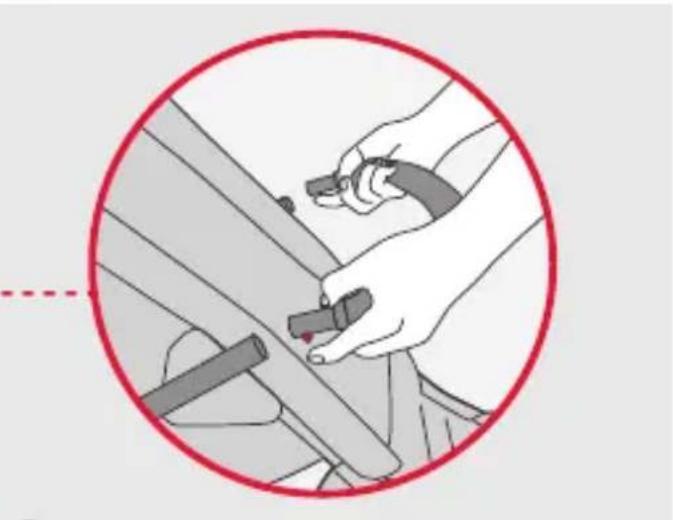

Illustration of a hand using a tool to adjust or install a component, enclosed in a red circle (no text or symbols)

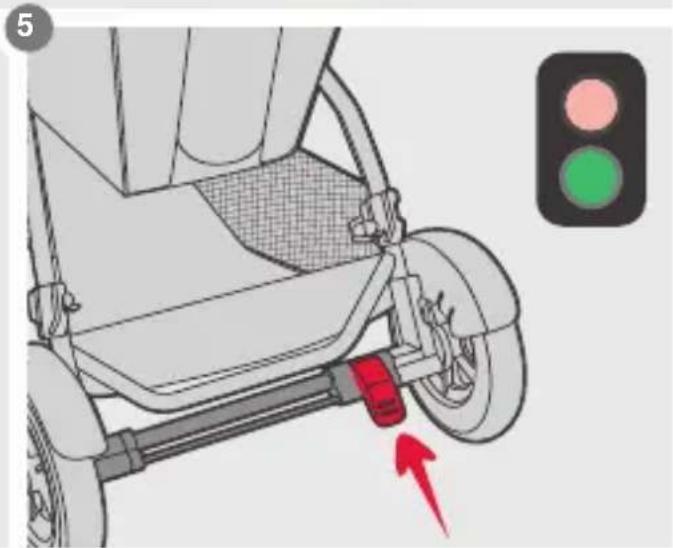

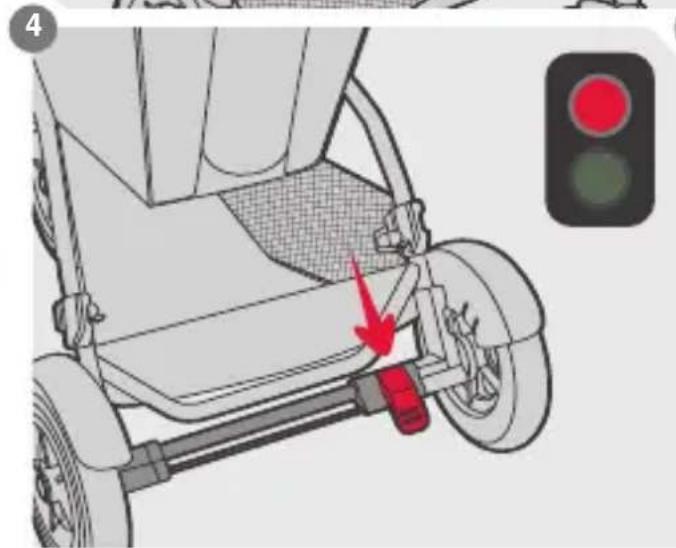

Diagram showing a car's seatbelt mechanism with red arrow indicating force or movement, alongside a traffic light indicator.

Illustration of a car chassis with a red traffic light indicator (no text or symbols on the diagram itself)

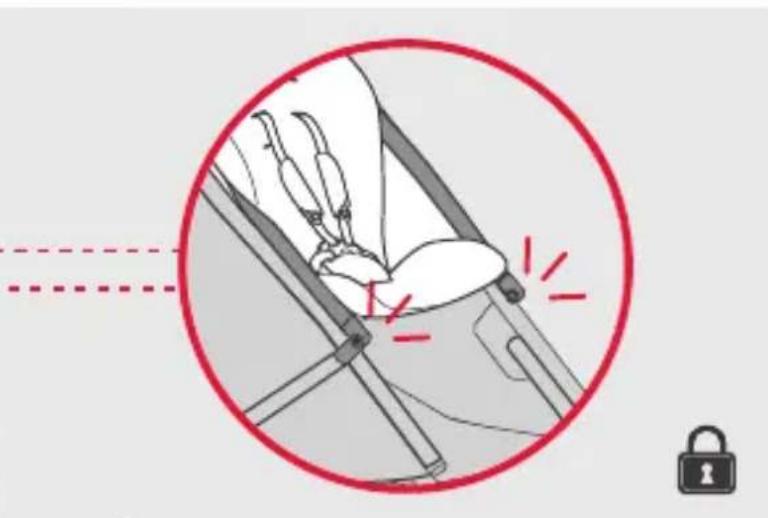

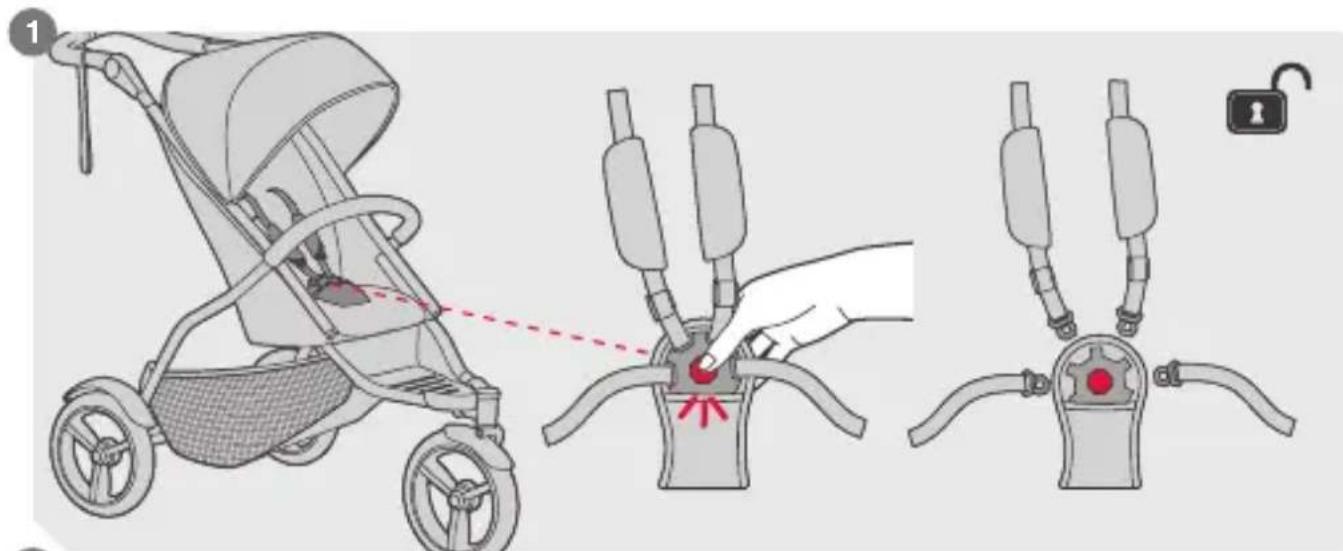

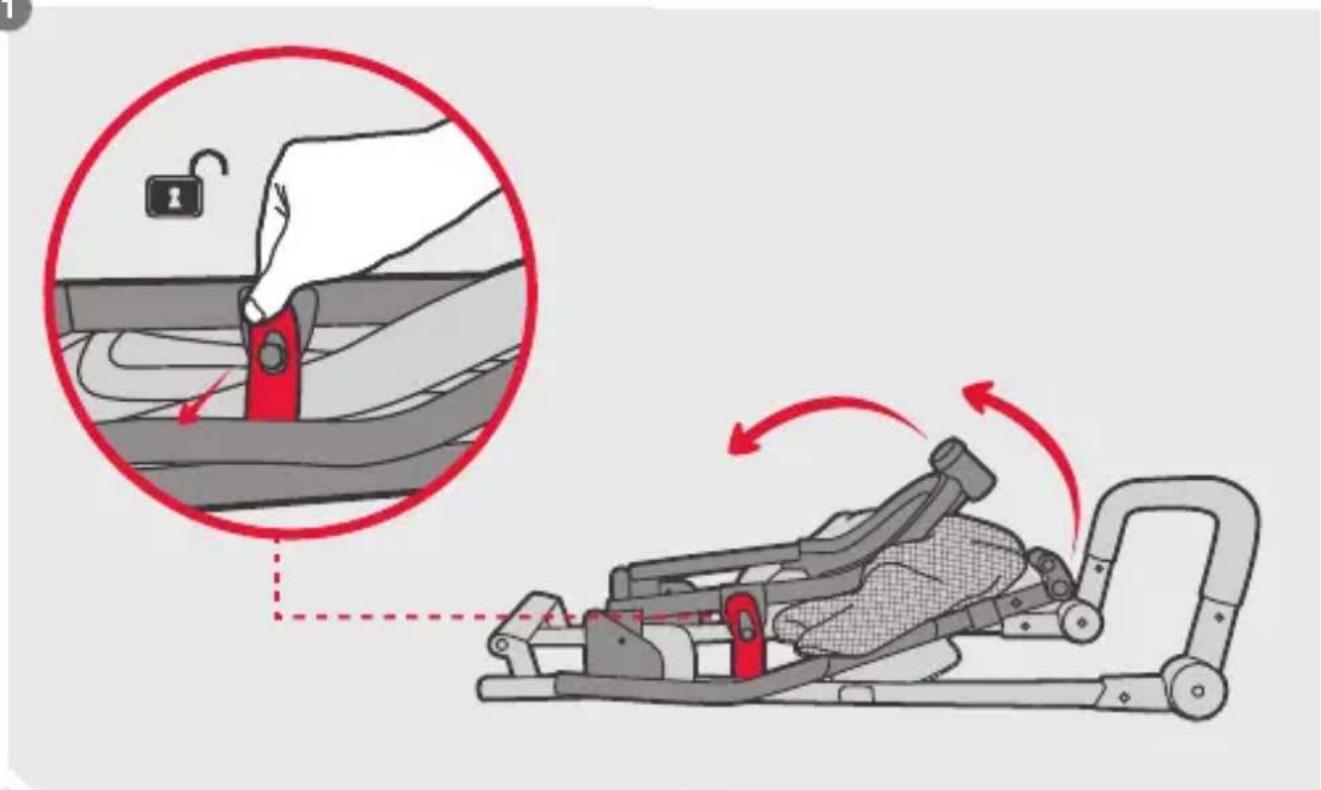

Illustration showing a stroller being adjusted for using a lock switch, with labeled parts and a red dashed line indicating the adjustment.

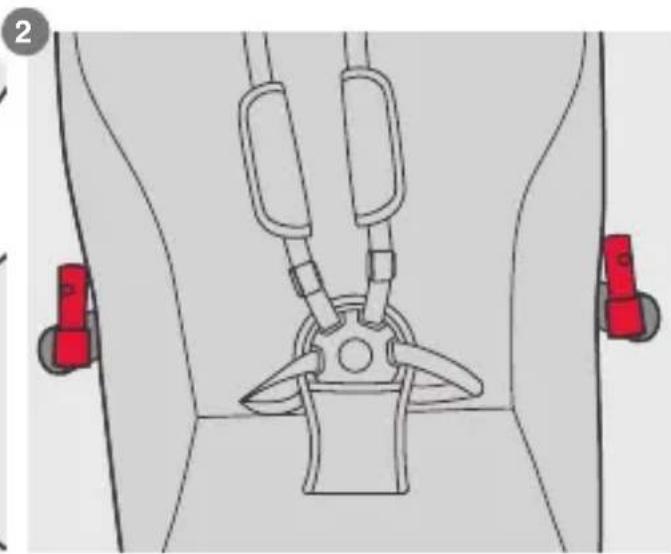

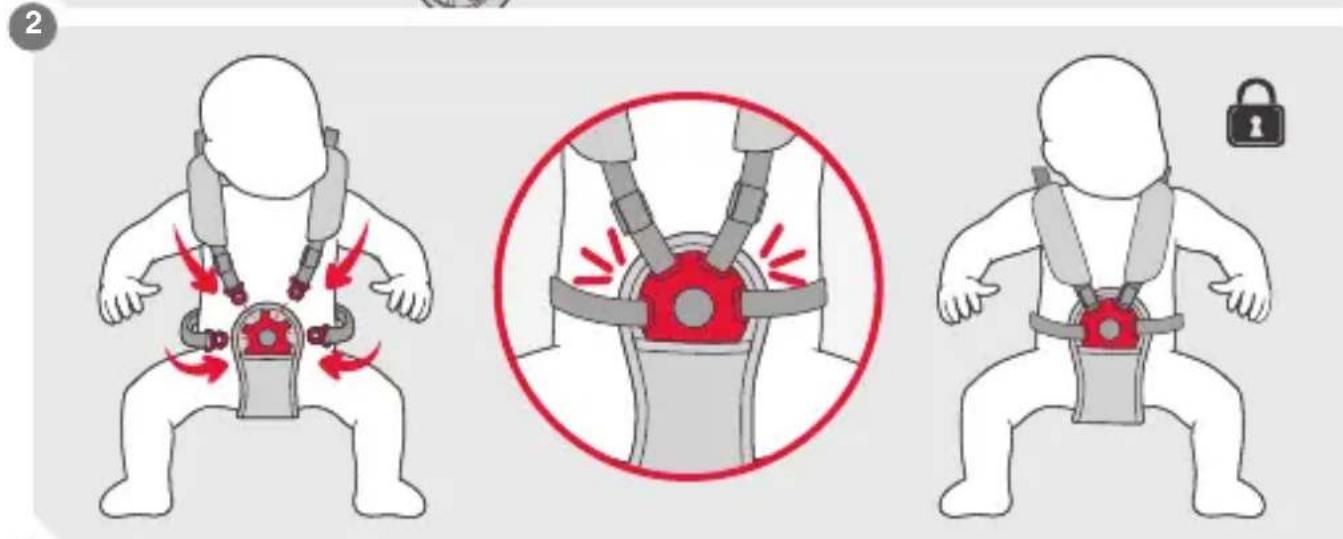

Illustration showing three scenarios of a baby wearing a seatbelt, with red arrows indicating changes and a lock icon suggesting lock status.

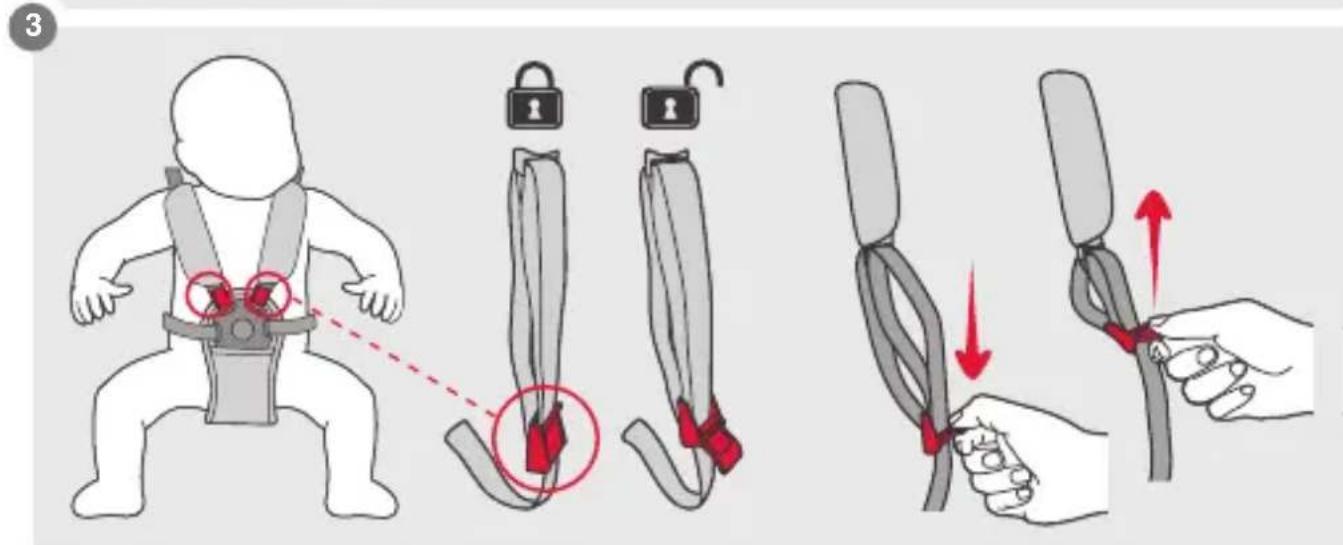

Illustration showing how to tie a person's seatbelt using a lock mechanism, with red arrows indicating movement and a magnified view highlighting the knotting point.

1

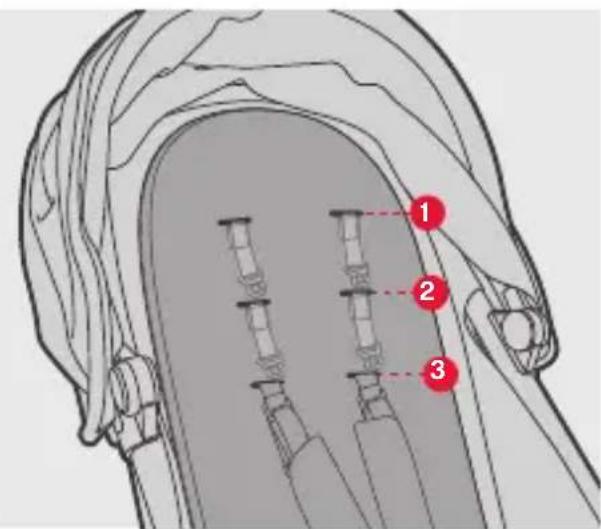

Anatomical diagram of a mechanical or surgical device with numbered callouts pointing to specific parts.

Illustration of a person applying pressure on a shoulder with red arrows indicating direction (no text or symbols)

2

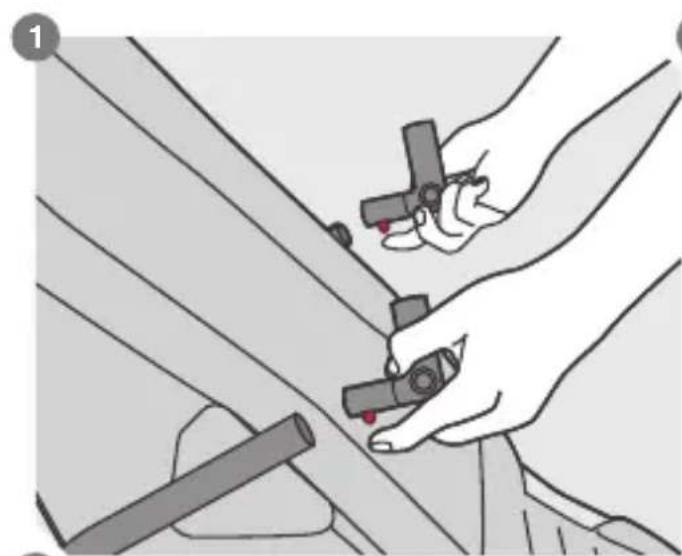

Illustration of two hands holding a mechanical component with red connectors, no text or symbols present

Illustration of two mechanical components with red clamps and a numbered callout (no text or symbols)

Diagram showing two cable connectors with red bands and a numbered callout highlighting component 3

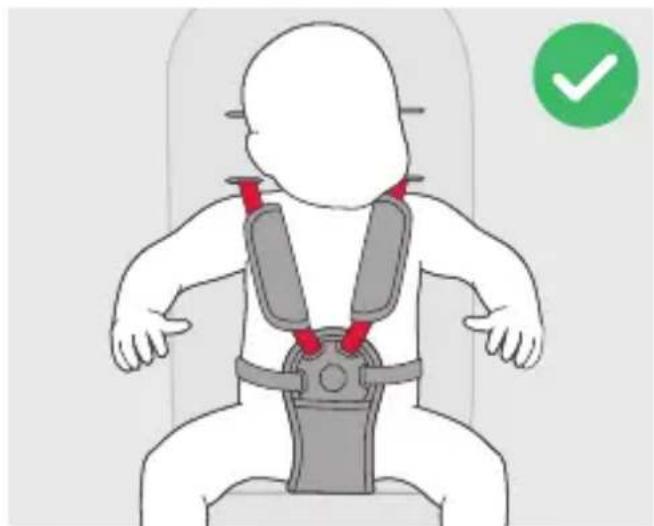

Illustration of a baby in a seatbelt with red straps and a green checkmark (no text or symbols)

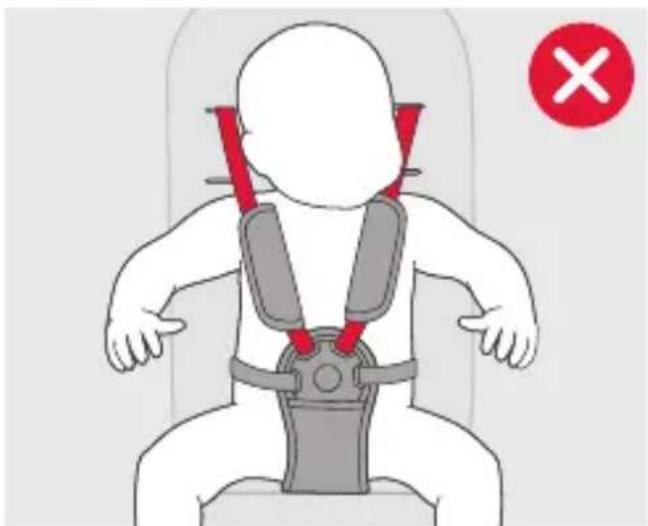

Illustration of a baby in a seatbelt with red straps and a red X symbol (no text or symbols on the diagram itself)

Diagram illustrating the step-by-step instructions for assembling a stroller, with labeled parts and directional arrows.

Illustration of a baby stroller with red arrows indicating motion or movement (no text or symbols)

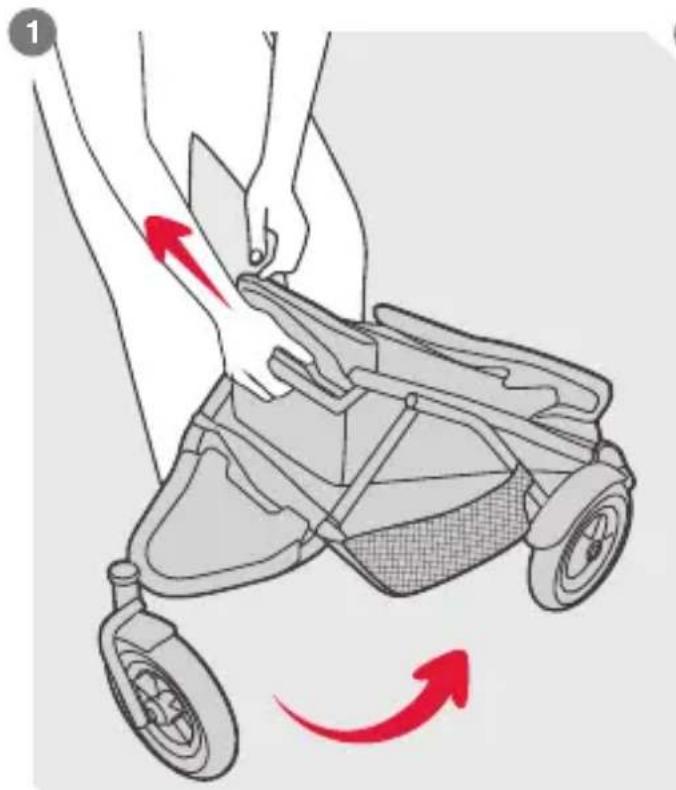

Illustration of a person pushing a stroller with red directional arrows indicating motion (no text or symbols)

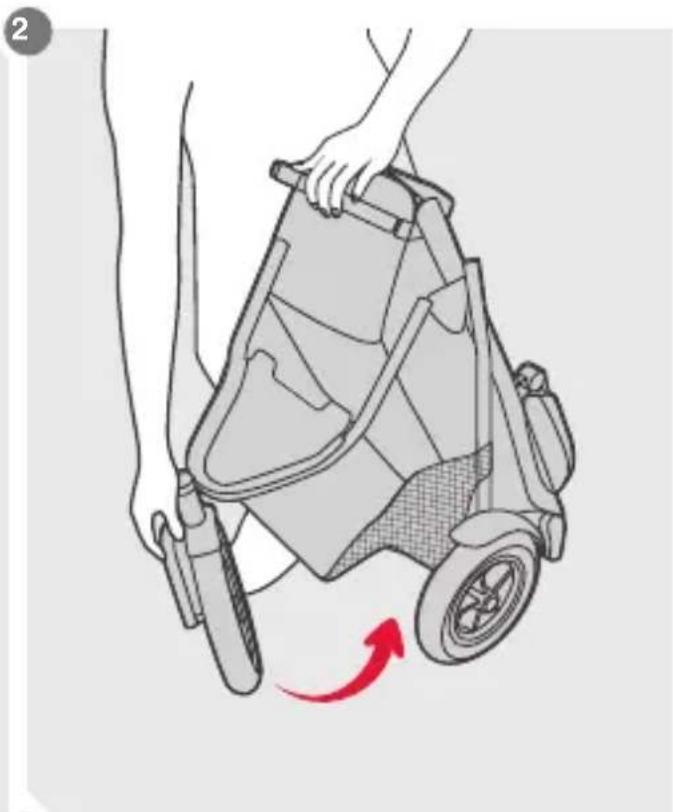

Illustration of a person pushing a stroller with a red arrow indicating motion (no text or symbols)

Illustration of a person using a vacuum cleaner with red motion arrows indicating movement (no text or symbols)

Line drawing of a car steering wheel and chassis (no text or symbols)

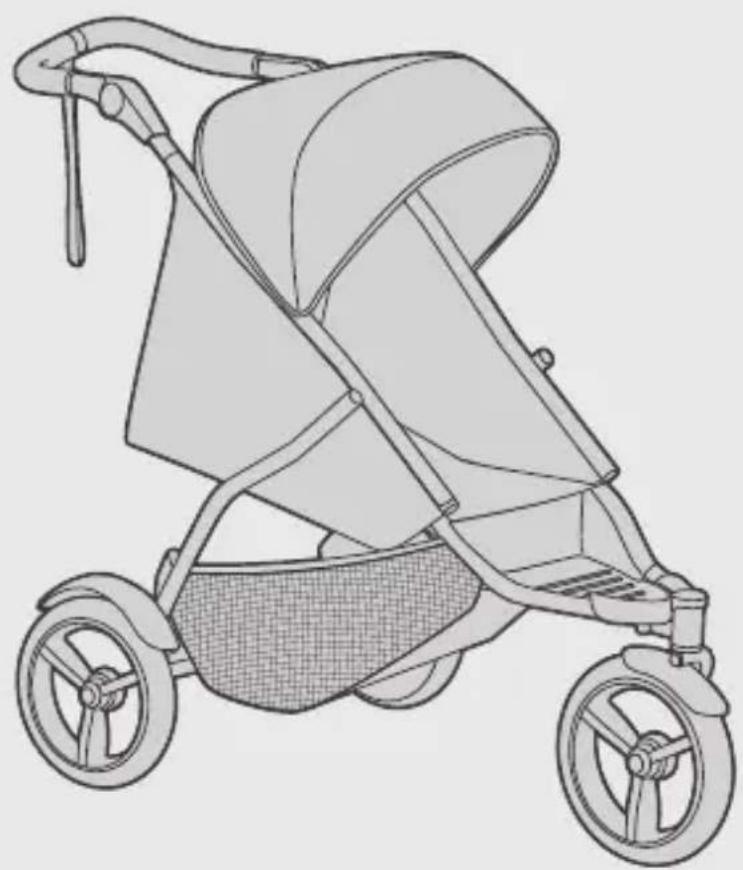

Line drawing of a two-wheeled baby stroller with no text or symbols

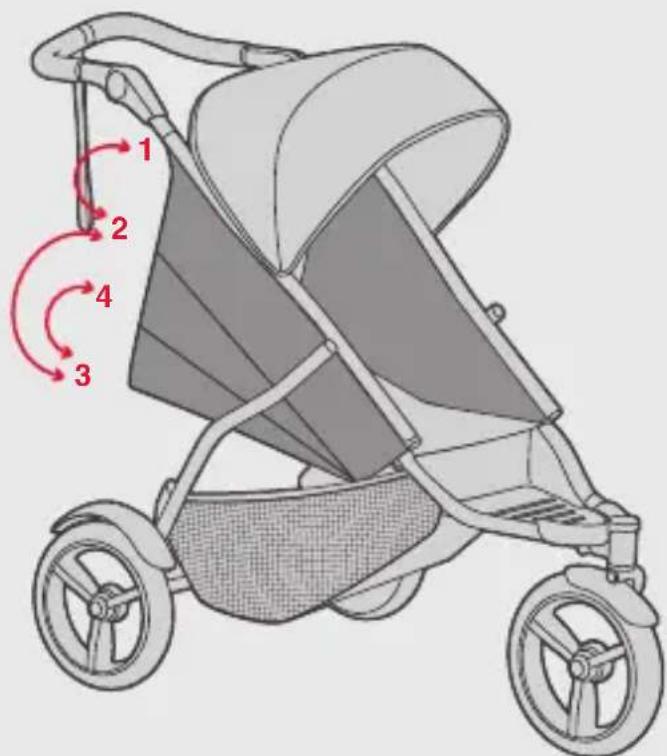

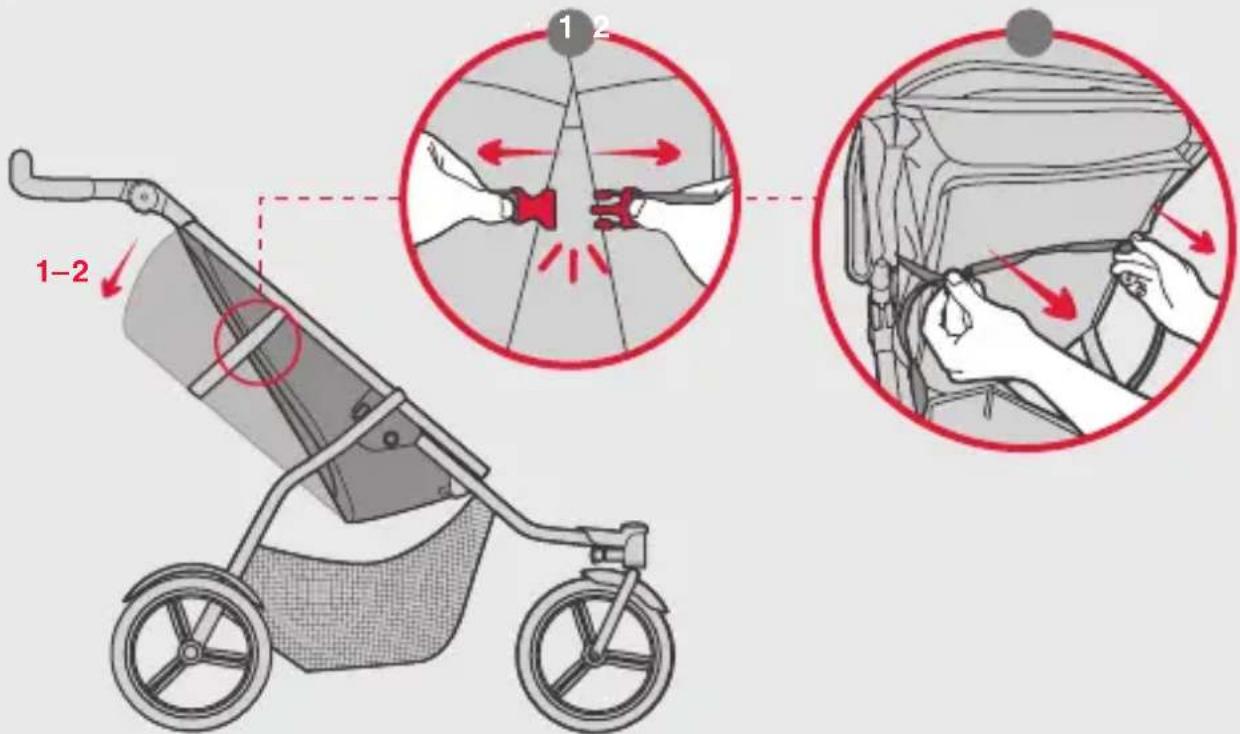

Diagram of a stroller with numbered parts indicating motion or positioning, showing four directional arrows.

a

1-2 1 2

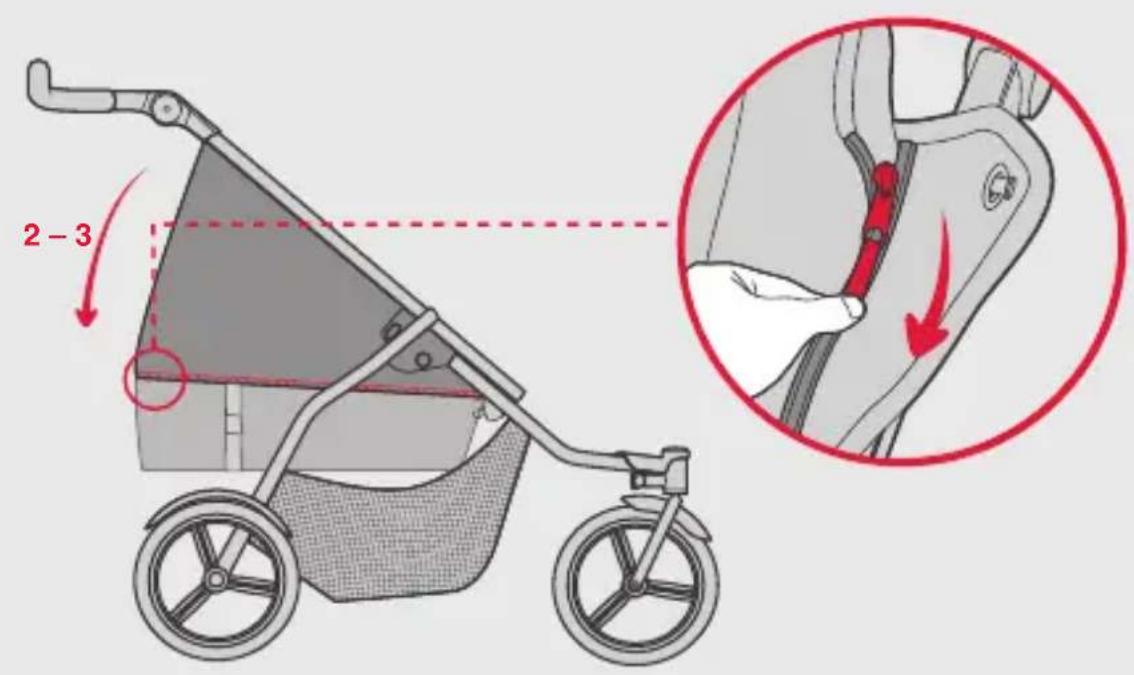

b

2-3

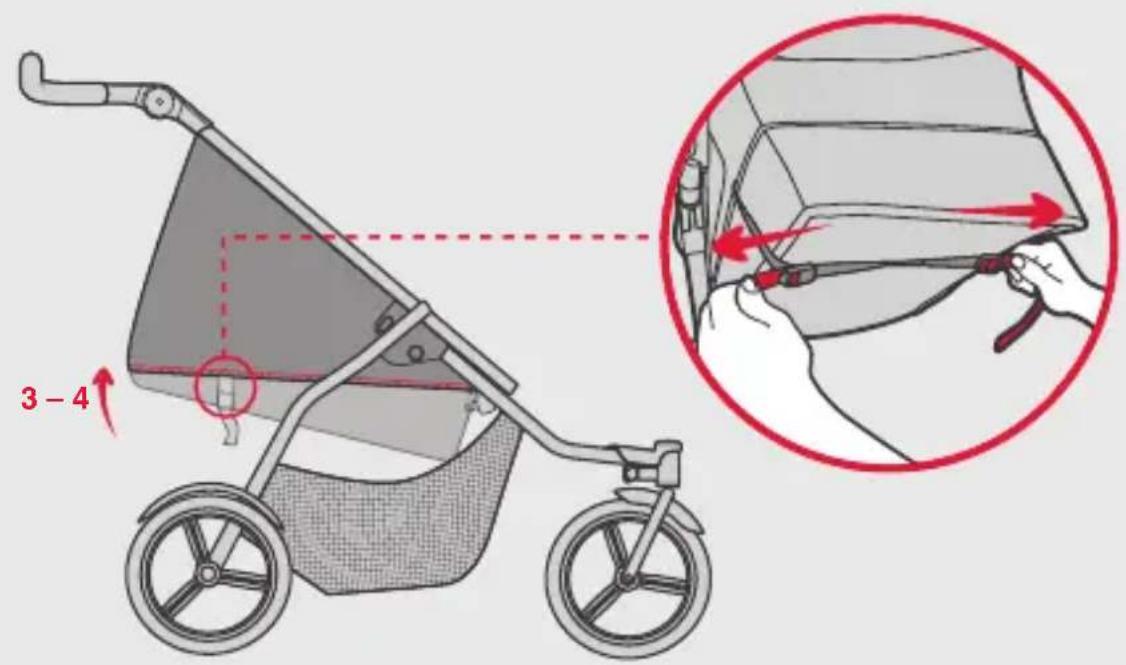

C

3 - 4

1

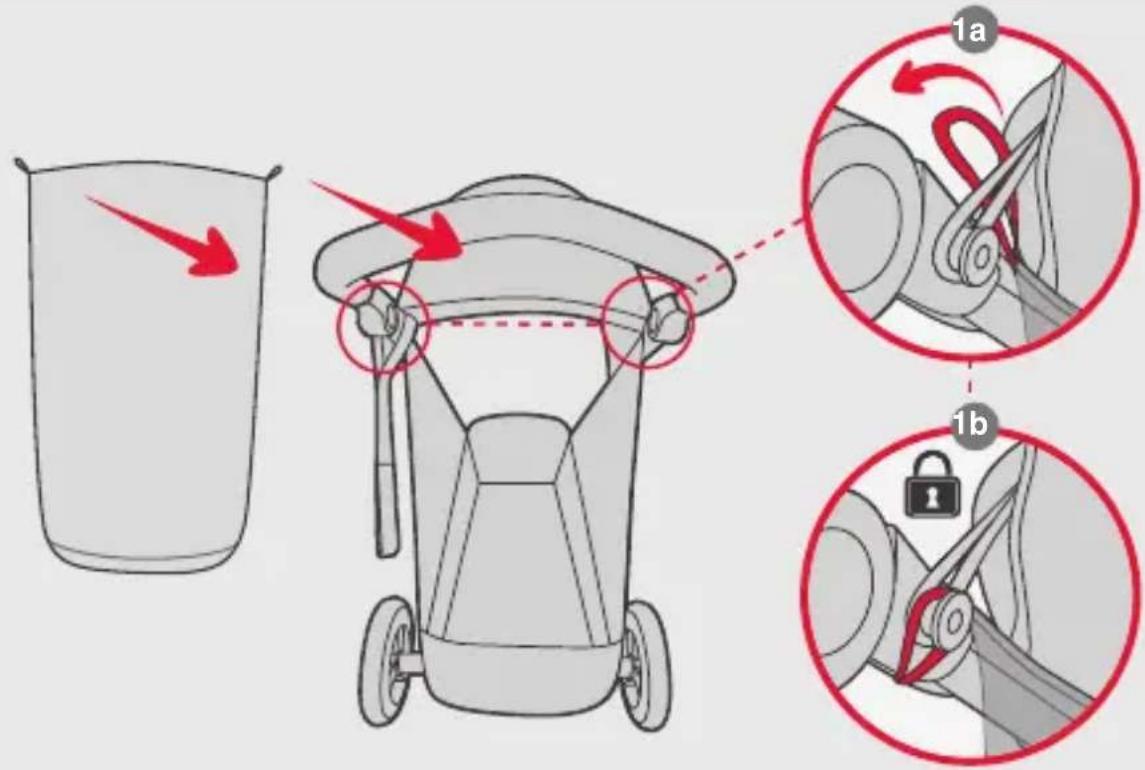

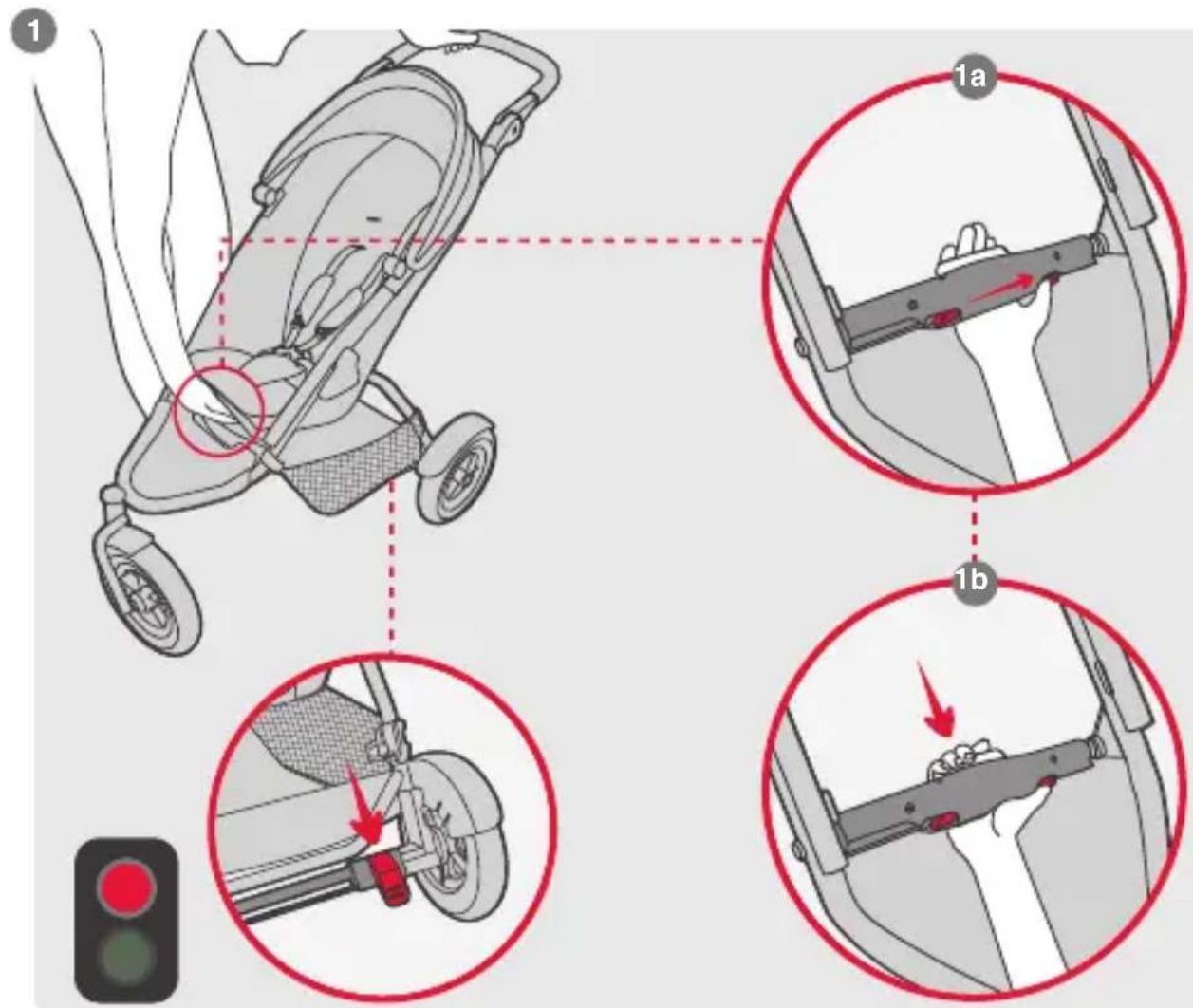

Diagram illustrating a waste sorting mechanism with labeled steps 1a and 1b, showing components like a bin, tower, and lock.

2

Diagram showing a stroller with a highlighted side view and its side view, illustrating the mechanism of lifting a seat.

C1 C2

C

max load

20kg / 44lbs

max load

9kg / 20lbs

Illustration of a hand using a tool to adjust or install a component on a vehicle surface (no text or symbols visible)

Diagram of a mechanical device with propeller and two red adjustment knobs, no text or symbols present

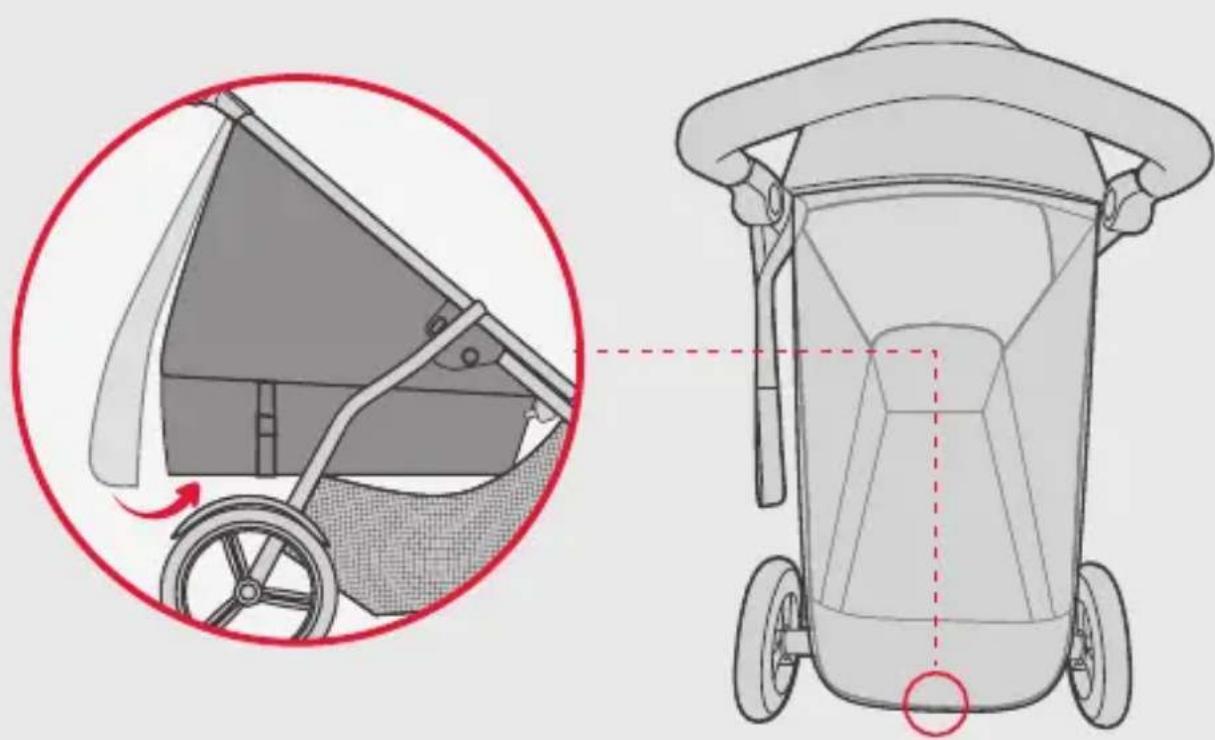

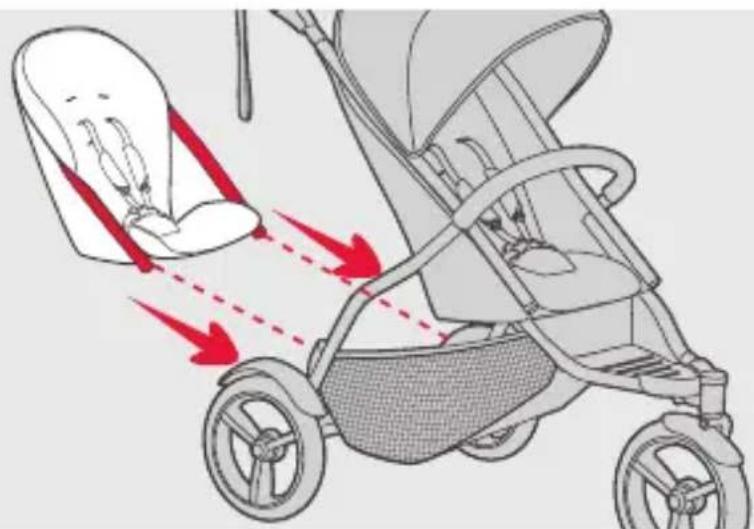

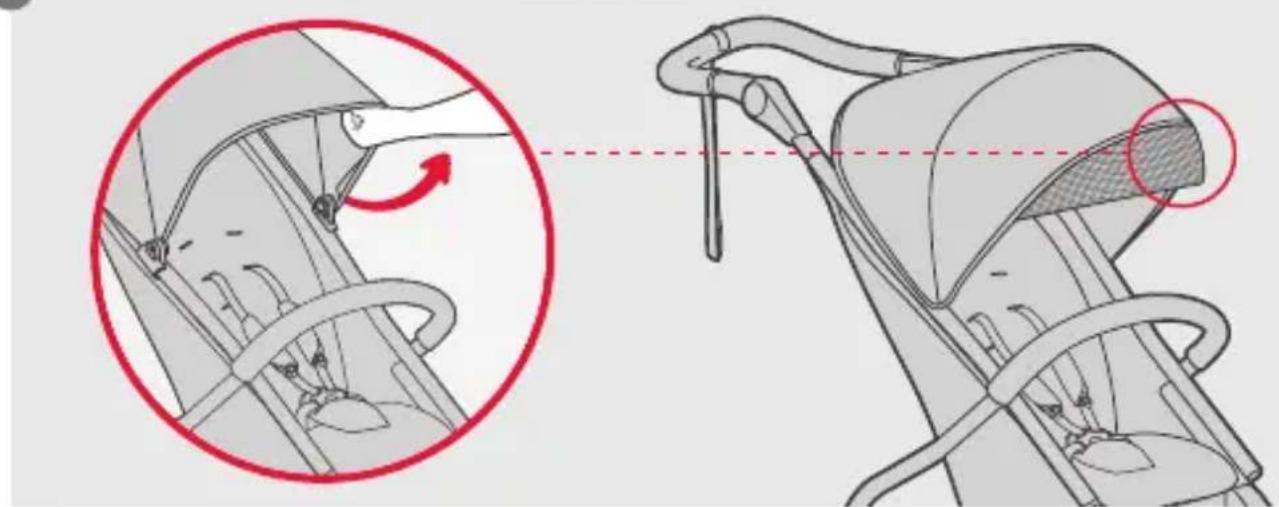

Illustration of a baby stroller with red dashed lines indicating measurement or alignment points (no text or symbols present)

Illustration of a hand using a steering wheel to lift a seatbelt, enclosed in a red circle with no text or symbols.

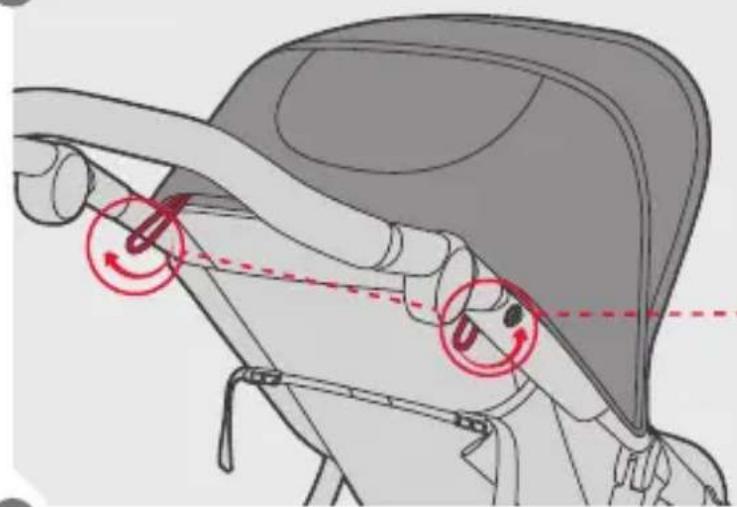

Diagram illustrating car seatbelt usage with red circles highlighting specific seatbelt points and a lock icon

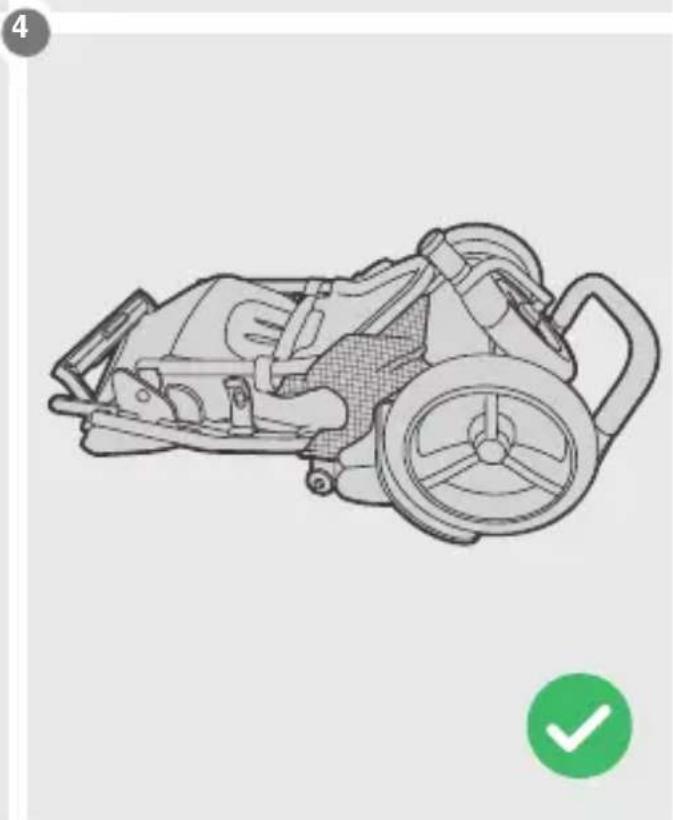

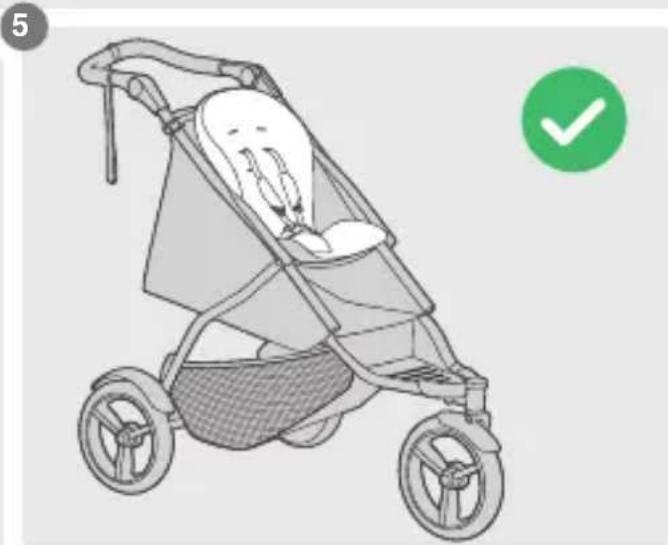

Illustration of a baby stroller with a green checkmark indicating approval (no text or symbols on the diagram itself)

D1 D2

Red circular logo with a white letter 'D' in the center (no additional text or symbols)

max load

15kg / 33lbs

max load

20kg / 44lbs

1

Diagram illustrating how baby car seatbelt usage affects the infant's seatbelt, with red arrows indicating movement and dashed lines representing safety.

2

Technical line drawing of a scooter chassis with a red circle highlighting the wheel (no text or symbols present)

Diagram showing a tool interacting with a mechanical component, enclosed in a red circle (no text or symbols)

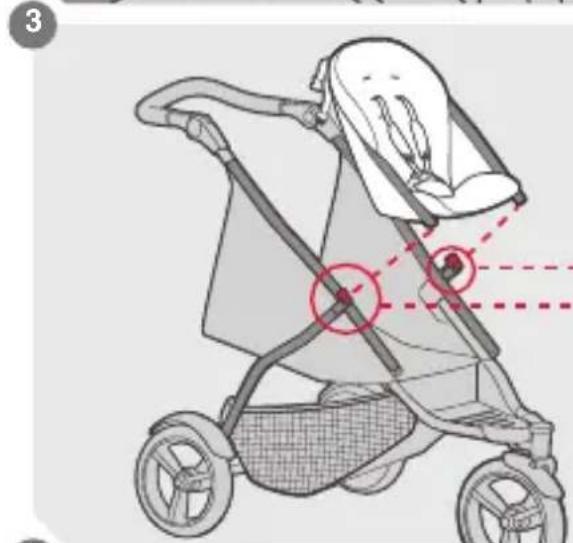

3

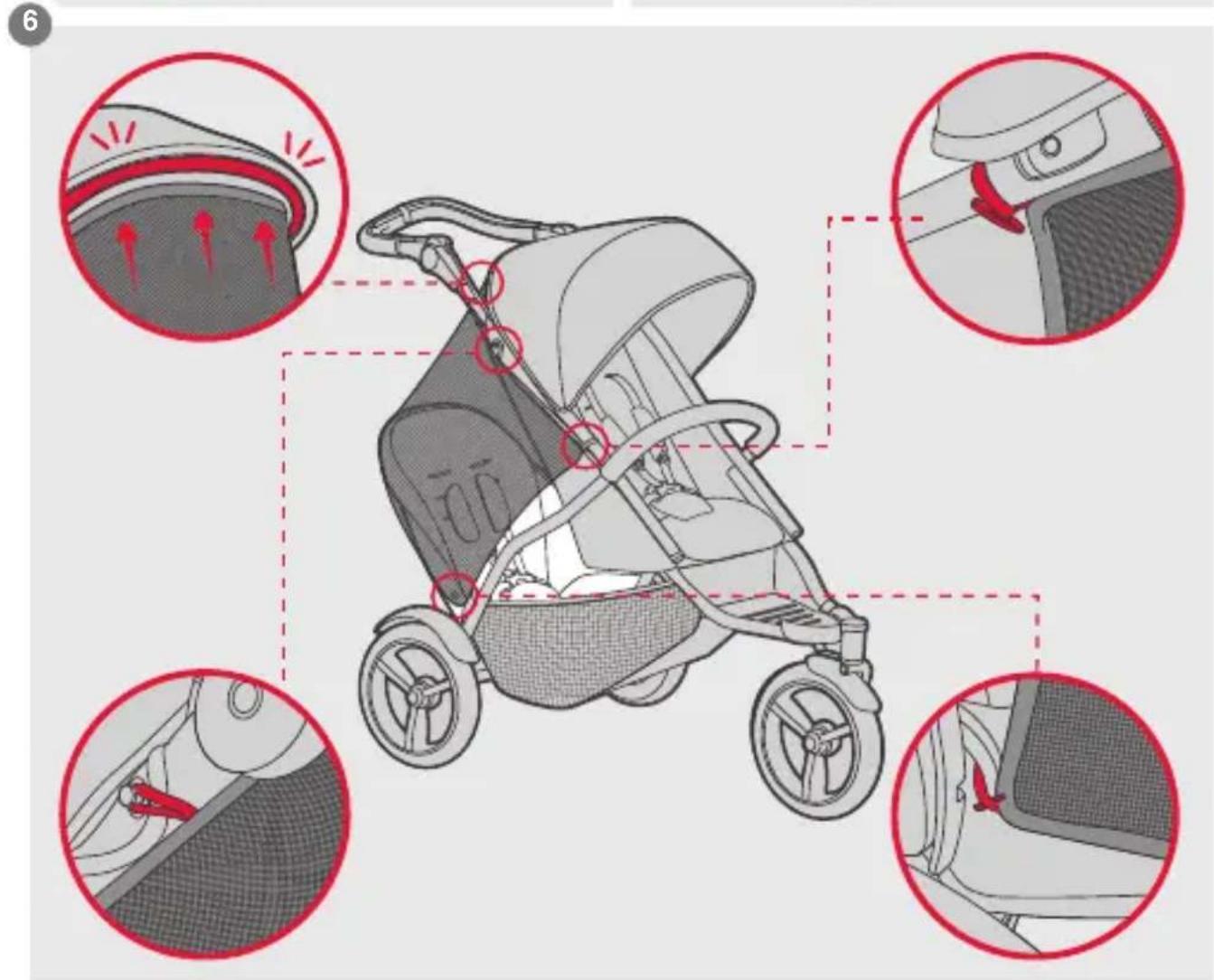

Diagram of a stroller with labeled parts and red annotations indicating safety features

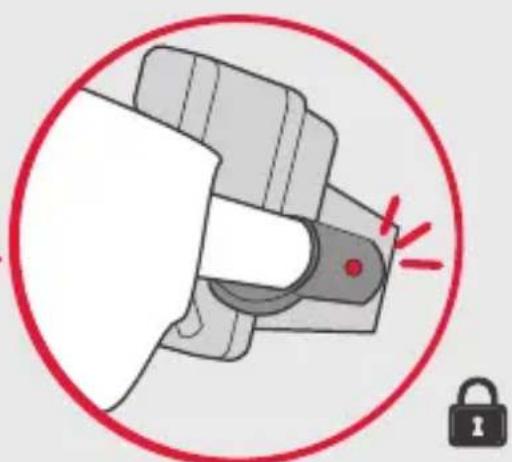

Diagram of a mechanical buckle locking mechanism with red motion arrows and a lock icon (no text or symbols)

Diagram showing car seatbelt adjustment with magnified view of the seatbelt switch

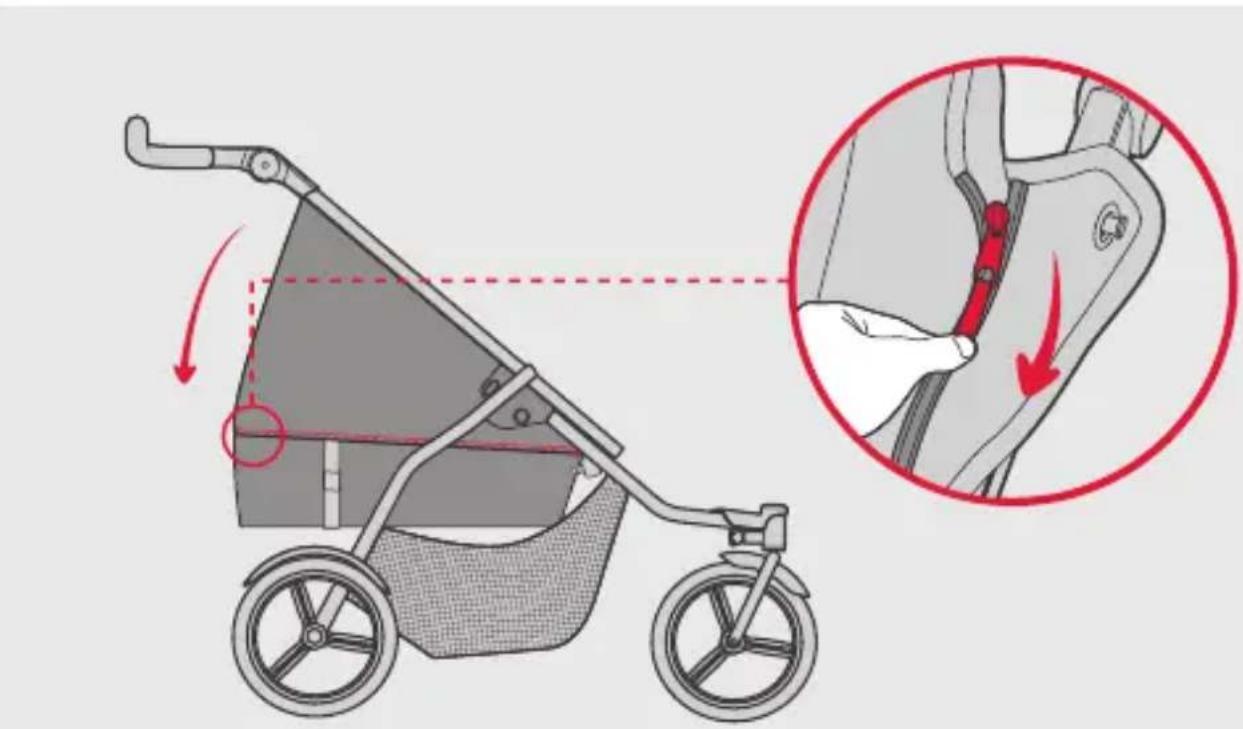

Illustration of a stroller with a red arrow indicating motion, showing body positioning and wheel assembly (no text or symbols)

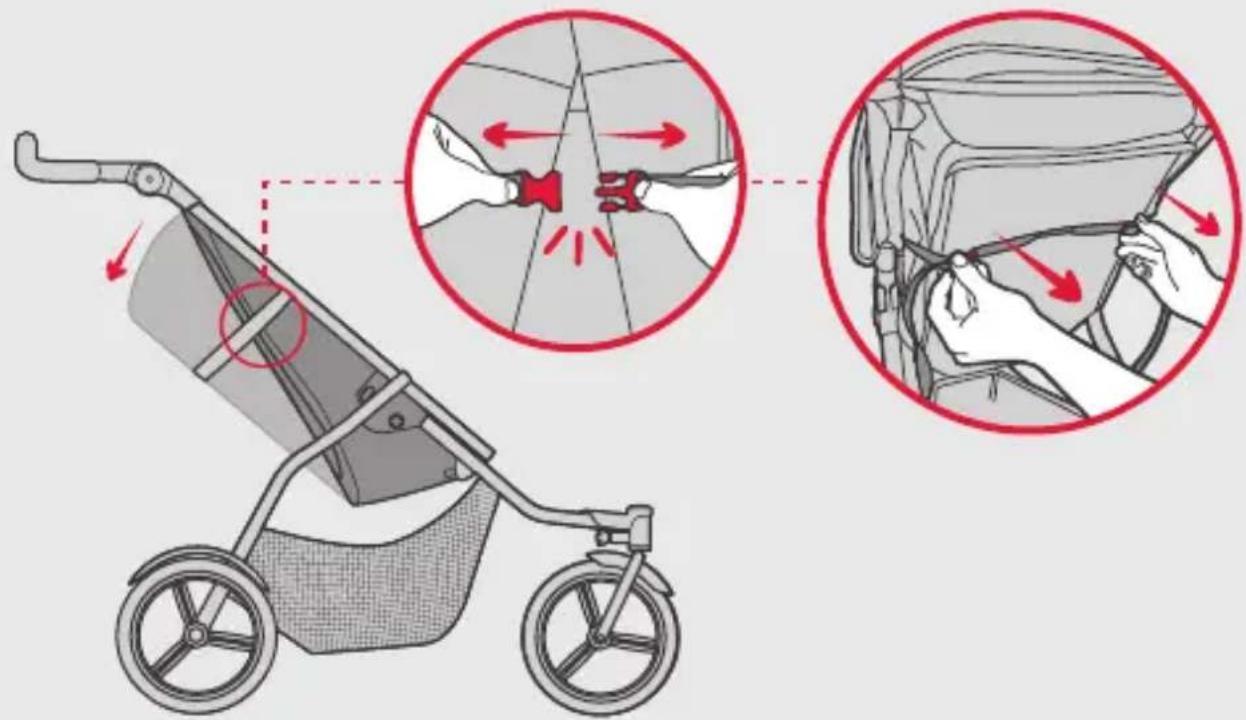

Diagram illustrating the use of a children's stroller with labeled parts and directional arrows indicating motion or positioning.

Line drawing of a two-wheeled stroller with a red circular label 'E1' on the side (no text or symbols on the device itself)

E

max load

12kg / 26lbs*

*parent facing mode

is for single use only

1

Diagram illustrating how to adjust the stroller with a close-up of the seatbelt mechanism, showing step-by-step assembly and adjustment.

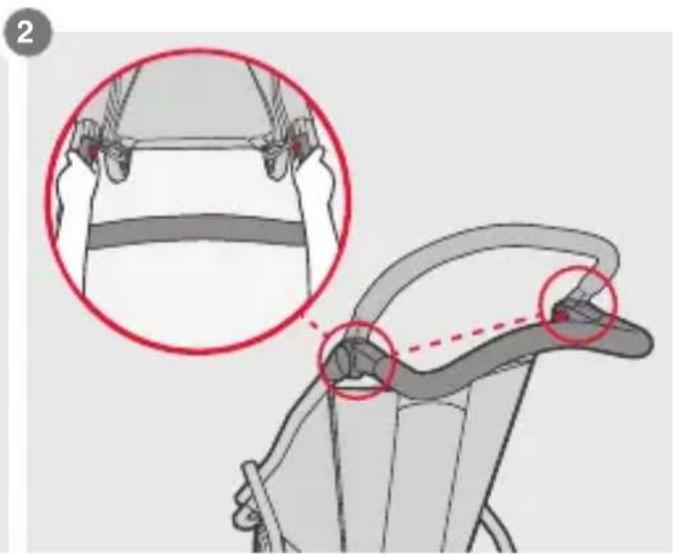

2

Diagram illustrating the use of a stroller to adjust the seat, with an inset showing the insertion process.

Illustration showing a stroller with red arrows indicating force or movement, and a hand holding a shoe with red motion arrows.

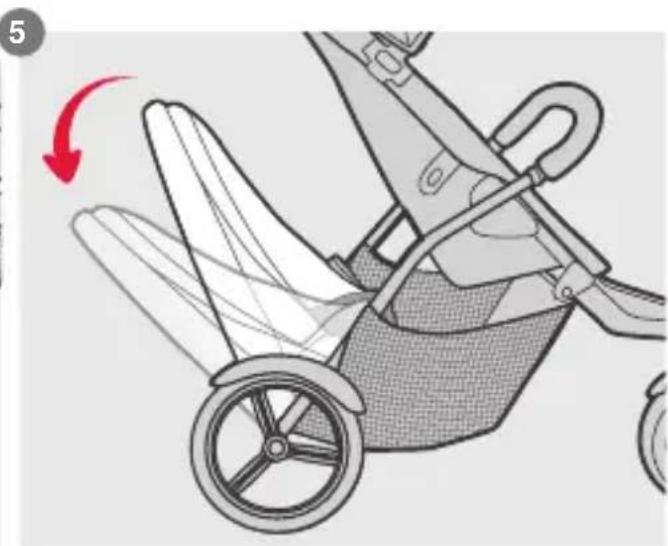

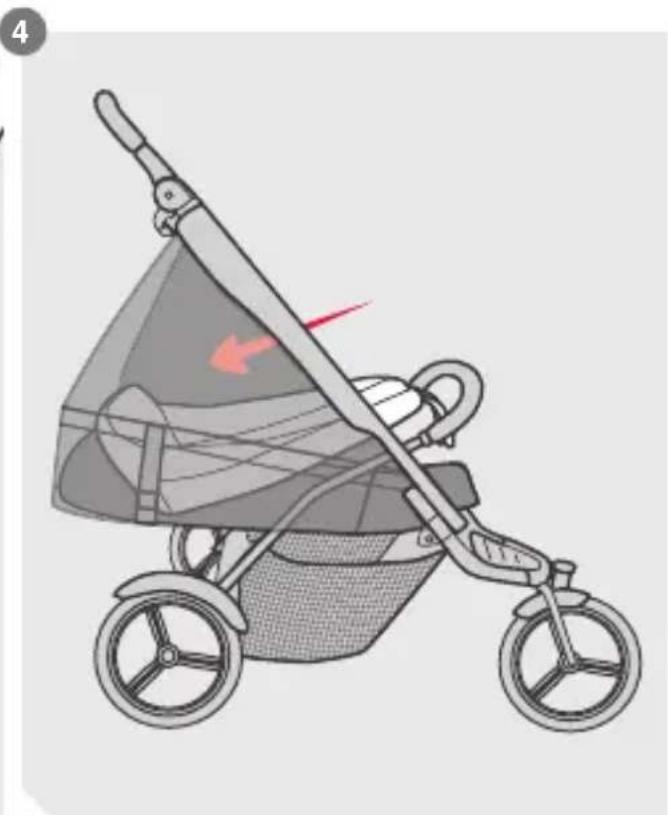

Illustration of a stroller with a mesh net and red arrow indicating motion (no text or symbols)

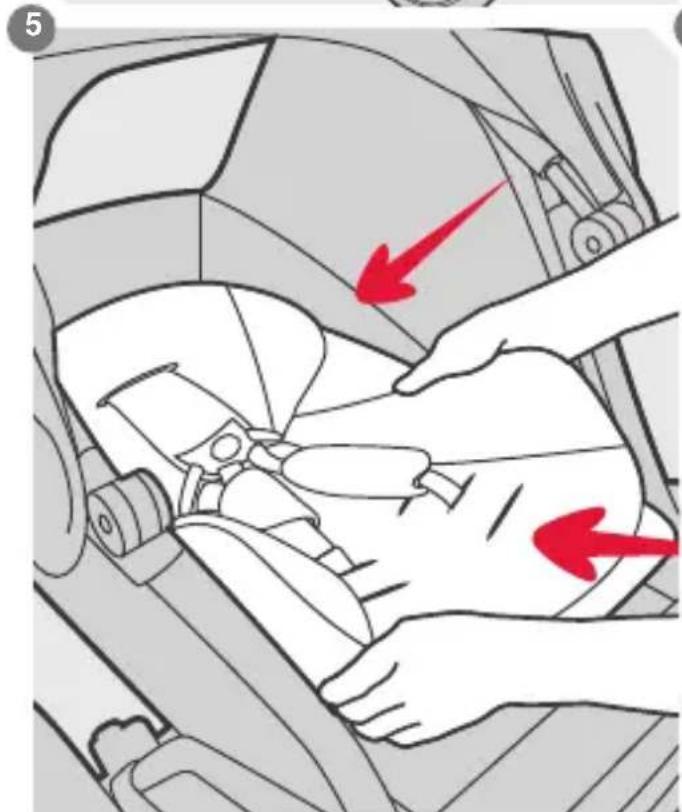

5

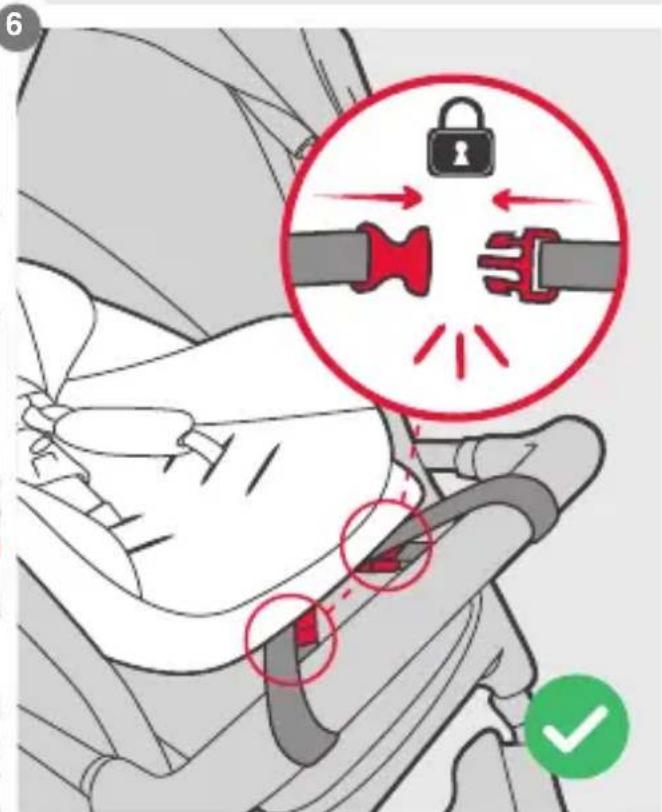

Illustration showing car seatbelt buckle locking mechanism with red arrows and lock symbols, plus a green checkmark indicating approval.

AUS/NZL

phil&teds

102-112 Daniell Street

Newtown, Wellington 6021

New Zealand

+ 64 4 3800 833

USA/CAN

phil&teds USA Inc

221 Jefferson Street

Fort Collins, CO 80524

USA.

1 800 839 4985

GBR

phil&teds

71-73 Victoria St

Windsor, Berkshire

SL4 1EH, United Kingdom

[phone]

EUR/FRA

phil&teds

Calle Linaje, 3

Malaga 29001,

Spain

[phone]

CHN

phil&teds

No.10 East Chuangyeyuan

Road, Yangzhou

China

0086-514-87634533

Designed in New Zealand. Made in China

Red silhouette of a child in a stroller on a hillside, with no text or symbols present.

so you chose a dot™? fine choice I must say!

Red stylized illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

This document contains important information and must be kept for future reference.

Please read thoroughly before use.

this vehicle is intended for children from newborn to 5 years.

• main seat – 20kg / 44lbs
• main seat (lie flat) – 9kg / 20lbs
• double kit (back) – 15kg / 33lbs
• double kit (front) – 20kg / 44lbs
• parent facing seat – 12kg / 26lbs

please register your product purchase online now at

philandteds.com/register

cleaning & caring

check dot™ for cuts & bruises. if your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support). here you can get in touch with a local customer care team, made of real live people.

caring for dot ^TM

unlike your children, your dot™ likes to stay clean.

- brush dirt (or cracker crumbs) off the frame & wheels regularly.

- clean frame with non-abrasive household cleaner & a soft cloth & always dry frame if wet.

- dot ^TM doesn't like sand or sea salt in its crannies (does anyone?), so give dot ^TM a good rinse after visiting the beach.

- code brown got you down? never fear! dot ^TM fabric can be sponge cleaned with warm water, using mild natural soap. do not use detergents or bleach on dot ^TM .

- keep dot ^TM cool & somewhere dark when in storage.

- improper care will void any warranties. do not use dot ^TM if deterioration is detected or suspected.

important information

• always load / unload your children on level ground.
- ensure the brake is engaged during the loading & unloading of children.
• do not use stroller on stairs or escalators.
• always use the wrist safety strap.
- excessive wear can reduce effectiveness & safety. parts may need lubrication. inspect essential components for:

• fraying – especially webbing straps & safety harness.
• wear – locks, snap fasteners, tyres, plastic & moving parts.
• safety – locks must not be loose.

important information

aerotech tyres

• tyres are not under warranty, however dot ^TM uses aerotech tyres which are immune from punctures & eliminate the need for tube replacements.
• with use, the surface of the aerotech tyre can show signs of minor pitting – this is normal for this material, & does not affect performance of the product.

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

WARNINGS

European safety standard states:

IMPORTANT: Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

- This vehicle is intended for children from newborn up to 5 years and up to a maximum weight of 20kg / 44lbs . • The buggy shall only be used for a maximum of 2 children. Never leave your child unattended. • Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used. • Any load attached to the handle and/or back of the backrest and/or the sides of the stroller will affect stability of the stroller. Always use the restraint system. • Always use the crotch strap in combination with the waist belt. • Check that the

pram body or seat unit attachment devices are correctly engaged before use. • This product is not suitable for running or skating. • Ensure that all locking devices are engaged before use. • Use a harness as soon as your child can sit unaided. • The parking device shall be engaged during the loading and unloading of children. • The carry handles must be left out of the reclined position when in use (if applicable). • The reclined position is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of child in reclined position is 9kg/20lbs. • To avoid injury ensure that your child is kept away when unfolding and folding this product. • Do not let your child play with this product. • It is recommended that the most reclined position be used for new born babies. • Do not place more than 5kg/11lbs in the parcel tray. • Do not add a mattress thicker than 20mm. • A car seat used on a stroller does not replace a cot or a bed. Should your child need to sleep, place it in a suitable pram body, cot or bed.

=

WARNINGS

American safety standard states:

- Never leave your child unattended in the stroller. • Always use the safety harness to avoid serious injury from falling or sliding out. • Always secure all safety harness straps. Child may slip into leg openings and strangle. Never use in a reclined carriage position unless child securely restrained. • This vehicle is intended for children from newborn to 5 years and up to a maximum weight of 20kg/44lbs. • To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame. • Do not place more than 5kg/11lbs in the parcel tray. • Excessive weight may cause a hazardous unstable condition to exist.

WARNINGS

Australia / New Zealand safety standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary. Do not leave children unattended. • Secure the child in the harness at all times. • Do not carry extra children or bags on this stroller. • Make sure children are clear of any moving parts if you adjust the stroller. • Use the harness at all times. • When not in use disconnect shoulder straps from the waist buckle or strap as harness can form loops that can lead to strangulation. • Do not use this seat with any other models of stroller. • It is unsafe to use accessories other than those approved by the vehicles manufacturer. • Care should be taken if the stroller is used on stairs or escalators. • The stroller should not be used near an open fire or exposed flame. • This vehicle is intended for children up to a maximum weight of 20kg/44lbs. • Do not place more than 5kg/11lbs in

the parcel tray. • Use the tether strap to stop the stroller rolling away. • Do not use the bassinet once the child can sit up unaided. • Maximum weight of child in reclined position is 9kg/20lbs. • The stroller is designed for use on flat or gently sloping surfaces and maybe unstable on higher sloping and uneven surfaces, resulting in the possibility of the stroller tipping over. • Due care should be exercised when folding or unfolding the stroller, as there is potential for fingers or body parts to be injured. • The stroller should only be carried or lifted when it is properly folded. Do not carry or lift the stroller by the wheels, the grab bar or the harness - position your hands at the center of the side frame. • When folding the stroller, please check visually that the automatic frame lock is engaged.

WARNINGS

Canadian safety standard states:

- Always use the safety harness to avoid serious injury from falling or sliding out. • Do not place more than 5kg/11lbs in the parcel tray. • The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used. • The stroller may become unstable if the recommended load is exceeded. • Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

Red silhouette of a child in a stroller on a hillside, with no text or symbols present.

Red stylized illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

WARNINGS

Red silhouette of a stroller on a hillside, no text or symbols present

Red stylized illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

WARNUNGEN

Red silhouette of a child in a stroller on a hillside, with no text or symbols present.

Red stylized illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

ADVERTENCIAS

Red silhouette of a stroller on a hillside, no text or symbols present

Red stylized illustration of a rabbit sitting on a slope with a seesaw in the background (no text or symbols)

Red silhouette of a stroller with a dotted trajectory line, no text or symbols present

WAARSCHWINGEN
