USER MANUAL 305058 Brandson

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Important safety guidelines for this appliance

• Use the appliance for private and intended purpose only. This appliance is not intended for commercial use. Do not use the appliance outdoors and keep it away from heat and direct sunlight.
• Please do not keep the appliance in the immediate vicinity of water sources such as a bathtub, shower, washbasin or swimming pool.
• Do not use this appliance with wet hands.
• If the appliance becomes moist or wet, disconnect the power plug immediately. Pay attention to your own

safety and do not touch any conductive material on the appliance.

• Protect the appliance from moisture (under no circumstances should the appliance be immersed in liquid), sharp edges or large sources of dust.
• Do not keep the appliance next to heat sources (e.g., ovens or heaters).
• Keep it on an appropriate surface so that it does not tip over
• Disconnect the power plug when the appliance is not in use, during transport or during cleaning.
• Never leave the fan unattended; keep it out of reach of pets and children wherever you use or store it.
• Operate the appliance only with the voltage mentioned on the specification label.

- This appliance may be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

- Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

- Keep the appliance and the connection cable out of reach of children under 8 years.

- For the safety of your children, keep the packaging parts away from their

reach (plastic bag, foils, carton or polystyrene).

• Do not allow small children to play with the foil or plastic bags as there is a risk of suffocation!
• While operating the appliance, ensure that the protective cage is closed.
• The fan, rotary knob and switches should not be blocked!
• It is not allowed to remove the cage for cleaning purposes once the fan is mounted.
• Never insert your body parts (e.g., fingers) or objects through the protective cage.

• Ensure that your hair is not within the range of the protective cage as it may get caught in the air current.

• If the power cable of this appliance is damaged, it should be replaced by the manufacturer, his after-sales service or by an equally qualified person, so as to prevent any risk.

• Allow the appliance to cool down before cleaning it, or disconnect the power plug from the socket.
• Wipe the appliance housing with a damp cloth and dry it afterwards with a clean dry cloth. Never immerse the housing in water for cleaning.
• Once the fan is assembled, the protective cage should not be removed.

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Fan
• Remote control
• User manual

2. Technical data

Input voltage 220-240 V AC 50Hz
Power consumption 50 W
Noise emission Workplace related emission value less than 70 dB(A)
Diameter approx. 37 cm
Oscillation Approx. 80-85° can be enabled /disabled
Dimensions Width approx. 42cm, depth	approx. 40cm, height approx. 104-125cm (adjustable)
Features • Remote control	• Timer function (1-9 hours)• Oscillation

3. Functions

The Brandon pedestal fan has a powerful motor and 37cm rotor blades which ensure optimum ventilation even on hot days. Thanks to the three speed levels, adjustable angle of inclination and oscillation, you can adapt the fan to your individual requirements.

1. Product details

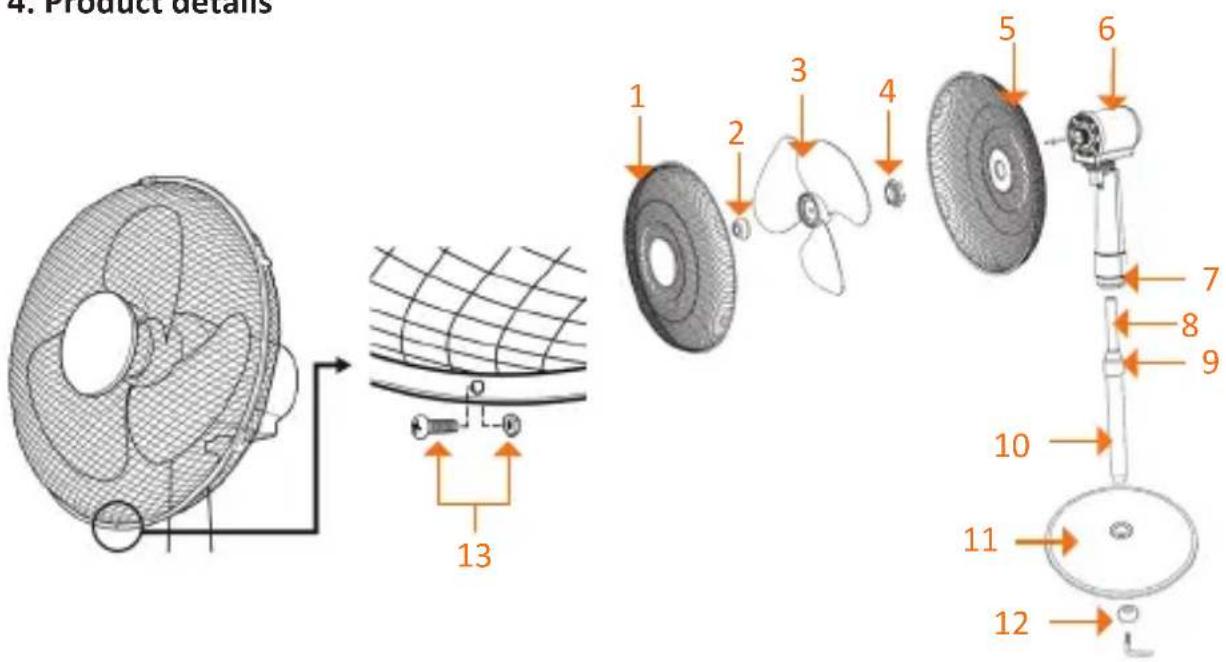

4. Product details 13 2 3 4 5 6 7 8 9 10 11 12

1 Protective cage - front
2 Rotor blade mounting nut
3 Rotor blade
4 Protective cage - mounting nut
5 Protective cage - rear
6 Rotor axis
7 Locking screw
8 Inner pipe for pedestal height adjustment
9 Height adjustment mechanism
10 Pedestal outer pipe
11 Stand
12 Stand mounting screw
13 Locking screw + Nut with washer

5. Assembly

Note: Screws, if not in the packaging bag, are usually all pre-assembled in the intended location.

1. Take the fan out of the package and check the appliance as well as the scope of delivery mentioned in the table above. Please contact the supplier if any part is missing or has been damaged. Place the rear protective cage (5) on the rotor axis (6). Make sure that the handle is facing up.
2. Tighten the protective cage firmly using the mounting nut (4).
3. Then insert the rotor blade (3) onto the rotor axis (6) and fasten it using the appropriate mounting nut (2).
4. Caution: The mounting nut needs to be tightened counter-clockwise.
5. Mount the front protective cage (1) onto the rear protective cage. A hole is provided for a locking screw (13) at the bottom of the two protective cages.
6. Insert the locking screw (13) through the hole of the front and rear guards and fasten it using the locking nut. Then connect the four mounting brackets to the side.
7. Take the pedestal (13) and connect the outer pipe (10) to the pedestal.
8. Fix the outer pipe (10) to the pedestal (11) from below using the mounting screw with washer (12).
9. Pull the inner pipe (8) from the pedestal outer pipe (10), and fix it by tightening the height adjustment screw (9)

Note: The inner tube is inside the outer tube and can be pulled out with your finger. Make sure you loosen the nut before you can pull out the inner tube.

1. The fan and pedestal have to be finally assembled.

2. Attach the fan to the pedestal by placing the motor unit (6) on the inner pipe (8) and secure the fan using the locking screw (7).

6. Usage

Keep the fan in an appropriate location and connect the appliance to a properly installed 220-240V AC socket.

By tipping the protective cage, you can change the angle of inclination according to your needs.

Press the "SWING" button on the remote control or the "OSC" button on the fan, to enable the oscillation.

Press the "Power" button on the fan control panel or the "ON/OFF" button on the remote control to switch the fan on.

Operating controls on the fan

Speed levels and timer display

"Speed" button

"Power" button

"Timer" button

"OSC" button

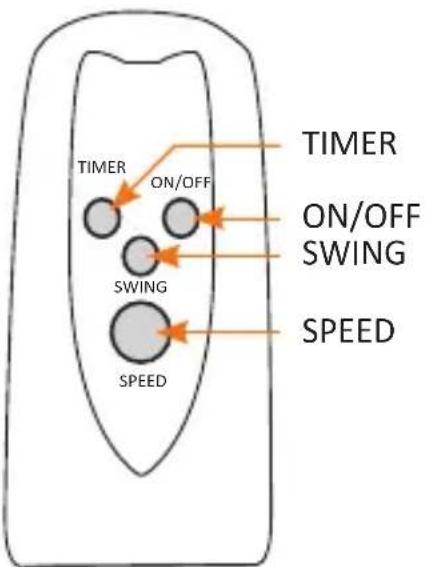

Remote control

TIMER ON/OFF SWING SPEED SPEED

Button Function

TIMER Enables the Timer function.

ON/OFF Switches the fan on/off.

SWING Enables the Oscillation.

SPEED changes the speed level

7. Timer function

You have the option of enabling a timer function (the appliance switches off automatically after the time elapses). The fan can set a timer between 1 hour and 9 hours. Press the "Timer" button for this purpose. The timer increases by one hour each time you press the button, up to a maximum of 9 hours. The display shows the current timer setting.

To disable the timer ahead of time, just press the timer button repeatedly until a "0" appears in the display.

8. Speed levels

Press the "ON / OFF" button on the remote control to switch on the fan. Alternatively, you can press the "Speed" button on the control panel to adjust the speed. The display shows the current speed level. The following speed levels are available:

• Speed level 1
• Speed level 2
• Speed level 3

9. Cleaning

Caution! Pull out the power plug from the socket before starting the cleaning process!

Use a slightly moist cloth for cleaning (wetted with water).

Never immerse the appliance in water for cleaning. This could lead to electric shock or fire!

10. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms.

The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damages before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way.

Please follow the local regulations and restrictions. Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard.

The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 305057; 305058 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/35/EU, 2014/30/EU and 2011/65/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover; http://model.ganzeinfach.de/305057
