USER MANUAL 305893 Brandson

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage: http://model.ganziinfach.de/305022.

Important safety guidelines for this appliance

• Use the appliance for private and intended purpose only. This product is not intended for commercial use. Do not use it outdoors and keep it away from heat as well as direct sunlight.
• Please do not keep the appliance in the immediate vicinity of water sources such as a bathtub, shower, washbasin or swimming pool.
• Do not use the product with wet hands.

• If the appliance becomes moist or wet, pull out the power plug immediately. Ensure your own safety and do not touch any conductive material on the appliance.

• Protect the product from moisture (under no circumstances should the appliance be immersed in liquid), sharp edges or large sources of dust.

• Do not keep the appliance in the immediate vicinity of heat sources (e.g., ovens or heating system).
• Keep it on an appropriate surface so that it does not tip over.
• Unplug the power plug when the appliance is not in use, during transport or during cleaning.
• Never leave the fan unattended; keep it out of reach of animals and children wherever you use or store it.

• Operate the appliance only with the voltage mentioned on the specification label.

• This appliance may be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

• Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

• Keep the appliance and its connection cable out of reach of children under 8 years.

• For the safety of your children, keep packaging parts out of their reach (plastic bag, foils, carton or polystyrene).

• Do not allow small children to play with the foil or plastic bags. Danger of suffocation!
• While operating the appliance, ensure that the protective cage is closed.
• The fan, rotational switch and switches should not be blocked!
• Ensure that the fan is disconnected from the power supply before removing the protective cage

• Never insert your body parts (e.g., fingers) or objects through the protective cage.

• Ensure that your hair is not within the range of the protective cage as it may get caught in the air current.

• If the power cable of this appliance is damaged, it should be replaced by the manufacturer, his after-sales service or by an equally qualified person, so as to prevent any risk.
• Allow the appliance to cool down before cleaning it, or disconnect the power plug from the socket.
• Wipe the appliance housing with a damp cloth and dry it afterwards with a clean dry cloth. Never immerse the housing in water to clean it.

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

Fan
- Remote (requires two 1.5V AAA Batteries)
- Power supply unit with connection cable
- User manual

2. Technical data

Input voltage 220-240 V	AC 50 Hz
Power consumption 19 W
Noise emission Workplace related emission value LpA < 70 dB(A)
Rotor diameter approx. 35 cm
Oscillation 3 steps / max.	120° on/off switchable
Angle of inclination Approx. 90°
Dimensions	Width approx. 40 cm, depth approx. 37.5 cm, height approx. 115-125 cm (adjustable)
Features	·9 speed levels ·Switchable oscillation (60°/90°/120°) ·Timer function ·DC motor ·Quiet operation

3. Functions

The Brandon pedestal fan has an efficient DC motor and large 35 cm rotor blades which ensure optimum ventilation even on hot days. Thanks to the 9 speed levels, adjustable angle of inclination and oscillation function, you can adapt the fan to your individual requirements. Compared to conventional AC fans, up to 60% can be saved on energy costs with the DC motor fan with an identical air flow in ^3 . The input voltage of 220-240 VAC is converted to the 24V DC required by the DC motor by an external power supply unit.

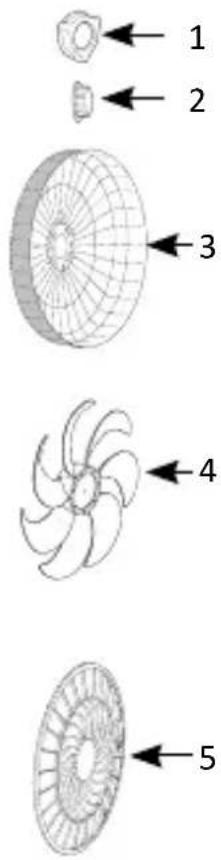

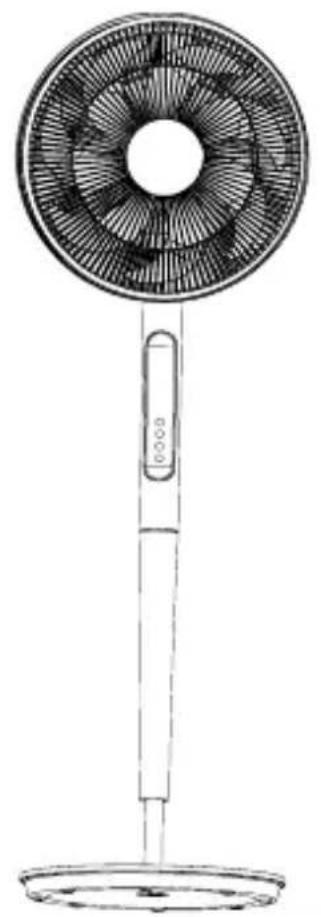

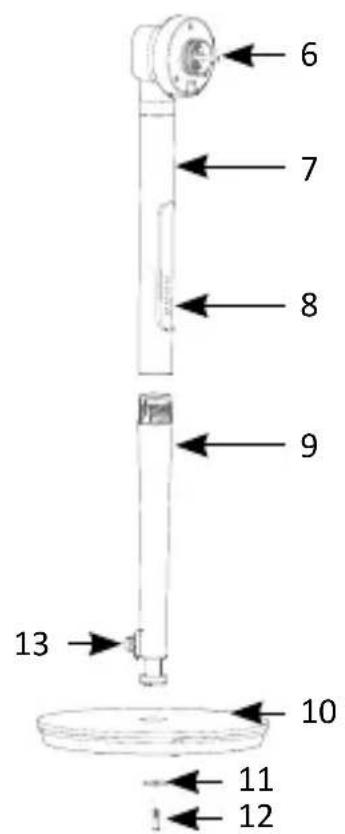

4. Product details

1 Plastic nut

2 Mounting screw

3 Rear protective cage

4 Rotor blade

5 Front protective cage

6 Motor unit

7 Motor rod

8 Control panel

9 Rod for stand

10 Stand

11 Nut for stand

12 Stand mounting screw

13 Height adjustment

5. Assembly

Take the fan out of the package and check the appliance as well as the scope of delivery mentioned in the table above. Please contact the supplier if any part is missing or has been damaged.

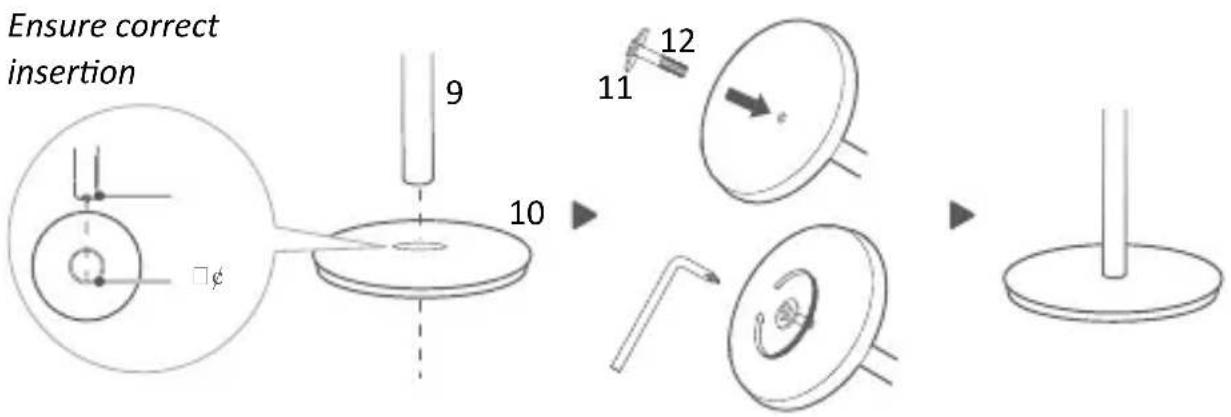

5.1 Stand assembly

Align the stand (10) and the stand rod (9) and fasten them using the stand nut (11) and the stand mounting screw (12).

5.2 Assembling the motor unit to the stand

First align the motor rod (7) with the hole position of the stand assembled earlier (see 5.1 Stand assembly). Then rotate it clockwise to fix the motor unit to the stand.

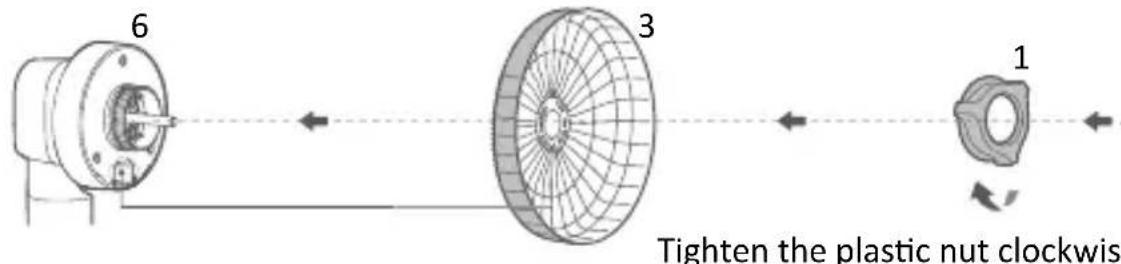

5.3 Assembling and locking the rear protective cage

Align the motor unit (6) with the rear protective cage (3). Mount it and secure it using the plastic nut (1).

ate hole.

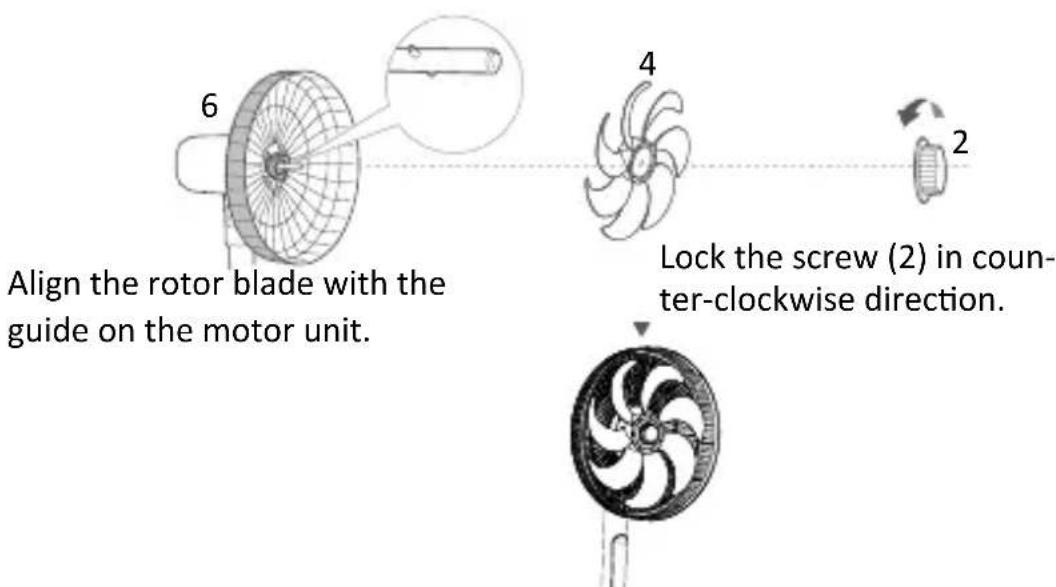

5.4 Assembling and locking the rotor blade

Align the rotor blade with the motor unit (6), insert it completely, and then attach the rotor blade using the mounting screw (2).

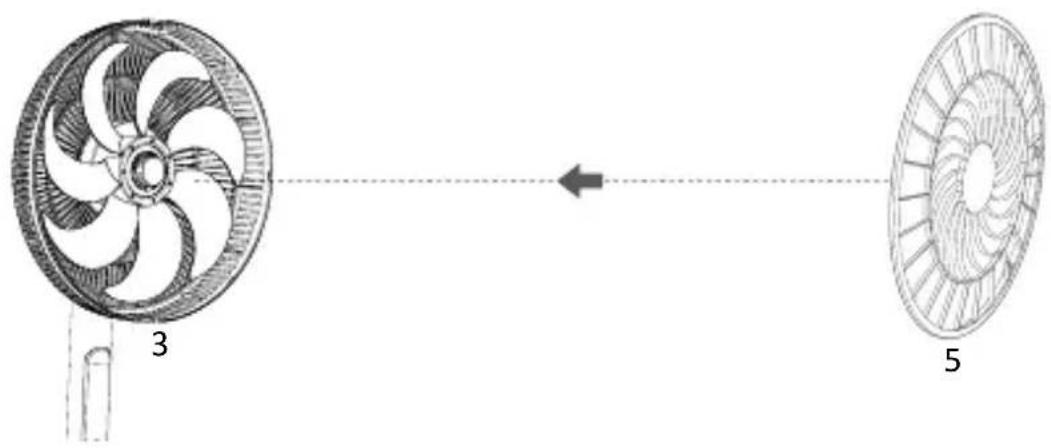

5.5 Assembling and fixing the front protective cage

Lock the front protective cage (5) to the rear protective cage (3) so that the logo is seen correctly.

Mount the front protective cage onto the rear protective cage using the provided assembly aid (hook).

6. Usage

Keep the fan in an appropriate location and connect the appliance to a properly installed 220-240V AC socket.

By tipping the protective cage, you can change the angle of inclination according to your needs by up to 90^ .

Press the "Oscillation" button ( ) on the control unit or on the remote control to turn on the oscillation.

The fan has 9 different speed levels, which you can change using the "Speed level" buttons ( ,) on the control unit or on the remote control.

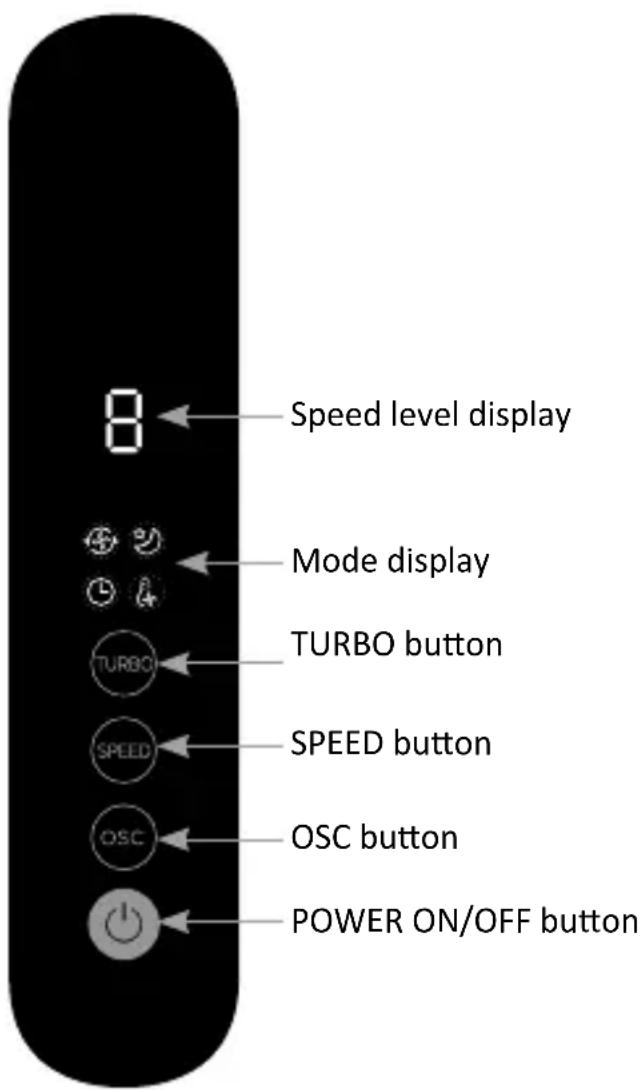

6.1 Control panel

Control panel Function
	POWER ON/OFF // Function On/Off
OSC	Press the "OSC" button to turn on the oscillation of the fan. By pressing the button repeatedly, you can shift through the various oscillation modes. The following cycle: Angle: 60°→ Switch off → 90°→ Switch off → 120°→ Switch off → 60° etc.
SPEED	This button can be pressed briefly to change the wind speed. The button can be pressed for long time to change the mode. (cycle: Normal -> Turbo -> Sleep -> Normal etc).
8	Display of the current speed
TURBO	This button can be pressed briefly to enable and disable the turbo mode. The "Turbo" button - provides an extra boost of power. The button can be pressed for a long time to turn the temperature-dependent mode on and off.
	In the turbo mode, the display is turned on and "H" is shown on the screen. The turbo mode switches the fan speed to maximum.
	In the sleep mode, this display is turned on, and the wind speed of the fan can be automatically adjusted as per the selected program. There are three speed levels, i.e. "1, 2, 3". And the required sleep wind speed can be adjusted by pressing the "SPEED" button.
E	This display starts glowing in temperature-dependent mode. (ECO-Mode) This mode can automatically adjust the wind speed in a smart way according to the change in ambient temperature.
L	The timer function of the appliance can be adjusted only via the remote control and and this symbol is shown in the display.

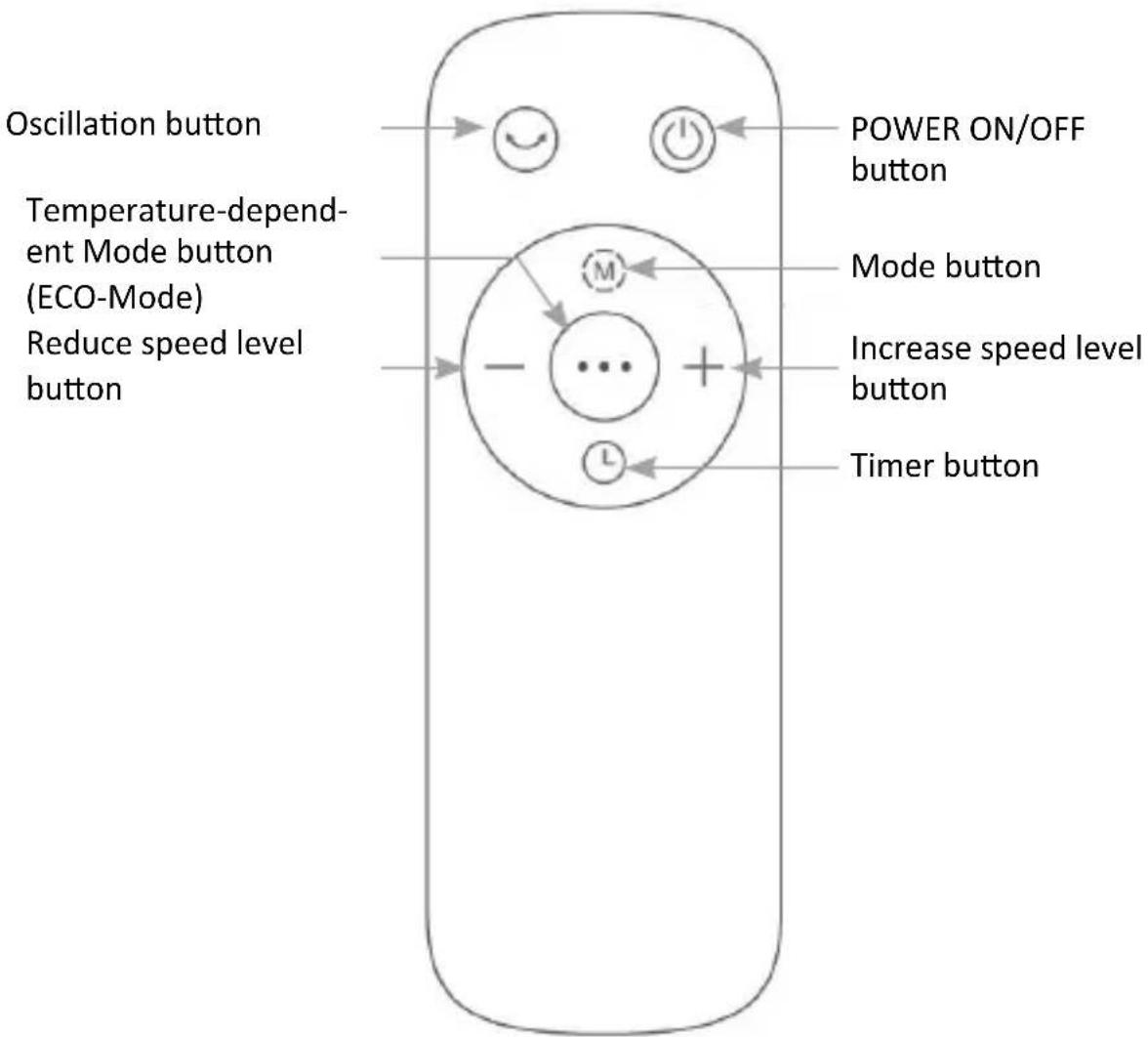

6.2 Remote control

6.3 Timer function

The appliance can be switched off at the set time using the timer function.

After pressing the "Timer" button, the time can be set by pressing the "+" and "-" buttons on the remote control. (Cycle: 0-1-2-3-4-5-6-7-8-0 Hours) The time is enabled once the indicator flashes 3 times.

If the set time shows 0, it means that the "Timer" function is disabled.

Example: If you want to set the timer to 5 hours, press the "Timer" button and then the "+" button until the number "5" is shown on the display.

6.4 Temperature-dependent mode

Working range 10°C-40°C
Measuring interval every 11 seconds
Temperature tolerance	+/- 1°C

When this function is switched on, the speed level changes based on the current ambient temperature measured at the time this function was started.

For example, if the fan is switched to ECO mode with speed level 6, then the speed level is changed based on level 6. If the speed level is manually changed to level 8 with this function, then further speed adjustments are made based on level 8 instead.

The automatic speed level adjustments now made are also based on the temperature at which this function was started.

If, for example, the ambient temperature is 24^ when ECO mode is switched on, it will henceforth be checked whether the ambient temperature has still remained at 24^ . If the temperature now increases by 1^ according to the reference ambient temperature (24^) , the speed also increases by 1 step.

In the same way, if the temperature drops by -1^ according to the original reference ambient temperature, the speed level is lowered by 1 level.

Example:

At an ambient temperature of 26^ and speed level 6, ECO mode is activated. If the temperature rises to 28^ , the speed increases to level 8; if, on the other hand, the ambient temperature changes to 22^ , the speed decreases to level 2. This function works at a temperature range of 10^ to 40^ . When the ambient temperature reaches 40^ , the automatic switches to TURBO MODE; below 10^ , speed level 1 is activated.

6.5 Height adjustment

To adjust the height of the fan, first loosen the height adjustment nut (13). You can then adjust the height of the fan and slide the appliance upwards. Once the desired height is reached, tighten the height adjustment nut (13) again.

Caution! Please do not forget to switch off the appliance before adjusting the height!

7. Cleaning

Pull out the power plug from the socket before starting the cleaning process! Use a slightly moist cloth for cleaning (wetted with water). Never immerse the appliance in water for cleaning. This could lead to electric shock or fire!

8. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damages before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Please follow the local regulations and restrictions. Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 305022 / 305893 complies with the fundamental requirements and the other relevant stipulations of the directive. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://model.ganziinfach.de/305022.

(IT) +49511/13221740

(ES) +49511/13221750

MO-FR 9:30am - 18pm CET

brandson-equipment.de
