USER MANUAL FALKO GO GENIUS

GB Instruction Manual from page 11

Line drawing of a wheeled cart with wheels and handle, no text or symbols present

Technical diagram of a two-wheeled cart with labeled parts, showing front, side, and top views.

Simple line drawing of a medical or laboratory device with a coiled tube and connector (no text or symbols)

Technical line drawing of a two-wheeled cart with a rectangular basin and wheels, no text or symbols present

Technical line drawing of a mechanical assembly with a tire and rotating components (no text or symbols)

C R O D

Technical line drawing of a mechanical device with lever and adjustment components (no text or symbols)

Inhalt

Produktkomponenten......4

GEFAHR VON SACHSCHÄDEN

QR code image containing encoded data, no visible human-readable text

Content

Product components....11

Safety and warning instructions ....12

Explanation of symbols....12

Proper use....12

Safety information....12

Before using for the first time ....14

Charging the battery....14

Preparation 14

Use....15

Stopping and parking 15

Folding....15

Cleaning and care....15

Disposal 15

Technical details....16

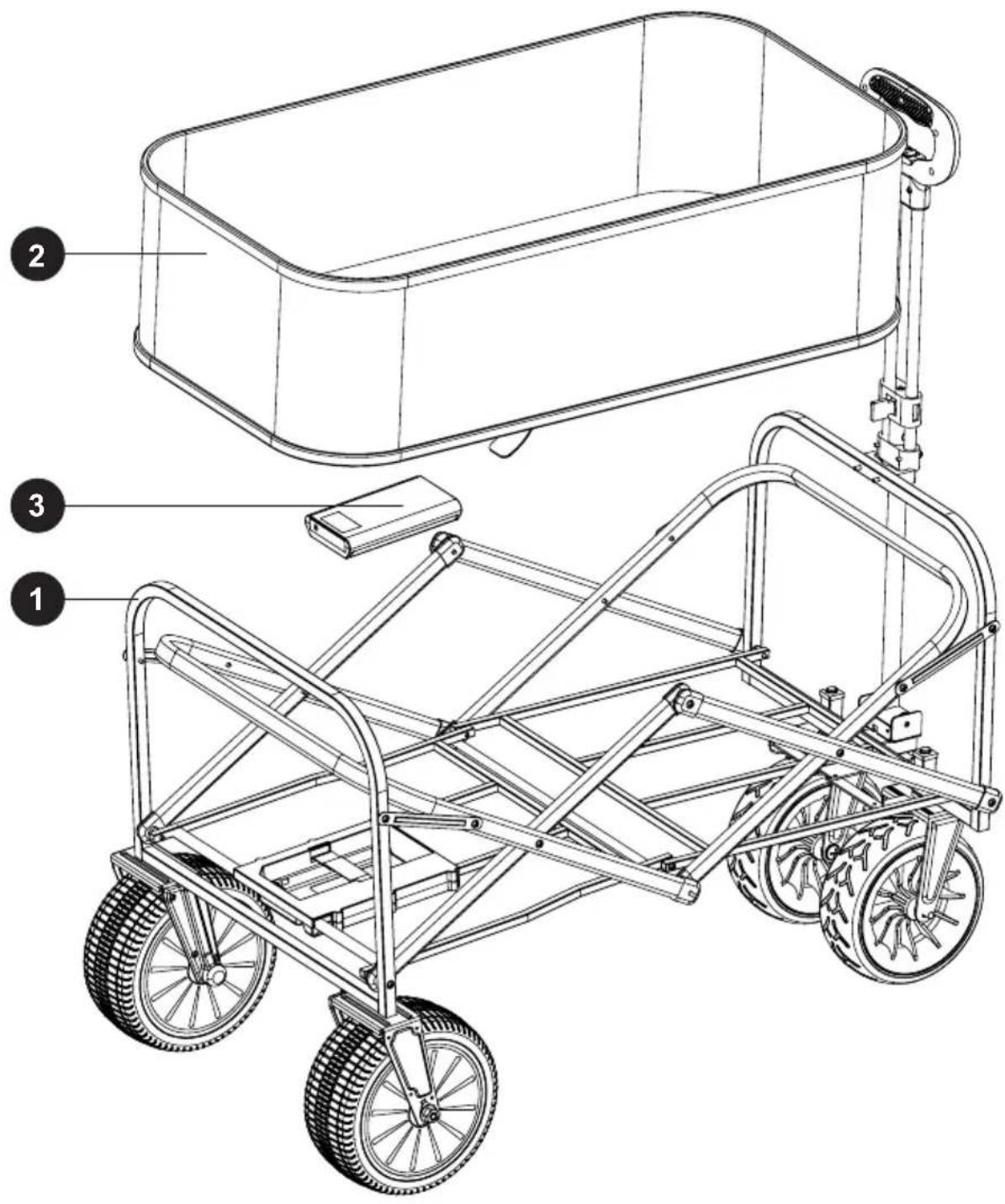

Product components

1 Folding frame

2 Fabric insert

3 Lithium-ion battery

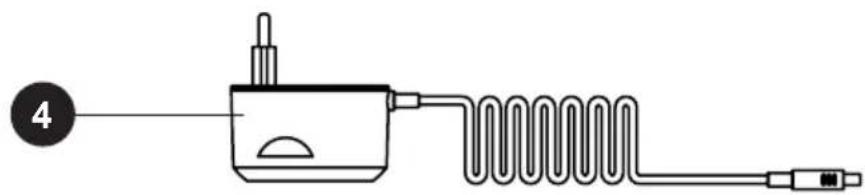

4 Charging cable

BEFORE USING THIS APPLIANCE FIRST READ ALL

INSTRUCTIONS AND SAFETY PRECAUTIONS IN THIS

INSTRUCTIONS FOR USE.

KEEP THIS MANUAL FOR FUTURE REFERENCE.

ONLY GIVE THE APPLIANCE TO THIRD PARTIES TOGETHER

WITH THE INSTRUCTIONS FOR USE.

WHEN USING ELECTRICAL APPLIANCES, THE FOLLOWING

BASIC PRECAUTIONS MUST BE OBSERVED AT ALL TIMES, INCLUDING THE FOLLOWING.

Safety and warning instructions

Explanation of symbols

WARNING!

Failure to observe this warning could lead to a serious or potentially lethal accident.

CAUTION!

Failure to observe this caution could lead to injury.

NOTE!

Information about potential material damage.

Proper use

The device is intended for the assisted transportation of objects. It is intended for domestic/private use only.
■The device is not suitable for:
- Transportation of people
- Use as an independent vehicle
Only use the appliance as described in the instructions. Any further use is considered improper and may result in material damage or even personal injury. The appliance is not a child's toy.
The manufacturer or dealer does not accept any liability for damage caused by improper or incorrect use.

Safety information

This appliance must not be used by children. Children must not play with the appliance.
The product can be used by children aged 8 years and above and those with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the product in a safe manner and understand the hazards involved.
cleaning and user maintenance must not be carried out by children without supervision.
Keep the appliance and power cable out of the reach of children and animals.
Keep children away from the packaging material (films, bags, etc.). These present a risk of suffocation.

CAUTION!

RISK OF INJURY

Make sure that the appliance is fully opened before placing any objects inside.
The device is suitable for a weight of up to 60 kg. Distribute the items as evenly as possible on the cart.

Watch your fingers when folding, unfolding or adjusting the appliance due to the risk of trapping.
Do not use the appliance on stairs or escalators.
Do not place children in the appliance.
Do not place the appliance on roads, ramps or other dangerous areas.
Be careful on slippery, loose or unstable terrain. Wet or slippery surfaces can cause the cart to lose traction and thus impair steering and stability.
Do not drive the cart on excessively steep slopes. Move across the slope and exercise caution.
possible, use level surfaces for stopping and parking. When parking, apply the parking brakes and secure the cart by other means if necessary to prevent it from rolling away unintentionally.

NOTE!

RISK OF DAMAGE TO THE APPLIANCE

Check the appliance for damage before each use. Do not use the appliance if it has visible damage.
Overloading or incorrect folding can damage the appliance. The battery emits a warning signal if it is overloaded. Follow the instructions for correct use of the product.
Keep the appliance away from fire, high temperatures and water.
The battery is not waterproof. If it starts to rain during an excursion, remove the battery from the cart and stow it away in a waterproof place.

WARNING!

DANGER FROM RECHARGEABLE BATTERIES

Check the mains cable for any damage before use. Do not use damaged power adapters and power cables. Only connect the mains adapter to sockets that carry the electrical voltage specified on the mains adapter.
Never immerse the battery or power cable in water or other liquids.
Charge the battery only with the charging cable supplied. Do not charge any other devices with the charging cable supplied. Only use original rechargeable batteries, otherwise you will jeopardise the safety of the device.
Only use the battery with the electric handcart.

Do not use the appliance if it is still connected to the power supply unit or the mains.

The appliance must always be disconnected from the power supply when unattended or not in use, and when it is being cleaned or stored.

Do not use the appliance with wet hands or if you are standing on a wet surface.

the battery has leaked, do not let the battery acid come into contact with skin, eyes and mucous membranes. In the event of contact with the battery acid, rinse the affected areas immediately with plenty of clean water and consult a doctor immediately.

The battery must not be taken apart, thrown into a fire, immersed in liquids or short-circuited.

The battery is not waterproof. Only charge the battery in dry indoor areas.

Store the battery in a dry, frost-free place.

Do not cover the battery during the charging process.

Disconnect the battery from the power supply when charging is complete.

Remove the battery from the handcart when you are not using it.

Before using for the first time

CAUTION!

Choking hazard due to plastic film and bags! Keep children and pets away from the packaging material.

• Check the set for completeness and any transport damage. You can find the delivery scope of the set you have purchased in the packaging, or in the separate insert. Please contact our customer service in the event of any complaints.
  ■Remove the packaging material and any labels on the product that are used for transportprotectionor advertising.
  ■ Fully charge the battery using the supplied charging cable.

Charging the battery

1. Connect the battery to a working socket using the charging cable supplied.
2. The charging indicator light on the power supply unit lights up red during the charging process.
3. When the battery is 100% charged, the charging indicator light will turn green.

Preparation

■Check the charge level of the battery before use.

- To do this, press the button on the battery; the charge status is indicated by the LEDs.

■Unfold the folding frame completely.

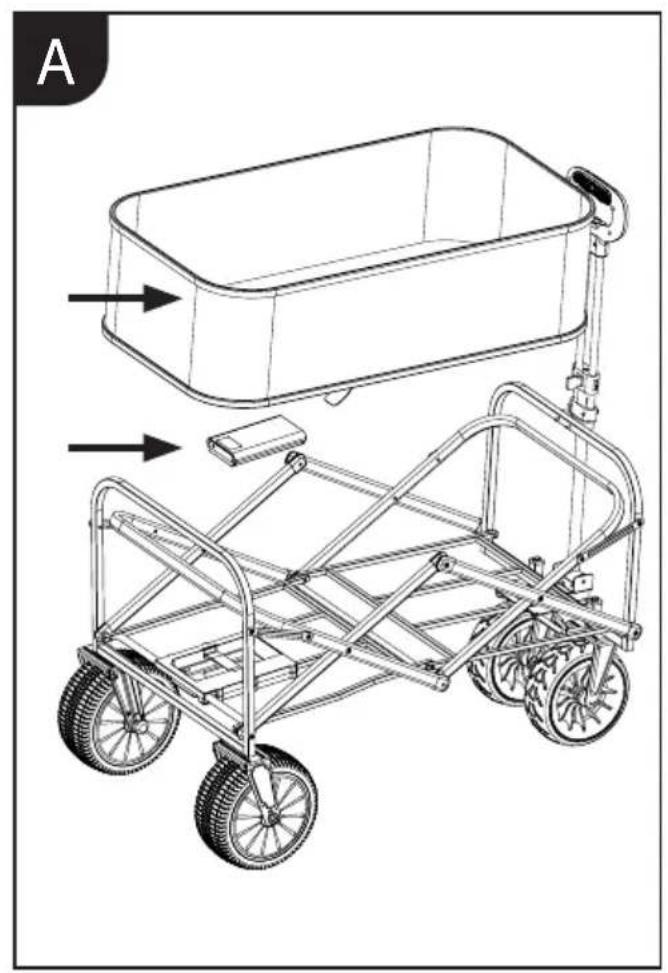

Place the battery within the housing of the cart and secure it using the Velcro tape (see fig. A).

■Place the fabric insert in the folding frame

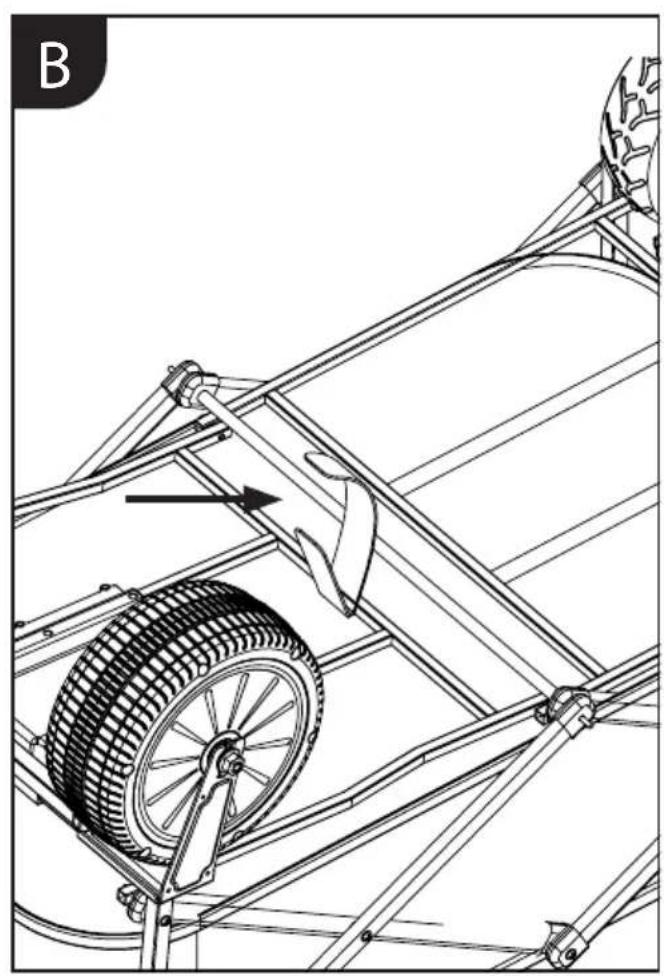

■Connect the underside of the fabric insert to the centre strut of the folding frame using the Velcro tape (see fig. B).

■Attach the sides of the fabric insert to the folding frame using the Velcro straps.

Instruction manual

Use

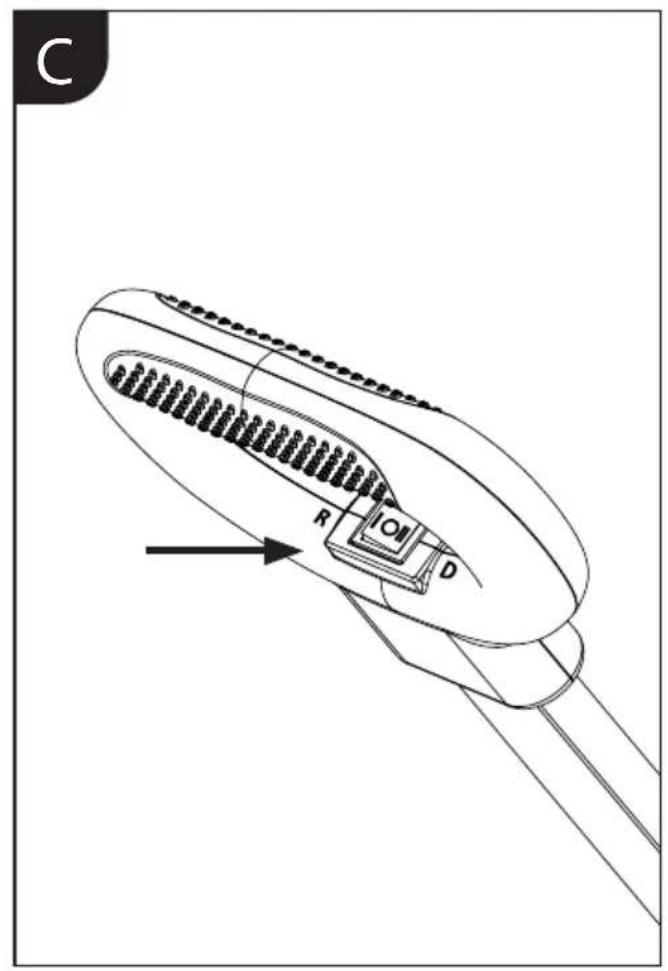

1. Press the on/off switch to determine the direction of travel (see fig. C).

D → the cart moves forwards, you can pull it R → the cart moves backwards, you can push it

1. Grasp the handle and bring the push bar into an inclined position.
2. Release the parking brakes by pressing lightly on the two plastic „Unlock“ lugs.
3. Press the start button to activate the motor assistance. Motor assistance will remain active as long as you keep the start button pressed. As soon as you release the start button, the motor will switch to standby.

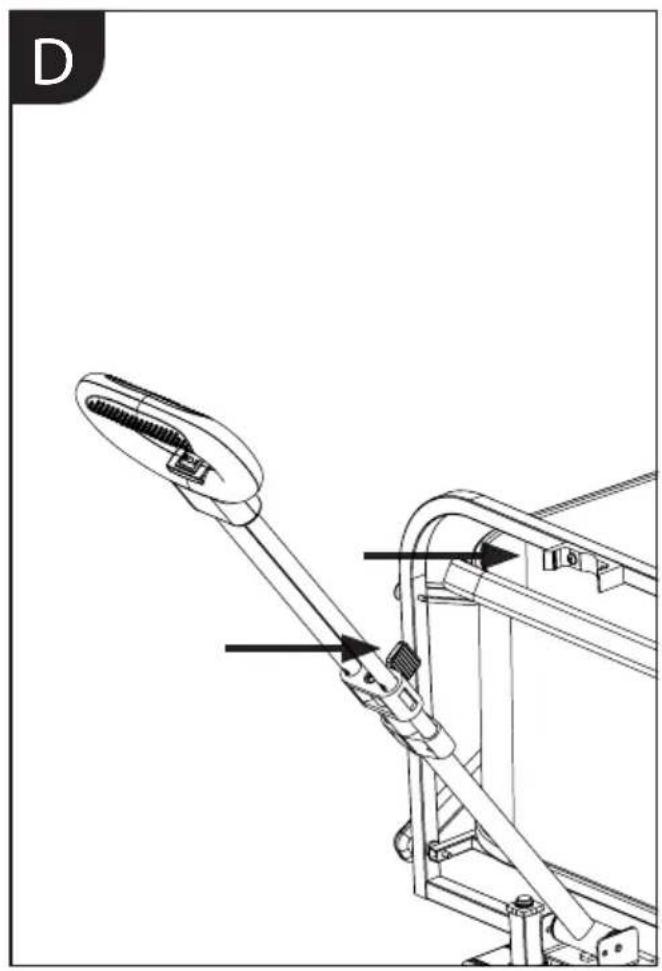

4. You can adjust the length of the push rod using the locking lever on the back of the push rod (see fig. D).
5. There is a holder on the folding frame into which you can lock the push bar when not in use (see fig. D).

Stopping and parking

1. Switch off the motor by setting the on/off switch to „0“.
2. Lock both parking brakes by pressing the lower „Lock“ section towards the front wheels.
3. Bring the push rod into an upright position and secure it in the holder.
4. If the cart is not in a level position (e.g. on a slight slope/incline), also secure the wheels against rolling away.

Folding

1. Remove all objects from the cart, push the push bar together and secure it in the holder.
2. Pull the loop in the centre of the fabric insert to fold up the cart.
3. The two fabric handles on the sides of the fabric insert can be joined together with the integrated Velcro fastener to form a practical handle for carrying.

Tip:

Of course, you can also use the cart like a normal handcart without motorised assistance.
Charge the battery when the charge level falls below 25% at the latest.
For protection, the battery switches off when the charge level is low, and the motor can no longer be used. In this case, switch off the support by setting the on/off switch to „0“. Recharge the battery promptly.

Cleaning and care

1. Set the on/off switch to „0“ at the end of use.
2. Remove the battery from the folding frame.
3. If necessary, remove the fabric insert from the folding frame.
4. Clean the folding frame with a damp cloth. Do not use harsh or abrasive cleaning agents or cleaning pads.
5. The fabric insert can be washed by hand if necessary.

Disposal

(Applicable in the European Union and other European states with systems for the separate collection of waste and recyclables).

Packaging

The packaging material can be recycled. Dispose of the packaging in an environmentally friendly way for recycling.

Electrical appliances

The symbol with the crossed out dustbin means that this product cannot be disposed of in the household waste. Electrical waste should be taken to a local acceptance point.

You can obtain further information about the disposal and recycling of this appliance from your municipal utility company, the retailer where you purchased it or the manufacturer.

Before disposing of the appliance remove the batteries because they have to be disposed of separately. To protect the environment, batteries and rechargeable batteries must not be disposed of alongside normal household waste, regardless of whether they contain harmful substances* or not, and should instead be taken to the relevant collection point. Contact your local authority to find out where you can dispose of batteries in your area.

Even empty batteries have a residual charge. Before you dispose of them, cover the poles with insulating tape to prevent them short circuiting, which could cause fire or an explosion.

*marked with: Cd = Cadmium, Hg = Mercury, Pb = Lead

Technical details

APPLIANCE FALKO GO electric handcart
Model ETC-001
Power 100 W
Li-Ion battery Model: S1-DY	11.1 V / 2,500 mAh / 27.75 Wh
Motor type DC brush motor
Operating speed Max. 3 km/h
Volume Max. 65 db
Weight 11,1KG
Maximum load 60 kg
Maximum inclination Max. 10%
Battery life Up to 60 minutes
MAINS ADAPTOR
Model MKD-1261000HEUD
Input voltage / AC frequency 100-240V 50/60HZ 0.5A
Output voltage / current / power DC12.6V 1A 12.6W
Average active efficiency ≥78.06%
Efficiency at low load (10%) ≥80%
No-load power consumption	≤0.3W

Customer service

If you have any questions about the device or spare parts/accessories, please contact your local retailer.
