USER MANUAL LCB300 BeamZ

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION....4

POWERSUPPLY 4

RIGGING 4

DMX512 CONTROL 5

CLEANING 5

TROUBLE SHOOTING 6

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 7

UITPAKKEN 8

AANSLUITSPANNING 8

RIGGING 8

DMX BEDIENING 9

REINIGEN 9

PROBLEMEN OPLOSSEN 10

DEUTSCH

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and

have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from

shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5mm^2 . The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

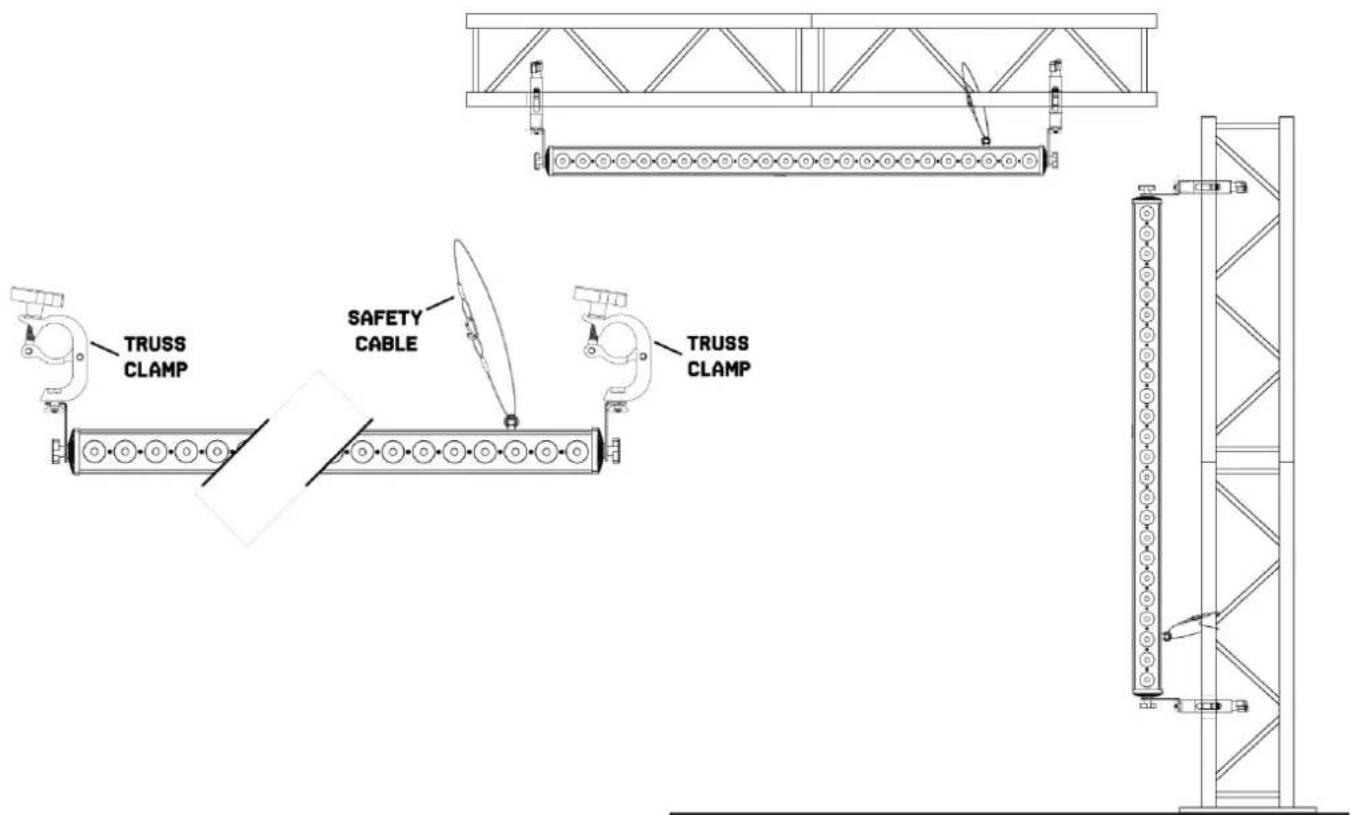

RIGGING

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!

TRUSS CLAMP SAFETY CABLE TRUSS CLAMP

DMX512 CONTROL

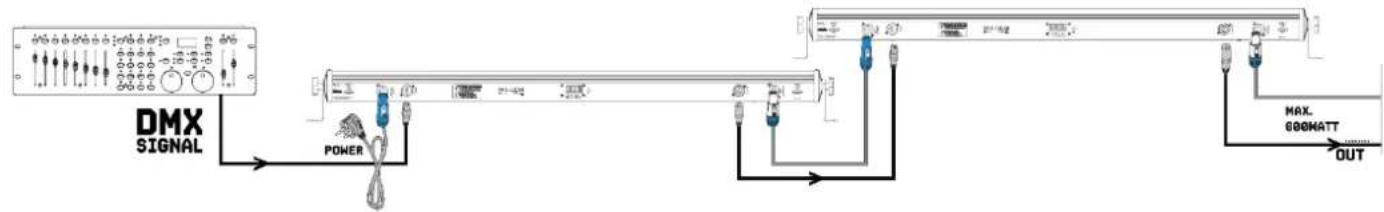

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

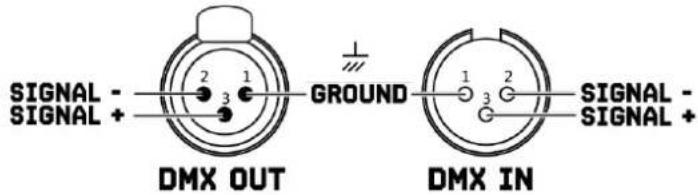

SIGNAL - SIGNAL + DMX OUT GROUND 1 2 3 1 2 3 DMX IN SIGNAL - SIGNAL +

1 2 3 120 OHM TERMINATOR

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
• Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained.Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

MENU			DESCRIPTION
AUTO	Sp 1-10		Auto Speed 1-10 (slow->fast) (Speed)	Auto Mode, Run all effects randomly
	St 0-9		(slow->fast) (Strobe)
ADDR	4 CH		A001-A509	Each channel mode is a separate address. Connect in the console and automatically enter the DMX mode
	6 CH		A001-A507
	9 CH		A001-A504
	48CH		A001-A465
	52CH		A001-A461
SHOU	Sh 1-56		Program Show 1-56
	Sp 1-10		Program Speed 1-10 (slow->fast) (Speed)
	St 0-9		Program Flash 0-9 (slow->fast) (Strobe)
SOUD	Soul-2	Sen1-9	2 Sound-activated, adjustable sensitivity
SLAV	Slave		Slave
COLO	r000-255		Red (0-100%)
	g000-255		Green (0-100%)
	b000-255		Blue (0-100%)
	U000-255		White (0-100%)
	St 0-9		LED Strobe (slow->fast)
STAT	CL01-CL41		Static color
	St 0-9		LED Strobe (slow->fast)
SET	dis	10s	Set the backlight time of the display board, from 10 seconds to continuously on, and the factory default is 10 seconds
		20s
		30s
		60s
		On
	temP	50-65 °C	Protection temperature setting, protection within the range of 50-65 °C, beyond which the output power will be reduced
	dir	---->	Set the light direction to the right
		<---->	Set the light direction to the left
	InFr	on	Remote control function setting on
		oFF	Remote control function setting off
	Send	yes	The one-button setting sending function sends the current light channel mode and temperature protection value to other lights connected to this light. (No other controller is allowed on the line)
		Send
INFO	ver	VVxx	Software version
	temp	XX C	The current light panel temperature (°C). If the temperature detection circuit fails, the power-on prompt - RT -, and the menu displays error

DMX CHANNELS

4 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	COLOR	000-255	Red 0-100%
2		000-255	Green 0-100%
3		000-255	Blue 0-100%
4		000-255	White 0-100%

6 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	DIMMER	000-255	Dimmer
2	STROBE	000-009	No function
		010-255	Slow->fast
3	COLOR	000-255	Red (0-100%)
4		000-255	Green (0-100%)
5		000-255	Blue (0-100%)
6		000-255	White (0-100%)

9 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	DIMMER	000-255	Dimmer
2	COLOR	000-255	Red (0-100%)
3		000-255	Green (0-100%)
4		000-255	Blue (0-100%)
5		000-255	White (0-100%)
6	STROBE	000-009	No Function
		010-255	Slow->Fast
7	MARCO Channel	000-003	CH2-4 Control overall color
		004-007	Effect1 (CH2-5 control effect color)
		008-011	Effect2 (CH2-5control effect color))
		...	...
		148-151	Effect37 (CH2-5control effect color))
		152-155	Effect38 (Built-in effect color)
		156-159	Effect39 (Built-in effect color)
		...	...
		224-227	Effect56 (Built-in effect color)
		228-231	Auto (Repeat run effect 1-56)
		232-235	Sound model
		236-255	Sound mode2
8		000-255	RGBW Program Speed (Slow->fast)
9		000-255	RGBW Pattern effect background color selection (see the final background) color table

48 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	COLOR DIMMER	000-255	Red 1 (0-100%)
2		000-255	Green 1 (0-100%)
3		000-255	Blue 1 (0-100%)
4		000-255	White 1 (0-100%)
...		...	...
45		000-255	Red 12 (0-100%)
46		000-255	Green 12 (0-100%)
47		000-255	Blue 12 (0-100%)
48		000-255	White 12 (0-100%)

52 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	COLOR DIMMER	000-255	Red 1 (0-100%)
2		000-255	Green 1 (0-100%)
3		000-255	Blue 1 (0-100%)
4		000-255	White 1 (0-100%)
...		...	...
45		000-255	Red 12 (0-100%)
46		000-255	Green 12 (0-100%)
47		000-255	Blue 12 (0-100%)
48		000-255	White 12 (0-100%)
49	STROBE	000-009	No Function
		010-255	Slow->Fast
50	RGBW EFFECT CHANNELS	000-003	CH1-48 Control single segment
		004-007	Effect1(CH1-4 control effect color)
		008-011	Effect2(CH1-4 control effect color)
		...	...
		148-151	Effect37(CH1-4 control effect color)
		152-155	Effect38(Built-in effect color)
		156-159	Effect39(Built-in effect color)
		...	...
		224-227	Effect56(Built-in effect color)
		228-231	Auto (Repeat run effect 1-56)
		232-235	Sound model
		236-255	Sound mode2
51	SPEED FUNCTION	000-255	RGBW Program Speed(Slow->fast)
52	PATTERN FUNCTION	000-255	RGBW Pattern effect background color selection (see the final background color table)

COLOR TABLE

VALUE	COLOR	VALUE	COLOR
000-004	R:000 G:000 B:000 W:000	130-134	R: 51 G:000 B: 51 W:000
005-009	R: 51 G:000 B:000 W:000	135-139	R:102 G:000 B:102 W:000
010-014	R:102 G:000 B:000 W:000	140-144	R:153 G:000 B:153 W:000
015-019	R:153 G:000 B:000 W:000	145-149	R:204 G:000 B:204 W:000
020-024	R:204 G:000 B:000 W:000	150-154	R255 G:000 B:255 W:000
025-029	R:255 G:000 B:000 W:000	155-159	R:000 G: 51 B: 51 W:000
030-034	R:000 G: 51 B:000 W:000	160-164	R:000 G:102 B:102 W:000
035-039	R:000 G:102 B:000 W:000	165-169	R:000 G:153 B:153 W:000
040-044	R:000 G:153 B:000 W:000	170-174	R:000 G:204 B:204 W:000
045-049	R:000 G:204 B:000 W:000	175-179	R:000 G:255 B:255 W:000
050-054	R:000 G:255 B:000 W:000	180-184	R: 51 G:000 B:000 W: 51
055-059	R:000 G:000 B: 51 W:000	185-189	R:102 G:000 B:000 W:102
060-064	R:000 G:000 B:102 W:000	190-194	R:153 G:000 B:000 W:153
065-069	R:000 G:000 B:153 W:000	195-199	R:204 G:000 B:000 W:204
070-074	R:000 G:000 B:204 W:000	200-204	R:255 G:000 B:000 W:255
075-079	R:000 G:000 B:255 W:000	205-209	R:000 G: 51 B:000 W: 51
080-084	R:000 G:000 B:000 W: 51	210-214	R:000 G:102 B:000 W:102
085-089	R:000 G:000 B:000 W:102	215-219	R:000 G:153 B:000 W:153
090-094	R:000 G:000 B:000 W:153	220-224	R:000 G:204 B:000 W:204
095-099	R:000 G:000 B:000 W:204	225-229	R:000 G:255 B:000 W:255
100-104	R:000 G:000 B:000 W:255	230-234	R:000 G:000 B: 51 W: 51
105-109	R: 51 G: 51 B:000 W:000	235-239	R:000 G:000 B:102 W:102
110-114	R:102 G:102 B:000 W:000	240-244	R:000 G:000 B:153 W:153
115-119	R:153 G:153 B:000 W:000	245-249	R:000 G:000 B:204 W:204
120-124	R:204 G:204 B:000 W:000	250-255	R:000 G:000 B:255 W:255
125-129	R:255 G:255 B:000 W:000

TECHNICAL SPECIFICATIONS

Light source 4-in-1 LED

LED colours Red, Green, Blue, White

Quantity of LEDs 36

Beam angle 2^ × 12^

Field angle 13^ × 22^

Illuminance 12.060 lx @ 1m

Flash rate per second 1 - 20Hz

DMX channels 4, 6, 9, 48, 52

DMX connection 3-pin XLR

Modes Automatic programs, DMX, Master/Slave

Daisy chain Yes (max. 6 bars)

IP rating IP20

Cooling Convection

Display LED

Power plug Power-connector

Power consumption 1.675 - 0.774A

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) 1022 x 55 x 120mm

Weight 2.20

Included accessories Mounting bracket, Power cable

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V..

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032
