Erika - Blender Springlane - Free user manual and instructions

Product type	Blender / multifunction ice cream maker
Brand	Springlane
Model	Erika
Dimensions (L × W × H)	27.5 × 31.5 × 40.2 cm
Weight	Approx. 14.3 kg
Power supply	220-240 V AC, 50 Hz
Bowl capacity	2.5 liters (max. fill capacity 1.5 liters)
Cooling power	250 W
Refrigerant	Isobutane (R600a), flammable
Main functions	Ice cream, yogurt, blender, pre-cooling, post-cooling, digital timer
Included accessories	Removable stainless steel ice cream bowl, mixer, lid with opening, ice cream scoop, recipe book
Cleaning	Removable parts dishwasher-safe; compressor housing cleaned with a damp cloth
Maintenance	Dry all parts before reassembly; do not immerse the appliance in water
Safety	Do not obstruct ventilation slots; leave a gap of 8 cm; do not use corrosive cleaners; motor protection function
Repairability	Repairs only by a qualified technician; contact customer service: [e-mail]
Warranty	2-year statutory warranty
General information	For domestic use only; do not use with an external timer; wait 2 h after unpacking before use

Frequently Asked Questions - Erika Springlane

What is the maximum filling capacity for ice cream?

Only fill the ice cream bowl to 2/3 of its capacity, i.e., approximately 1.5 liters, as the mixture expands when freezing.

How long should you wait after unpacking before first use?

Let the appliance rest for at least 2 hours after unpacking to allow the refrigerant to settle.

Can the parts be cleaned in the dishwasher?

Yes, all removable parts (ice cream bowl, mixer, lid) are dishwasher-safe. The compressor housing is cleaned with a damp cloth.

What to do if the ice cream doesn't freeze?

Check that the compressor is running. If the problem persists, contact customer service.

How to set the timer for ice cream?

Select the ice cream mode, then use the + and - buttons to set the time (preset to 50 min). Start with the on/off button.

What is the pre-cooling function?

It cools the bowl before adding ingredients. Hold down the pre-cooling symbol, set the time (5 min recommended), then start. Then add the mixture and start the ice cream program.

The ice cream bowl is stuck in the machine, what to do?

Turn off the appliance and wait a few minutes for the frost to melt. Do not force to avoid damaging the parts.

How to disable the sound of the appliance?

Turn on the appliance, press and hold the + and - buttons simultaneously. Select number 5 (mute) with the arrow buttons, then confirm with the on/off button.

The mixer stops turning during preparation, why?

The motor protection function has activated because the ice cream became too hard. Remove the ice cream and mix it manually. Next time, reduce the preparation time.

Where to find Springlane customer service?

Contact customer service by email at [e-mail] or by phone at +49 (0) 5424 - 80944-0.

USER MANUAL Erika Springlane

Line drawing of a small kitchen appliance with a lid and ventilation slots (no text or symbols)

Erika

Cleaning and care 26

Trouble shooting 26

Customer service 28

Disposal/

Environmental protection 29

unfeld 1 2 8:8:8 h min cooling down feed me! chilling keeping cool 3 4 5 6 7 8 9 10

Important safety information

Please read this manual carefully before using the appliance for the first time and keep it for future reference.

1. Warning – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. For optimal ventilation, allow space of approx. 8 cm to other objects, furniture, or walls.
2. Warning – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. Warning - Do not damage the refrigerant circuit.
4. Warning – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

5. Warning – When positioning the appliance, ensure the supply cord is not trapped or damaged.

6. Warning – Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Intended use

This appliance is only suitable for mixing and cooling liquid food, as well as making ice cream. It may not be used to process other substances or objects.

Symbols

This symbol warns of hazards that can damage the appliance or cause injury.

This symbol warns of an electric shock that may be caused by a defective appliance or by improper handling. This product may only be opened for necessary service work by an authorised technician.

This symbol warns of flammable substances. Avoid open flames and sources of ignition and ensure that the room in which the unit is located is well ventilated.

Safety information

Do not store explosive substances such as aerosol containers with flammable propellant gas in this appliance.

Do not submerge the appliance in water or any other liquid. Protect the power cable, plug, and mains adaptor from moisture.

Do not put your hand into the appliance during operation – this may lead to injury! Make sure that the appliance is never tilted more than 45^ , as this could damage the compressor.

After unpacking, leave the appliance in its final position for at least 2 hours. The cooling agent inside the appliance must first sink to the bottom, as the compressor could otherwise be damaged. The manufacturer will assume no liability in the event of incorrect assembly, improper or incorrect use, or repairs carried out by unauthorised third parties.

Warning: Risk of fire! The cooling circuit contains the cooling agent isobutane (R600a). Although it is a natural, environmentally-friendly gas, it is also flammable. Make sure that the cooling circuit is not damaged during transport or while setting up the appliance.

The cooling agent (R600a) is flammable.

• If the cooling circuit is damaged:

- Keep away from open flames and ignition sources.

• Thoroughly ventilate the room in which the appliance is located.

- Do not continue using the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• After unpacking the appliance, check that it is in perfect condition and has not sustained any damage that could impair its functional safety. Should you notice any defects or if the

appliance has fallen on the floor, do not attempt to use it, but call our customer service.

• Improper repairs can lead to hazards for the user and the warranty may be deemed void. If individual parts are damaged, they must be replaced by the manufacturer, an authorised specialist company, or a similarly qualified person.
• This appliance is only suitable for mixing and cooling liquid food, as well as making ice cream. It may not be used to process other substances or objects.
• Store the appliance out of the reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children aged from 3 to 8 years

are allowed to load and unload refrigerating appliances.

• Position the appliance on a free and level surface.

• The appliance is only intended for household use or other similar uses such as

• in kitchenettes in shops, offices, or other workplaces,

• on farms,
  • for use by guests in accommodation establishments (hotels, motels), private guest houses, or holiday homes.

- Only fill the ice cream container up to 2/3 of its capacity. Do not fill above the indicated maximum level.

• Only use the appliance after proper assembly.
• The appliance may only be used with its original accessories.
• Connect the appliance only to alternating current as indicated on the type plate. Connect the mains plug only to an earthed socket.
• Uncoil the mains cable completely before use.

• Disconnect the mains plug as soon as you have finished using the appliance. Do not pull on the mains cable itself, as this might damage the cable.

• Switch off the machine before plugging it in or unplugging it.

• The appliance may not be operated with an external timer or remote control system.
  • Always disconnect the mains plug after use, before cleaning, or in the event of malfunctions during operation.
• The appliance is not suitable for dishwashers. Follow the cleaning instructions.
• Avoid switching the machine on and off too frequently, as this could damage the compressor. Wait at least 5 minutes before switching the machine back on after it has been switched off.
• Never place or use the appliance and mains cable on or near a hot surface.
• The cable must not hang over the edge of the work surface.
• Do not use the appliance outdoors.

• Do not insert objects or your hand into the appliance while it is in operation.

• Never insert body parts or metallic objects into the ventilation slots as this may lead to injury.

• Never insert body parts or metallic objects into the ventilation slots as this may lead to injury.

Before using the appliance for the first time

• Remove all transport safety and packaging parts and keep them away from children – danger of suffocation!
• Let Erika stand for at least 2 hours before using it for the first time to allow the cooling agent in the compressor to sink to the bottom.
• Erika should be cleaned before first use and after longer periods of non-use. When doing so, follow our instructions on cleaning and maintenance.
• Place the appliance on a level and dry surface.

Technical data

Cooling capacity: 250 W

Heat output: 22.8 W

Voltage/Frequency:

220-240 V AC, 50 Hz

Capacity: 2.5 litres

Max. capacity: 1.5 litres

Dimensions (W/D/H):

27.5 × 31.5 × 40.2 cm

Weight: approx. 14.3 kg

Equipped with: a fully automatic, self-cooling compressor for continuous refrigeration, LCD display that shows the temperature and time passed,

maximum freezer capacity up to approx.

-35°C, digitale timer, adjustable to the minute, removable stainless-steel ice-cream container for easy cleaning, lid opening for adding ingredients, pre-cooling function

Accessories: User manual, recipe booklet, ice cream scoop

Specifications, technology, colours, and design are subject to change without notice.

How to use Erika

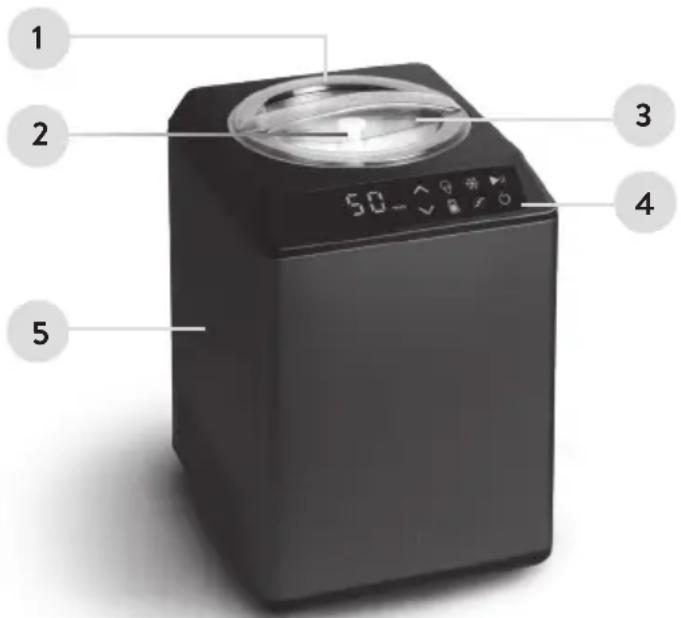

Product description

Appliance

1 2 3 4 5 50-

1. Transparent lid with filling opening
2. Mixing paddle
3. Ice cream container
4. Display
5. Power unit

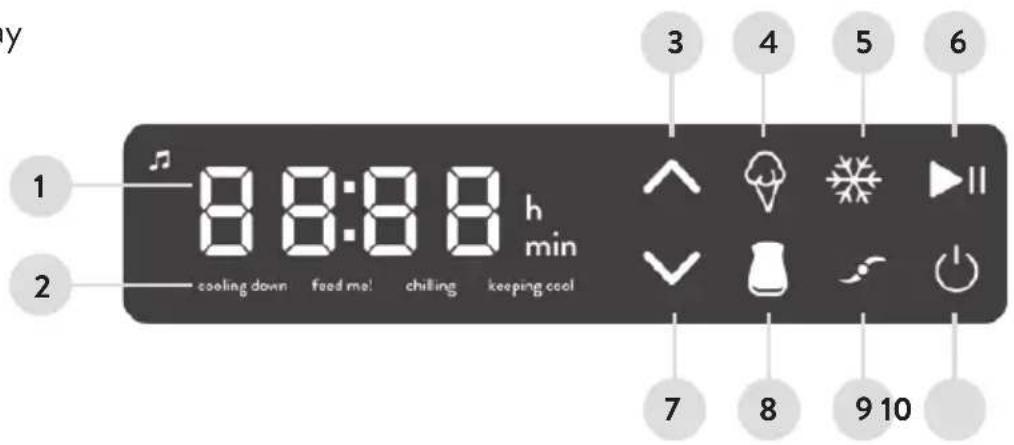

Display

y 1 2 8:8:8 h min cooling down feed me! chilling keeping cool 3 4 5 6 7 8 9 10

1. Preparation time/refrigeration temperature display
2. Progress indicator

a. Cooling down – the appliance is cooling down
b. Feed me! – the appliance can be filled
c. Chilling – the appliance is making ice cream.
d. Keeping cool – the appliance is in

post-cooling mode

1. Time +
2. Ice cream mode
3. Pre-cooling mode
4. Start/Stop
5. Time -
6. Yogurt mode
7. Stirring mode
8. Power On/Off

Making ice cream

1. Prepare the ice cream ingredients in accordance with the recipe. Ice cream mixtures that need to be cooked beforehand should be prepared one day in advance to give the ice cream enough time to cool off. Cool the prepared mixture or the required ingredients down to about 6-8 °C (refrigerator temperature). Take note of the additional information under Tips for perfect ice cream.

2. Turn the appliance on

3. Select ice cream mode

1. The appliance is preset to 50 minutes for the preparation of normal ice cream. Press the arrow button and to adjust the preparation time.
2. Place all chilled ingredients in the removable ice cream container. Make sure that you do not exceed the maximum filling capacity. Fill the ice cream container only up to a maximum of 2/3, as the ice cream mixture expands during the freezing process.
3. Place the ice cream container in the chamber of the power unit.
4. Insert the mixing paddle.
5. Place the lid on the ice cream cont-

ainer and turn it counterclockwise as far as it will go to make sure it is firmly attached.

1. Now press the Start/Stop button ▶II The appliance will then start the cooling and stirring process.
2. If the ice cream hasn't reached the desired firmness after the programme has finished, you can let it freeze for another 60 minutes at most. Please also read the tips on how to make perfect ice cream. If the ice cream is firm before the set preparation time has passed, the machine will stop the stirring process. You can then remove the ice cream.
3. The display will show the time that remains. Once the programme has finished, you will hear the tone you selected.

Removing the ice cream

1. The ice cream is done when the display shows "00:00". Before removing the ice cream, switch off the appliance by pressing the ON/OFF button ⏻ and remove the plug from the power socket.
2. Remove the transparent lid.
3. Take the ice cream container out of the appliance and carefully pull the mixing rod out of the ice cream. If the ice cream container has frozen up slightly

and cannot be lifted out of the hollow in the housing easily, wait a few minutes before removing it.

1. Transfer the ice cream to a suitable container. When doing so, do not use any sharp or pointed objects. Instead, use plastic or wooden spoons to avoid damaging the ice cream container. We recommend silicone spatulas.
2. Once you're done making ice cream, turn the appliance off and remove the mains plug.

Pre-cooling function

You can use the pre-cooling function to improve cooling.

1. Turn the appliance on
2. Select ice cream mode
3. Now press down and hold the pre-cooling symbol ✿
4. Use the arrow buttons and to change the pre-cooling time. We recommend 5 minutes.
5. Press the Start/Stop button ▶II to start pre-cooling.
6. Once the programme has finished, you will hear the signal tone you selected.
7. Now pour in the chilled ice cream mixture and start ice cream mode as usual by pressing the Start/Stop button ▶ II

Making yogurt

1. Turn the appliance on
2. Wähle den Joghurtmodus aus
3. We recommend running the machine for at least 8 hours. You can adjust the duration as you wish by pressing the arrow buttons and.
4. Start the programme by pressing the Start/Stop button ▶ Please note that the stirring arm will not rotate while in yogurt mode, as this would hinder the development of the yogurt
5. Once the set time has passed, you will hear the signal tone you selected. Now transfer the yogurt to another container and let it cool in the fridge.

Setting stirring mode

1. Turn the appliance on
2. Select stirring mode
3. Adjust the stirring time as desired with the arrow buttons and .
4. Start the programme by pressing the Start/Stop button ▶ Please note that the device will not chill when in this mode. You can use it to add ingredients to your yogurt, for example.
5. Once the set time has passed, you will hear the signal tone you selected.

Setting the volume and tones

You can adjust the different tones and the volume, or you can set Erika to Mute.

1. Turn on the appliance
2. Hold down the arrow buttons and at the same time.
3. The display will show the tone selection with numbers from 1 to 5. Change the settings with the arrow buttons and √, the chosen tone will be played:

1. Loud music
2. Soft music
3. Loud signal tone
4. Soft signal tone

5. Mute

6. Press the Start/Stop symbol button ▶ to confirm your selection.

Post-cooling function

Ice cream

As soon as the ice cream program is finished the display will show „00:00If the ice cream is not taken out within 10 minutes after preparation time is up and no other button is pressed, the ice cream machine will automatically go into cooling mode every ten minutes for 1 hour. After 10 minutes, an acoustic signal will sound and the device switches to standby mode. You can manually extend the after-cool function for up to one hour by selecting the “COOLING ONLY” function and setting the desired time.

Yogurt

As soon as the yogurt program is finished the display will show „00:00“. The device will start the after-cooling function and the display will show “COOL”. The yogurt will be cooled for 15 minutes. Afterwards, the ventilator and compressor will switch off automatically. A sensor will monitor the temperature of the yogurt. If the temperature exceeds 9 °C, the ventilator and compressor switch on for 4 minutes to cool the yogurt down below 9 °C. If you do not switch off the device, the cooling program stays activated.

Motor protection function

As the ice cream mixture grows firmer, it is possible for the motor to jam. To prevent damage to the motor, the motor protection function ensures that the stirring motor automatically stops once a firm ice-cream consistency is reached.

Tips for perfect ice cream

• Homemade ice cream tastes best when it's fresh. It doesn't contain any preservatives, which is why it should ideally be eaten immediately.
  • Make sure that you always use very fresh eggs for your ice cream.
• For fruit flavours, always use fully ripe fruit and add it through the lid opening at the end of the preparation time.

• Instead of sugar, you can also use honey or syrup as a sweetener.
- You can use cream and milk interchangeably as desired. The more cream you add, the creamier your ice cream will be.
- The colder the ice cream mixture is before you start preparing the ice cream, the shorter your preparation time will be.

- Do not store the mixture in the appliance's ice cream container. Instead, transfer the ice cream to a suitable container with a lid. It can be stored in the freezer. You can prevent the formation of ice crystals by ensuring your container contains as little air as possible, or by storing it upside down – this way, the crystals will form on the lid, not on the ice cream.

- Use up the ice cream within one week, and never refreeze melted or thawed ice cream.

- You can achieve optimal results by filling at least 1/3 of the ice cream container. However, only fill the container up to a maximum of 2/3 to prevent overflowing. The ice cream expands during the freezing process.

- Please note: The ice cream mixture always tastes too sweet before freezing. It will only taste perfect once it's frozen.

Cleaning and care

Erika should be cleaned and dried after each use. Lack of or improper care of the appliance can impair the functionality of the ice cream maker.

• Never clean the appliance using running water or other liquids. Especially the motor and the compressor may not come into contact with water.

• Refrain from using scratching or abrasive cleaning agents.

• All removable parts can be cleaned in the dishwasher.

• Wipe off the compressor housing with a damp cloth.
• Dry off all parts well with a soft cloth before assembling your appliance. Before using the ice cream maker again, all parts should be thoroughly cleaned and dry.
• The ice cream scoop should be washed by hand.

Trouble shooting

If the appliance is not working properly, please follow these steps:

1. Check that you have followed the operating instructions precisely and correctly.
2. Check whether the table below offers a feasible solution.
3. Check that all fuses are intact.

Error codes

Error Code	Problem Solution
E 4 The motor has overheated.		Unplug the appliance and let it cool down for 1 hour.
E 5	The temperature sensor has a fault.	Disconnect the mains plug and plug it back in.Should the problem continue, please contact Customer Service.

Issues with the appliance

Problem Solution
The ice cream doesn't freeze.	Make sure that the compressor is working properly. Contact our customer services for repairs.
The ice cream is completely frozen on the outside and liquid on the inside.	While the programme was running, the ice cream mixture became so hard that the motor protection function was activated. As a result, the stirring arm stopped rotating. Remove the ice cream and stir it well. Reduce the programme duration the next time you use it.
The ice cream container freezes and sticks to the machine, so it cannot be removed.	Liquid (e.g. condensation or ice cream mixture) has made its way into the area between the container and the machine and has frozen. Switch off the machine and wait until the container can be removed.
The stirring rod freezes.	The motor protection function has been activated. Remove the container, transfer your ice cream to another container, and let the machine stand for at least 30 minutes.
The 2nd batch of ice cream freezes unevenly and the motor protection function is activated; the stirring rod stops rotating.	Let the machine stand for at least 30 minutes before filling it with the next batch of ice cream.
The ice cream is too hard when I take it out of the freezer.	If your ice cream has already been stored in the freezer for a while, you should let it thaw in the fridge or at room temperature for about 10-30 minutes.
The ice cream is too liquid.	In general, post-cooling is recommended for fruit ice cream or sorbet. To do so, put the ice cream into a suitable airtight container and let it chill in the freezer for at least 30 minutes.
	Make sure that your ice cream mixture is no warmer than room temperature when pouring it. In no case should hot ice cream mixture be poured into the appliance. You will receive optimal results at a temperature of about 6-8 °C.

Should the ice cream maker Erika have any other defects, please contact a professional repair service. Do not attempt to repair the appliance yourself.

Customer service

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

For questions concerning handling and functionality of our products, please contact our customer service:

Tel. [phone] - 80944-0

Email: [e-mail]

Disposal/Environmental protection

Our products are manufactured to high quality standards and are designed for a long service life.

Regular maintenance and care will help to extend service life. If the appliance is defective and can no longer be repaired, it must not be disposed of in the normal household waste.

Kronenburg Handel GmbH here with declares that the product complies with the essential CE requirements on the issuing date. The complete declaration of conformity can be accessed at https://www.springlane.de/pages/ce.

Take the appliance to a designated disposal point for recycling electrical or electronic equipment. Through professional disposal and recycling you make an important contribution to protecting our environment.

y 1 2 8:8:8 h min cooling down feed me! chilling keeping cool 3 4 5 6 7 8 9 10

Display 1 8:8:8:8 h min 2 cooling down feed me! chilling keeping cool 3 4 5 6 7 8 9 10

1 2 8:8:8 h min cooling down feed me! chilling keeping cool 3 4 5 6 7 8 9 10

la 1 2 8:8:88 h min cooling down feed me! chilling keeping cool 3 4 5 6 7 8 9 10

Bielefelder Str. 23, 49176 Hilter, Germany

Phone: [phone] - 80944-0

Fax: [phone] - 80944 - 20

Email: [e-mail]

Website: www.springlane.de
