LCB246 - Lighting BeamZ - Free user manual and instructions

Product type	LED light projector
Power supply	230 V AC, 50/60 Hz
Maximum power consumption	600 W (max chain total 4 units)
Light source	LED
Control	DMX512 (3-pin XLR)
Max units in a chain	4 (at 230 V / 16 A)
DMX terminating resistor required	120 ohms
Mounting	Mounting on truss or flat surface with clamps
Safety cable	Required for heights > 100 cm
Operating temperature	-5 °C to +45 °C
Use	Indoor use only
Protection rating	IP20
Cleaning	Soft cloth, low-pressure compressed air, no solvents
Fuse	Replace with fuse of same type and rating
External dimmer	Do not use
Safety distance to public	50 cm clearance around the device
Do not look into the beam	Risk of eye injury
Reset in case of error	Check software version and technical contacts
Recycling	Do not dispose with household waste (WEEE)

Frequently Asked Questions - LCB246 BeamZ

How to clean the projector?

Unplug the device and let it cool completely. Use a soft lint-free cloth and low-pressure compressed air to remove dust. For lenses, slightly dampen the cloth with a mild detergent solution. Never use solvents or abrasives.

Can I use this device outdoors?

No, this device is designed exclusively for indoor use. Do not expose it to moisture or rain.

How to connect multiple projectors via DMX?

Connect the DMX output of the controller to the DMX input of the first device, then link the output of each device to the input of the next. On the last device, place a 120-ohm terminating resistor between pins 2 and 3 of the DMX output.

What to do if the device does not respond to the DMX controller?

Check the DMX cable connection, the device addressing, and the presence of the terminating resistor. Try bypassing one device at a time to isolate a possible defect. Ensure that pins 2 and 3 are not reversed.

What type of fuse to use?

Use only fuses of the same type and rating as those specified on the device. Refer to the manual or contact BeamZ support for the exact value.

How many projectors can I power in a chain?

You can connect up to 4 units in a chain (at 230 V / 16 A) using the power output connector. Use a three-conductor cable with a minimum cross-section of 1.5 mm².

How to install the device on a truss?

Use certified clamps suitable for the weight. Secure the device with a safety cable attached to the designated attachment points. Ensure the location can support 10 times the weight of the device.

Can I look directly into the light beam?

No, never look directly into the light beam. This can cause eye injury. Rapid light changes may also trigger epileptic seizures in sensitive individuals.

What to do if the device turns off or flashes intermittently?

This may be due to overheating. Let the device cool down, reduce the ambient temperature, and ensure the ventilation slots are not obstructed. Clean the device if necessary. If the problem persists, the LEDs may be damaged.

How to resolve an error after reset?

Check the device software version and error messages. If mechanical adjustment is required, contact BeamZ after-sales service or an authorized partner.

USER MANUAL LCB246 BeamZ

SAFETY INSTRUCTIONS....3

UNPACKING INSTRUCTION....4

POWERSUPPLY 4

RIGGING 4

DMX512 CONTROL 5

CLEANING 5

TROUBLE SHOOTING 6

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 7

UITPAKKEN 8

AANSLUITSPANNING 8

RIGGING 8

DMX BEDIENING 9

REINIGEN 9

PROBLEMEN OPLOSSEN 10

DEUTSCH

RESOLUTION DE PROBLEMES....22

POLSKI

INSTRUKCJA BEZPIECZENSTWA 23

ROZPAKOWYWANIE INSTRUKCJI 24

ZASILACZ 24

MOCOWANIE....24

KONTROLA DMX512 25

CZYSZCZENIE 25

ROZWIAZYWANIE PROBLEMÓW 26

TECHNICAL DETAILS

CONTROL MENU 27

DMX CHANNELS 28

8 CHANNELS 28

11 CHANNELS 28

20 CHANNELS 28

38 CHANNELS 29

74 CHANNELS....30

COLOUR CHASE TABLE 31

TECHNICAL SPECIFICATIONS....32

SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
- This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and

have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from

shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5mm^2 . The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

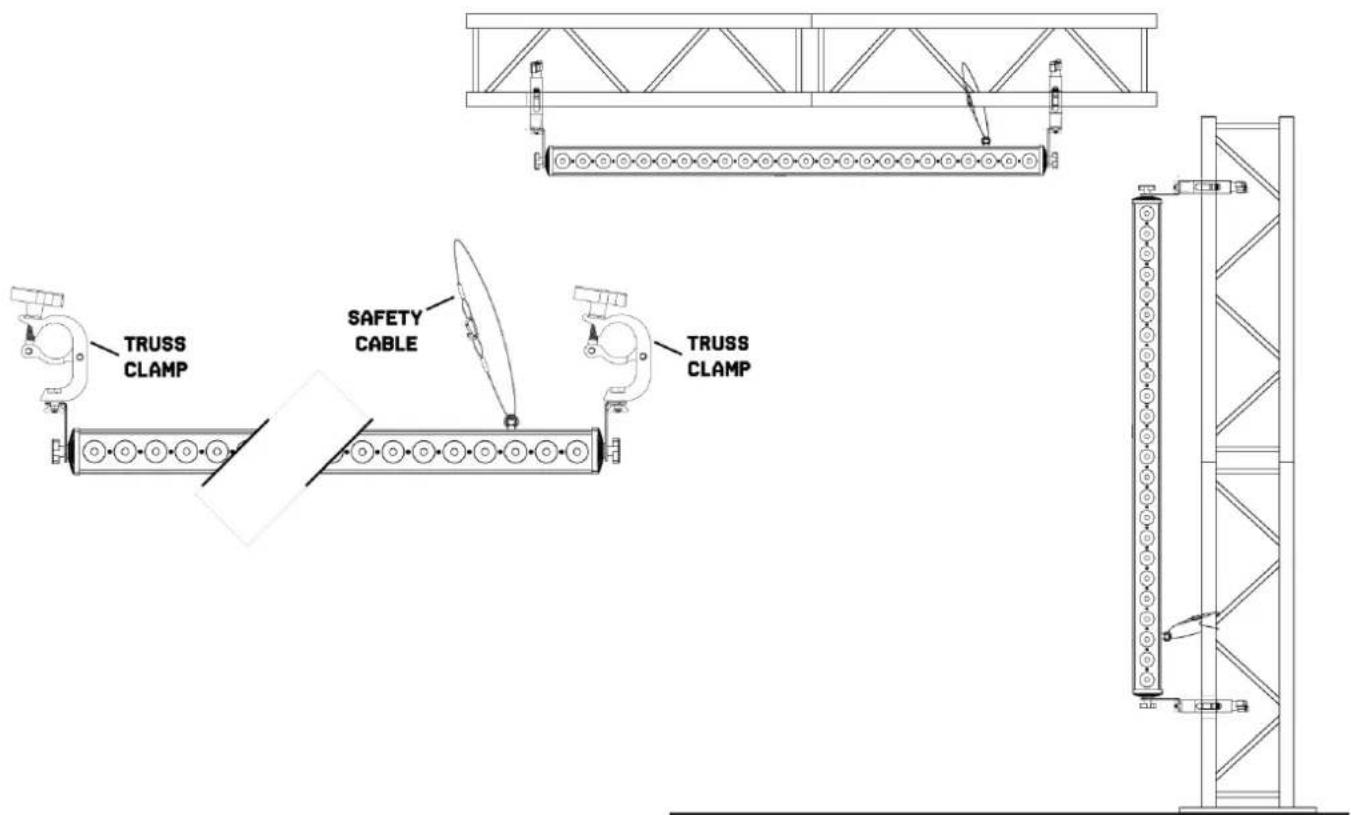

RIGGING

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!

TRUSS CLAMP SAFETY CABLE TRUSS CLAMP

DMX512 CONTROL

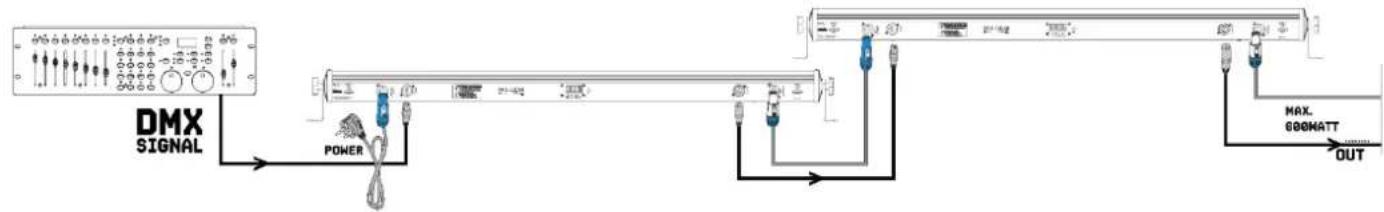

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

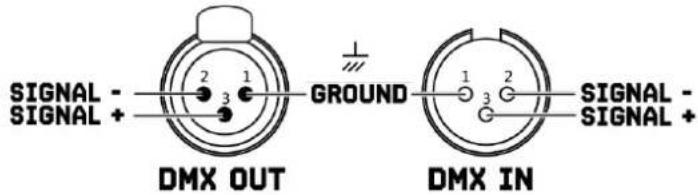

SIGNAL - SIGNAL + DMX OUT GROUND 1 2 3 1 2 3 DMX IN SIGNAL - SIGNAL +

1 2 3 120 OHM TERMINATOR

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
• Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained.Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

Rated voltage :100-240VAC, 50-60Hz, 1.7-0.9A

LED : 24x 6Watt 6-in-1 LED (Red, Green, Blue, Amber, White, Ultra Violet)

Beam angle : 20-33°

Illuminance : 5.675lx @1m

Flash rate :1-20Hz

DMX Channels : 8, 11, 20, 36, 74

Functions : DMX, Automatic programs, Sound to light and Master-Slave.

Dimensions per unit : 1010 x 75 x 76mm

Weight (per unit) : 3,65kg

Design and product specifications are subject to change without prior notice.
