USER MANUAL Kratos BeamZ

SAFETY INSTRUCTIONS....4

UNPACKING INSTRUCTION....5

POWERSUPPLY 5

RIGGING 5

DMX512 CONTROL 6

APP INSTRUCTION....6

REMOTE CONTROLLER....6

CLEANING 7

PROTECTION CLASS IP65 7

MAINTENANCE....7

TROUBLE SHOOTING 8

NEDERLANDS

VEILIGHEIDSINSTRUCTIES 9

UITPAKKEN....10

AANSLUITSPANNING....10

RIGGING 10

DMX BEDIENING 11

APP INSTRUCTIE....11

AFSTANDSBEDIENING 11

REINIGEN 12

BESCHERMINGSKLASSE IP65 12

ONDERHOUD....12

PROBLEMEN OPLOSSEN 13

DEUTSCH

SCHUTZKLASSE IP65....17

PFLEGE....17

FEHLERSUCHE 18

ESPAÑOL

KLASA OCHRONY IP65 32

KONSERWACJA 32

ROZWIAZYWANIE PROBLEMÓW 33

TECHNICAL DETAILS

CONTROL MENU 34

DMX CHANNELS 35

2 channels....35

4 channels....35

6 channels 35

11 channels....35

32 channels....36

64 channels....36

128 channels 36

TECHNICAL SPECIFICATIONS 37

SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.

• Unpack and check carefully that there is no transportation damage before using the unit
- Please read these instructions carefully and follow the instructions.
- Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

• After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
• Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
- Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
• Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

- Do not switch the unit on and off in short intervals.

- Do not connect the unit to a dimmerpack.

• Install the unit in a well ventilated place.

- Never place any material over the lens.

- Never let the sunlight lights directly to the front lens, even when the unit is not working.

• Always allow free air space of at least 50 cm around the unit for ventilation.

• Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.

- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.

- This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

• Make sure that the unit is not exposed to extreme heat or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.

- Do not expose this unit to flammable materials, fluids or gases.

- If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

- Never attempt to bypass the thermostatic switch or fuses.

- Do not dismantle or modify the unit.

- For replacement use fuses/bulb of same type and rating only.

• Repairs, servicing and electric connection must be carried out by a qualified technician.

- The ambient temperature must always be between -5^ and +45^ .

- If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.

- Plastic bags must be kept out of reach of children.

- Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to ry, it is important that the product be returned in the original factory box and packing.

If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.

POWERSUPPLY

The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

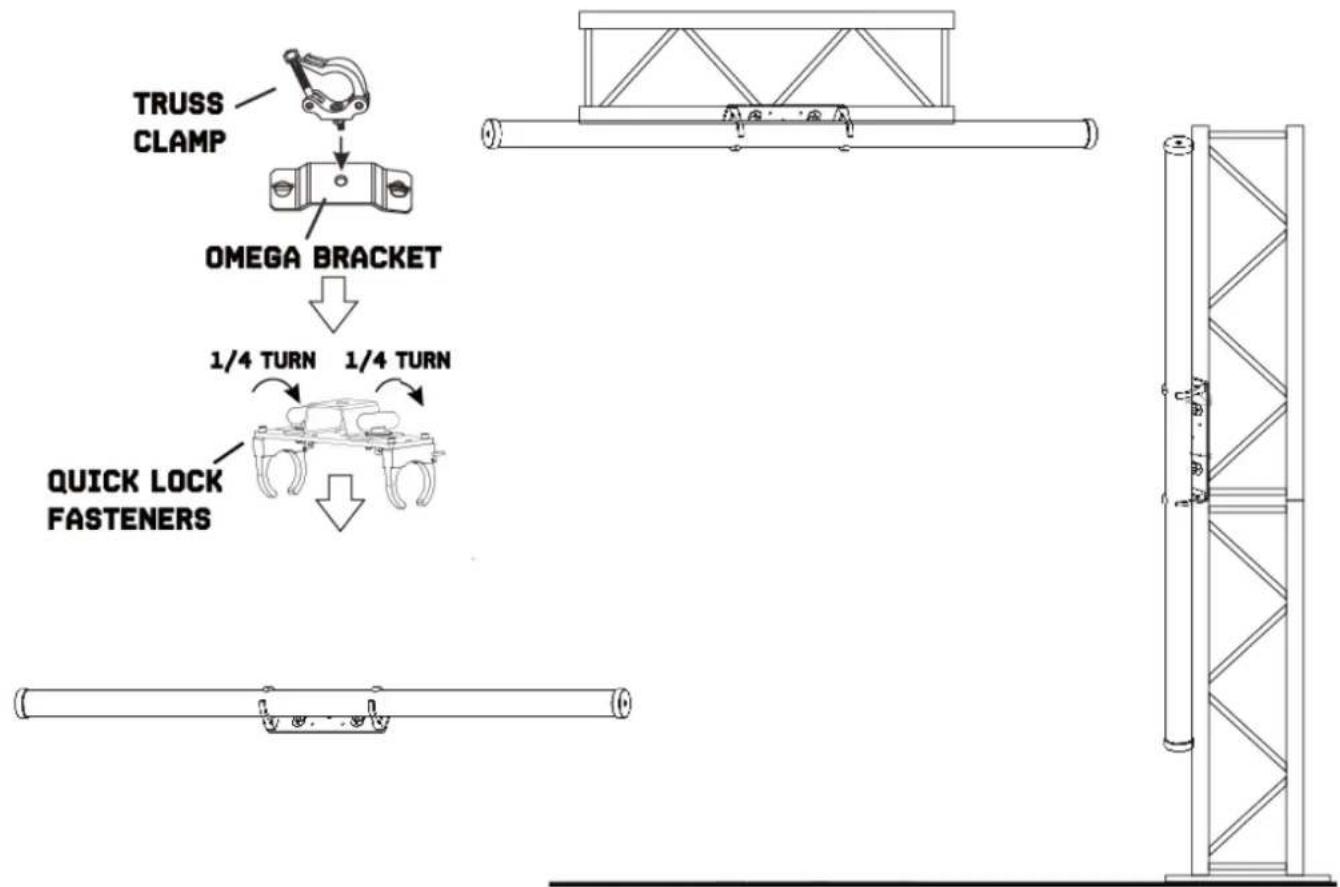

RIGGING

The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.

When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!


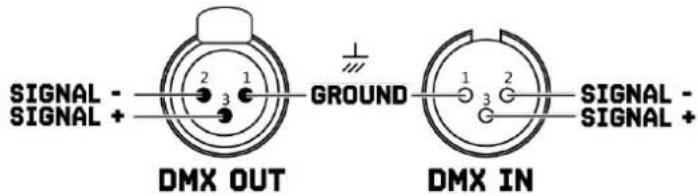

DMX512 CONTROL

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.

SIGNAL - SIGNAL + DMX OUT GROUND DMX IN 1 2 3 1 2 3 SIGNAL - SIGNAL + Ground

1 2 3 120 OHM TERMINATOR

APP INSTRUCTION

STEP 1:

Find [WIFI] and press to turn[ENTER].

STEP 2:

"Led_XXX" displayed on the screen is the WIFI address of the light fixture.

STEP 3:

Scan the above QR code to install [LED LiAMP] mobile phone.

STEP 4:

On the phone, find WIFI and search WIFI address, and the words beginning with LED appear. For example, "LED-XXX", click the link.

STEP 5:

Turn on the [AED in LAMP] on the phone and show the link is successful then you can control it.

QR code with a central logo containing the text 'CSD' and a rainbow-colored circular design.

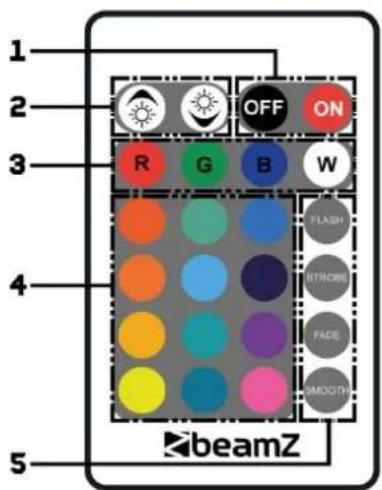

REMOTE CONTROLLER

1. SWITCHING THE LEDS ON AND OFF

The LEDs can be switched on with the button ON and switched off with the button OFF.

2. ADJUST BRIGHTNESS AND SPEED

Use the buttons and to adjust the brightness for the static colours or speed in program mode.

3. SELECT BASIC COLOUR

R: Select red colour

G: Select green colour

B: Select blue colour

W: Select white colour

4. COLOUR BUTTONS

For constant lighting of all LEDs in one colour, press the corresponding colour button.

5. SELECTING AN INTERNAL PROGRAM

FLASH: Colour switch

STROBE:Colour strobe

FADE: Colour fade

SMOOTH: Colour switch and strobe

1 2 3 4 5 beamZ OFF ON R G B W FLASH INTRCORN FADE SMOOTH

CAUTION! The remote control is supplied with a battery inserted. An insulating foil between the battery and the battery contacts prevents the battery from being discharged during storage. Prior to the first operation remove the foil from the battery support on the rear side of the remote control. Otherwise operation of the remote control is not possible.

If the range of the remote control decreases, replace the battery. For this purpose, on the rear side of the remote control press the small bar with the groove to the right (1) and at the same time remove the battery support (2). For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the positive pole of the button cell shows upwards in the support.

1 2

CLEANING

The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.

To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.

Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.

Use the following guidelines:

• Disconnect the unit from power and allow it to cool completely before cleaning.
• Do not use solvents, abrasives or any other aggressive product to clean the unit.
• Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
• Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
• Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.

PROTECTION CLASS IP65

Units with protection class IP65 are dust-tight and completely protected against contact (first code number). They are also protected against splash water from any angle (second code digit). That is why this unit can also be used out- doors. Events units are generally only designed for temporary use however (event lighting) and not for permanent use outdoors. The specified protection class does not make a statement about the weather resistance of the units (resistance to changing ambient conditions as well as against the effects of sunlight and UV rays). The seals and screw connections of the units must be checked regularly to ensure a fault-free operation.

MAINTENANCE

This unit is virtually maintenance-free, but you should check the unit regularly for mechanical and electrical aspects.

Assess the operating environment and establish an inspection and cleaning schedule that follows the guidelines below:

• Disconnect the unit from the power supply and allow it to cool completely before inspecting and cleaning.
• Check that the screws and bolts used to install the unit are securely tightened and free from corrosion.
• Check the housing, fixing points and installation points, they must not show any signs of deformation, wear or fatigue.
• Check the mechanically moving parts, these must not show any signs of wear or fatigue.
• Check the electrical power and signal cables, they must not show any damage or fatigue.
• Do not use solvents, abrasives or other aggressive products to clean the unit.
• Wipe the unit and clean the glass plate with a soft, clean, lint-free cloth moistened with a weak cleaning solution. Place the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
  • Dry the unit, connectors and contacts with a soft, clean, lint-free cloth or low-pressure compressed air before re-powering the unit.

TROUBLE SHOOTING

The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:

SYMPTOM	POSSIBLE CAUSE	SUGGESTED ACTION
No response from unit.	No power to unit.Fuse blown or internal fault.	Check that power is turned on.Check cables and connections.Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner.
Unit resets correctly but does not respond (or does not respond correctly) to the controller.	The controller is not connected.Bad DMX-line.DMX-line has no end resistance.Incorrect unit addressing.A unit is defective and is disturbing data transmission on the DMX-line.Pin 2 and 3 are reversed in XLR connection.	Connect controller.Inspect connections and cables. Correct poor connections. Repair or replace damaged cables.Insert DMX terminator plug in DMX output socket of last unit on DMX-line.Check unit address and DMX mode settings.Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained.Have defective unit serviced by an authorized technician.Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically.
Error after unit reset.	Effect requires mechanical adjustment.	Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner.
Light output cuts out intermittently.	Unit too hot.LEDs damaged.The power supply settings do not match local AC voltage and frequency.	Allow unit to cool. Reduce ambient temperature. Ensure free airflow around unit. Clean unit if necessary.Disconnect unit and contact Beamz support or Beamz authorized service partner.Disconnect unit. Check settings and correct if necessary.

VEILIGHEIDSINSTRUCTIES

QR code with central logo containing 'LED' text and rainbow-colored circular design

AFSTANDSBEDIENING

1. IN- EN UITSCHAKELEN VAN DE LEDS

BESCHERMINGSKLASSE IP65

QR code with a central logo containing the text 'UBS'

FERNBEDIENUING

QR code with a colorful circular logo in the center, likely linking to a digital resource or website.

MANDO A DISTANCIA

1. OFFENCENDIENDO Y APAGANDO LOS LEDS

QR code with a central logo featuring a rainbow-colored 'LED' and white text.

TELECOMMANDE

1. ENCENDIENDO Y APAGANDO LOS LEDS

QR code with central logo containing 'LSD' text and rainbow-colored circular design

PILOT ZDALNEGO STEROWANIA

1. WLACZANIE I WYLACZANIE LEDÓW

MENU				DESCRIPTION
DMX MODE	001-512			DMX address setting and Receive mode
SHOW	Auto	Auto Mode:000-068		68 kinds of Auto effect
		Speed:001-016		1-16 from slow to fast on speed setting
		Color:000-015		Color setting, 0 for automatic color change, a total of 15 colors
	Sound	Sound Mode:001-004		4 sound control modes optional
		Sens:001-100		Sound sensitivity setting
		Color:000-015		Color setting, 0 for automatic color change, a total of 15 colors
	Static Color	Dimmer:000-255		Overall dimming
		Strobe:000-255		Strobe
		Red:000-255		Red dimming
		Green:000-255		Green dimming
		Blue:000-255		Blue dimming
		White:000-255		White dimming
	Color	Built in static color		Red	Cyan	Blue+W
				Green	Purple	Yellow+W
				Blue	Warm	Cyan+W
				White	Red+W	Purple+W
				Yellow	Green+W	Full
	CCT	Color temperature		2800K, 3000K, 3200K, 3500K, 3800K, 4000K, 4500K, 5000K, 5600K, 6000K, 6500K, 7000K, 7500K, 8000K, 8500K, 9000K, 9500K, 10000K
	Wifi			On the phone, connect WIFI address "Led_XXX" and turn on the APP【LED LAMP】to control
SET	DMX channel	2CH/4CH/6CH/11CH/32CH/64CH/128CH		7 DMX channel modes
	DMX fail	HOLD / Blackout		Status of light fixture after DMX fail
	Display reverse	OFF / ON		Display Reverse OFF / ON
	Display on time	ON / 30S / 60S		Display start time
	Menu lock	OFF / ON		When Menu Lock is ON, the button will is locked after 30 seconds without any operation, and press the UP+DOWN button for 5 seconds to unlock.
	IR remote	OFF / ON		Infrared remote control OFF / ON
	Wireless 2.4g	Wireless	OFF / ON	Wireless DMX OFF / ON
		Connect	NO / YES
		Reset	NO / YES
		Mode	Receive / Transmit
	Factory set	1.Red	000-255	Limit the red brightness value, factory default value is 220
		2.Green	000-255	Limit the green brightness value, factory default value is 220
		3.Blue	000-255	Limit the blue brightness value, factory default value is 220
		4.White	000-255	Limit the white brightness value, factory default value is 220
		5.State	Single / Whole	Single: only the current color, Whole: full color working
		6.T.Limit	040-100	Set the start temperature of temperature protection
	Factory reset	NO/ YES		YES: Restore factory settings
INFO	Name	Kratos
	Version	Vxxx		Software version

DMX CHANNELS

2 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	OVERALL DIMMER	000-255	Linear dimming from 0-100%
2	NO FUNCTION	000-010	CCT
	2800K	011-024
	3000K	025-038
	3200K	039-052
	3500K	053-066
	3800K	067-080
	4000K	081-094
	4500K	095-108
	5000K	109-122
	5600K	123-136
	6000K	137-150
	6500K	151-164
	7000K	165-178
	7500K	179-192
	8000K	193-206
	8500K	207-220
	9000K	221-234
	9500K	235-248
	10000K	249-255

4 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	RED DIMMER	000-255	Linear dimming from 0-100%
2	GREEN DIMMER	000-255	Linear dimming from 0-100%
3	BLUE DIMMER	000-255	Linear dimming from 0-100%
4	WHITE DIMMER	000-255	Linear dimming from 0-100%

6 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	OVERALL DIMMER	000-255	Linear dimming from 0-100%
2	STROBE	000-010	No function
		011-255	From slow to fast (1HZ-20HZ)
3	RED DIMMER	000-255	Linear dimming from 0-100%
4	GREEN DIMMER	000-255	Linear dimming from 0-100%
5	BLUE DIMMER	000-255	Linear dimming from 0-100%
6	WHITE DIMMER	000-255	Linear dimming from 0-100%

11 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	OVERALL DIMMER	000-255	Linear dimming from 0-100%
2	STROBE	000-010	no function
		011-255	From slow to fast(IHZ-20HZ)
3	STATIC MACRO	000-010	No function
		011-255	17 values for each color
4	MACRO BACKGROUND COLOR	000-016	No function
		017-255	17 values for each color
5	MACRO BACKGROUND COLOR BRIGHTNESS	000-255	Linear dimming from 0-100%
6	MACRO	000-010	No function
		011-220	3 values for each macro effect
		221-228	Sound control mode 1
		229-236	Sound control mode 2
		237-244	No function
		245-255	Sound control mode 3
7	MACRO SPEED	000-255	From slow to fast
8	RED DIMMER	000-255	Linear dimming from 0-100%
9	GREEN DIMMER	000-255	Linear dimming from 0-100%
10	BLUE DIMMER	000-255	Linear dimming from 0-100%
11	WHITE DIMMER	000-255	Linear dimming from 0-100%

32 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	RED 1 DIMMER	000-255	Linear dimming from 0-100%
2	GREEN 1 DIMMER	000-255	Linear dimming from 0-100%
3	BLUE 1 DIMMER	000-255	Linear dimming from 0-100%
4	WHITE 1 DIMMER	000-255	Linear dimming from 0-100%
...	......	...	...
29	RED 8 DIMMER	000-255	Linear dimming from 0-100%
30	GREEN 8 DIMMER	000-255	Linear dimming from 0-100%
31	BLUE 8 DIMMER	000-255	Linear dimming from 0-100%
32	WHITE 8 DIMMER	000-255	Linear dimming from 0-100%

64 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	RED 1 DIMMER	000-255	Linear dimming from 0-100%
2	GREEN 1 DIMMER	000-255	Linear dimming from 0-100%
3	BLUE 1 DIMMER	000-255	Linear dimming from 0-100%
4	WHITE 1 DIMMER	000-255	Linear dimming from 0-100%
...	......	...	...
61	RED 16 DIMMER	000-255	Linear dimming from 0-100%
62	GREEN16 DIMMER	000-255	Linear dimming from 0-100%
63	BLUE 16 DIMMER	000-255	Linear dimming from 0-100%
64	WHITE 16 DIMMER	000-255	Linear dimming from 0-100%

128 CHANNELS

CHANNEL	FUNCTION	VALUE	DESCRIPTION
1	RED 1 DIMMER	000-255	Linear dimming from 0-100%
2	GREEN 1 DIMMER	000-255	Linear dimming from 0-100%
3	BLUE 1 DIMMER	000-255	Linear dimming from 0-100%
4	WHITE 1 DIMMER	000-255	Linear dimming from 0-100%
...	......	...	...
125	RED 32 DIMMER	000-255	Linear dimming from 0-100%
126	GREEN 32 DIMMER	000-255	Linear dimming from 0-100%
127	BLUE 32 DIMMER	000-255	Linear dimming from 0-100%
128	WHITE 32 DIMMER	000-255	Linear dimming from 0-100%

TECHNICAL SPECIFICATIONS

Supplied features Master/Slave mode

Light source 4-in-1 LED

LED colours Red, Green, Blue, White

Colour temperature 2800K - 10000K

Quantity of LEDs 288

Beam angle 180°

Flash rate per second 1 - 20Hz

DMX channels 2, 4, 6, 11, 32, 64, 128

DMX connector 3-pin XLR, Wireless DMX

Modes Automatic programs, DMX, Manual, Master/Slave

IP rating IP65

Cooling Convection

Display LCD

Power plug Power-connector

Battery 12V - 19.6Ah

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) ∅52 x 1195mm

Weight 2.50

Accessories DMX cable, Mounting bracket, Power cable, Remote control

Design and product specifications are subject to change without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

BEAMZ

offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!
