PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

Contents

Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas____	Pg. 1
Distance Charts and Formulas____	Pg. 2
Ceiling Mount/Desktop Installation____ Pg. 3____
Lens Shift Adjustable Range____	Pg. 4
Cabinet Dimensions____	Pg. 5-6
Ceiling Mount____ Pg. 7____
Optional Lens Dimensions____	Pg. 8
Ventilation Requirements/Portrait Requirements____	Pg. 9
Air Flow____	Pg. 10-11
Regulatory Labels and Input Panel____	Pg. 12
Control Codes____	Pg. 13

White projector with black lens and black base (no visible text or symbols)

Product Description

Type:	3 panel LCD projector,1.0" p-Si TFT w/MLA	Dimensions: 23.6"(W) x 19.3"(D) x 8.5"(H)Weight: PA1505UL: 63.7 lbsPA1705UL: 63.7 lbs
Resolution:	1920 x 1200 (16:10)	Brightness: PA1505UL: 15,000 LumensPA1705UL: 17,000 Lumens
Fan Noise:	PA1505UL: 40 dB / 36dB @ 1 meterPA1705UL: 42 dB / 39dB @ 1 meter
Power Consumption:	PA1505UL: 960W (max)PA1705UL: 1035W (max)	BTU's: PA1505UL: 3264 BTU/hourPA1705UL: 3519 BTU/hour

Lens Specifications

NP53ZL:	Throw Ratio: 0.86 – 1.25:1Screen Sizes: 60” - 500”	Focal Length: 19.0 – 27.6mmF/#:1.8 – 2.24	Weight:	11.7lbs. / 5.3kg
NP54ZL:	Throw Ratio: 1.24 – 2.01:1Screen Sizes: 60” - 500”	Focal Length: 27.7 – 44.9mmF/#:1.8 – 2.24	Weight:	9.9lbs. / 4.5kg
NP55ZL:	Throw Ratio: 1.98 – 3.95:1Screen Sizes: 60” - 500”	Focal Length: 43.8 – 87.4mmF/#:1.84 -2.58	Weight:	11.9lbs. / 5.4kg

Screen/Aspect Ratio

4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

Formulas: 16:10 Aspect Ratio (WUXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width for "W" in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas:

NP53ZL:	C(Wide) = 0.877W - 1.808 ---- C(Tele) = 1.279W - 1.970
NP54ZL:	C(Wide) = 1.279W - 3.242 ---- C(Tele) = 2.044W - 2.920
NP55ZL:	C(Wide) = 2.031W - 4.799 ---- C(Tele) = 4.000W - 4.742

Definitions: 16:10 Screen Formulas

W = Image Width	W = H x 16/10
H = Image Height (size)	H = W x 10/16
C = Throw distance	Diagonal = W x 18.868/16

Horizontal Lens Shift Max (Right) = 0.25W (NP53ZL, NP54ZL, NP55ZL)

Horizontal Lens Shift Max (Left) = 0.25W (NP53ZL, NP54ZL, NP55ZL)

Vertical Lens Shift Max (Up) = 0.65H (NP53ZL, NP54ZL, NP55ZL)

Vertical Lens Shift Max (Down) = 0.65H (NP53ZL, NP54ZL, NP55ZL)

Distance Chart for popular 16:10 Screens (WUXGA)

Screen Size (16:10)			Zoom Lenses
			NP53ZL			NP54ZL			NP55ZL
Diagonal	Width(W)	Height (H)	0.86 - 1.25:1			1.24 - 2.01:1			1.98 - 3.95:1
inches	inches	inches	inches			inches			inches
40	34	21	N/A	-	N/A	N/A	-	N/A	N/A	-	N/A
60	51	32	42.8	-	63.1	61.8	-	101.1	98.5	-	198.8
67	57	36	48.0	-	70.7	69.4	-	113.3	110.6	-	222.5
72	61	38	51.7	-	76.1	74.8	-	121.9	119.2	-	239.5
84	71	45	60.7	-	89.1	87.9	-	142.7	139.9	-	280.2
94	80	50	68.1	-	100.0	98.7	-	160.1	157.1	-	314.1
100	85	53	72.6	-	106.5	105.2	-	170.5	167.4	-	334.5
120	102	64	87.4	-	128.2	126.9	-	205.2	201.9	-	402.3
150	127	79	109.7	-	160.7	159.4	-	257.2	253.5	-	504.1
180	153	95	132.1	-	193.3	192.0	-	309.2	305.2	-	605.8
210	178	111	154.4	-	225.8	224.5	-	361.3	356.9	-	707.6
240	204	127	176.7	-	258.3	257.1	-	413.3	408.5	-	809.3
270	229	143	199.0	-	290.9	289.6	-	465.3	460.2	-	911.1
300	254	159	221.3	-	323.4	322.1	-	517.3	511.9	-	1012.9
400	339	212	295.7	-	431.9	430.6	-	690.7	684.1	-	1352.1
500	424	265	370.0	-	540.3	539.1	-	864.2	856.3	-	1691.3

Notes

• For screen sizes not indicated on the projection tables, use the formulas above respective charts. If the figures on the tables do not match the results of formulas, use the figures in the table.
  • Distances are in inches, for millimeters multiply by 25.4.
  • Distances may vary ±5%.

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

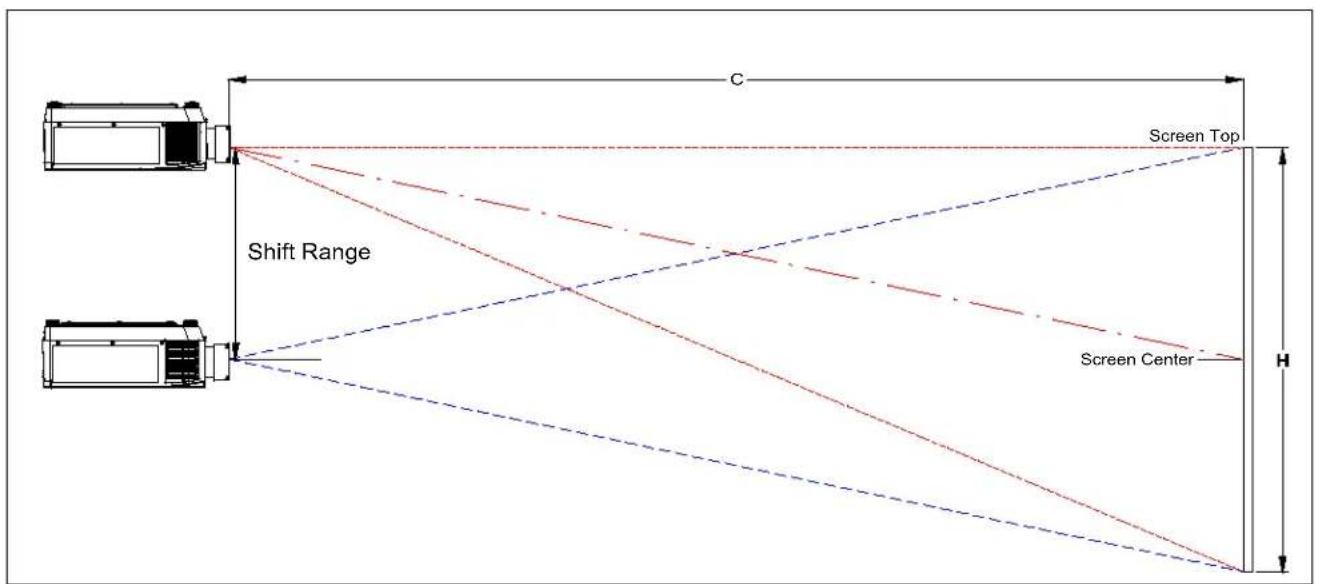

Ceiling Mount Installation

C Screen Top Shift Range Screen Center H

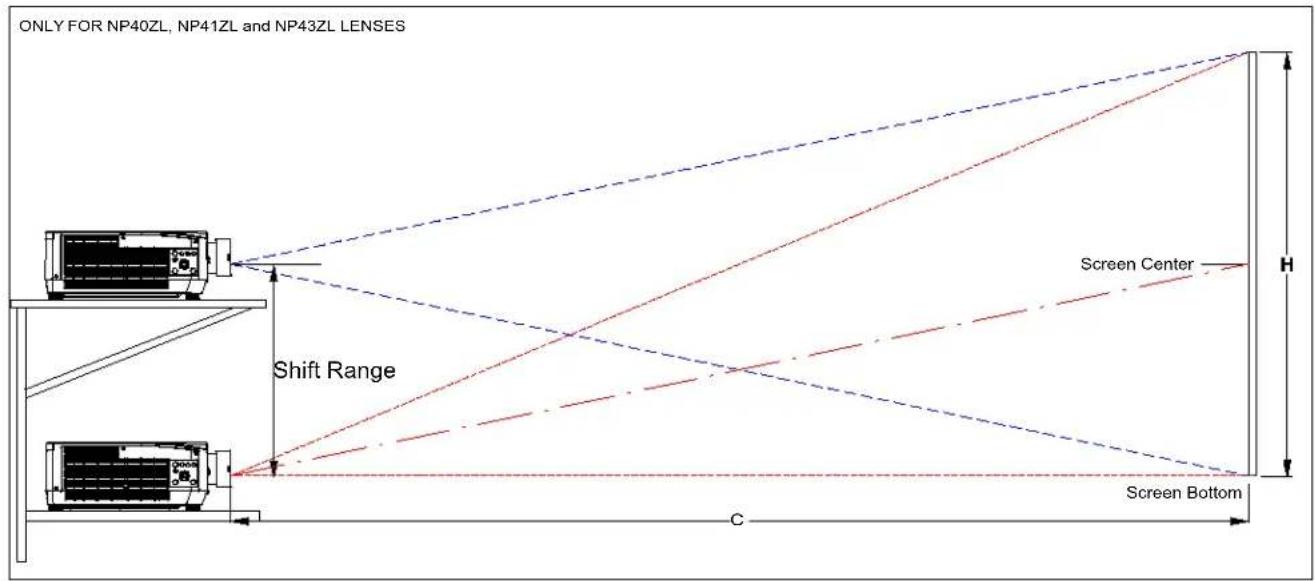

Desktop Installation

ONLY FOR NP40ZL, NP41ZL and NP43ZL LENSES Shift Range Screen Center Screen Bottom C H

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

Lens Shift Adjustable Range

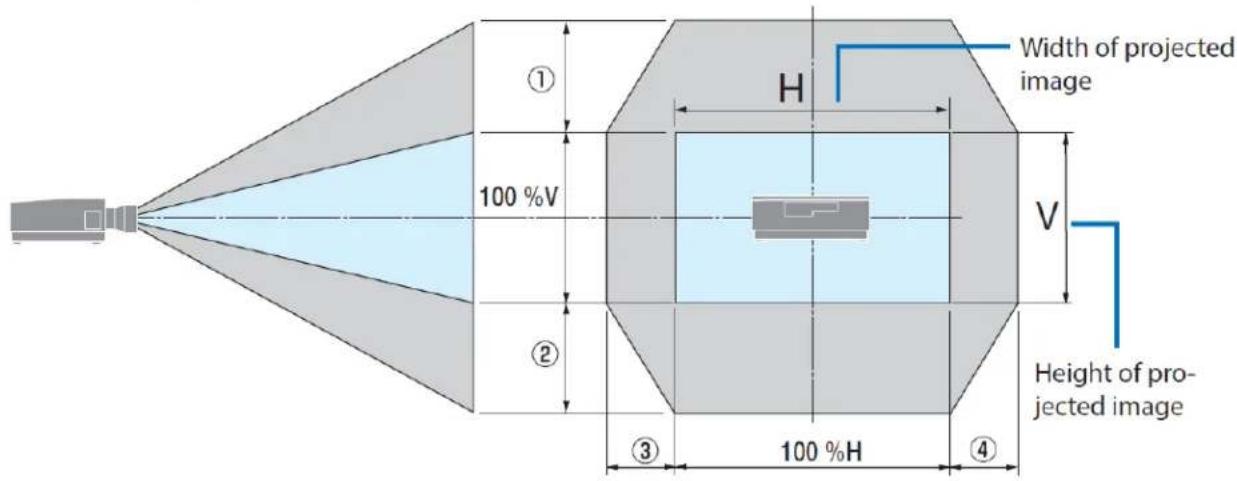

Desk/front projection

Width of projected image 100 %V H V Height of projected image ① ② ③ 100 %H ④

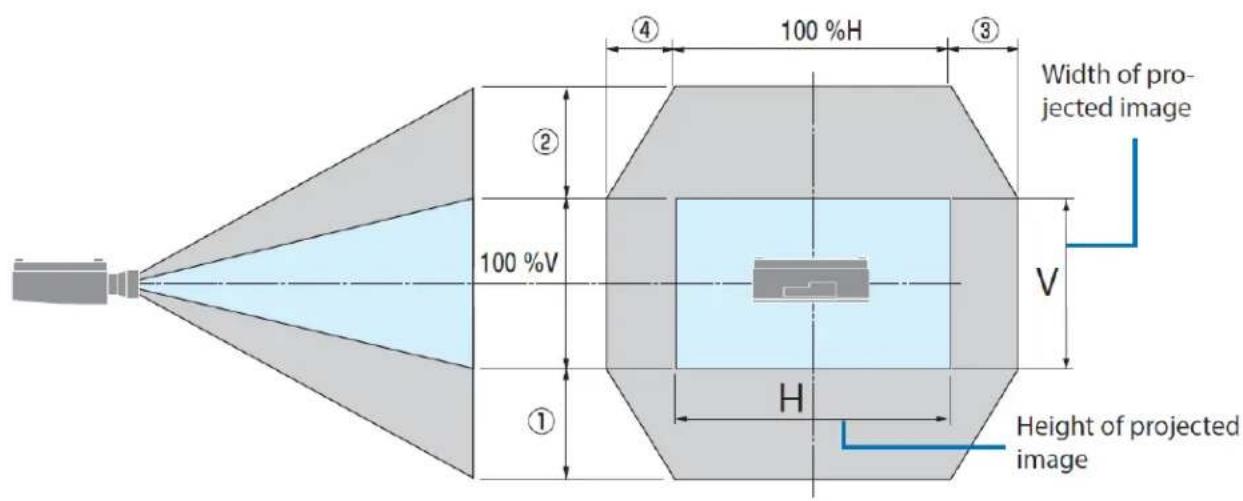

Ceiling/front projector

Width of pro- jected image 100 %H 2 100 %V ① ② ③ V ④ H Height of projected image

Number in the figure	Lens Unit
	NP51ZL	NP52ZL	NP53ZL	NP54ZL	NP55ZL	NP56ZL
1 2	50%V	55%V	65%V
3 4	20%H		25%H

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

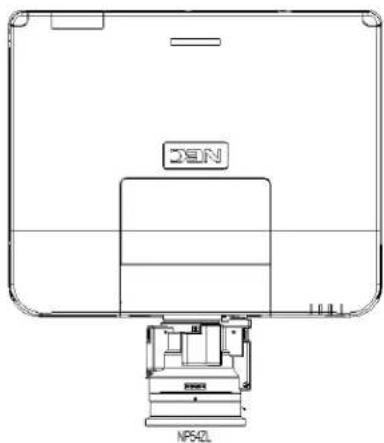

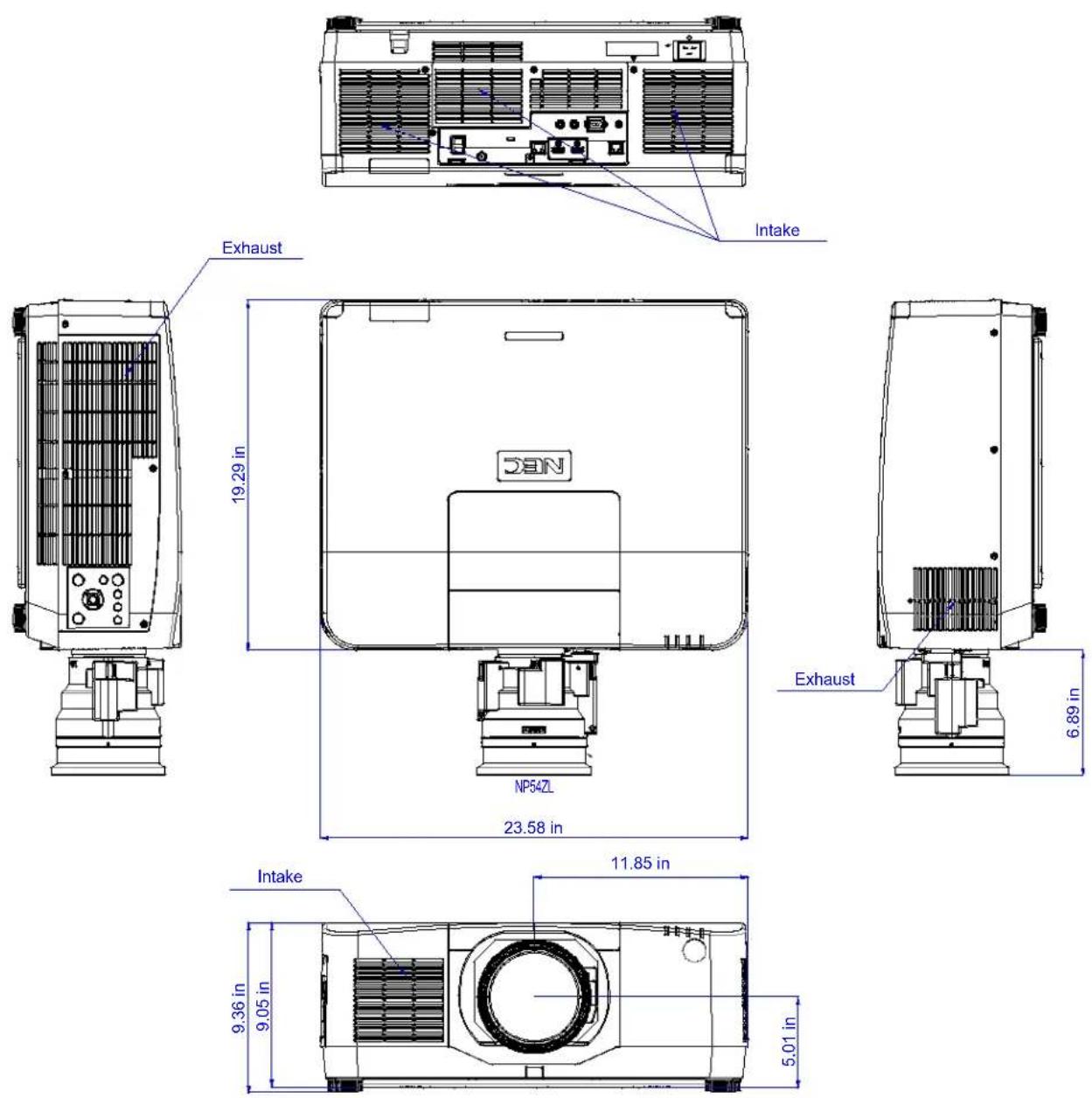

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the PA1505UL/PA1705UL.

Dimensions are in inches. For millimeters multiply by 25.4.

Note: Dimensions below shown with the NP54ZL lens

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

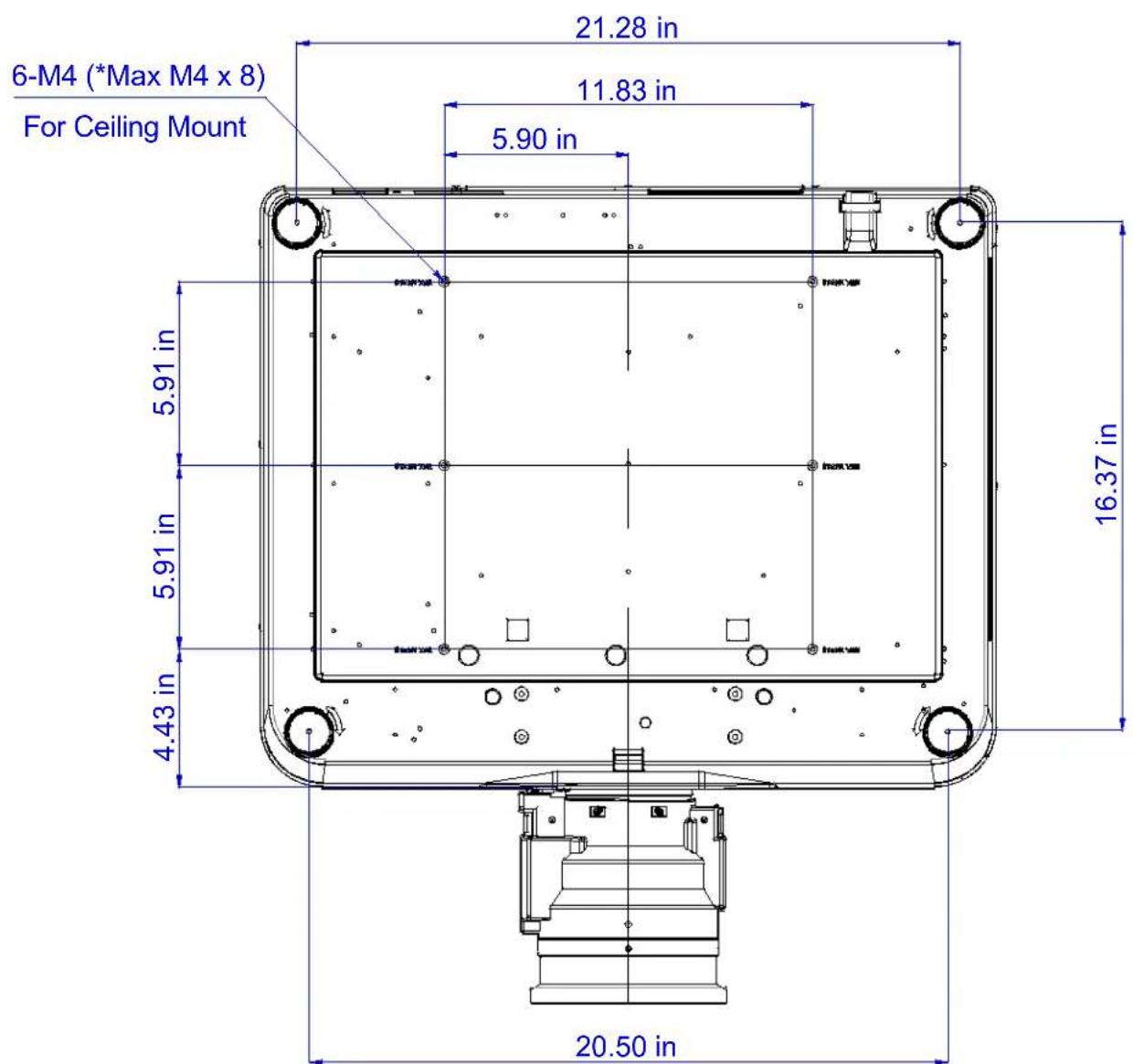

Cabinet Dimensions

6-M4 (*Max M4 x 8) For Ceiling Mount 21.28 in 11.83 in 5.90 in 5.91 in 5.91 in 4.43 in 16.37 in 20.50 in

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

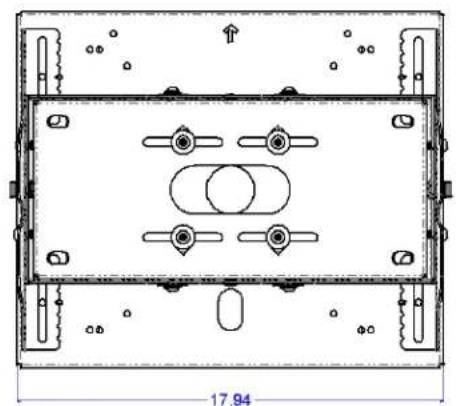

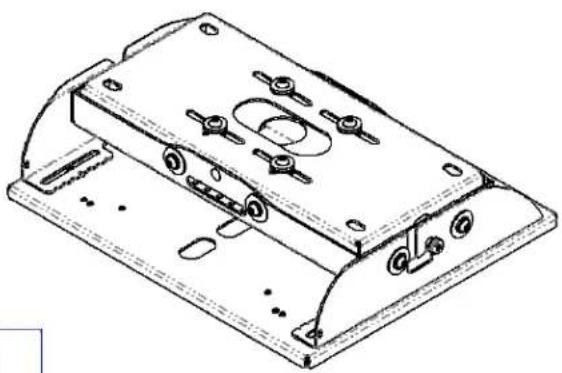

IPJ2000CM

Technical line drawing of a mechanical component with two circular features and a dimension label (4.66) — no readable text or symbols beyond the dimension marker.

Technical diagram of a rectangular electronic device with internal components and mounting holes, labeled dimension 17.94 (no text or symbols beyond measurement)

Technical line drawing of a mechanical housing component with mounting holes and internal slots (no text or symbols)

Technical drawing of a mechanical component with mounting holes and a vertical dimension label (15.00), no readable text or symbols beyond the dimension line.

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

Optional Lens Dimensions (NP53ZL and NP55ZL)

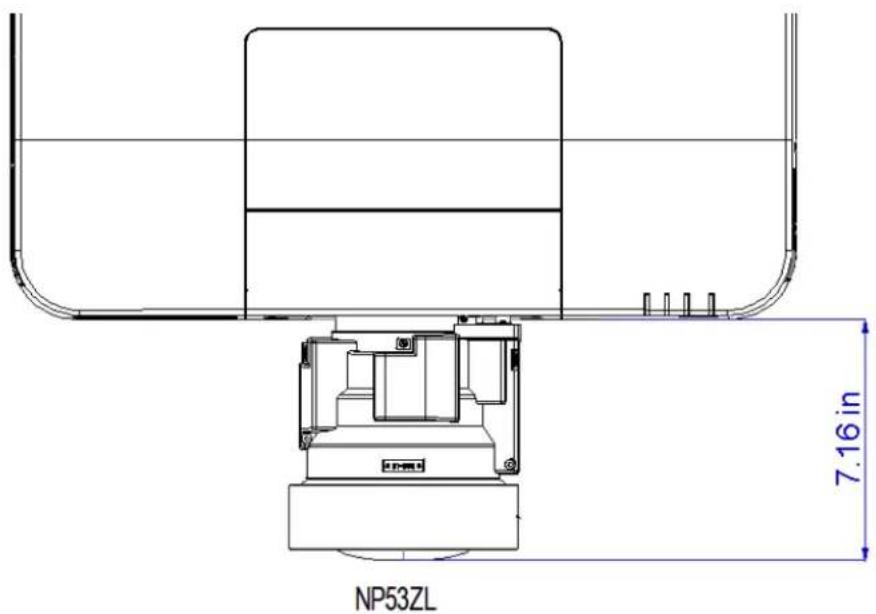

7.16 in NP53ZL

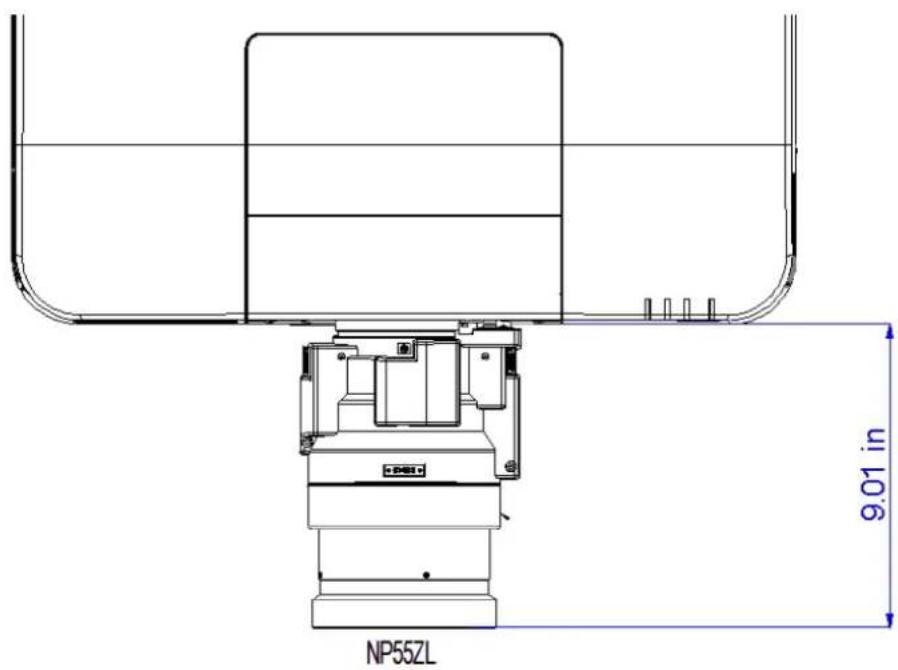

9.01 in NP55ZL

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

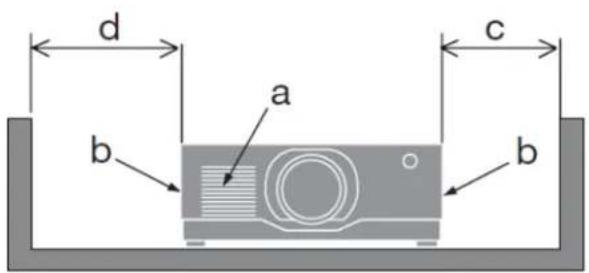

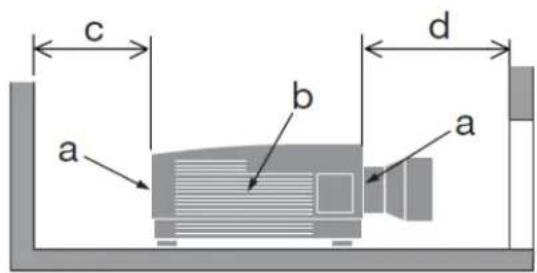

Ventilation Requirements

d a b c b

c b d a a

a: Intake vent / b: Exhaust vent / c: 20 cm/8" or greater / d: 30 cm/12" or greater

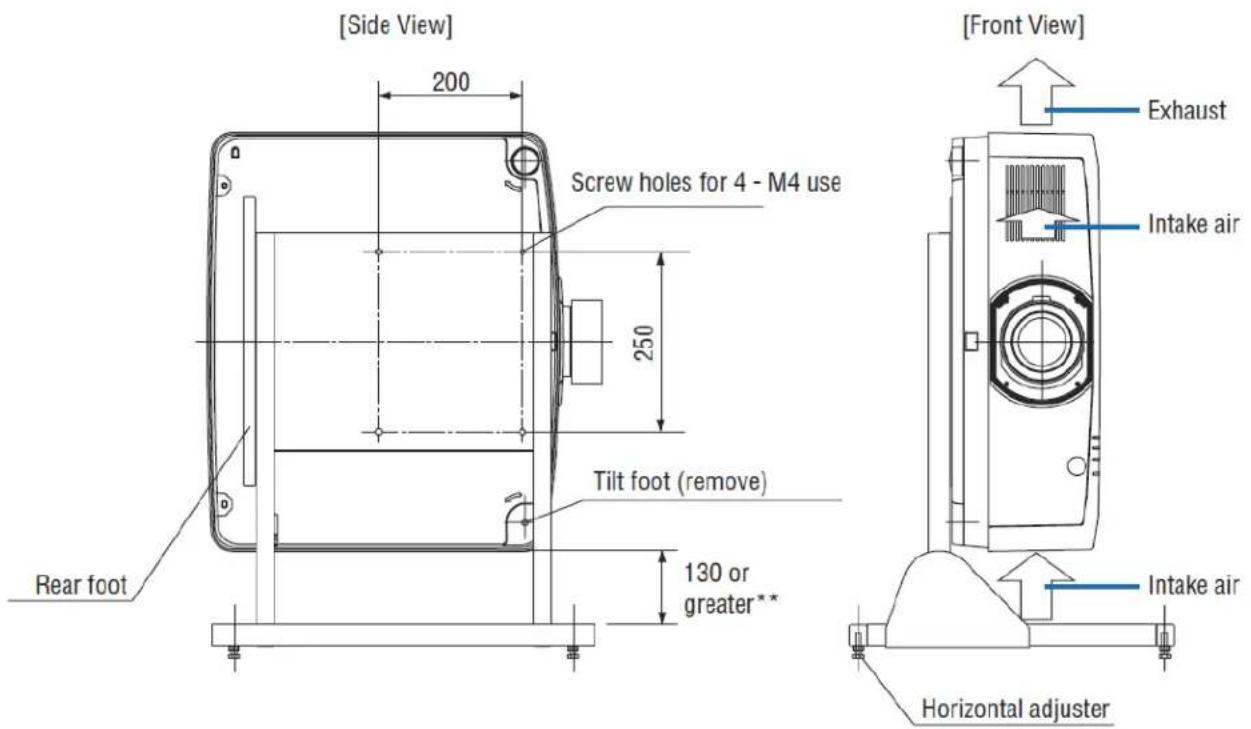

Portrait Requirements

[Side View] 200 Screw holes for 4 - M4 use 250 Tilt foot (remove) 130 or greater** Rear foot [Front View] Exhaust Intake air Intake air Horizontal adjuster

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

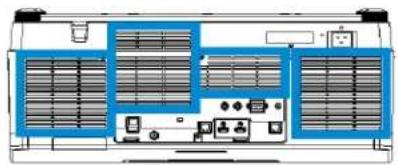

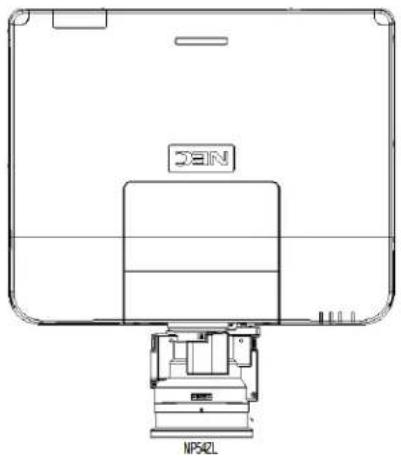

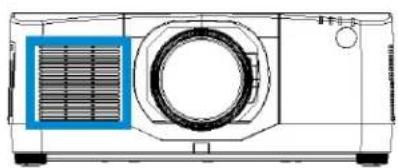

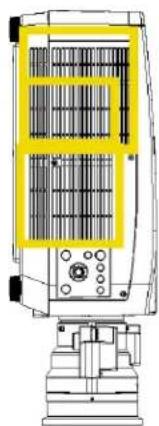

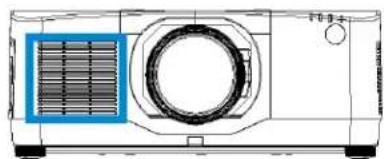

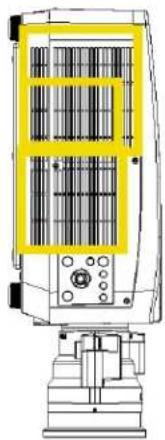

Airflow

NP-PA1505UL

Air volume

Front view of a server rack with blue ventilation ducts and control panel (no visible text or labels)

Technical line drawing of a mechanical device with yellow safety frame and control panel (no text or symbols)

DEN NPS42L

Technical line drawing of a mechanical device with a yellow label and internal components (no readable text or symbols)

Technical line drawing of a mechanical device with a circular component and a blue mesh grille (no text or symbols)

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

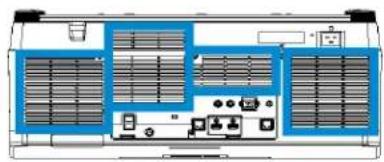

Airflow

NP-PA1705UL

Air volume

Front view of a server rack with blue and gray ventilation grilles (no visible text or labels)

Technical line drawing of a mechanical device with grid and mounting base (no text or symbols)

DEN NPS4L

Technical line drawing of a mechanical device with a yellow highlighted component (no text or symbols)

Technical line drawing of a projector with a circular housing and a blue vent, no text or symbols present

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

Regulatory Labels

Label 1 Laser explanatory label

CLASS 1 LASER PRODUCT APPAREL À LASER DE CLASSE 1 LASERPRODUKT DER KLASSE 1 JAZAPHOE KRISTEBE I KLACCA OTACHOCTH 중단 1 제어로 제동 第一級電控品品 IEC 60825-1:2014 CONSUMER LASER PRODUCT APPAREL À LASER GRAND PUBLIC VERBHAUCHEN-LASERPRODUCT EN 60825-1:2014 - A11.2021 EN 50689:2021 CEC 1-1-2018 JIS C 5802-2018 2439:822

This product complies with EN 50689:2021 except using the lens of NP56ZL

Label 2 Laser explanatory label for USA

Label 1 Label 3 Label 2

Label 4 Laser aperture label

NEC Label 4

Label 3 Lens replacement caution label

PA1705UL-W/PA1705UL-B

CAUTION < DO NOT STARE INTO THE BEAM : RG2 > THIS PROYECTOR MAY BECOME RG3 WHEN AN INTERCHANGEABLE LENS WITH THROW RATIO GREATER THAN 2,6 IS INSTALLED, REFER TO THE MANUAL FOR THE LENS LIST AND HAZARD DISTANCE BEFORE OPERATION. SUCH COMBINATIONS OF PROYECTOR AND LENS ARE INTENDED FOR PROFESSIONAL USE ONLY, AND ARE NOT INTENDED FOR CONSUMER USE.

ATTENTION < NE PAS REGARDER DANS LE FAISCEAU : RG2 > CE PROIECTEUR PEUT DEVENIR RG3 LORSOLUM OBJECTIF INTERCHANGEA AVEC UN RAPPORT DE PROJECTION SUPERIEUR A 2,6 EST INSTALLE, AVANT UTILISATION, REPORTEZAVIDUS AU MANUEL FOUR TROUVER LA USTE DES OBJECTIFS ET LA DISTANCE DE DANGER, CES COMBINATIONS DE PROIECTEUR ET OBJECTIF SONT DESTINÉES À UN USAGE PROFESSIONNEL UNIQUEMENT ET NE SONT PAS DESTINÉES À UNE UTILISATION GRAND PUBLIC.

VORSICHT DIESER PROJEKTOR KANN IN DE GRUPPE RIGT FALLEN, WENN EIN AUSTAUSCHBARES OBJEKIVM WITH EINEM BIDABSTANDSVIRHALNTIS VON MEHR ALS 2.6 INSTALBERT WIRD, BEACHTEN SIE VOR DEM BETRIEB DAS HANDBUCH FOR EINE USTE DER OBJEKTE UND UN TOG GEFAHRENBEREICHEN, SOLCHE KOMINATIONEN AUS PROJEKTOR UND OBJEKTV NIND NUR FÜR DEN PROFESSIONELLEN EINSATZ UND NICHT FÜR ALLGEMEINE VERBRAUCHER BESTIMMT.

PA1505UL & PA1705UL Installation Guide Rev 1.0

Desktop and Ceiling Mount

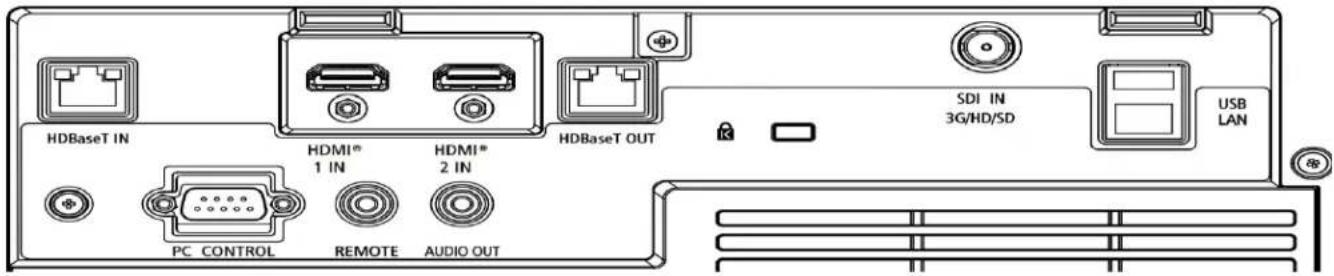

Input Panel

HDBaseT IN HDMI® 1 IN HDMI® 2 IN HDBaseT OUT SDI IN 3G/HD/SD USB LAN PC CONTROL REMOTE AUDIO OUT

PC Control Codes

Function	Code Data
POWER ON	02H	00H	00H	00H	00H	02H
POWER OFF	02H	01H	00H	00H	00H	03H
INPUT SELECT HDMI1	02H	03H	00H	00H	02H	01H	A1H	A9H
INPUT SELECT HDMI2	02H	03H	00H	00H	02H	01H	A2H	AAH
INPUT SELECT HDBaseT	02H	03H	00H	00H	02H	01H	BFH	C7H
PICTURE MUTE ON	02H	10H	00H	00H	00H	12H
PICTURE MUTE OFF	02H	11H	00H	00H	00H	13H
SOUND MUTE ON	02H	12H	00H	00H	00H	14H
SOUND MUTE OFF	02H	13H	00H	00H	00H	15H
ON SCREEN MUTE ON	02H	14H	00H	00H	00H	16H
ON SCREEN MUTE OFF	02H	15H	00H	00H	00H	17H
AUTO ADJUST	02H	0FH	00H	00H	02H	05H	00H	18H

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20', it is recommended changing to 9600 bps in setup menu)

Data Length: 8 bits

Parity: No Parity

Stop Bit: 1 bit

X on/off: None

Communications: Full duplex

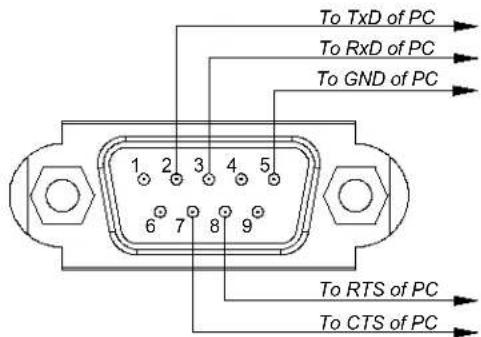

PC Control Connector (D-Sub 9P)

To TxD of PC To RxD of PC To GND of PC 1 2 3 4 5 6 7 8 9 To RTS of PC To CTS of PC

NOTE 1: Pins 1, 4, 6, and 9 are used inside the projector.
NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
NOTE 3: Jumper "Request to Send" and "Clear to Send" together on both ends of the cable to simplify cable connection.
