Fantasy KIT - Keyboard NGS - Free user manual and instructions

Product Type	Wireless Keyboard and Mouse Kit
Brand	NGS
Model	Fantasy KIT
Connectivity	2.4 GHz Wireless, Bluetooth 1, Bluetooth 2
Power Source	Rechargeable via USB Type-C port
Battery	Rechargeable, 12-month warranty
Operating Frequency	2402-2480 MHz
Maximum RF Power	0 dB
Number of Keys (Keyboard)	Includes 12 multimedia keys
Key Mechanism (Keyboard)	Scissor mechanism, silent keys
Mouse Resolution	1600 DPI
Mouse Buttons	Scroll wheel + 5 buttons, silent buttons
LED Indicators	Yes, for battery status and connection
On/Off Switch	Yes, on keyboard and mouse
Included Accessories	USB nano receiver, Type-C charging cable
Maintenance and Cleaning	Clean with a soft, dry cloth; do not use abrasive products
Safety	Compliant with European directives (RoHS, WEEE); do not expose to heat or water
Spare Parts and Repairability	Non-user-replaceable battery; for repair, contact an authorized service center
General Information	Rechargeable multimode keyboard and mouse kit for computer

Frequently Asked Questions - Fantasy KIT NGS

How to connect the keyboard and mouse to the computer?

Insert the USB nano receiver into a USB port on the computer. Turn on the keyboard and mouse. Press the mode button until the LED lights up red, then press the Fn+2.4 GHz combination for wireless mode.

How to switch to Bluetooth mode?

Press the mode button to switch between BT1 and BT2 channels. The LED will indicate the active mode. Then pair the device from your computer's Bluetooth settings.

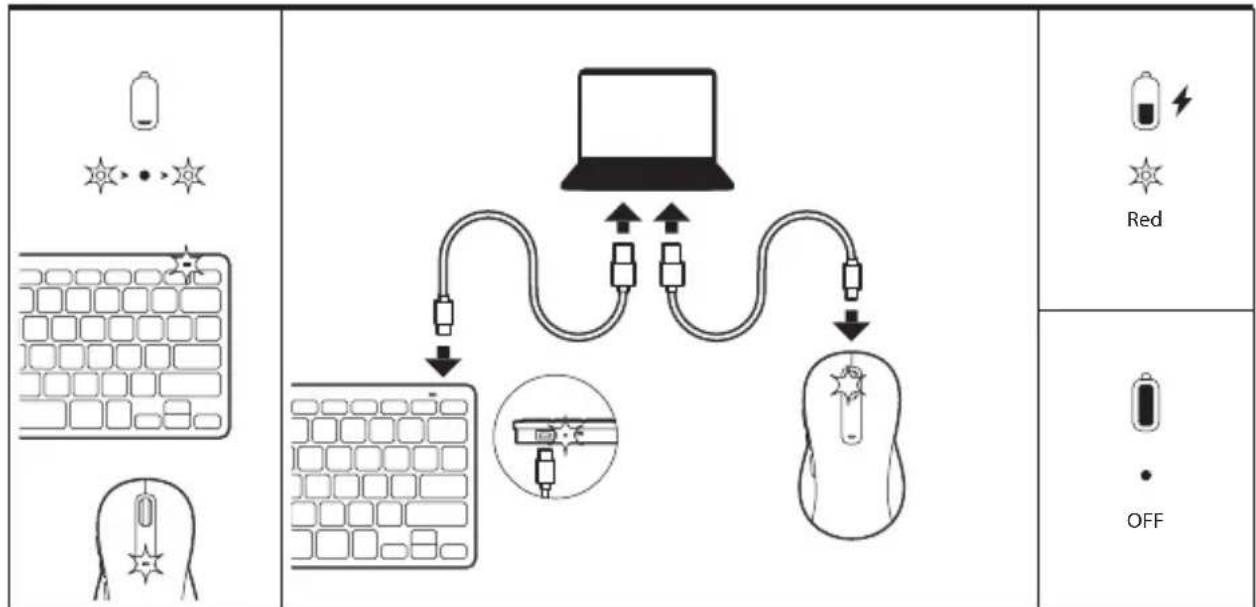

How to recharge the keyboard and mouse?

Use the supplied USB Type-C cable. Plug it into the device's charging port and into a USB charger. The LED may indicate charging. Allow a few hours for a full charge.

What is the battery life?

Battery life depends on usage. Under normal use, it can last several days. The battery is guaranteed for 12 months.

What to do if the mouse stops responding?

Check that the mouse is on and the USB receiver is properly connected. Try changing the battery or recharging the battery. You can also press the DPI button to adjust sensitivity.

How to clean the keyboard and mouse?

Use a soft, dry cloth. Avoid liquids and abrasive products. For deep cleaning, remove the batteries if possible.

Does the keyboard have multimedia keys?

Yes, the keyboard has 12 multimedia keys integrated to control playback, volume, etc.

Can I use the keyboard with a tablet or smartphone?

Yes, in Bluetooth mode, you can connect the keyboard to a compatible tablet or smartphone.

How to know if the battery is low?

The mouse has a low battery indicator that lights up. The keyboard may also have a blinking LED when the battery is low.

How to dispose of the product at end of life?

Do not throw the device in household waste. Drop it off at a WEEE collection point (Waste Electrical and Electronic Equipment) or at a participating store. Follow local recycling guidelines.

USER MANUAL Fantasy KIT NGS

Turn on the mouse and keyboard. Connect the nano receiver to a USB port on the computer.

Press the mode button until the LED lights up in red.Press the Fn+2.4GHz button.

ENGLISH

BT1 / BT2

Turn on the mouse and keyboard.	Press the mode button until the LED lights up in blue (BT1) / green (BT2).	NGS FANTASY KIT
	Keep the Fn+BT1 / Fn+BT2 button pressed for 3 seconds.

ENGLISH

NGS

ENGLISH

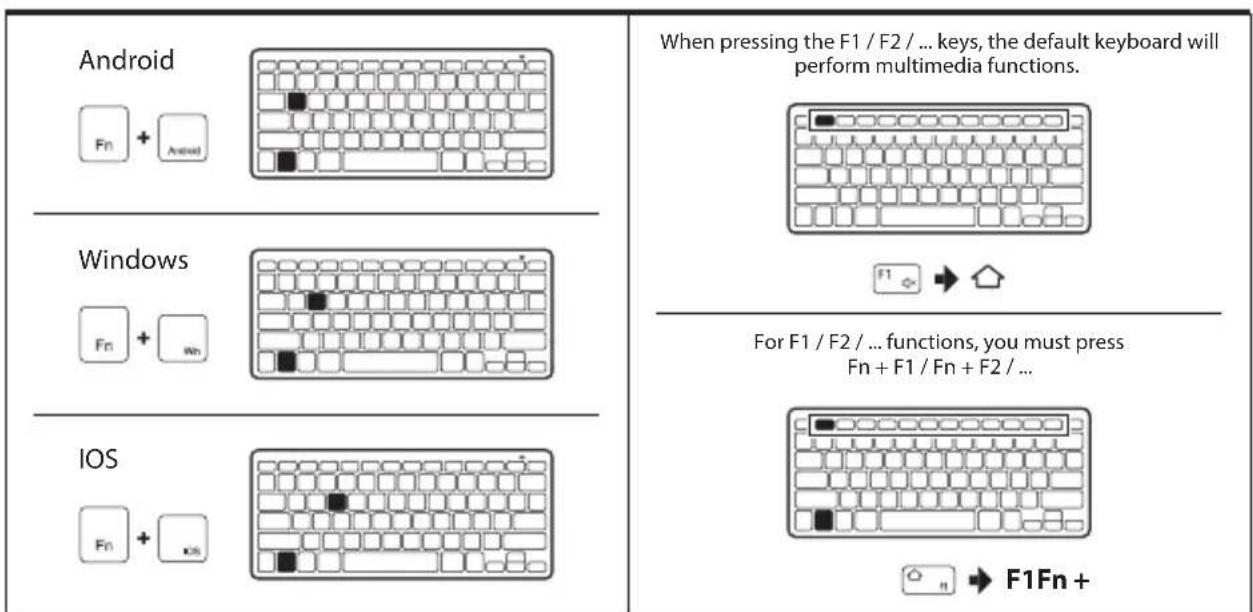

FN

ENGLISH

NGS

TECHNICAL SPECIFICATIONS

KEYBOARD

• Multimode
• Rechargeable
  • 12 Multimedia keys
  • Keycaps with scissor mechanism
• Silent keys
• ON/OFF switch

MOUSE

• Multimode
• Rechargeable
  • 1600 DPI
• Scroll wheel + 5 buttons
• Silent buttons
• ON/OFF switch
• Low power indicator

• Frequency range: 2402-2480MHz

• Maximum RF output: 0db

Battery warranty

The battery is a consumer product, and as such it is under warranty for 12 months.

ENGLISH

SECURITY

IMPORTANT SAFETY INSTRUCTIONS

For all products:

1. Read and follow the instructions.
2. Keep the Instructions in a safe place.
3. Observe the warnings.
4. Use only the accessories and auxiliary products specified in the product.
5. Take care when transporting the product to prevent damage.
6. Do not expose batteries to excessive heat such as direct sunlight or fire, as well as moisture in the area where you intend to use and/or store it.
7. This device is intended for use only with the power supply and/or charging cable provided by the manufacturer.

This device complies with the European Union requirements (1999/5/EC) related to the limitation of the general public's exposure to electromagnetic fields concerning health protection.

The limits are part of broad recommendations for the protection of the general public. These recommendations have been developed and verified by independent scientific organizations through frequent and thorough assessments of scientific studies. The measurement unit for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the average SAR limit is 20 W/kg over 10 grams of body tissue.

Lurbe Grup S.A. complies with the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

In the case of body-worn use, this product has been tested and complies with the ICNIRP exposure guidelines and the European standard EN 62479 and EN 50663. The SAR value has been measured with the device positioned 1.0 cm away from the body while transmitting at the highest certified output power level across all frequency bands of the mobile device.

WEEE Notice: The Waste Electrical and Electronic Equipment (WEEE) Directive, which came into force as European law on 14/02/2014, addresses the treatment of electronic equipment at the end of its life cycle. Priority is given to reuse, recycling, and other forms of recovery of such waste to minimize disposal. The WEEE logo is the one found in this section.

This product should not be disposed of with household waste. It is your responsibility to properly dispose of all waste from your electrical equipment, and for this purpose, you must take them to the designated collection point for the recycling of such hazardous waste. The separate collection and proper recovery of waste from your electrical and electronic equipment at the time of disposal allows us to help preserve natural resources and ensure the safety of human health and the environment. For more information on disposal, recovery, and collection points for electrical and electronic equipment waste, please contact your local city center, domestic waste disposal service, the store where you purchased the equipment, or the equipment manufacturer.

ENGLISH

Compliance with RoHS requirements.

This product complies with Directive 2011/65/EU and its amendment (EU) 2015/863 of the European Parliament and the Council of June 4, 2015, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

For products that include batteries.

EU Directive 2013/56/EU on batteries.

The new Directive 2013/56/EU on batteries and accumulators, which replaces the previous directive, came into force on 01/07/2015. The directive applies to all types of batteries and accumulators (AA, AAA, button cells, lead-acid, rechargeable), including those incorporated into appliances, except for military, medical, and power tool applications. The directive sets standards for the collection, treatment, recycling, and disposal of batteries and aims to prohibit certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.

User instructions for extraction, recycling, and disposal of used batteries.

To remove the batteries from the equipment or remote control, reverse the battery insertion process described in the owner's manual.

In the case of products with built-in batteries that last for the entire product's lifespan, it is not possible for the user to remove the batteries. In these cases, recycling or recovery centers handle the dismantling of the product and the extraction of the batteries. If, for any reason, it is necessary to replace one of these batteries, the procedure must be carried out at authorized service centers.

In the European Union and other locations, it is prohibited to dispose of batteries with household waste. All batteries must be disposed of in an environmentally friendly manner. Please contact local waste management officials for information on safe collection, recycling, and disposal of used batteries.

WARNING: Risk of explosion if the battery is replaced Incorrectly. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short-circuit external contacts, expose to temperatures above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries.

The symbol for separate collection of all batteries and accumulators is shown in this section.

Batteries, accumulators, and button cells containing more than 0.0005% mercury, more than 0.002% cadmium, or more than 0.004% lead will be marked with the relevant chemical symbol: Hg, Cd, or Pb, respectively. Refer to the symbol shown below:

Hg Cd Pb

FRANÇAIS

BOUTONS DE COMMANDE
    note1["•☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆☆"]
    note2["•Aus"] --> note3["•Aus"] --> note4["•Aus"] --> note5["•Aus"] --> note6["•Aus"] --> note7["•Aus"] --> note8["•Aus"] --> note9["•Aus"] --> note10["•Aus"] --> note11["•Aus"] --> note12["•Aus"] --> note13["•Aus"] --> note14["•Aus"] --> note15["•Aus"] --> note16["•Aus"] --> note17["•Aus"] --> note18["•Aus"] --> note19["•Aus"] --> note20["•Aus"] --> note21["•Aus"] --> note22["•Aus"] --> note23["•Aus"] --> note24["•Aus"] --> note25["•Aus"] --> note26["•Aus"] --> note27["•Aus"] --> note28["•Aus"] --> note29["•Aus"] --> note30["•Aus"] --> note31["•Aus"] --> note32["•Aus"] --> note33["•Aus"] --> note34["•Aus"] --> note35["•Aus"] --> note36["•Aus"] --> note37["•Aus"] --> note38["•Aus"] --> note39["•Aus"] --> note40["•Aus"] --> note41["•Aus"] --> note42["•Aus"] --> note43["•Aus"] --> note44["•Aus"] --> note45["•Aus"] --> note46["•Aus"] --> note47["•Aus"] --> note48["•Aus"] --> note49["•Aus"] --> note50["•Aus"] --> note51["•Aus"] --> note52["•Aus"] --> note53["•Aus"] --> note54["•Aus"] --> note55["•Aus"] --> note56["•Aus"] --> note57["•Aus"] --> note58["•Aus"] --> note59["•Aus"] --> note60["•Aus"] --> note61["•Aus"] --> note62["•Aus"] --> note63["•Aus"] --> note64["•Aus"] --> note65["•Aus"] --> note66["•Aus"] --> note67["•Aus"] --> note68["•Aus"] --> note69["•Aus"] --> note70["•Aus"] --> note71["•Aus"] --> note72["•Aus"] --> note73["•Aus"] --> note74["•Aus"] --> note75["•Aus"] --> note76["•Aus"] --> note77["•Aus"] --> note78["•Aus"] --> note79["•Aus"] --> note80["•Aus"] --> note81["•Aus"] --> note82["•Aus"] --> note83["•Aus"] --> note84["•Aus"] --> note85["•Aus"] --> note86["•Aus"] --> note87["•Aus"] --> note88["•Aus"] --> note89["•Aus"] --> note90["•Aus"] --> note91["•Aus"] --> note92["•Aus"] --> note93["•Aus"] --> note94["•Aus"] --> note95["•Aus"] --> note96["•Aus"] --> note97["•Aus"] --> note98["•Aus"] --> note99["•Aus"] --> note100["•Aus"]

DEUTSCH

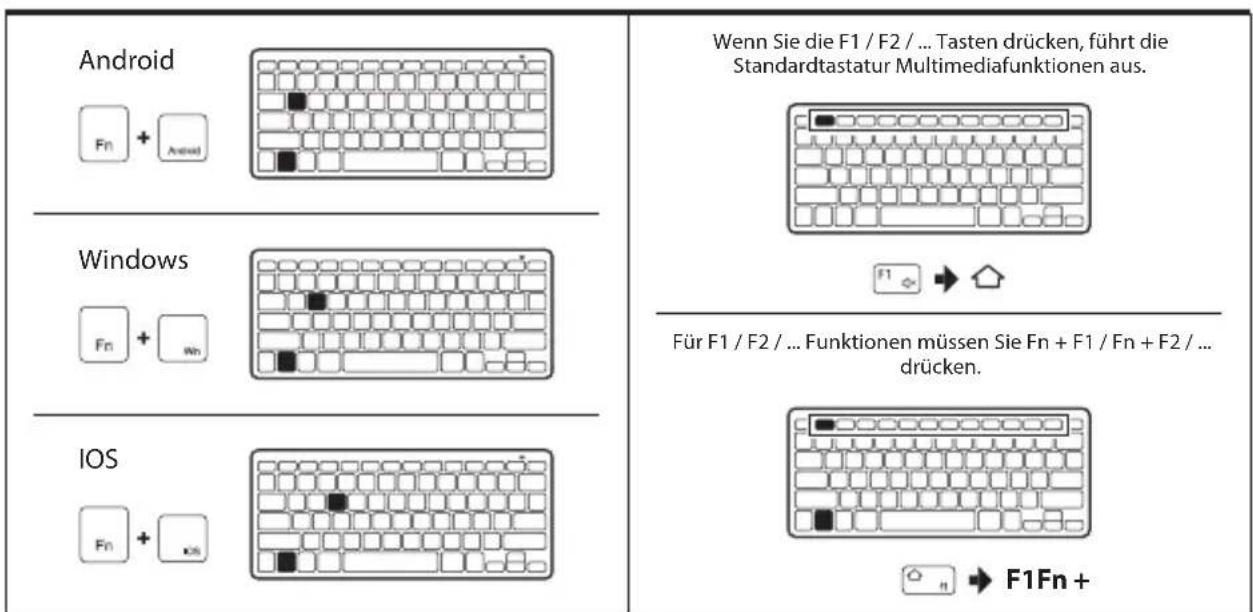

FN

DEUTSCH

NGS

TECNISCHE SPEZIFIKATIONEN

TASTATUR

EU DECLARATION OF CONFORMITY

DECLARACIÓN UE DE CONFORMIDAD DECLARATION "UE" DE CONFORMITÉ DECLARAÇÃO DE CONFORMIDADE DA UE DICHIARAZIONE DI CONFORMITÀ DELL'UE EU-KONFORMITÄTSERKLÄRUNG

The undersigned, on behalf of the manufacturer:

NGS

LURBE GRUP, S.A.

Calle Portuetxe, 27

20018 - San Sebastián, Guipúzcoa (Spain)

Declares that the design and construction of the PRODUCT/

This declaration of conformity is issued the sole responsibility of the manufacturer.

Complies with the relevant Union harmonisation legislation / Cumple con la legislación de armonización de la Unión pertinente / Conforme à la législation d'harmonisation de l'Union applicable / Atende à legislação de harmonização da União pertinente / É conforme alla legislazione di armonizzazione dell'Unione pertinente / Entspricht der einschlägigen Unionsharmonisierungsgesetzgebung /

ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU

RADIO EQUIPMENT DIRECTIVE 2014/53/EU

ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863

References to the relevant harmonised standards used or references to the other technical specifications / Referencias a las normas armonizadas pertinentes utilizadas o referencias a otras especificaciones técnicas / References aux normes harmonisées pertinentes utilisées ou références aux autres spécifications techniques / Referências às normas harmonizadas relevantes utilizadas ou referências a outras especificações técnicas / Riferimenti alle norme armonizzate pertinenti utilizzate o riferimenti ad altre specifiche tecniche / Verweise auf die relevanten harmonisierten Normen oder Verweise auf andere technische Spezifikationen /

IEC 62321-3-1: 2013

IEC 62321-4: 2013 AMD 1: 2017

IEC 62321-5: 2013

IEC 62321-6: 2015

IEC 62321-7-1:2015

IEC 62321-7-2: 2017

IEC 62321-8: 2017

IEC 62368-1:2020+A11:2020

ETSI EN 300 328 V2.2.2

ETSI EN 300 440 V2.2.1

ETSI EN 301 489-1 V2.2.3

DRAFT ETSI EN 301 489-3 V2.1.2

ETSI EN 301 489-17 V3.2.4

EN 55032: 2015 + A11: 2020

EN 55035: 2017 + A11: 2020

EN 62479: 2010

EN 50663: 2017

Date of issue of this declaration of conformity: 10/05/2024

SIGNATURE

NESTOR ALZUGARAY

PRODUCT MANAGER

NGS®
