USER MANUAL Magic KIT NGS

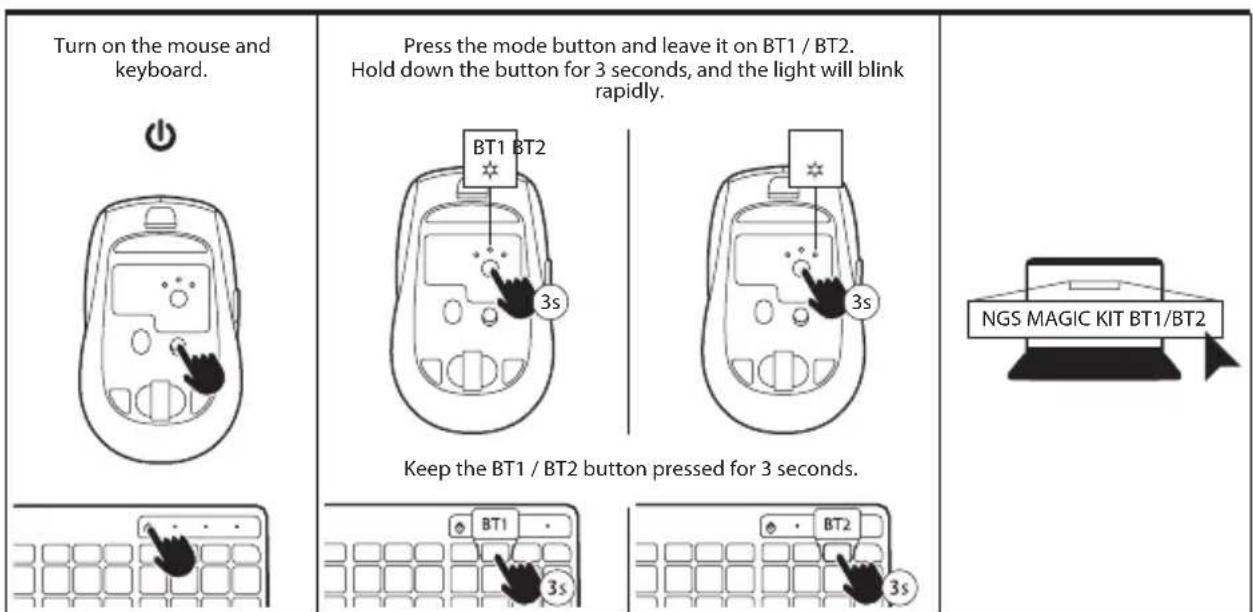

Turn on the mouse and keyboard. Connect the nano receiver to a USB port on the computer.
Press the mode button and leave it on 2.4GHz.
Press the 2.4GHz button.
ENGLISH

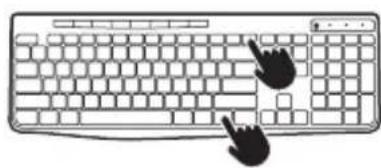

BT1/BT2
ENGLISH
NGS
ENGLISH
BT1/BT2

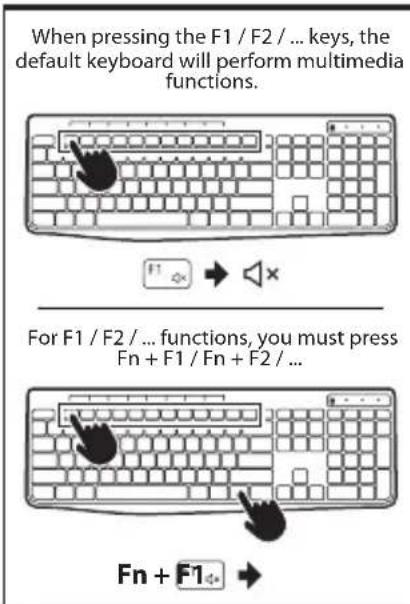

To switch the function mode, press ...

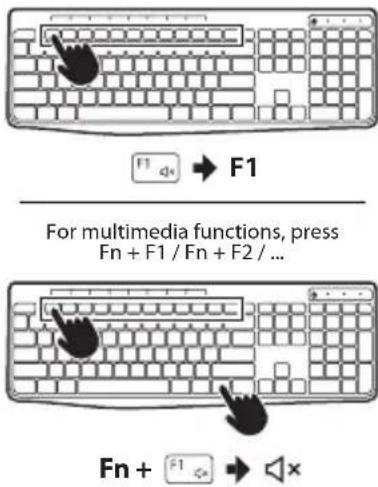

When pressing the F1/F2/.. keys, the default keyboard will perform F1/F2/... functions.
ENGLISH
TECHNICAL SPECIFICATIONS
KEYBOARD
- Multimode
Rechargeable - 8 + 12 multimedia keys
- Slim keys
- Silent keys
ON/OFF switch
MOUSE
- Multimode
Rechargeable
800/1200/1600 DPI - Scroll wheel + 5 buttons
- Silent buttons
ON/OFF switch - Low power indicator
Frequency range: 2408~2474 MHz
Maximum RF output: 0dBm (2mW)
Battery warranty
The battery is a consumer product, and as such it is under warranty for 12 months.
ENGLISH
SECURITY
IMPORTANT SAFETY INSTRUCTIONS
For all products:
- Read and follow the Instructions.
- Keep the Instructions in a safe place.
- Observe the warnings.
- Use only the accessories and auxiliary products specified in the product.
- Take care when transporting the product to prevent damage.
- Do not expose batteries to excessive heat such as direct sunlight or fire, as well as moisture in the area where you intend to use and/or store it.
- This device is intended for use only with the power supply and/or charging cable provided by the manufacturer.
This device complies with the European Union requirements (1999/5/EC) related to the limitation of the general public's exposure to electromagnetic fields concerning health protection.
The limits are part of broad recommendations for the protection of the general public. These recommendations have been developed and verified by independent scientific organizations through frequent and thorough assessments of scientific studies. The measurement unit for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the average SAR limit is 20W / kg over 10 grams of body tissue.
Lurbe Grup S.A. complies with the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).
In the case of body worn use, this product has been tested and complies with the ICNIRP exposure guidelines and the European standard EN 62479 and EN 50663. The SAR value has been measured with the device positioned 1.0cm away from the body while transmitting at the highest certified output power level across all frequency bands of the mobile device.
WEEE Notice: The Waste Electrical and Electronic Equipment (WEEE) Directive, which came into force as European law on 14/02/2014, addresses the treatment of electronic equipment at the end of its life cycle. Priority is given to reuse, recycling, and other forms of recovery of such waste to minimize disposal. The WEEE logo is the one found in this section.
This product should not be disposed of with household waste. It is your responsibility to properly dispose of all waste from your electrical equipment, and for this purpose, you must take them to the designated collection point for the recycling of such hazardous waste. The separate collection and proper recovery of waste from your electrical and electronic equipment at the time of disposal allows us to help preserve natural resources and ensure the safety of human health and the environment. For more information on disposal, recovery, and collection points for electrical and electronic equipment waste, please contact your local city center, domestic waste disposal service, the store where you purchased the equipment, or the equipment manufacturer.
ENGLISH
Compliance with RoHS requirements.
This product complies with Directive 2011/65/EU and its amendment (EU) 2015/863 of the European Parliament and the Council of June 4, 2015, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
For products that include batteries.
EU Directive 2013/56/EU on batteries.
The new Directive 2013/56/EU on batteries and accumulators, which replaces the previous directive, came into force on 01/07/2015. The directive applies to all types of batteries and accumulators (AA, AAA, button cells, lead-acid, rechargeable), including those incorporated into appliances, except for military, medical, and power tool applications. The directive sets standards for the collection, treatment, recycling, and disposal of batteries and aims to prohibit certain hazardous substances and improve the environmental performance of batteries and all operators in the supply chain.
User instructions for extraction, recycling, and disposal of used batteries.
To remove the batteries from the equipment or remote control, reverse the battery insertion process described in the owner's manual.
In the case of products with built-in batteries that last for the entire product's lifespan, it is not possible for the user to remove the batteries. In these cases, recycling or recovery centers handle the dismantling of the product and the extraction of the batteries. If, for any reason, it is necessary to replace one of these batteries, the procedure must be carried out at authorized service centers.
In the European Union and other locations, it is prohibited to dispose of batteries with household waste. All batteries must be disposed of in an environmentally friendly manner. Please contact local waste management officials for information on safe collection, recycling, and disposal of used batteries.
WARNING: Risk of explosion If the battery is replaced Incorrectly. To reduce the risk of fire or burns, do not disassemble, crush, puncture, short-circuit external contacts, expose to temperatures above 60^ (140°F), or dispose of in fire or water. Replace only with specified batteries.
The symbol for separate collection of all batteries and accumulators is shown in this section.
Batteries, accumulators, and button cells containing more than 0.0005% mercury, more than 0.002% cadmium, or more than 0.004% lead will be marked with the relevant chemical symbol: Hg, Cd, or Pb, respectively. Refer to the symbol shown below:
FRANÇAIS
BOUTONS DE COMMANDE
Uuoppwn e thv odyia RoHS.
Auto to pioovoumpovvetai me Tnv Odyla 2011/65/EE kai Tnv tponoiohni Tnc (EE) 2015/863 tou Eupmaiaikov KoiovBouliou kai Tou 2uBouliou TNC 4nc louviou 2015 via To npieipioaio TnC xPonc Emikivuvw ovuiw oNekpikc Kai Nektpovikc oukeuec.
Tia npoiovra nou npiaaavouv matapec.
Odyia 2013/56/EE TcE EY ia tnc natapeic.
Slāpāmusetongtastaturet.Koble d
en nano-mottakeren til en USBport pa datamaskinen.
Overholdelse at RoHS.
EU DECLARATION OF CONFORMITY
DECLARATION UE DE CONFORMIDAD
DECLARATION "UE" DE CONFORMITE
DECLARATION DE CONFORMIDADE DA UE
DICHIARAZIONE DI CONFORMITA DELL'UE
EU-KONFORMITÄTSERKLÄRUNG
The undersigned, on behalf of the manufacturer:
NGS.
LURBE GRUP, S.A.
Calle Portuetxe, 27
20018 - San Sebastián, Guipuzcoa (Spain)
Declaraes that the design and construction of the PRODUCT/
Declara que el diseño y fabricacion del PRODUCTO/
Declare que le dessin et construction du PRODUCTI/
Declara que o design e a construcao do PRODUCTO/
Dichiara che il design e la costruzione del PRODOTTO/
Erlaert, dass das Design und die Konstruktion des PRODUKTS/
PRODUCT: Teclado ^+ raton
MODEL: MAGIC KIT
This declaration of conformity is issued the sole responsibility of the manufacturer.
Complies with the relevant Union harmonisation legislation / Cumple con la legislacion de armonizacion de la Union pertinente / Conforma a la legislation d'harmonisation de l'Union aplicable / Atende a legislation de harmonização da Uniao pertinente / E conforme alla lawe di armonizzazione dell'Unione pertinente/ Entspricht der einschlagigen Unionsharmonisierungsgesetzgebung/
ELECTROMAGNETIC COMPATIBILITY DIRECTIVE (EMC) 2014/30/EU
RADIO EQUIPMENT DIRECTIVE 2014/53/EU
ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863
References to the relevant harmonised standards used or references to the other technical specifications / Referencias a las normas armonizadas pertinentes realizadas o referencias a另一s espécificaciones tecnicas / References aux normes harmonisées pertinentes utilisées ou références aux autres specifications techniques / Referências as normas harmonizadas relevantes realizadas ou référencias a outras espécificações tecnicas / Riferimento allenorme armonizzate pertinentiutilizzate o riferimento ad altre specifiche tecniche/Verweise auf die relevanten harmonisierten Normen oder Verweise auf andere technische Spezifikationen/
IEC 62321-3-1:2013
IEC 62321-4:2013 AMD 1:2017
IEC 62321-5:2013
IEC 62321-6:2015
IEC62321-7-1:2015
IEC62321-7-2:2017
IEC 62321-8:2017
IEC 62368-1:2020 + A11:2020
ETSI EN 300 328 V2.2.2
ETSI EN 300 440 V2.2.1
ETSI EN 301 489-1 V2.2.3
DRAFT ETSI EN 301 489-3 V2.1.2
ETSI EN 301489-17 V3.2.4
EN 55032:2015 + A11:2020
EN 55035:2017+A11:2020
EN 62479:2010
EN 50663:2017
Date of issue of this declaration of conformity:
10/05/2024
SIGNATURE
NESTOR ALZUGARAY
PRODUCT MANAGER
NGS
