USER MANUAL 301774 Aplic
Table of contents
- Deutsch .... 3
- English 7
- Français 11
- Italiano 15
- Español....19
Thank you for having chosen this aplic product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual.
1 Scope of delivery
• Digital to analog audio converter
- USB to hollow plug cable
- User manual
2 Technical specifications
| Input | • Toslink (optical)• SPDIF (coaxial) |
| Output 2x Cinch (left canal + right canal) | |
| Current supply 5V, via USB to hollow plug cable | |
| Samplingrate 32/44,1/48/96kHz | |
| Features | • Converts digital audio signals to analog signals• Noise Reduction Design minimizes interference• Full metal housing• Power LED |
3 Product details

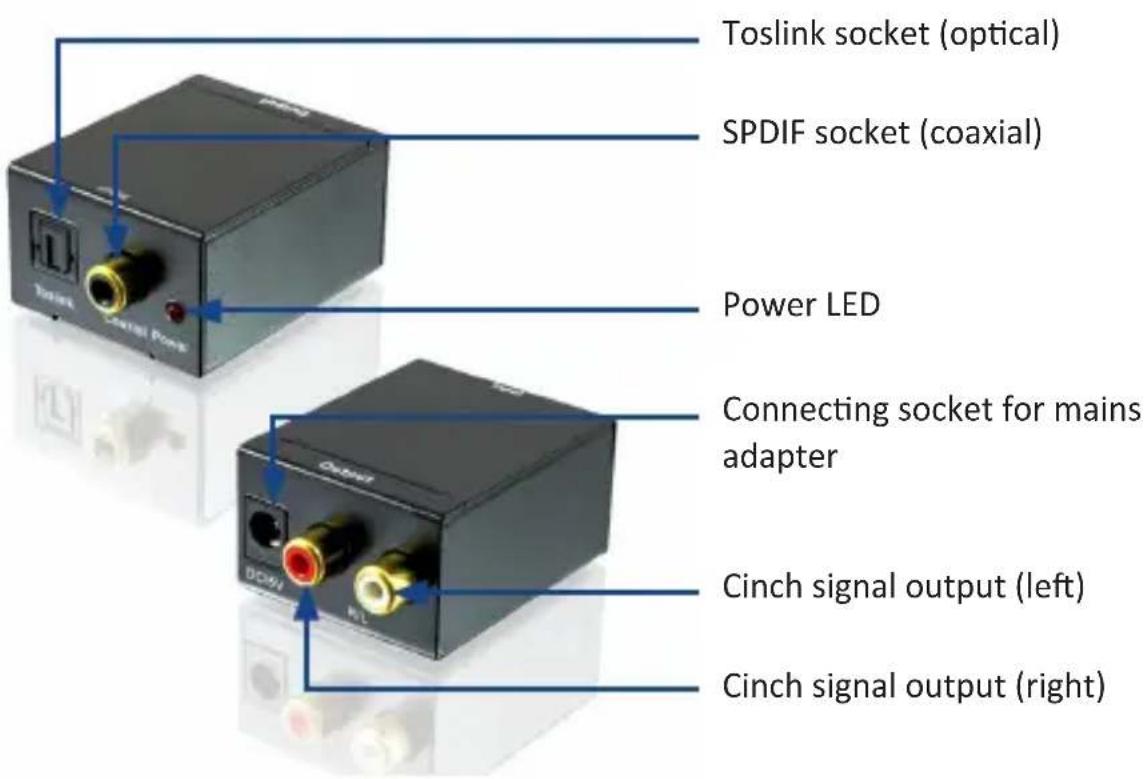

With this digital/analog audio converter you can convert digital coax or Toslink audio signals into an analog signal and transmit it via phono (rca cinch) plug to an external device (e.g. hi-fi system).
4 Getting started
At first, you have to connect your digital player to the audio converter. You can optionally use the Toslink or coaxial socket. Afterwards connect the audio converter to the signal input of your playback and recording device (e.g. hi-fi system, mixer, or line-in port on a recording device).
Finally, connect the USB to hollow plug cable to the converter and plug it with a suitable USB port. Alternatively, it is possible to use an USB power supply with an output voltage of 5V.
Note: Please pay attention of an sufficiently shielding of analog cables. External disturbances can affect significantly the sound when using poorly grounded RCA connector cables. Do not put analog audio connection cables parallelly to power cables or next to power sources and power supplies. This is especially important if you use long connecting cables.
5 Safety instructions and liability disclaimer
Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.
6 Disposal instructions
Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.
WEEE guideline: 2012/19/EU WEEE register number: DE 94495668
WD Plus GmbH, herewith declares that this product 301774/20170517SZ090 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
